WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

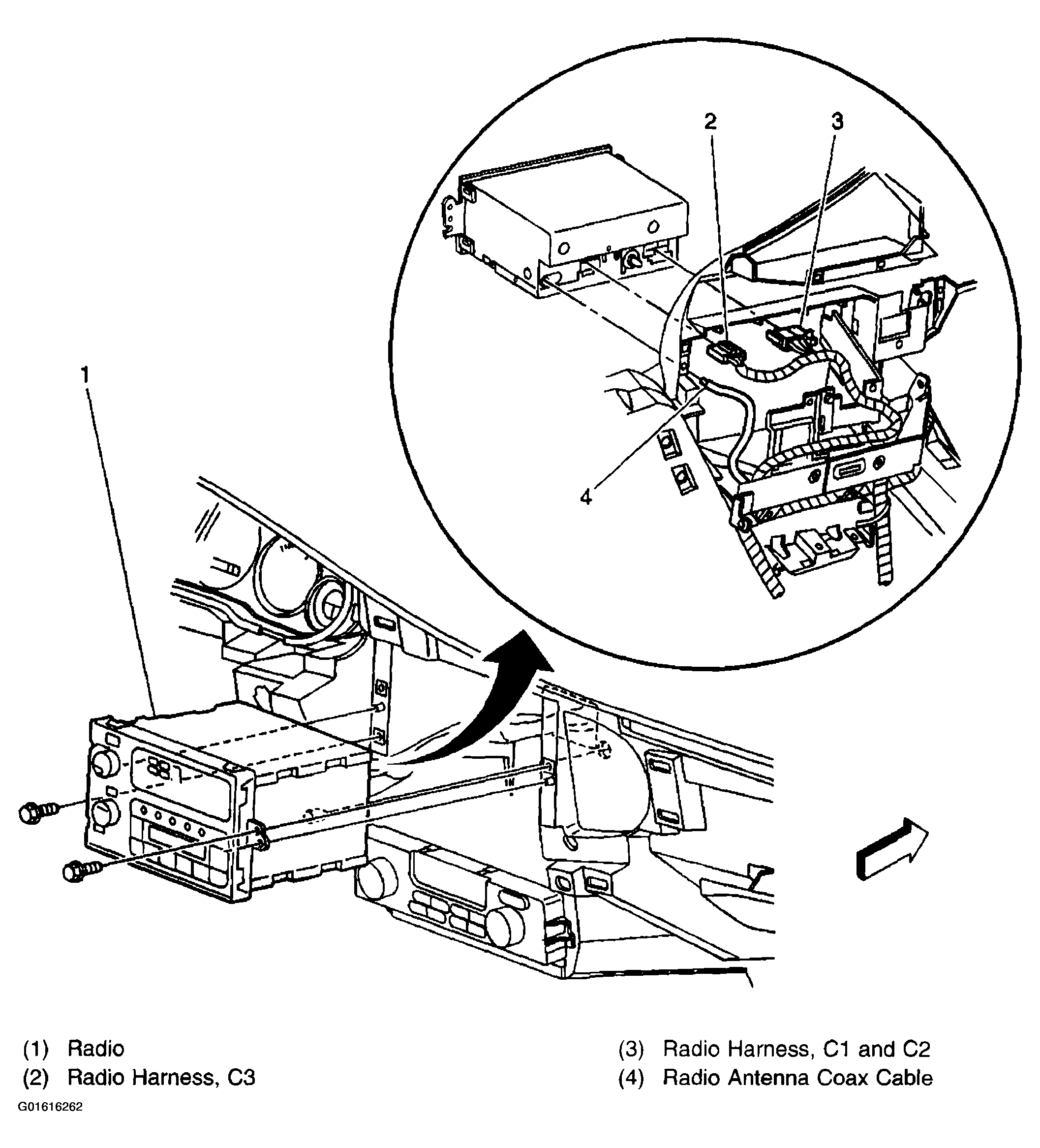

Fig 1: Center Of I/P
Courtesy of GENERAL MOTORS CORP.

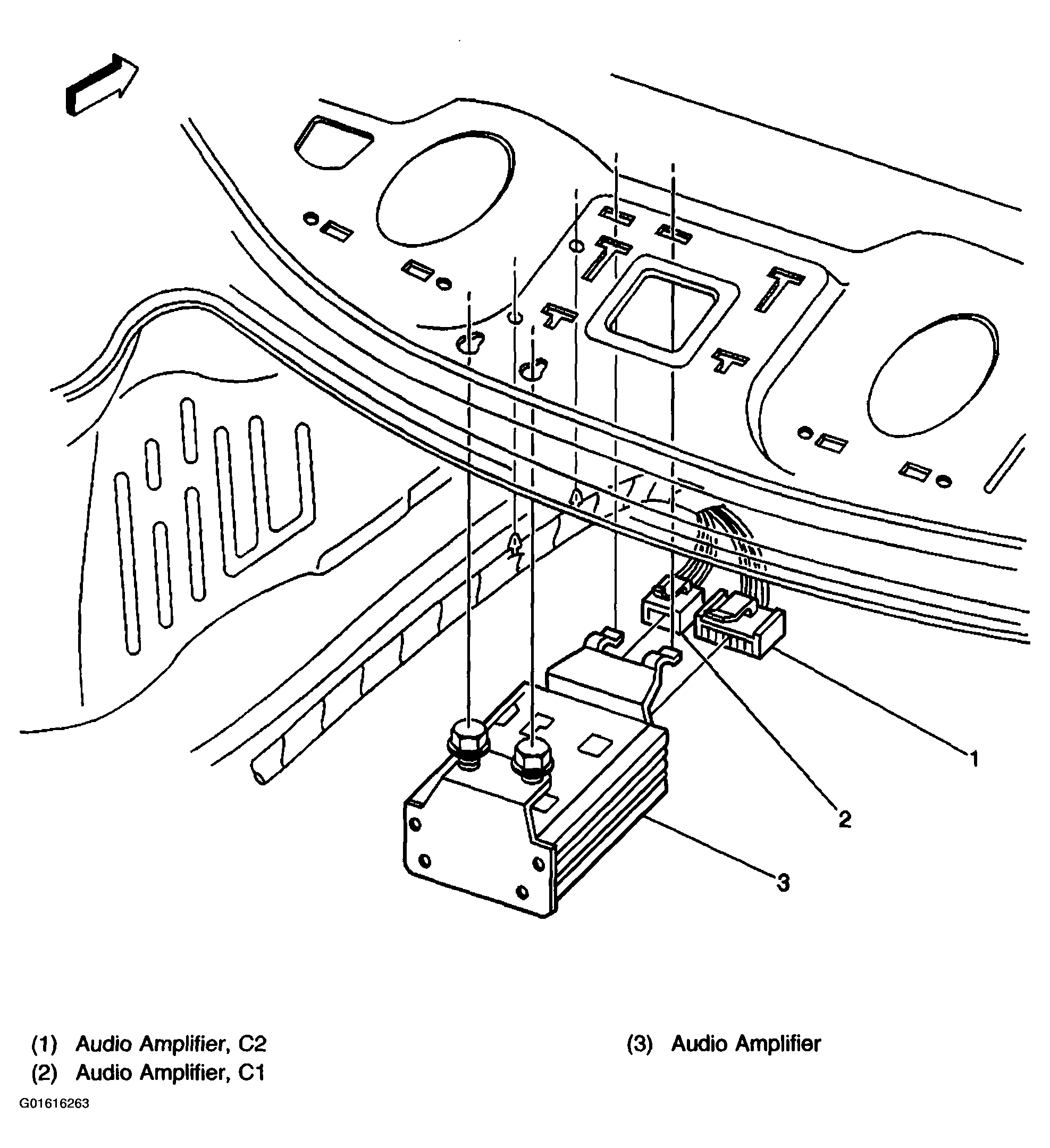

Fig 2: Below Rear Window Deck (W/U85)
Courtesy of GENERAL MOTORS CORP.

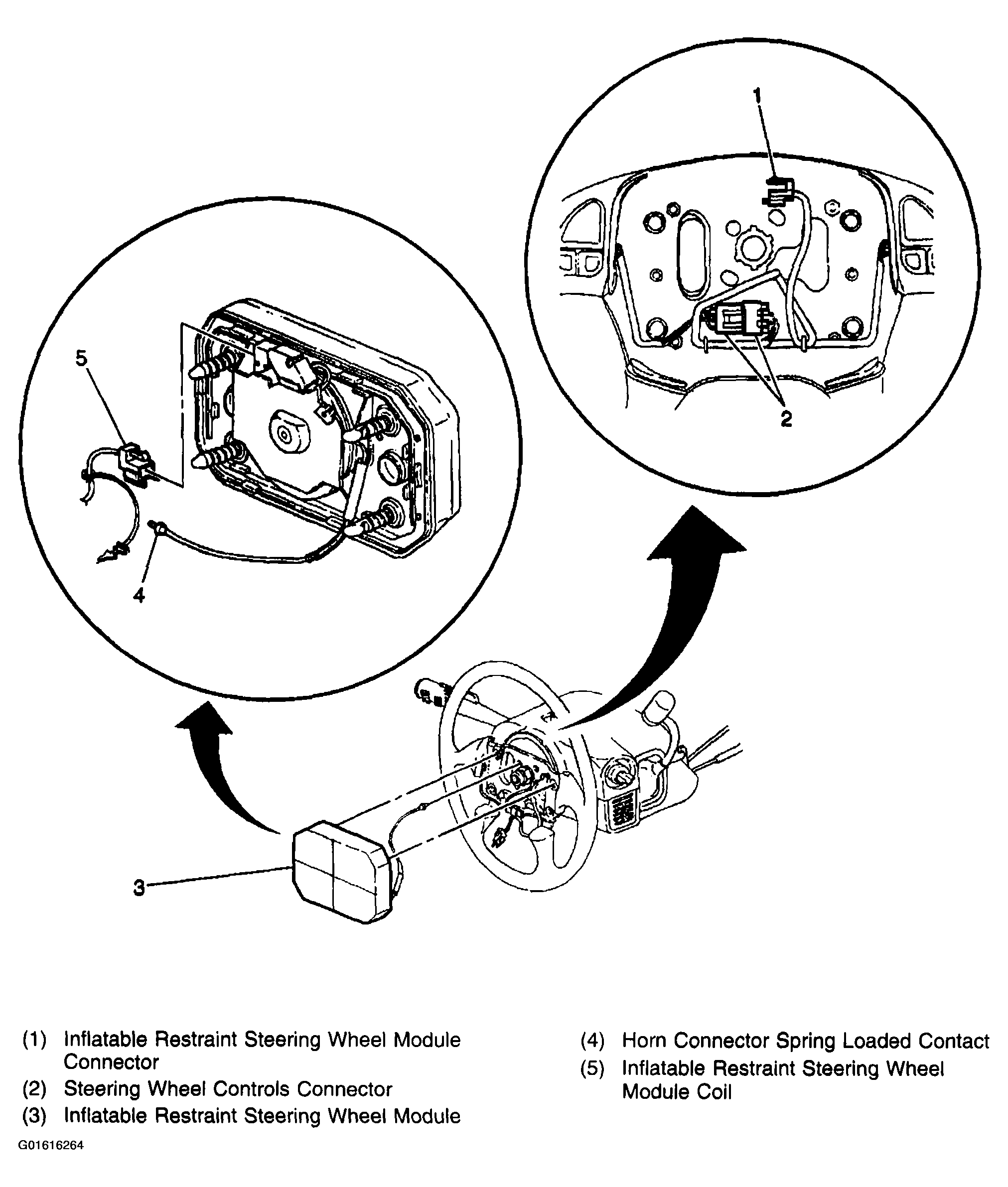

Fig 3: Front Of Steering Wheel
Courtesy of GENERAL MOTORS CORP.

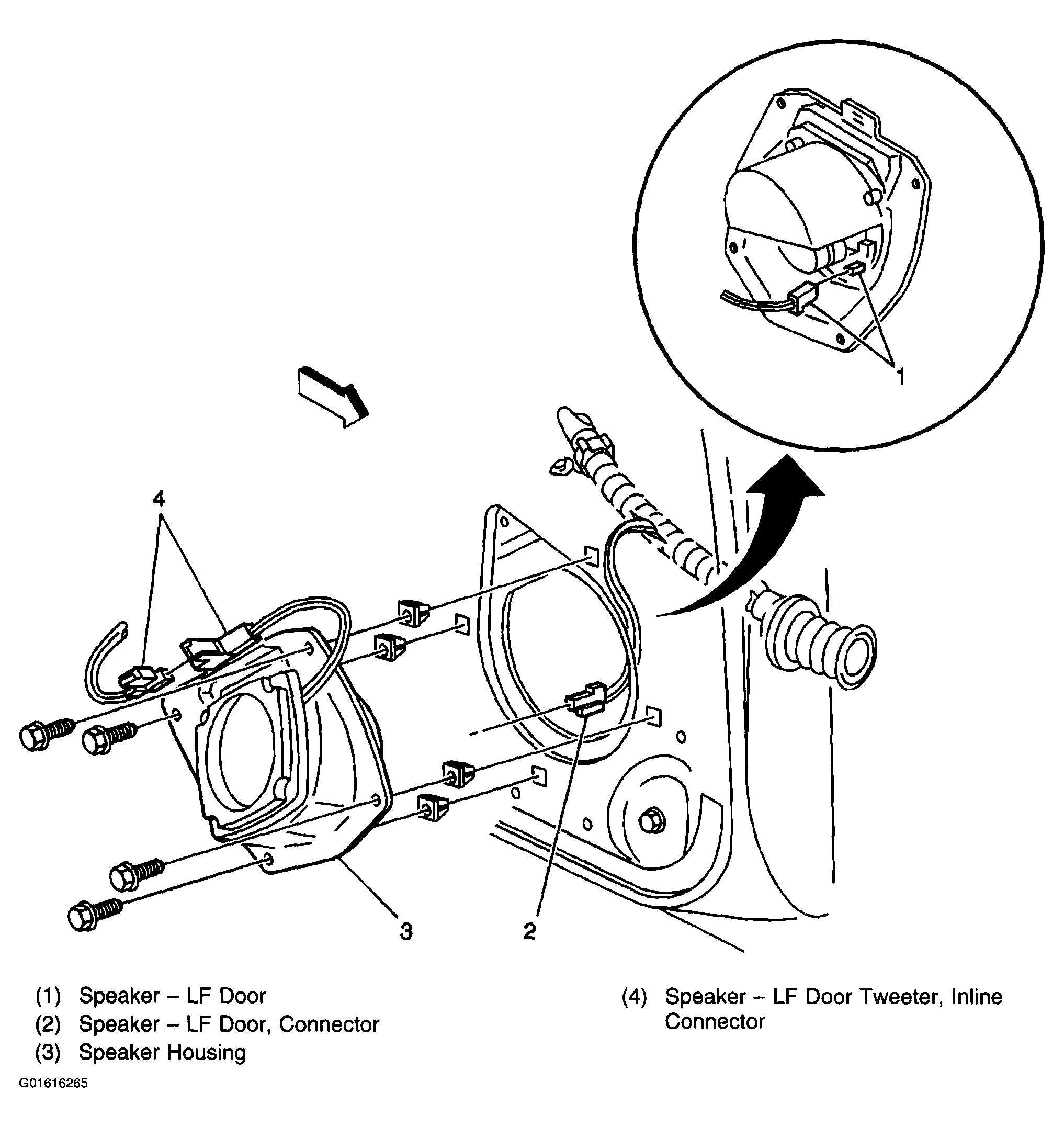

Fig 4: Left Front Door (Right Similar) (W/O U85)
Courtesy of GENERAL MOTORS CORP.

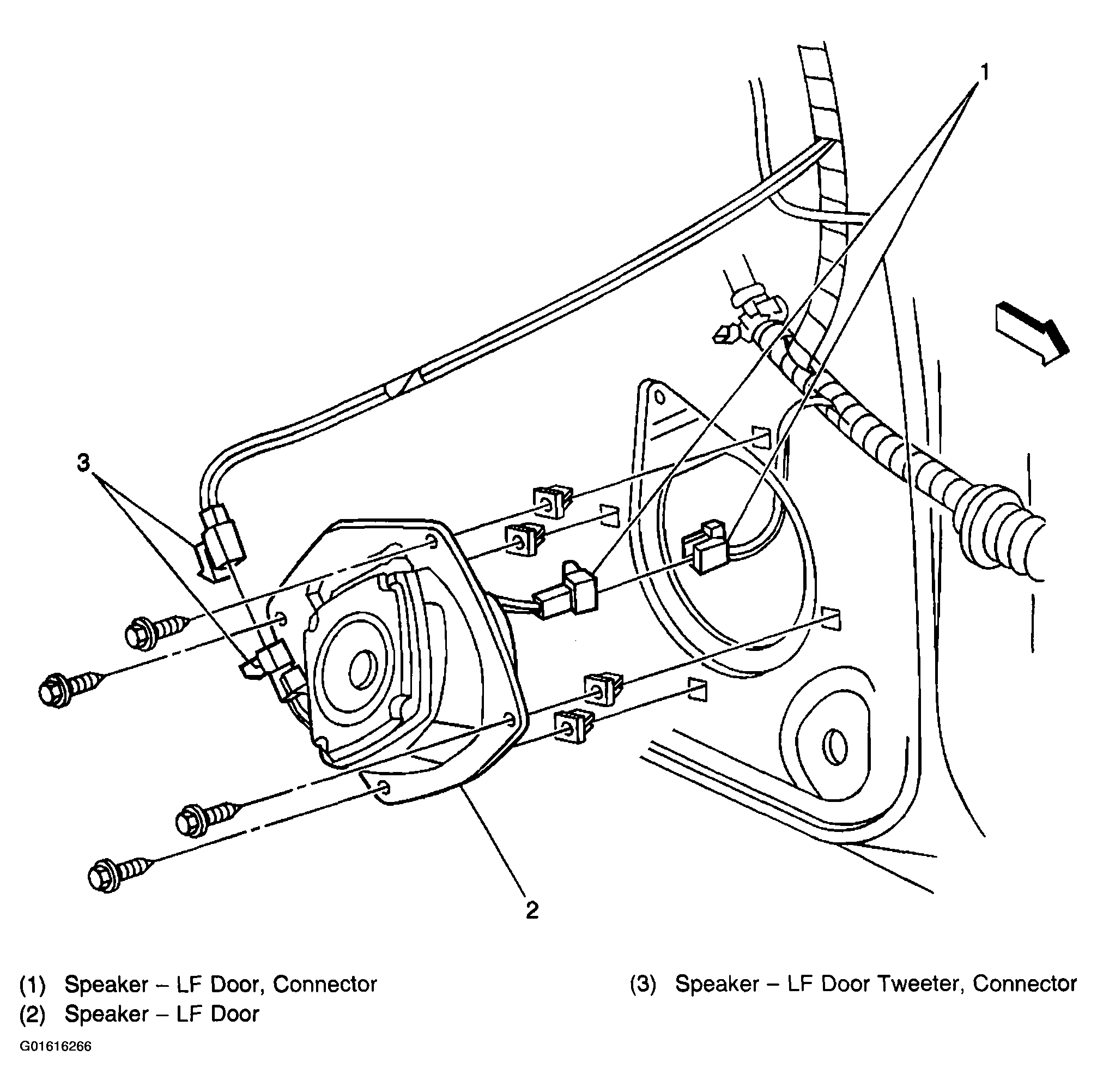

Fig 5: Left Front Door (Right Similar) (W/U85)
Courtesy of GENERAL MOTORS CORP.

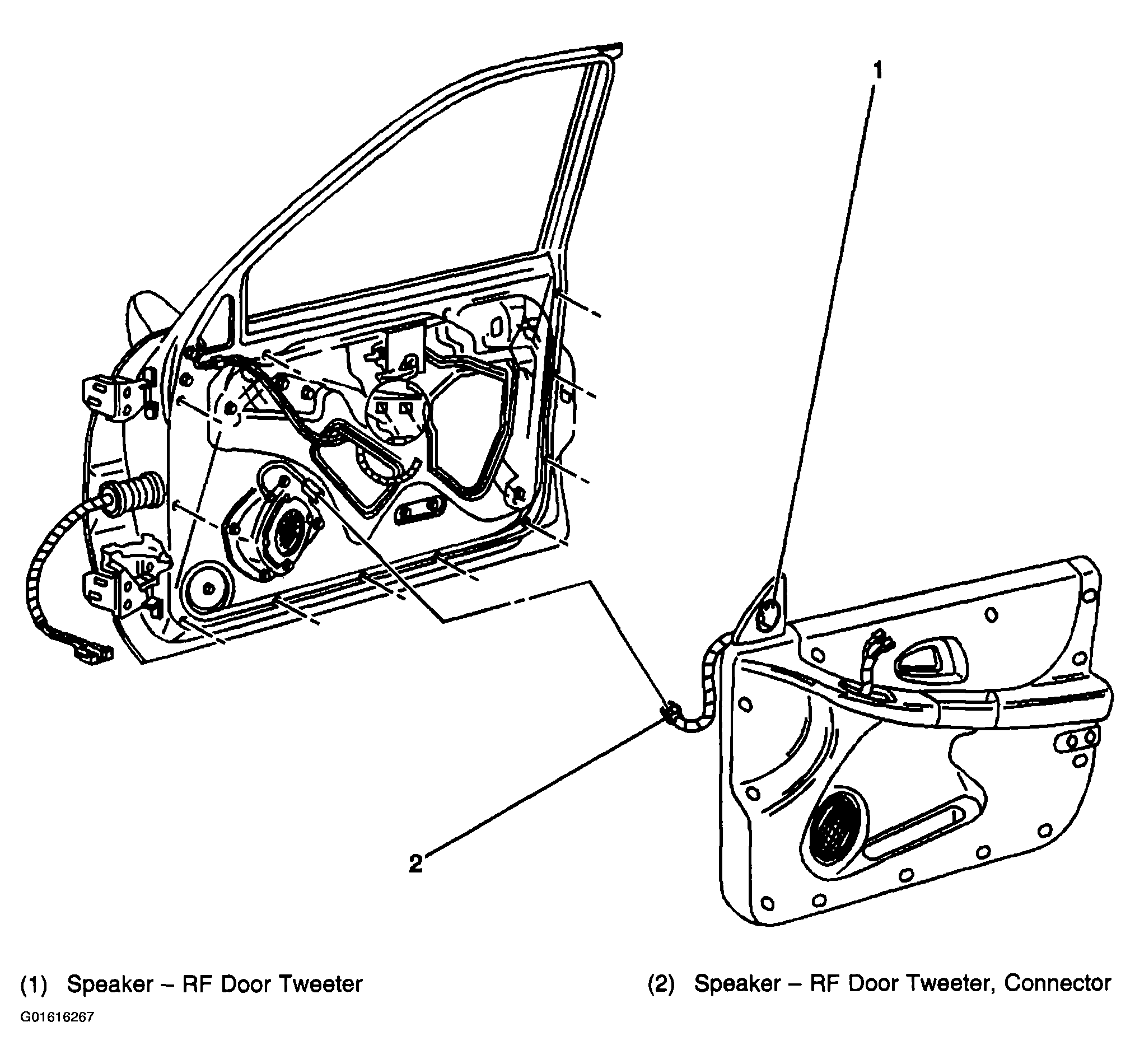

Fig 6: Right Front Door (Left Similar)
Courtesy of GENERAL MOTORS CORP.

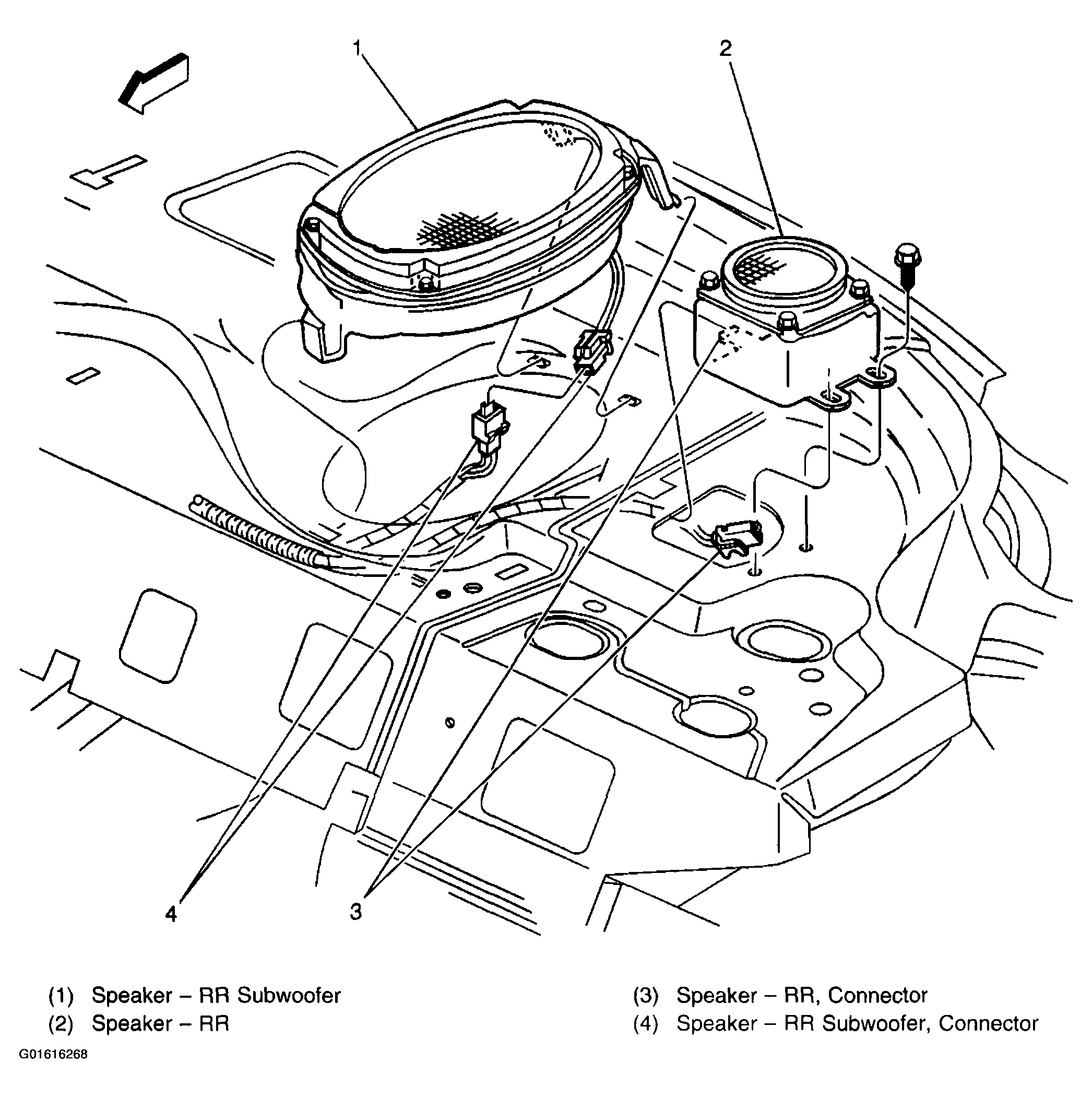

Fig 7: Right Top Side Of Rear Package Shelf (Left Similar)
