Entertainment Connector End Views

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

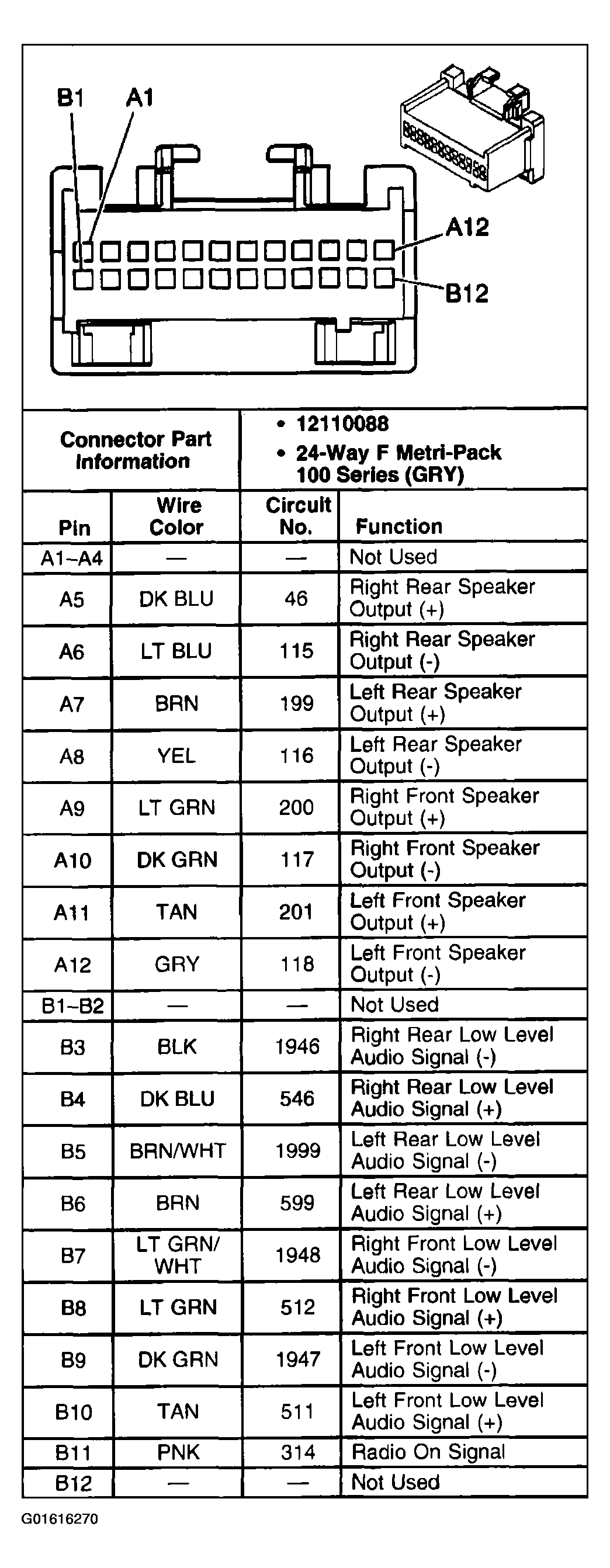

Fig 1: Audio Amplifier, C1 (w/RPO U85)

Courtesy of GENERAL MOTORS CORP.

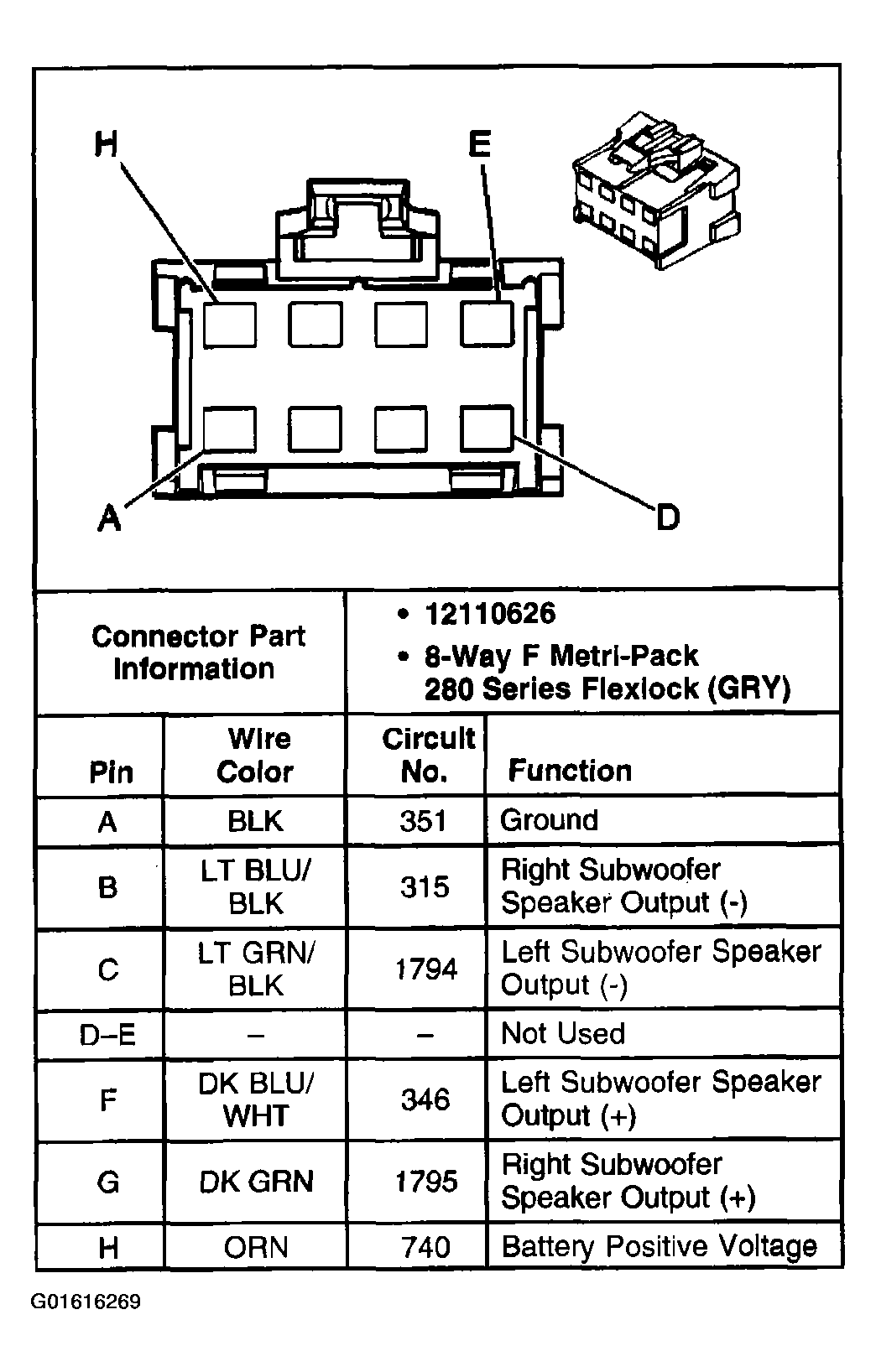

Fig 2: Audio Amplifier, C2 (w/RPO U85)

Courtesy of GENERAL MOTORS CORP.

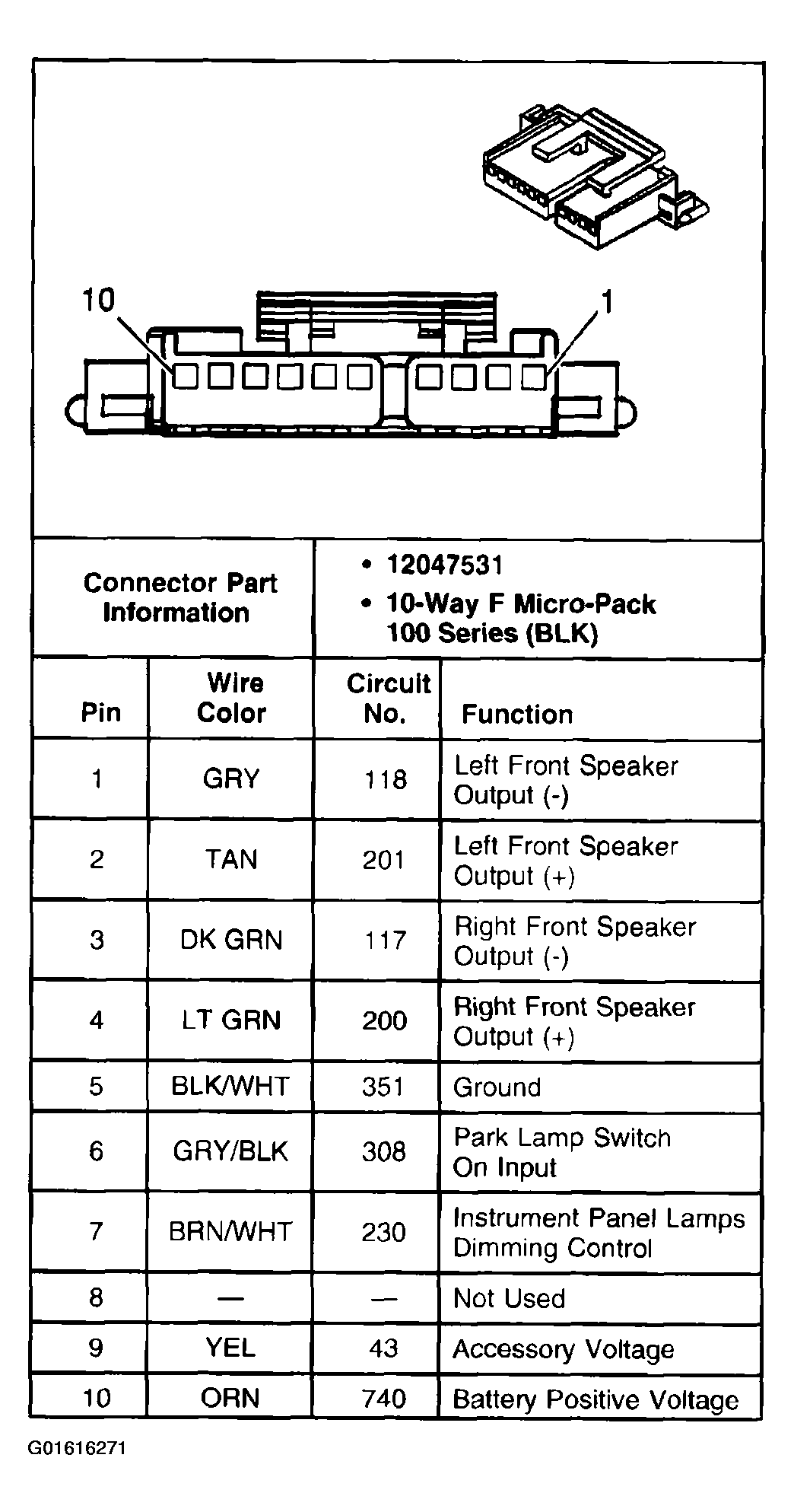

Fig 3: Radio, C1 (w/o RPO U85)

Courtesy of GENERAL MOTORS CORP.

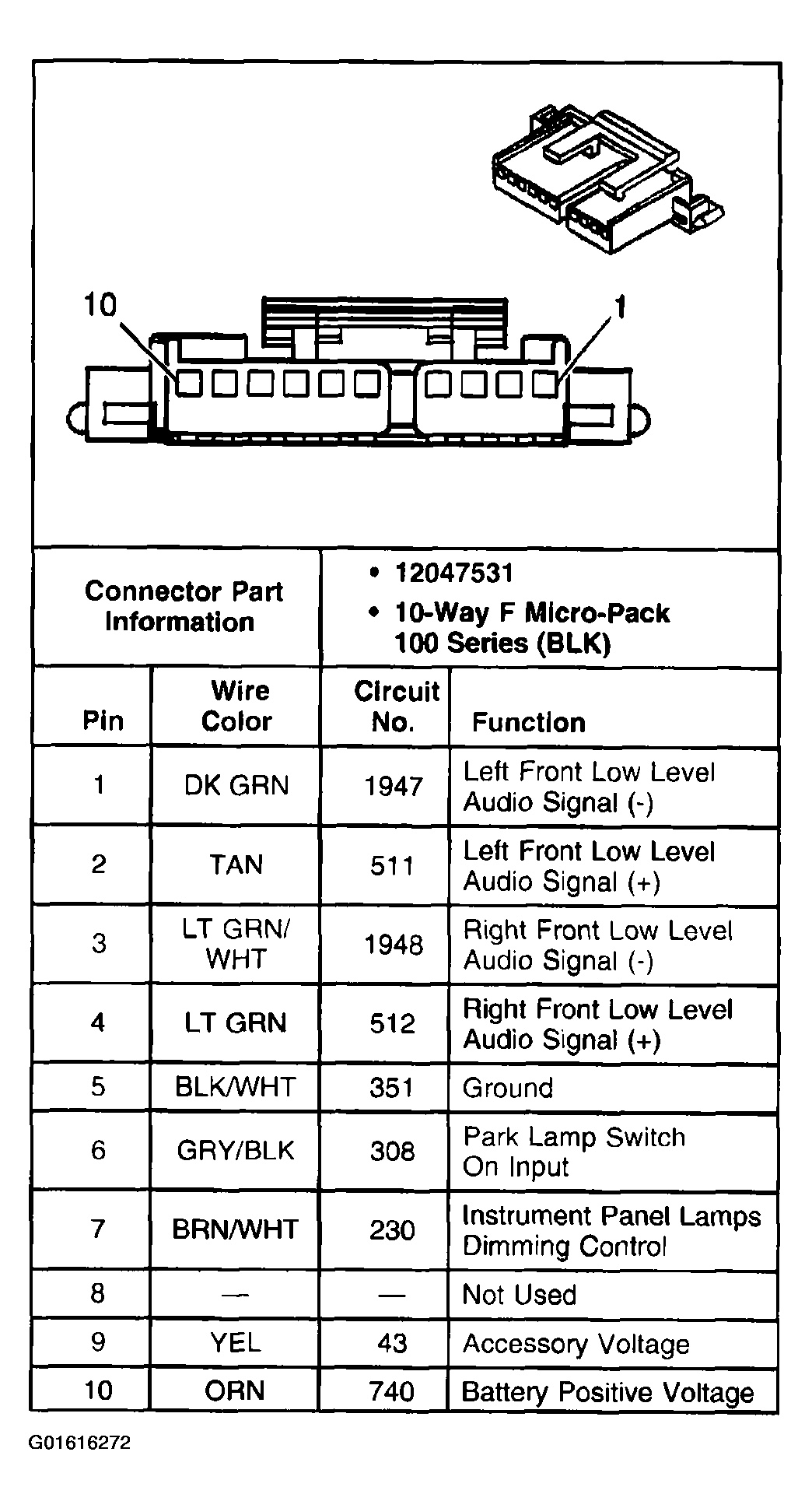

Fig 4: Radio, C1 (w/RPO U85)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Radio, C2 (w/o RPO U85)

Courtesy of GENERAL MOTORS CORP.

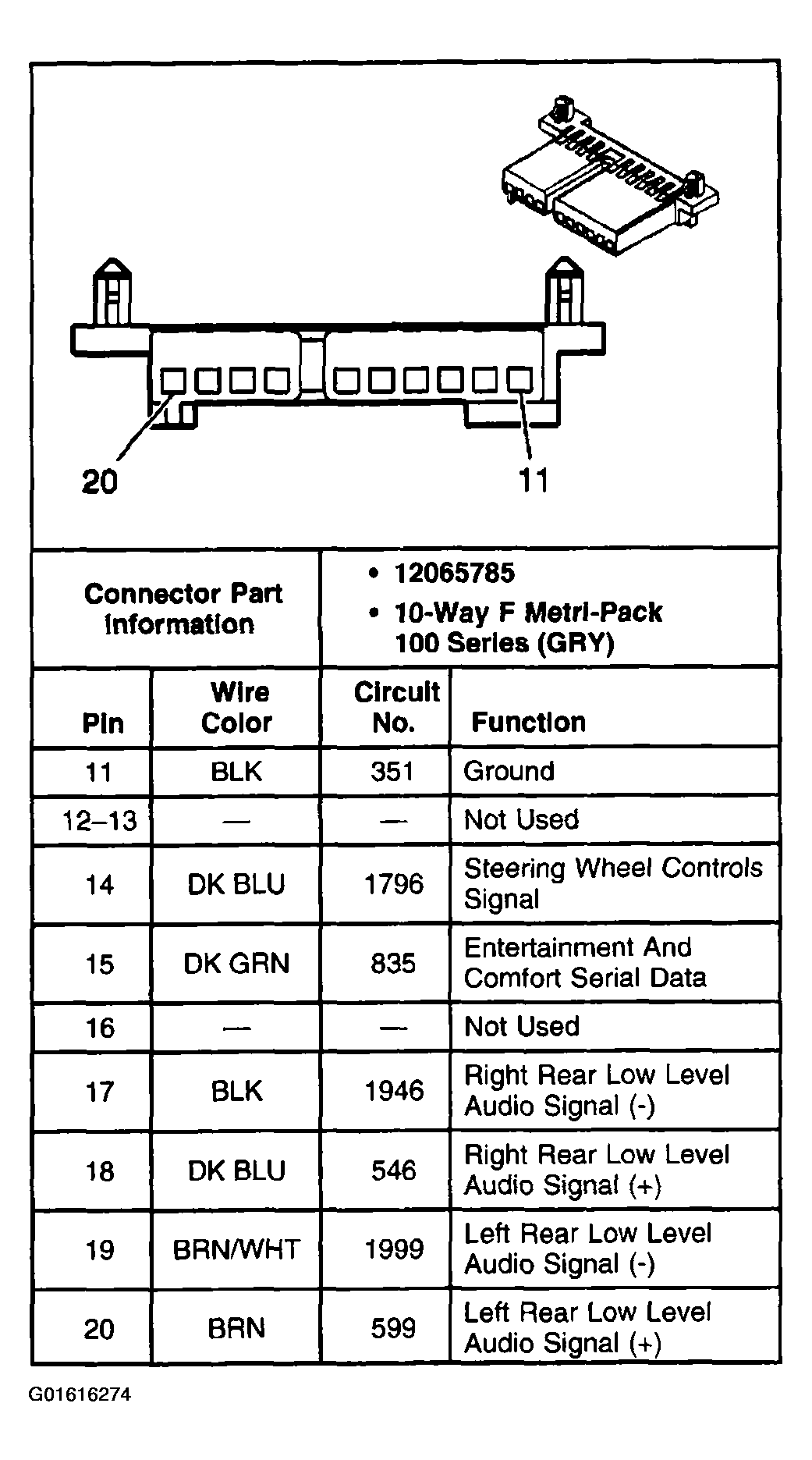

Fig 6: Radio, C2 (w/RPO U85)

Courtesy of GENERAL MOTORS CORP.

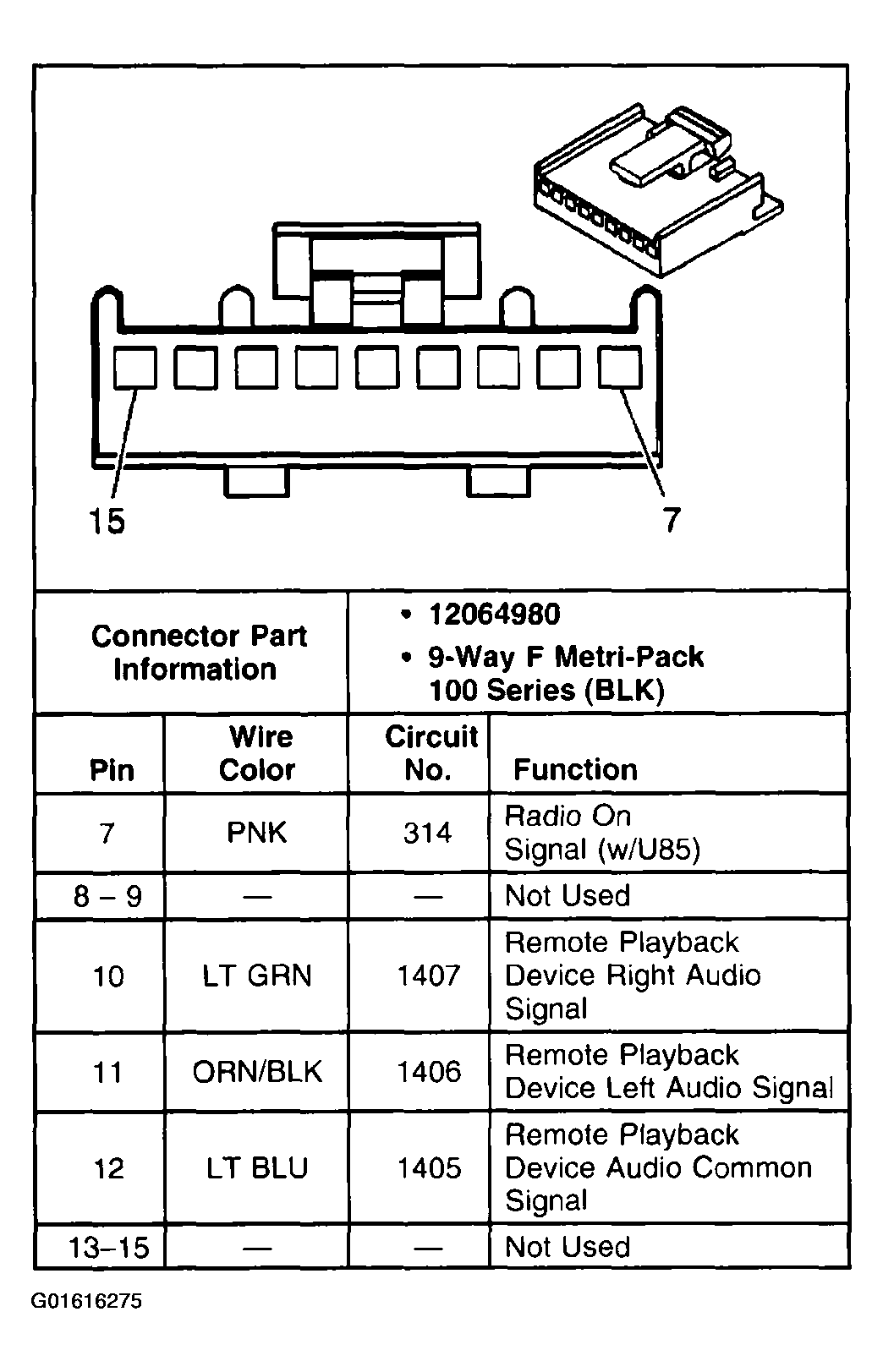

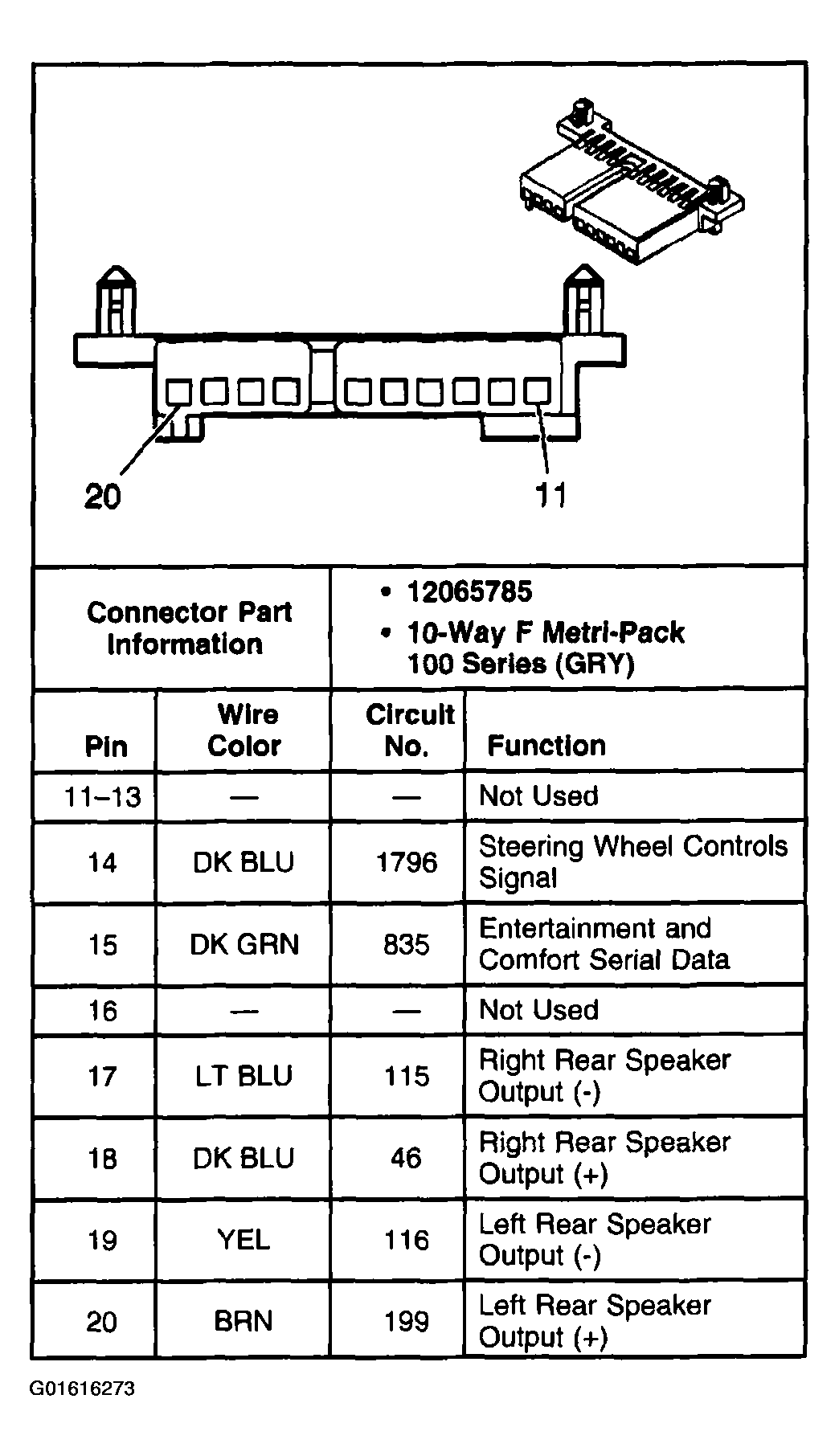

Fig 7: Radio, C3

Courtesy of GENERAL MOTORS CORP.

Fig 8: Speaker - LF Door, C1

Courtesy of GENERAL MOTORS CORP.

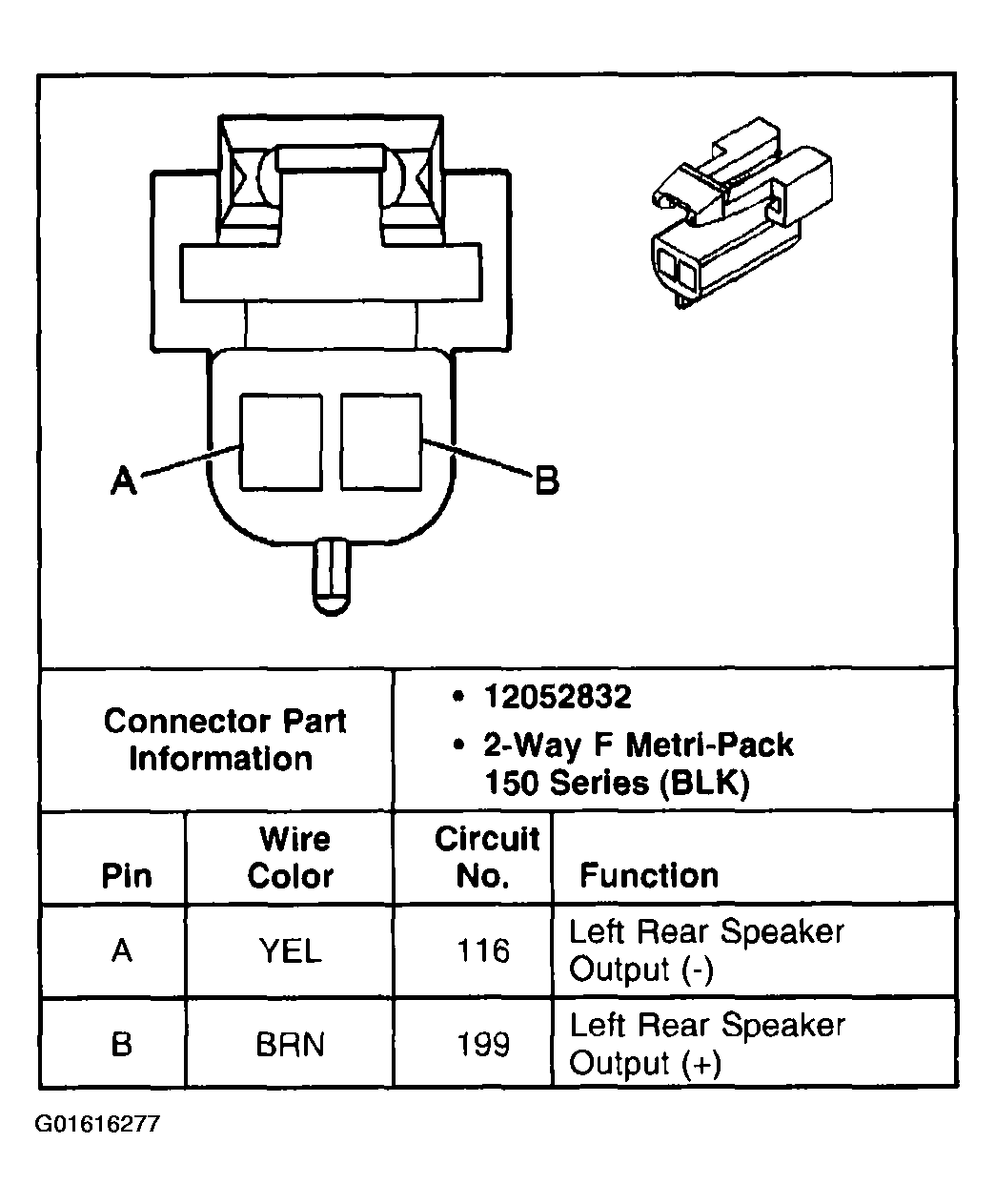

Fig 9: Speaker - LR (w/o RPO U85)

Courtesy of GENERAL MOTORS CORP.

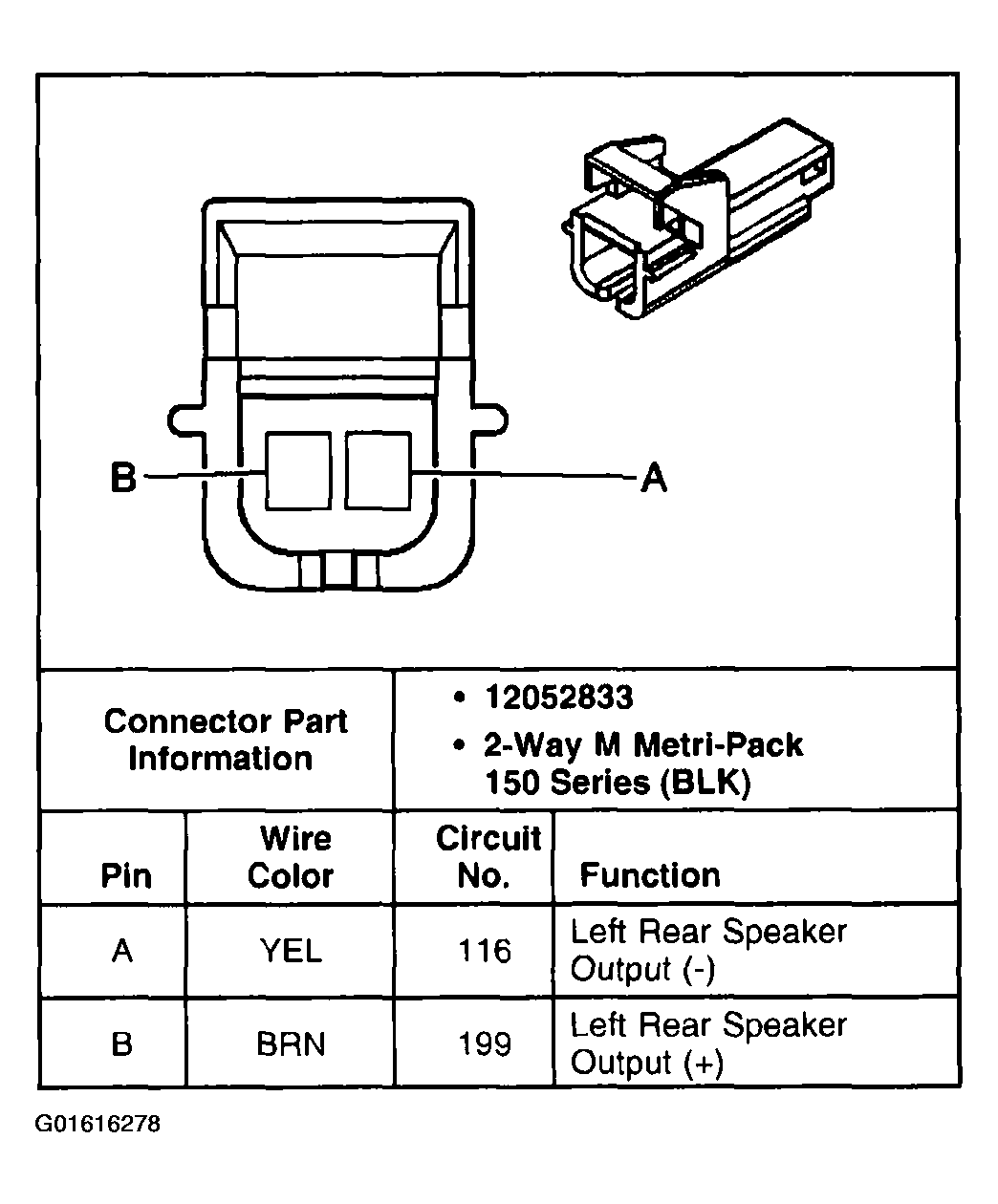

Fig 10: Speaker - LR (w/RPO U85)

Courtesy of GENERAL MOTORS CORP.

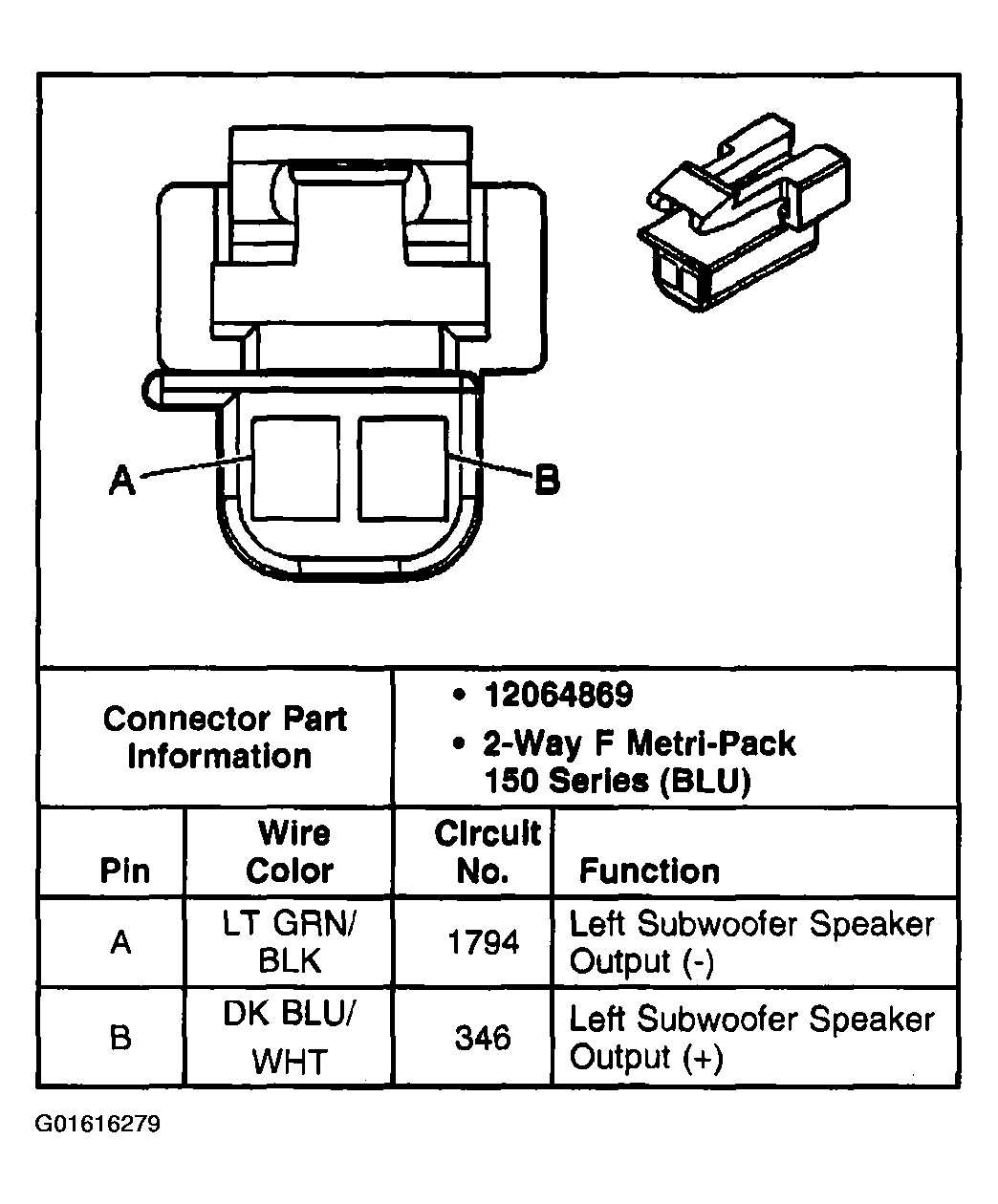

Fig 11: Speaker - LR Subwoofer (w/RPO U85)

Courtesy of GENERAL MOTORS CORP.

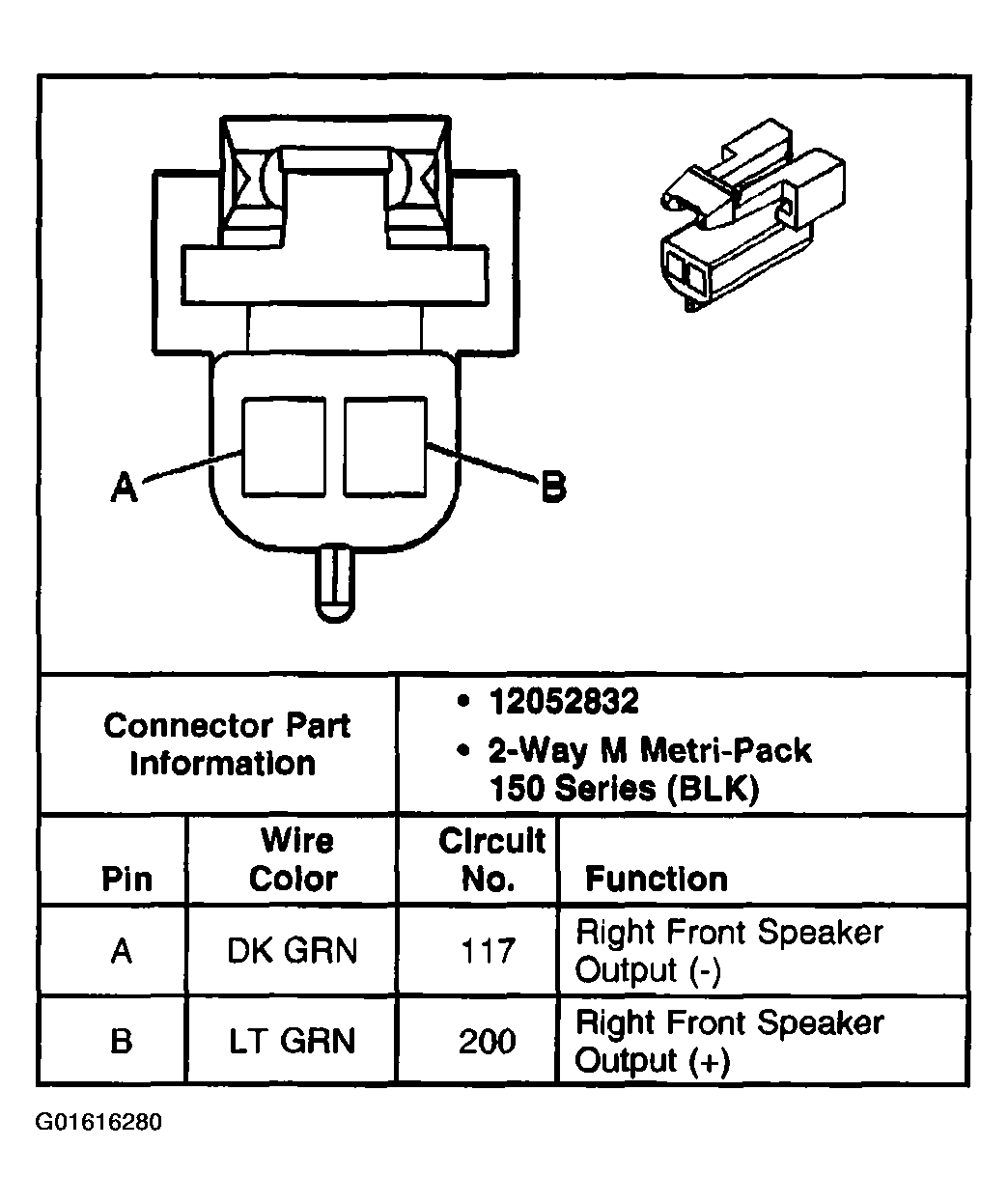

Fig 12: Speaker - RF Door, C1

Courtesy of GENERAL MOTORS CORP.

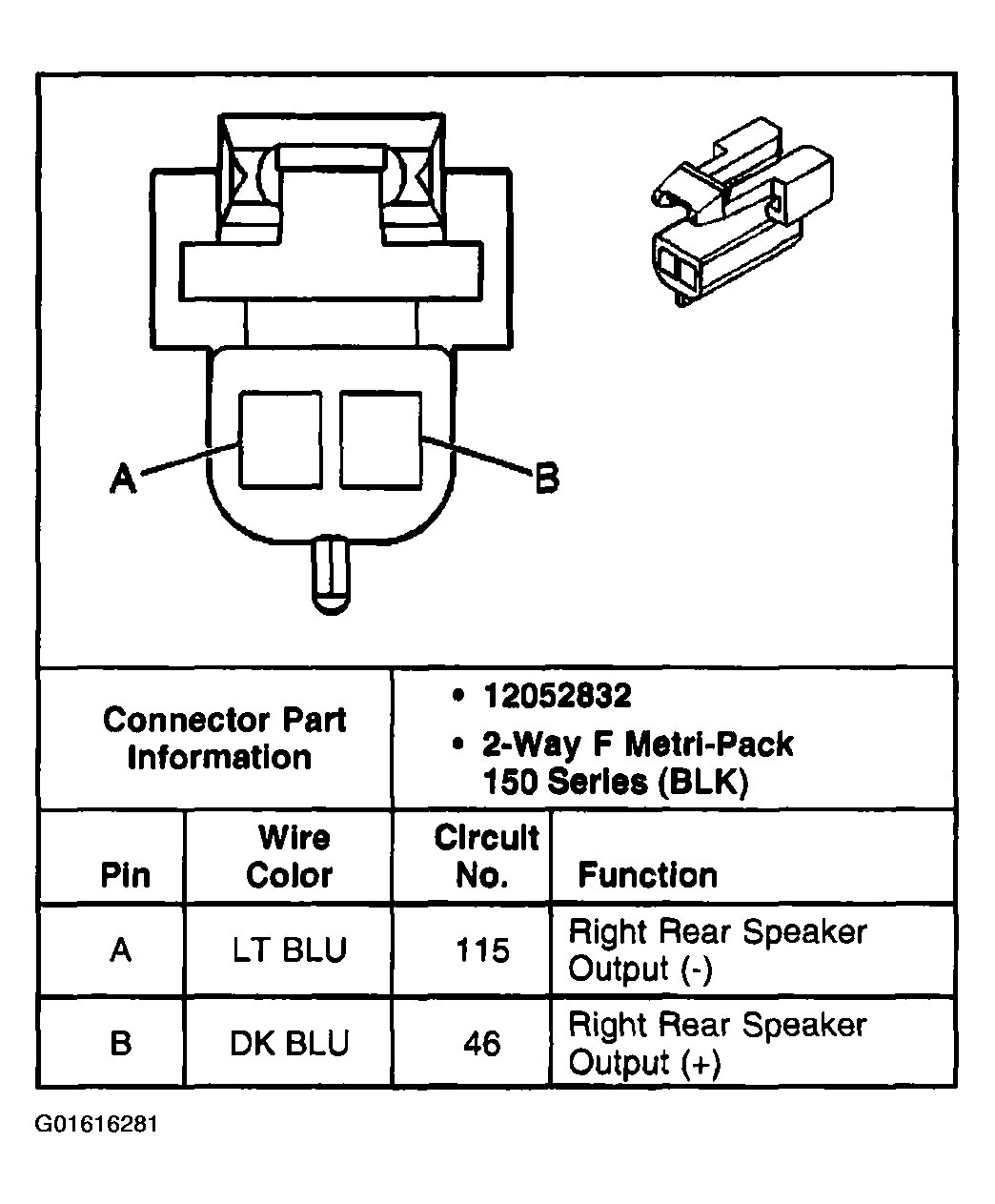

Fig 13: Speaker - RR (w/o RPO U85)

Courtesy of GENERAL MOTORS CORP.

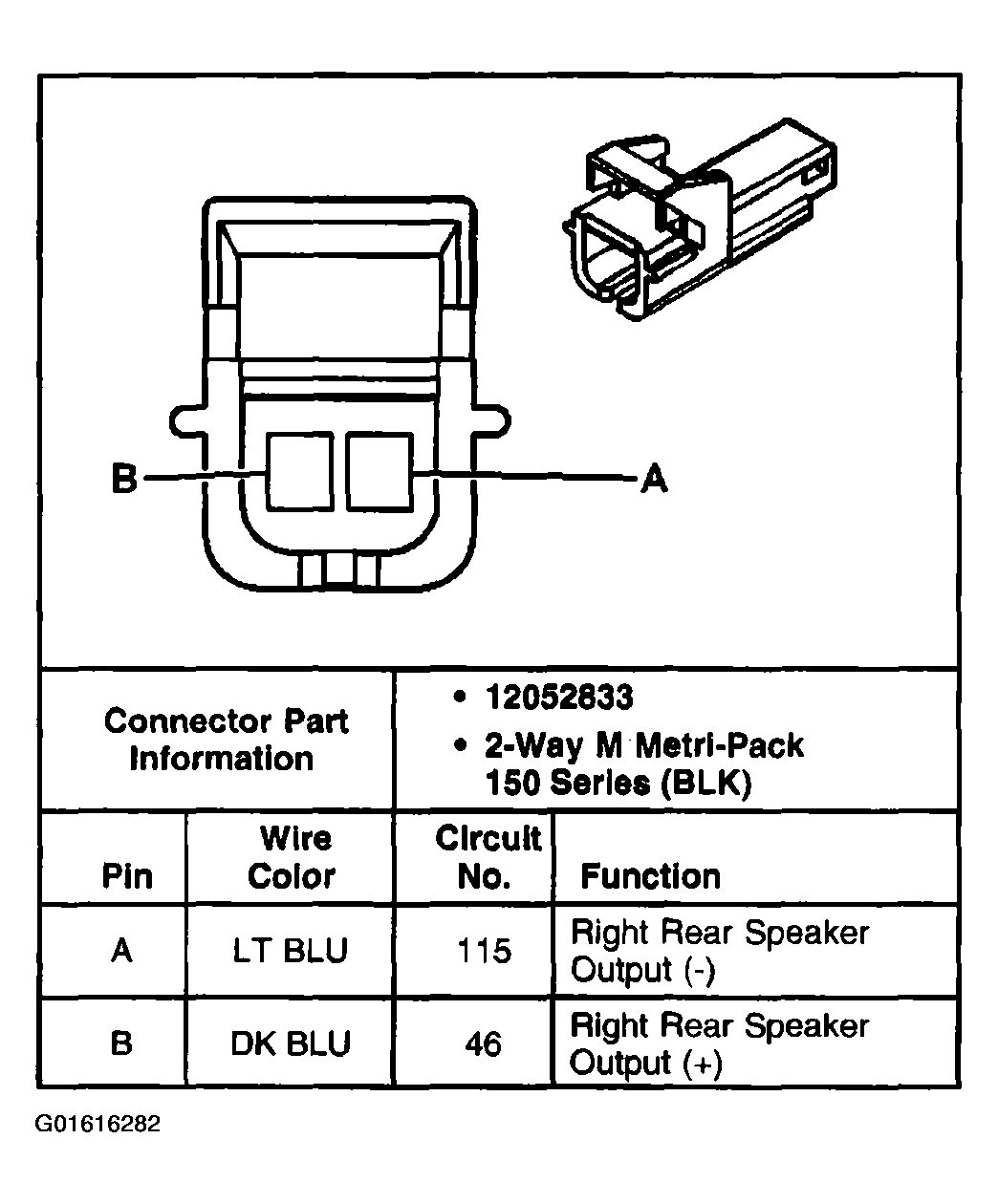

Fig 14: Speaker - RR (w/RPO U85)

Courtesy of GENERAL MOTORS CORP.

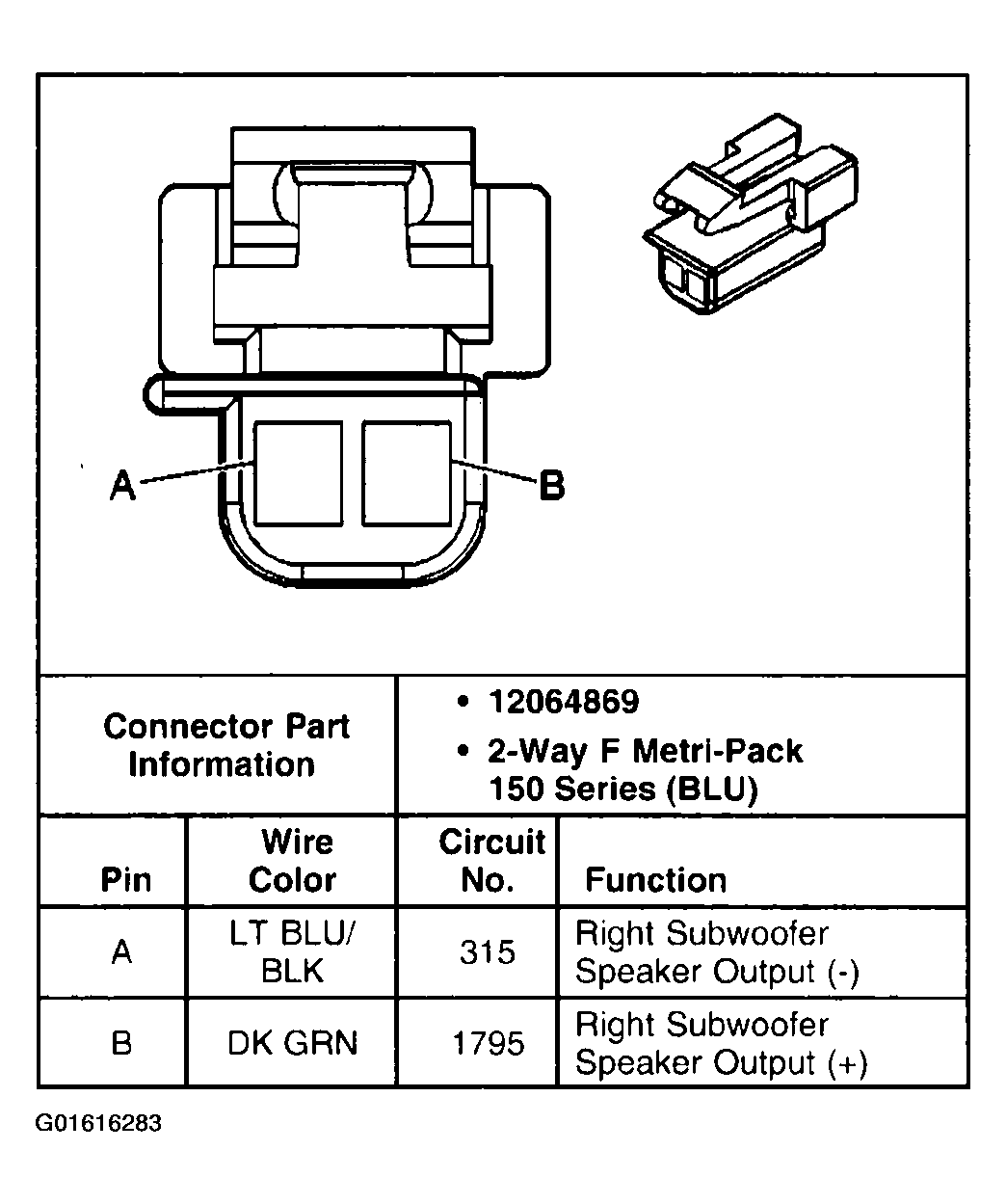

Fig 15: Speaker - RR Subwoofer (w/RPO U85)

Courtesy of GENERAL MOTORS CORP.

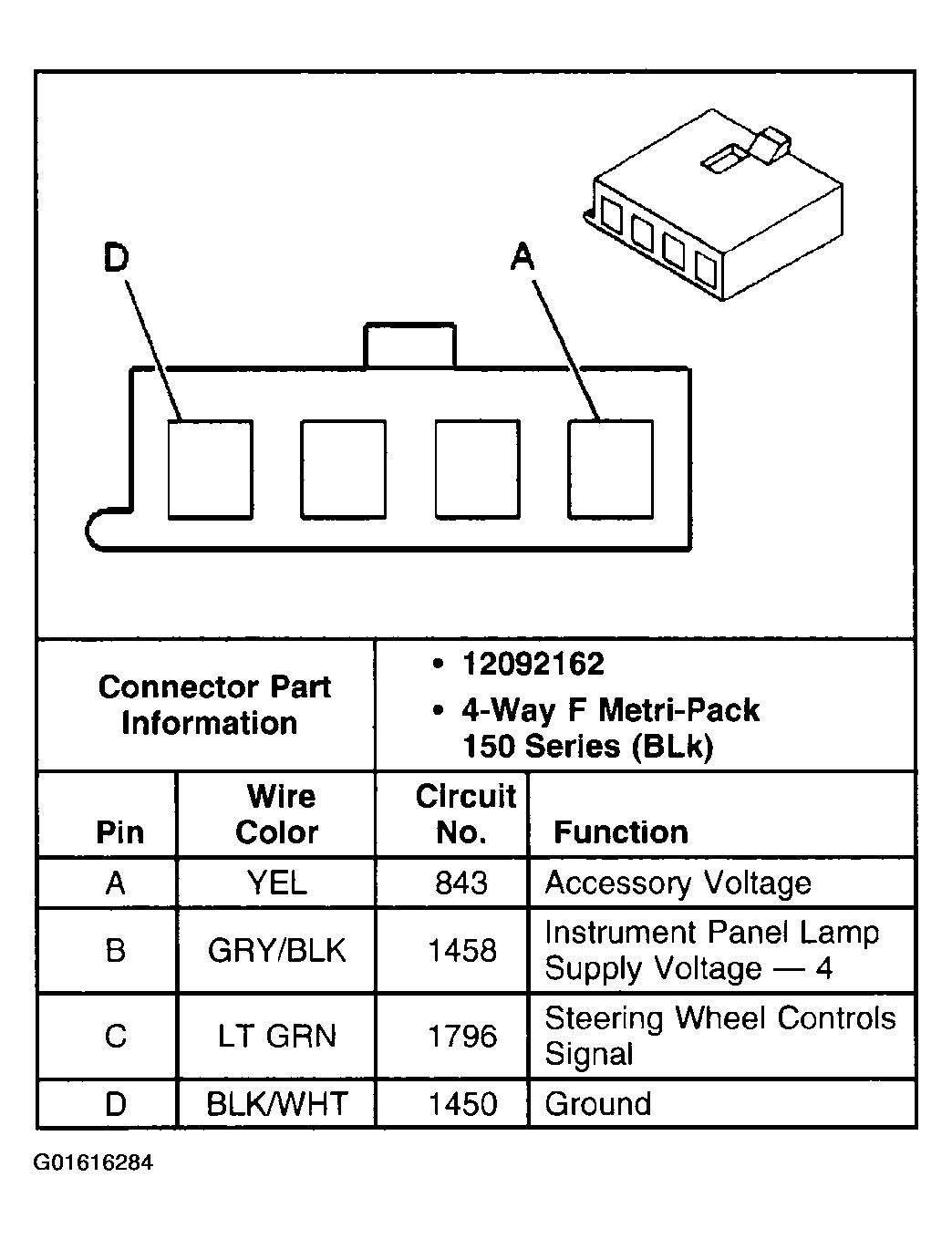

Fig 16: Steering Wheel Controls

Courtesy of GENERAL MOTORS CORP.
