Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors to the DRL module.
  2. Position the DRL module to the BCM bracket, then slide the module downward to secure the module tabs into the retaining slots on the bracket.
  3. Install the left IP insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- LEFT .

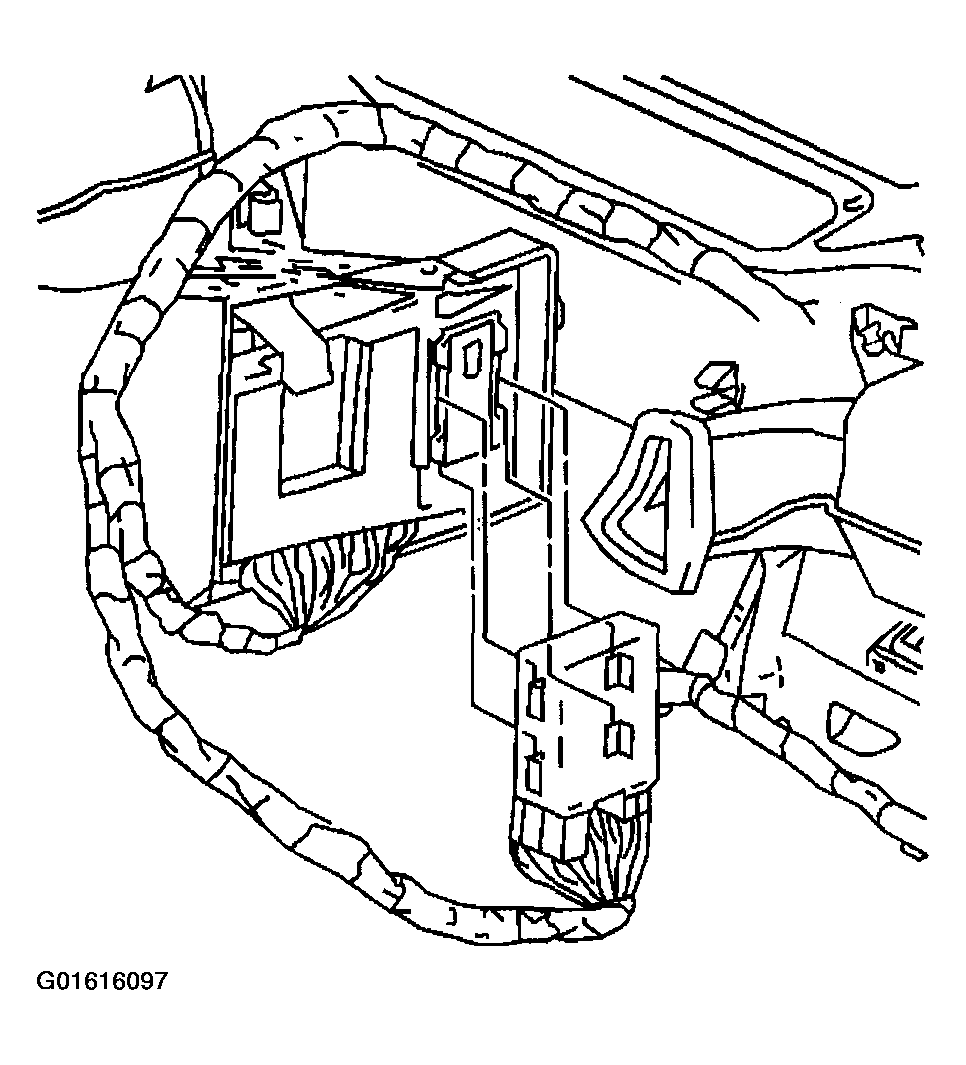

    Fig 1: DRL & Electrical Connectors
    G01616097Courtesy of GENERAL MOTORS CORP.
