Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left instrument panel (IP) insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- LEFT .
  2. Grasp the daytime running lamp (DRL) module and slide it upward to release the module tabs from the retaining slots on the body control module (BCM) bracket. Reposition the module.
  3. Disconnect the electrical connectors from the DRL module and remove the module.

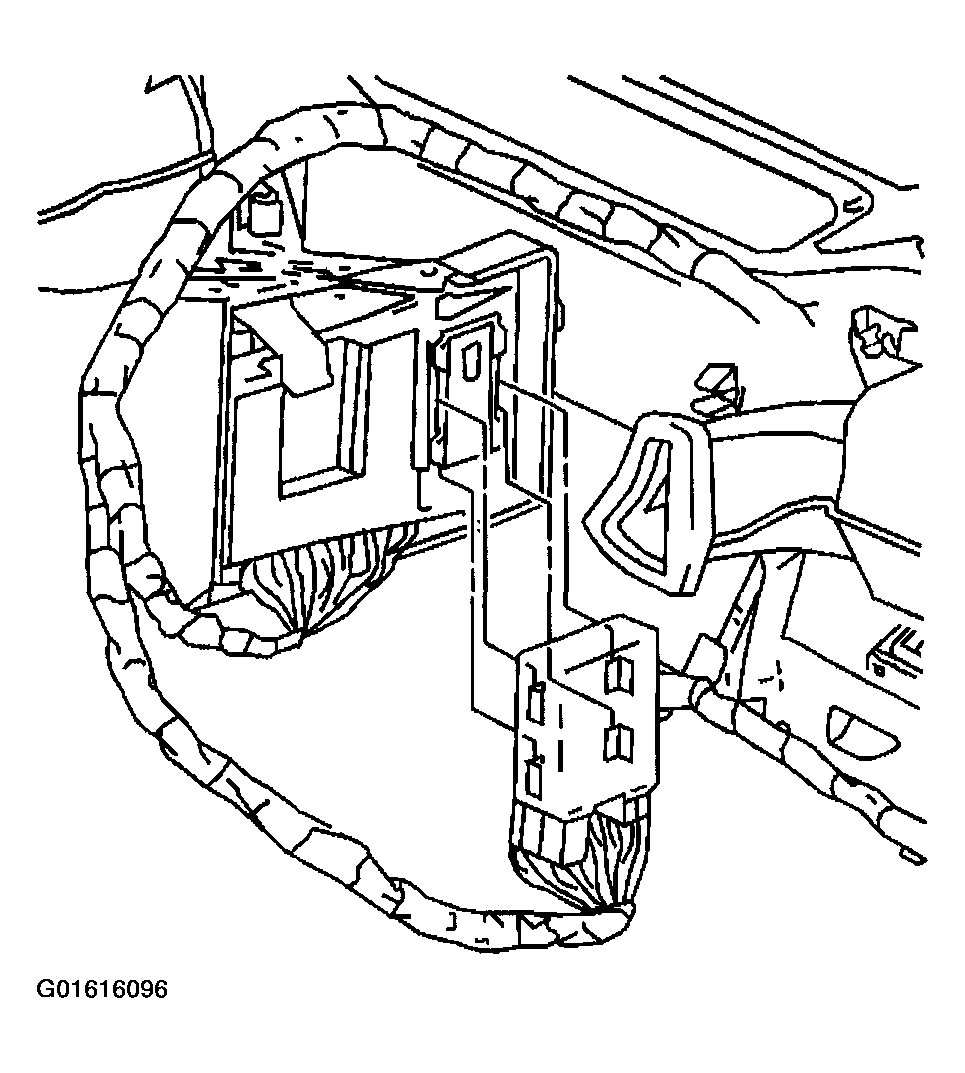

    Fig 1: DRL & Electrical Connectors
    G01616096Courtesy of GENERAL MOTORS CORP.
