Test Description

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

4. If the battery positive voltage and ground circuits of the DLC are functioning properly. The malfunction must be due to the scan tool.

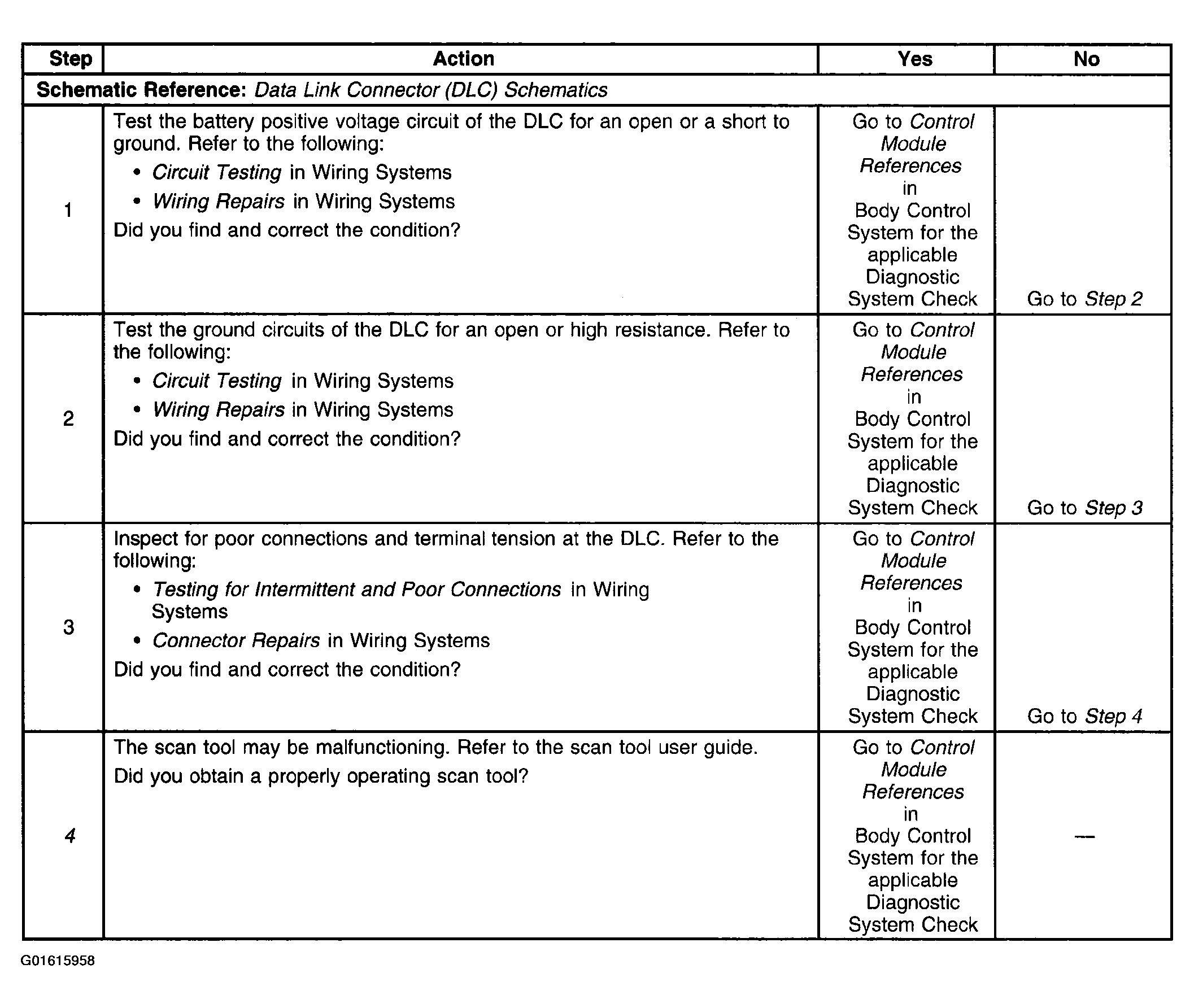

Fig 1: Scan Tool Does Not Power Up
Courtesy of GENERAL MOTORS CORP.
