Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the seal to the washer solvent container, pressing in until fully seated.
  2. Position the washer solvent level sensor to the washer solvent container, pressing in until fully seated.
  3. Connect the washer solvent level sensor electrical connector.
  4. Install the right front fender liner. Refer to FRONT FENDER LINER REPLACEMENT .
  5. Fill the washer solvent container with washer solvent.

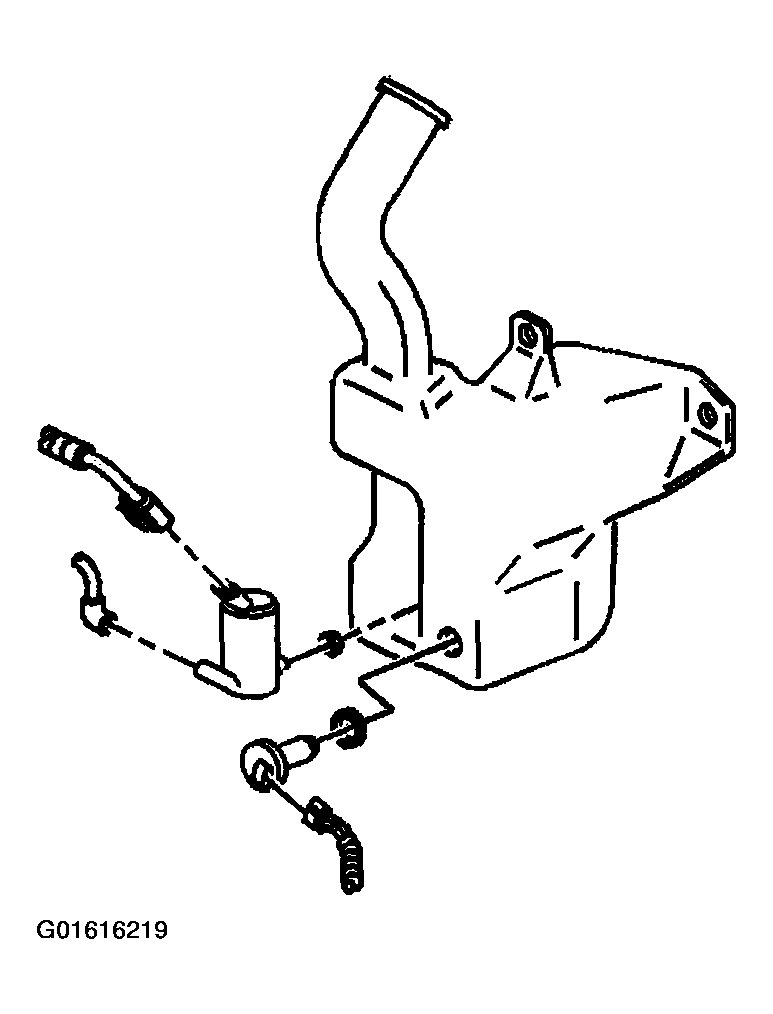

    Fig 1: Washer Solvent Container Level Sensor
    G01616219Courtesy of GENERAL MOTORS CORP.
