Power Seat Systems Connector End Views

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

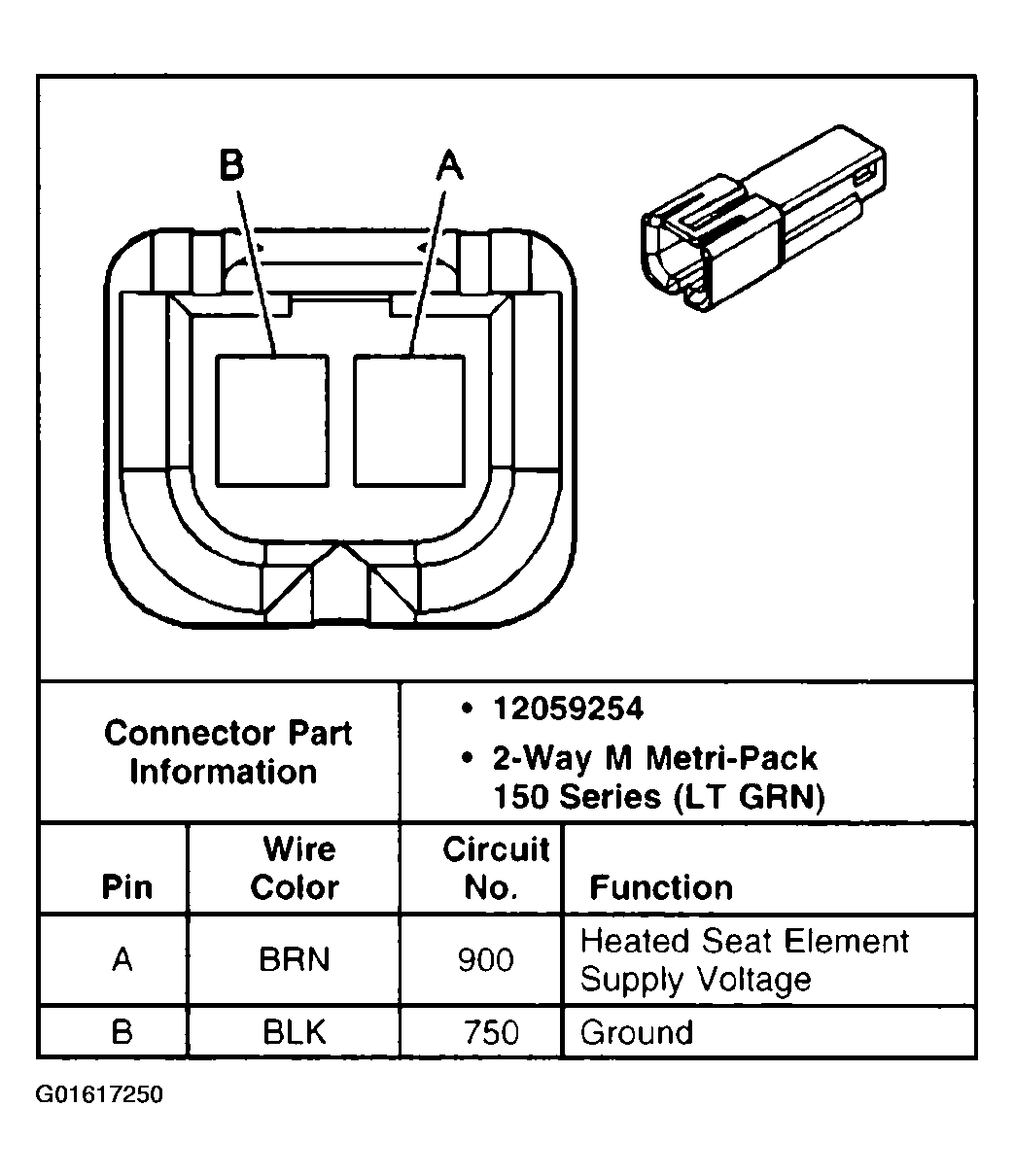

Fig 1: Heated Seat Back Element - Driver

Courtesy of GENERAL MOTORS CORP.

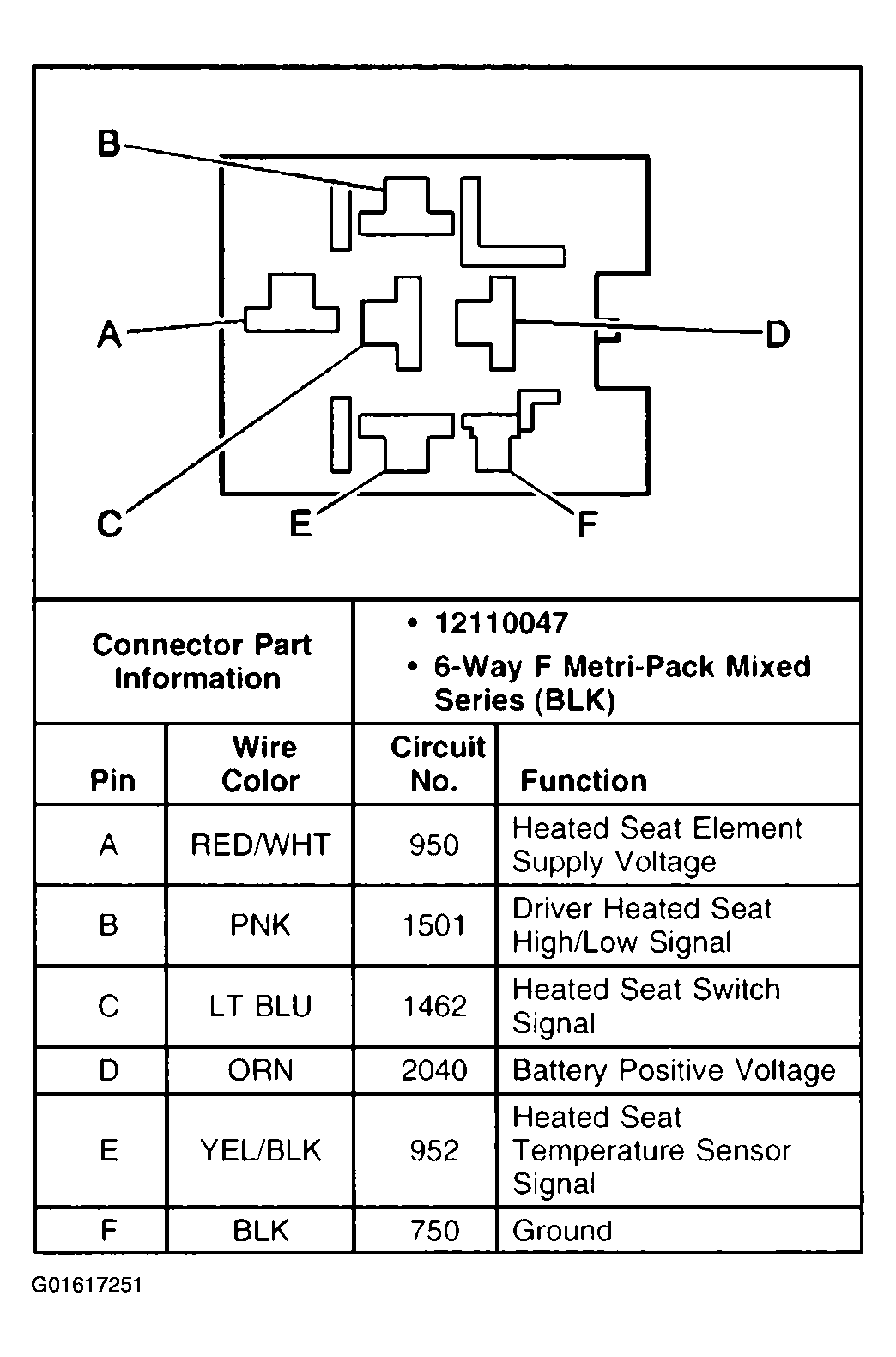

Fig 2: Heated Seat Control Module - Driver

Courtesy of GENERAL MOTORS CORP.

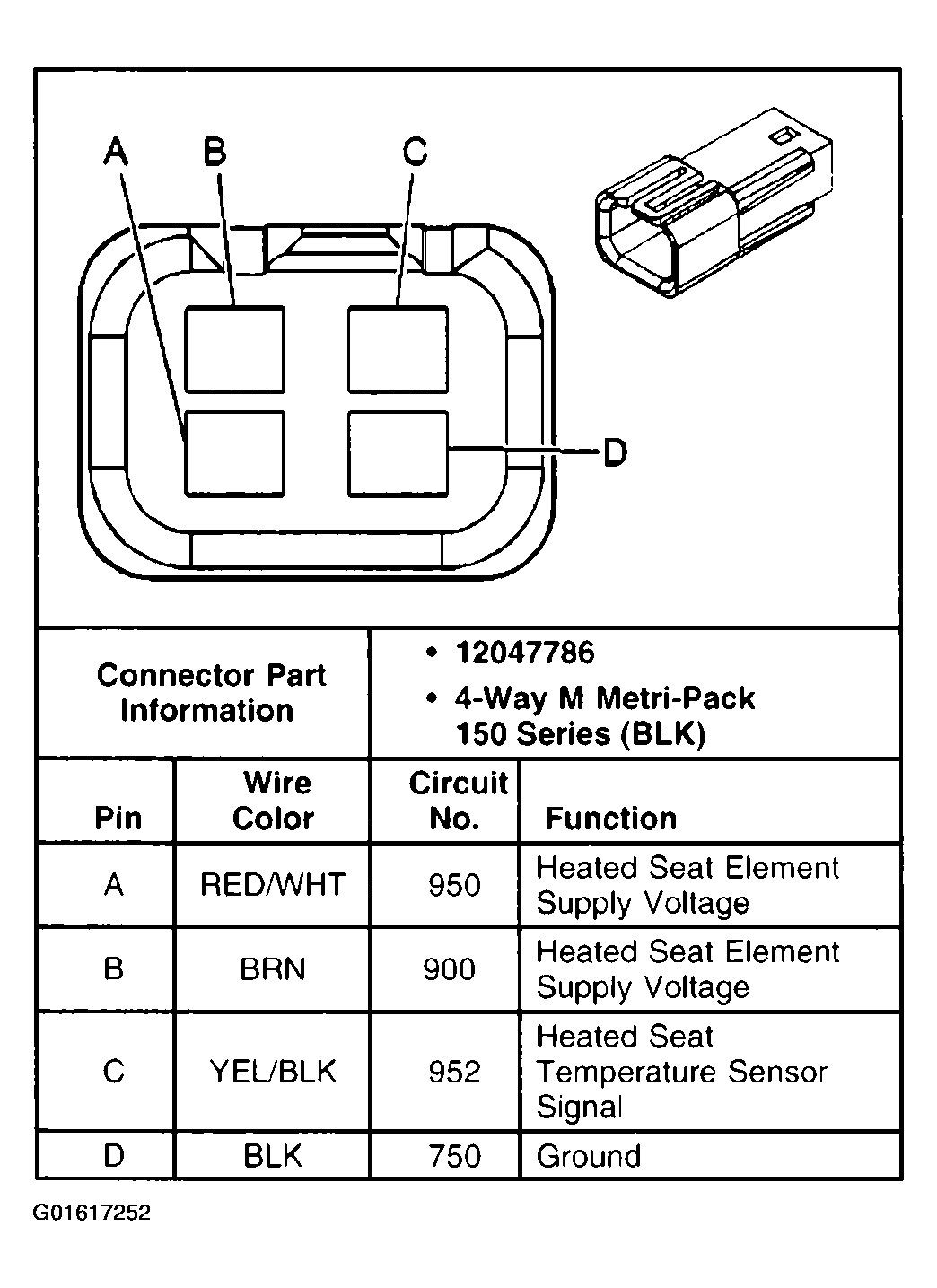

Fig 3: Heated Seat Cushion Cover

Courtesy of GENERAL MOTORS CORP.

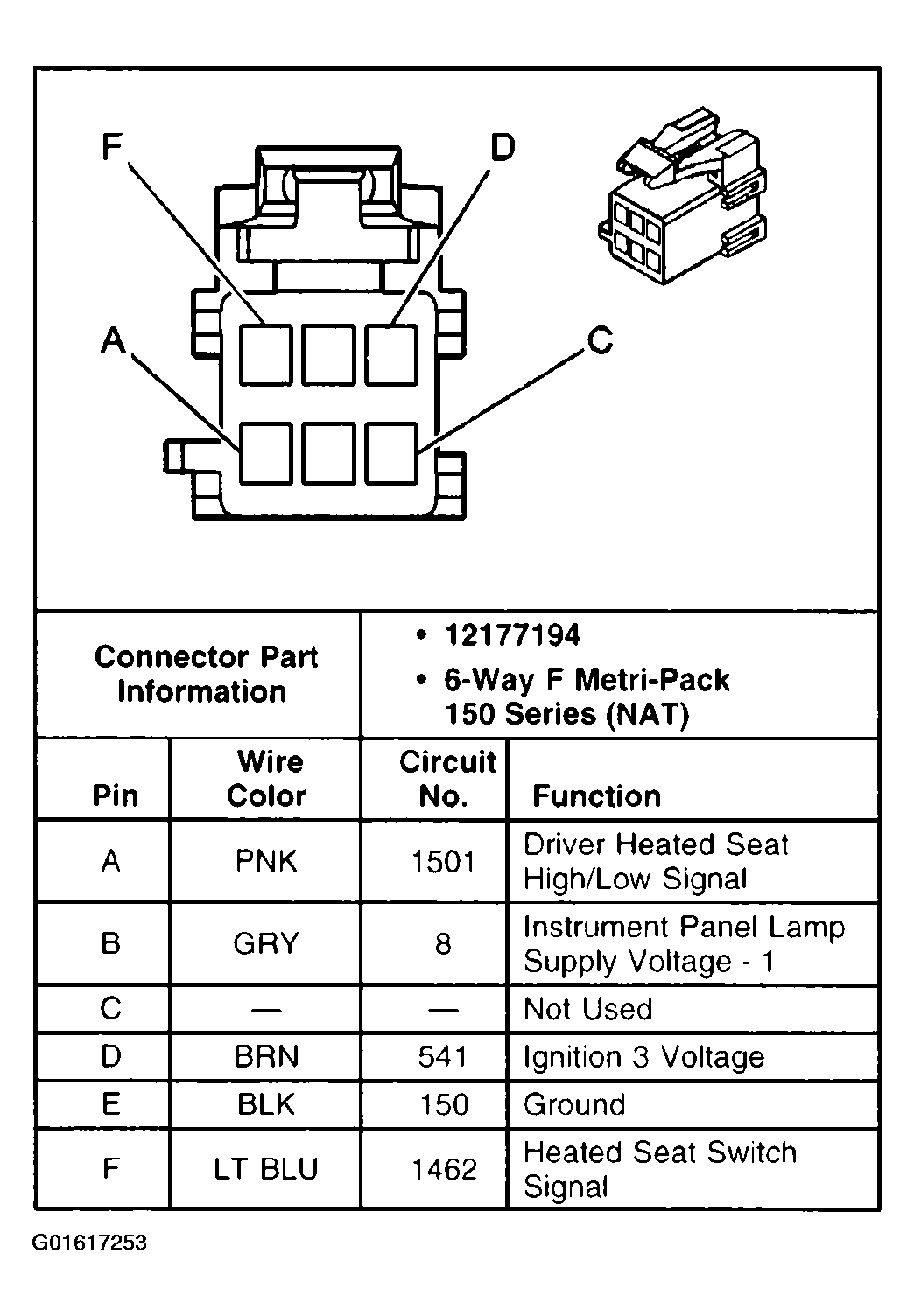

Fig 4: Heated Seat Switch - Driver

Courtesy of GENERAL MOTORS CORP.

Fig 5: Lumbar Horizontal Adjuster Relay

Courtesy of GENERAL MOTORS CORP.

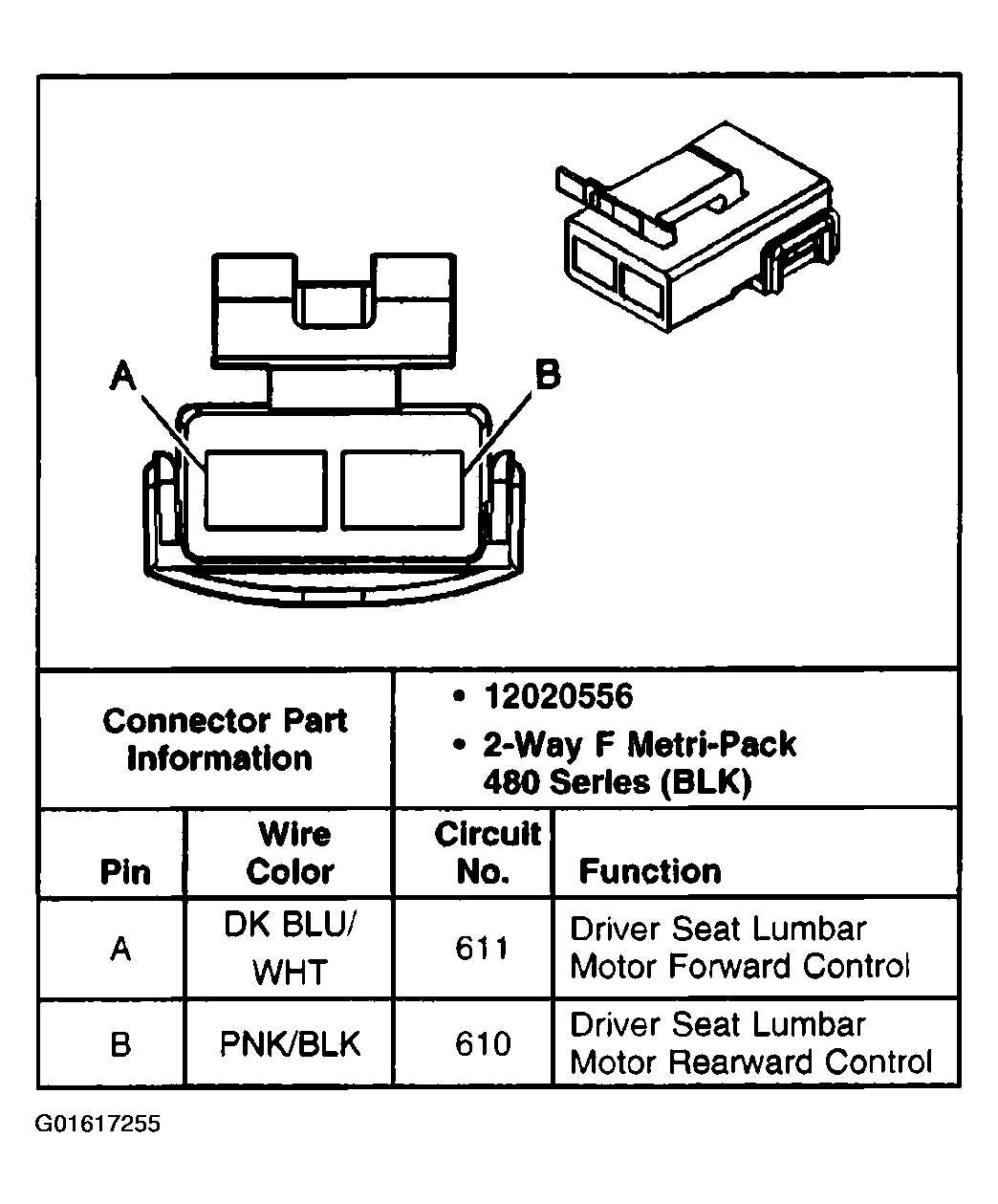

Fig 6: Lumbar Horizontal Motor - Driver

Courtesy of GENERAL MOTORS CORP.

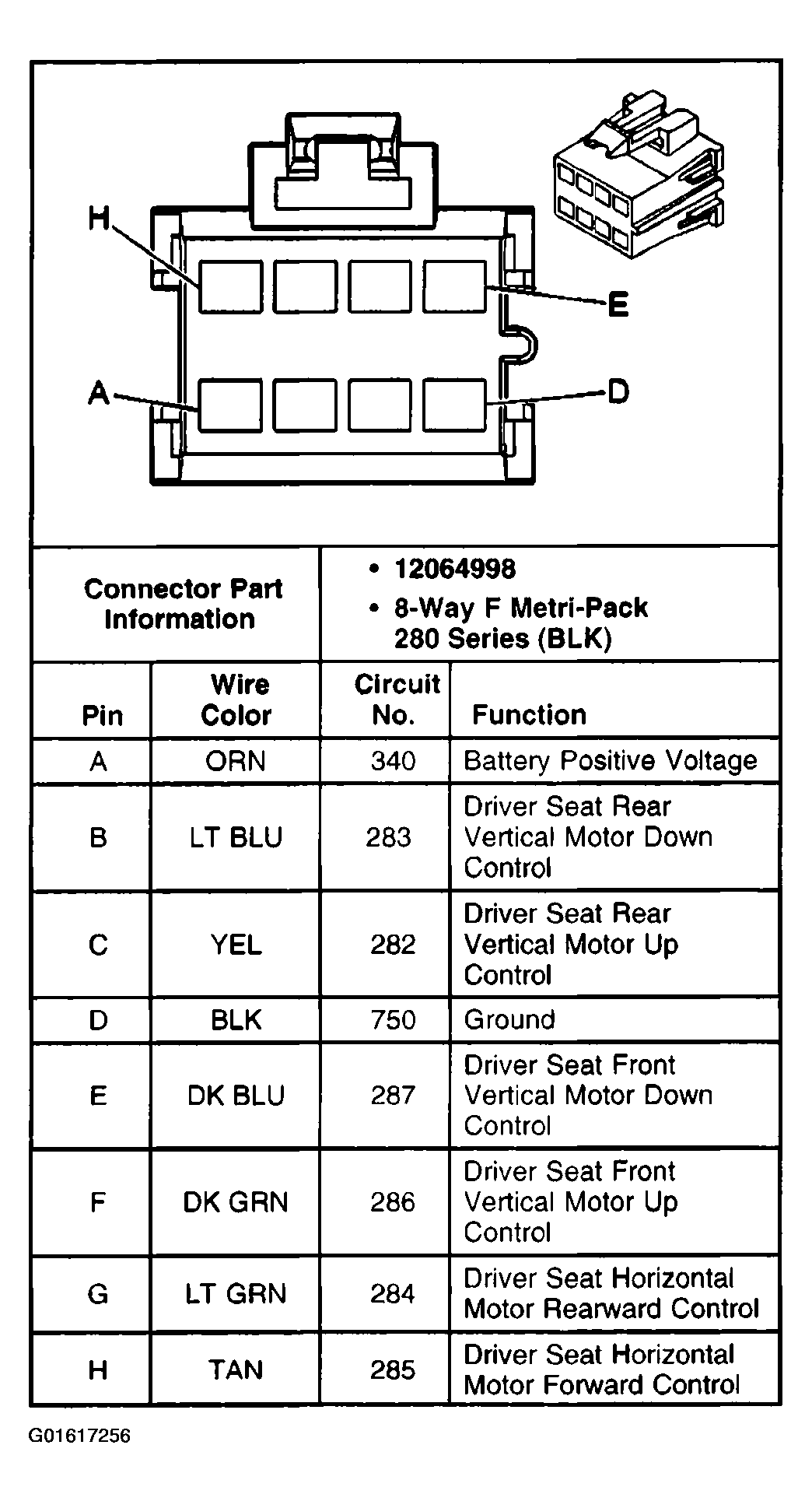

Fig 7: Seat Adjuster Switch - Driver

Courtesy of GENERAL MOTORS CORP.

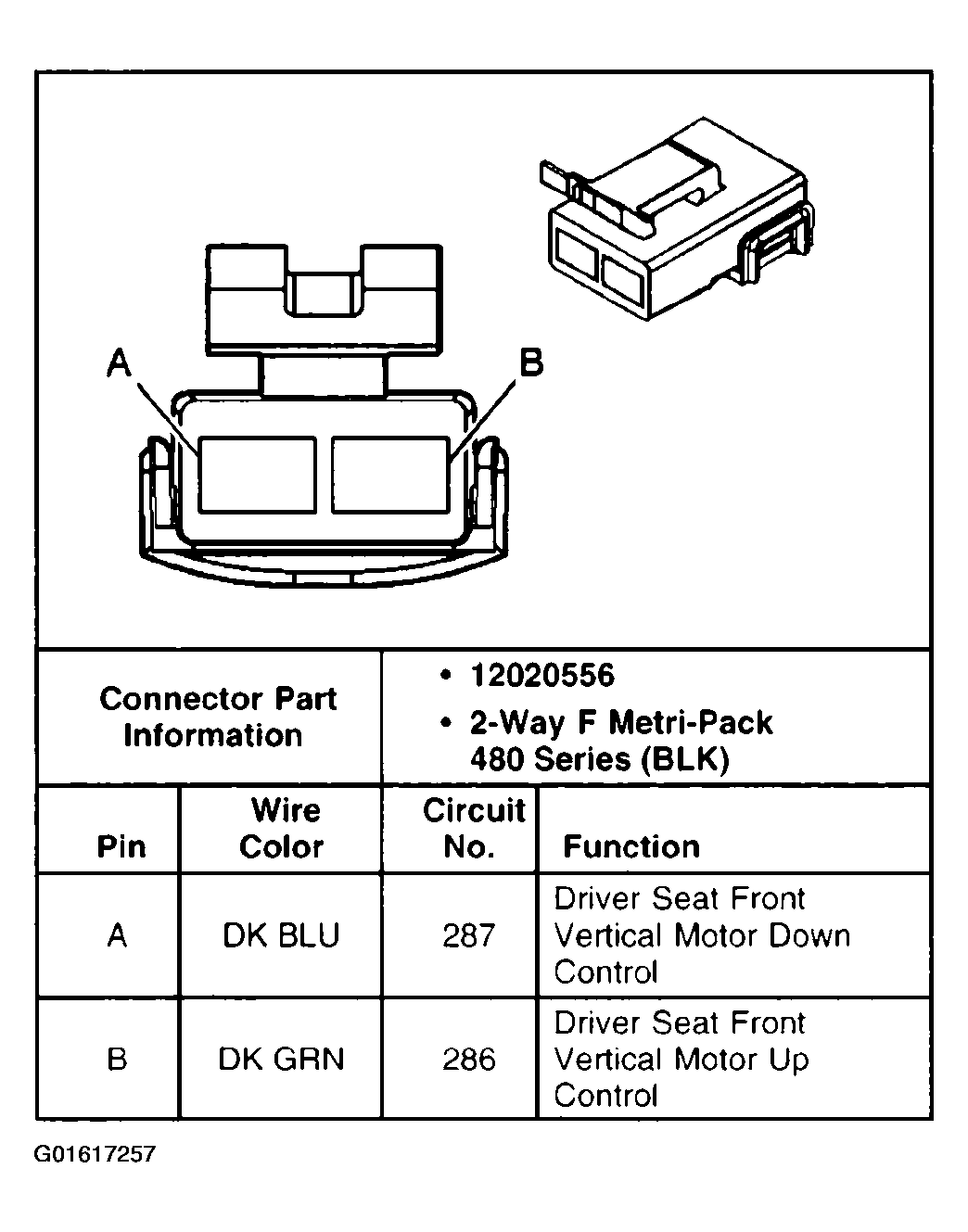

Fig 8: Seat Front Vertical Motor - Driver

Courtesy of GENERAL MOTORS CORP.

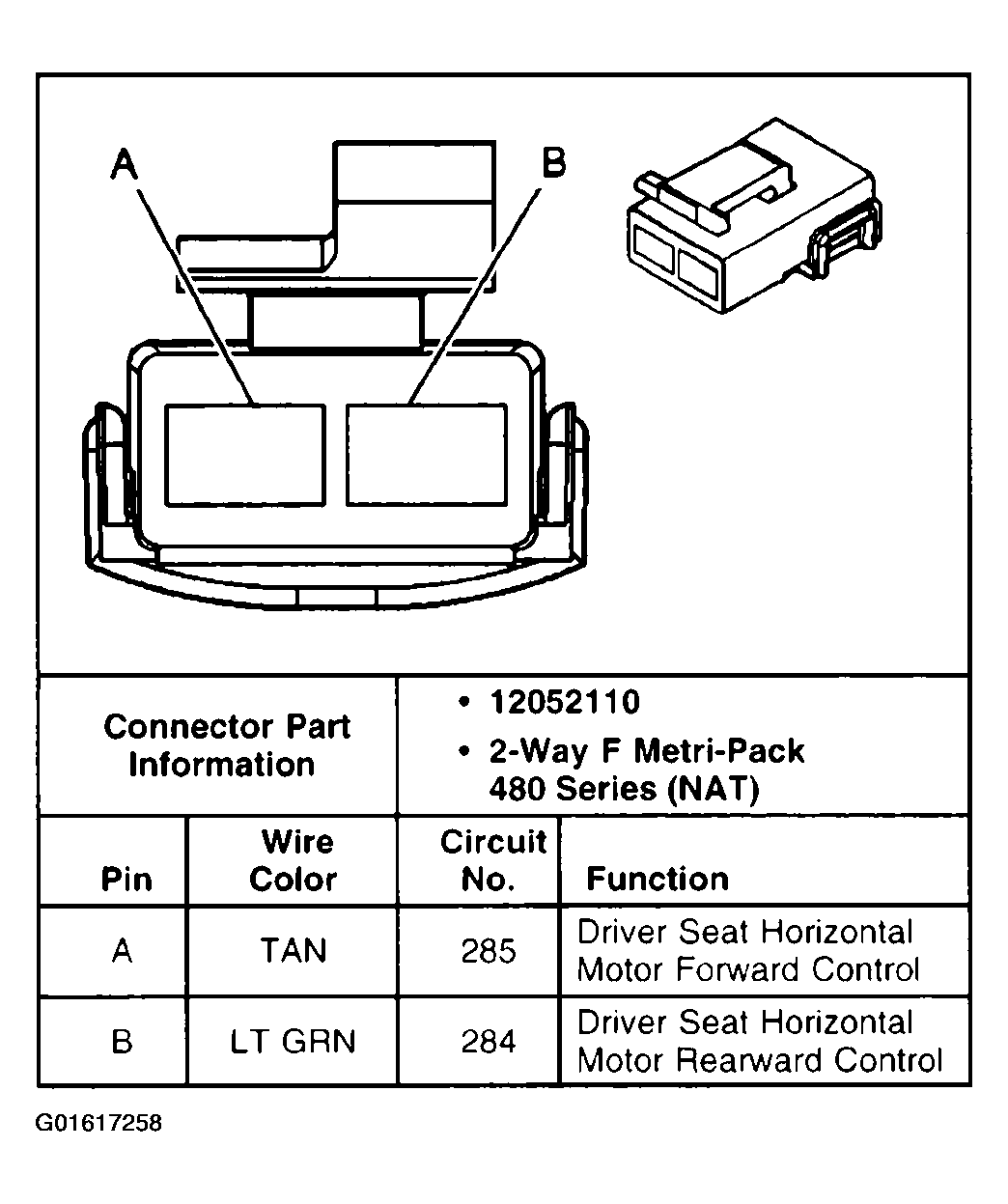

Fig 9: Seat Horizontal Motor - Driver

Courtesy of GENERAL MOTORS CORP.

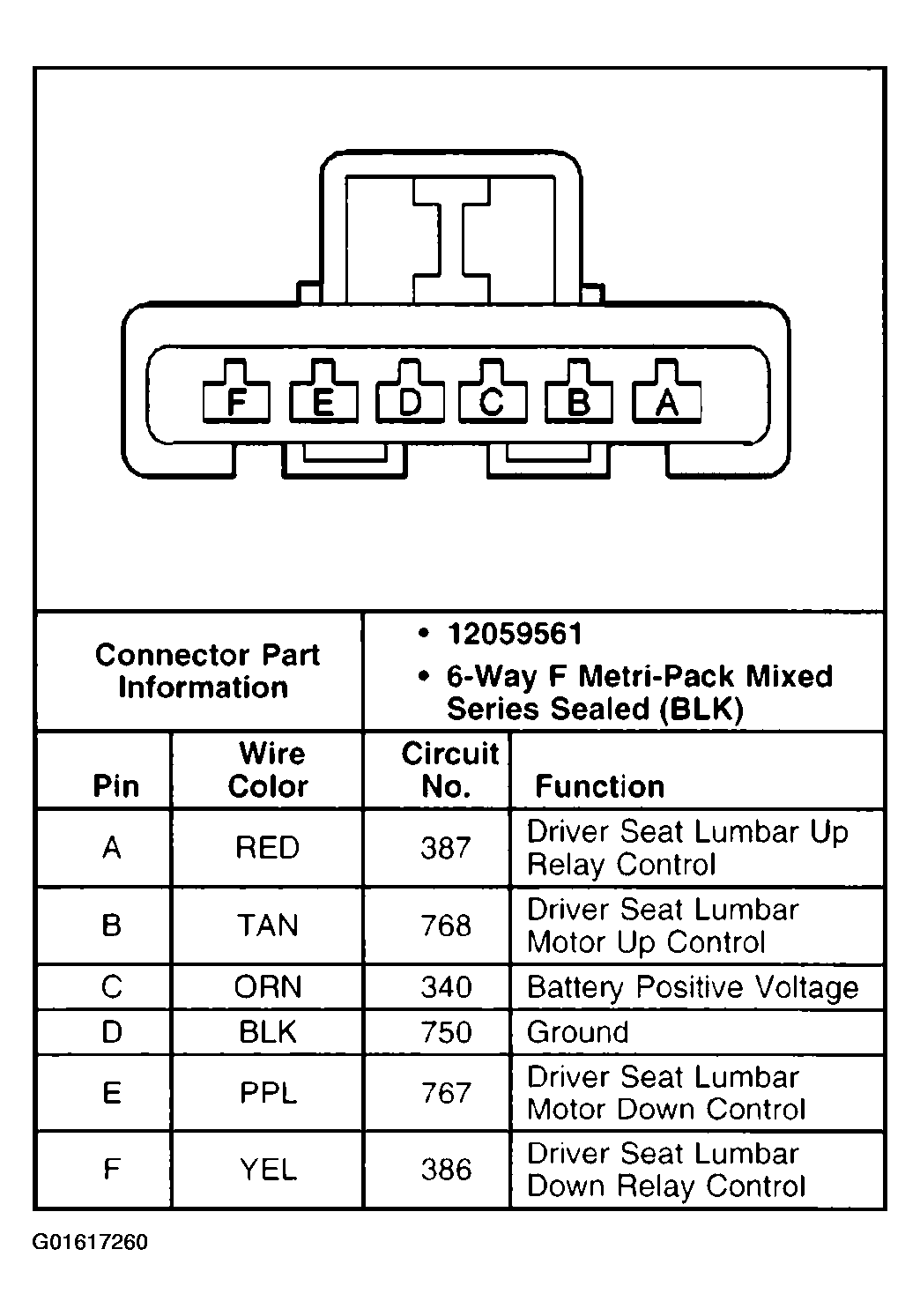

Fig 10: Seat Lumbar Switch - Driver

Courtesy of GENERAL MOTORS CORP.

Fig 11: Seat Lumbar Vertical Adjuster Relay

Courtesy of GENERAL MOTORS CORP.

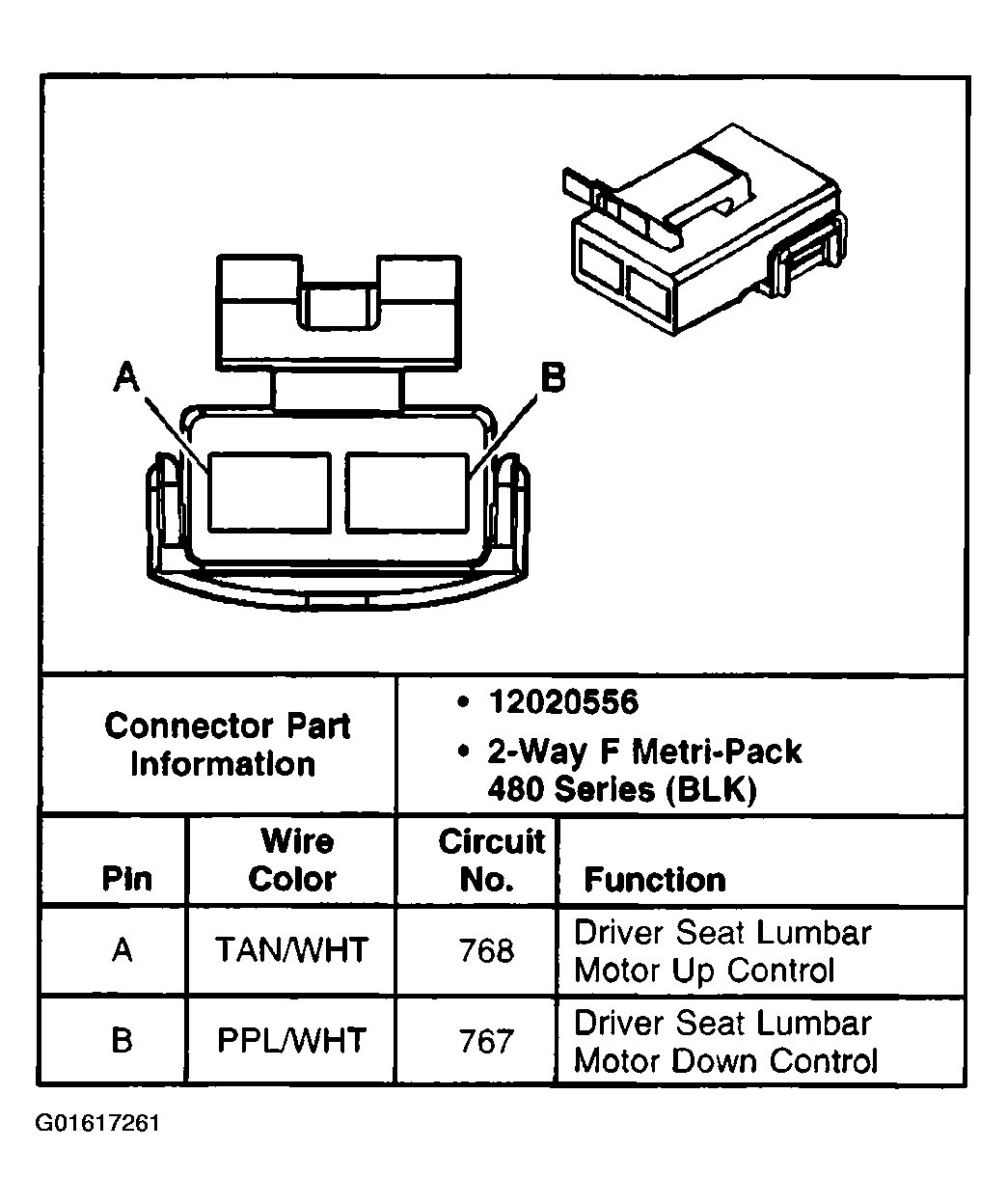

Fig 12: Seat Lumbar Vertical Motor

Courtesy of GENERAL MOTORS CORP.

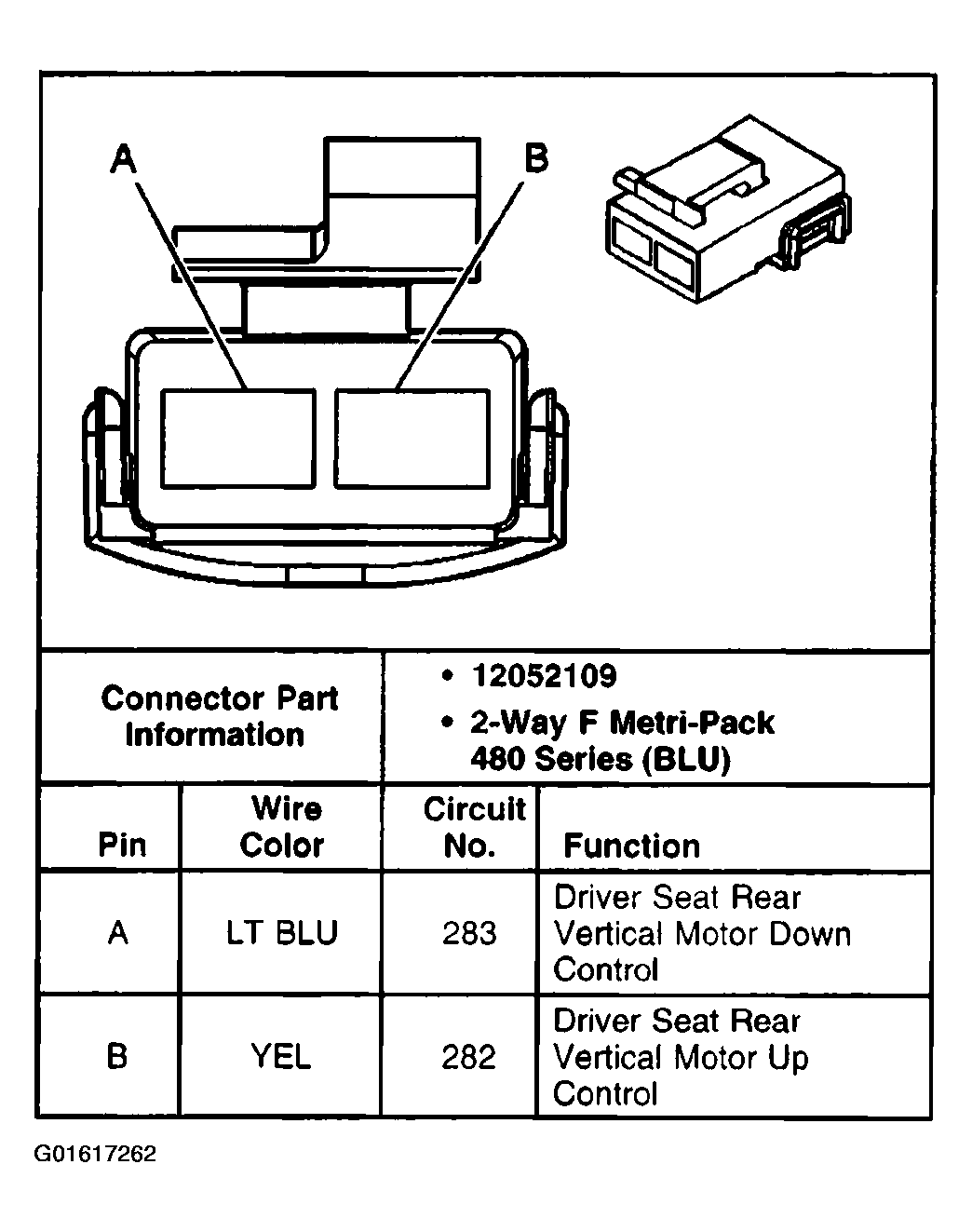

Fig 13: Seat Rear Vertical Motor - Driver

Courtesy of GENERAL MOTORS CORP.
