Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the module to the seat frame.
  2. Connect the module to the electrical connector.
  3. Slide the module rearward to engage the connector to the seat frame.
  4. Install the seat cushion trim cover and pad. Refer to Seat Cushion Cover Replacement - Front .

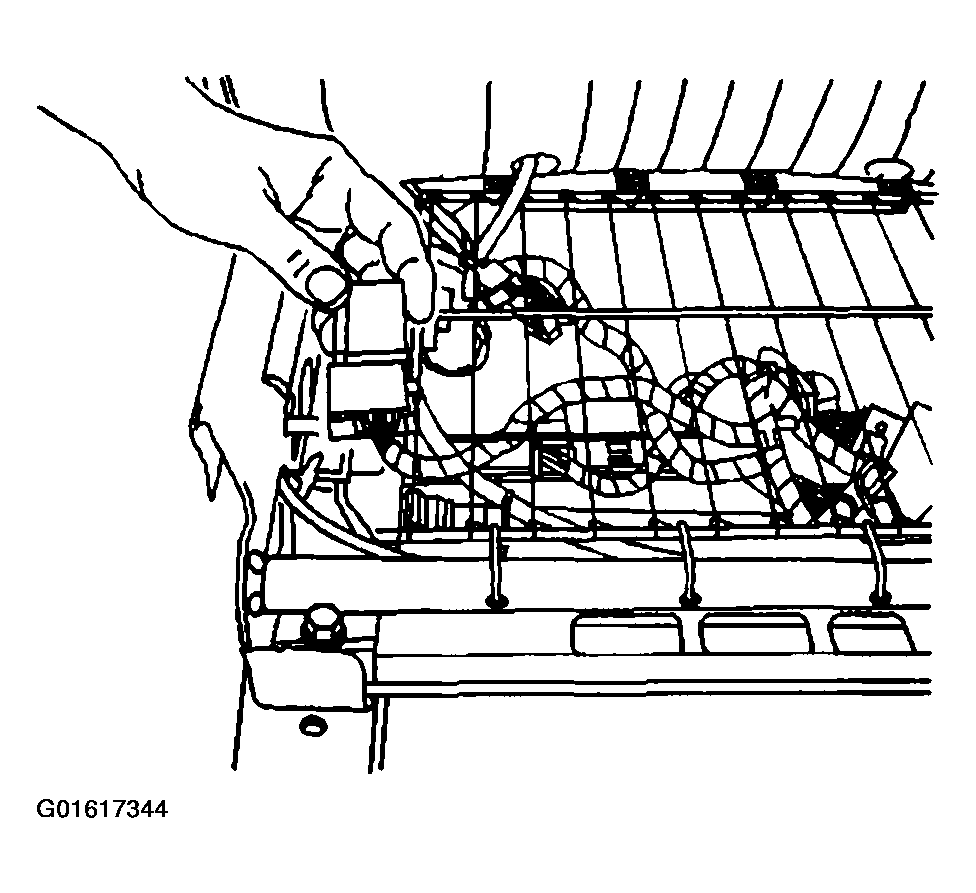

    Fig 1: Heated Seat Control Module
    G01617344Courtesy of GENERAL MOTORS CORP.
