Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Remove the seat cushion trim cover and pad to expose the heater control module (3). Refer to Seat Cushion Cover Replacement - Front .
Slide the module forward to disengage the module from the seat frame.

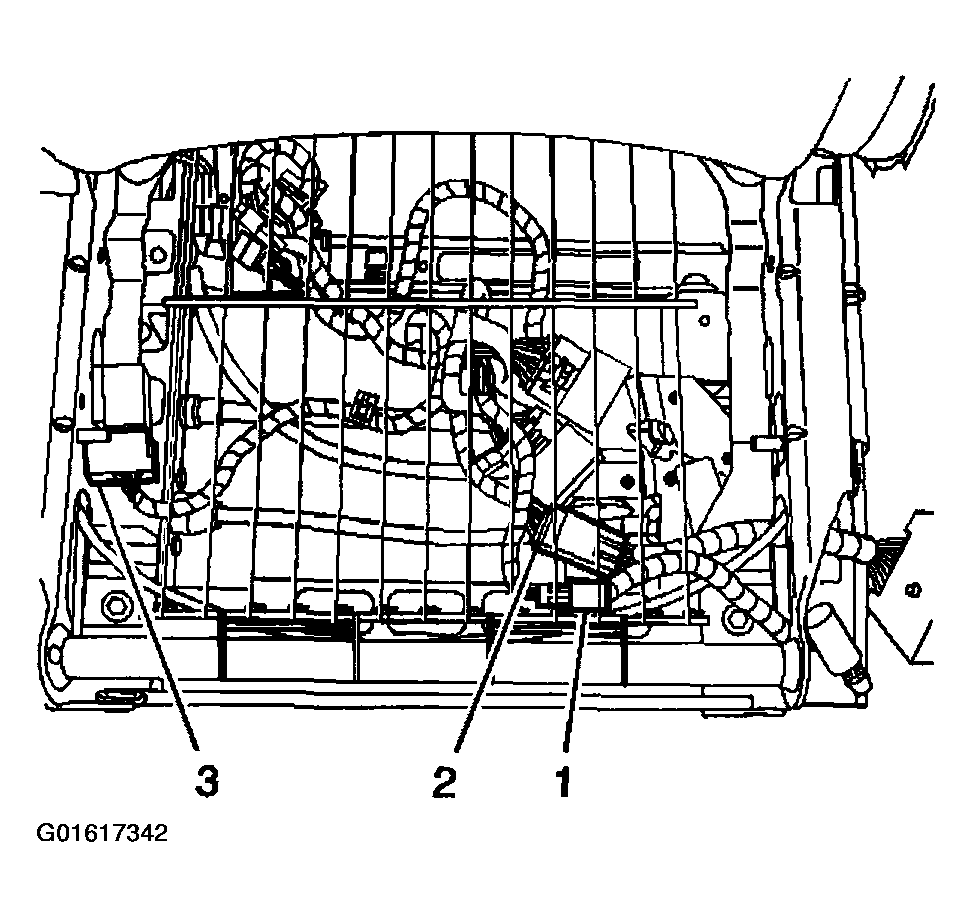

Fig 1: Locating Heated Seat Control Module
Courtesy of GENERAL MOTORS CORP.
Disconnect the module from the electrical connector.
Remove the module from the seat.

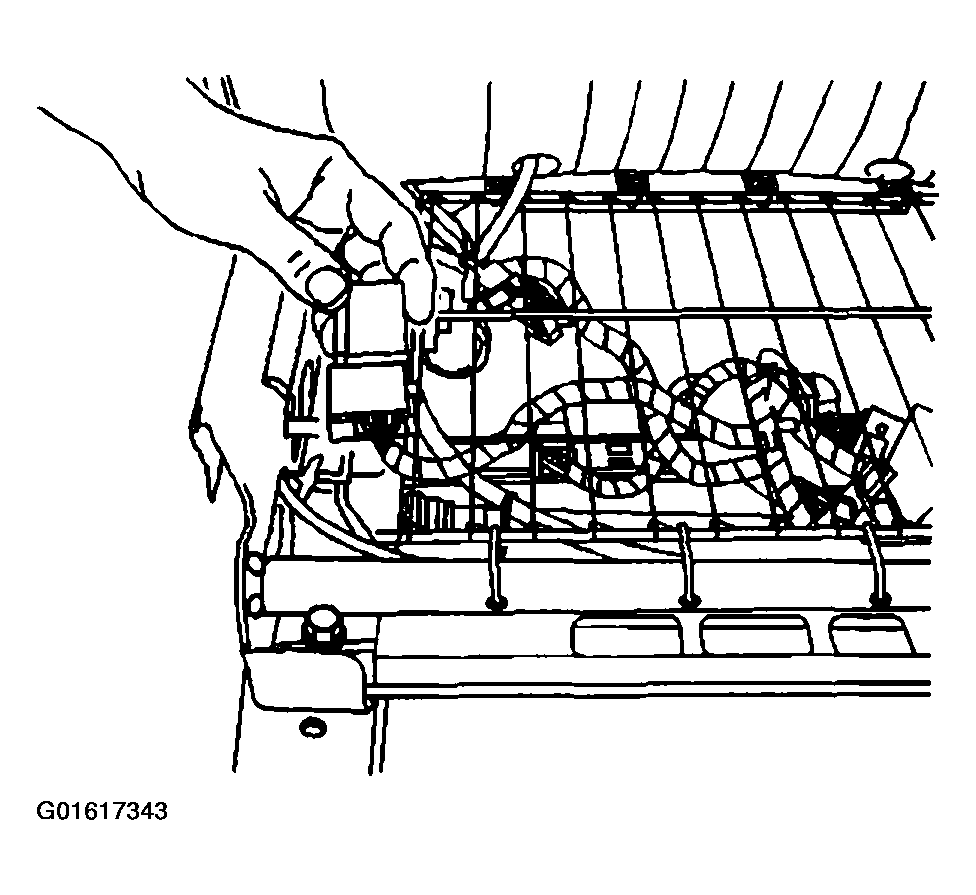

Fig 2: Removing Heated Seat Control Module
Courtesy of GENERAL MOTORS CORP.
