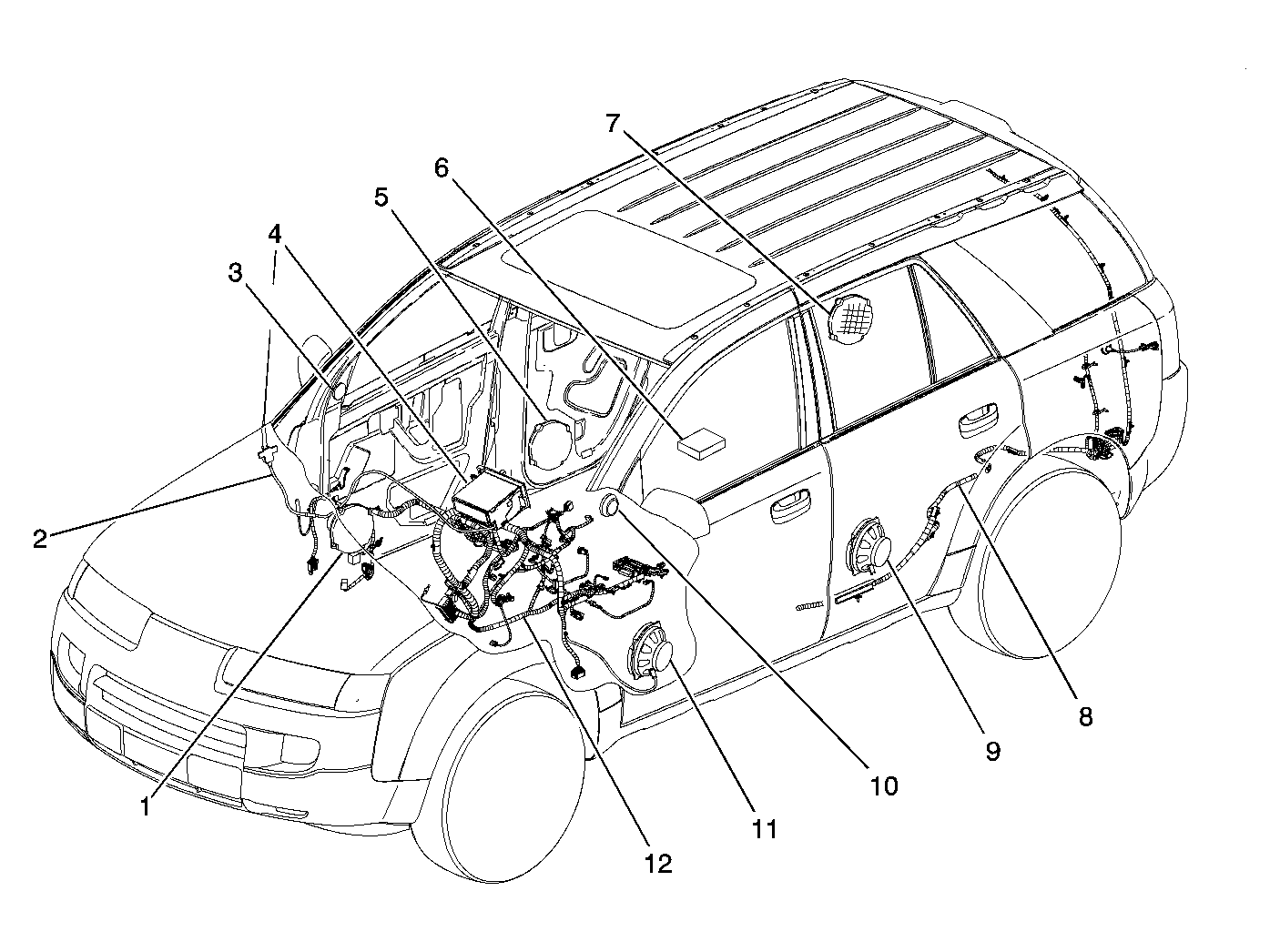

Entertainment Component Views
WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Speaker - RF |
| 2 |
Radio Antenna Lead |
| 3 |
Speaker - RF (Tweeter - UW6/WBM) |
| 4 |
Radio |
| 5 |
Speaker - RR |
| 6 |
Amplifier (WBM w/ UR9/UP0) |
| 7 |
Speaker - Subwoofer (WBM UR9/UP0) |
| 8 |
Body Harness |
| 9 |
Speaker - LR |
| 10 |
Speaker - LF (Tweeter - UW6/WBM) |
| 11 |
Speaker - LF |
| 12 |
I/P Harness |
