Entertainment Connector End Views

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Amplifier C1 (w/WBM)

GM73156Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110088
  • 24-Way F Micro-Pack 100 Series (GY)
Pin Wire Color Circuit Number Function
A1 D-GN 117 RF Speaker -
A2 L-GN 200 RF Speaker Output (+)
A3 L-BU 115 RR Speaker Output (-)
A4 D-BU 46 RR Speaker Output (+)
A5 OG 360 AMP Control
A6 OG 1950 AMP Sense
A7-A8 - - Not Used
A9 D-GN 117 RF Speaker Output (-)
A10 L-GN 200 RF Speaker Output (+)
A11 L-BU 115 RR Speaker Output (-)
A12 D-BU 46 RR Speaker Output (+)
B1 GY 118 LF Speaker Output (-)
B2 TN 201 LF Speaker Output (+)
B3 YE 116 LR Speaker Output (-)
B4 BN 199 LR Speaker Output (+)
B5-B8 - - Not Used
B9 GY 118 LF Speaker Output (-)
B10 TN 201 LF Speaker Output (+)
B11 YE 116 LR Speaker Output (-)
B12 BN 199 LR Speaker Output (+)
Amplifier C2 (w/WBM)

GM73158Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110626
  • 8-Way F Metri-Pack 280 Series, Flexlock (GY)
Pin Wire Color Circuit Number Function
A L-GN/BK 1794 Left Subwoofer Speaker Output (-)
B D-BU/WH 346 Left Subwoofer Speaker Output (+)
C BK 850 Ground
D OG 2340 Battery Positive Voltage
E-F - - Not Used
G D-GN 1795 Right Subwoofer Speaker Output (+)
H L-BU/BK 315 Right Subwoofer Speaker Output (-)
Radio C1

GM73156Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110088
  • 24-Way F Micro-Pack 100 Series (GY)
Pin Wire Color Circuit Number Function
A1-A2 - - Not Used
A3 OG 360 Amplifier Control (w/ WBM/UR9/UP0)
A4 YE 43 Accessory Voltage
A5-A7 - - Not Used
A8 BN 199 LR Speaker Output (+)
A9 YE 116 LR Speaker Output (-)
A10 D-GN 117 RF Speaker Output (+)
A11 L-GN 200 RF Speaker Output (-)
A12 BK/WH 151 Ground
B1 OG 2140 Battery Positive Voltage
B2-B3 - - Not Used
B4 GY 8 I/P Lamps Dimmer Switch Signal
B5 - - Not Used
B6 OG 1950 Amplifier Sense (w/ WBM/UR9/UP0)
B7 - - Not Used
B8 TN 201 LF Speaker Output (+)
B9 GY 118 LF Speaker Output (-)
B10 L-BU 115 RR Speaker Output (-)
B11 D-BU 46 RR Speaker Output (+)
B12 BN 9 Park Lamp Supply Voltage
Radio C2

GM73151Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064799
  • 12-Way F Micro-Pack 100 Series (BK)
Pin Wire Color Circuit Number Function
A-G - - Not Used
H D-GN/WH 368 Right Audio Signal (+) (w/UE1)
J BN/WH 367 Left Audio Signal (+) (w/UE1)
K BK/WH 372 Audio Common (w/UE1)
L - - Not Used
M YE/BK 693 Mute Signal (w/UE1)

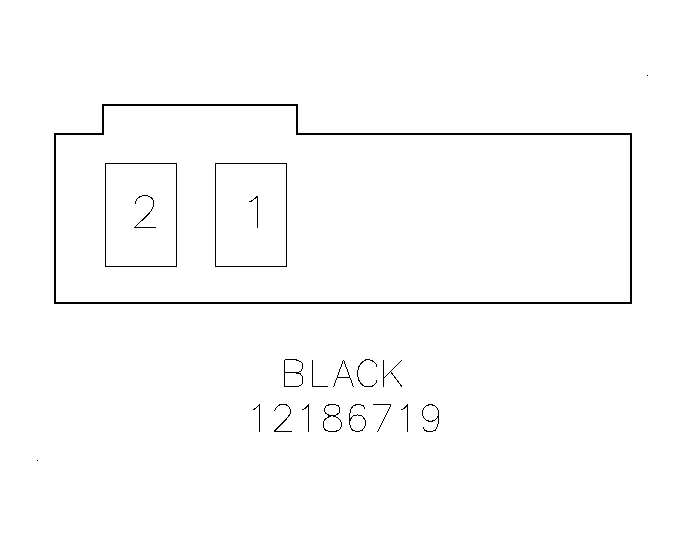

Speaker - LF

GM886694Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186719
  • 2-Way F (BK)
Pin Wire Color Circuit Number Function
1 GY 118 LF Speaker Output (-)
2 TN 201 LF Speaker Output (+)
Speaker - LR

GM886694Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186719
  • 2-Way F (BK)
Pin Wire Color Circuit Number Function
1 YE 116 LR Speaker Output (-)
2 BN 199 LR Speaker Output (+)
Speaker - RF

GM886694Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186719
  • 2-Way F (BK)
Pin Wire Color Circuit Number Function
1 D-GN 117 RF Speaker Output (-)
2 L-GN 200 RF Speaker Output (+)
Speaker - RR

GM886694Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186719
  • 2-Way F (BK)
Pin Wire Color Circuit Number Function
1 L-BU 115 RR Speaker Output (-)
2 D-BU 46 RR Speaker Output (+)

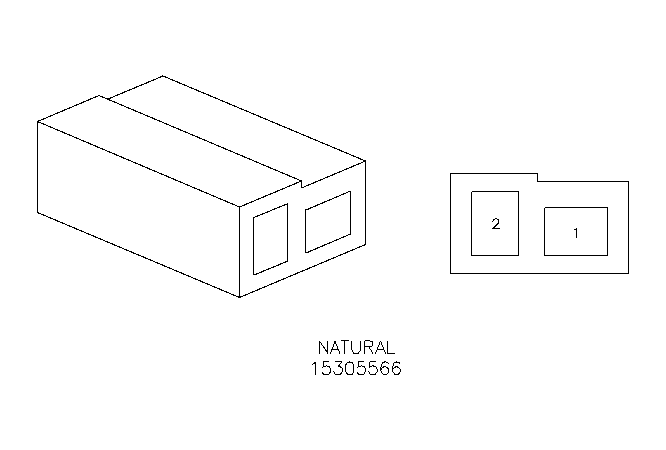

Speaker - LF (Tweeter) (w/WBM or UR9/UP0)

GM889993Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15305566
  • 2-Way F (NA)
Pin Wire Color Circuit Number Function
1 GY 118 LF Speaker Output (-)
2 TN 201 LF Speaker Output (+)
Speaker - RF (Tweeter) (w/WBM or UR9/UP0)

GM889993Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15305566
  • 2-Way F (NA)
Pin Wire Color Circuit Number Function
1 D-GN 117 RF Speaker Output (-)
2 L-GN 200 RF Speaker Output (+)
Speaker - Subwoofer (w/WBM)

GM130637Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064760
  • 4-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit Number Function
A L-GN/BK 1794 Left Subwoofer Speaker Output (-)
B D-BU/WH 346 Left Subwoofer Speaker Output (+)
C L-BU/BK 315 Right Subwoofer Speaker Output (-)
D D-GN 1795 Right Subwoofer Speaker Output (+)
