Automatic Transmission Shift Lock Control Schematics

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

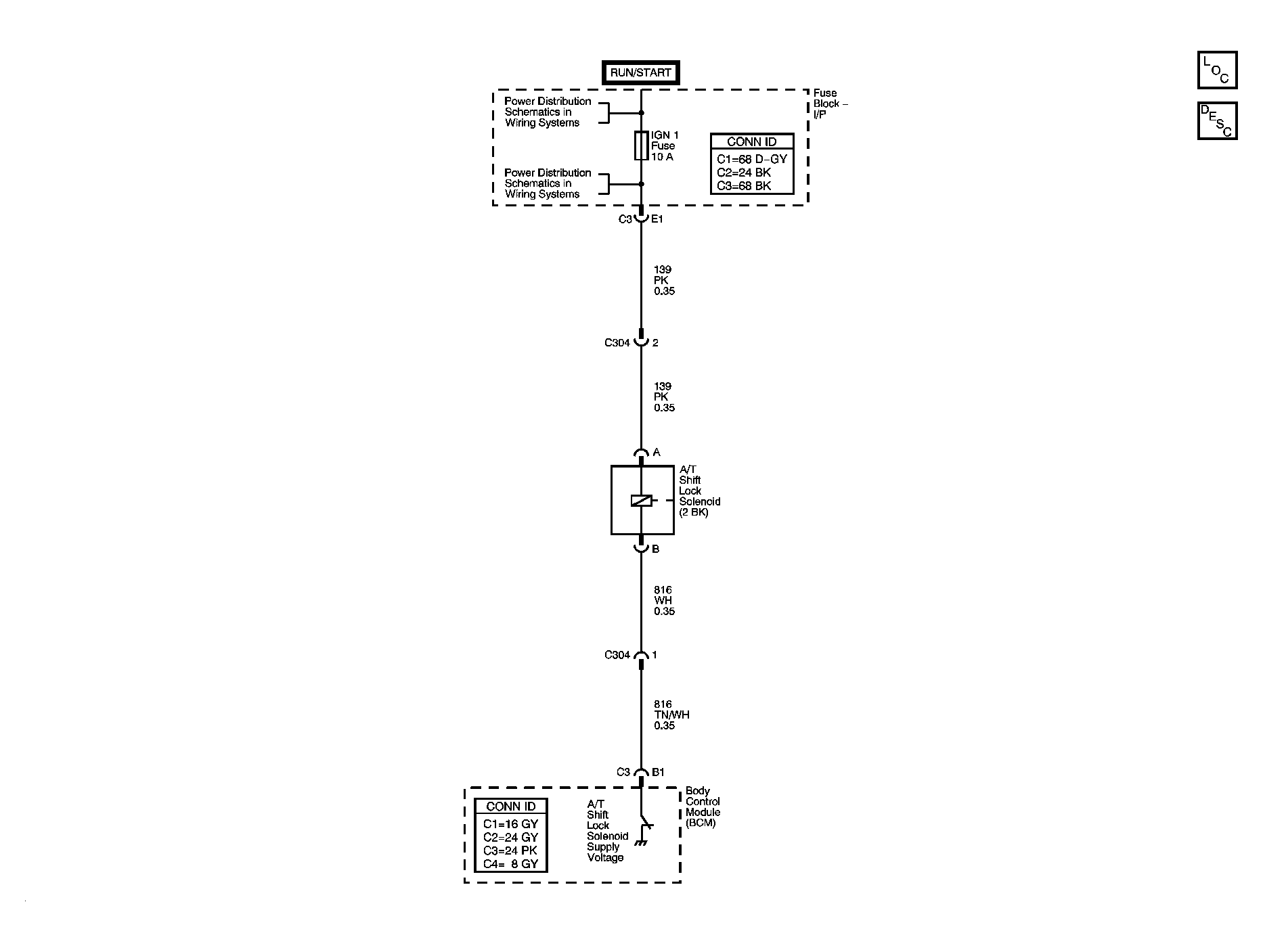

Fig 1: Automatic Transmission Shift Lock Control Schematics
GM1204209Courtesy of GENERAL MOTORS CORP.
