Removal Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

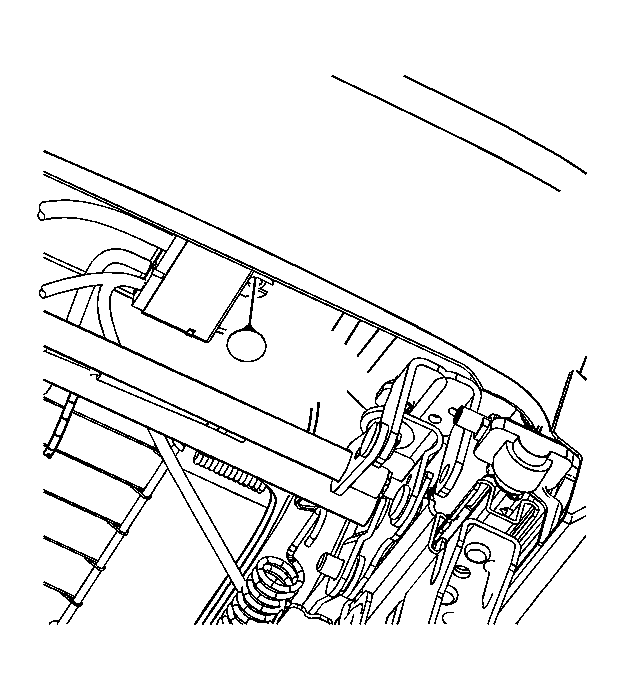

    Fig 1: Front Heated Seat Control Module
    GM1334488Courtesy of GENERAL MOTORS CORP.
  1. Remove the heated seat module retainer.

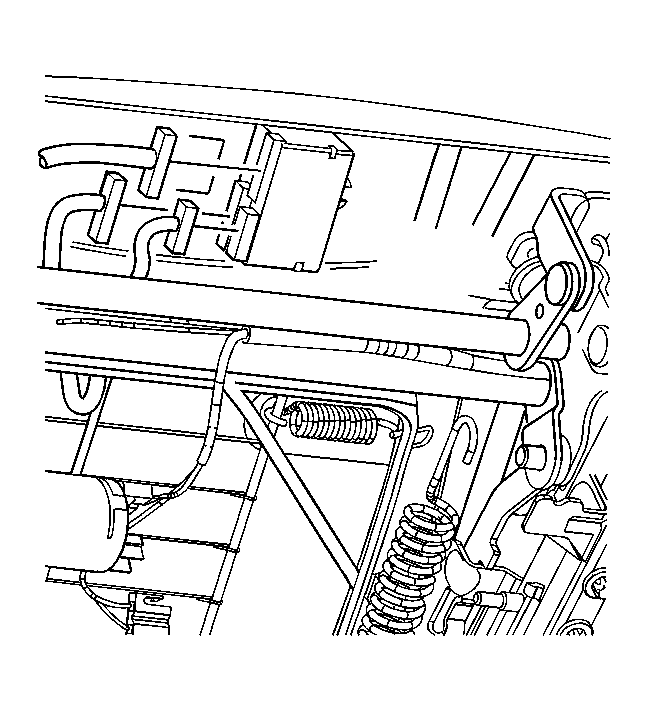

  2. Fig 2: Disconnecting Electrical Connectors From Heated Seat Module
    GM1334483Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connectors from the heated seat module.

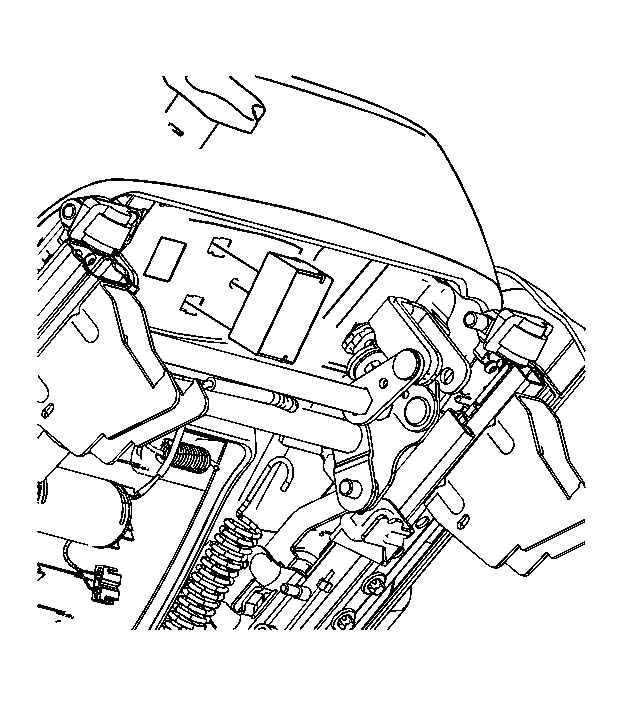

  4. Fig 3: Seat Module
    GM1334494Courtesy of GENERAL MOTORS CORP.
  5. Remove the module.
