Removal Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Remove the wiper arms. Refer to Wiper Arm Replacement .
Remove the air inlet grille. Refer to Air Inlet Grille Panel Replacement in Body Front End.

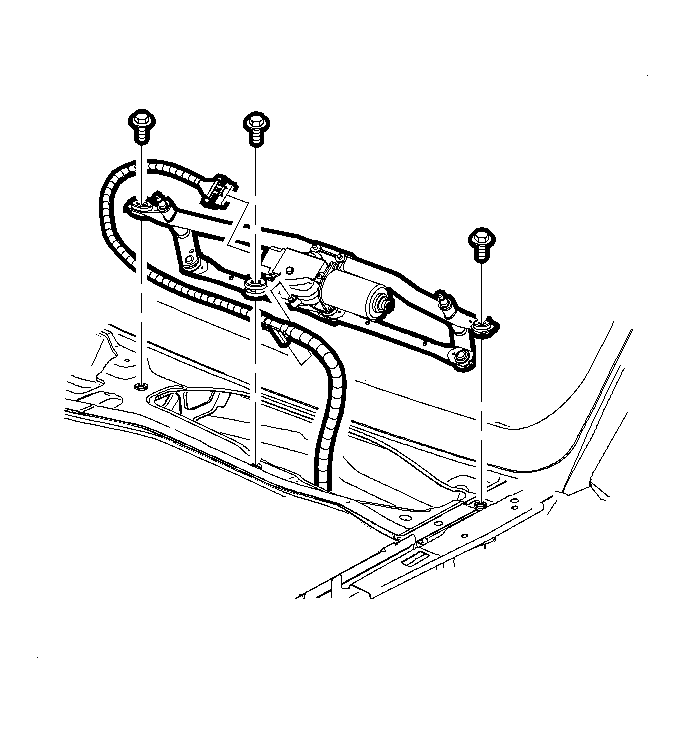

Fig 1: Wiper Motor Module Assembly

Courtesy of GENERAL MOTORS CORP.

Remove the wiper module bolts.
Lift the wiper motor module away from the cowl.
Disconnect the wire harness rosebud clip from the wiper module frame.
Disconnect the wiper module electrical connector at the motor.
