Connector Identification

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Camshaft Position Sensor Connector Terminals

G00121125

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Crankshaft Position Sensor "A" Connector Terminals

G00121126

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying Crankshaft Position Sensor "B" Connector Terminals

G00113326

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Engine Coolant Temperature Sensor Connector Terminals

G00113327

Courtesy of GENERAL MOTORS CORP.

Fig 5: Identifying EGR Valve Connector Terminals

G00113330

Courtesy of GENERAL MOTORS CORP.

Fig 6: Identifying EVAP Purge Solenoid Connector Terminals

G00121127

Courtesy of GENERAL MOTORS CORP.

Fig 7: Identifying EVAP Vent Solenoid Connector Terminals

G00121128

Courtesy of GENERAL MOTORS CORP.

Fig 8: Identifying Fuel Injector No. 1 Connector Terminals

G00202333

Courtesy of GENERAL MOTORS CORP.

Fig 9: Identifying Fuel Injector No. 2 Connector Terminals

G00202334

Courtesy of GENERAL MOTORS CORP.

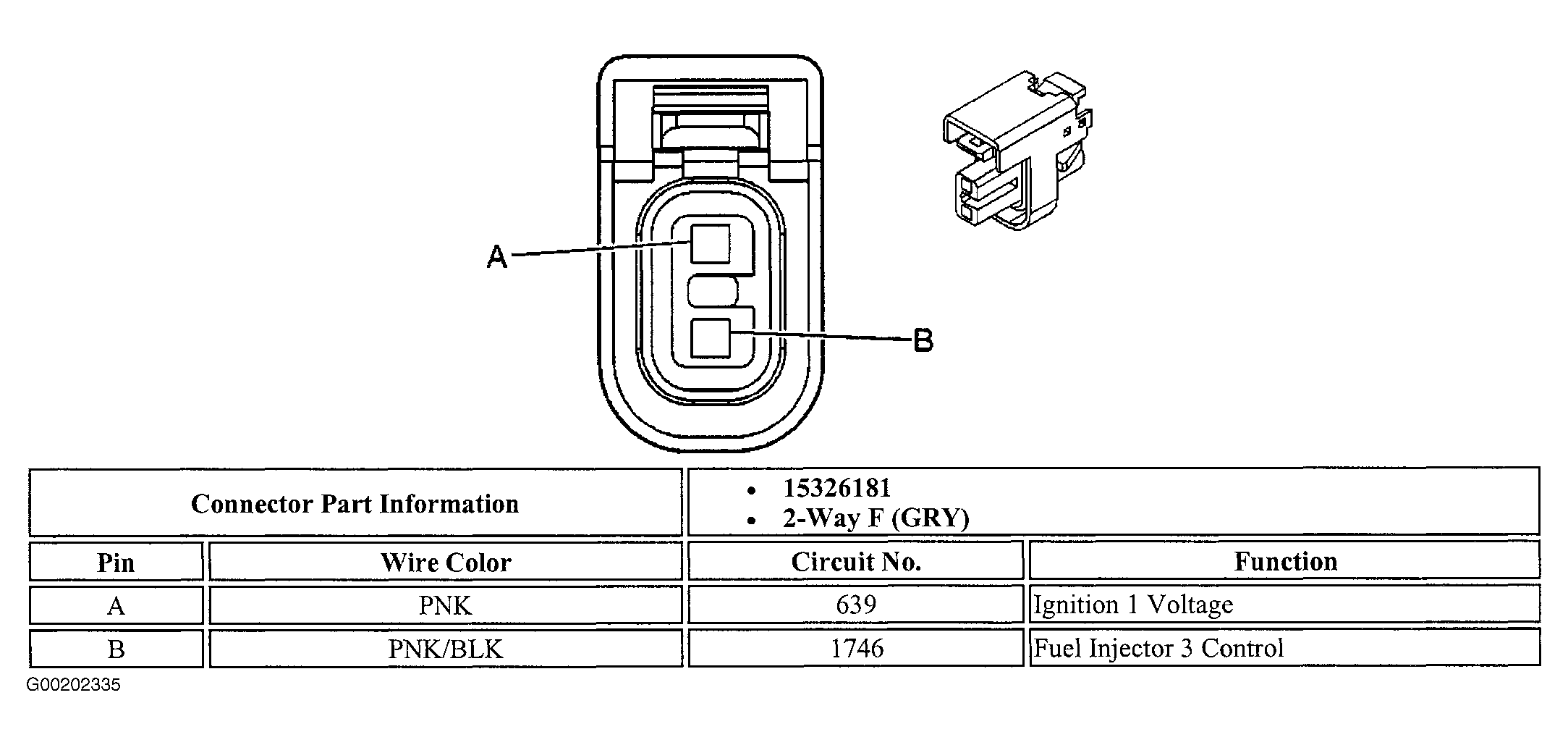

Fig 10: Identifying Fuel Injector No. 3 Connector Terminals

G00202335

Courtesy of GENERAL MOTORS CORP.

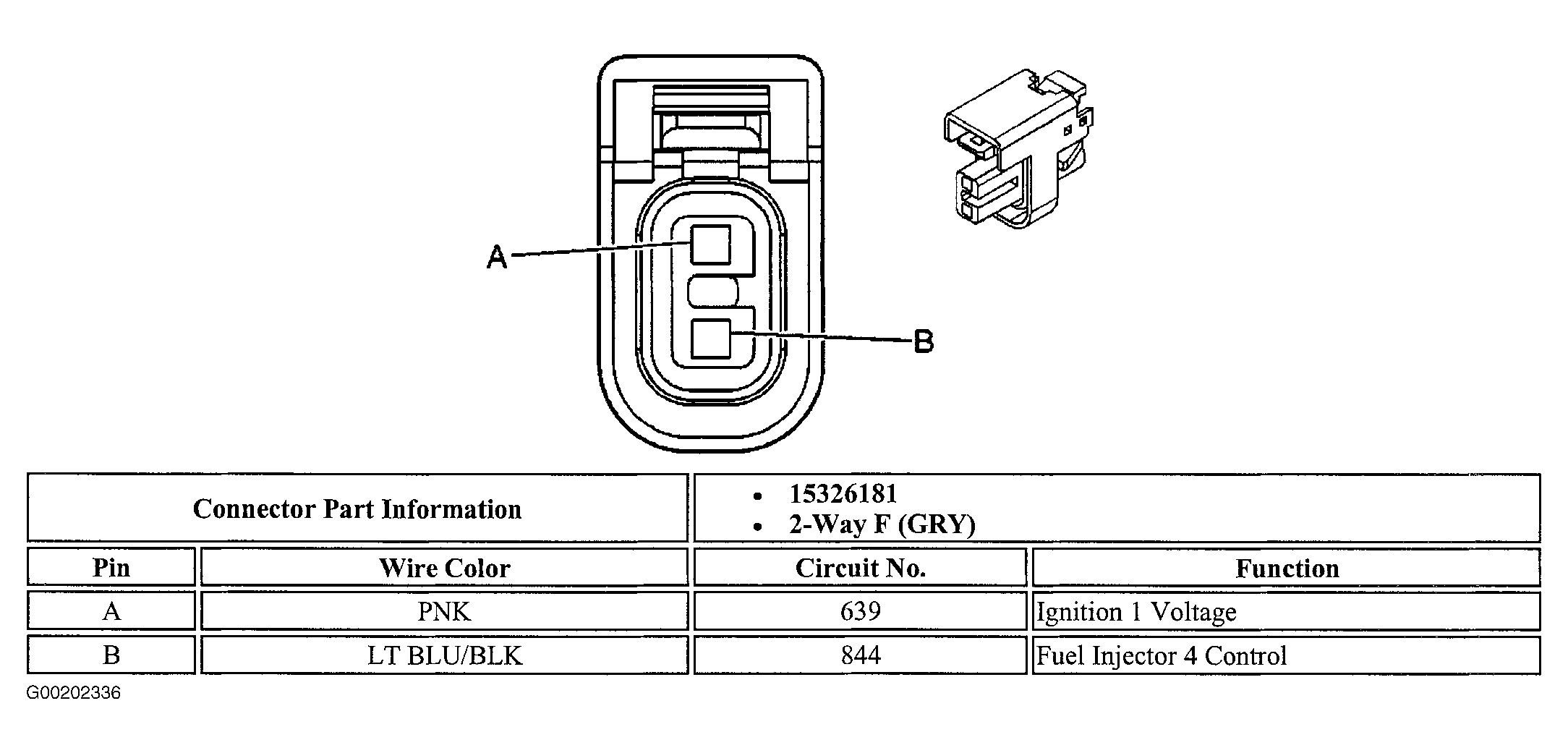

Fig 11: Identifying Fuel Injector No. 4 Connector Terminals

G00202336

Courtesy of GENERAL MOTORS CORP.

Fig 12: Identifying Fuel Injector No. 5 Connector Terminals

G00202337

Courtesy of GENERAL MOTORS CORP.

Fig 13: Identifying Fuel Injector No. 6 Connector Terminals

G00202338

Courtesy of GENERAL MOTORS CORP.

Fig 14: Identifying Fuel Pump & Fuel Level Sender Connector Terminals

G00113331

Courtesy of GENERAL MOTORS CORP.

Fig 15: Identifying Fuel Tank Pressure Sensor Connector Terminals

G00101502

Courtesy of GENERAL MOTORS CORP.

Fig 16: Identifying HO2S Sensor 1 Connector Terminals

G00121129

Courtesy of GENERAL MOTORS CORP.

Fig 17: Identifying HO2S Sensor 2 Connector Terminals

G00121130

Courtesy of GENERAL MOTORS CORP.

Fig 18: Identifying Idle Air Control Valve Connector Terminals

G00101510

Courtesy of GENERAL MOTORS CORP.

Fig 19: Identifying Intake Air Temperature Sensor Connector Terminals

G00101514

Courtesy of GENERAL MOTORS CORP.

Fig 20: Identifying Ignition Control Module Connector C1 Terminals

G00113335

Courtesy of GENERAL MOTORS CORP.

Fig 21: Identifying Ignition Control Module Connector C2 Terminals

G00121131

Courtesy of GENERAL MOTORS CORP.

Fig 22: Identifying Ignition Control Module Connector C3 Terminals

G00121132

Courtesy of GENERAL MOTORS CORP.

Fig 23: Identifying Instrument Panel Cluster Connector Terminals (Aztek)

G00140534

Courtesy of GENERAL MOTORS CORP.

Fig 24: Identifying Instrument Panel Cluster Connector Terminals (Rendezvous)

G00140535

Courtesy of GENERAL MOTORS CORP.

Fig 25: Identifying Manifold Absolute Pressure Sensor Connector Terminals

G00113338

Courtesy of GENERAL MOTORS CORP.

Fig 26: Identifying Mass Airflow Sensor Connector Terminals

G00121133

Courtesy of GENERAL MOTORS CORP.

Fig 27: Identifying PCM Connector C1 Terminals (1 Of 3)

G00121119

Courtesy of GENERAL MOTORS CORP.

Fig 28: Identifying PCM Connector C1 Terminals (2 Of 3)

G00121120

Courtesy of GENERAL MOTORS CORP.

Fig 29: Identifying PCM Connector C1 Terminals (3 Of 3)

G00121121

Courtesy of GENERAL MOTORS CORP.

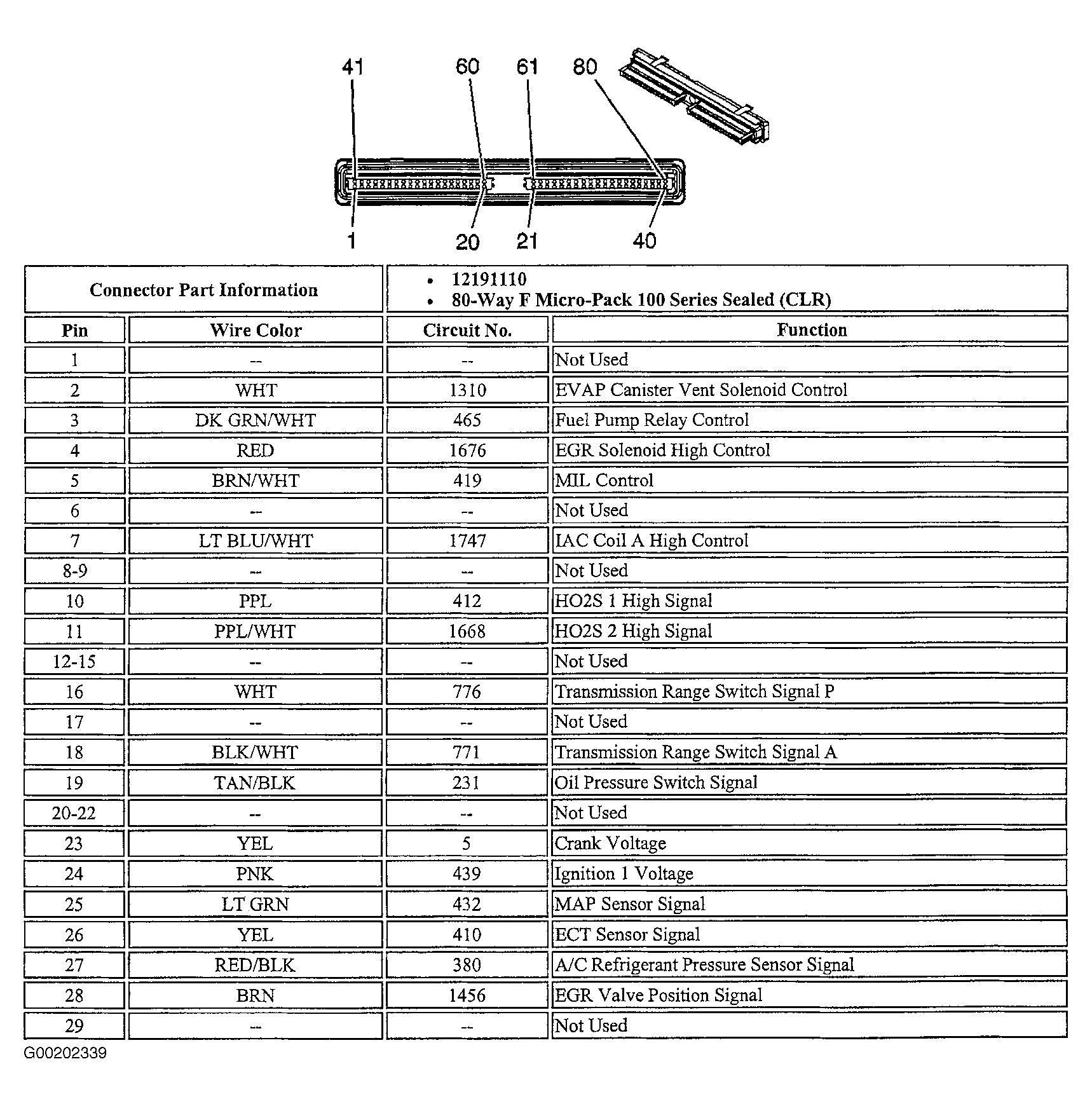

Fig 30: Identifying PCM Connector C2 Terminals (1 Of 3)

G00202339

Courtesy of GENERAL MOTORS CORP.

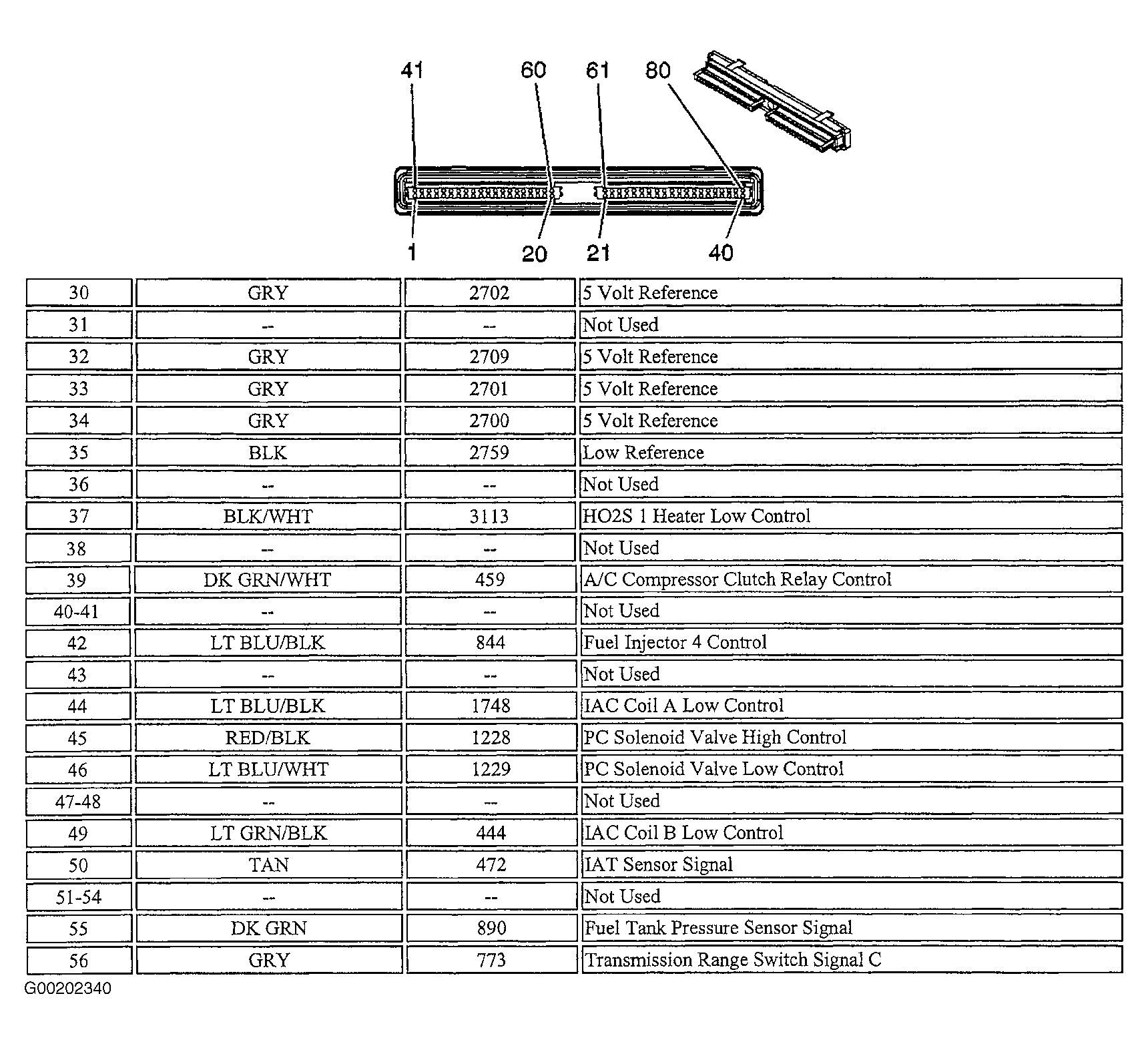

Fig 31: Identifying PCM Connector C2 Terminals (2 of 3)

G00202340

Courtesy of GENERAL MOTORS CORP.

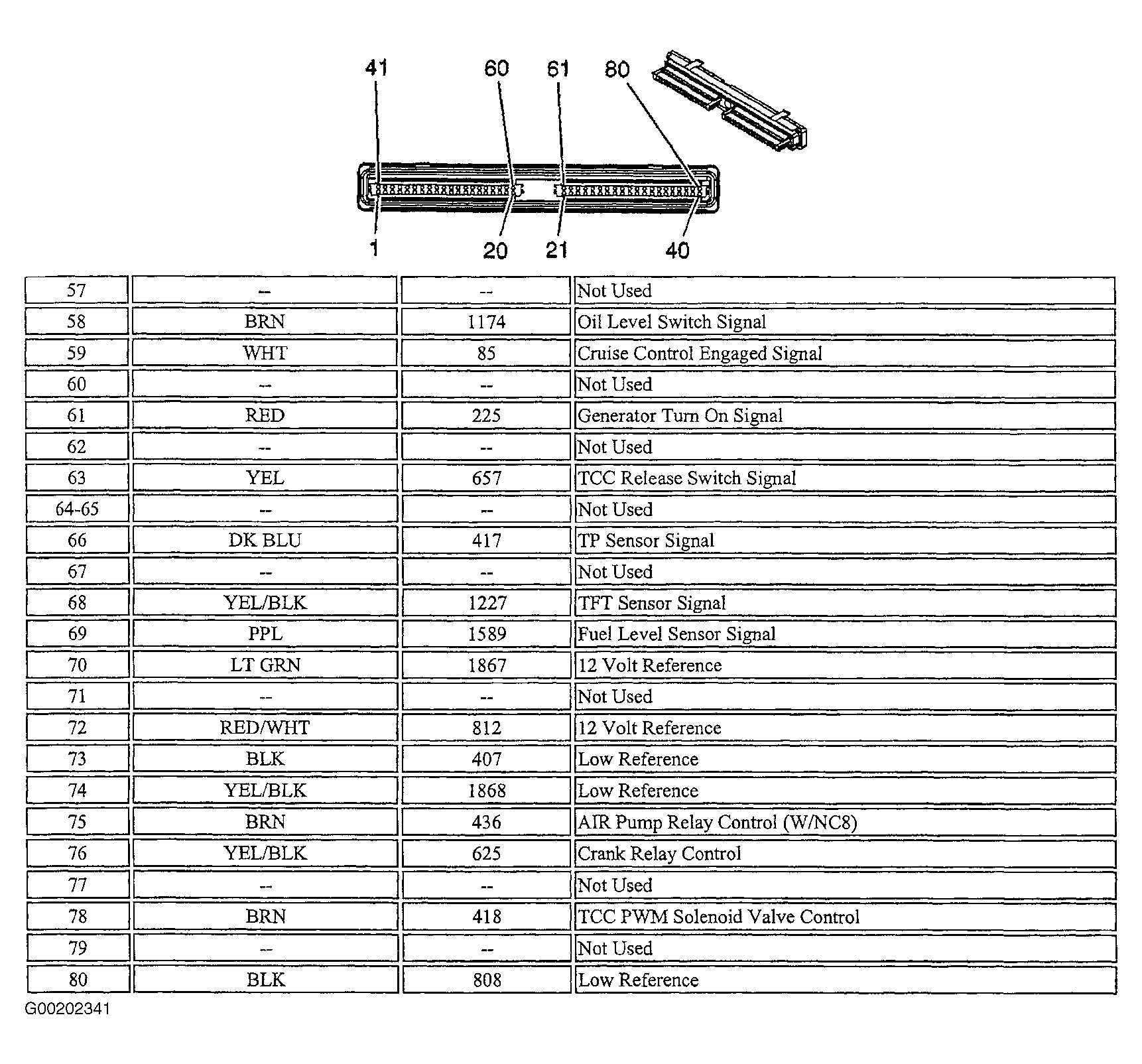

Fig 32: Identifying PCM Connector C2 Terminals (3 Of 3)

G00202341

Courtesy of GENERAL MOTORS CORP.

Fig 33: Identifying Throttle Position Sensor Connector Terminals

G00101520

Courtesy of GENERAL MOTORS CORP.
