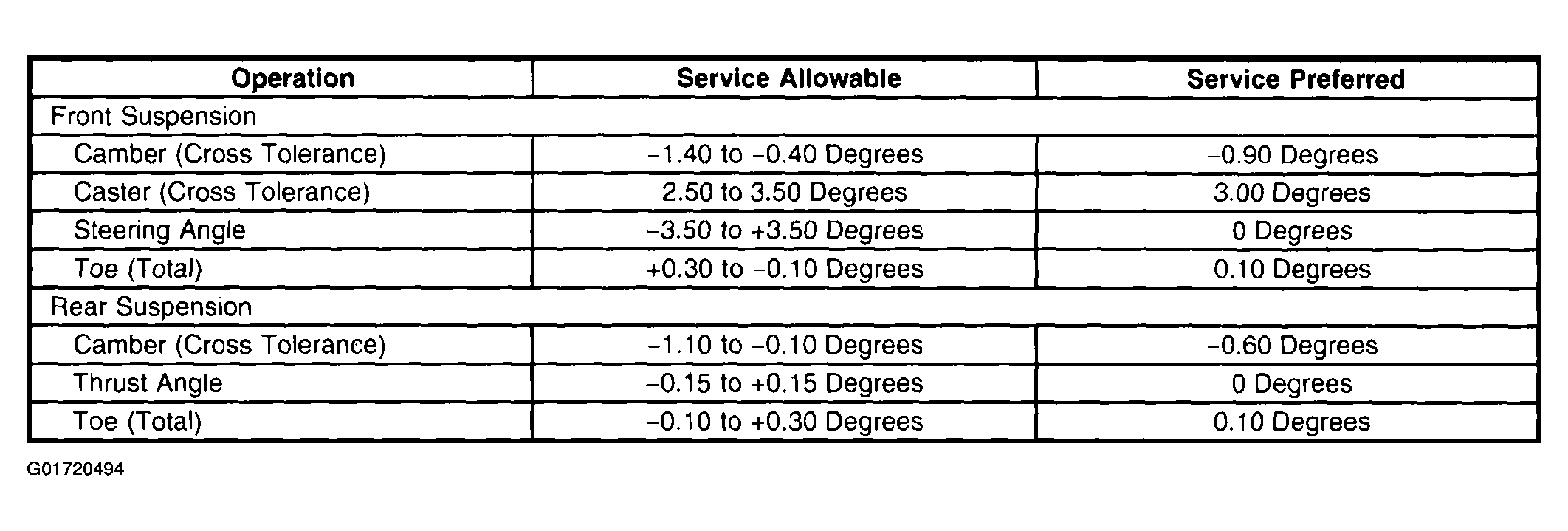

Section 520 (Wheel Alignment Specifications & Adjustment Procedures): Specifications
WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP. Fastener Tightening Specifications
| Application |
Specification |
| Metric |
English |
| Spindle Rod Jam Nut - Rear |
68 N.m |
50 lb ft |
| Strut to Knuckle Bolts - Front |
122 N.m |
90 lb ft |
| Strut to Knuckle Bolts - Rear |
112 N.m |
82 lb ft |
| Tie Rod End Jam Nut - Front |
68 N.m |
50 lb ft |
