Lighting Systems Connector End Views

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

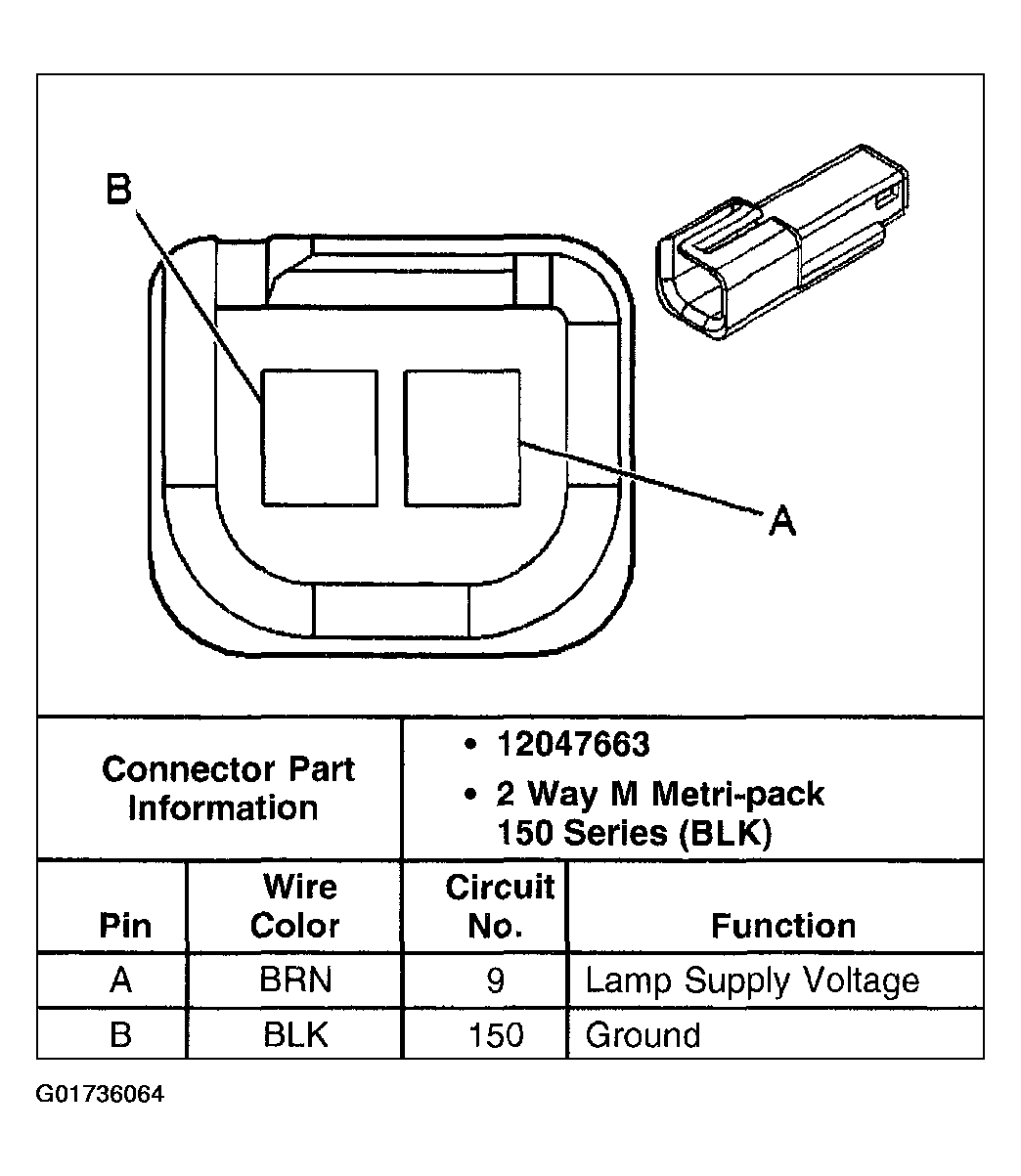

Fig 1: Ashtray Lamp

G01736064

Courtesy of GENERAL MOTORS CORP.

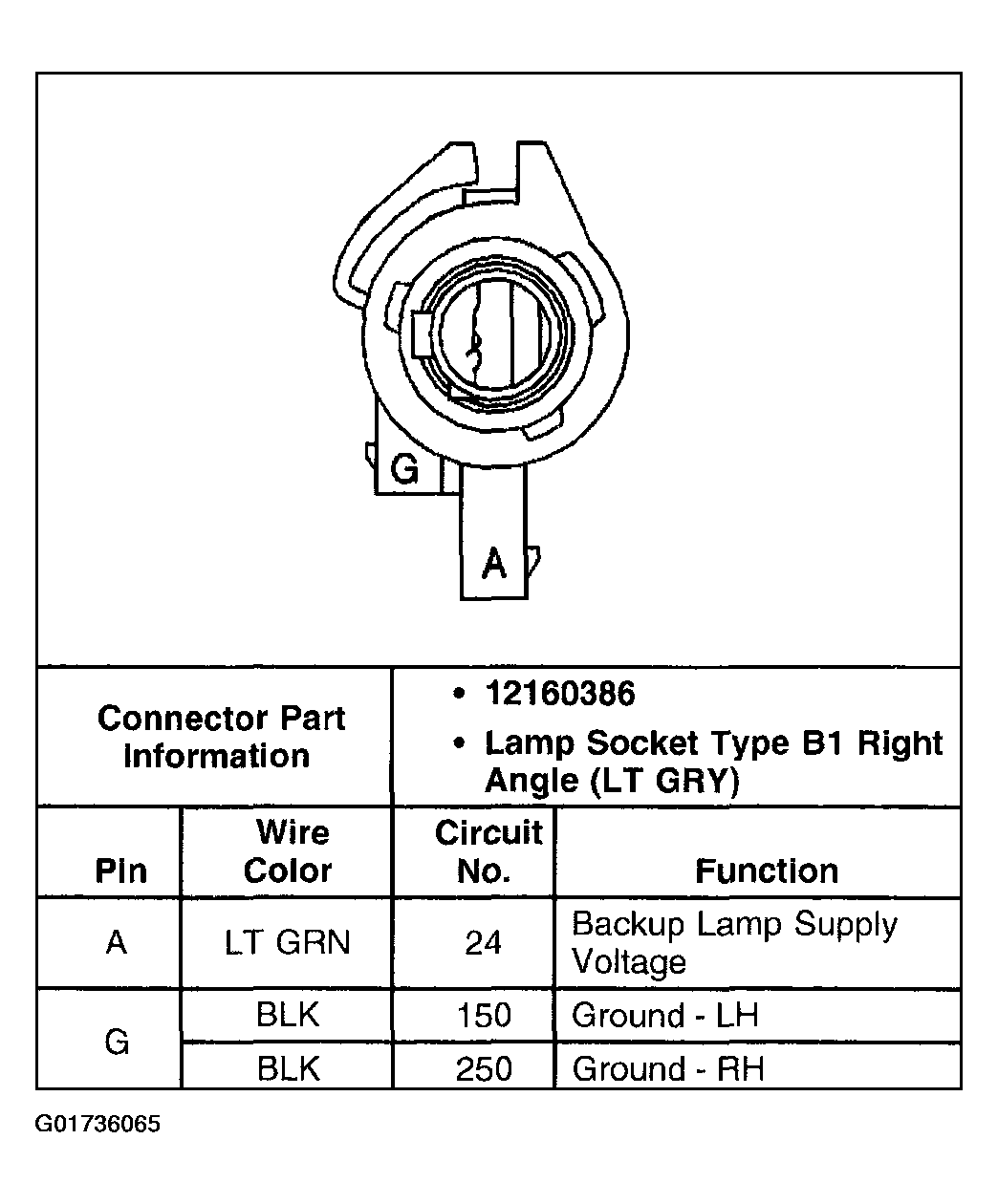

Fig 2: Backup Lamp - Left, Right

G01736065

Courtesy of GENERAL MOTORS CORP.

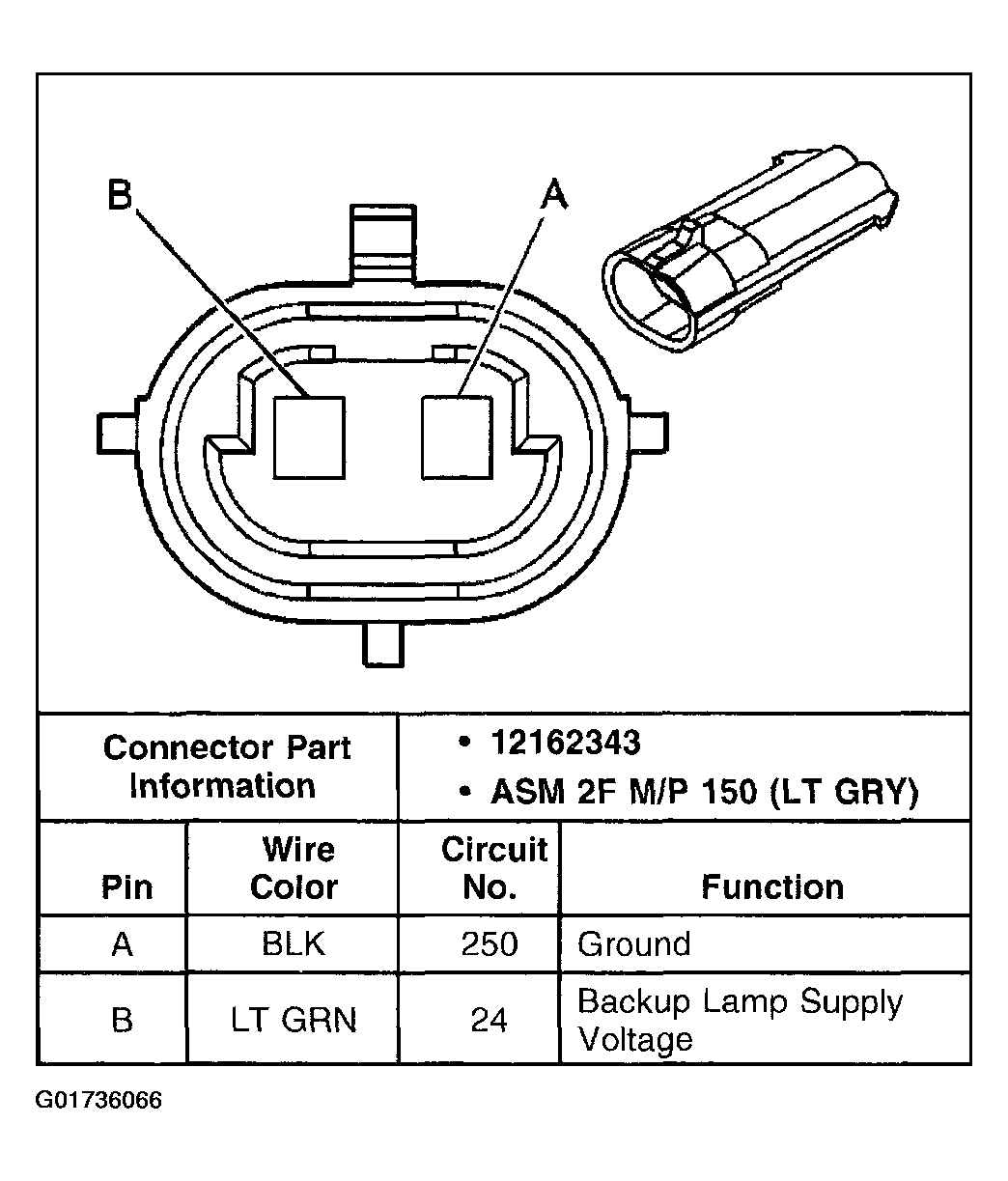

Fig 3: Backup Lamp - Export

G01736066

Courtesy of GENERAL MOTORS CORP.

Fig 4: Center High Mounted Stop Lamp (CHMSL)

G01736067

Courtesy of GENERAL MOTORS CORP.

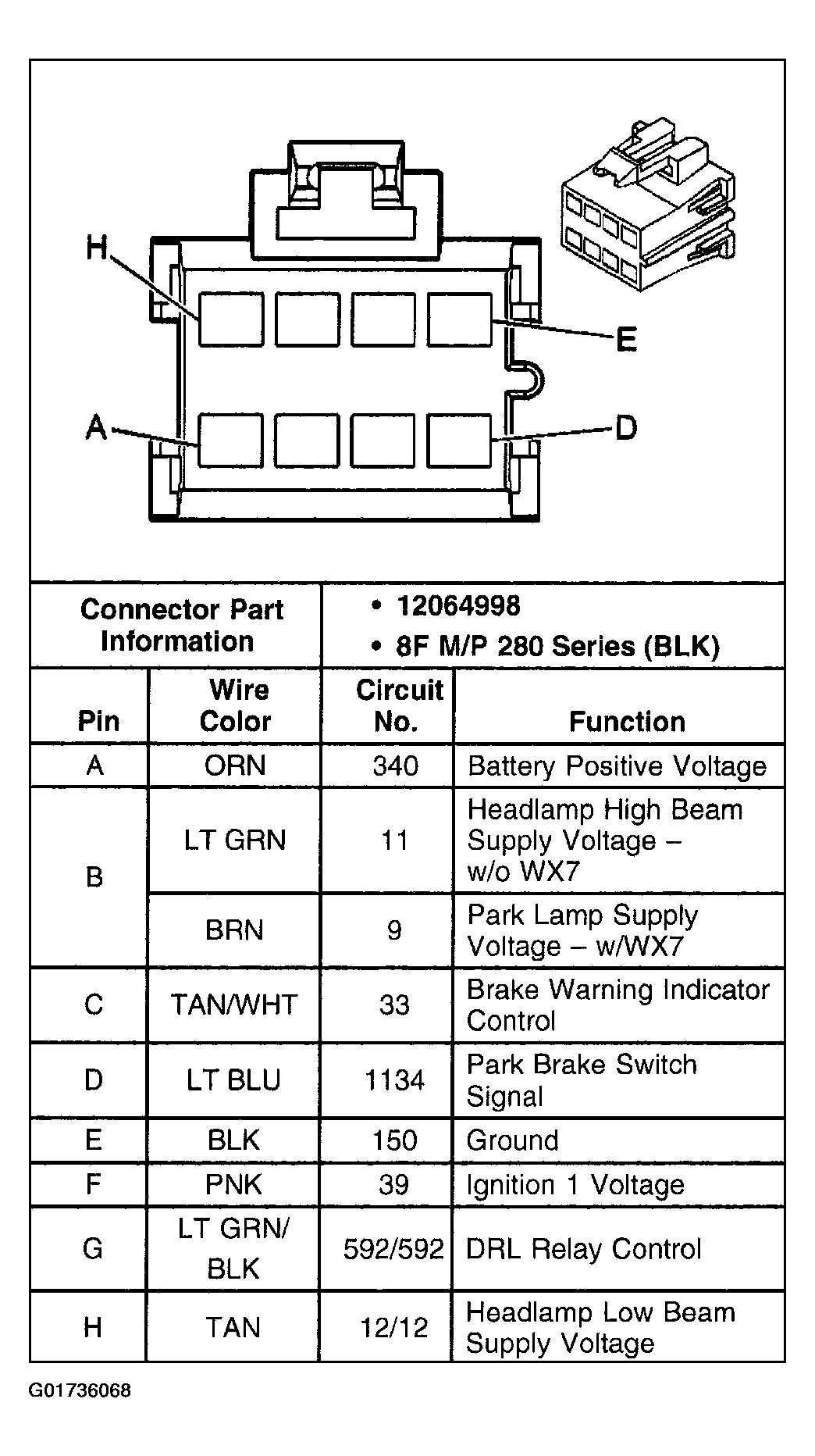

Fig 5: Daytime Running Lamps (DRL) Control Module

G01736068

Courtesy of GENERAL MOTORS CORP.

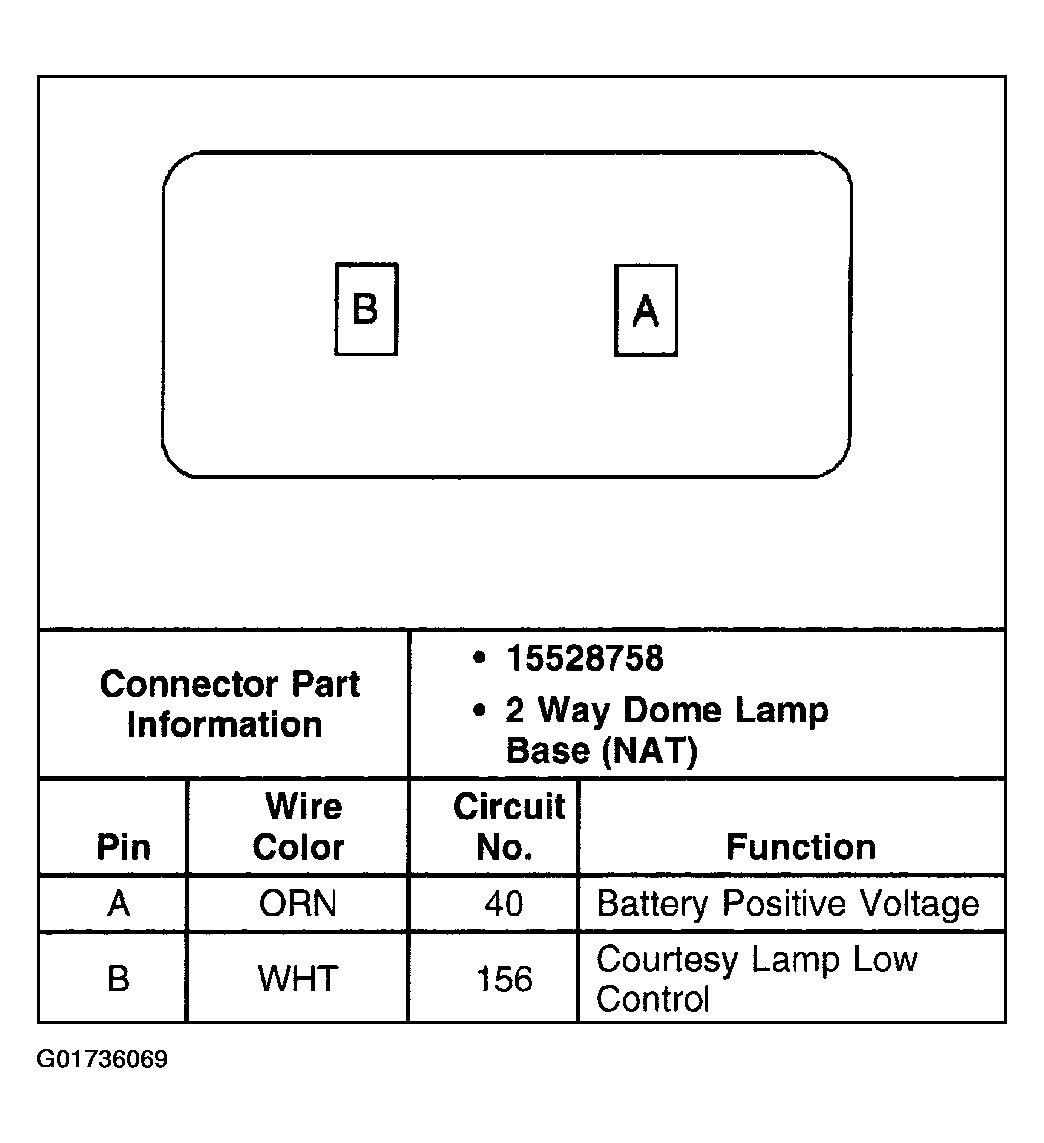

Fig 6: Dome Lamp - Front, Rear

G01736069

Courtesy of GENERAL MOTORS CORP.

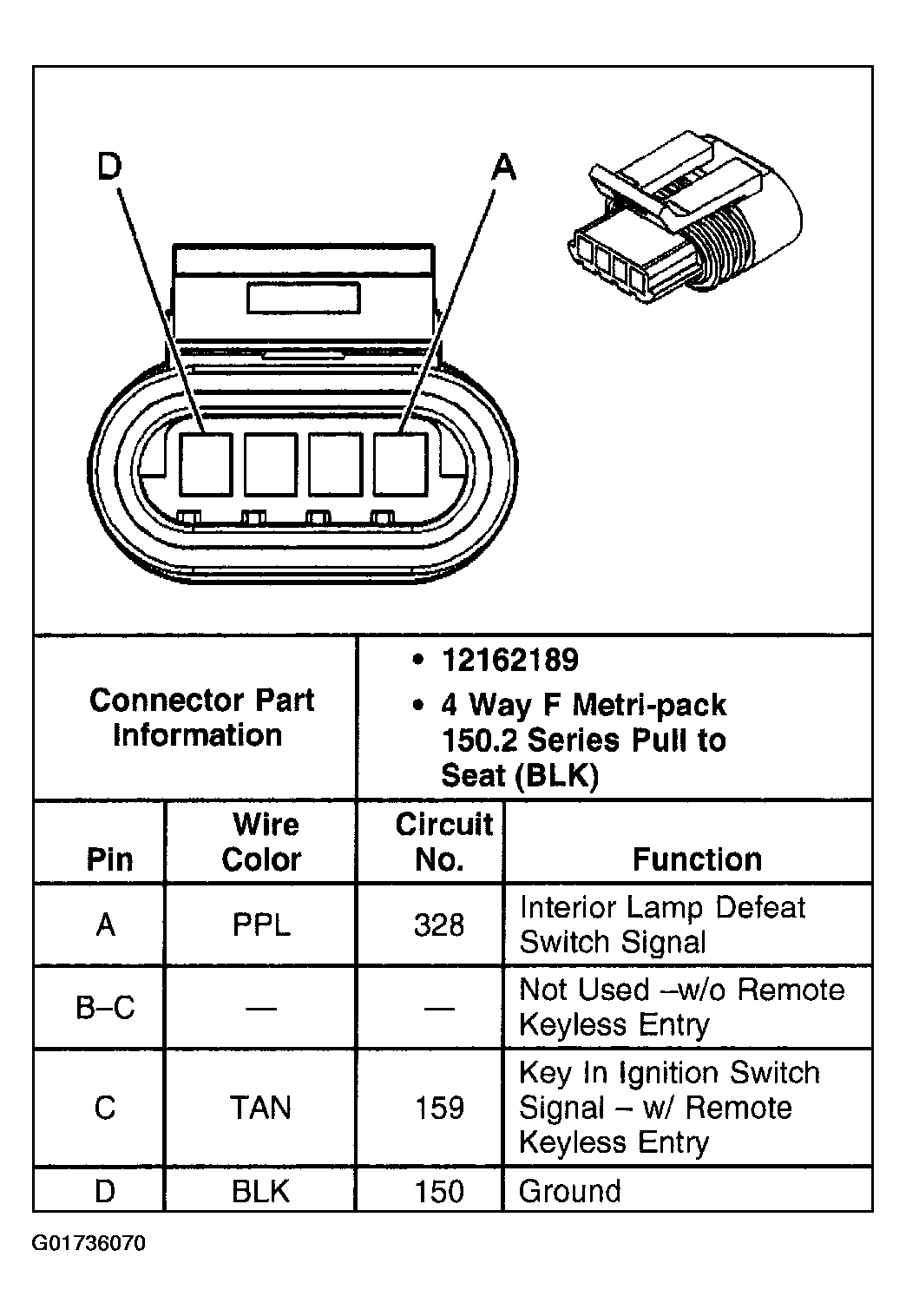

Fig 7: Door Jamb Switch - Front Driver

G01736070

Courtesy of GENERAL MOTORS CORP.

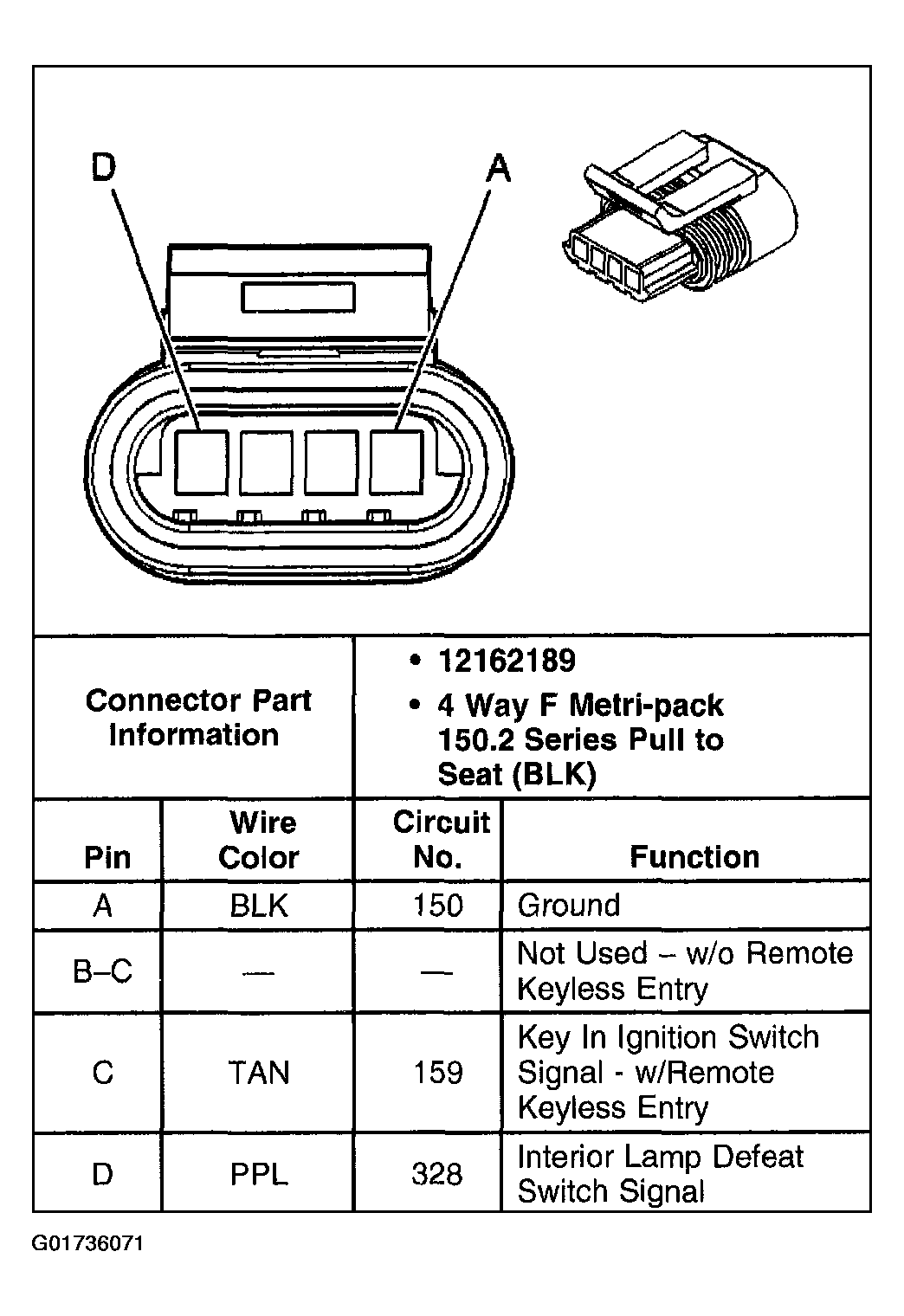

Fig 8: Door Jamb Switch - Front Passenger

G01736071

Courtesy of GENERAL MOTORS CORP.

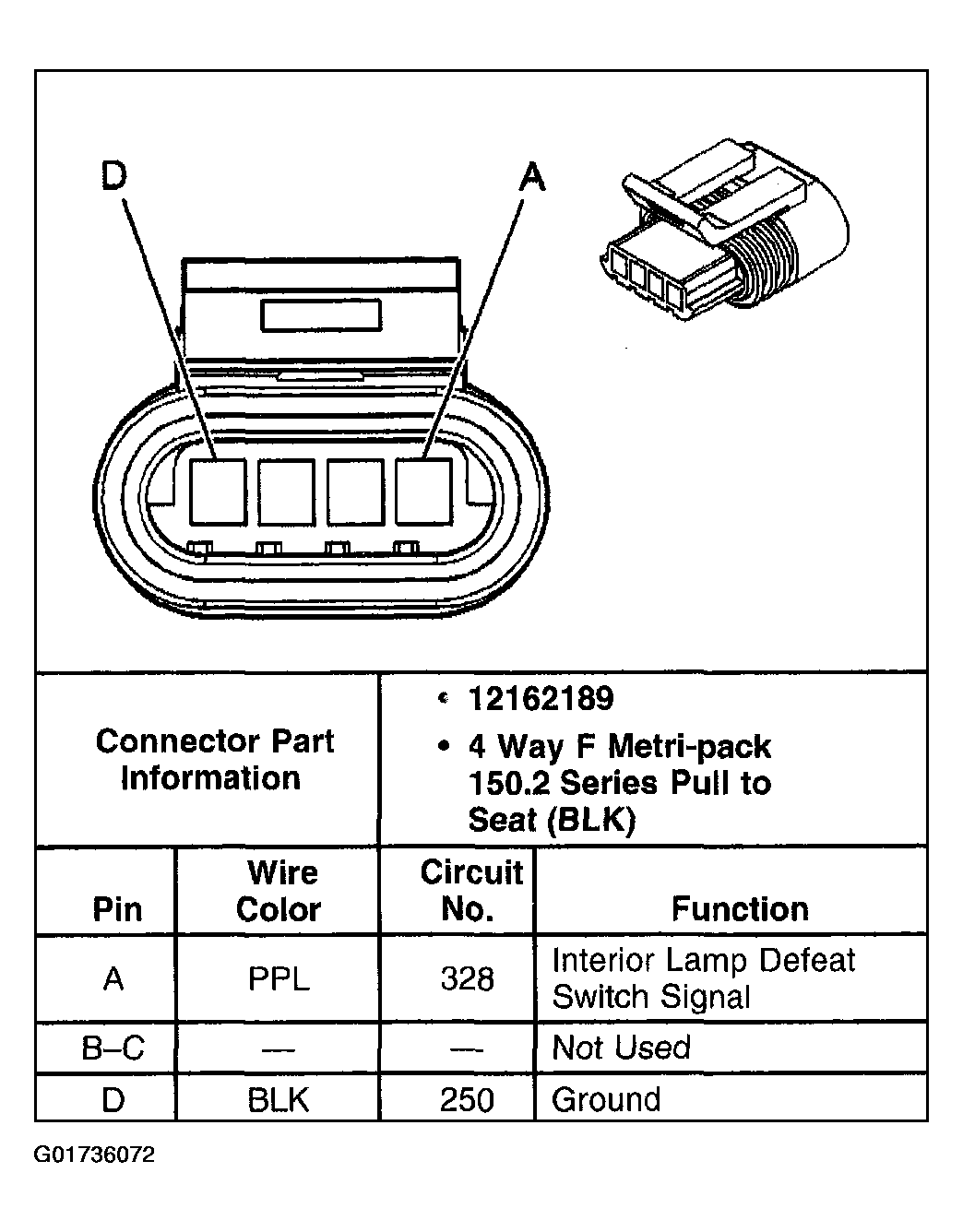

Fig 9: Door Jamb Switch - RR

G01736072

Courtesy of GENERAL MOTORS CORP.

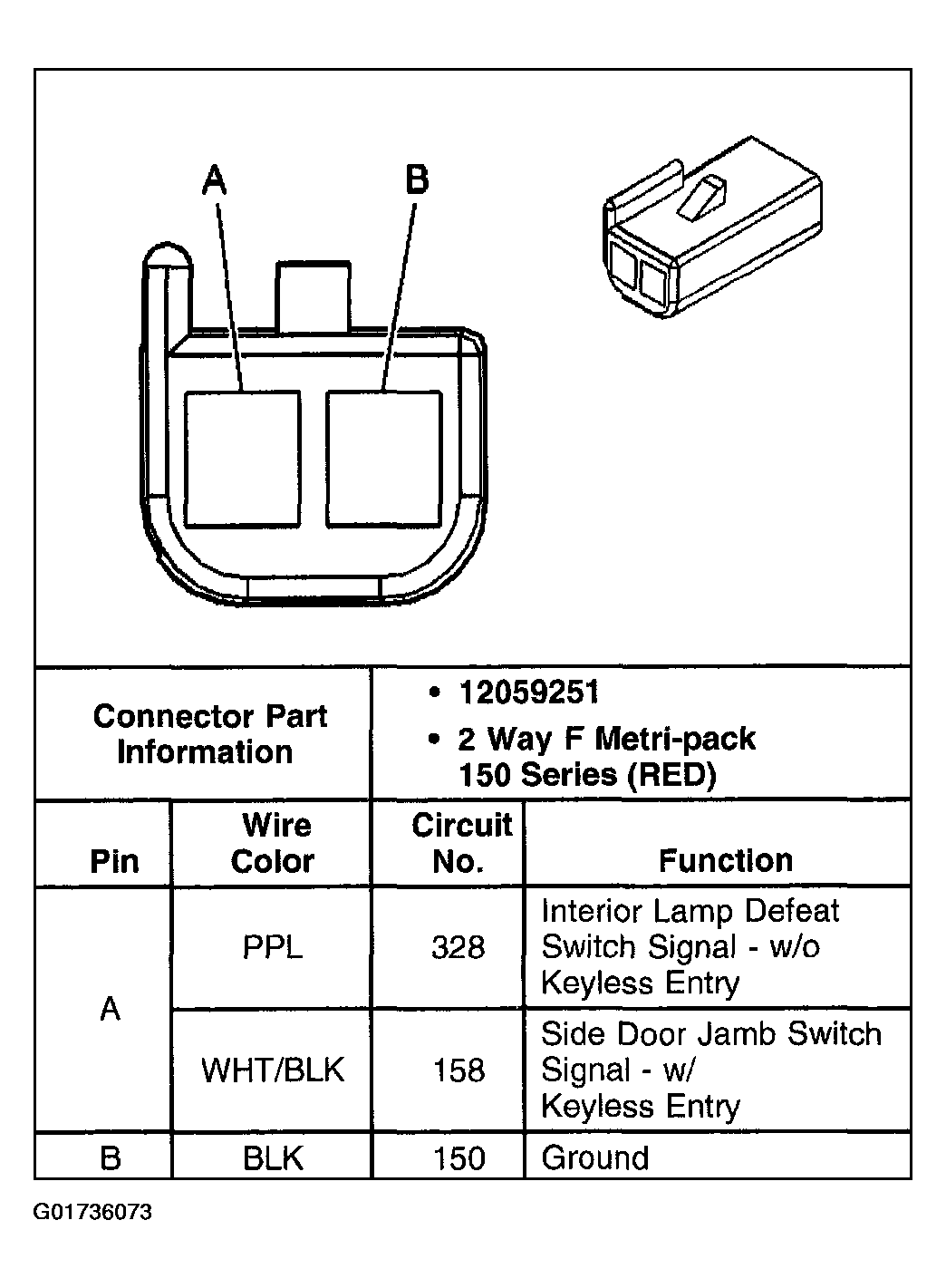

Fig 10: Door Jamb Switch - Side

G01736073

Courtesy of GENERAL MOTORS CORP.

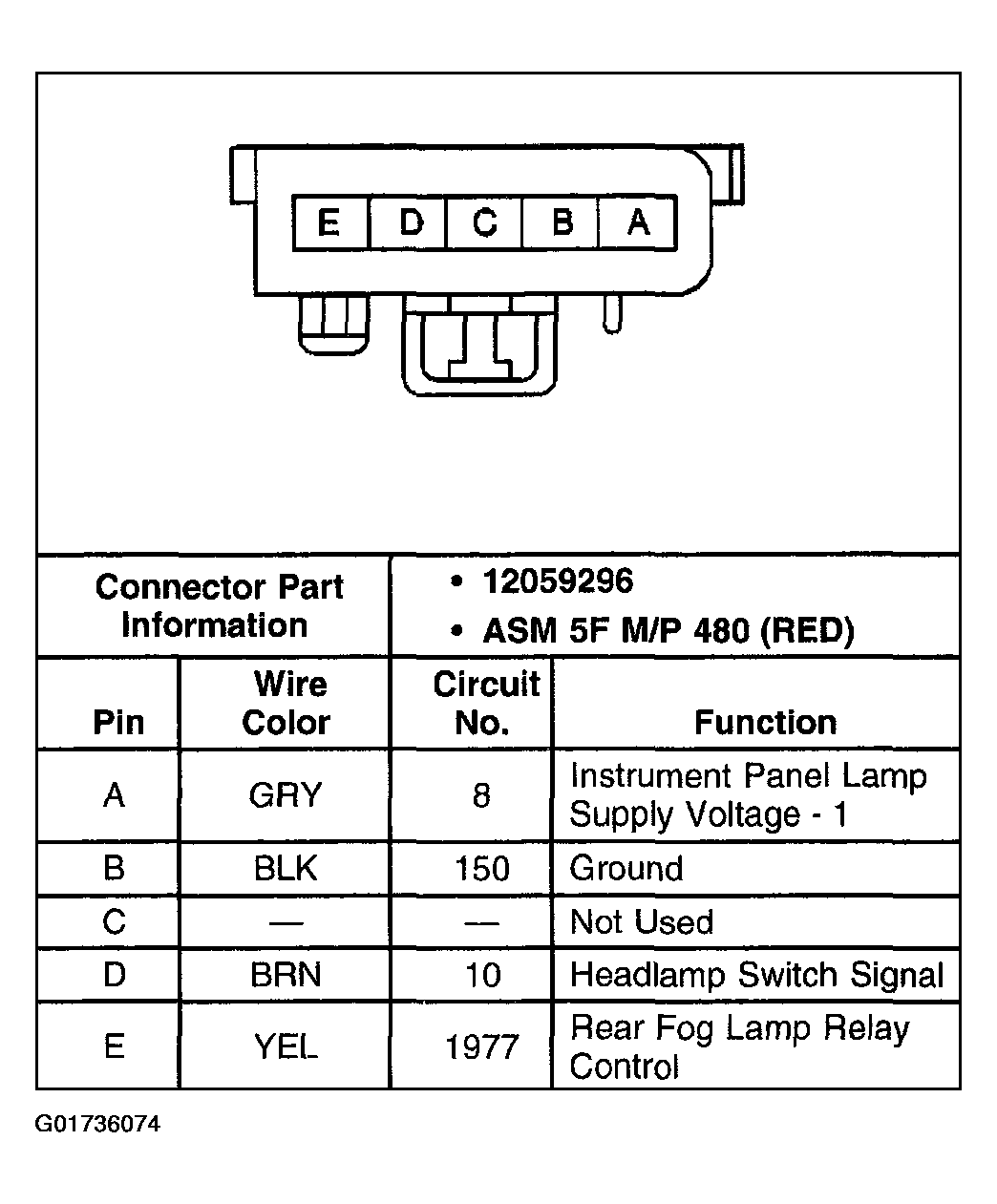

Fig 11: Fog Lamp Switch

G01736074

Courtesy of GENERAL MOTORS CORP.

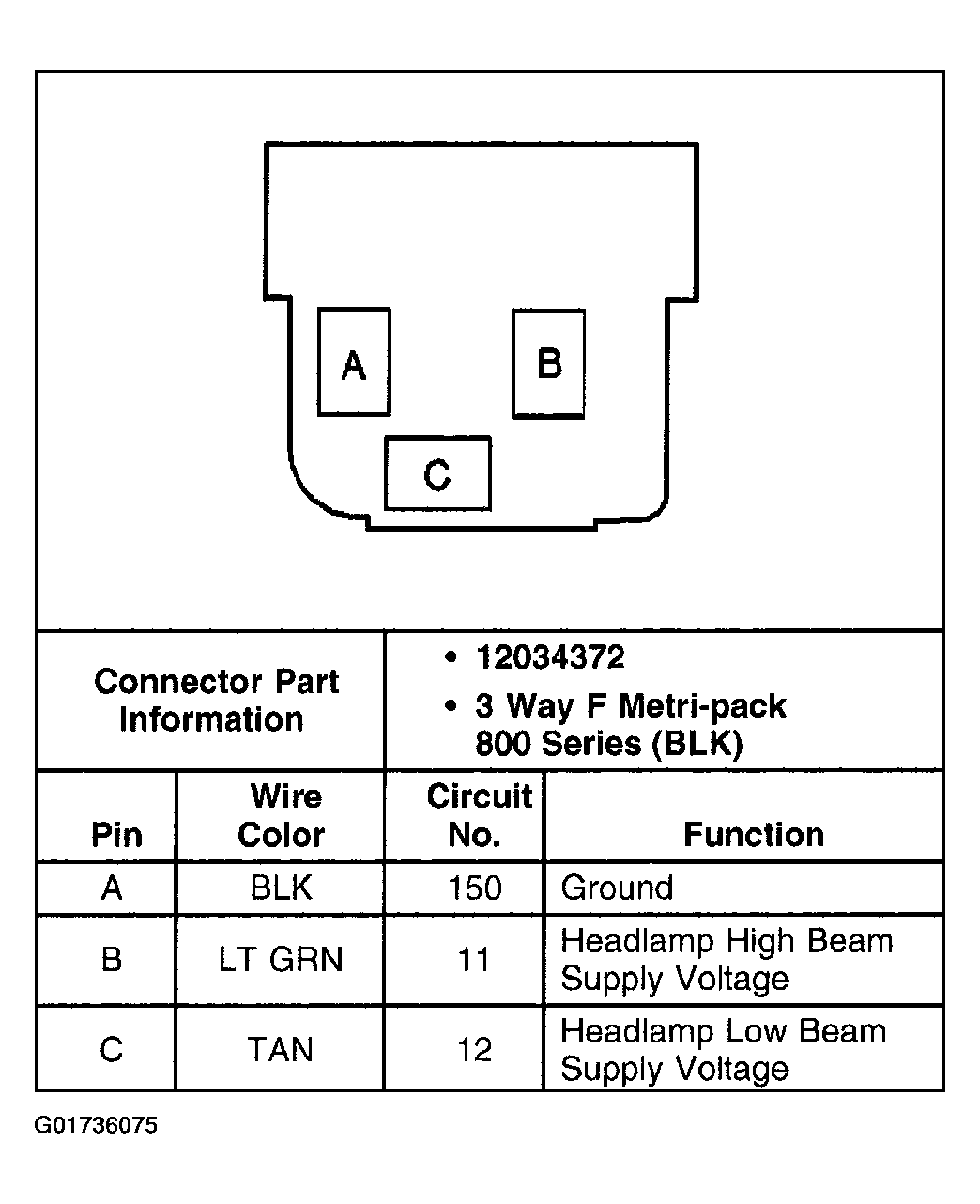

Fig 12: Headlamp - Left

G01736075

Courtesy of GENERAL MOTORS CORP.

Fig 13: Headlamp - Right

G01736076

Courtesy of GENERAL MOTORS CORP.

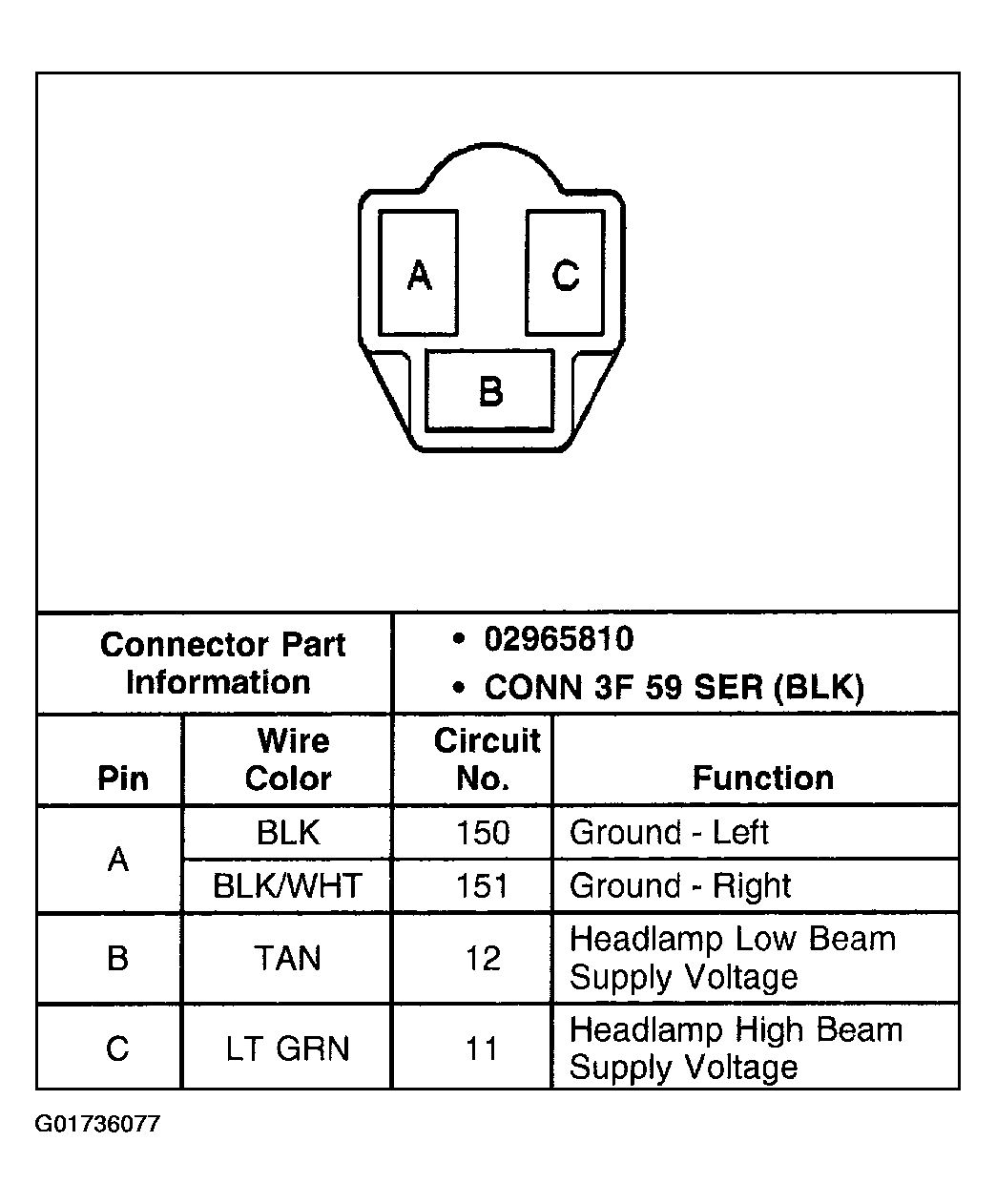

Fig 14: Headlamp Left/Right - Export

G01736077

Courtesy of GENERAL MOTORS CORP.

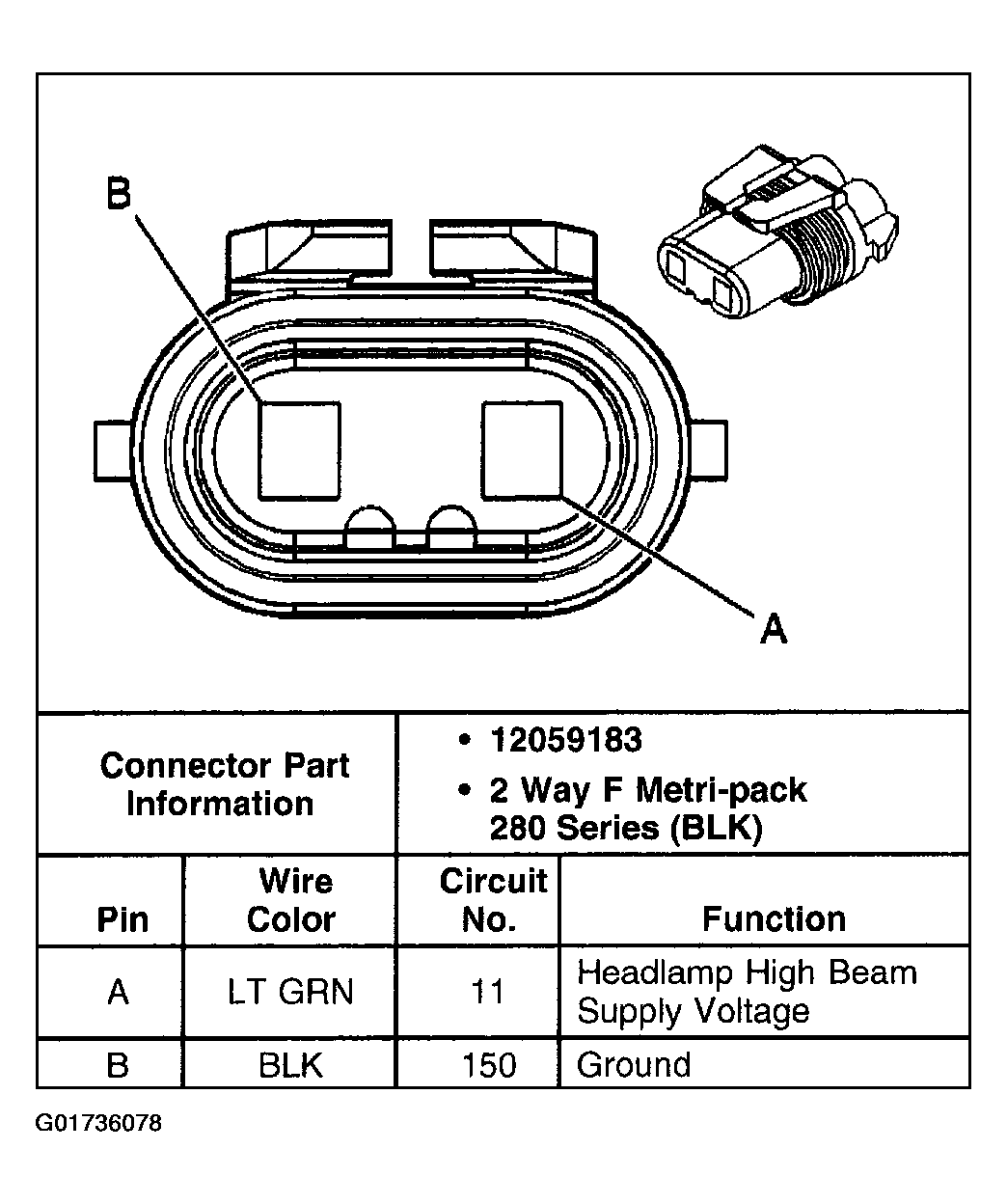

Fig 15: Headlamp, Left High Beam - Composite

G01736078

Courtesy of GENERAL MOTORS CORP.

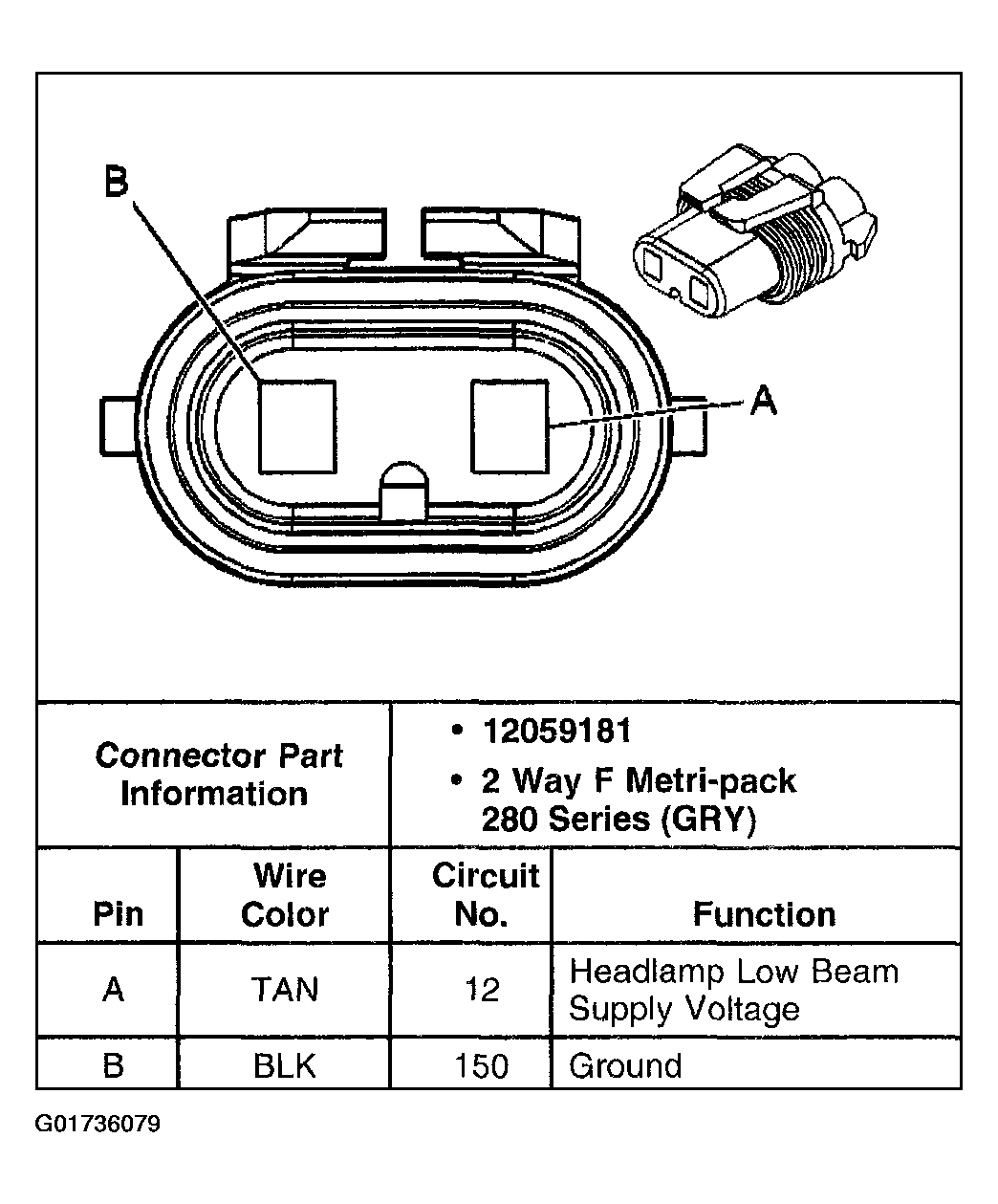

Fig 16: Headlamp, Left Low Beam - Composite

G01736079

Courtesy of GENERAL MOTORS CORP.

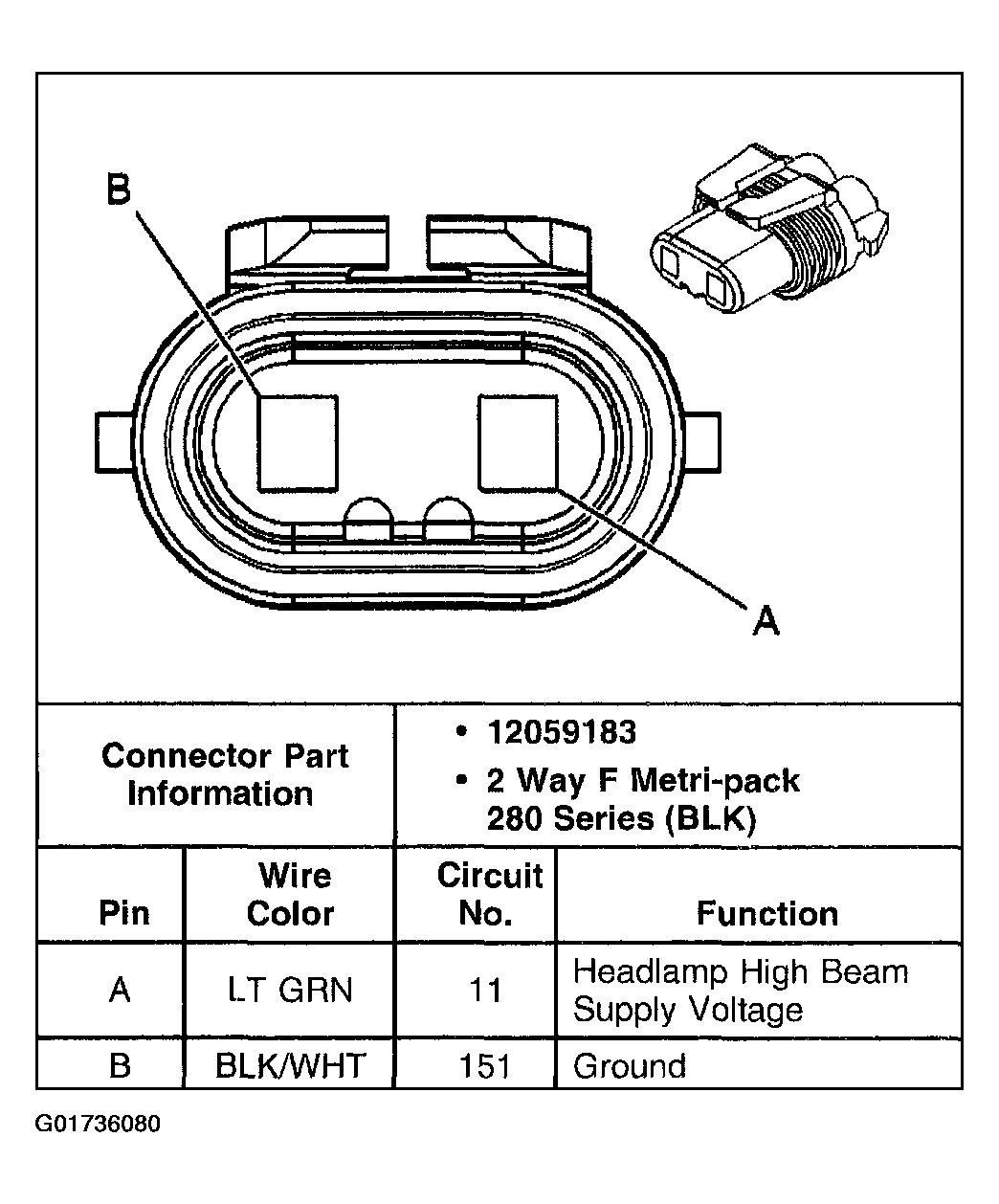

Fig 17: Headlamp, Right High Beam - Composite

G01736080

Courtesy of GENERAL MOTORS CORP.

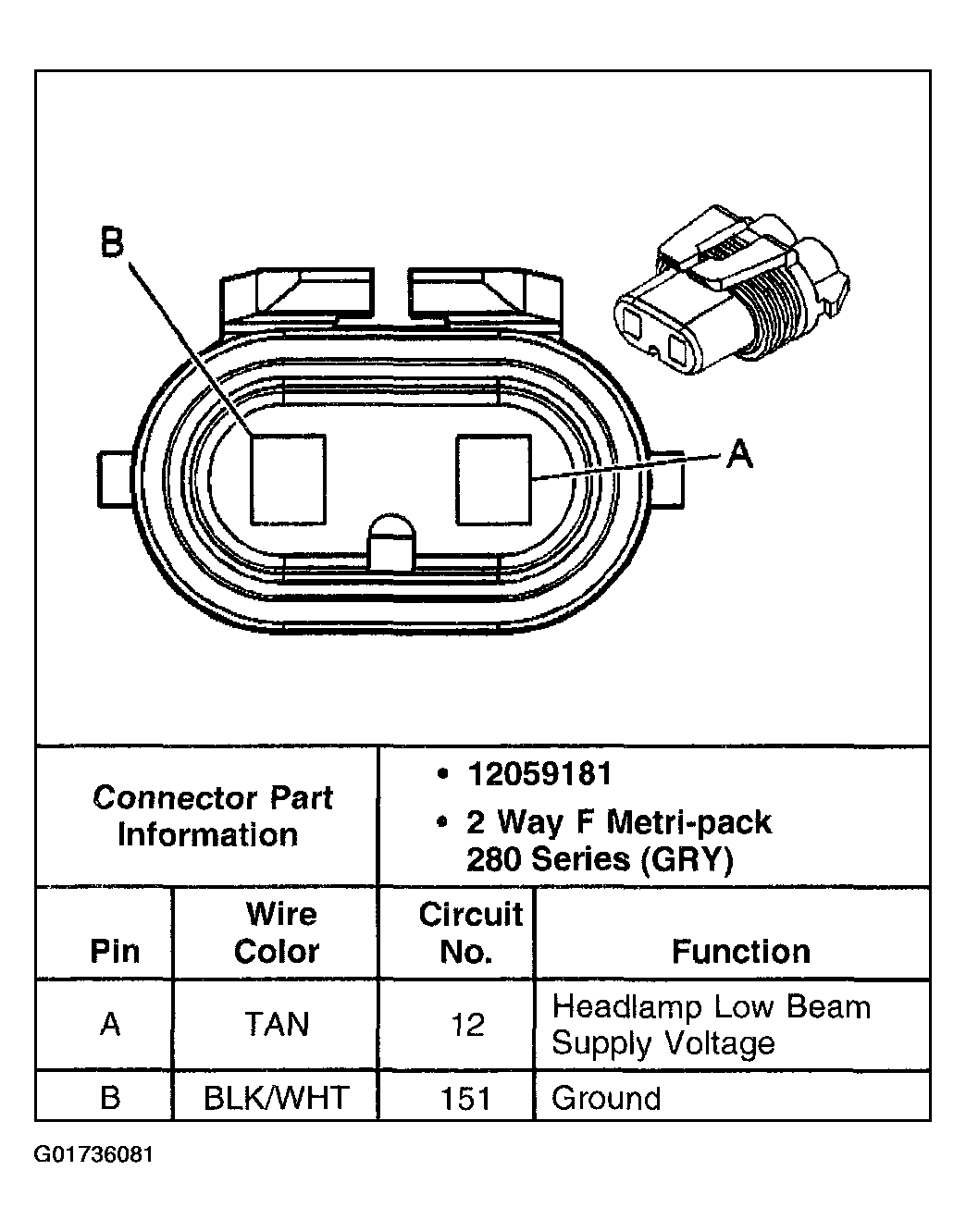

Fig 18: Headlamp, Right Low Beam - Composite

G01736081

Courtesy of GENERAL MOTORS CORP.

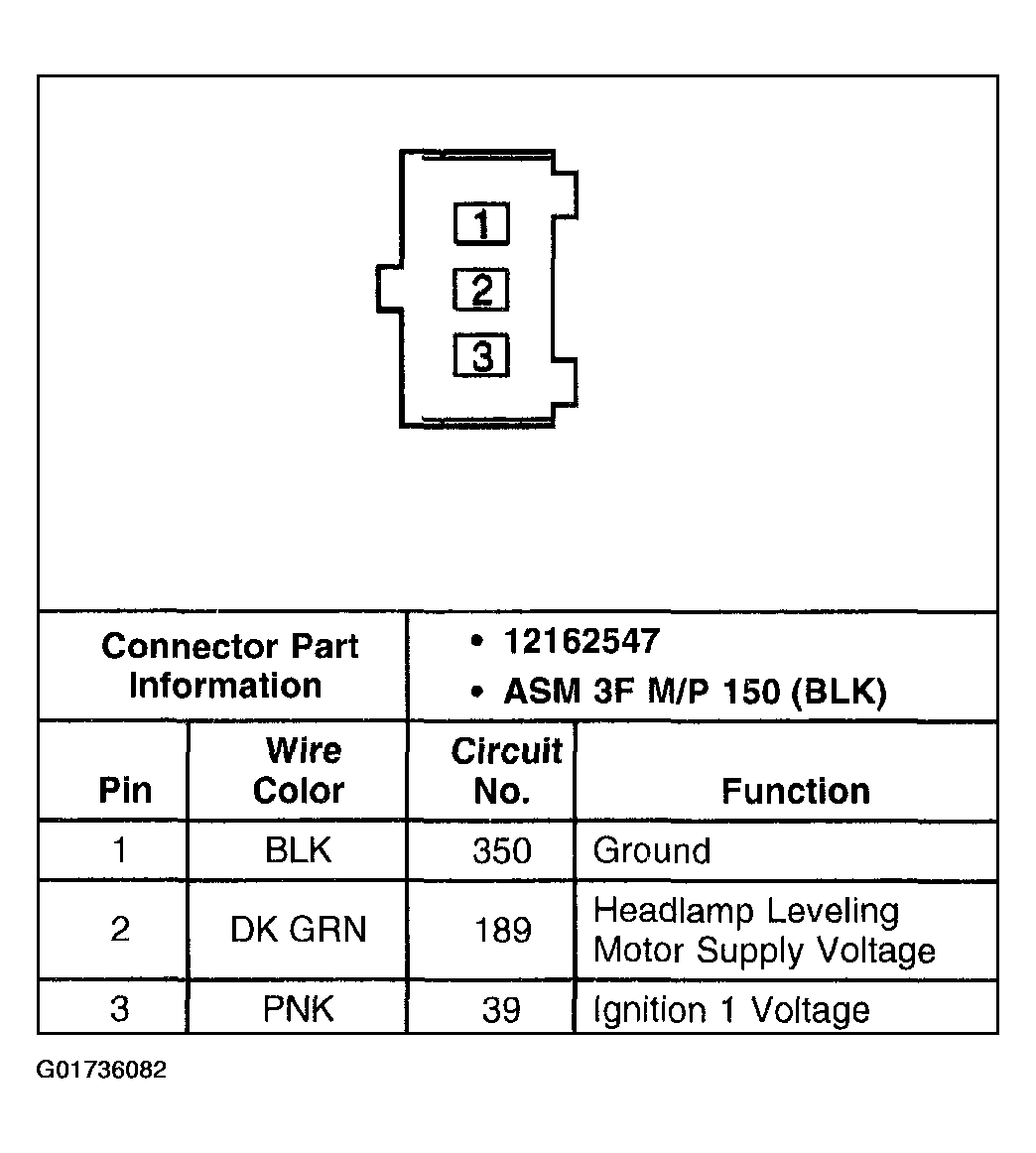

Fig 19: Headlamp Leveling Actuator

G01736082

Courtesy of GENERAL MOTORS CORP.

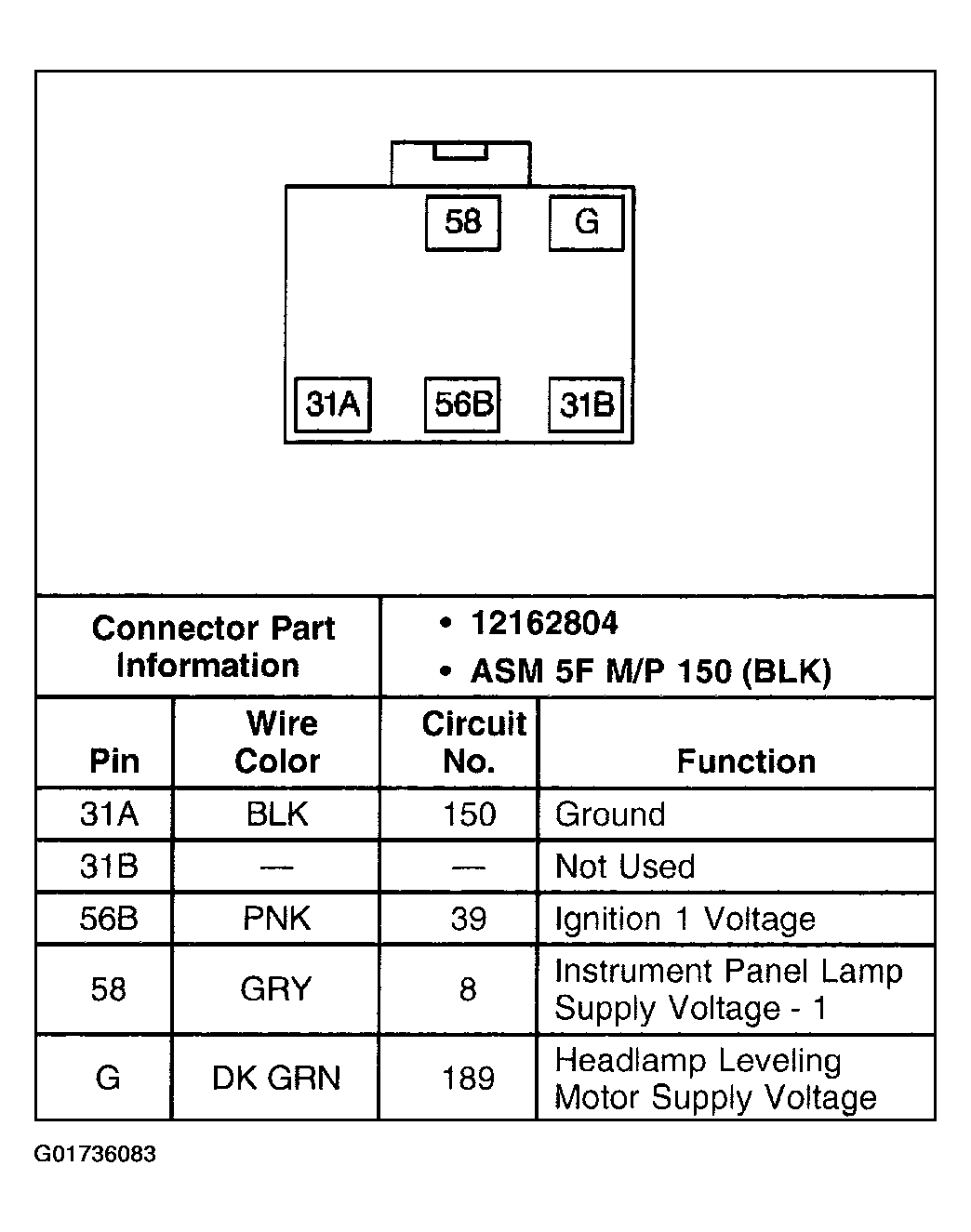

Fig 20: Headlamp Leveling Switch

G01736083

Courtesy of GENERAL MOTORS CORP.

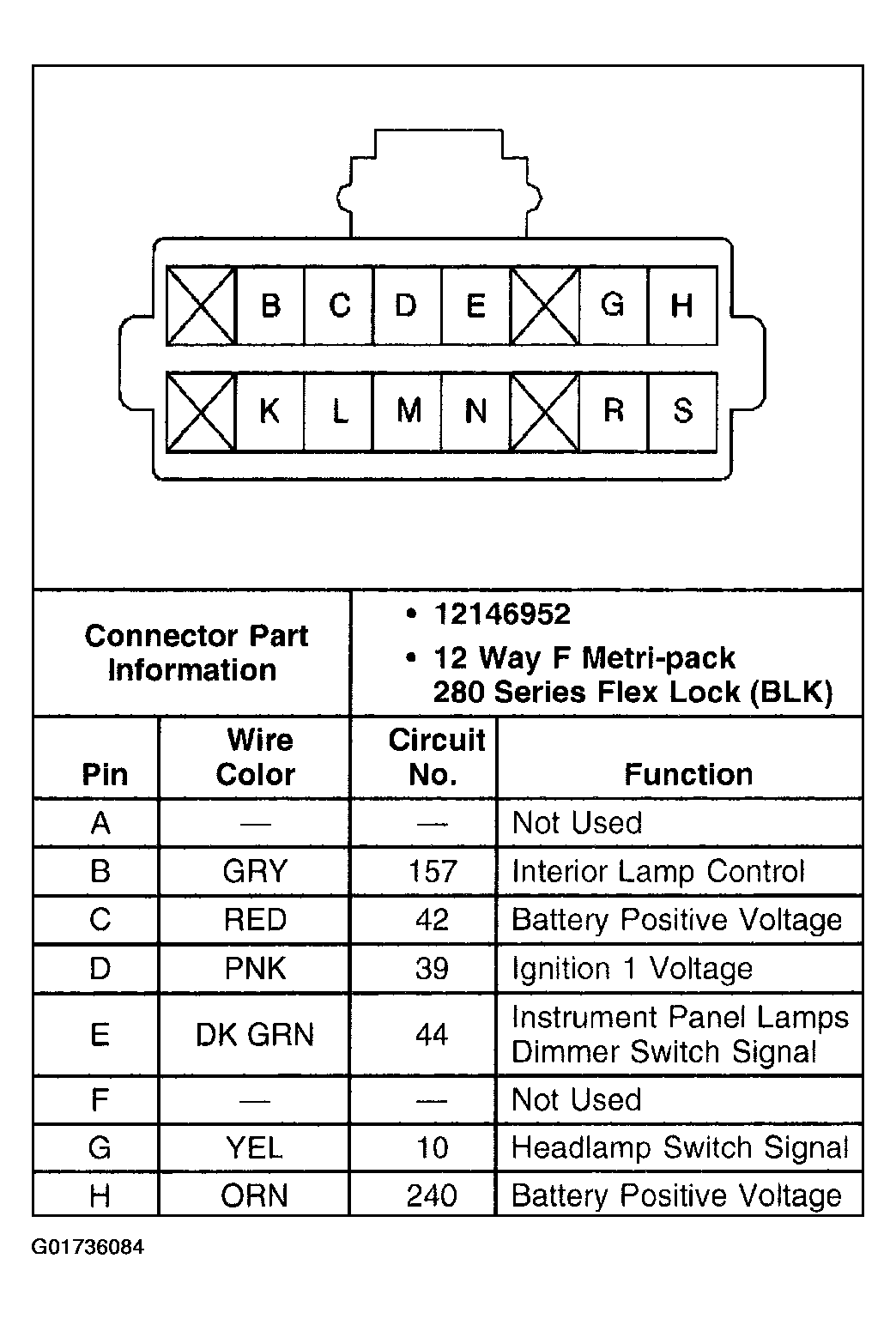

Fig 21: Headlamp Switch (1 Of 2)

G01736084

Courtesy of GENERAL MOTORS CORP.

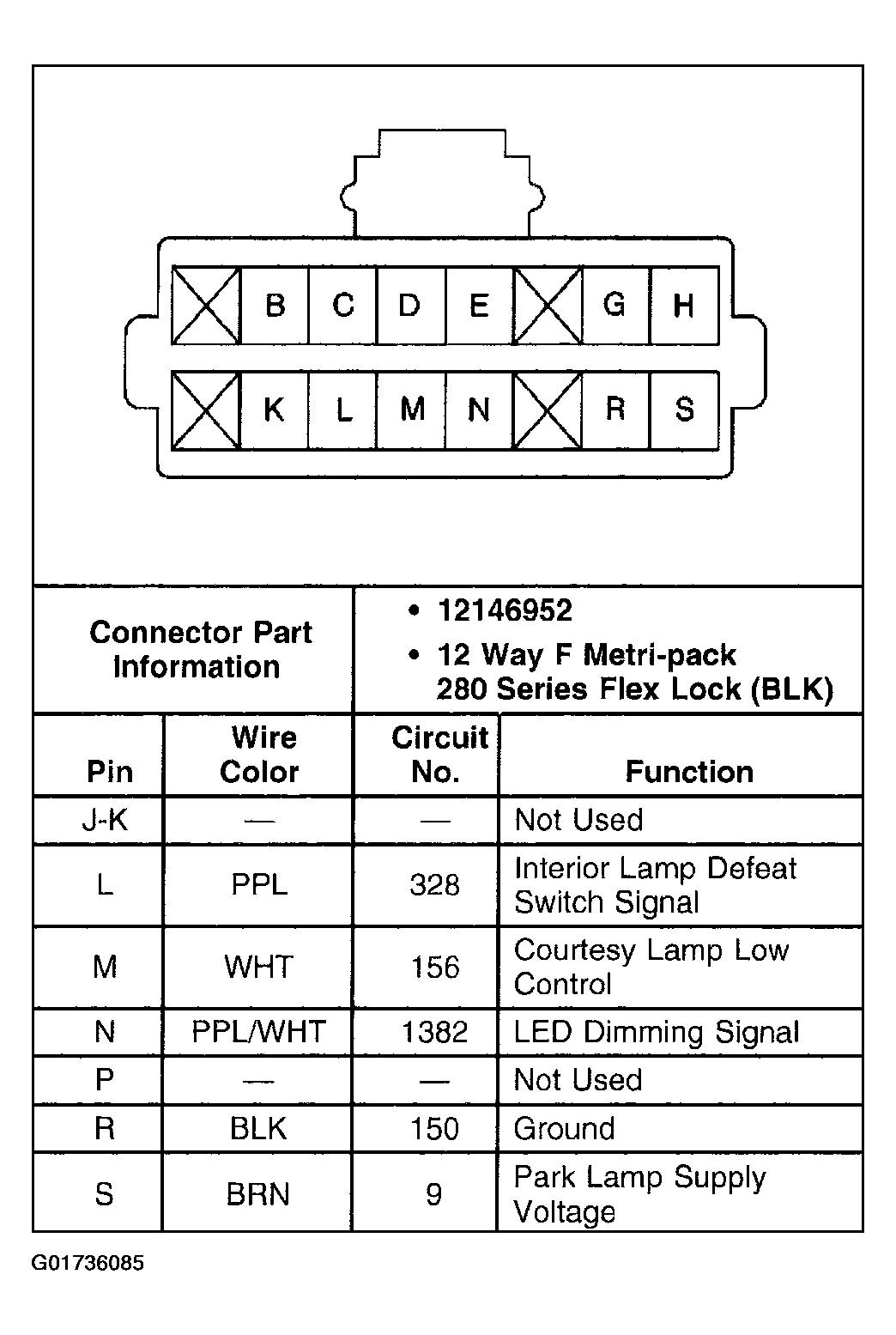

Fig 22: Headlamp Switch (2 Of 2)

G01736085

Courtesy of GENERAL MOTORS CORP.

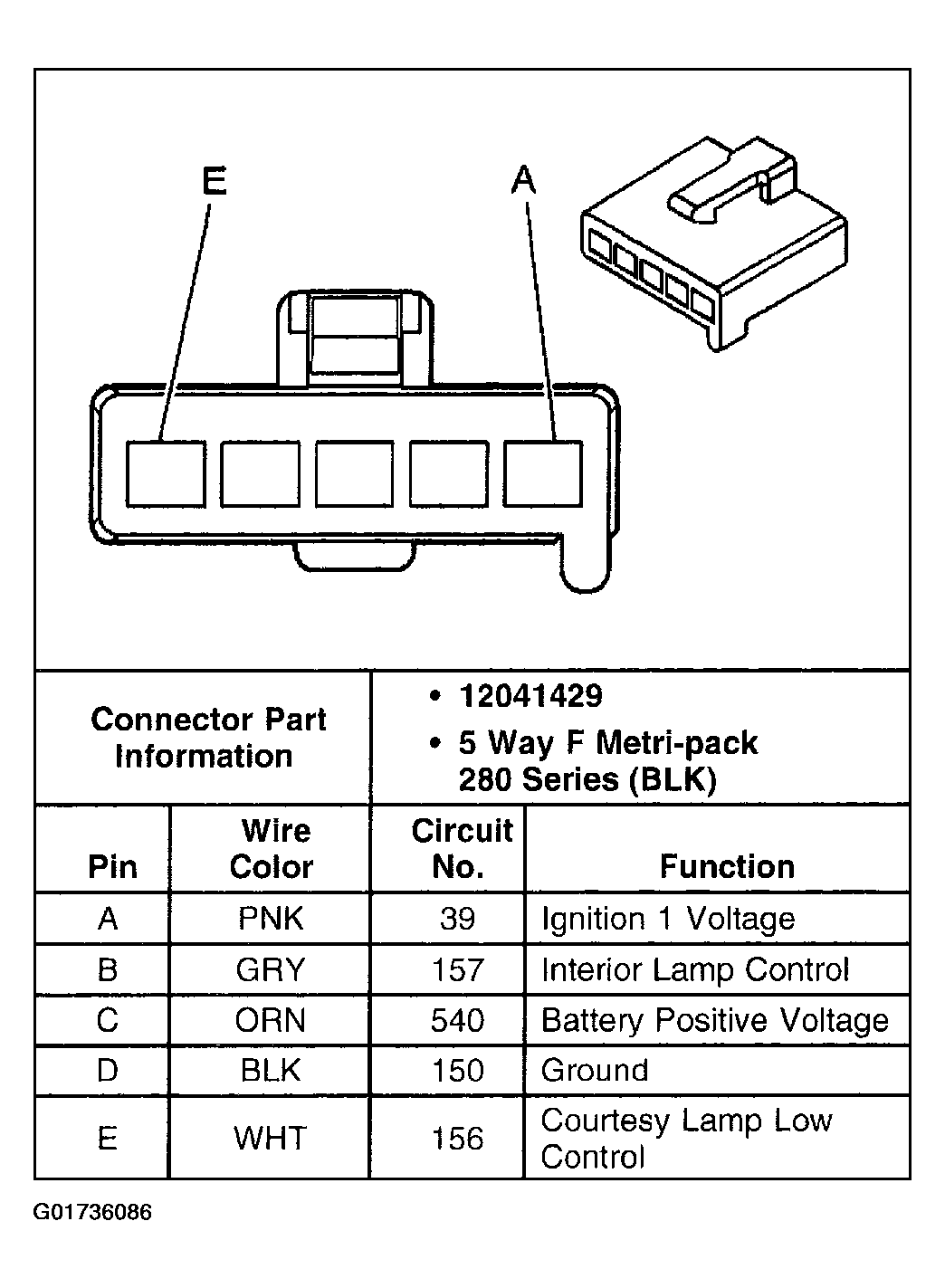

Fig 23: Interior Lamp Control Module

G01736086

Courtesy of GENERAL MOTORS CORP.

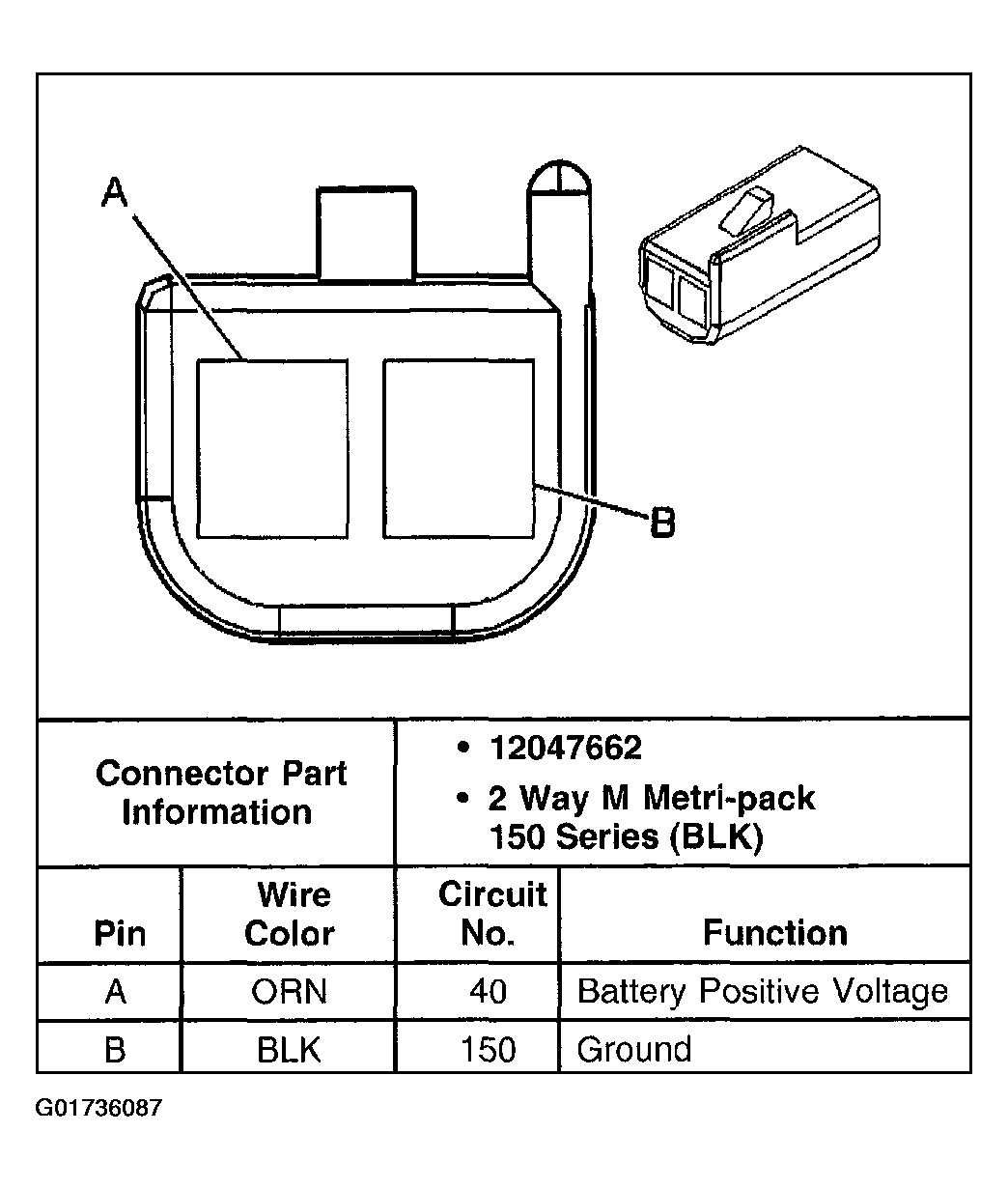

Fig 24: I/P Compartment Lamp

G01736087

Courtesy of GENERAL MOTORS CORP.

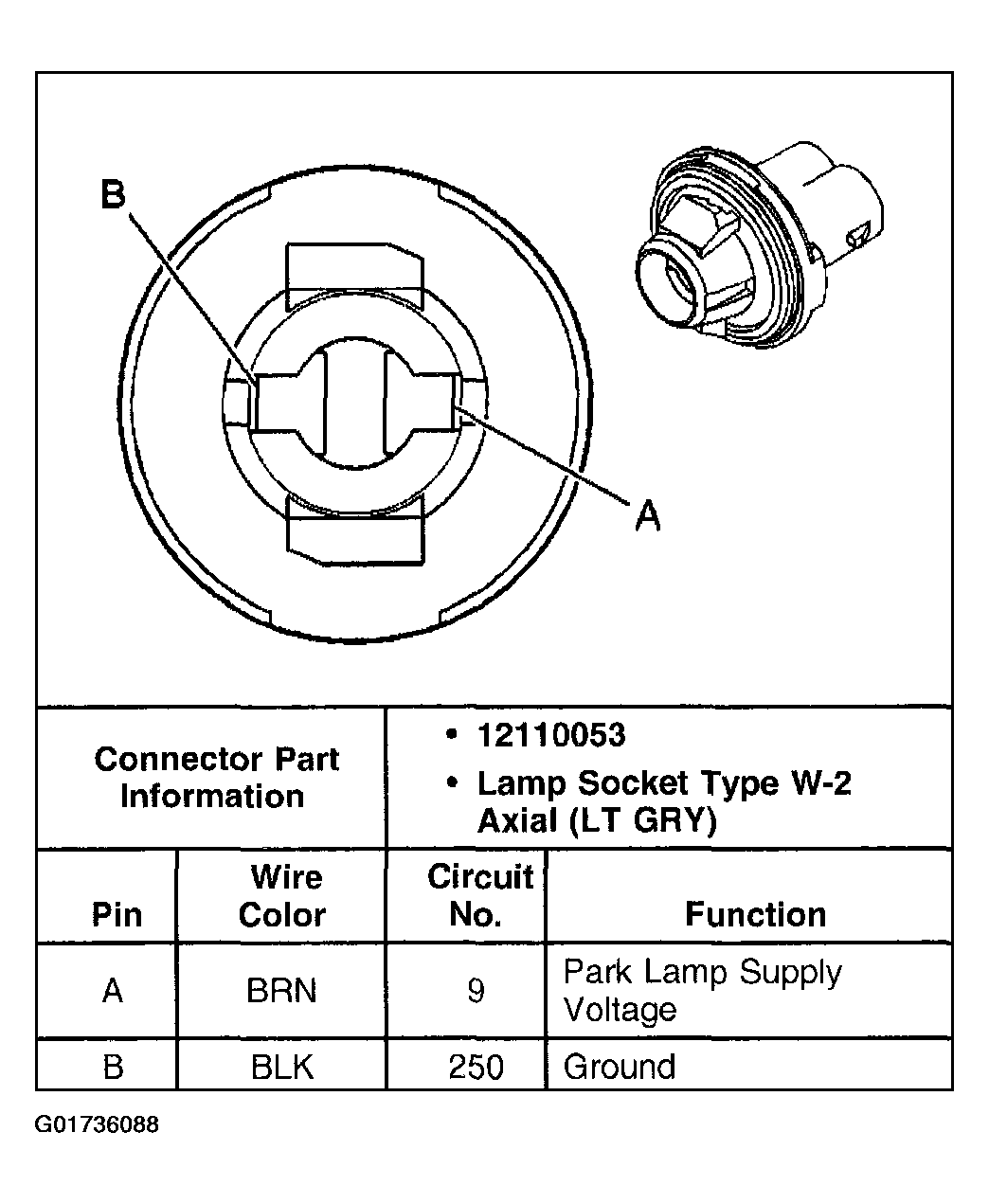

Fig 25: License Lamp

G01736088

Courtesy of GENERAL MOTORS CORP.

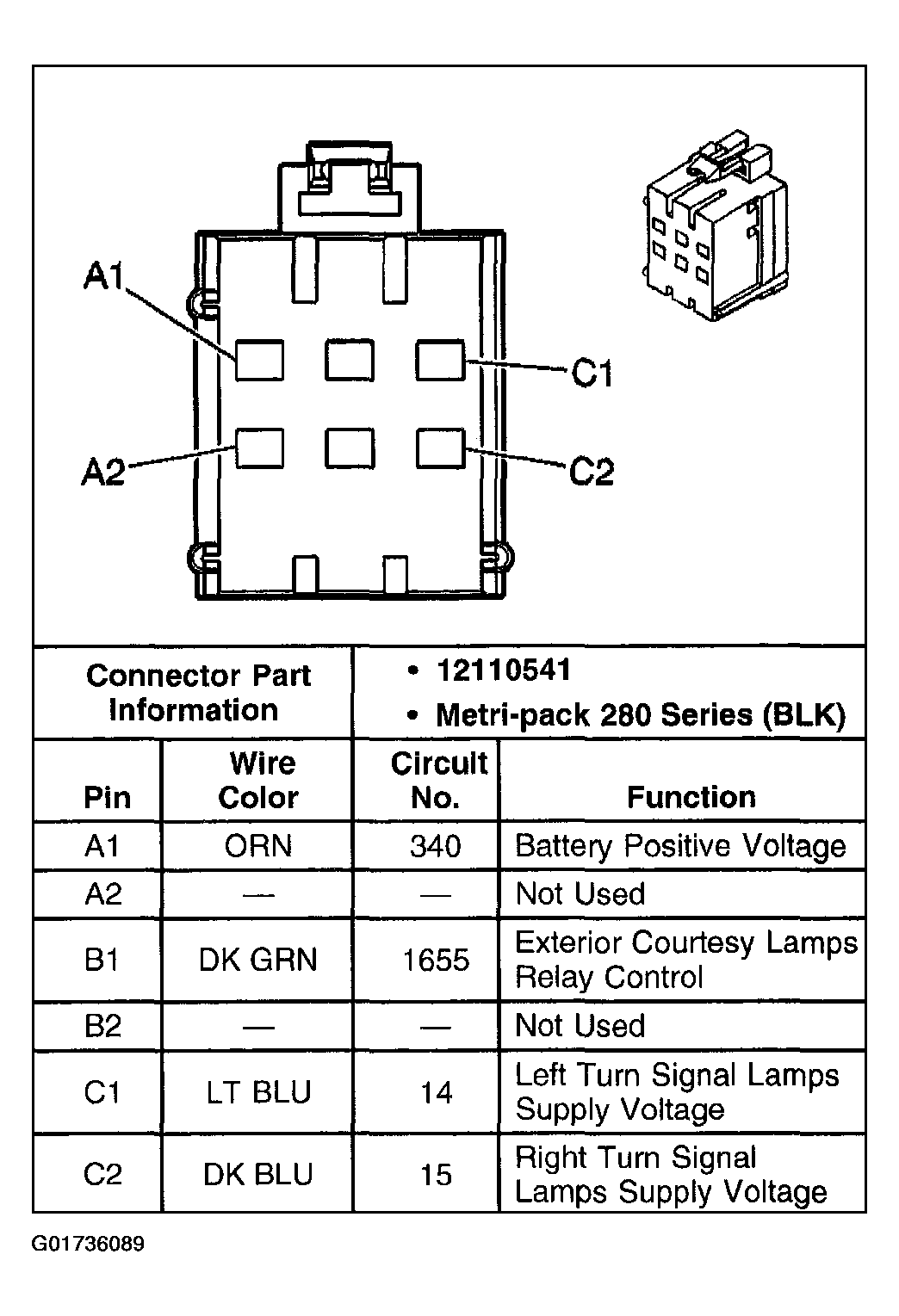

Fig 26: Lighting Control Relay

G01736089

Courtesy of GENERAL MOTORS CORP.

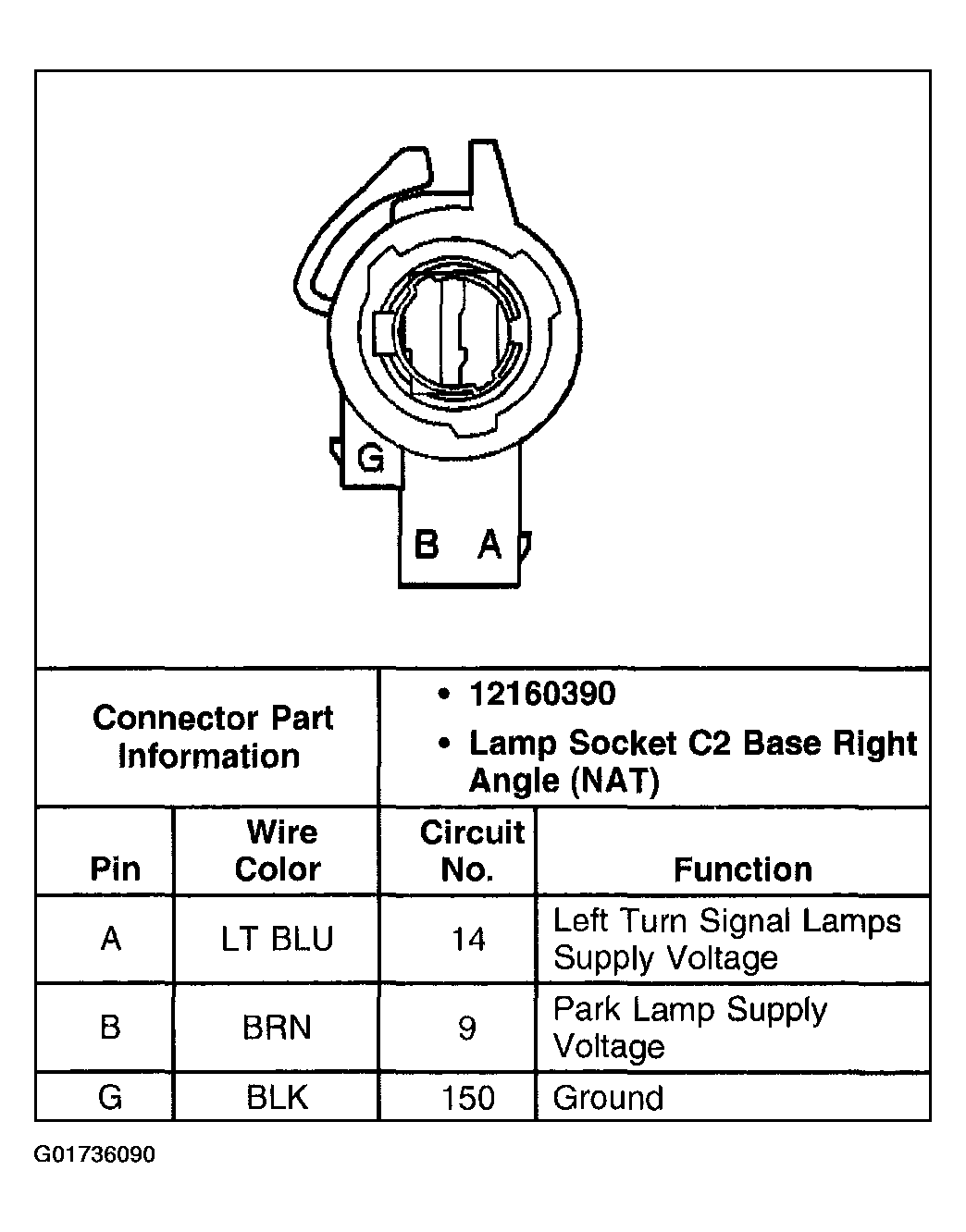

Fig 27: Park and Turn Signal Lamp, Left Front - Base

G01736090

Courtesy of GENERAL MOTORS CORP.

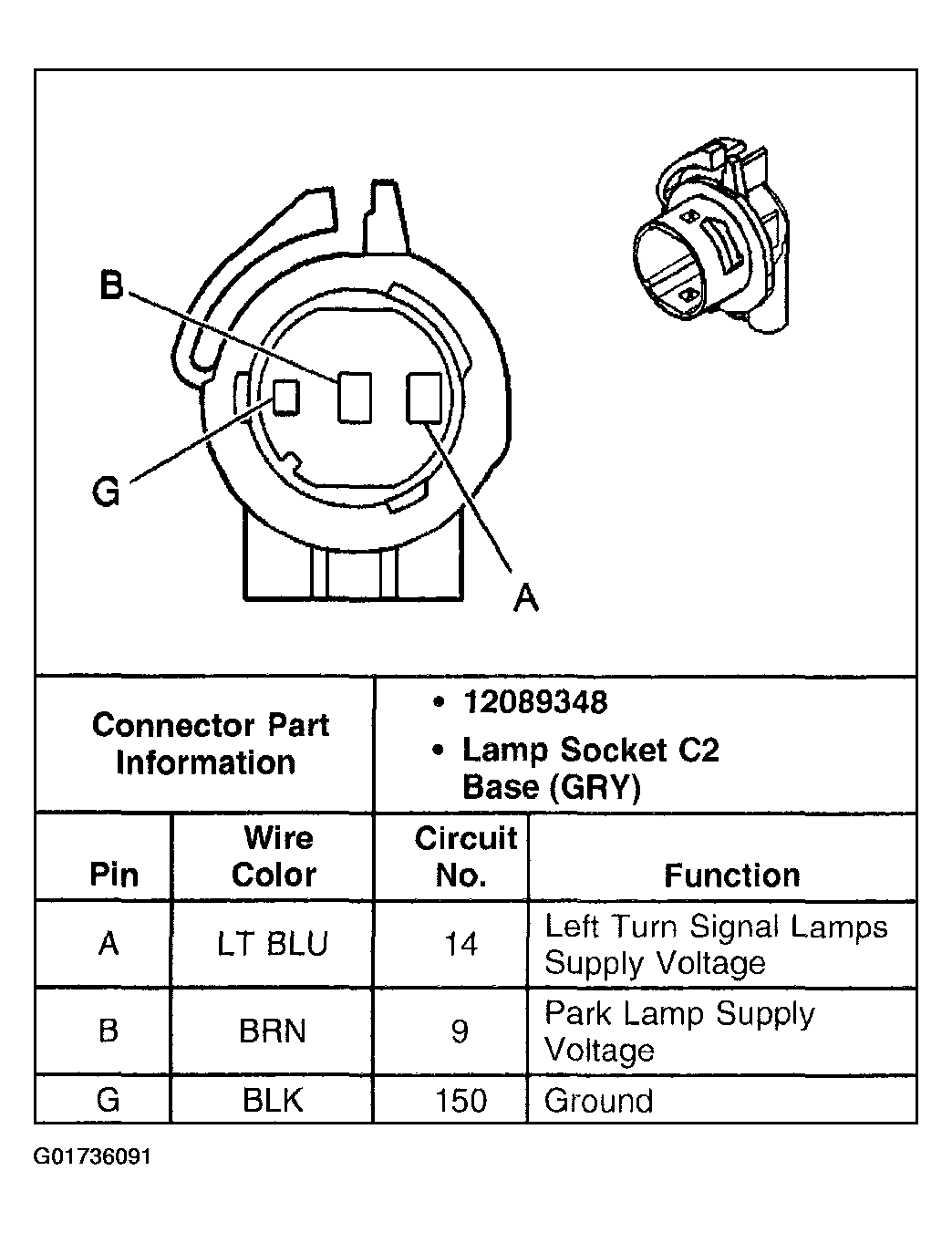

Fig 28: Park and Turn Signal Lamp, Left Front - Dual

G01736091

Courtesy of GENERAL MOTORS CORP.

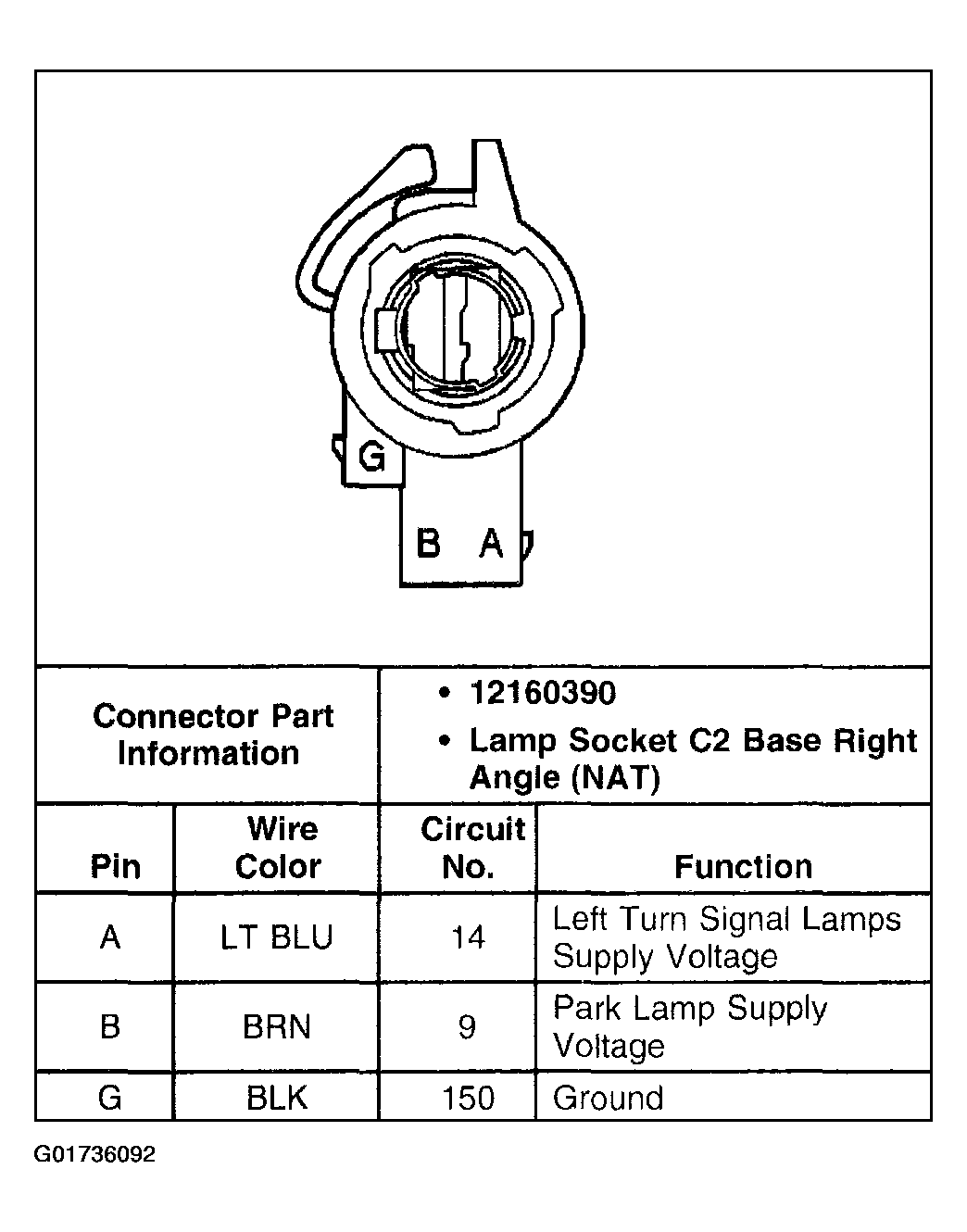

Fig 29: Park and Turn Signal Lamp, Left Rear - Export

G01736092

Courtesy of GENERAL MOTORS CORP.

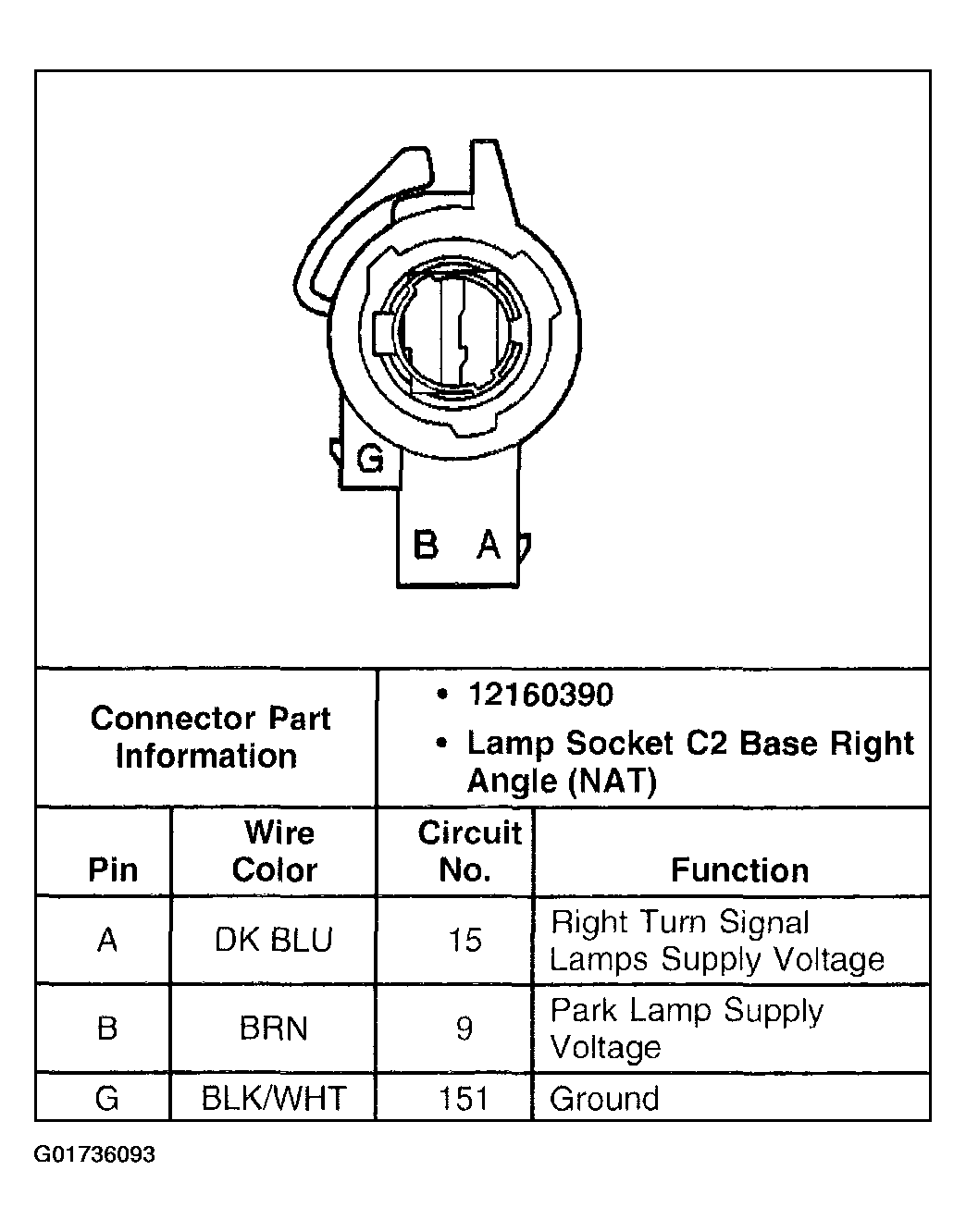

Fig 30: Park and Turn Signal Lamp, Right Front - Base

G01736093

Courtesy of GENERAL MOTORS CORP.

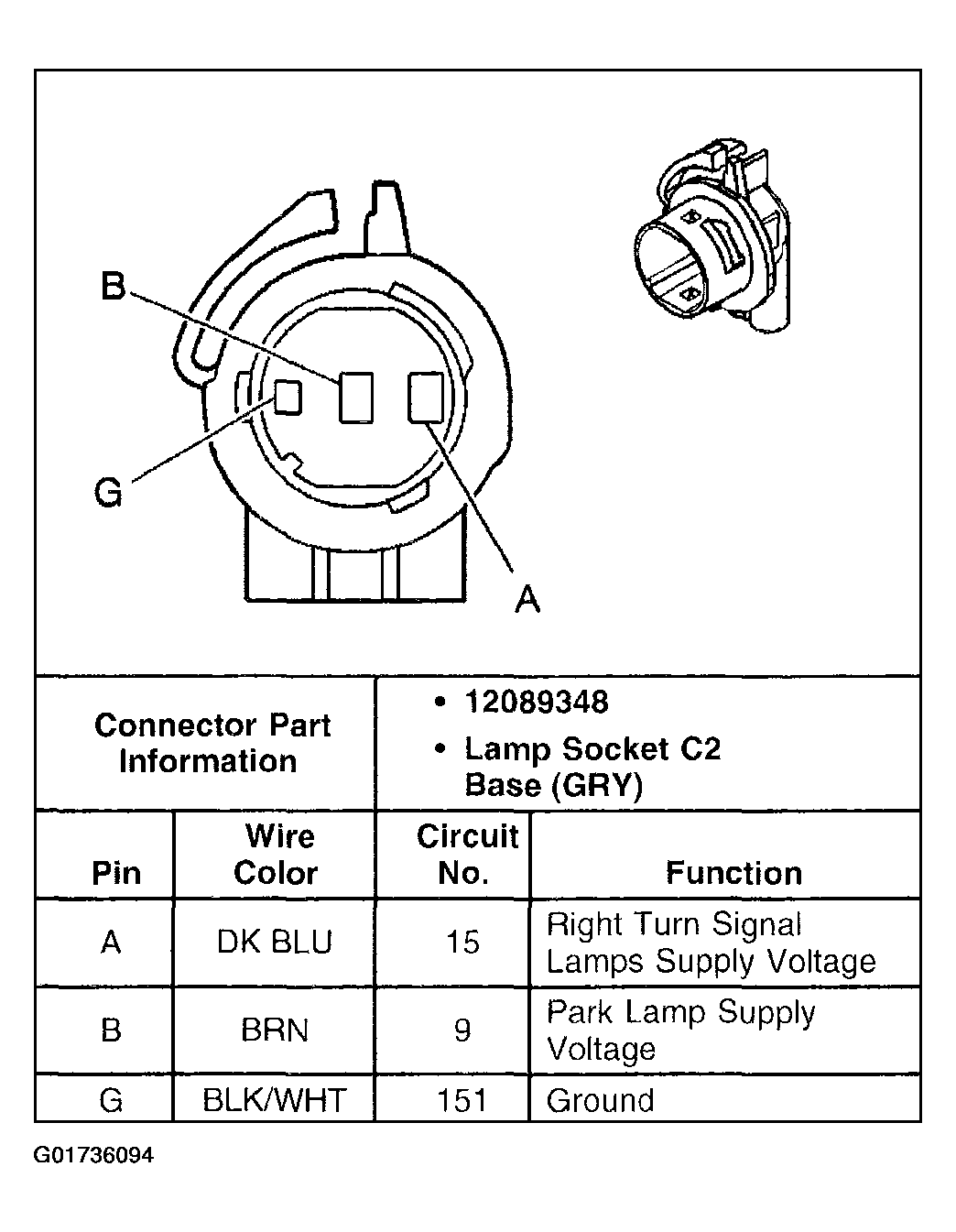

Fig 31: Park and Turn Signal Lamp, Right Front - Dual

G01736094

Courtesy of GENERAL MOTORS CORP.

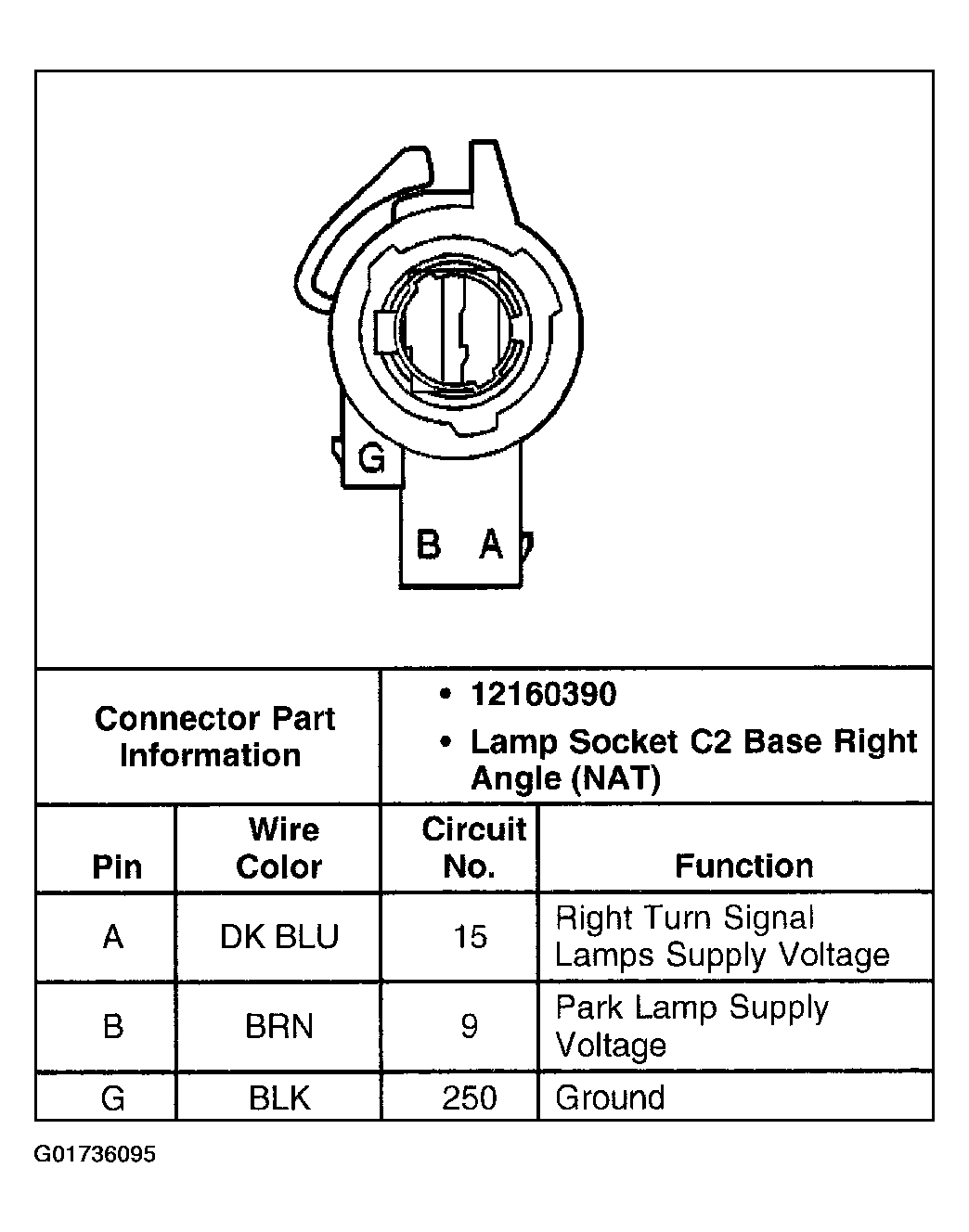

Fig 32: Park and Turn Signal Lamp, Right Rear - Export

G01736095

Courtesy of GENERAL MOTORS CORP.

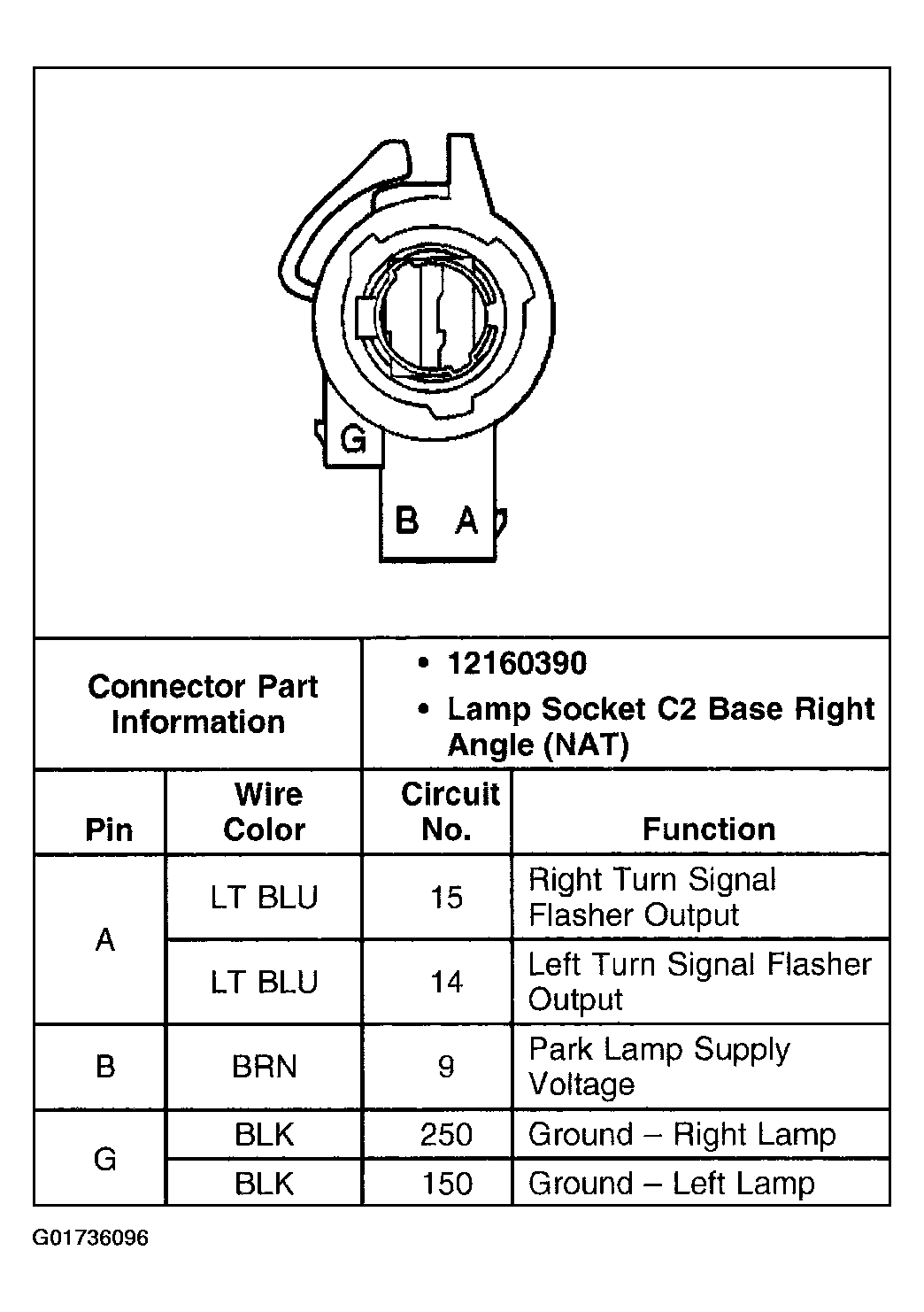

Fig 33: Park/Turn Signal - LR, RR

G01736096

Courtesy of GENERAL MOTORS CORP.

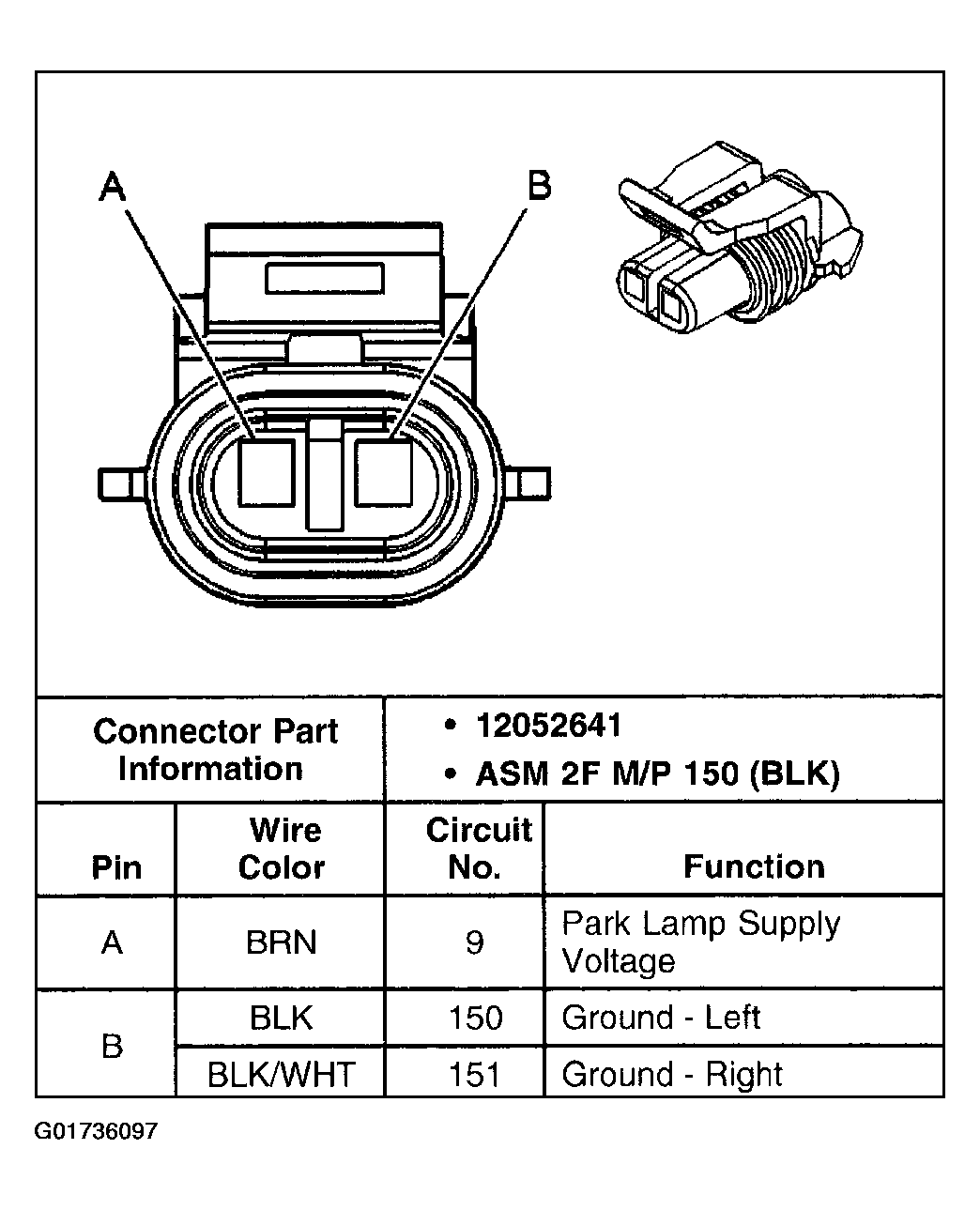

Fig 34: Position Lamp, Left/Right - Export

G01736097

Courtesy of GENERAL MOTORS CORP.

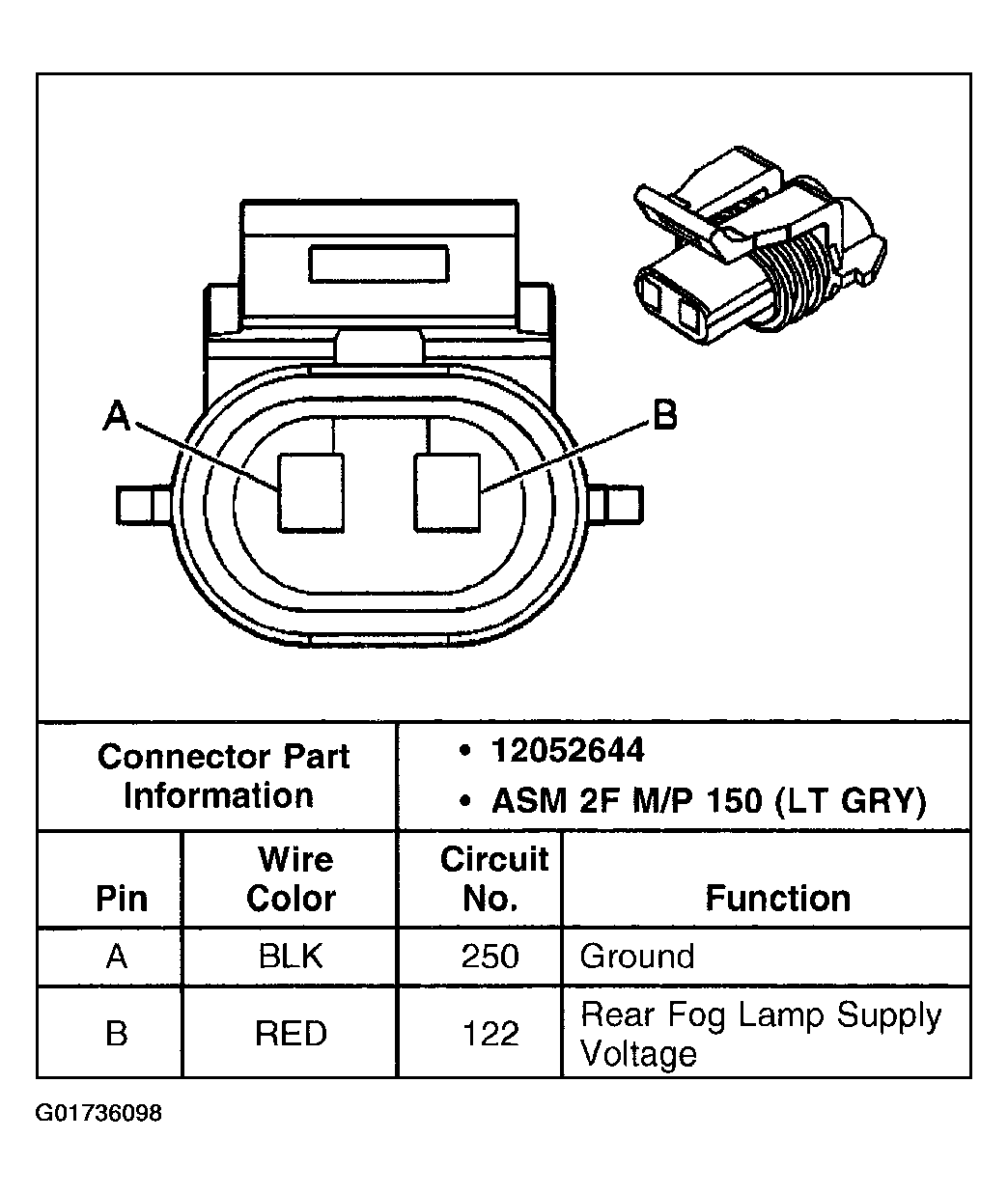

Fig 35: Rear Fog Lamp

G01736098

Courtesy of GENERAL MOTORS CORP.

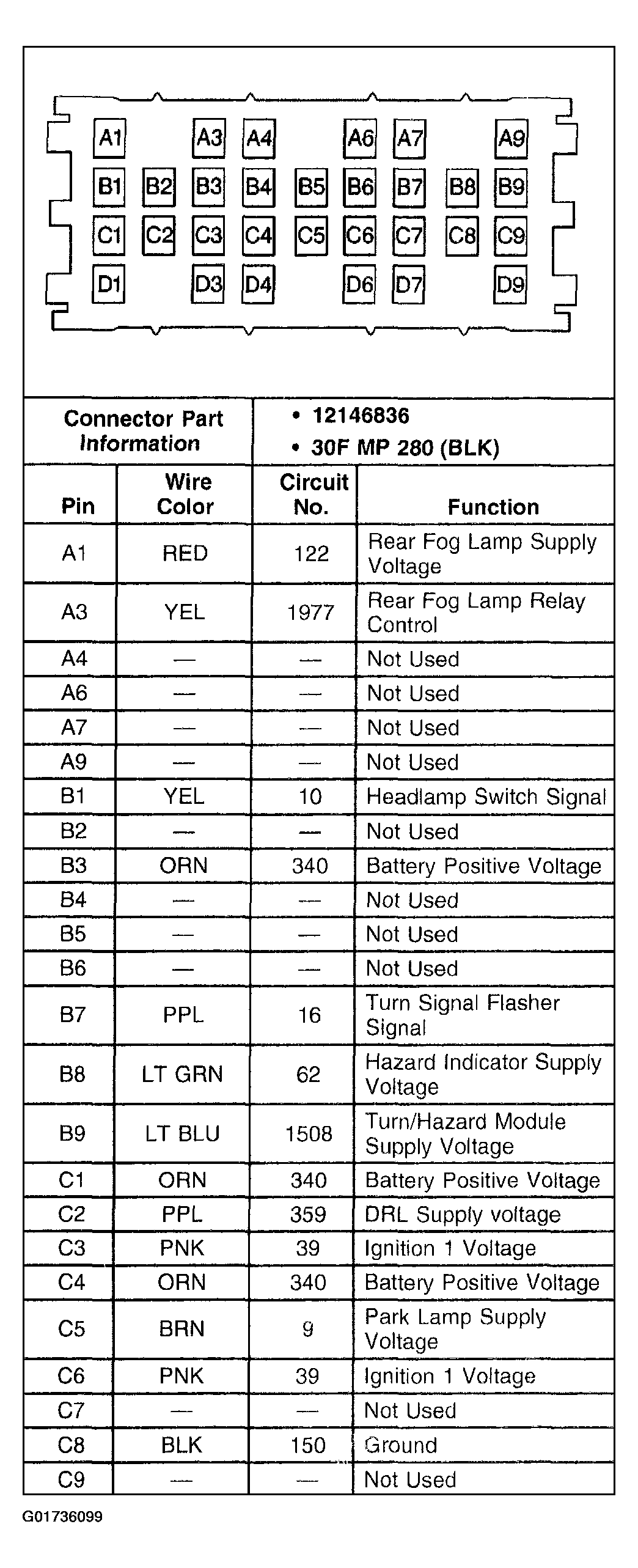

Fig 36: Relay Block - I/P (1 Of 2)

G01736099

Courtesy of GENERAL MOTORS CORP.

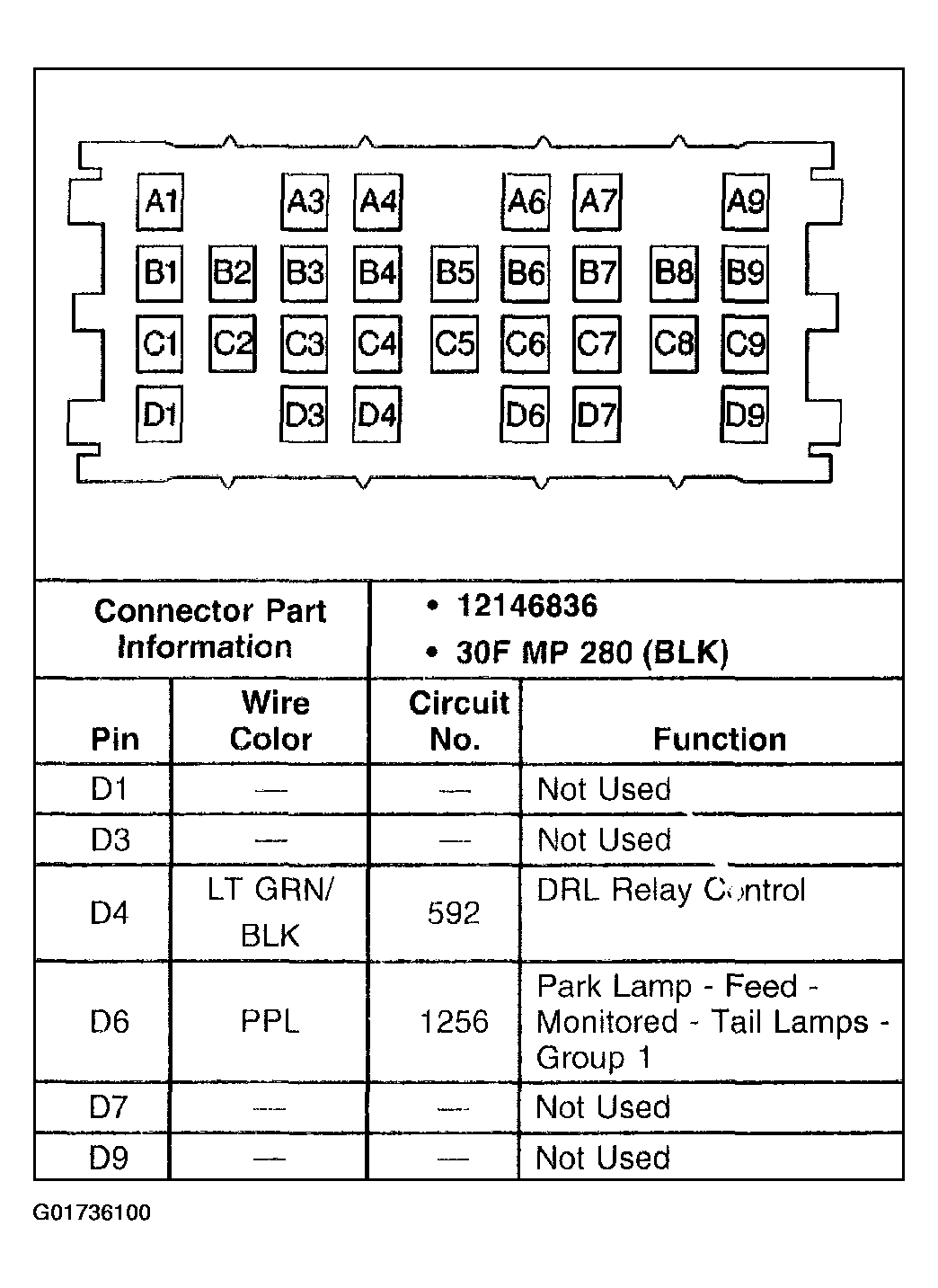

Fig 37: Relay Block - I/P (2 Of 2)

G01736100

Courtesy of GENERAL MOTORS CORP.

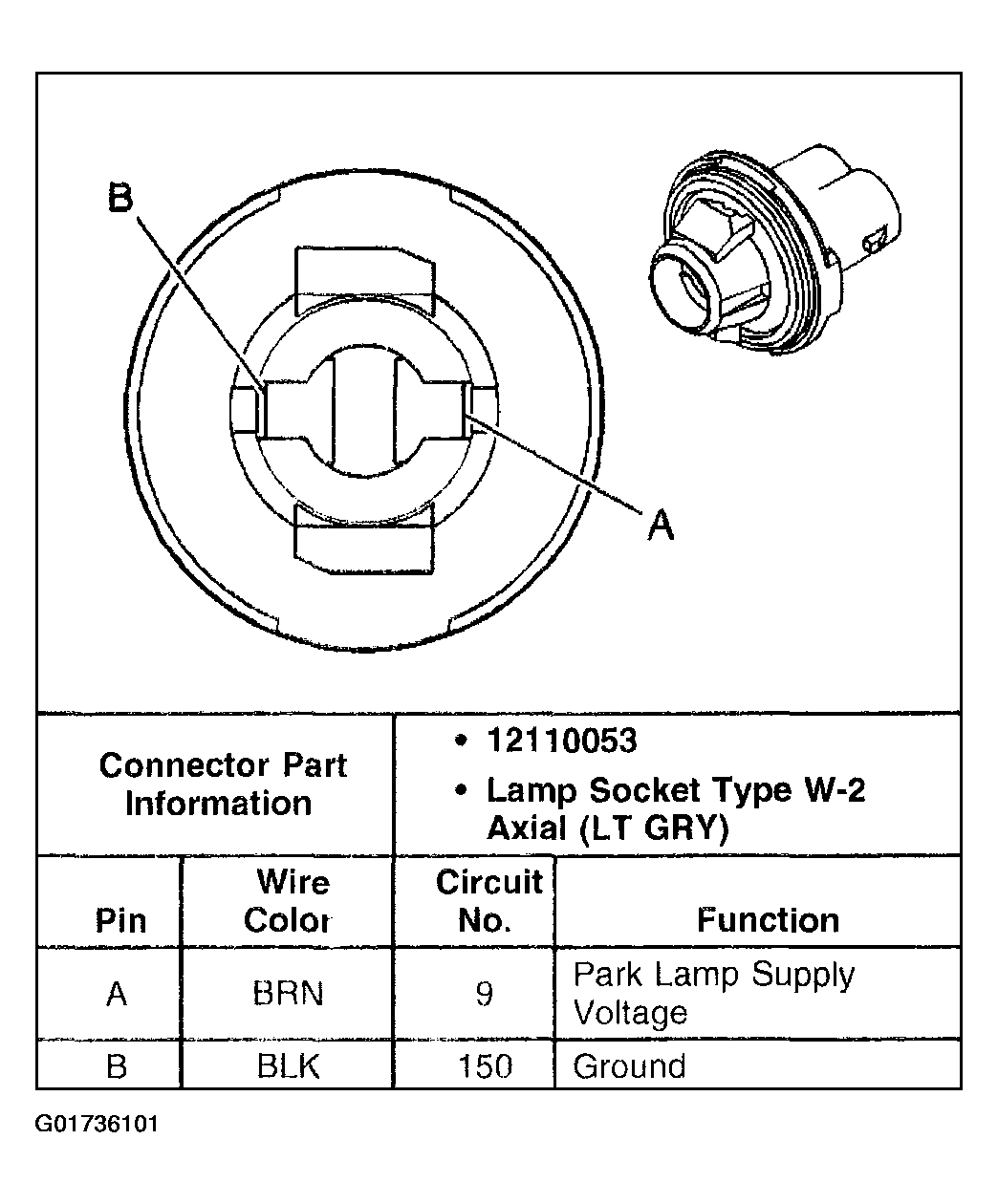

Fig 38: Side Marker, Left Front - Domestic

G01736101

Courtesy of GENERAL MOTORS CORP.

Fig 39: Side Marker, Right Front - Domestic

G01736102

Courtesy of GENERAL MOTORS CORP.

Fig 40: Stepwell Lamp - All

G01736103

Courtesy of GENERAL MOTORS CORP.

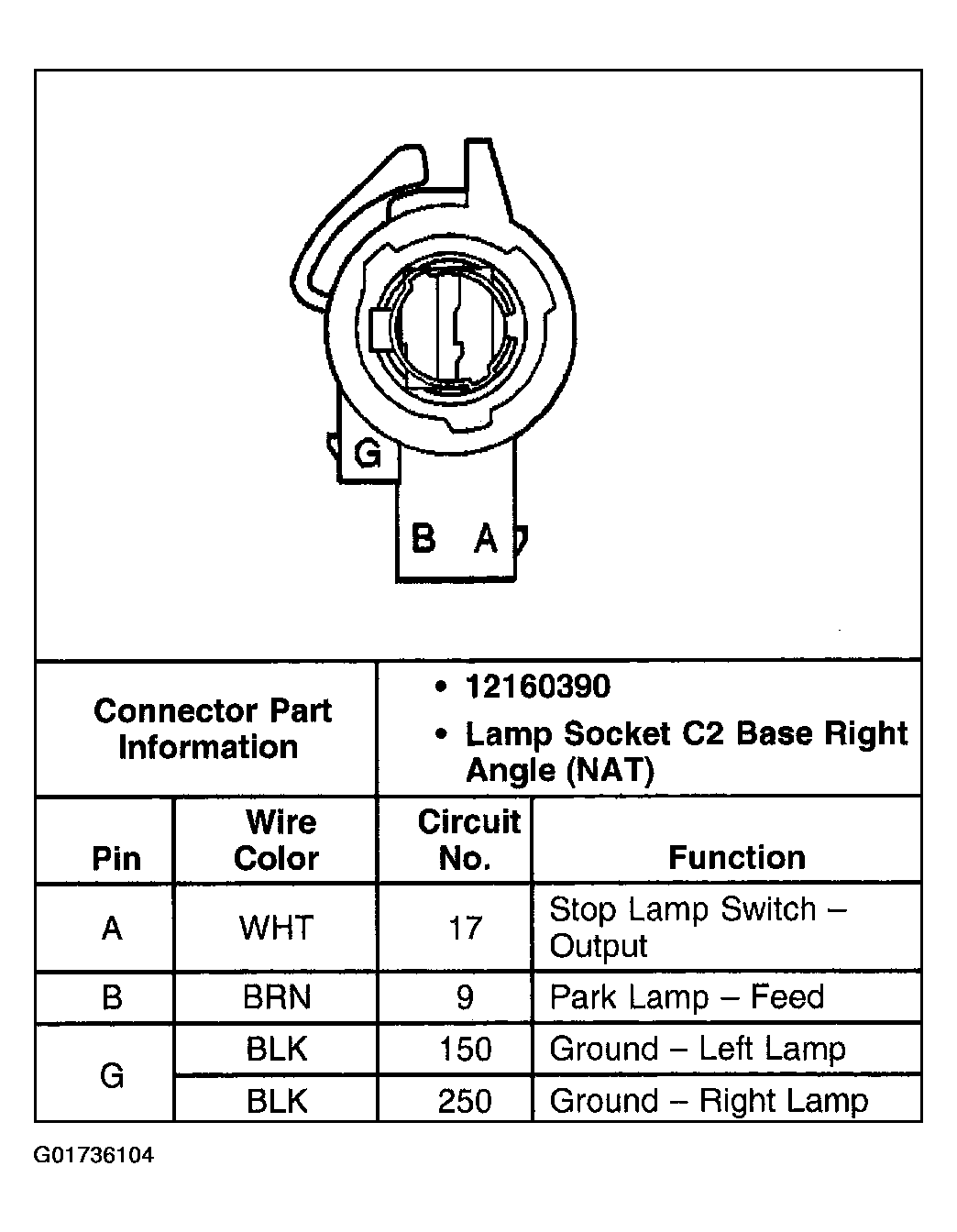

Fig 41: Tail/Stop Lamp - Left, Right

G01736104

Courtesy of GENERAL MOTORS CORP.

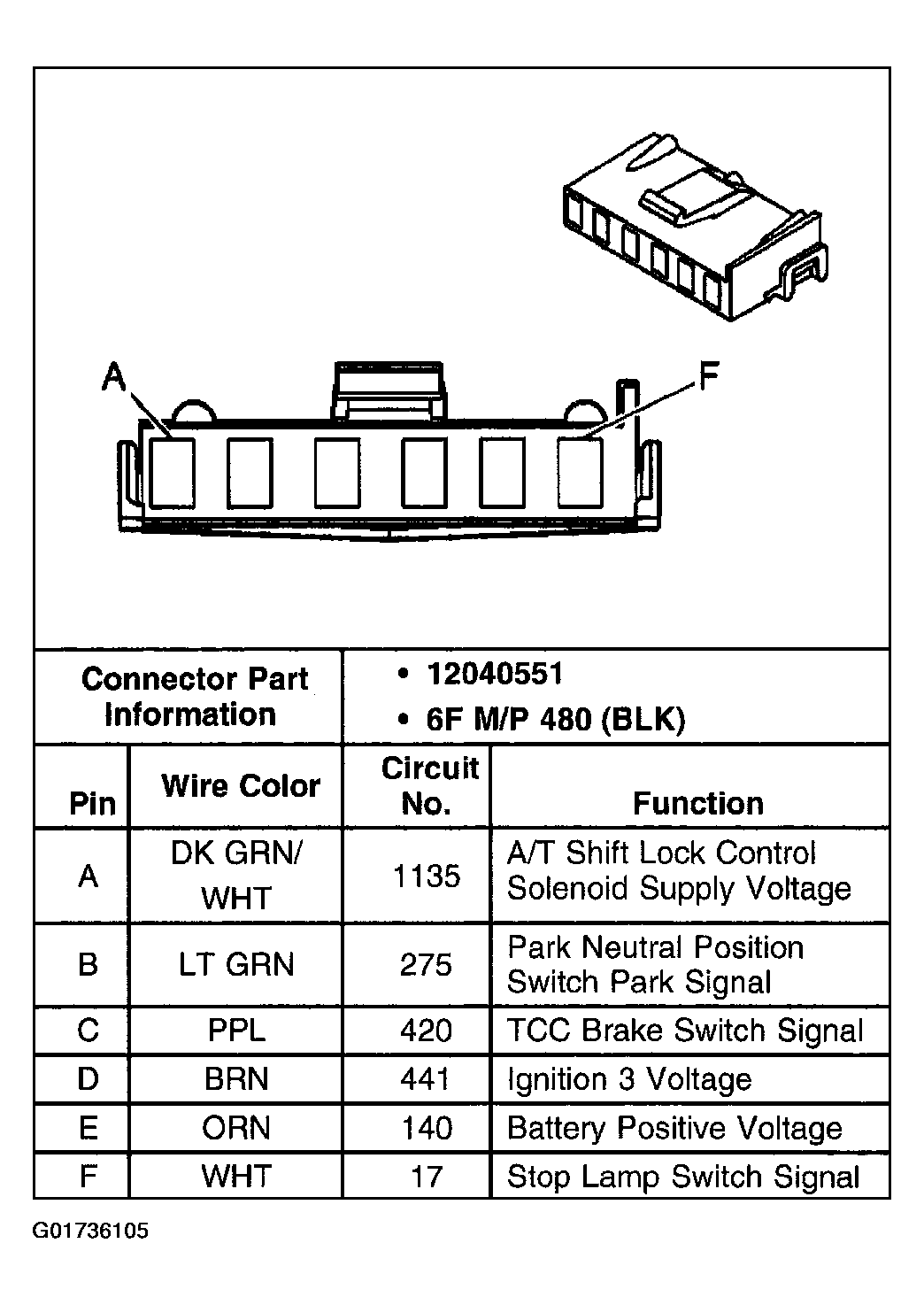

Fig 42: TCC/Brake Switch

G01736105

Courtesy of GENERAL MOTORS CORP.

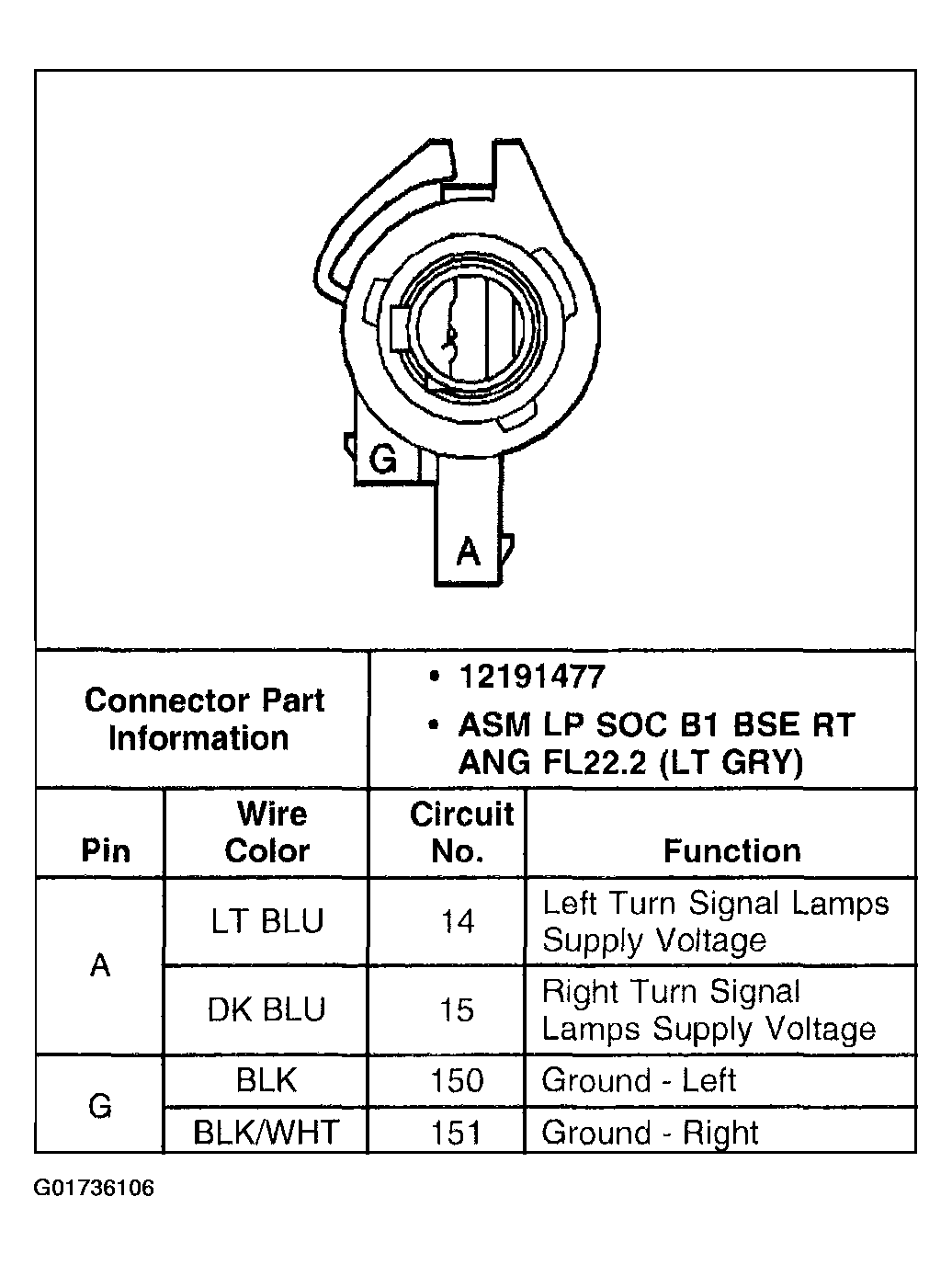

Fig 43: Turn Signal Lamp Left/Right Rear - Export

G01736106

Courtesy of GENERAL MOTORS CORP.

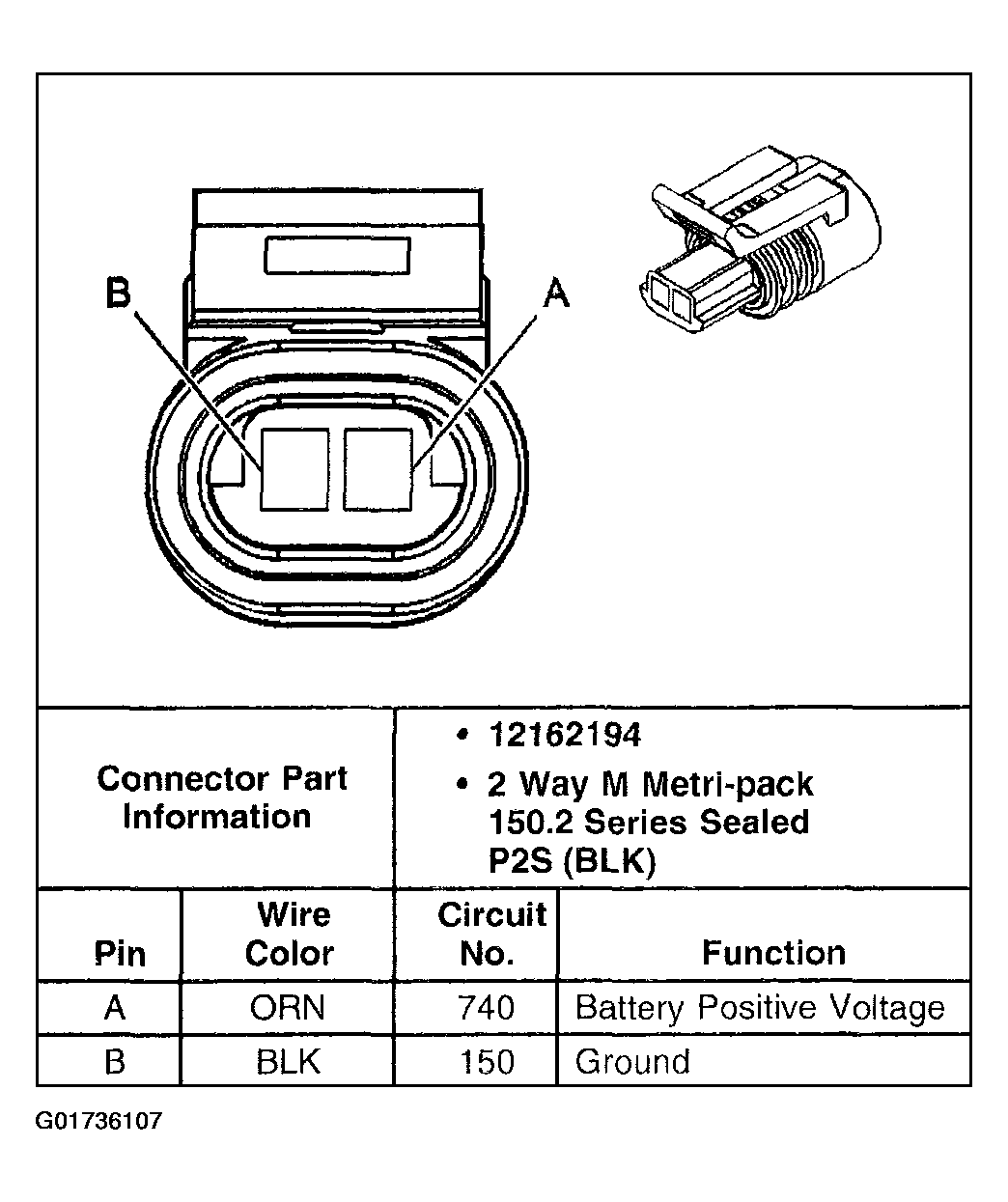

Fig 44: Underhood Lamp

G01736107

Courtesy of GENERAL MOTORS CORP.

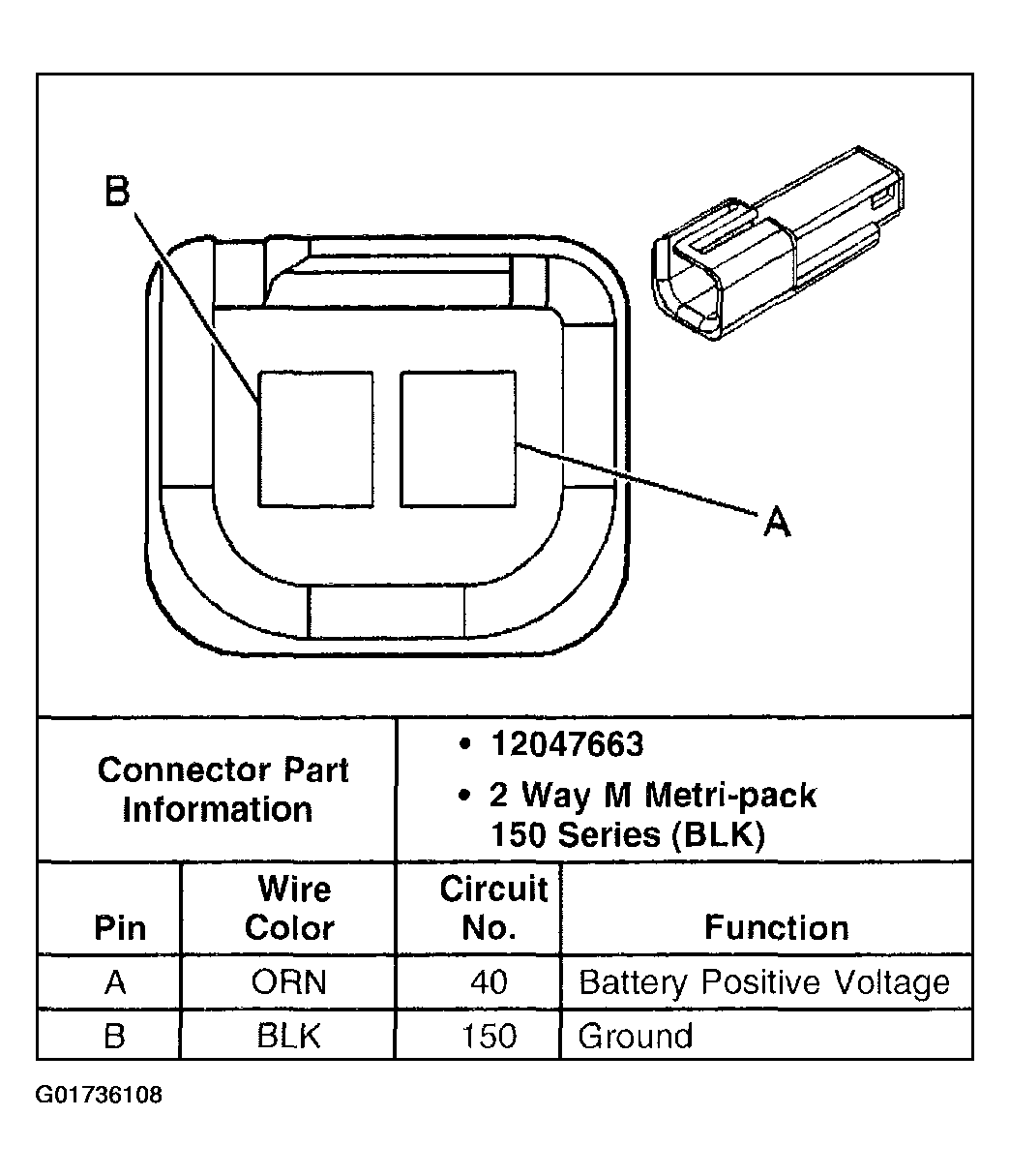

Fig 45: Vanity Mirror Lamp - Left, Right

G01736108

Courtesy of GENERAL MOTORS CORP.
