Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

Important: The daytime running light (DRL) module is on the left knee bolster bracket to the left of the steering column. You can reach the module from under the steering column.

Remove the instrument panel driver knee bolster panel. TRIM PANEL REPLACEMENT - KNEE BOLSTER
Disconnect the electrical connector from the DRL module.
Remove the DRL module (4) from the left outside knee bolster bracket (1).

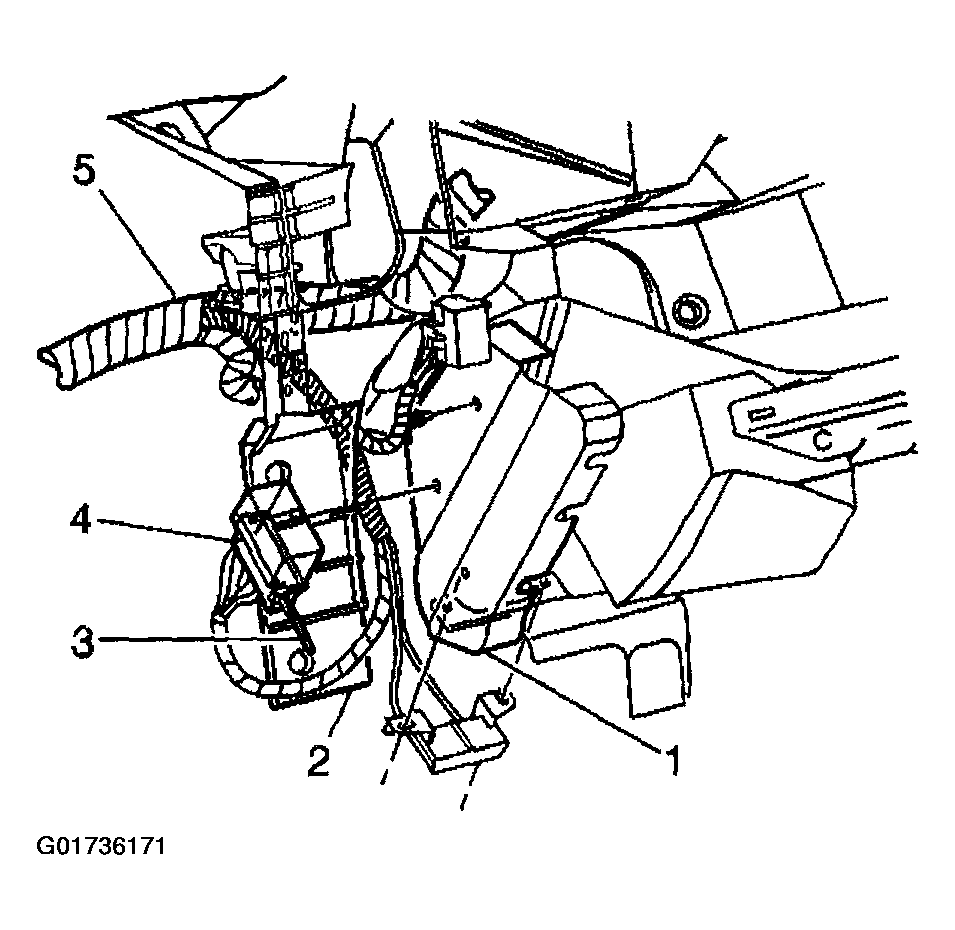

Fig 1: Removing DRL Module From Left Outside Knee Bolster Bracket
Courtesy of GENERAL MOTORS CORP.
