Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Install the bulb to the socket.
Install the floor shift control indicator lamp socket to the trim bezel, then rotate the socket clockwise to secure.

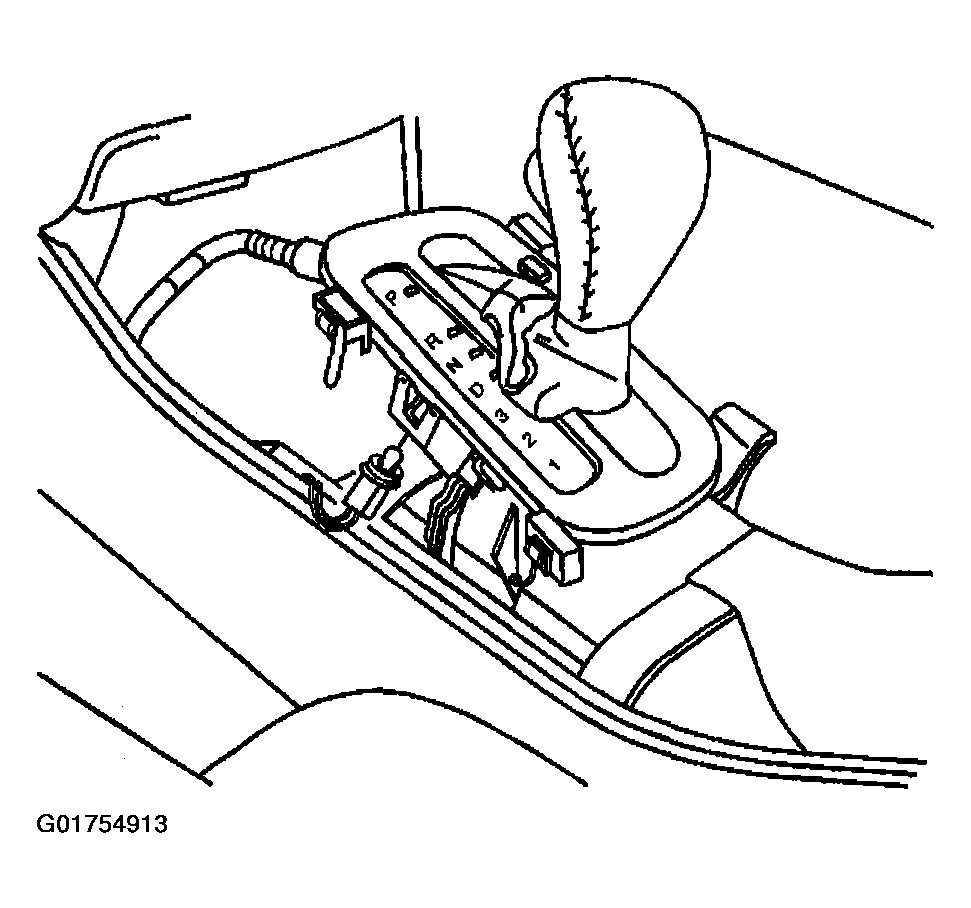

Fig 1: Identifying Floor Shift Control Indicator Lamp Socket

Courtesy of GENERAL MOTORS CORP.

Install the floor shift control trim bezel into position and press into place to secure the retaining tabs.
Install the front floor console trim plate. Refer to TRIM PLATE REPLACEMENT - CONSOLE FRONT in Instrument Panel, Gages and Console.
