Entertainment Component Views

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

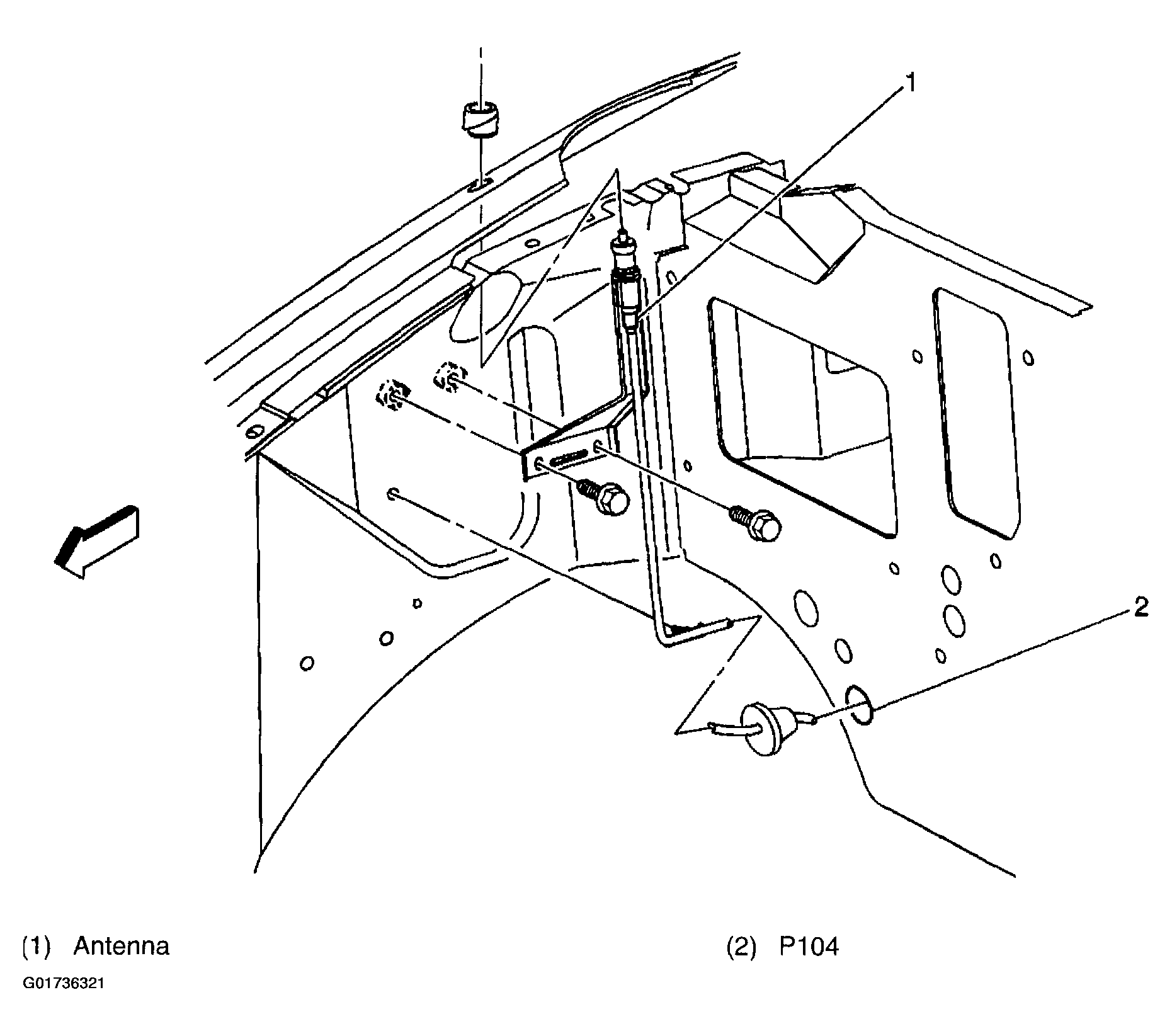

Fig 1: Antenna

G01736321

Courtesy of GENERAL MOTORS CORP.

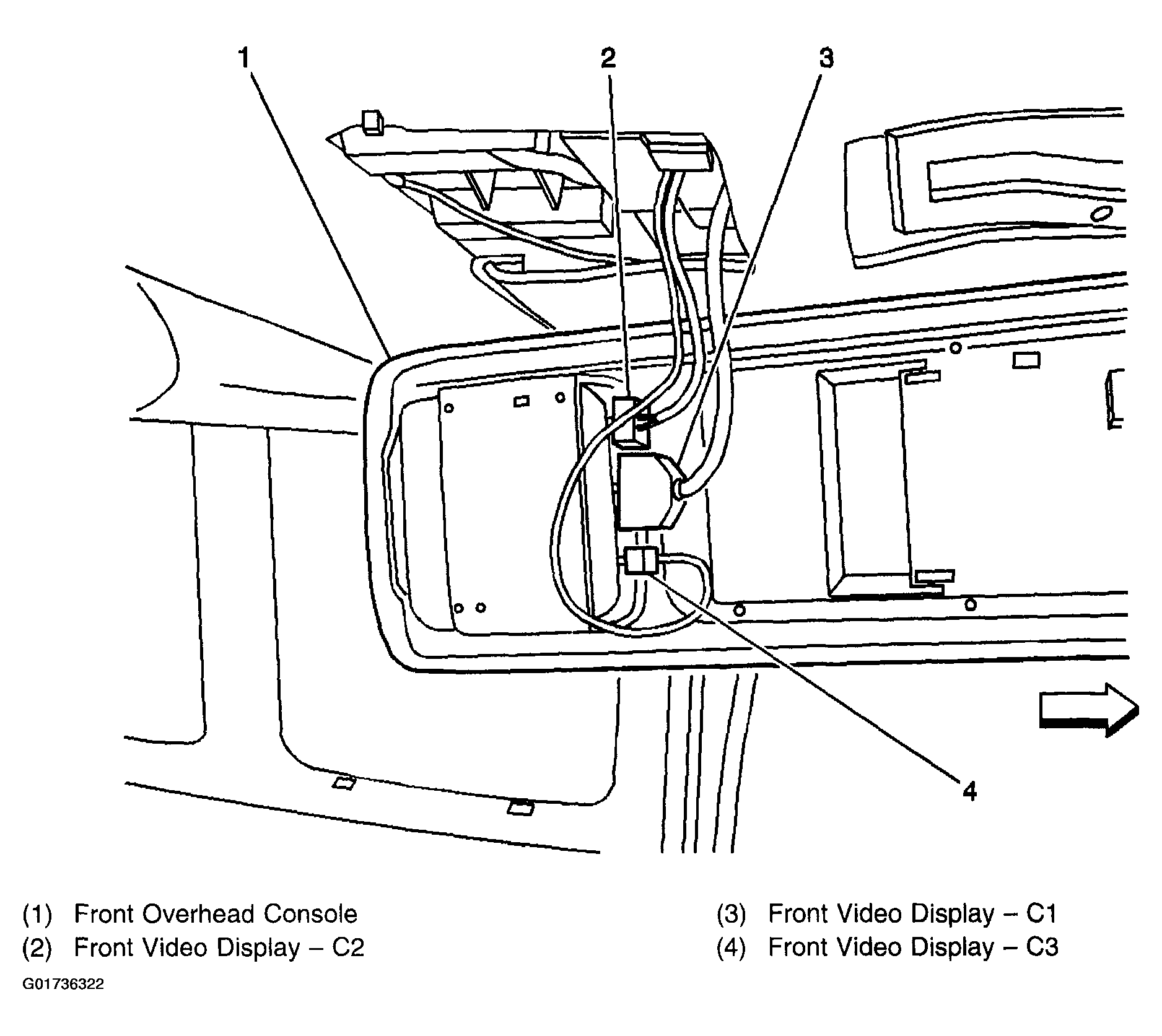

Fig 2: Connectors At Front Video Display

G01736322

Courtesy of GENERAL MOTORS CORP.

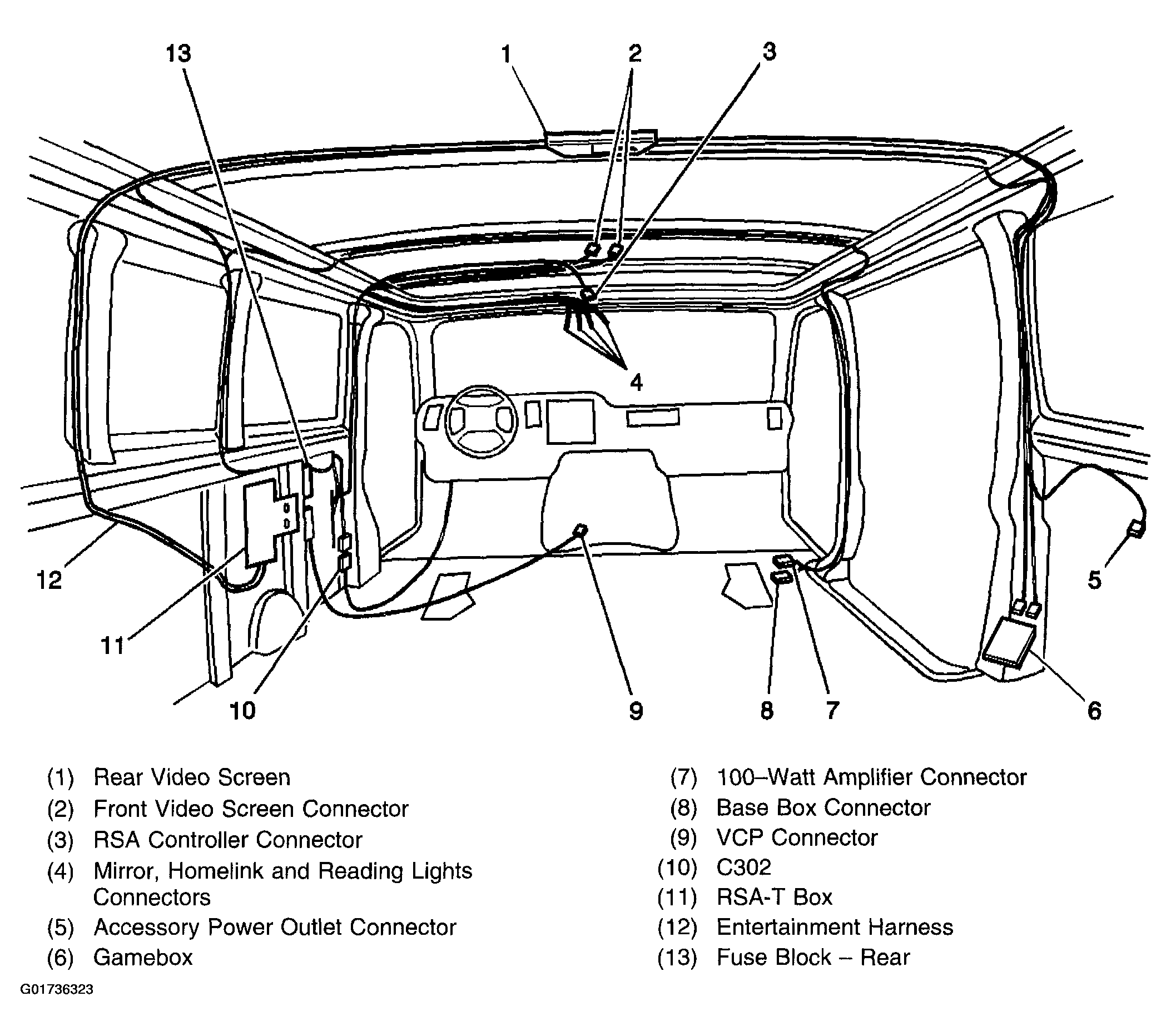

Fig 3: Entertainment Harness

G01736323

Courtesy of GENERAL MOTORS CORP.

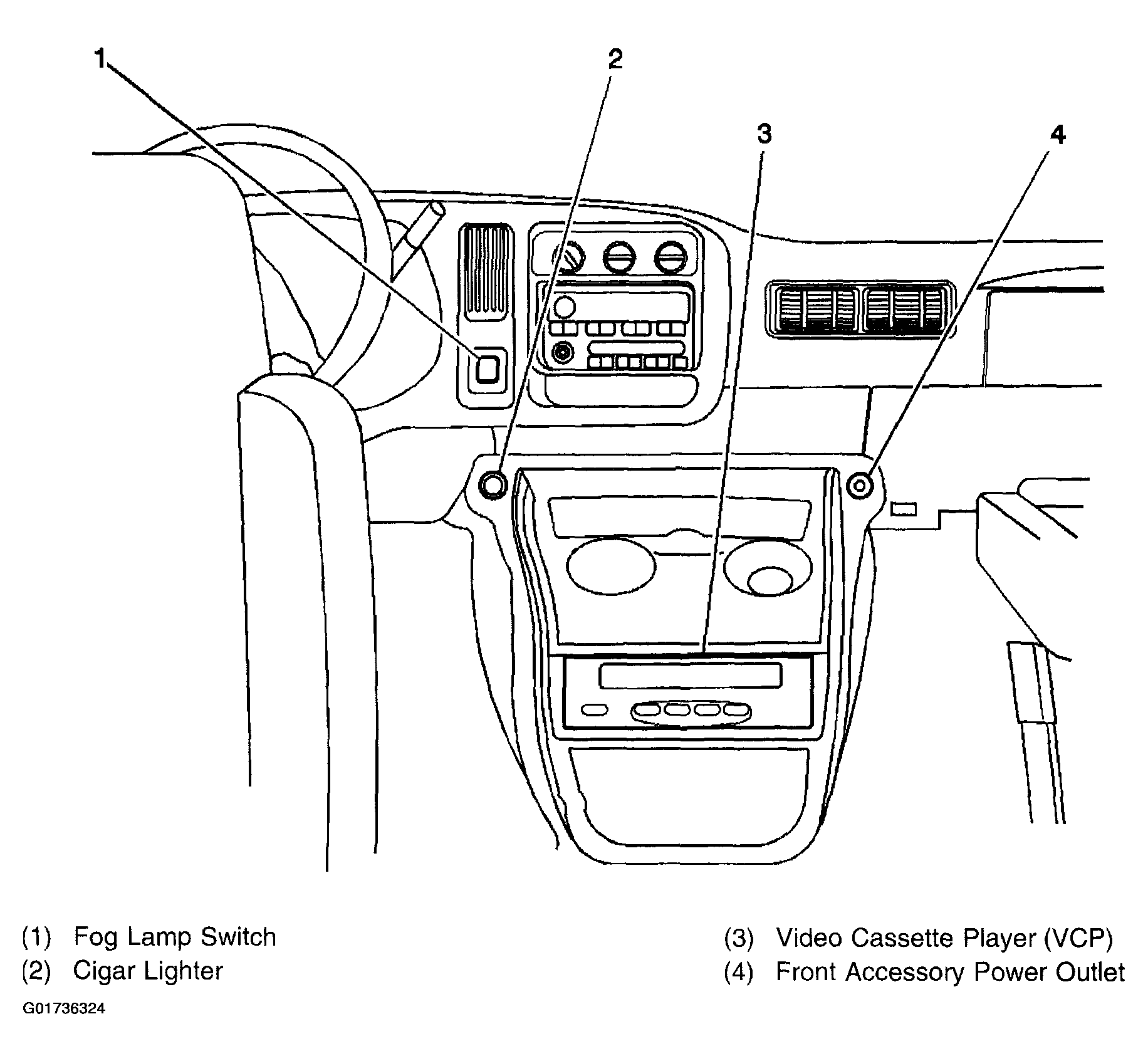

Fig 4: Front Fog Lamp Switch & Center Console Components

G01736324

Courtesy of GENERAL MOTORS CORP.

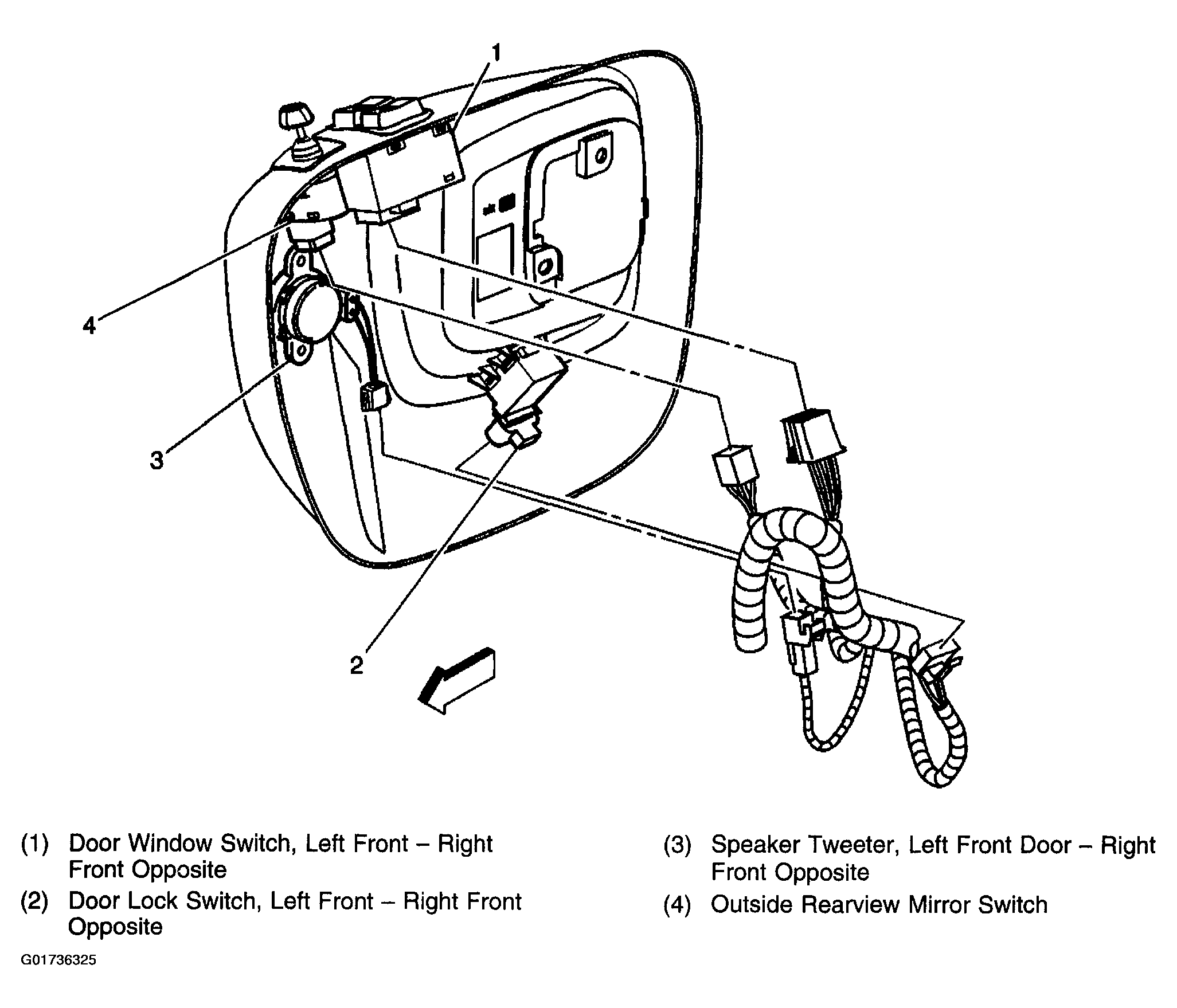

Fig 5: Front Side Door Wiring, Left

G01736325

Courtesy of GENERAL MOTORS CORP.

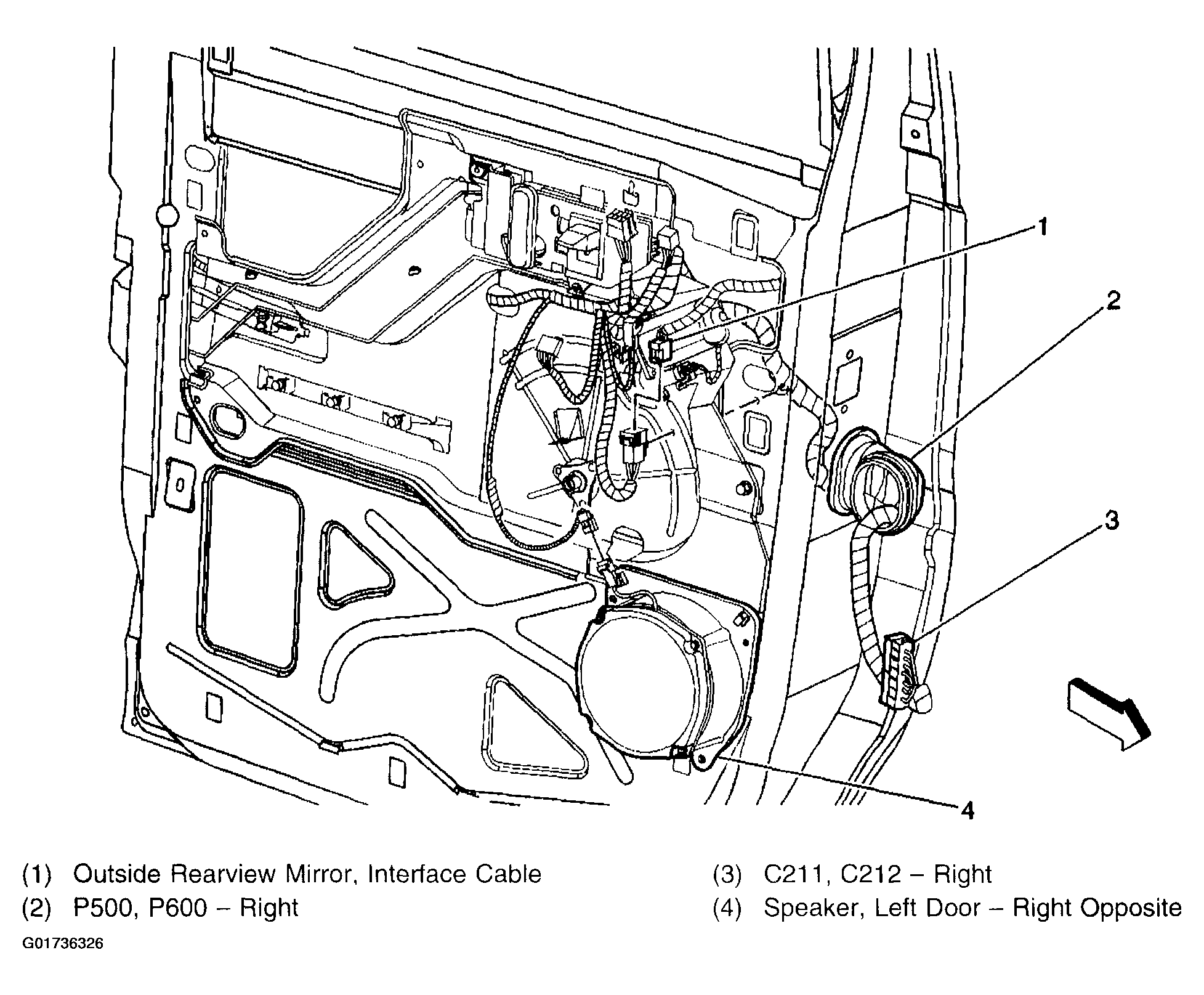

Fig 6: Front Side Door Wiring, Left

G01736326

Courtesy of GENERAL MOTORS CORP.

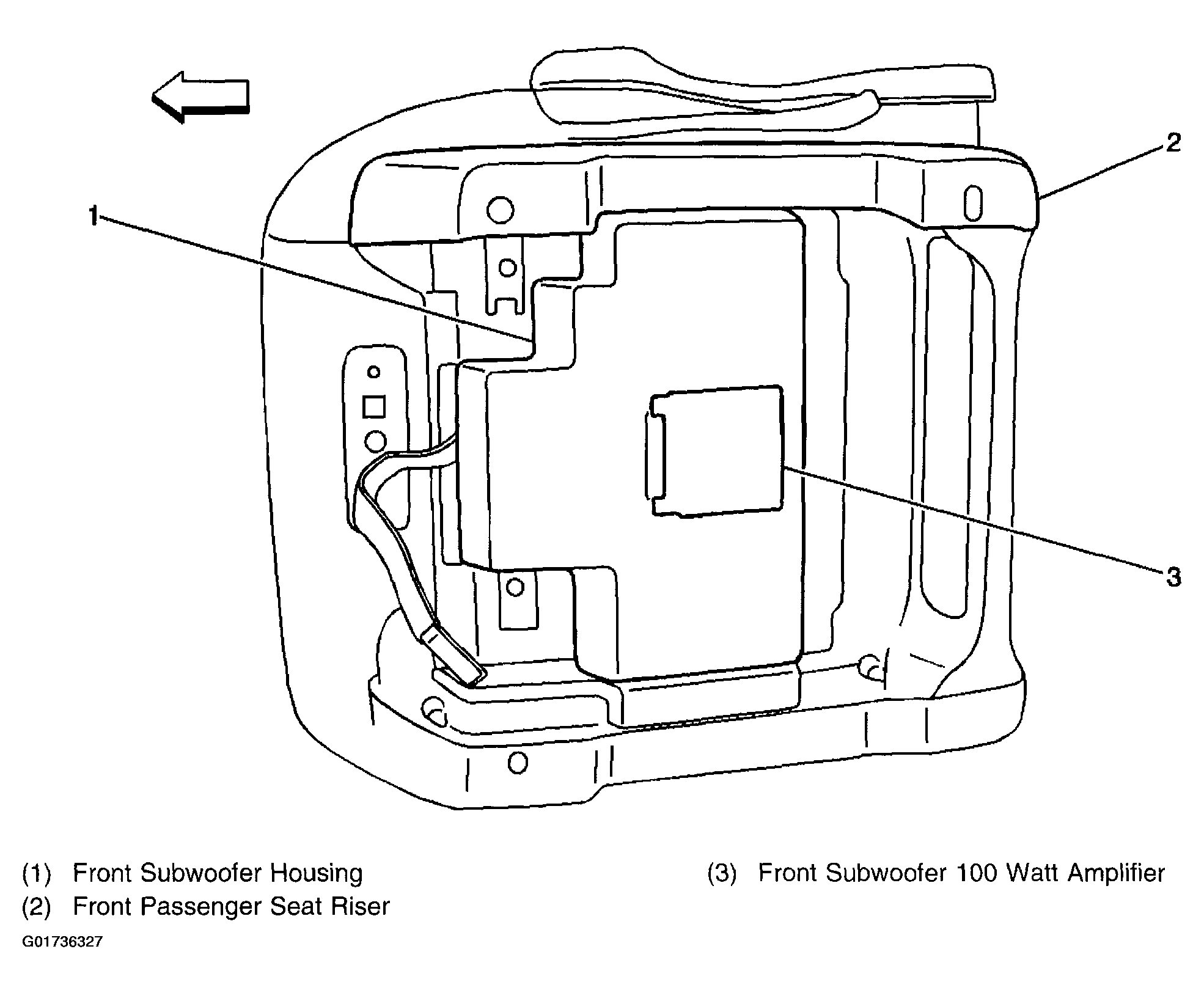

Fig 7: Front Subwoofer & 100 Watt Amplifier

G01736327

Courtesy of GENERAL MOTORS CORP.

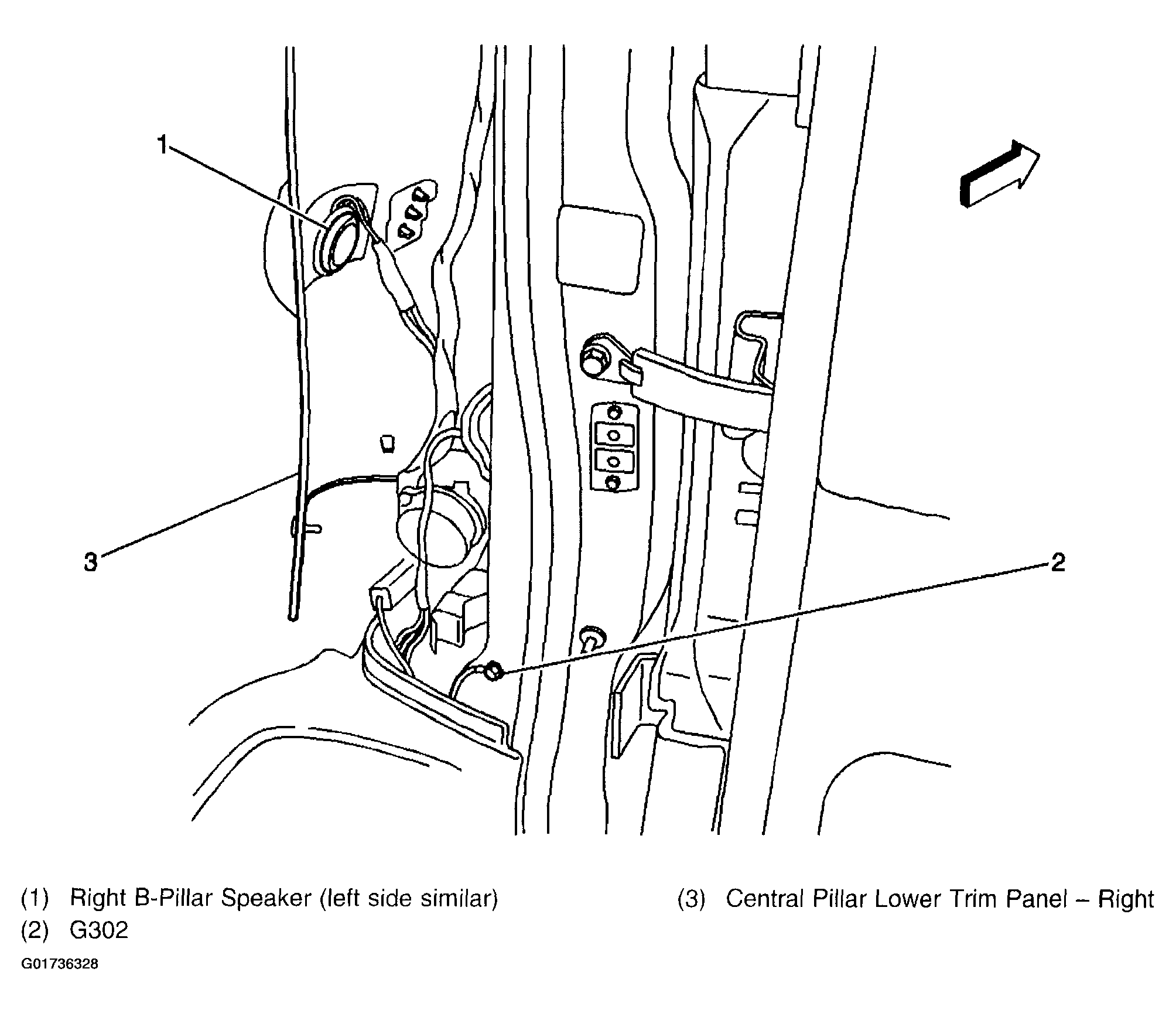

Fig 8: G302 & Right B-Pillar Speaker

G01736328

Courtesy of GENERAL MOTORS CORP.

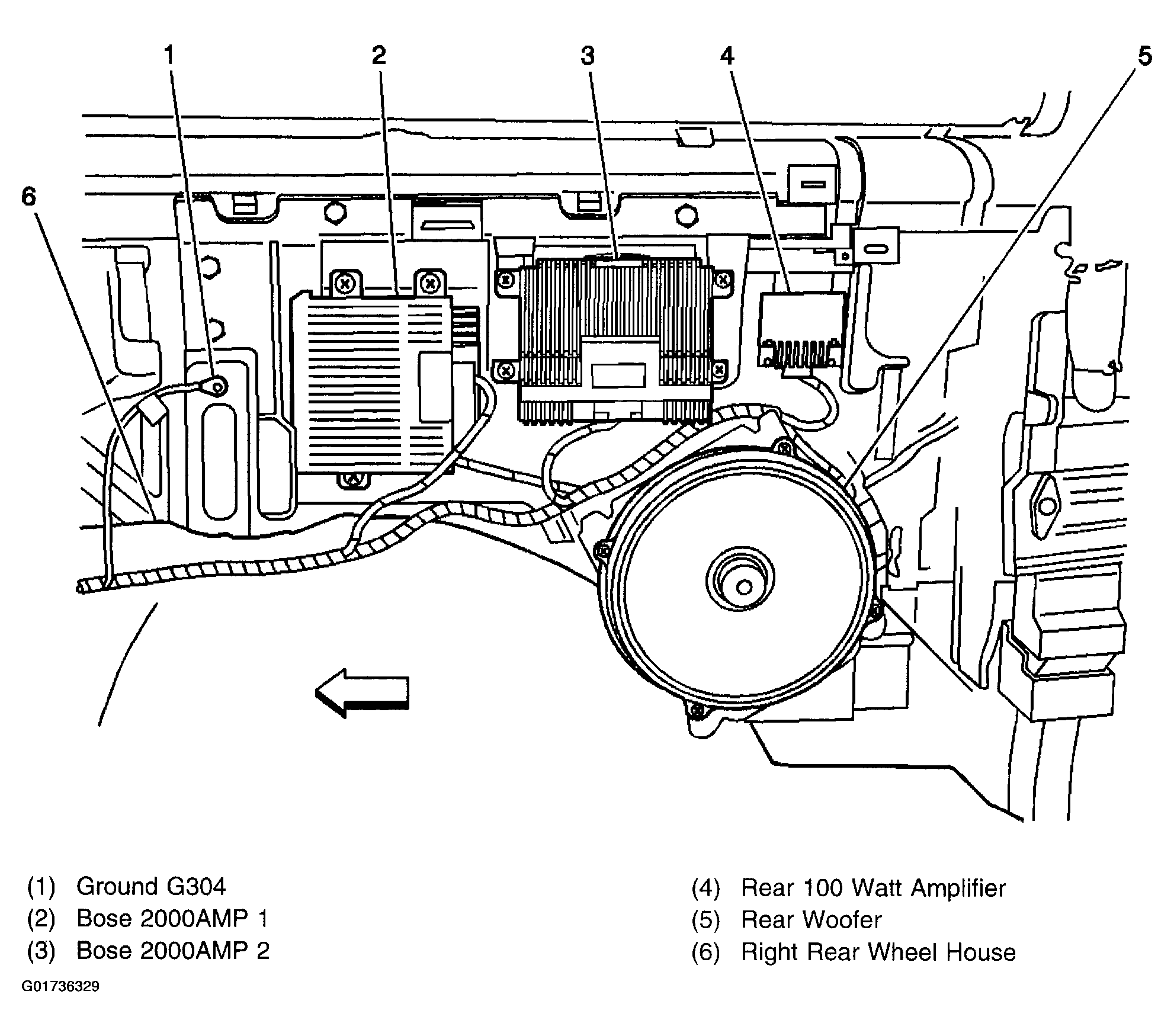

Fig 9: G304, Amplifiers, & Rear Woofer

G01736329

Courtesy of GENERAL MOTORS CORP.

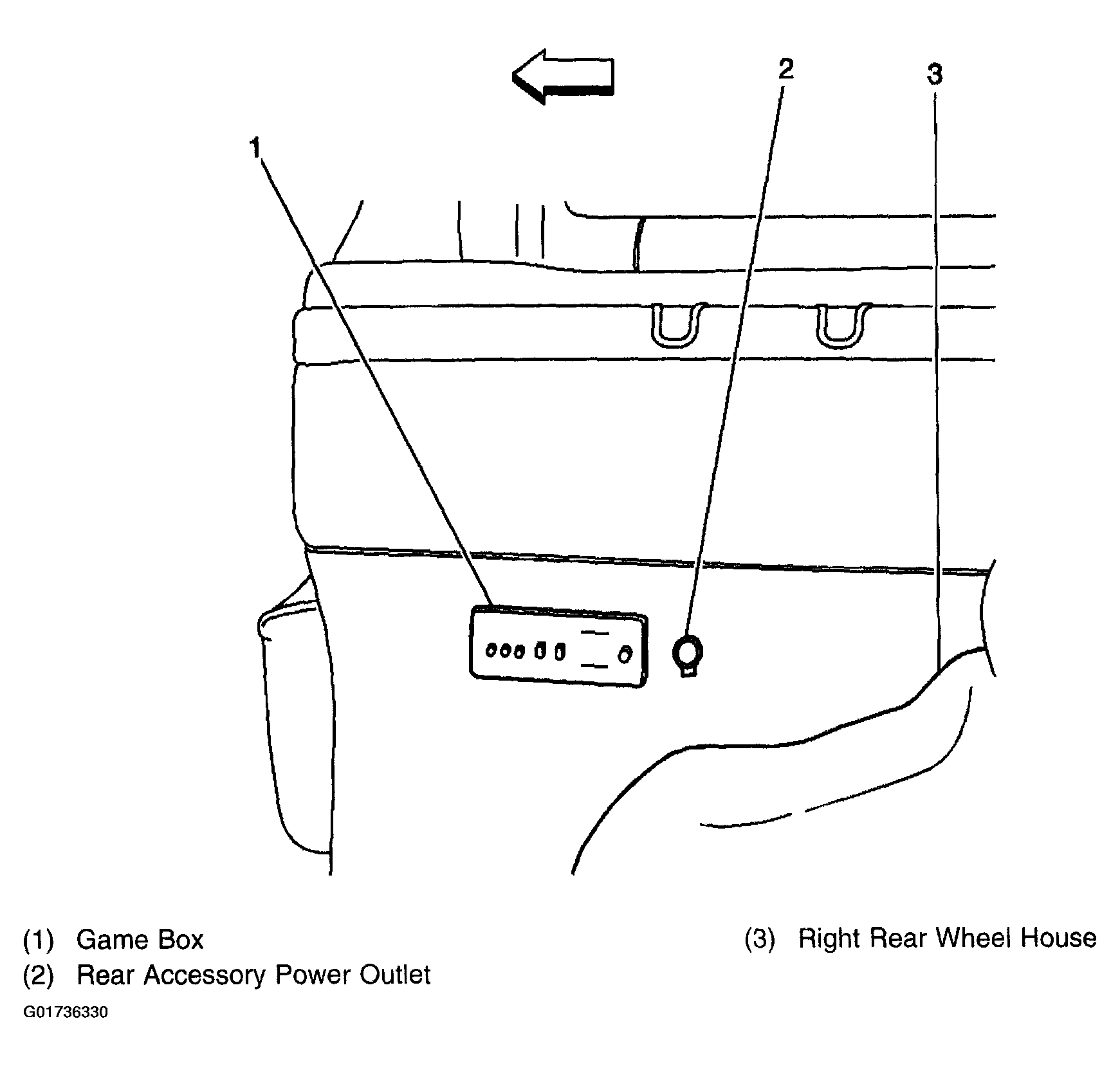

Fig 10: Game Box & Rear Accessory Power Outlet

G01736330

Courtesy of GENERAL MOTORS CORP.

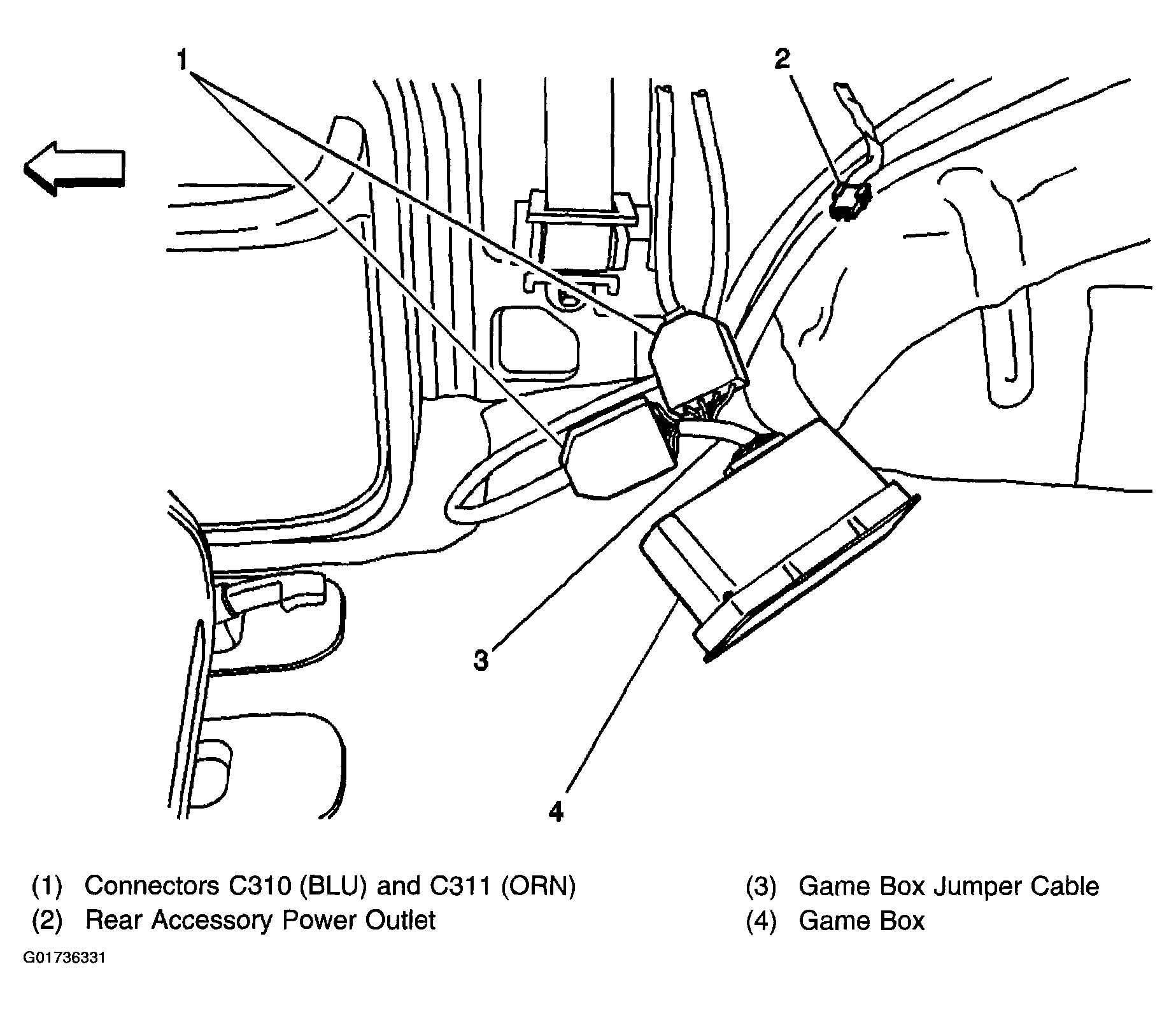

Fig 11: Game Box, C310, C311, & Rear Accessory Power Outlet

G01736331

Courtesy of GENERAL MOTORS CORP.

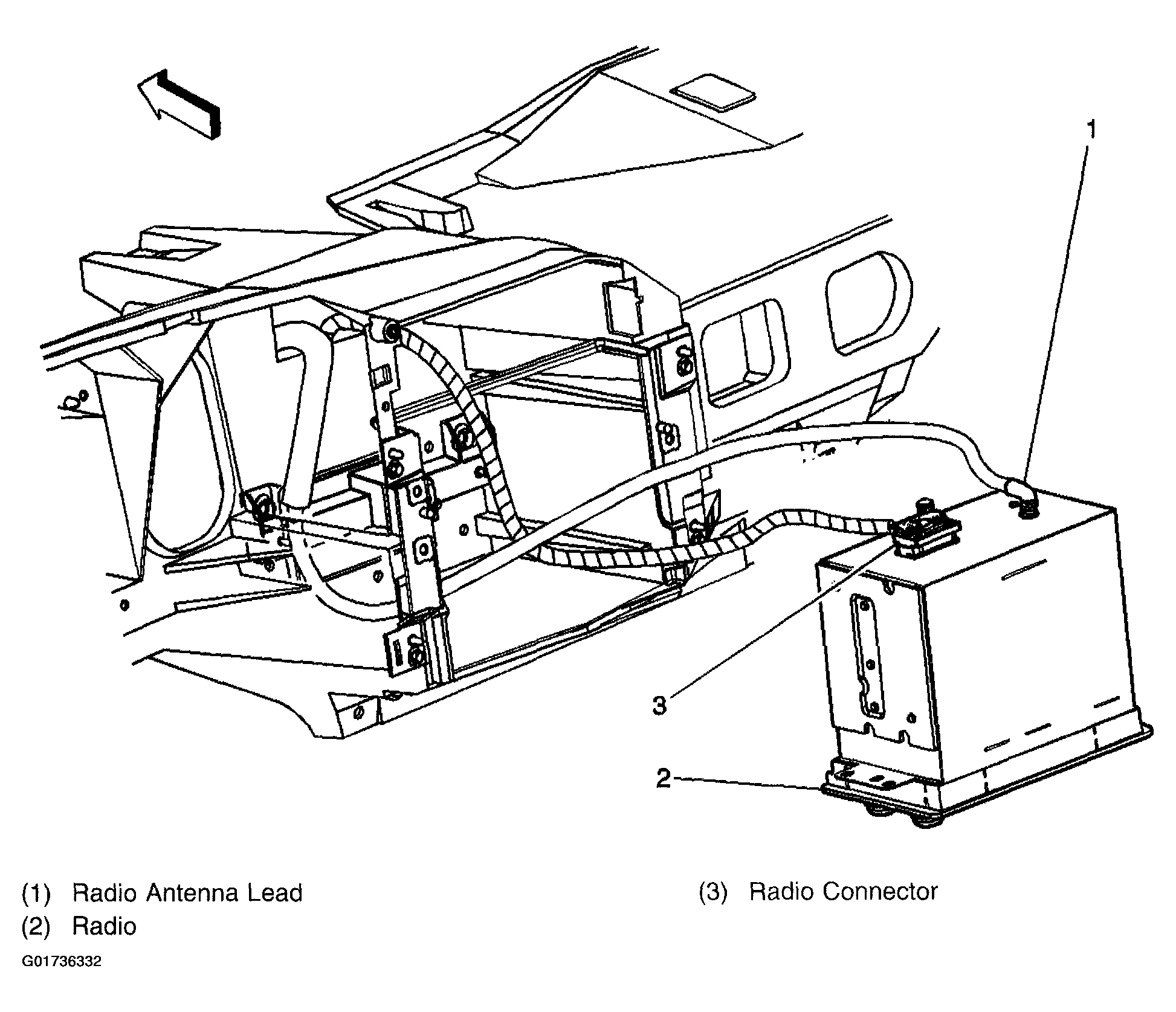

Fig 12: Instrument Panel, Radio

G01736332

Courtesy of GENERAL MOTORS CORP.

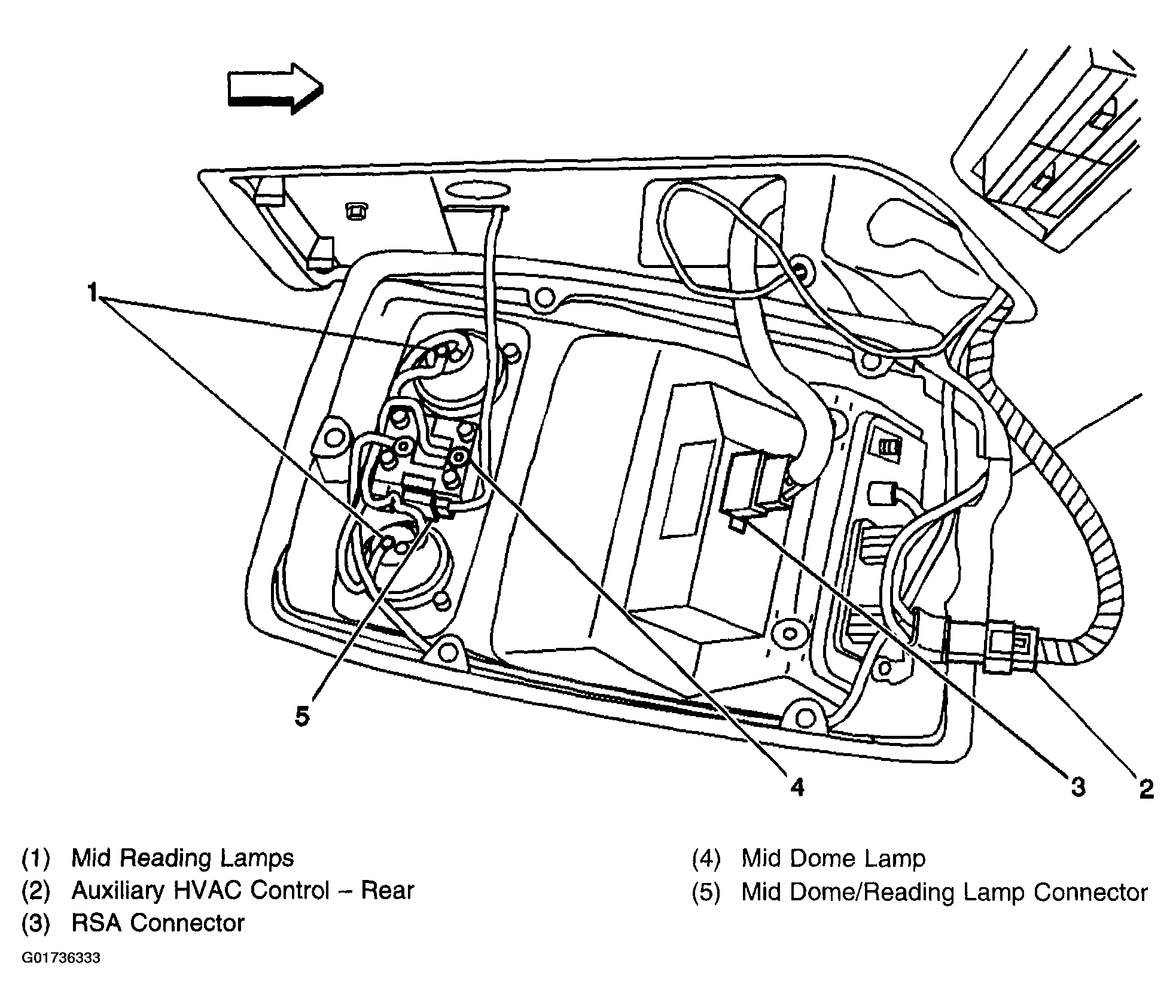

Fig 13: Mid Dome/Reading Lamps, RSA, & Rear HVAC Control Connectors

G01736333

Courtesy of GENERAL MOTORS CORP.

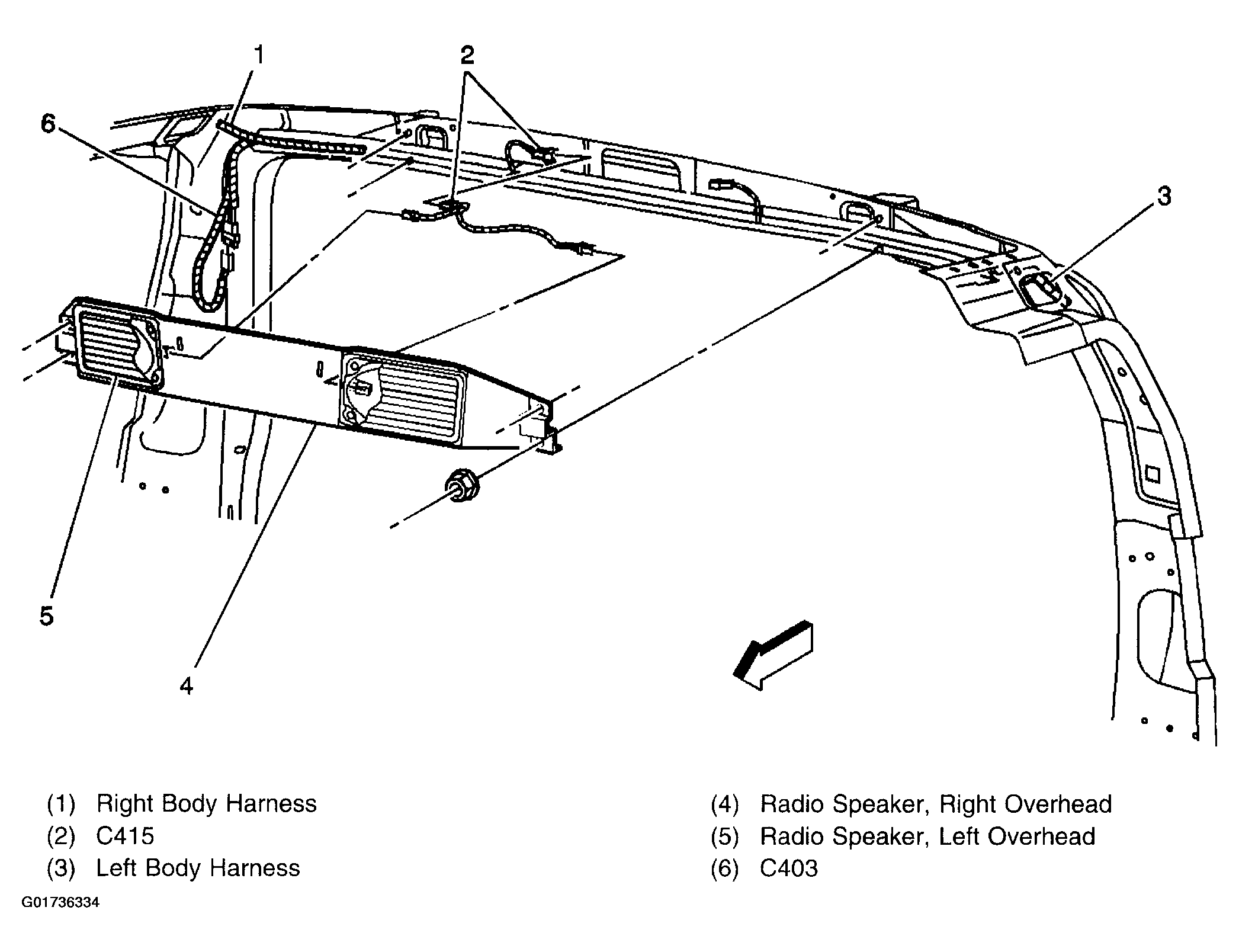

Fig 14: Radio Rear Speaker Wiring

G01736334

Courtesy of GENERAL MOTORS CORP.

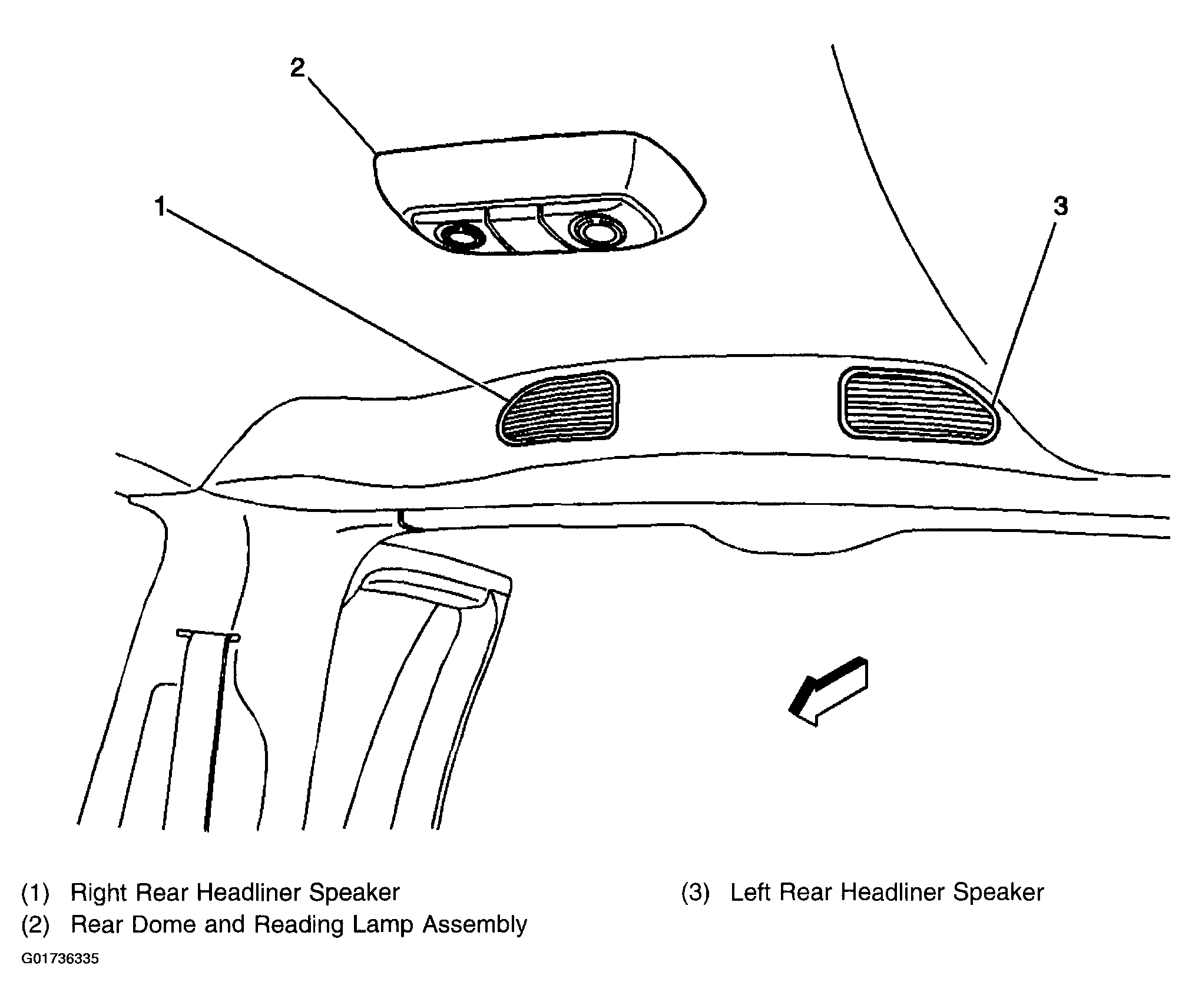

Fig 15: Rear Headliner Speakers, Rear Dome/Reading Lamps

G01736335

Courtesy of GENERAL MOTORS CORP.

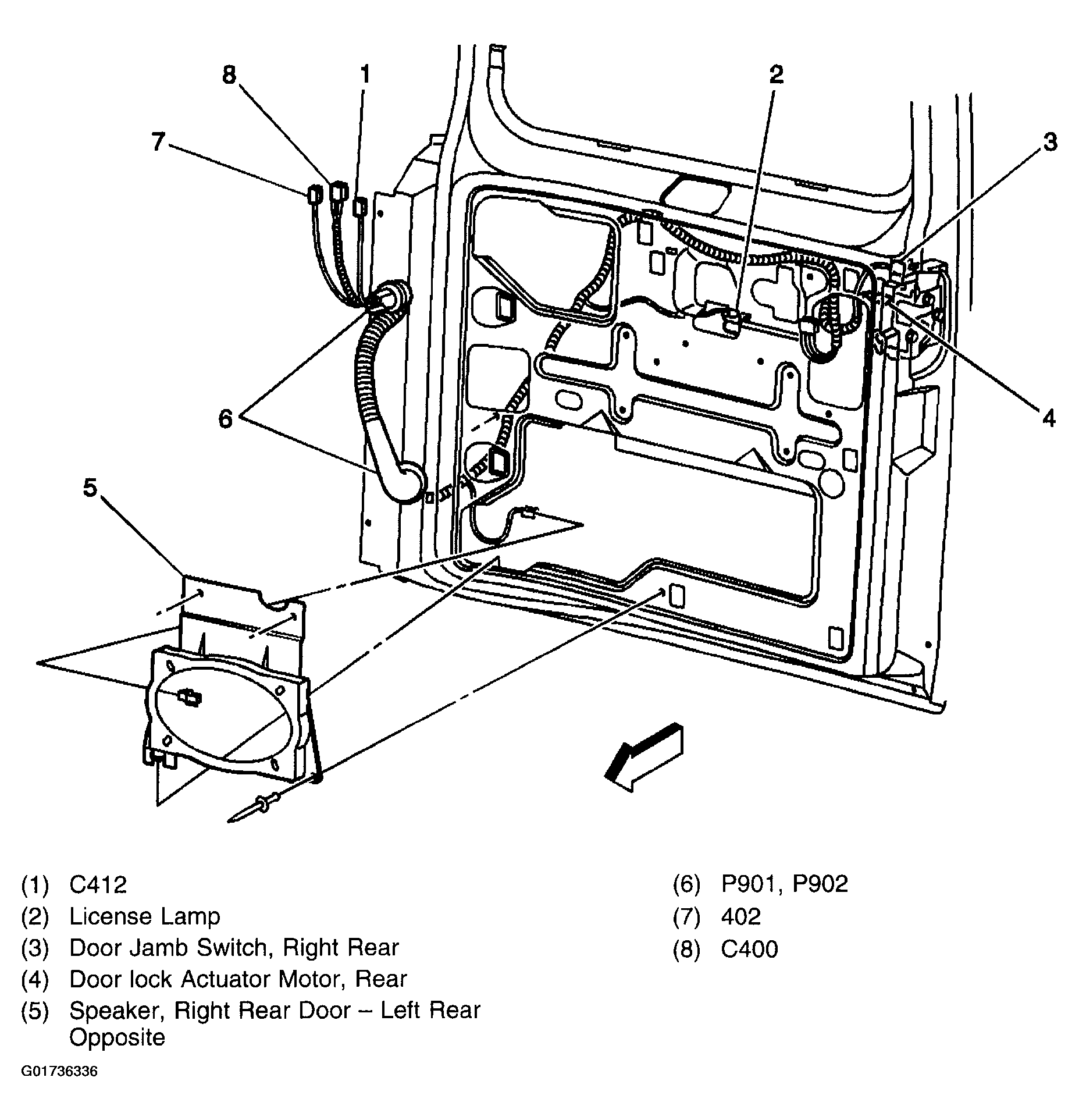

Fig 16: Right Rear Door Wiring, Radio Speaker

G01736336

Courtesy of GENERAL MOTORS CORP.

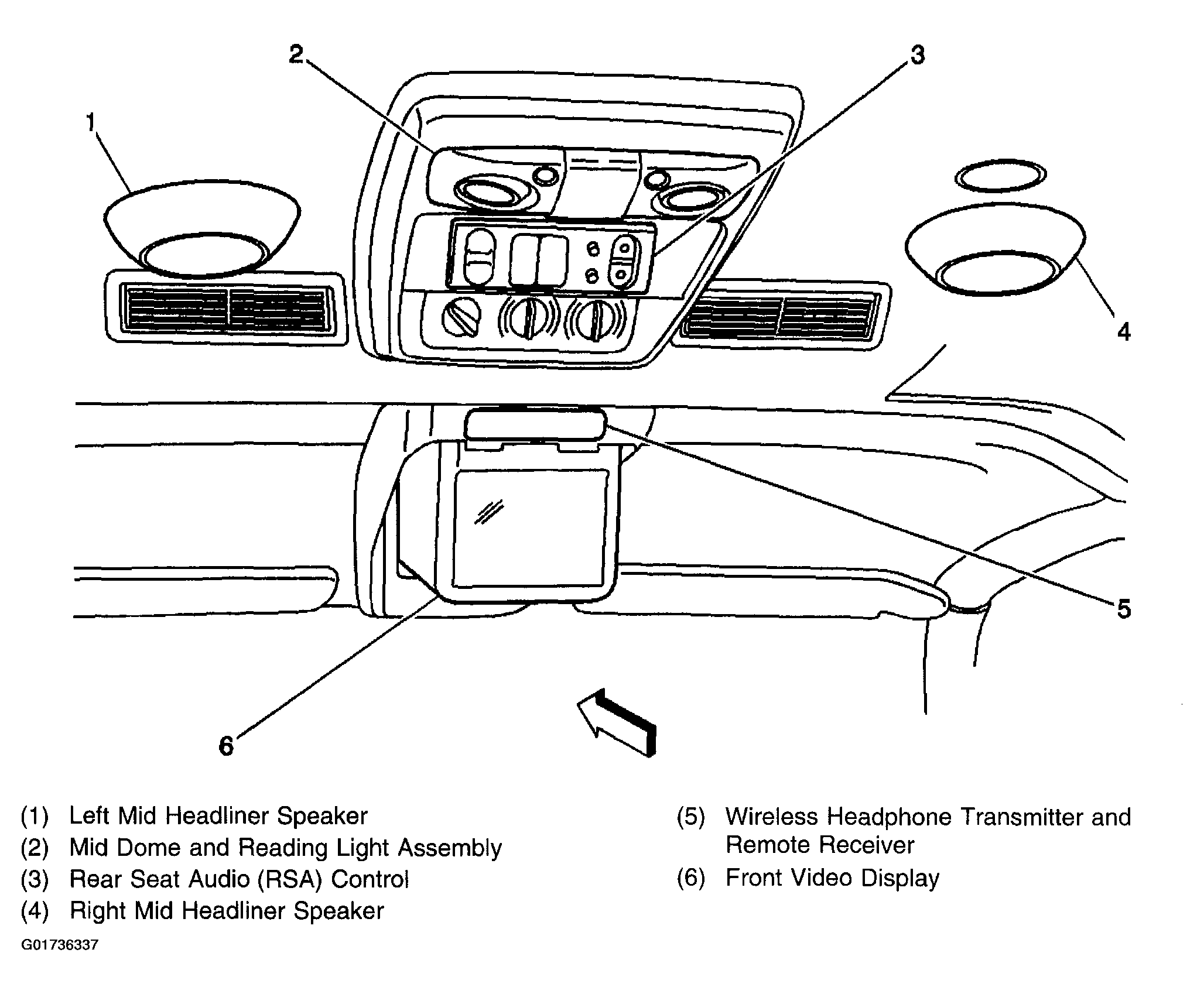

Fig 17: RSA, Front Video Display, Mid Headliner Speaker & Mid Dome/Reading Lamps

G01736337

Courtesy of GENERAL MOTORS CORP.

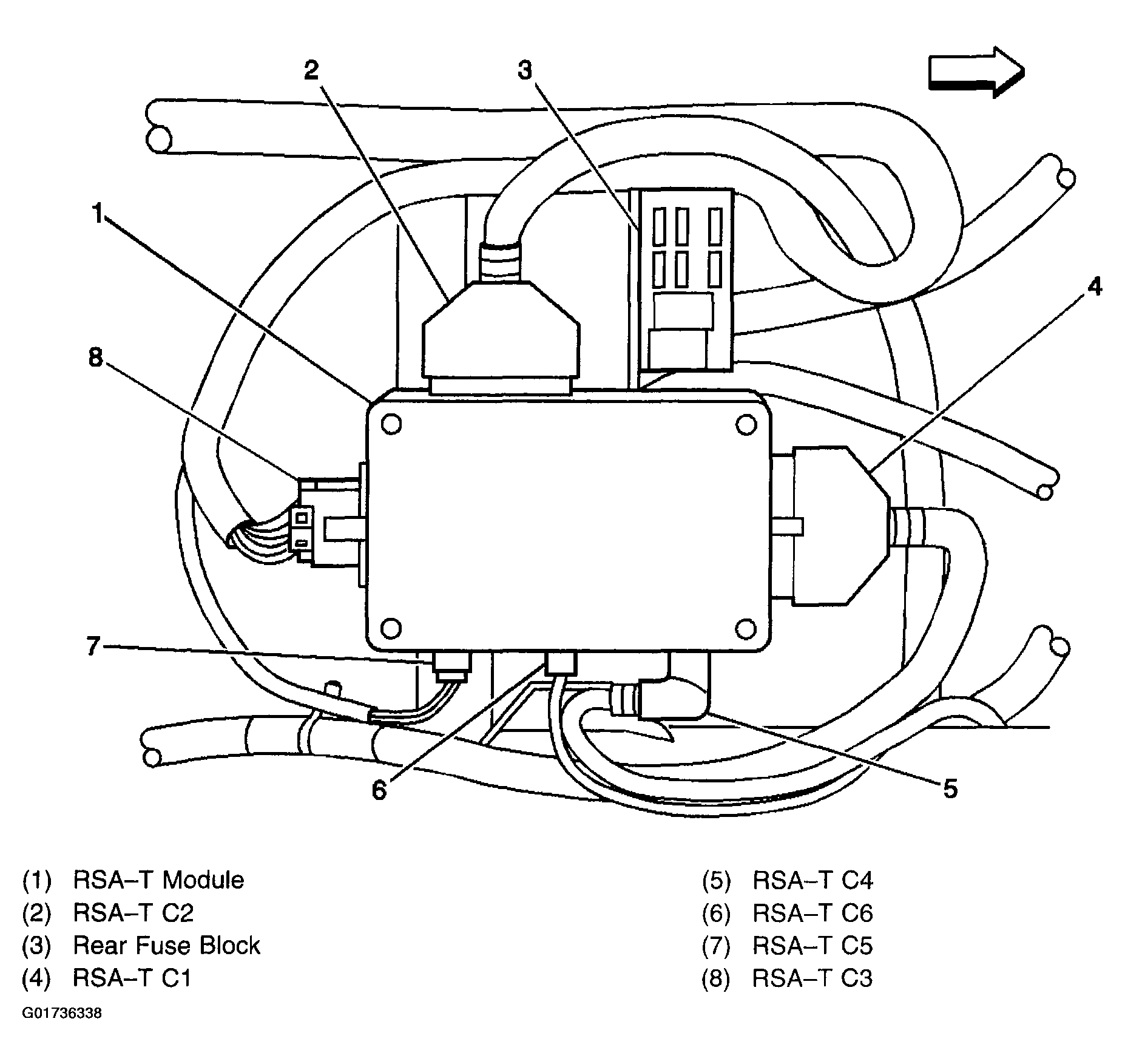

Fig 18: RSA-T Module & Connectors, Rear Fuse Block

G01736338

Courtesy of GENERAL MOTORS CORP.

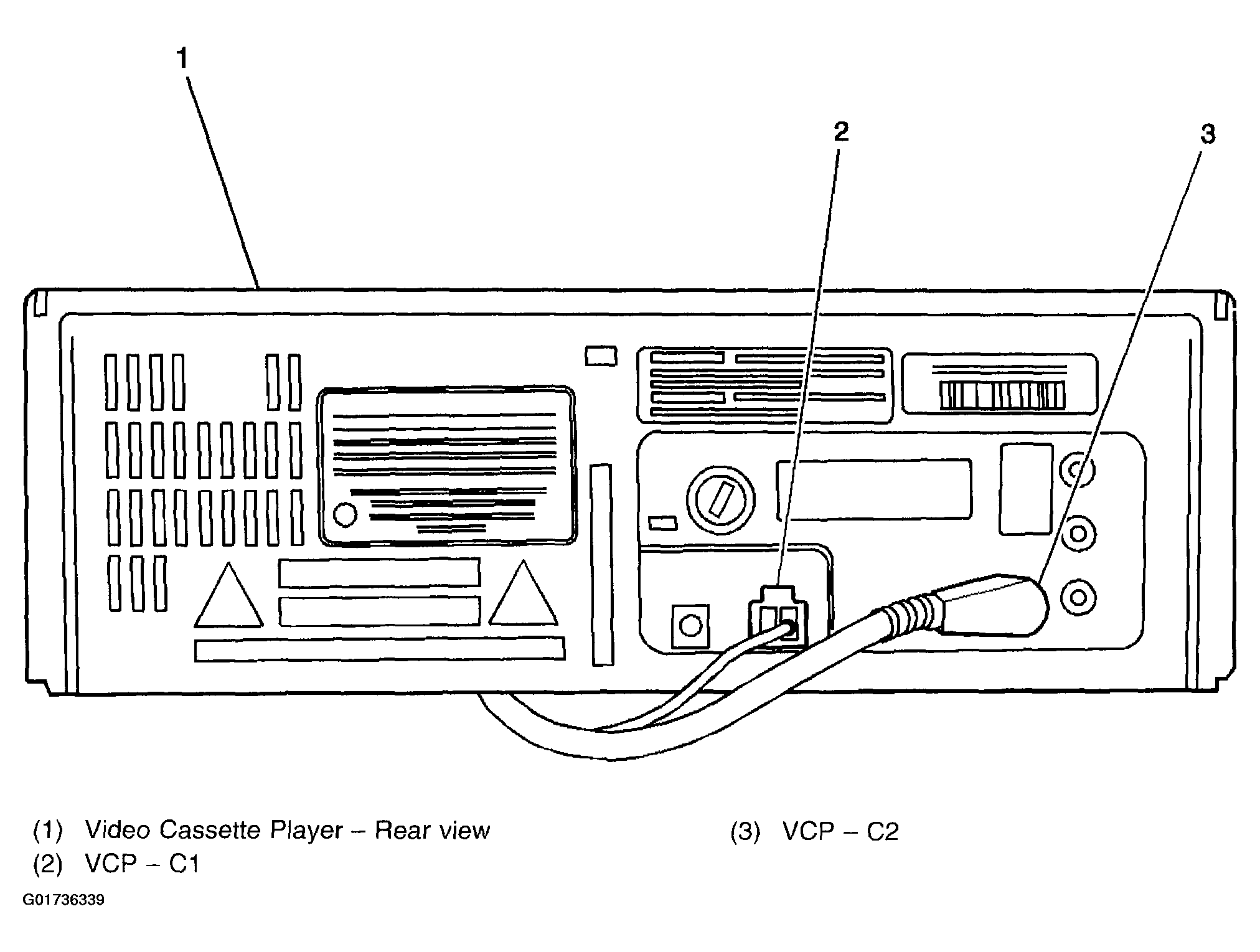

Fig 19: VCP Rear Panel & Connectors

G01736339

Courtesy of GENERAL MOTORS CORP.

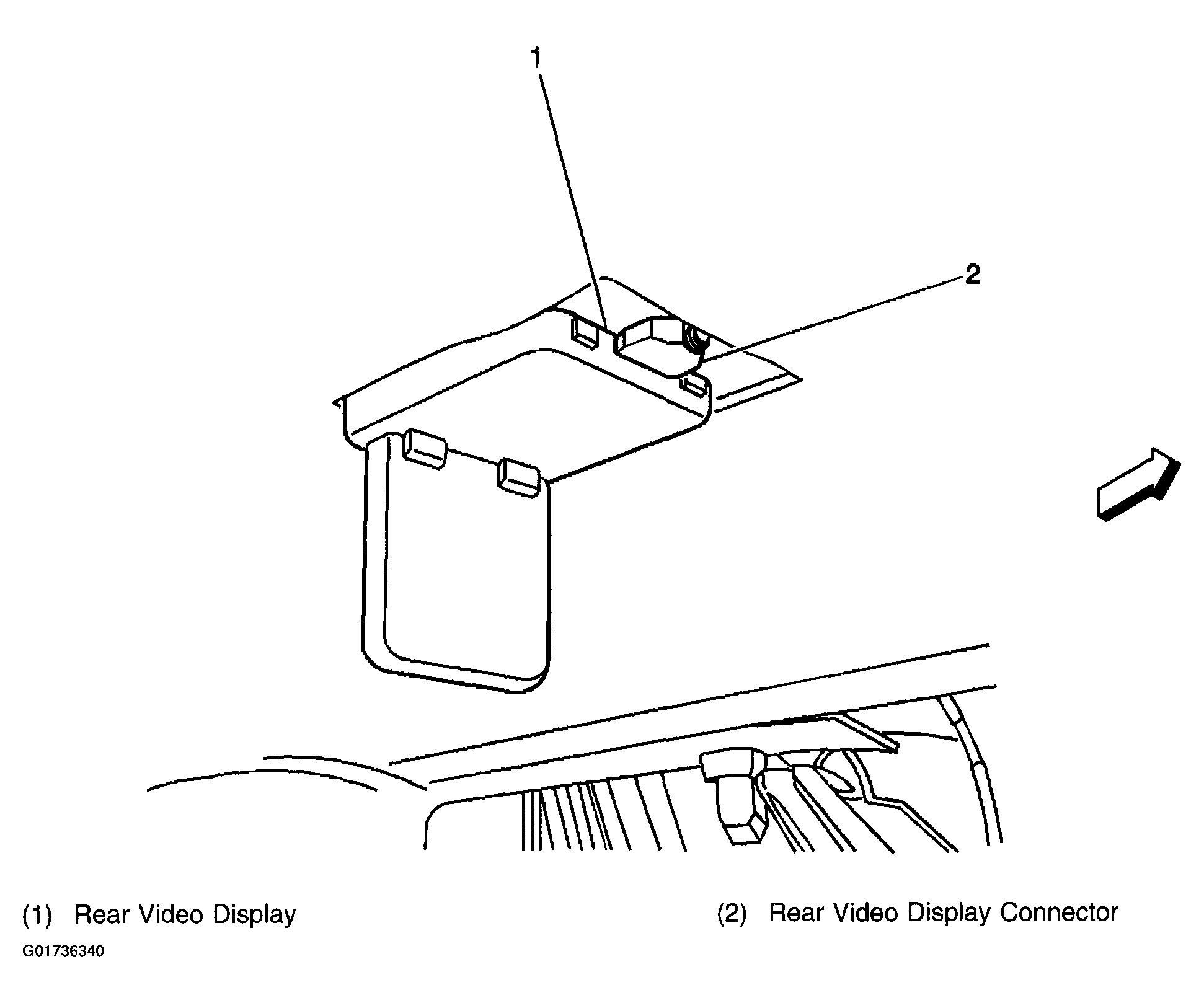

Fig 20: Wiring To Rear Video Display

G01736340

Courtesy of GENERAL MOTORS CORP.
