Installation Procedure
WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
Important: Verify that all of the adhesive has been removed from the vehicle mounting surface.

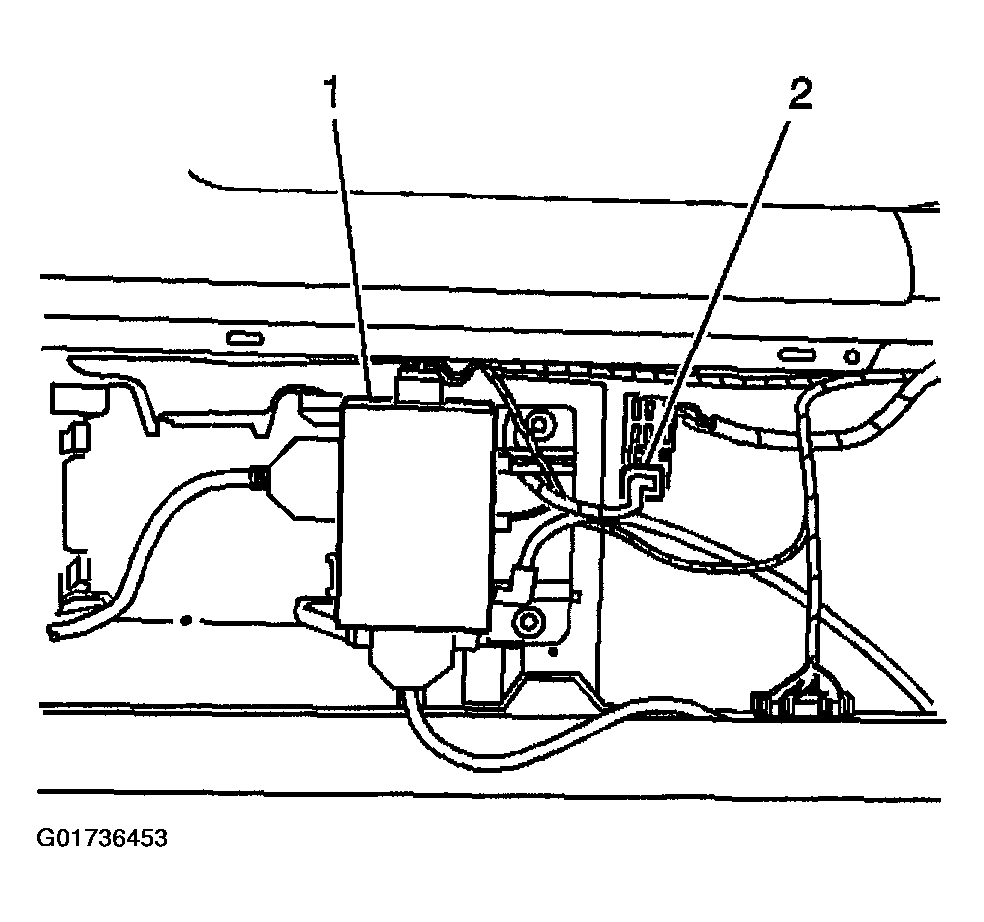

- Apply a double-sided tape to the RSAT module (1).
- Install the RSAT module to the vehicle.
- Connect the electrical connectors to the RSAT module.
- Install the left body side-trim panel. Refer to TRIM PANEL REPLACEMENT - LEFT BODY SIDE .
