Entertainment Component Views

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

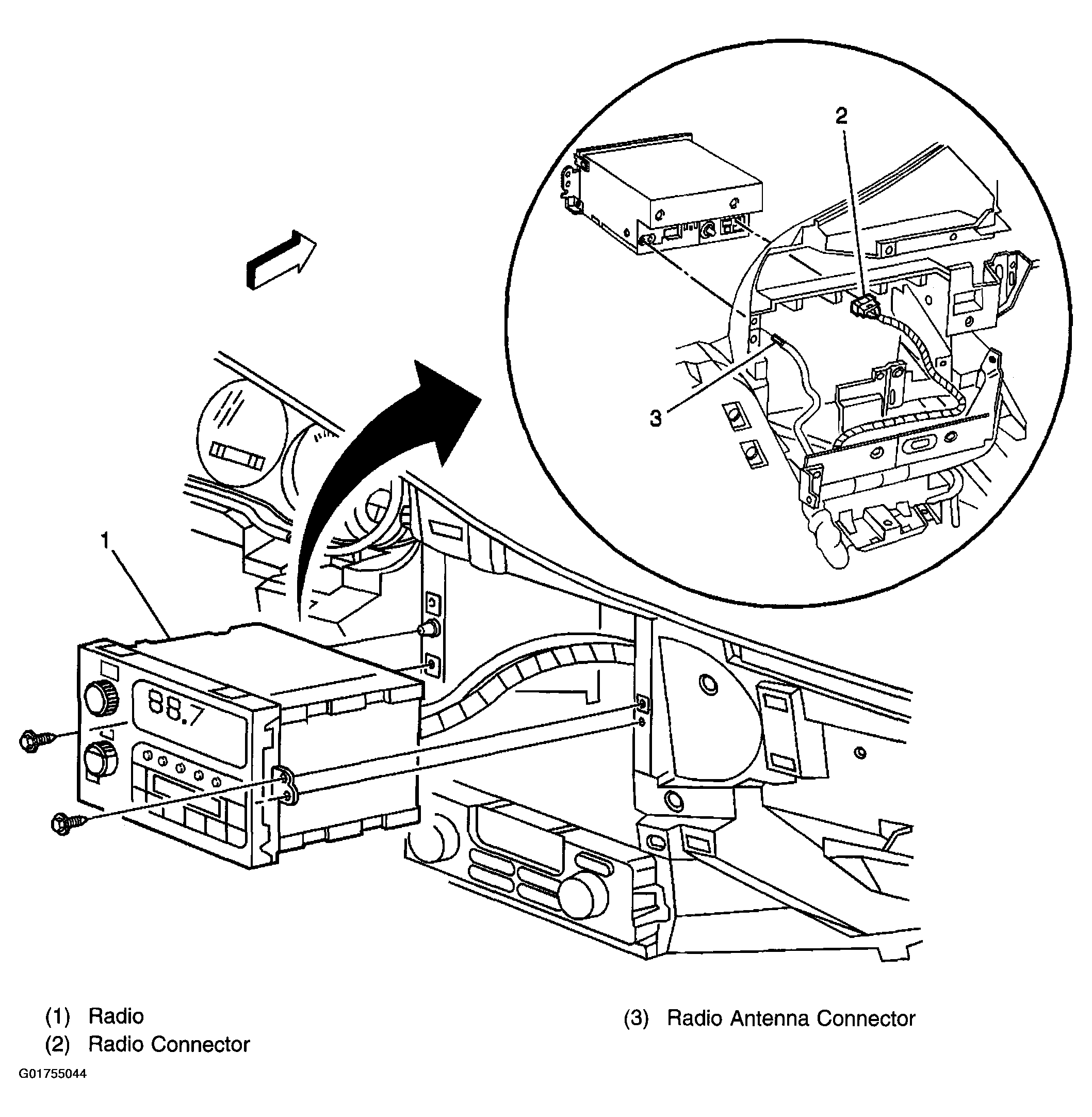

Fig 1: Identifying Center of Instrument Panel Component View
G01755044Courtesy of GENERAL MOTORS CORP.

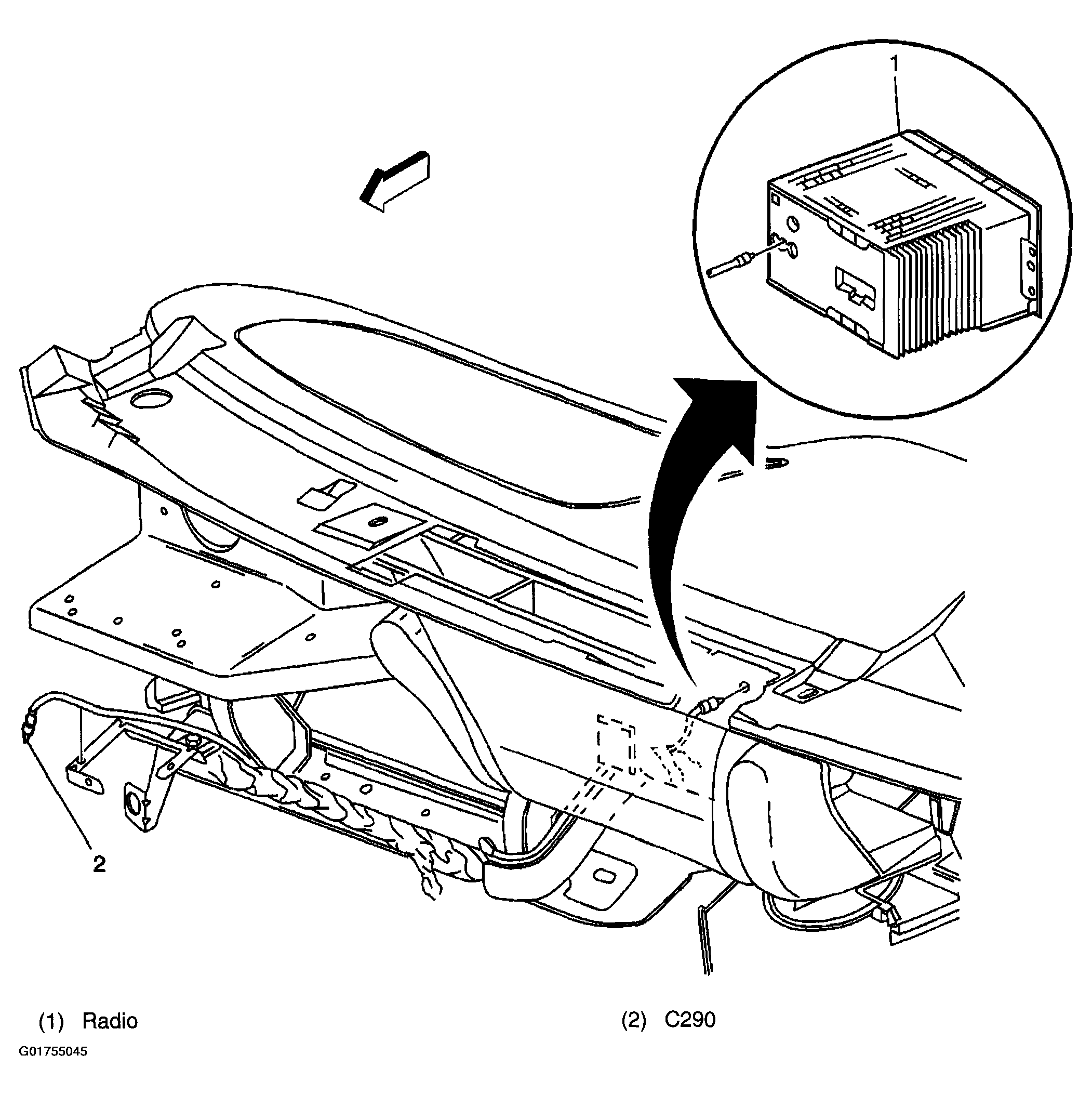

Fig 2: Identifying Antenna Cable Component View
G01755045Courtesy of GENERAL MOTORS CORP.

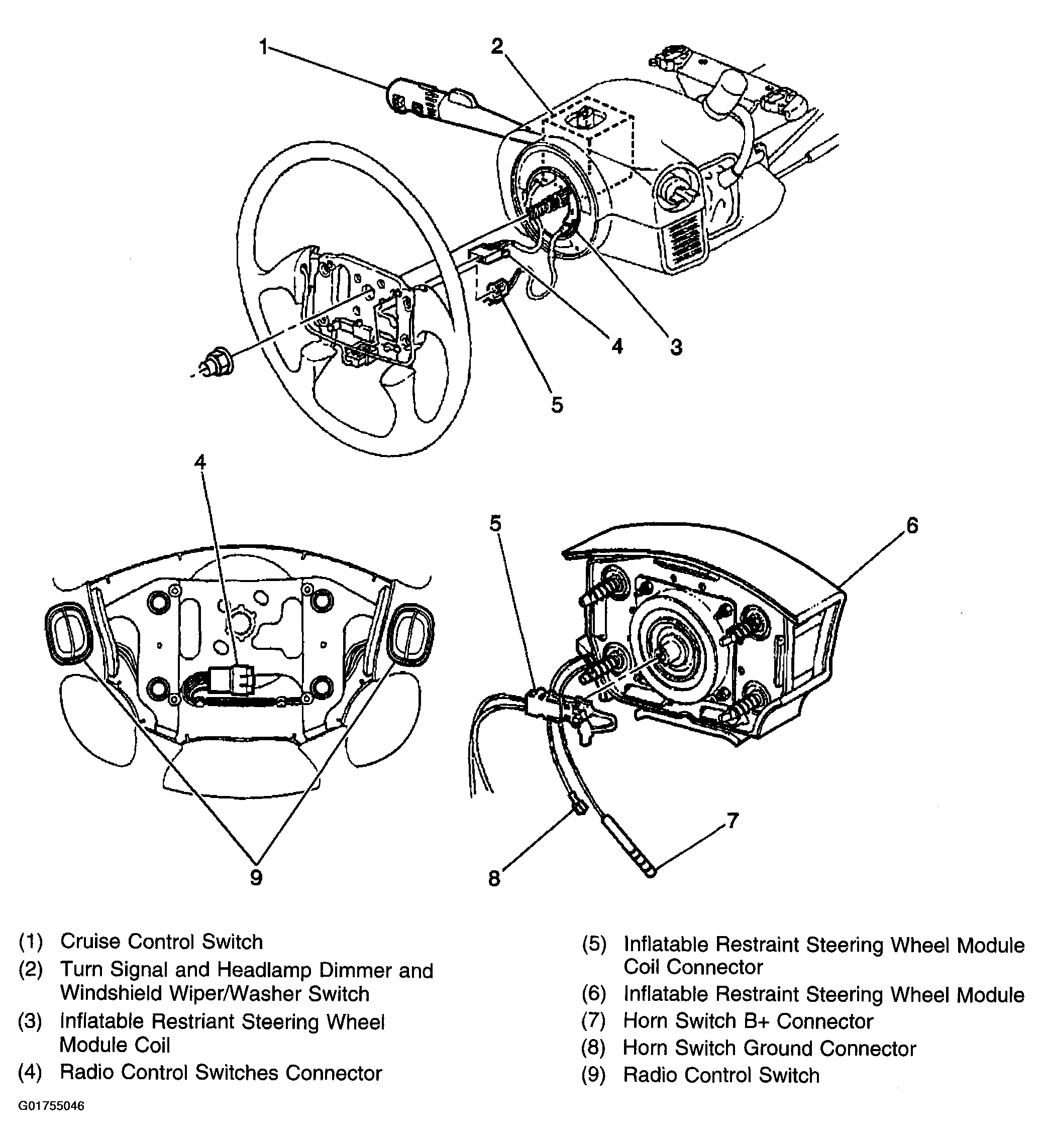

Fig 3: Identifying Steering Wheel Component View
G01755046Courtesy of GENERAL MOTORS CORP.
Fig 4: Identifying Front Windshield Antenna (RPO UV7) Component View
G01755047Courtesy of GENERAL MOTORS CORP.

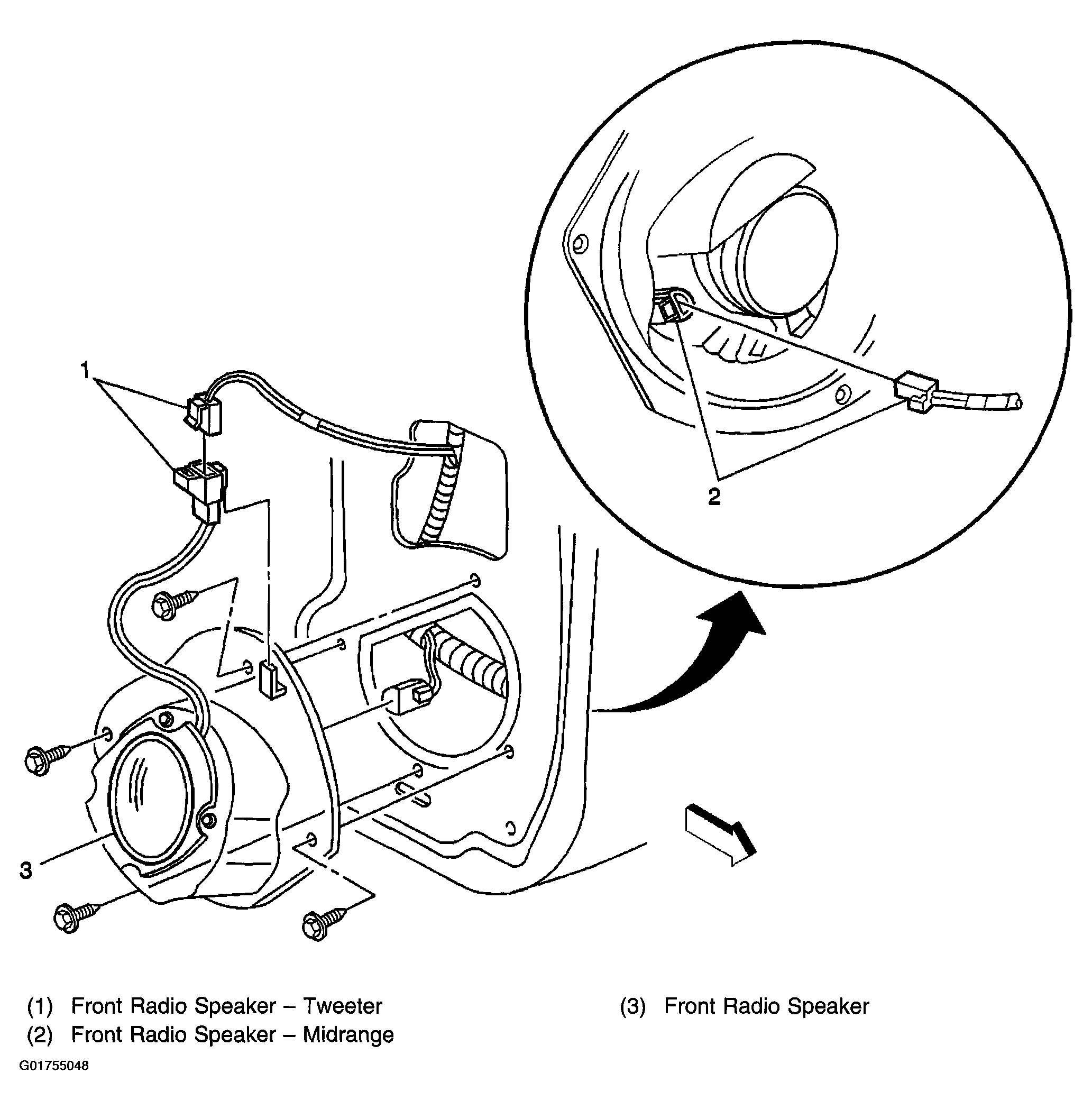

Fig 5: Identifying Lower Leading Edge of Front Door (RPO UQ3, Performanced Enhanced Audio Speakers) Component View
G01755048Courtesy of GENERAL MOTORS CORP.

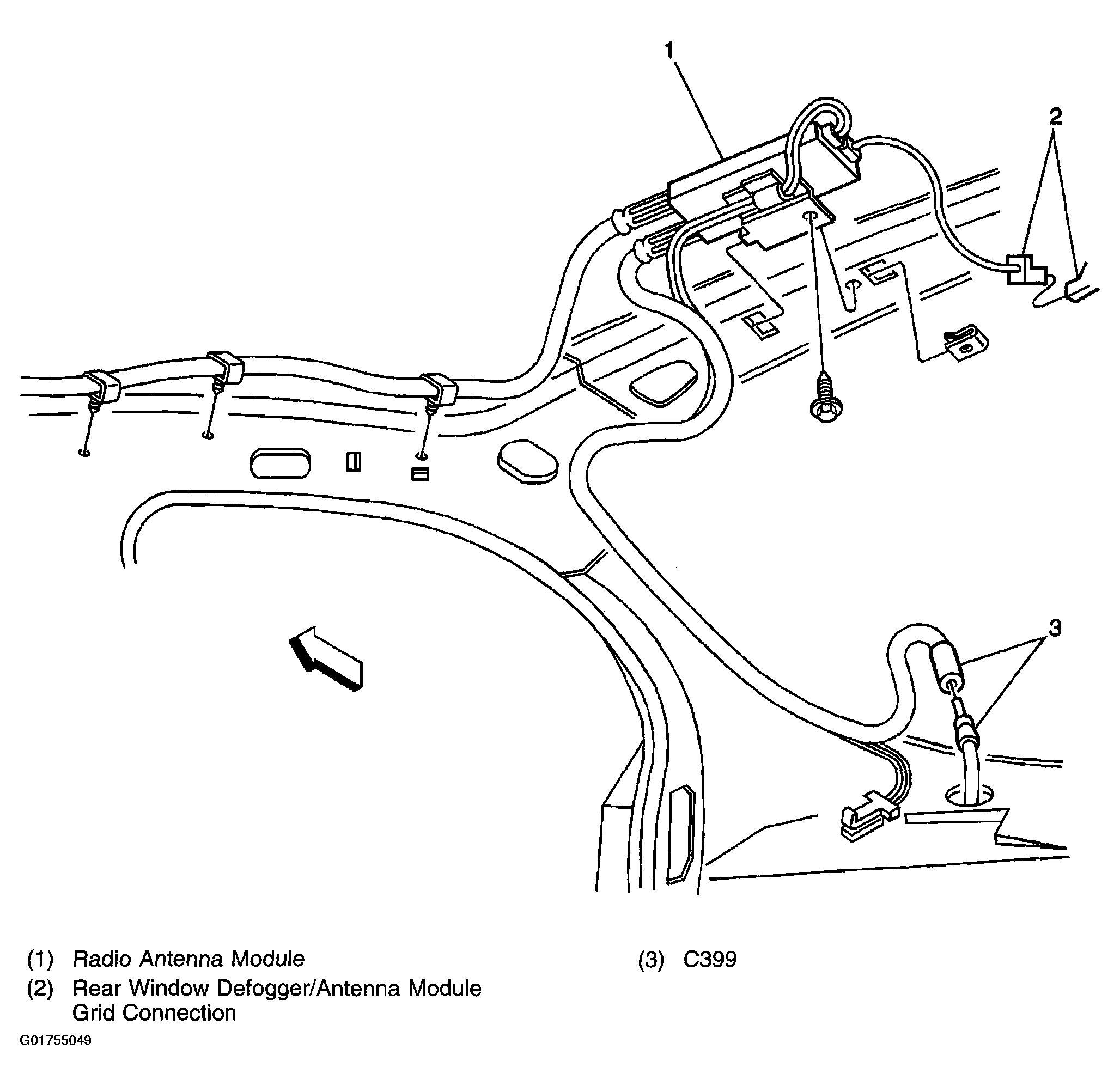

Fig 6: Identifying Top Right Side of Rear Window (RPO U85 - Speaker System 8, Quad Front Door Mounted) Component View
G01755049Courtesy of GENERAL MOTORS CORP.

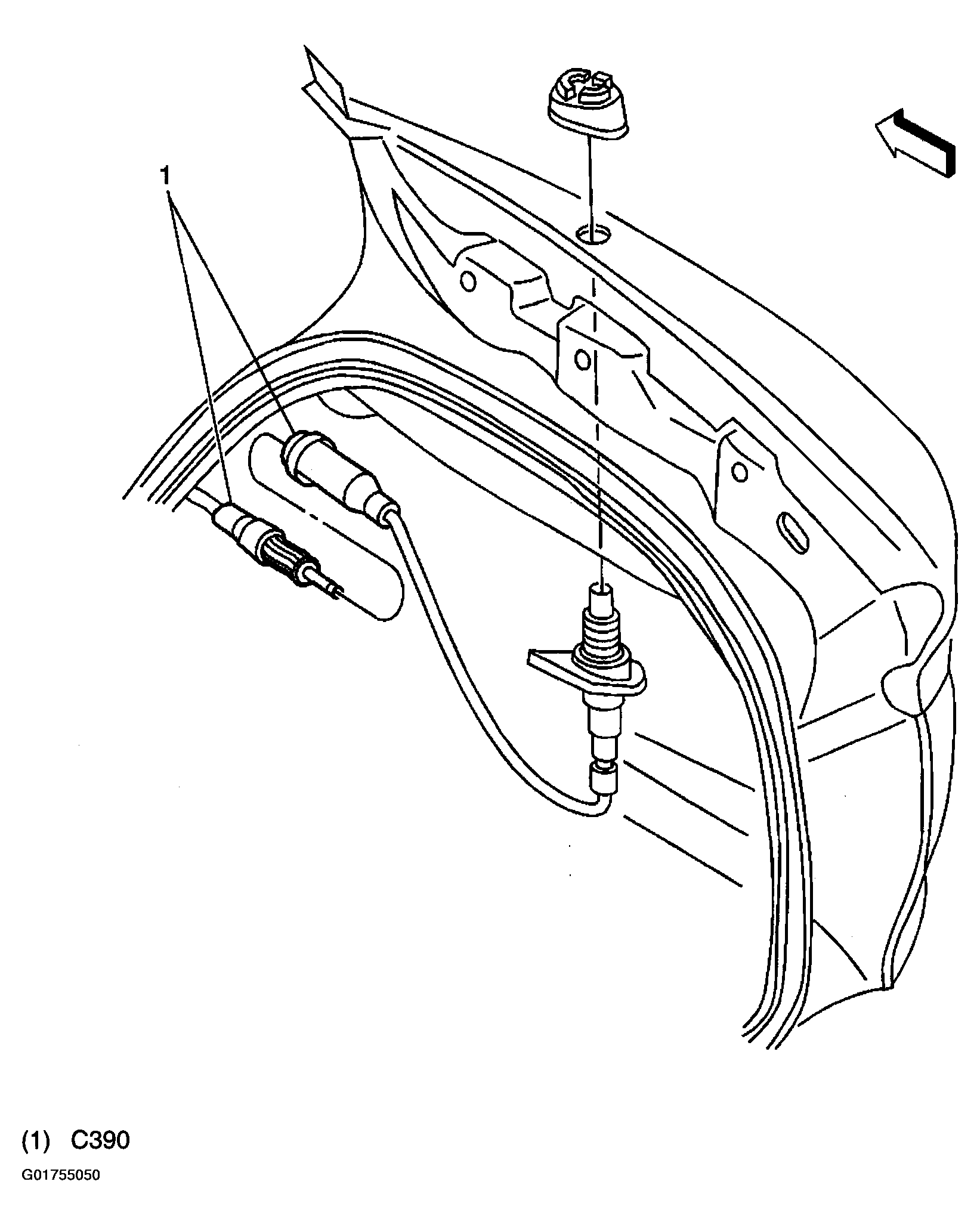

Fig 7: Identifying Rear Compartment Antenna Cable Component View
G01755050Courtesy of GENERAL MOTORS CORP.

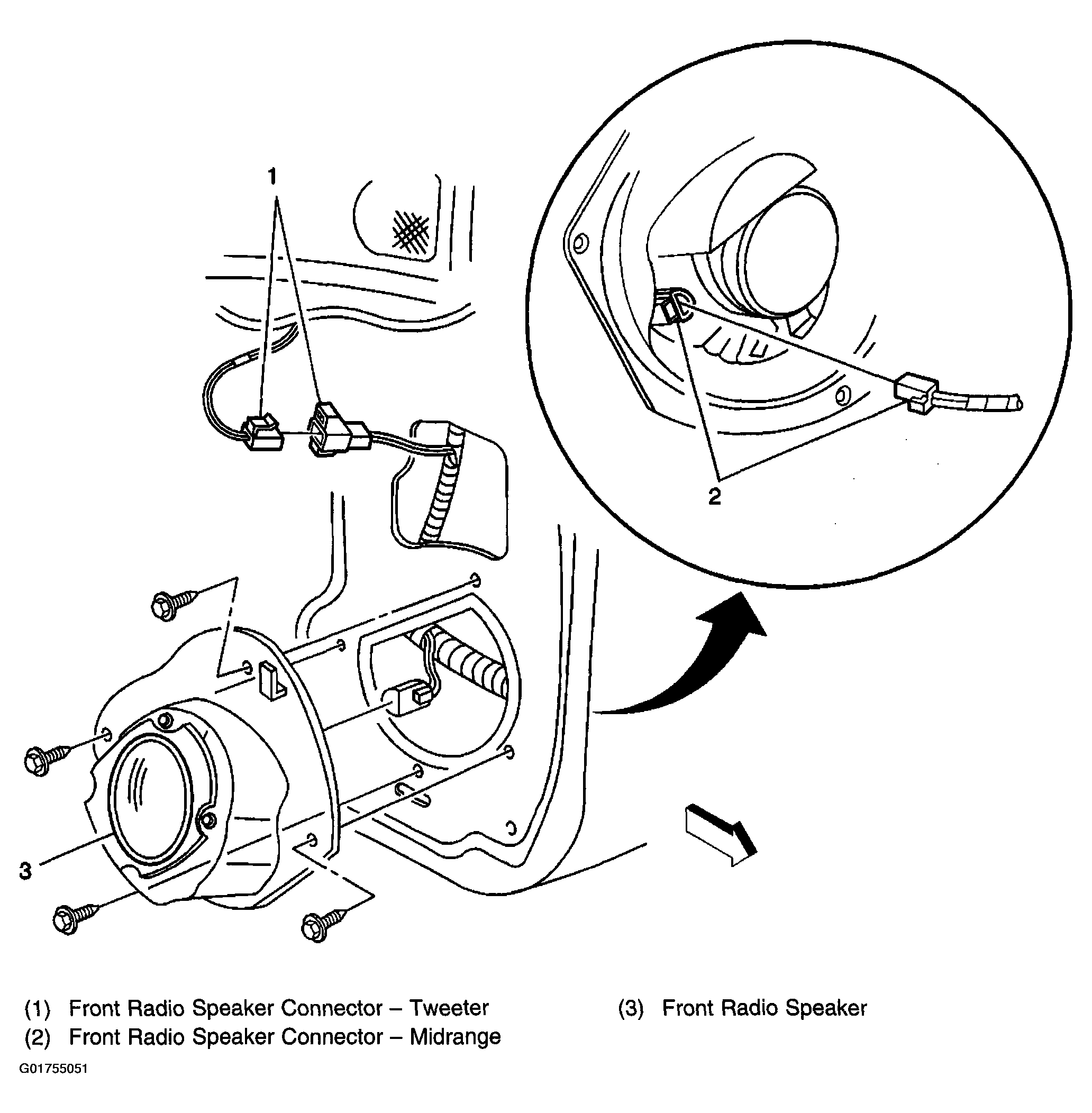

Fig 8: Identifying Lower Leading Edge of Front Door (RPO U85 - Speaker System 8, Quad Front Door Mounted) Component View
G01755051Courtesy of GENERAL MOTORS CORP.

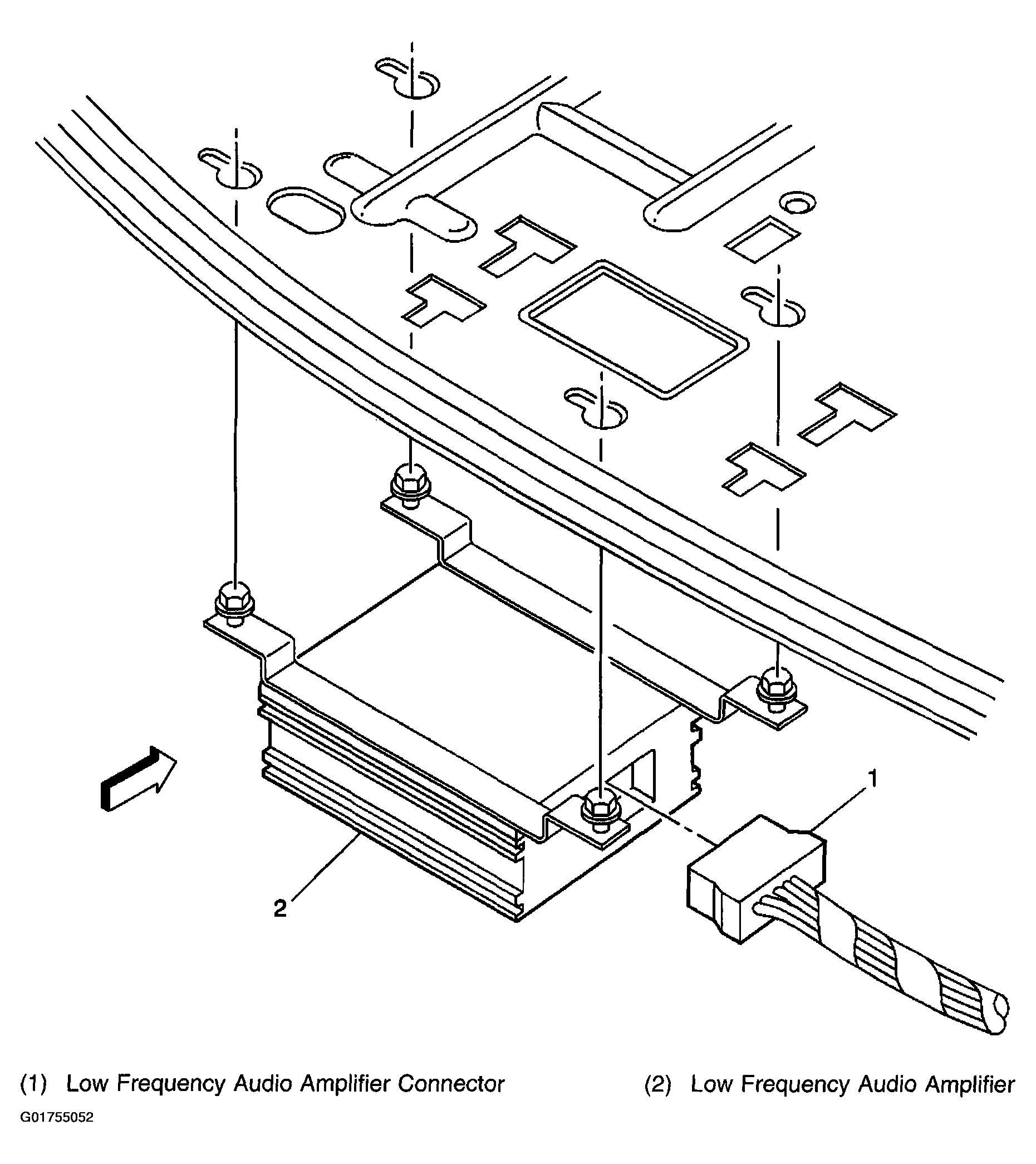

Fig 9: Identifying Rear Compartment Below Rear Deck (RPO U85 - Speaker System 8, Quad Front Door Mounted) Component View
G01755052Courtesy of GENERAL MOTORS CORP.

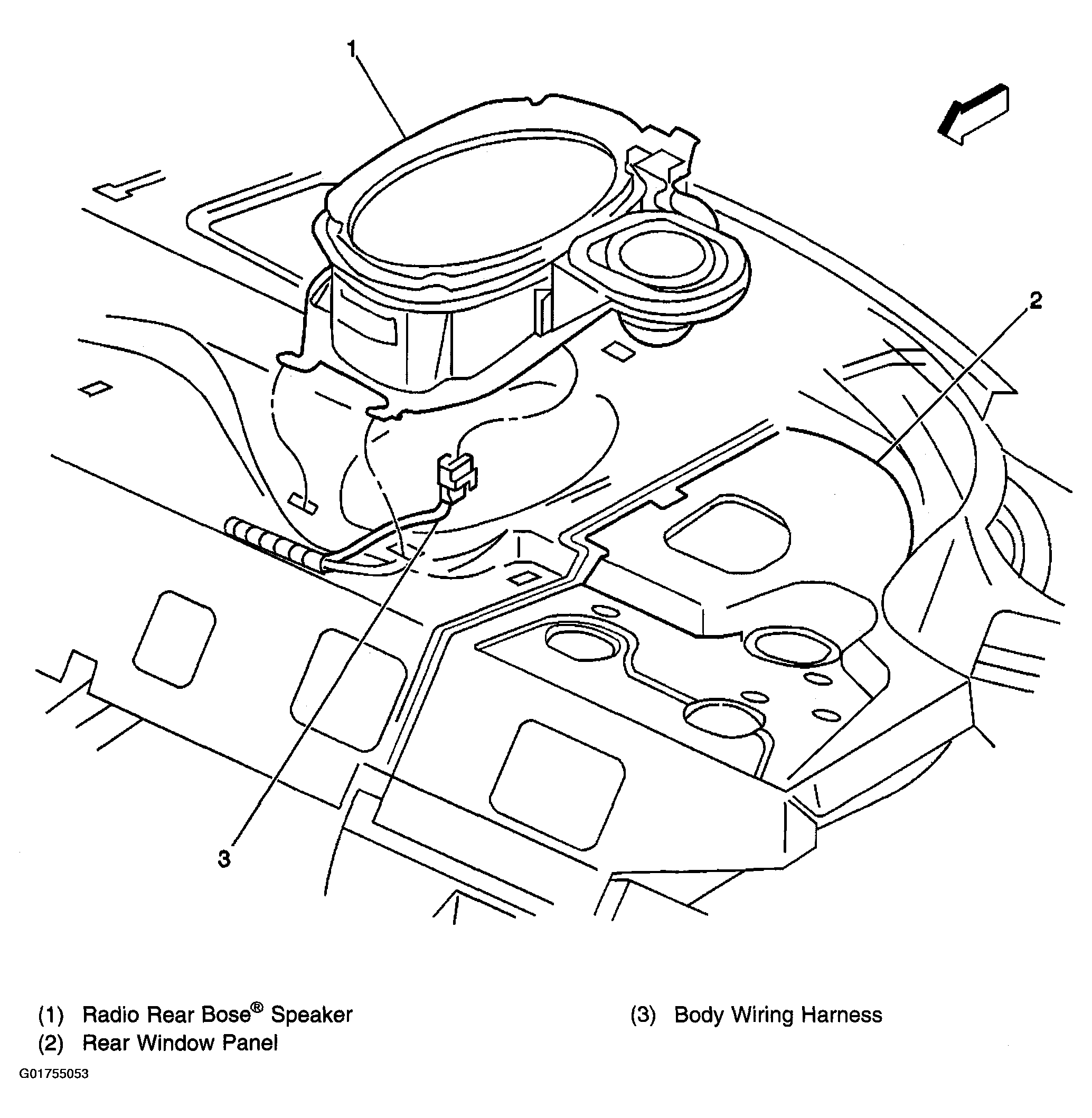

Fig 10: Identifying Bose® Speaker (RPO U85 Only - Speaker System 8, Quad Front Door Mounted) - LH Side of Rear Window Panel (RH Side Similar) Component View
G01755053Courtesy of GENERAL MOTORS CORP.

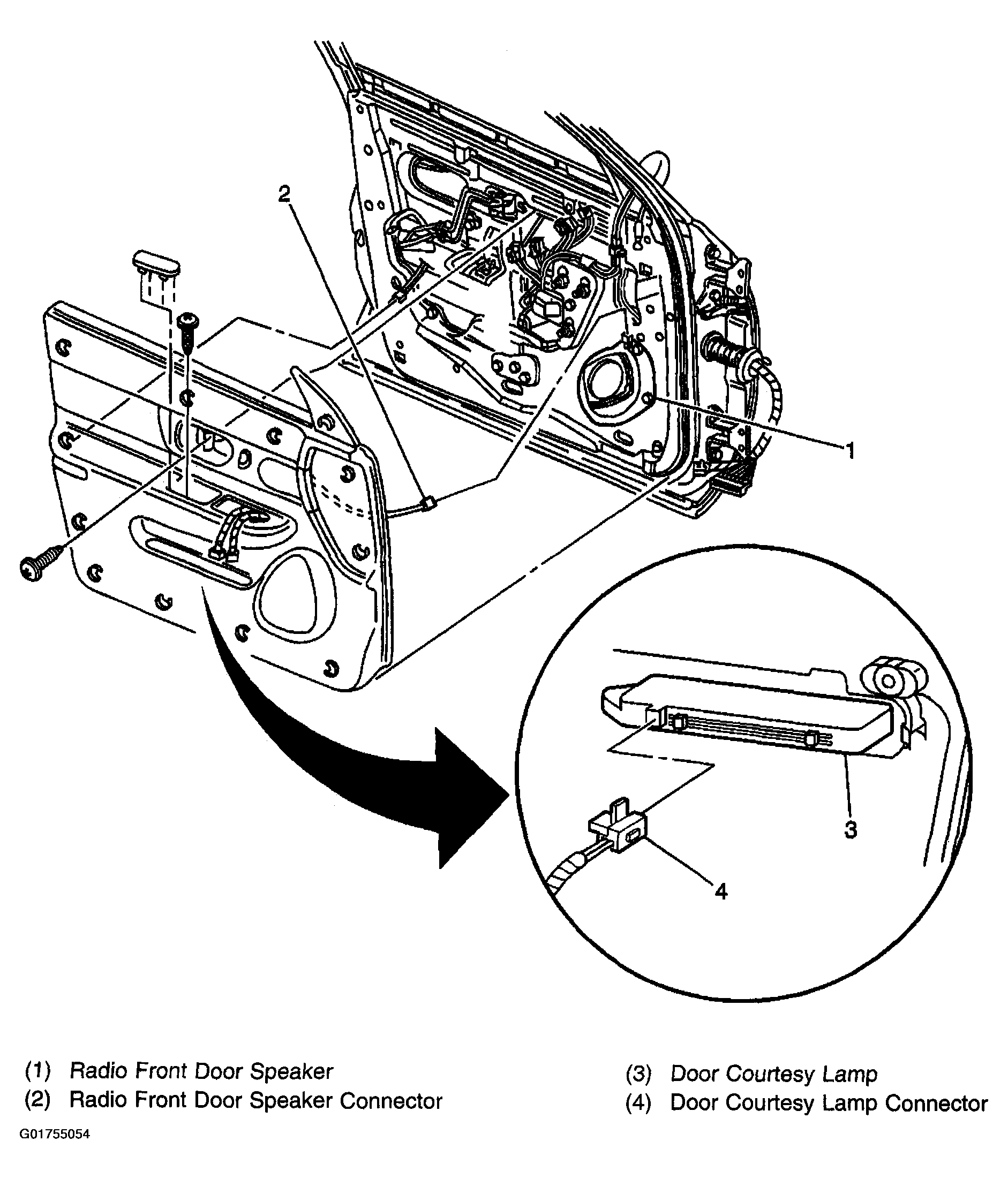

Fig 11: Identifying Left Front Door Component View
G01755054Courtesy of GENERAL MOTORS CORP.
