Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Position the radio antenna module to the vehicle. Route the cable behind the sunroof drain hoses along the roof inner side rail.
Install the antenna module cable retainers to the roof inner side rail.

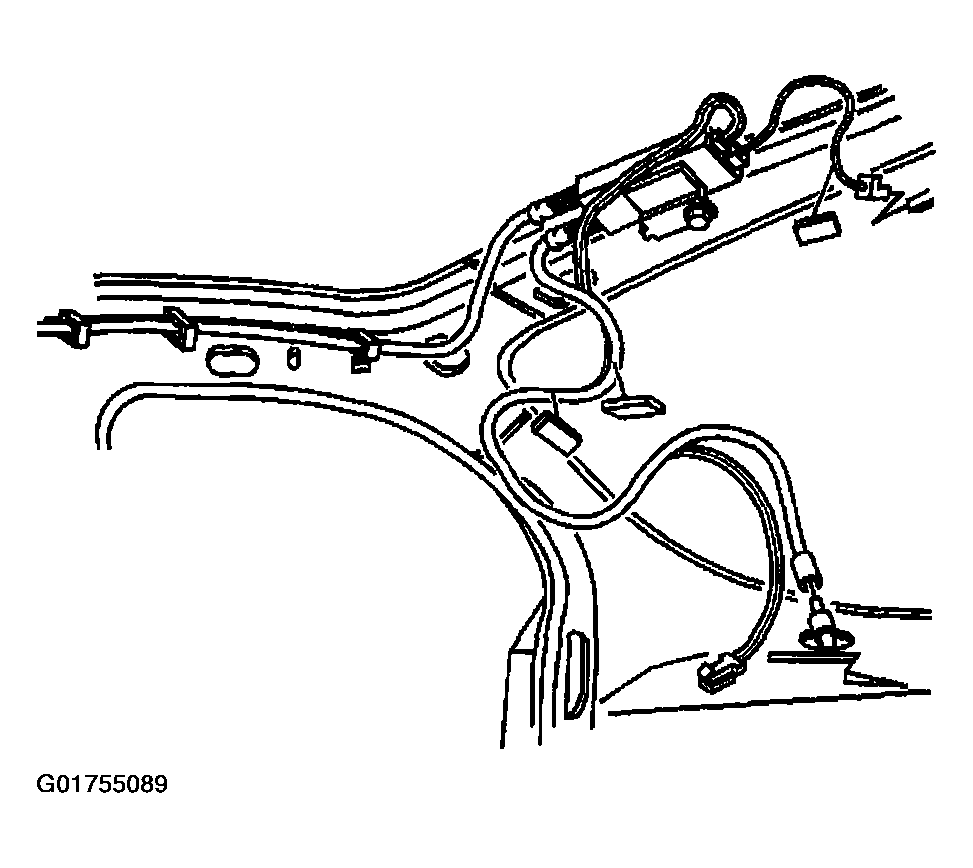

Fig 1: Identifying Antenna Module Cable Retainers At Roof Inner Side Rail
Courtesy of GENERAL MOTORS CORP.
Connect the antenna module cable connector to the windshield antenna.

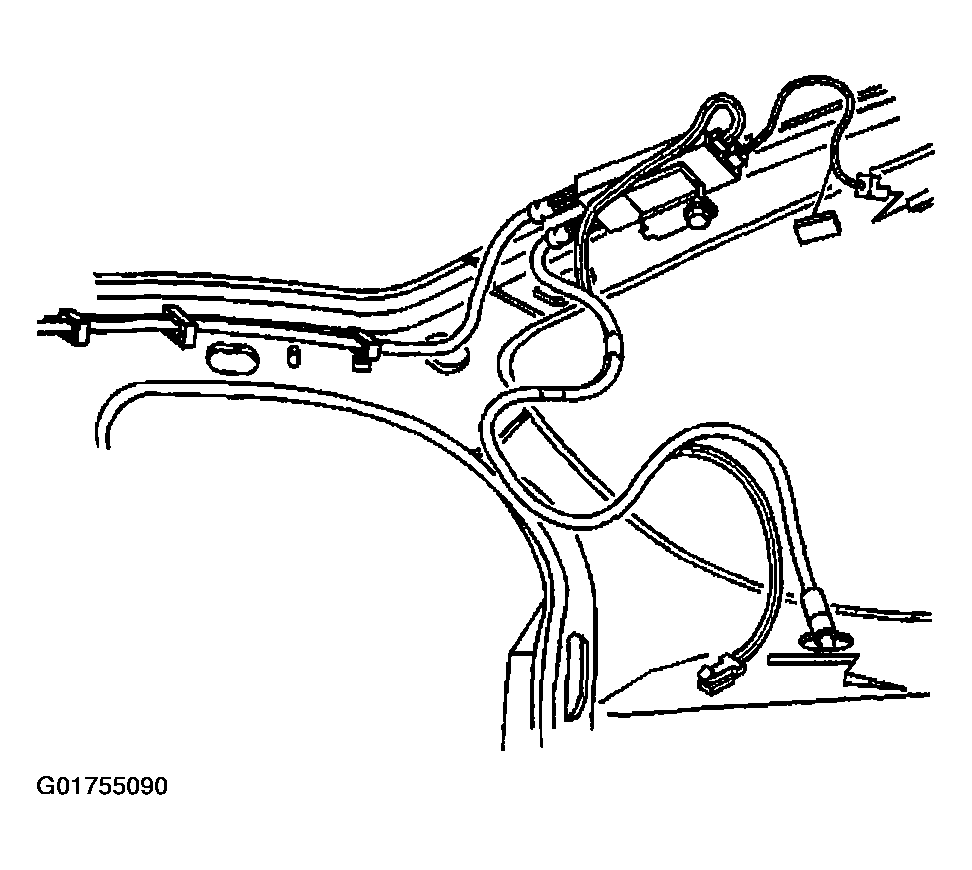

Fig 2: Identifying Antenna Module Cable Connector At Windshield Antenna
Courtesy of GENERAL MOTORS CORP.
Install the antenna module ground lead to the front roof header.
NOTE: Refer to FASTENER NOTICE .
Install the antenna module ground lead bolt. Tighten the antenna module ground lead bolt to 2 N.m (18 lb in).

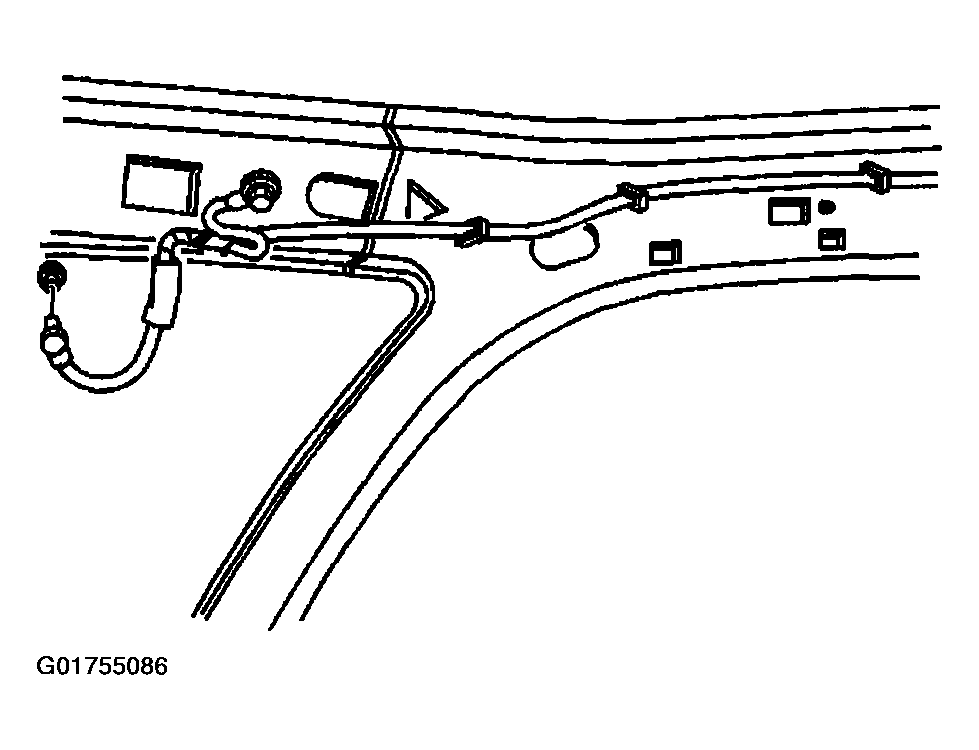

Fig 3: Identifying Antenna Module Ground Lead Bolt
Courtesy of GENERAL MOTORS CORP.
Install the antenna module to the rear roof header.
Install the antenna module bolt. Tighten the antenna module bolt to 2 N.m (18 lb in).

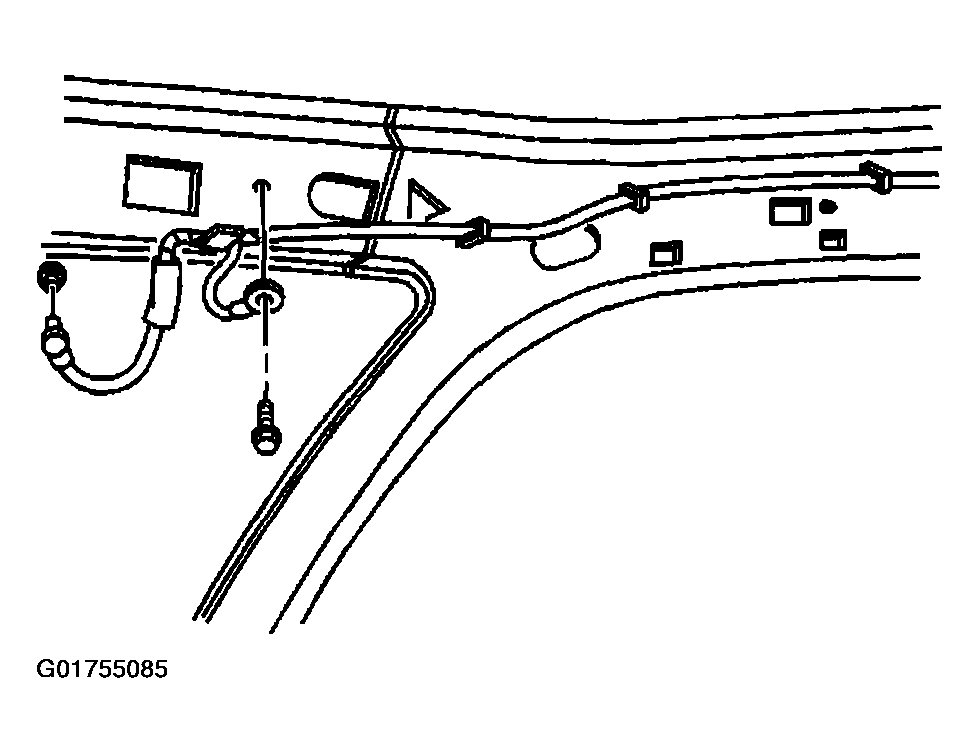

Fig 4: Identifying Antenna Module Bolt
Courtesy of GENERAL MOTORS CORP.
Connect the radio antenna module cable to the body harness antenna extension cable.

Fig 5: Identifying Antenna Module Cable-To-Body Harness Antenna Extension Cable Connection
Courtesy of GENERAL MOTORS CORP.
Connect the antenna module lead to the rear window antenna.

Fig 6: Identifying Rear Window Antenna Module Lead
Courtesy of GENERAL MOTORS CORP.
Apply new tape to the radio antenna module leads.
Install the rear shelf trim. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF .
Install the headliner. Refer to HEADLINER REPLACEMENT .
