Circuit Description

Modules connected to the class 2 serial data circuit monitor for serial data communications during normal vehicle operation. Operating information and commands are exchanged among the modules. When a module receives a message for a critical operating parameter, the module records the identification number of the module which sent the message for State of Health monitoring, Node Alive messages. A critical operating parameter is one which, when not received, requires that the module use a default value for that parameter.

Once an identification number is learned by a module, the module will monitor for the sending module's Node Alive message. Each module on the class 2 serial data circuit which is performing functions that require detection of a communication malfunction is required to send a Node Alive message every 2 seconds. When no message is detected from a learned identification number for 5 seconds, a DTC U1xxx, where xxx is equal to the 3 digit identification number is set.

The Control Module ID Number list provides a method for determining which module is not communicating. A module with an internal class 2 serial data circuit malfunction or which loses power during the current ignition cycle would have a Lost Communication DTC set by other modules. The modules that can communicate will set a DTC indicating the module that cannot communicate. When no message is detected from a learned identification number for 5 seconds, a DTC U1xxx is set.

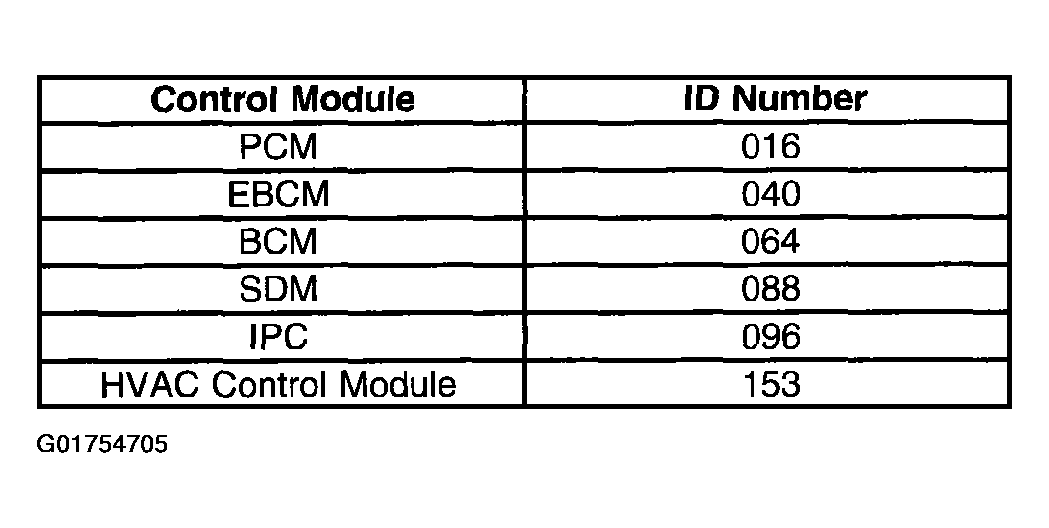

Fig 1: Identifying Control Module ID Numbers

Courtesy of GENERAL MOTORS CORP.

When more than 1 Loss of Communication DTC is set in either one module or several modules, diagnose the DTCs in the following order:

1. Current DTCs before history DTCs, unless told otherwise in the diagnostic tables
2. The DTC which is reported the most times From the lowest number DTC to the highest number DTC.
