Power Seat Systems Connector End Views
WARNING:
This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

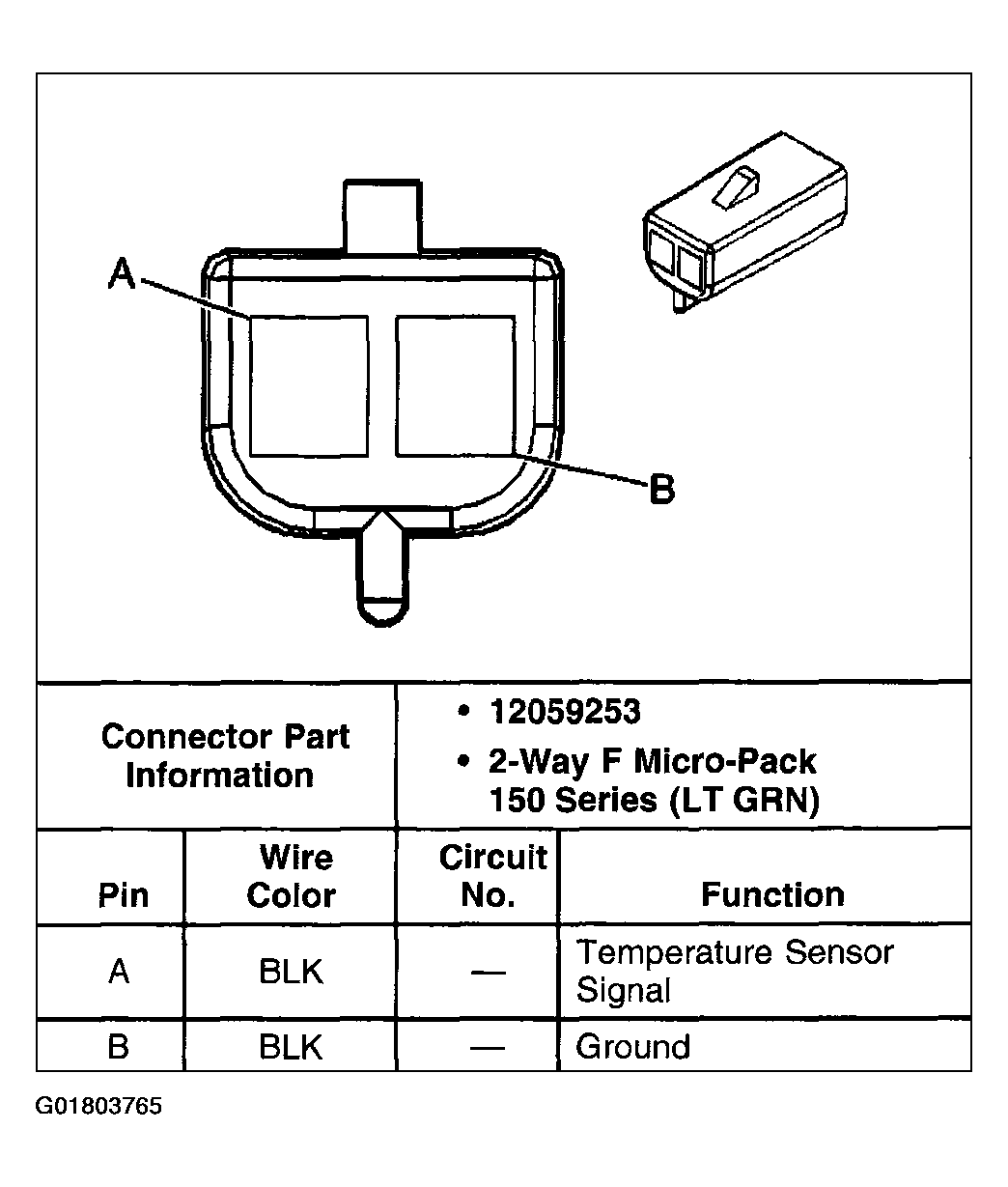

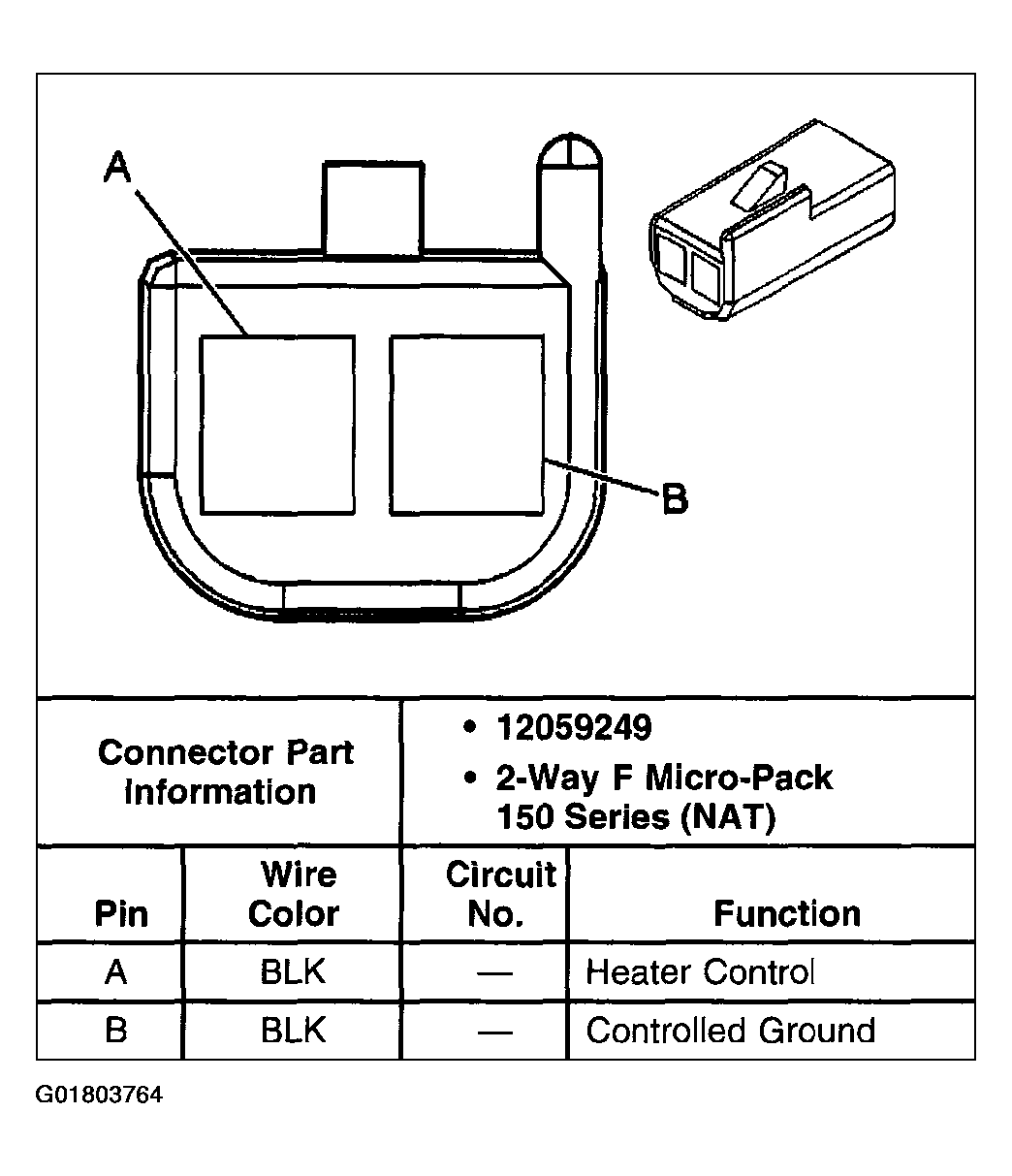

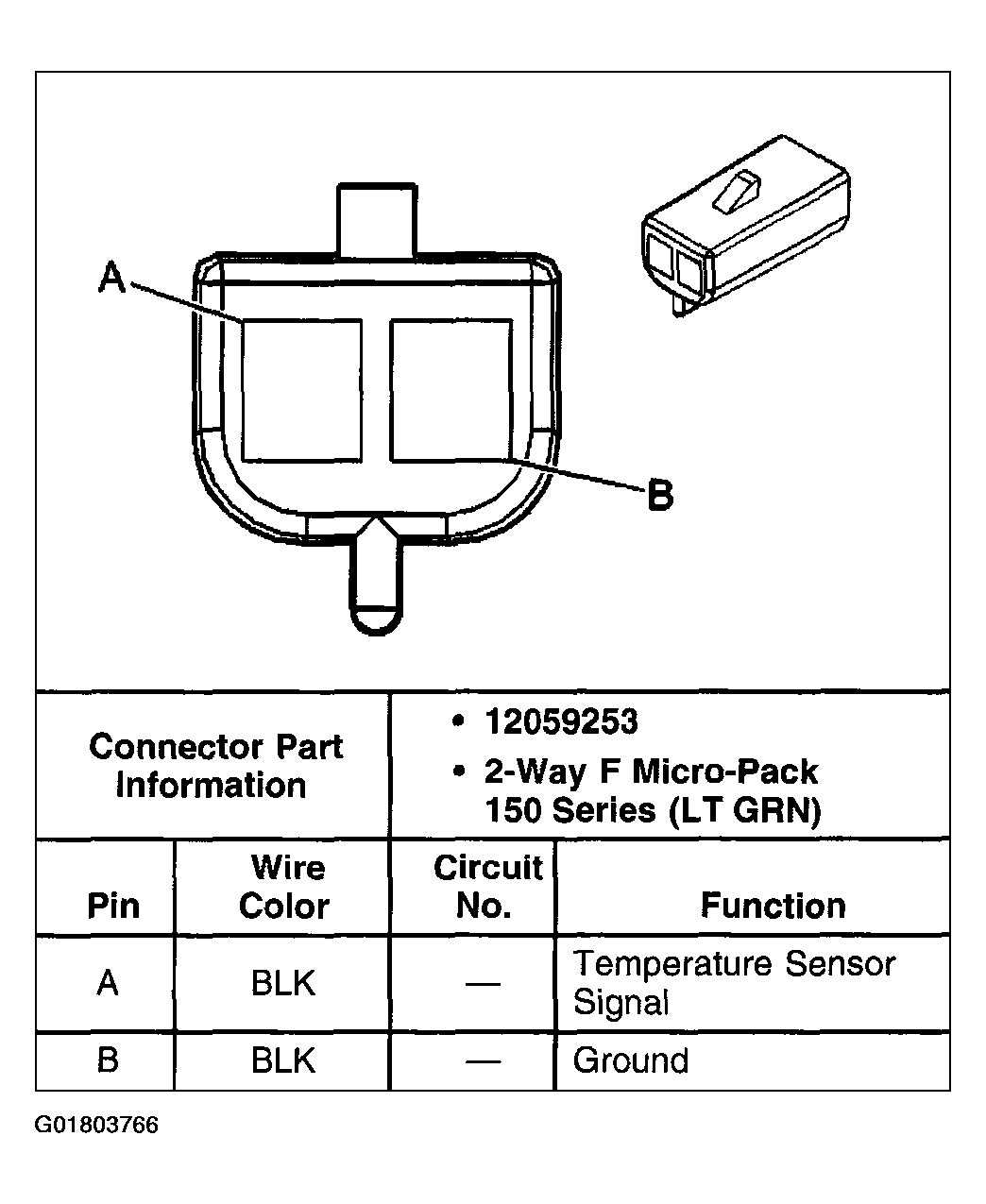

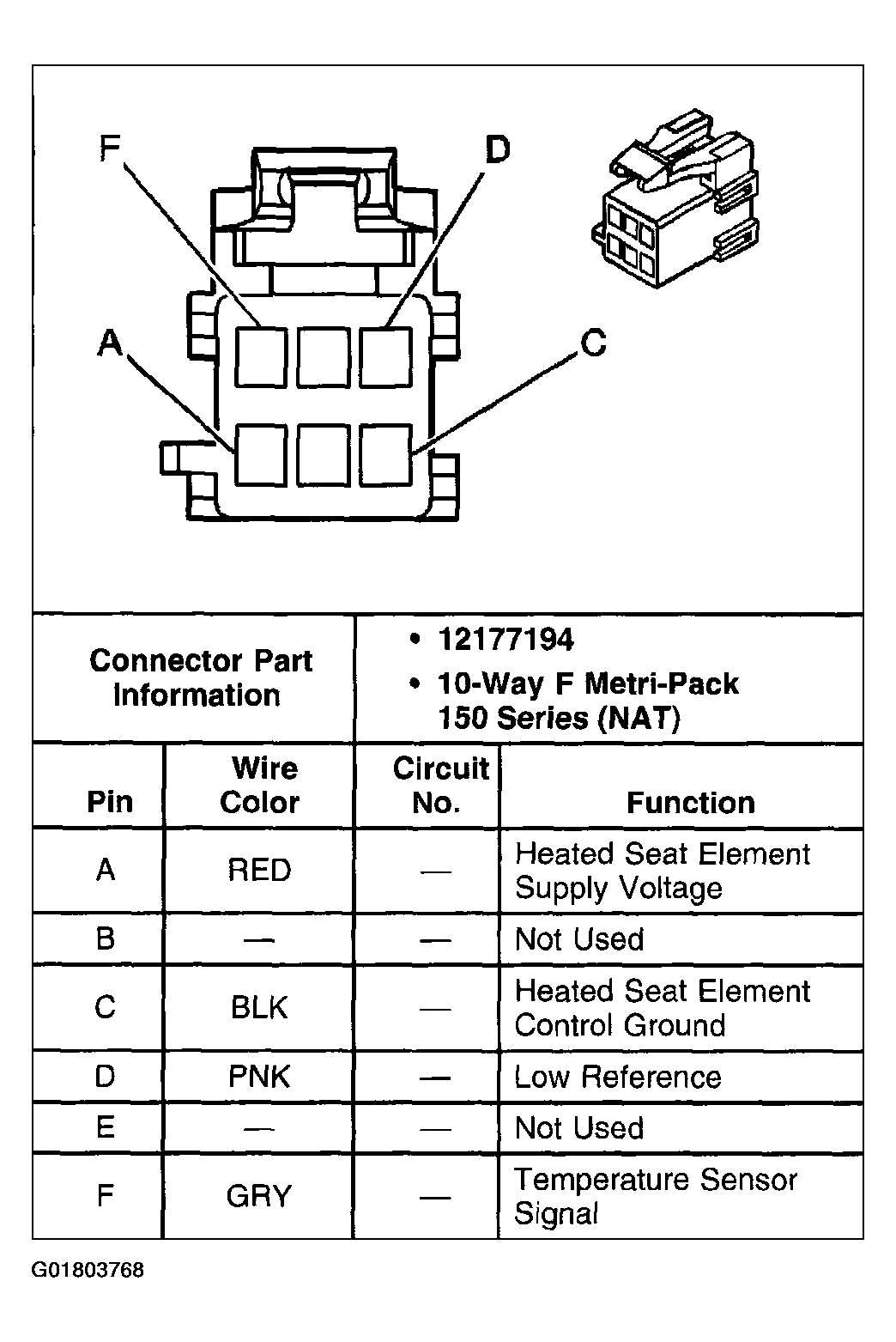

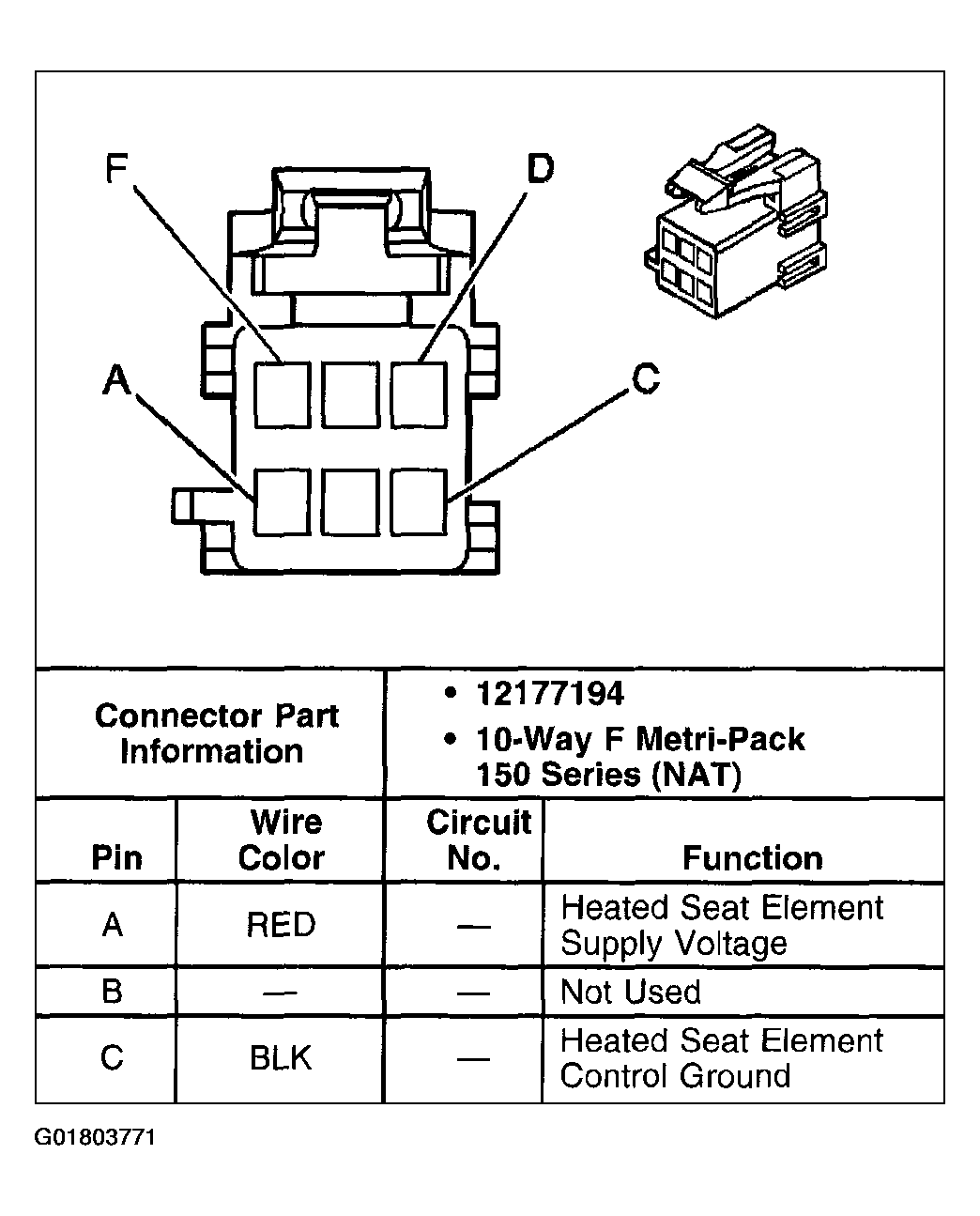

Fig 1: Heated Seat Back Element - Driver
Courtesy of GENERAL MOTORS CORP.
Fig 2: Heated Seat Back Element-Front Passenger
Courtesy of GENERAL MOTORS CORP.

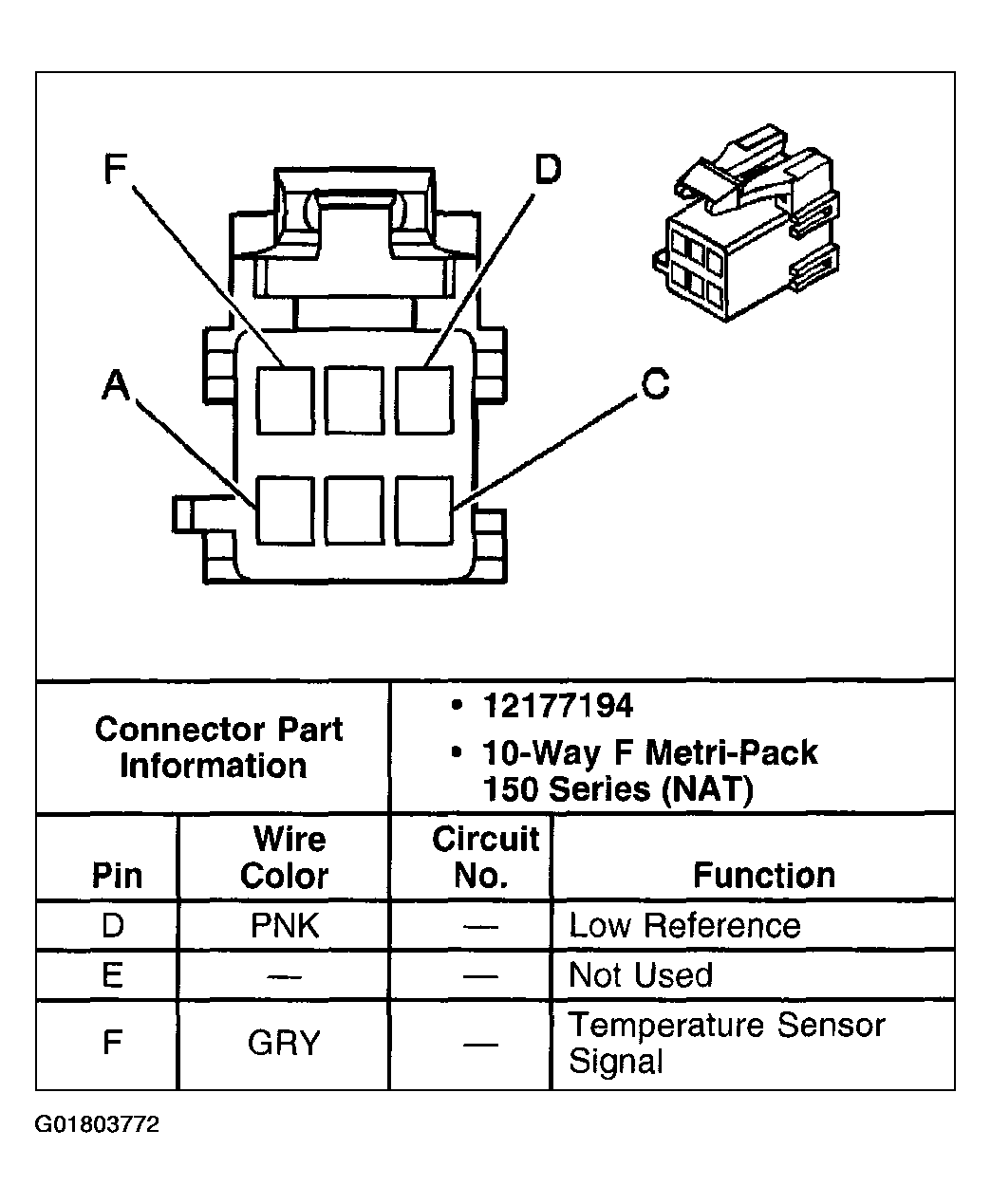

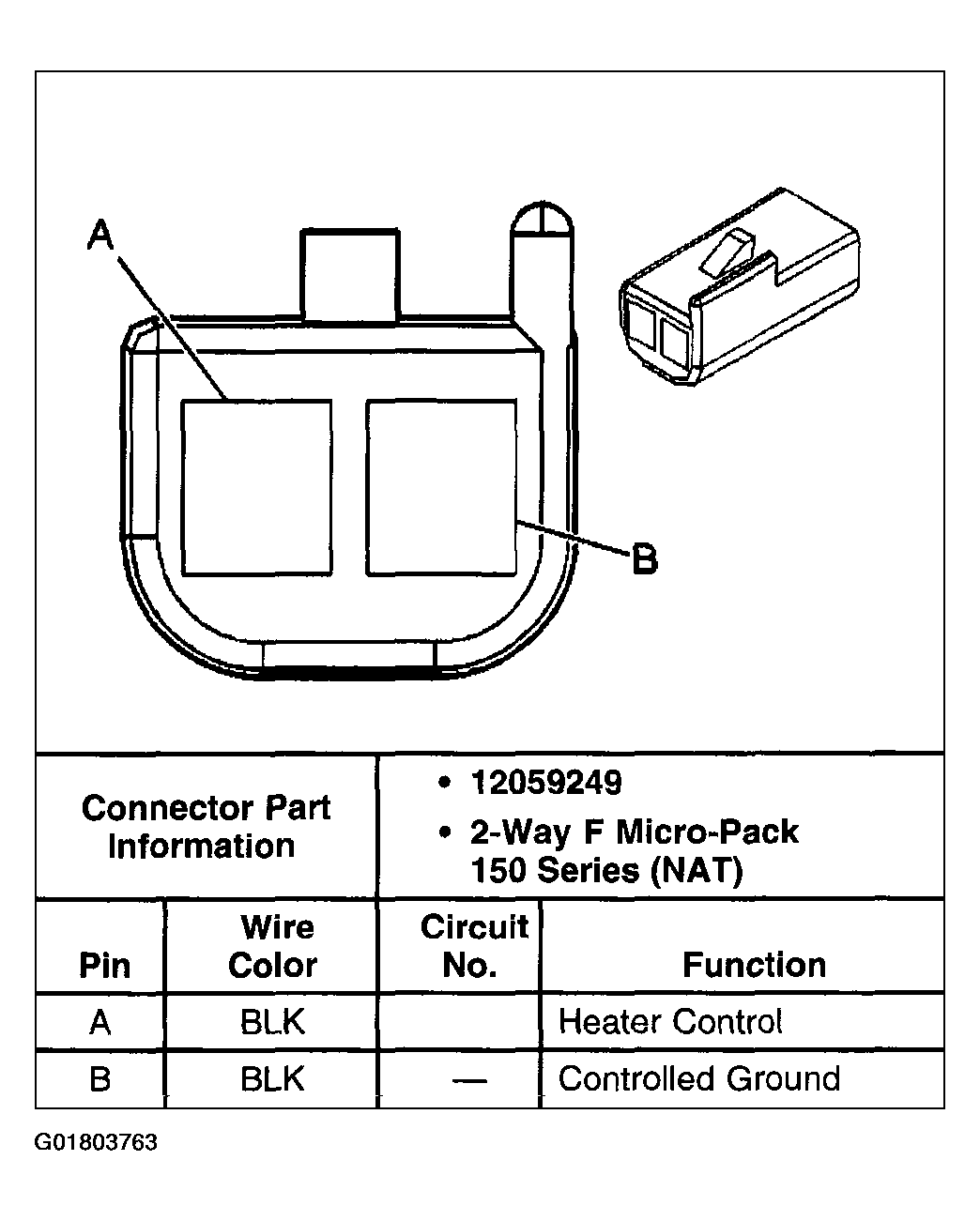

Fig 3: Heated Seat Cushion Element - Driver
Courtesy of GENERAL MOTORS CORP.
Fig 4: Heated Seat Cushion Element-Front Passenger
Courtesy of GENERAL MOTORS CORP.

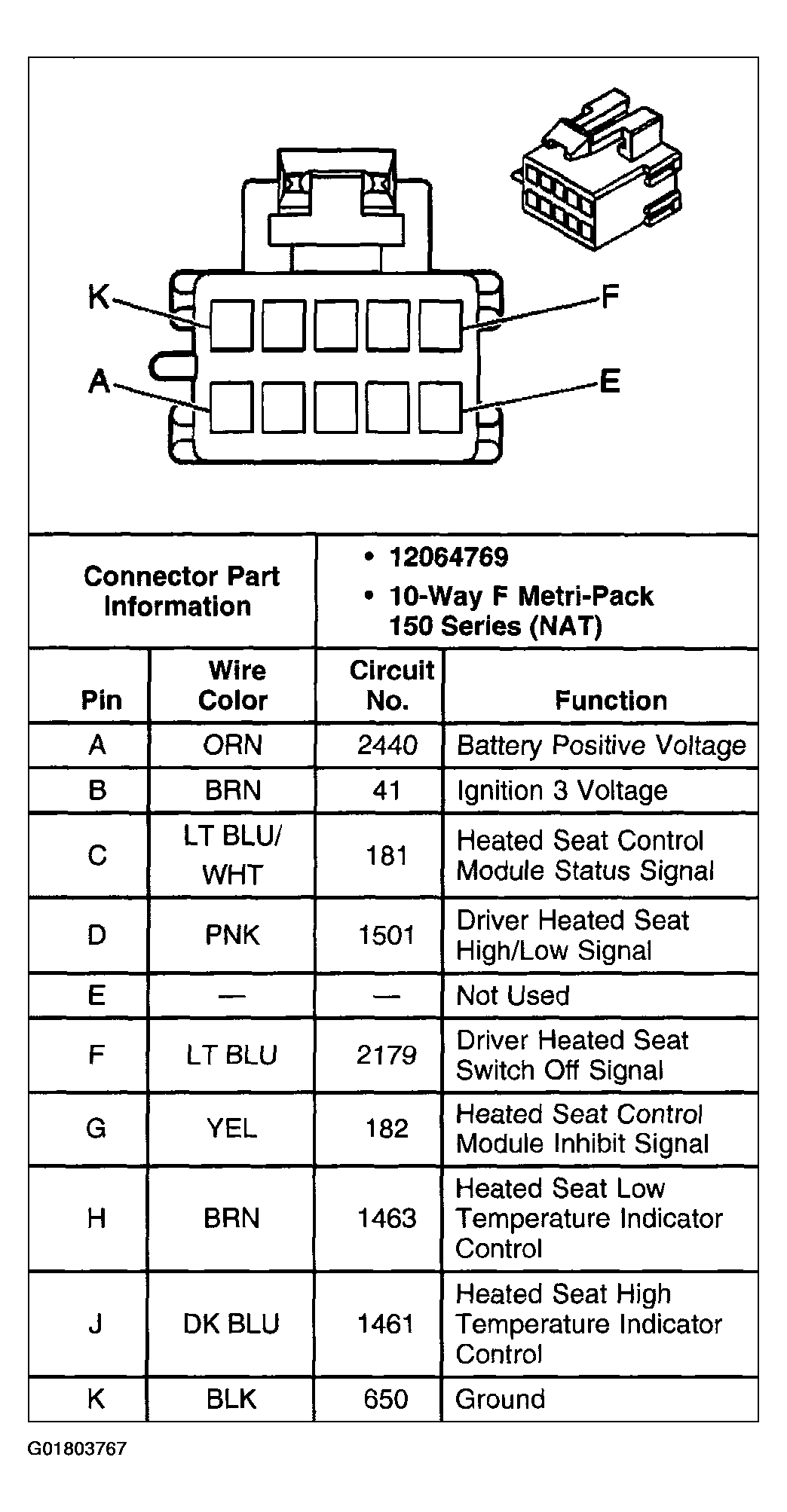

Fig 5: Heated Seat Module (C1) - Driver (w/AG1,A80,KA1, Adjustable Heated Seats)
Courtesy of GENERAL MOTORS CORP.
Fig 6: Heated Seat Module (C2) - Driver (w/AG1,A80,KA1, Adjustable Heated Seats)
Courtesy of GENERAL MOTORS CORP.

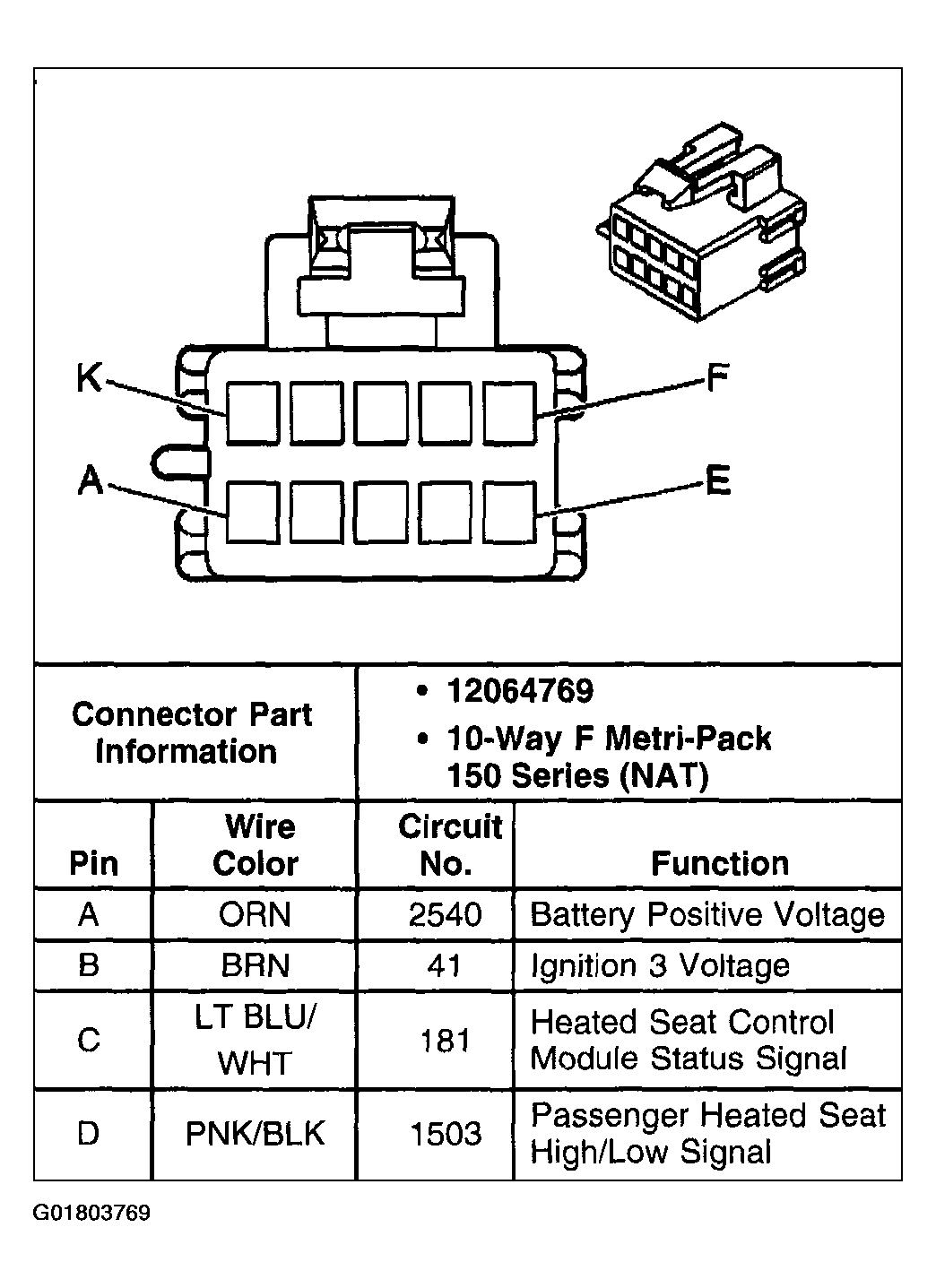

Fig 7: Heated Seat Module (C1) - Front Passenger (w/AG2,A81,KA1, Adjustable Heated Seats) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 8: Heated Seat Module (C1) - Front Passenger (w/AG2,A81,KA1, Adjustable Heated Seats) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 9: Heated Seat Module (C2) - Front Passenger (w/AG1,A80,KA1, Adjustable Heated Seats) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 10: Heated Seat Module (C2) - Front Passenger (w/AG1,A80,KA1, Adjustable Heated Seats) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

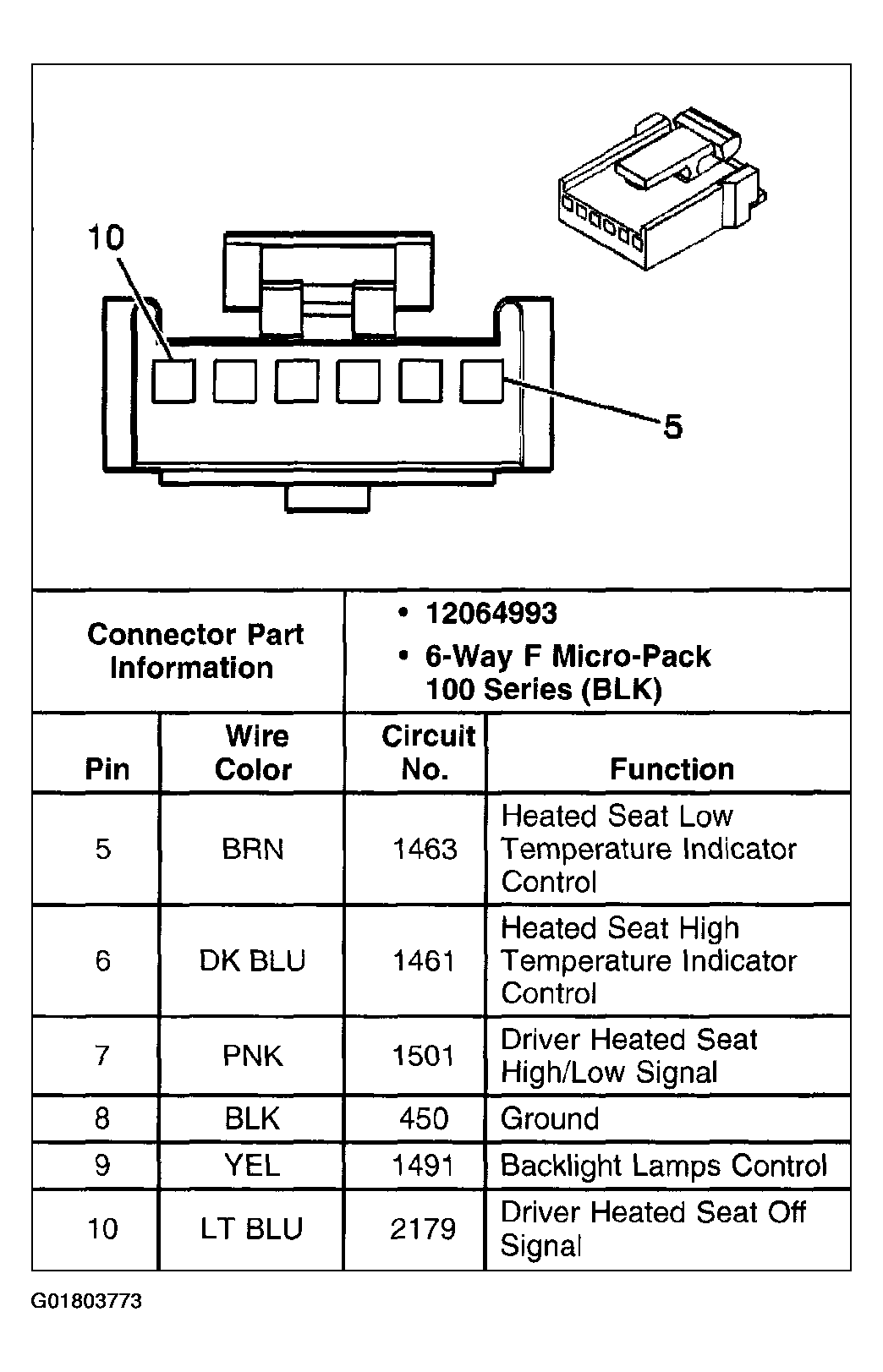

Fig 11: Heated Seat Switch - Driver
Courtesy of GENERAL MOTORS CORP.

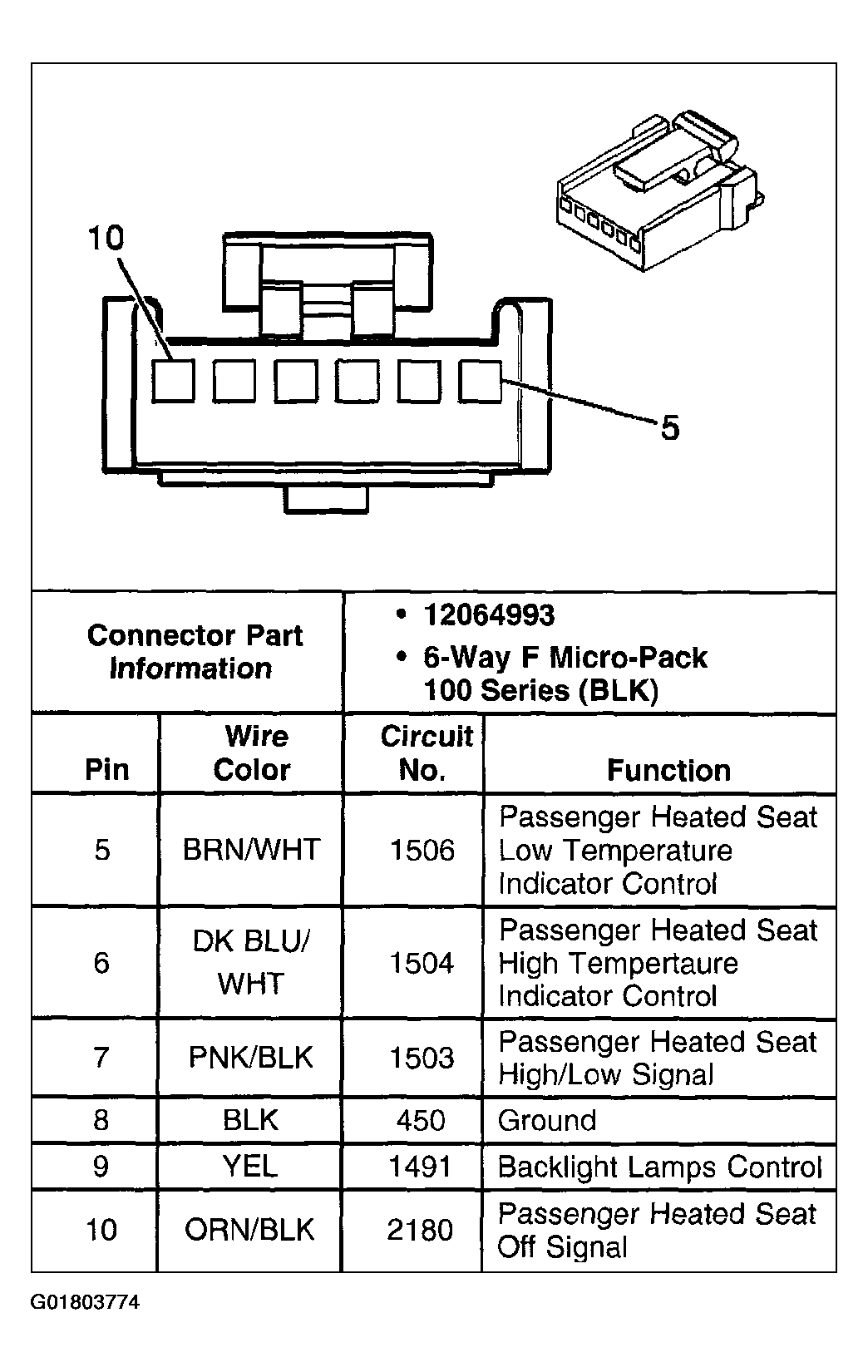

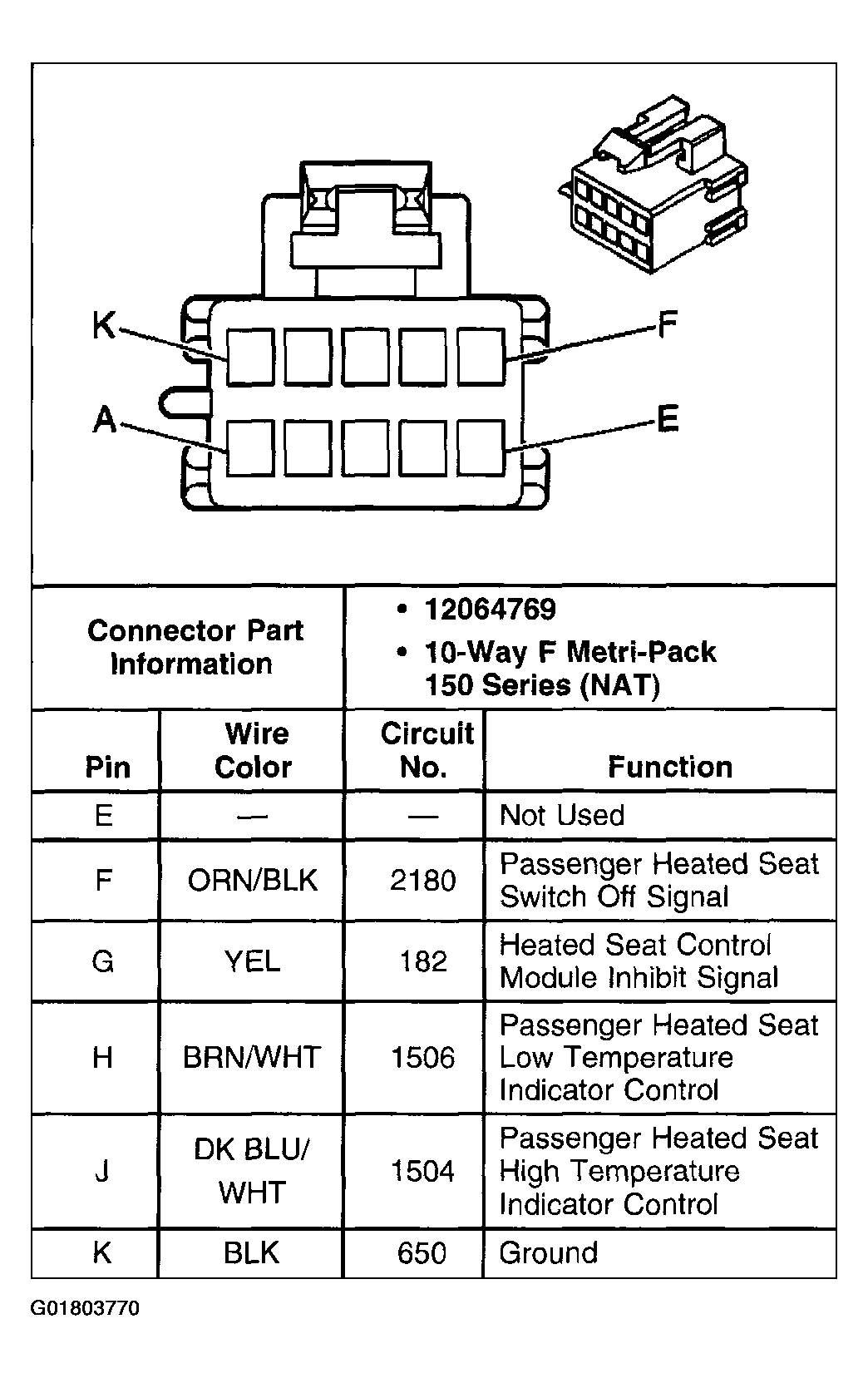

Fig 12: Heated Seat Switch - Front Passenger
Courtesy of GENERAL MOTORS CORP.

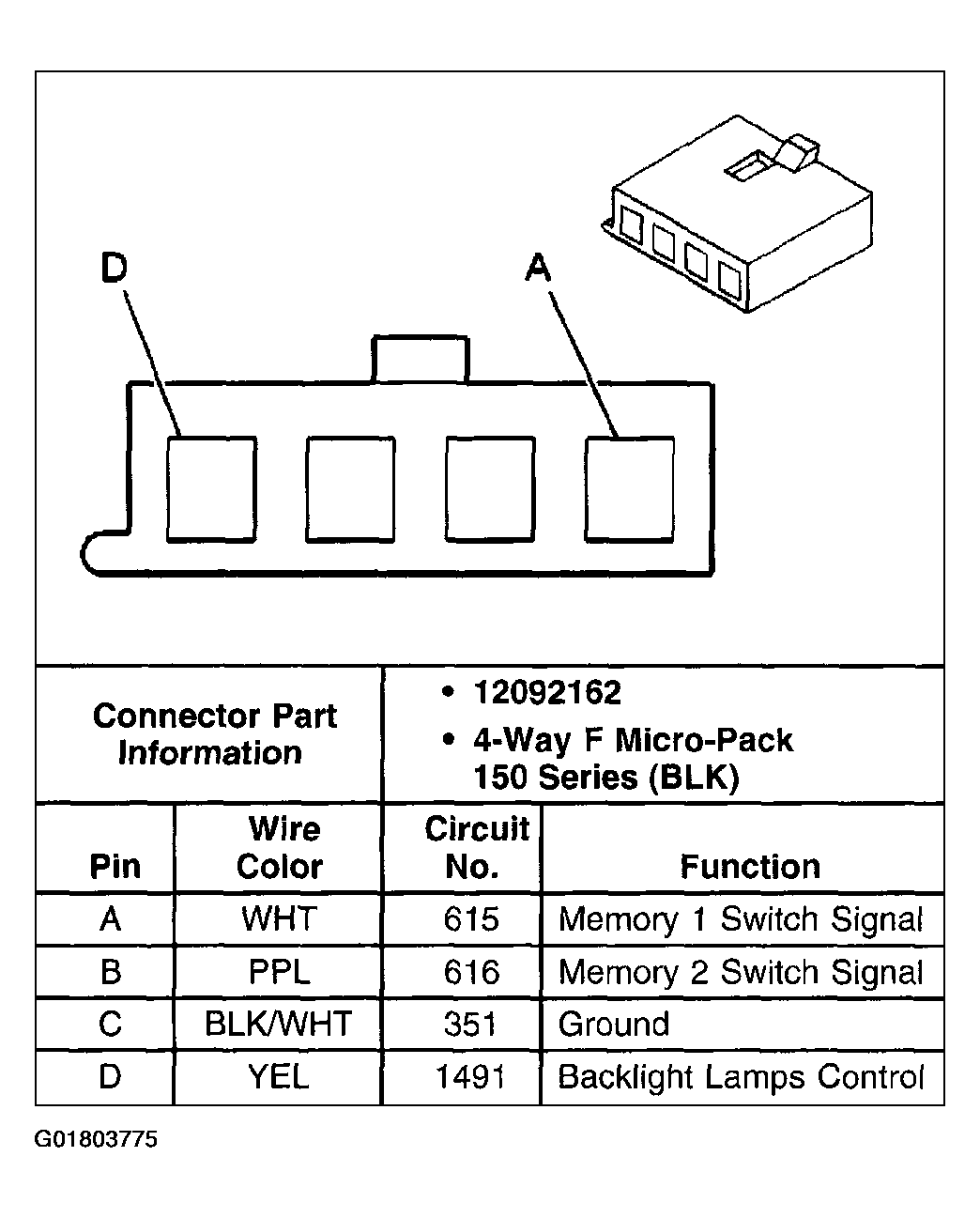

Fig 13: Memory/Personalization Function Switch
Courtesy of GENERAL MOTORS CORP.

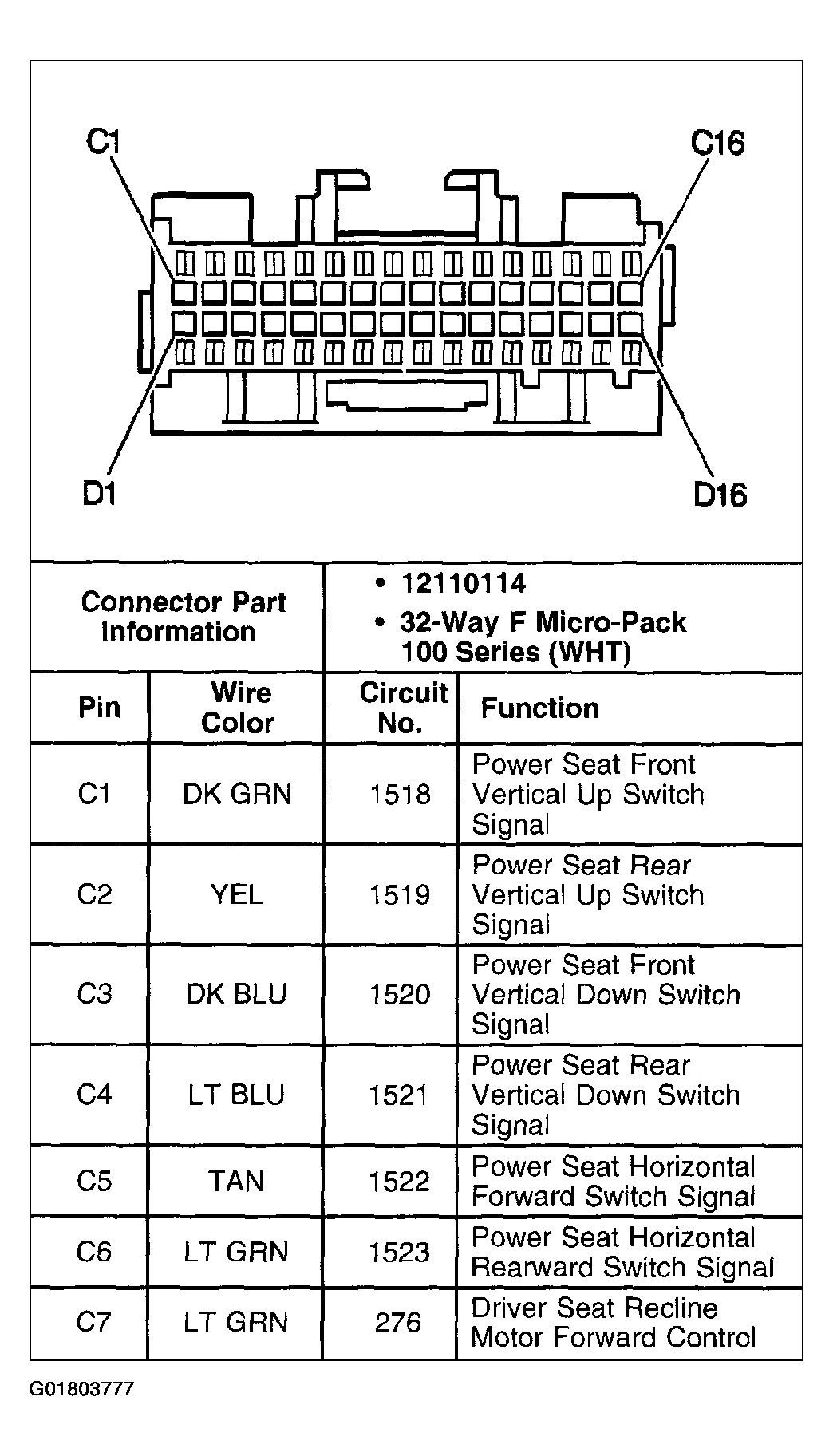

Fig 14: Memory Seat Module (C1) - Driver (w/A45, Heated Seats)
Courtesy of GENERAL MOTORS CORP.

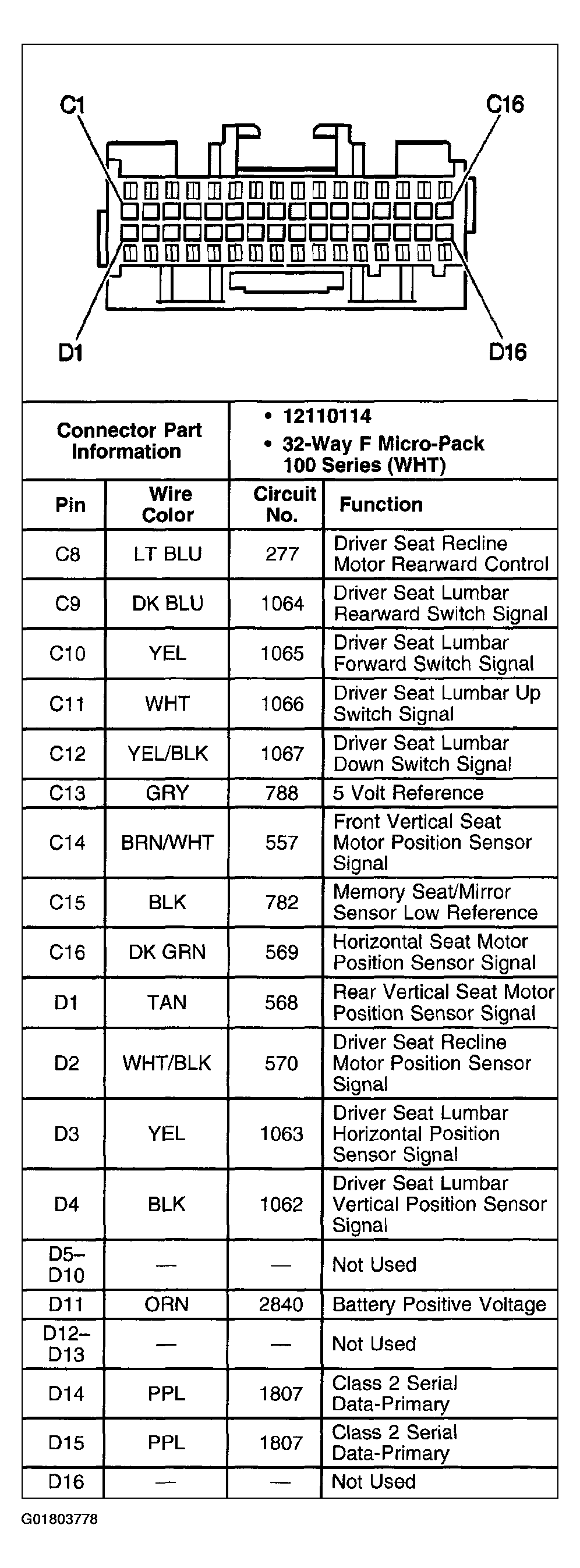

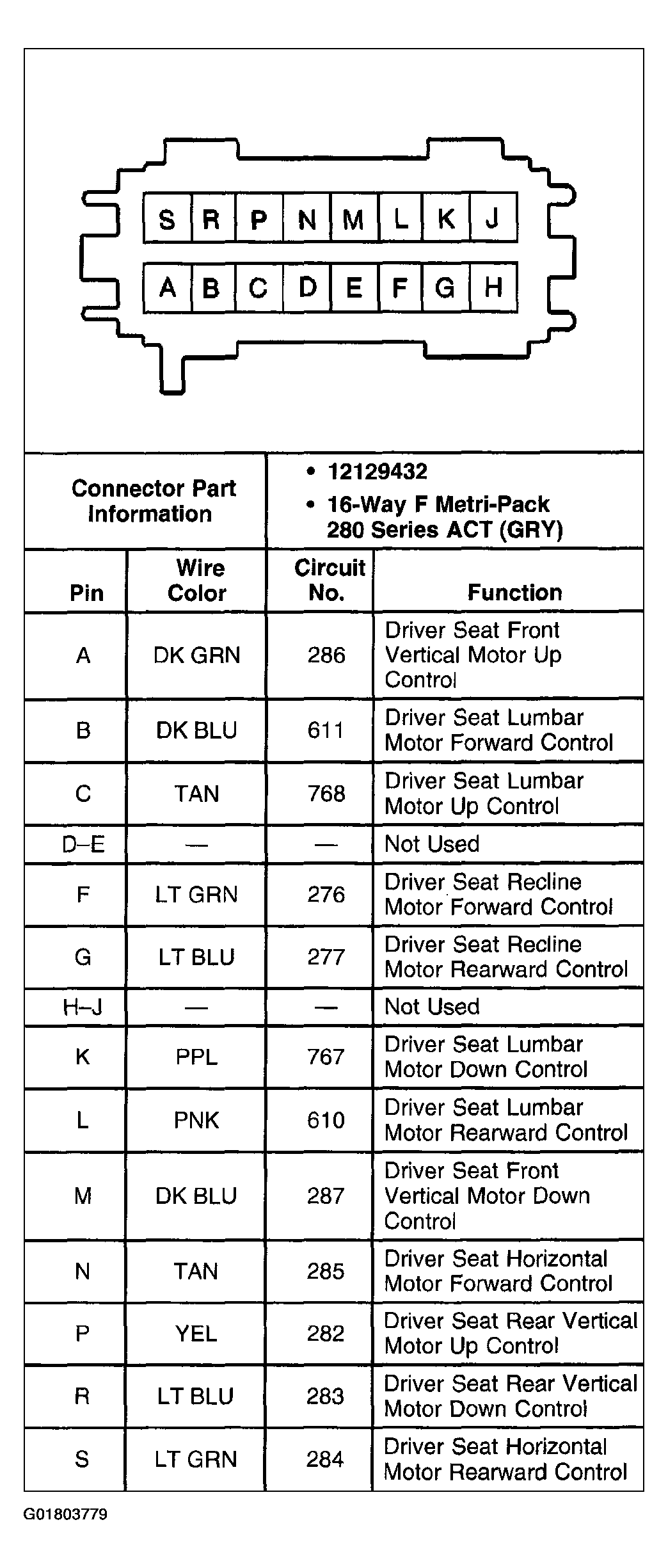

Fig 15: Memory Seat Module (C2) - Driver (w/A45, Heated Seats) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 16: Memory Seat Module (C2) - Driver (w/A45, Memory Seats) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 17: Memory Seat Module (C3) - Driver (w/A45, Memory Seats)
Courtesy of GENERAL MOTORS CORP.

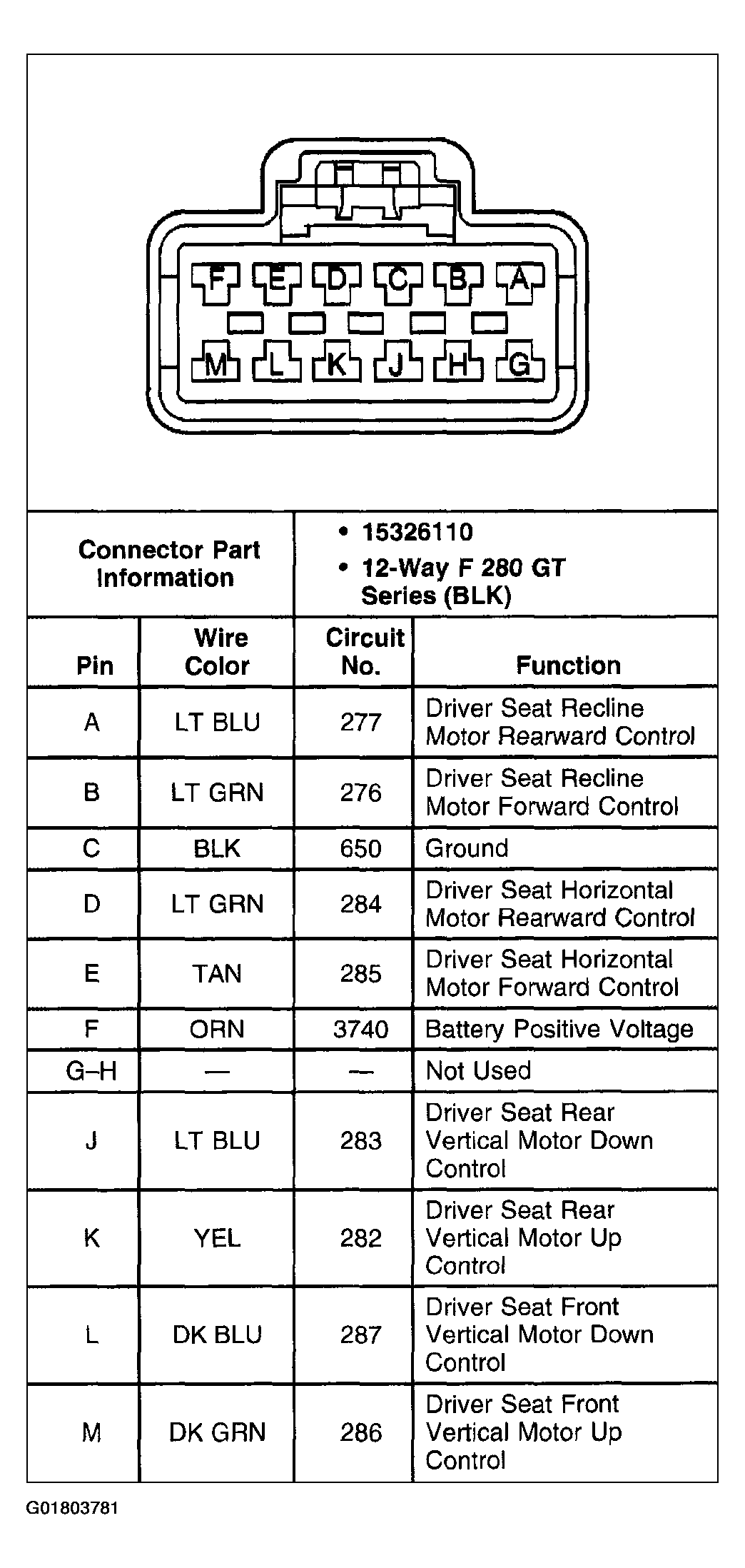

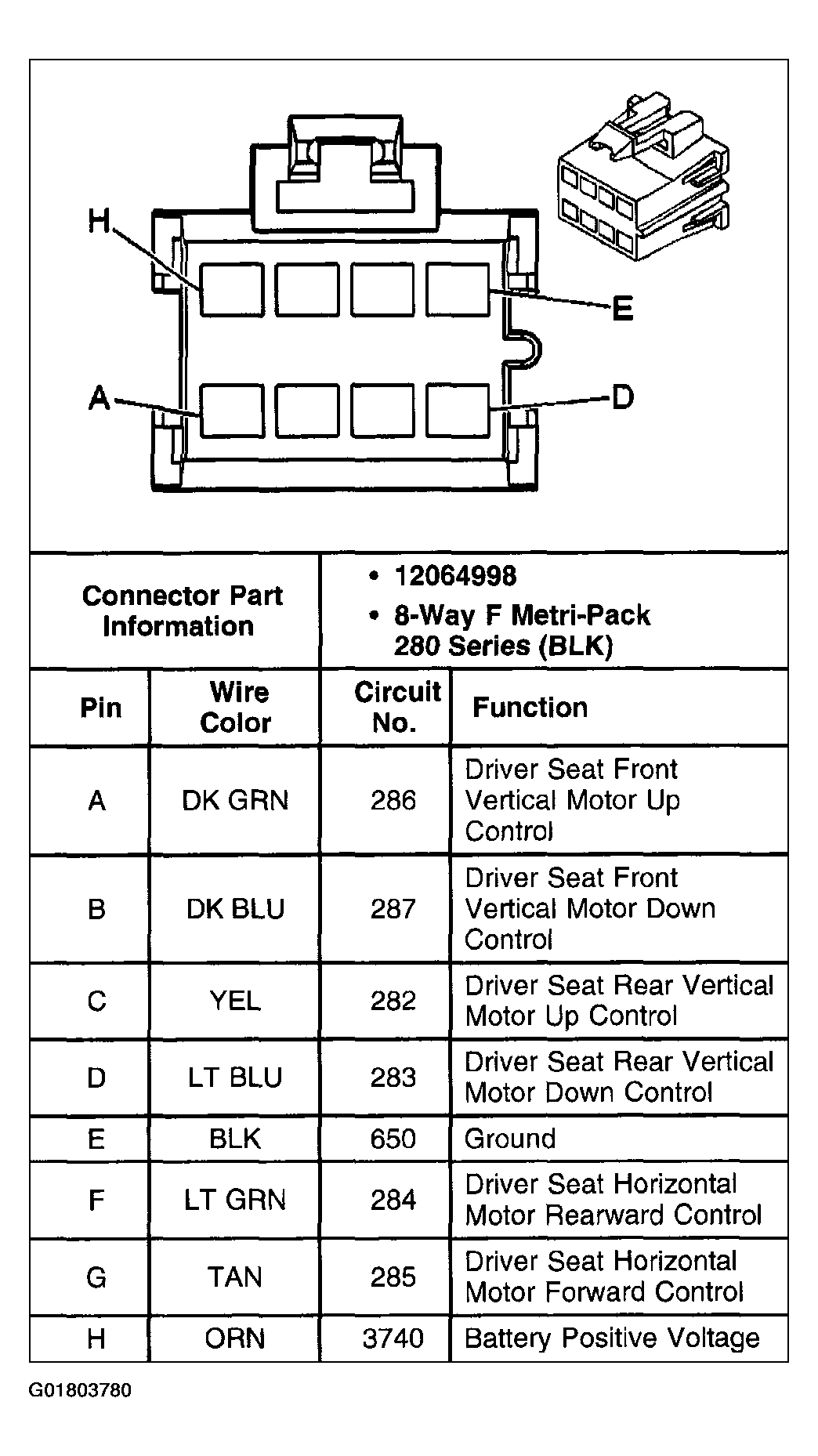

Fig 18: Seat Adjuster Switch - Driver (w/AG1, Power Seats)
Courtesy of GENERAL MOTORS CORP.
Fig 19: Seat Adjuster Switch - Driver (w/AG1 and A80, Power Seats With Recliner)
Courtesy of GENERAL MOTORS CORP.

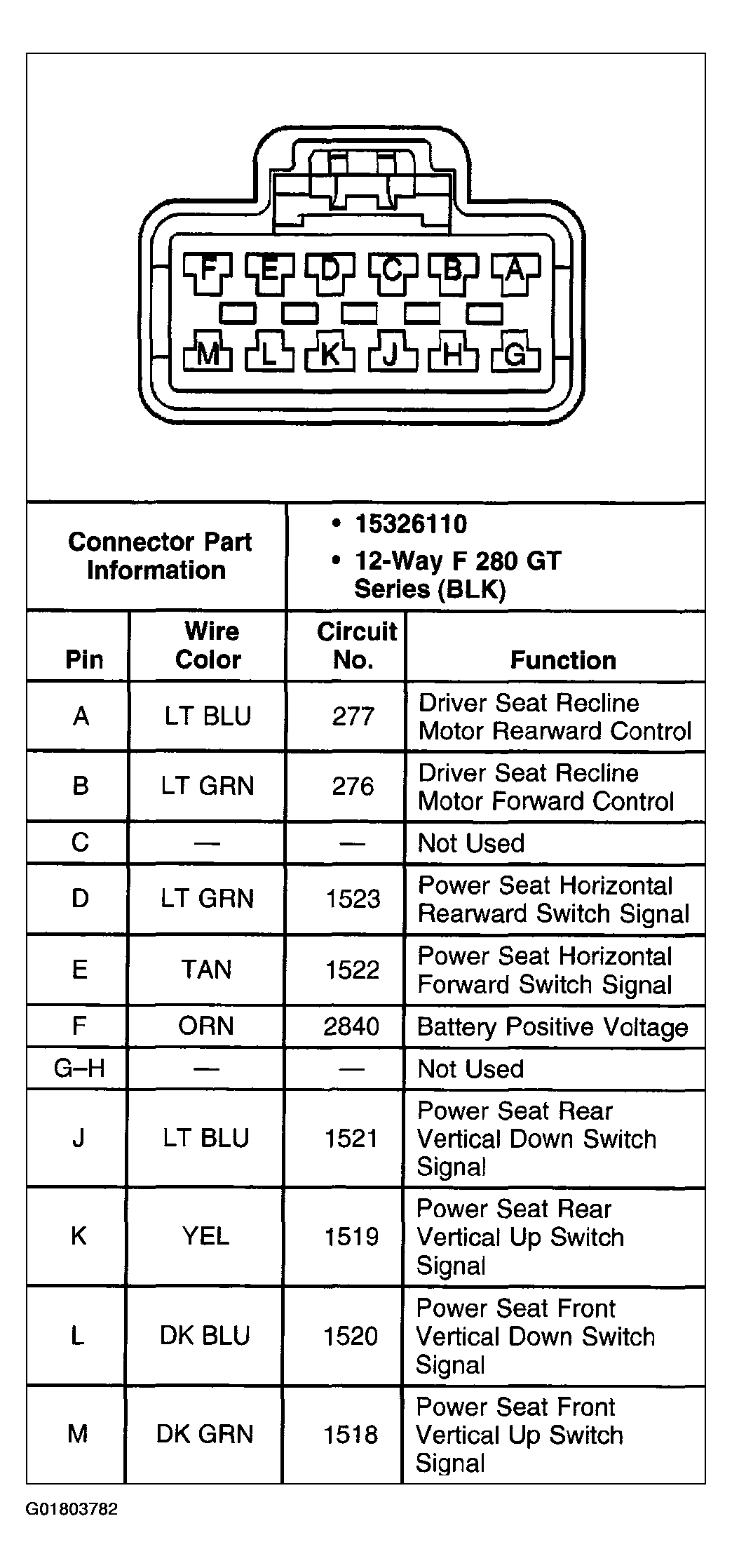

Fig 20: Seat Adjuster Switch - Driver (w/AG1, A80 and A45, Power Memory Seats)
Courtesy of GENERAL MOTORS CORP.

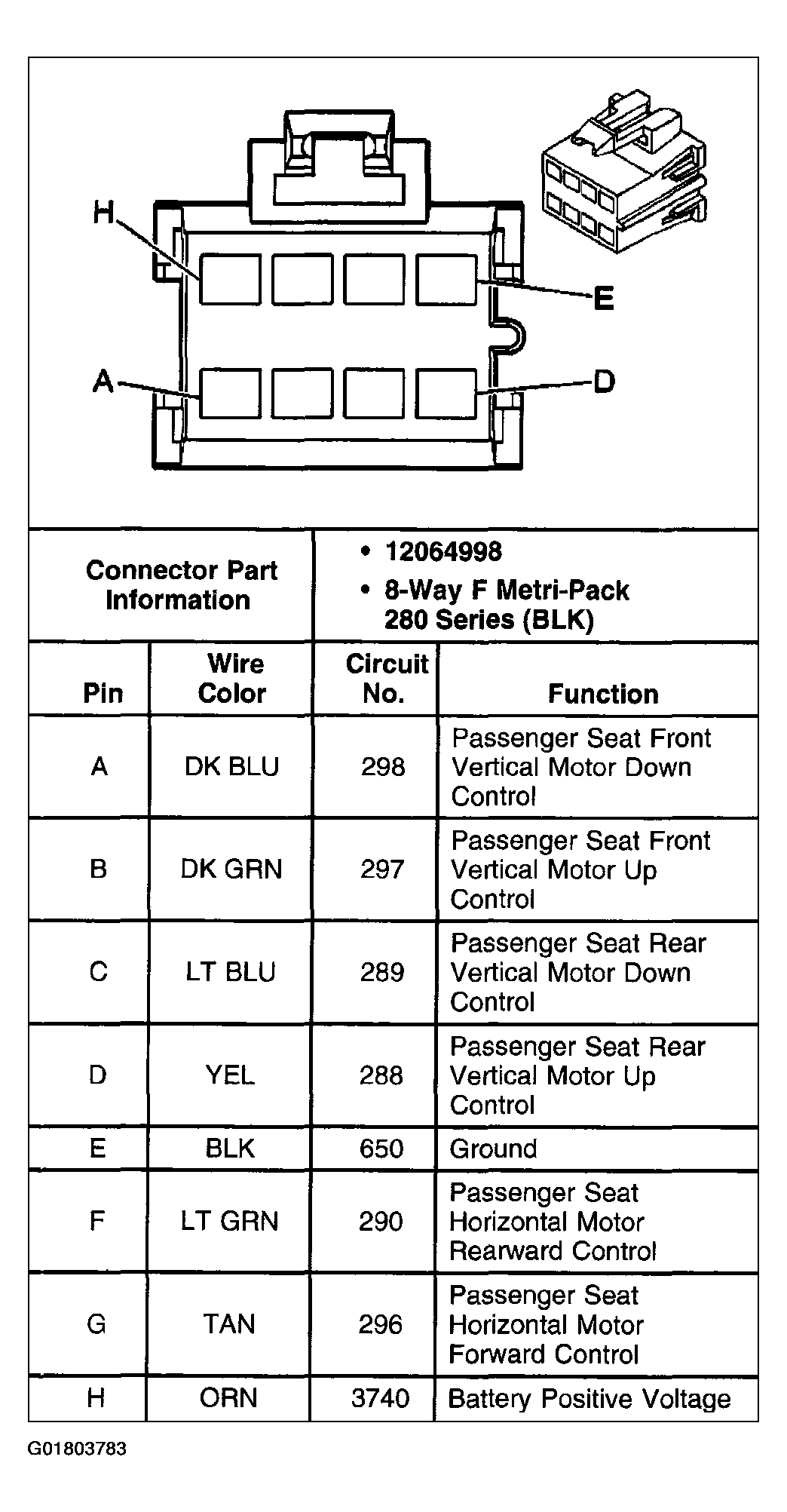

Fig 21: Seat Adjuster Switch - Front Passenger (w/AG2, Power Seats)
Courtesy of GENERAL MOTORS CORP.

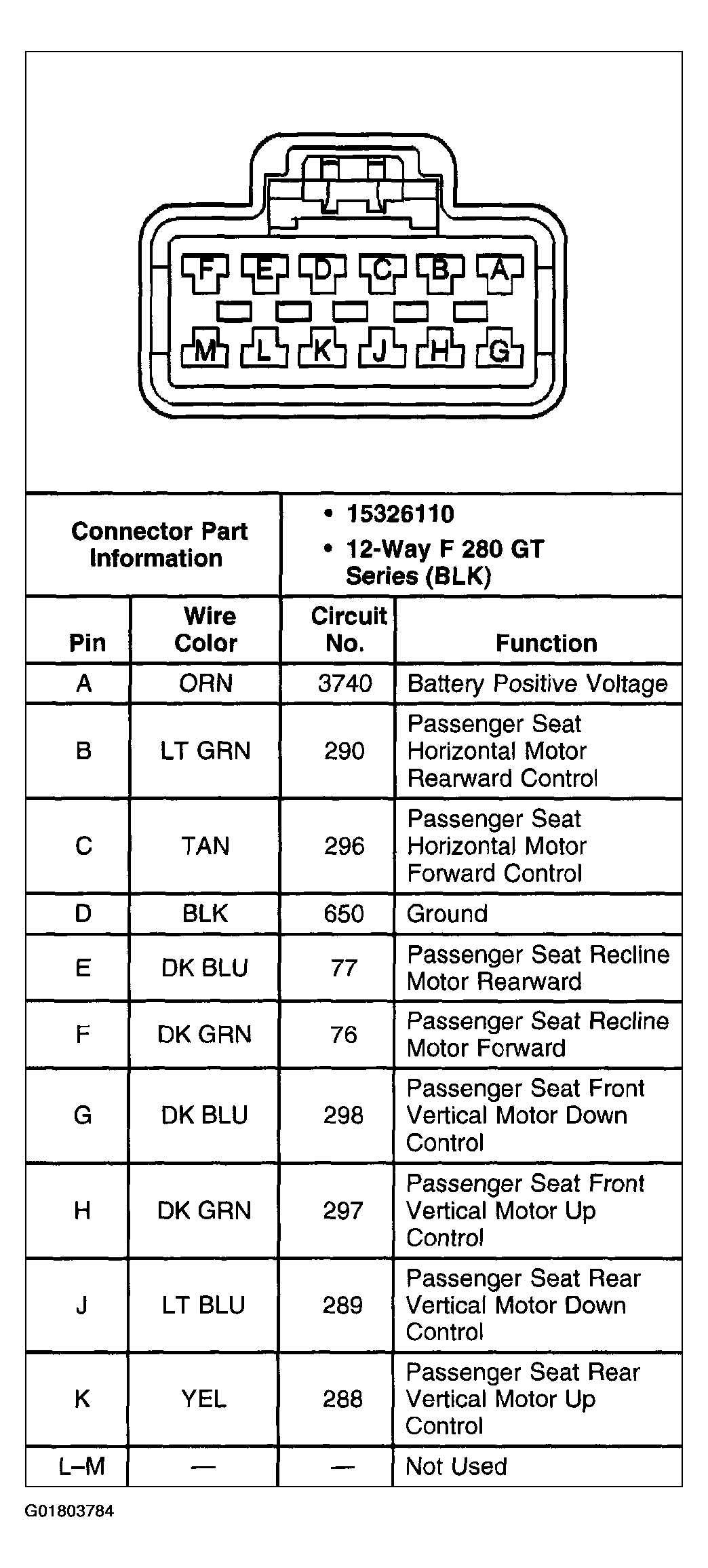

Fig 22: Seat Adjuster Switch - Front Passenger (w/AG2 and A81, Power Seats With Recliner)
Courtesy of GENERAL MOTORS CORP.

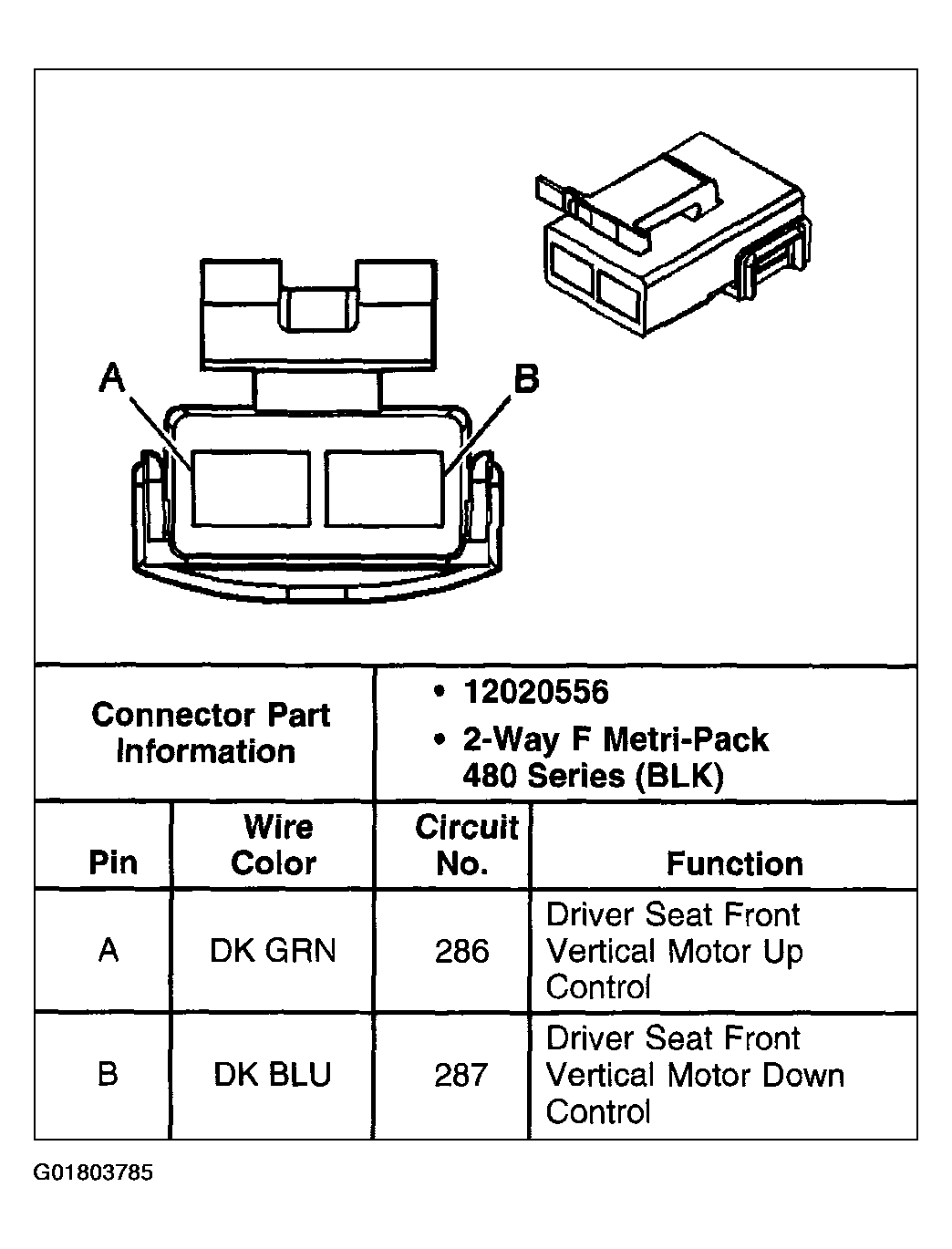

Fig 23: Seat Front Vertical Motor - Driver
Courtesy of GENERAL MOTORS CORP.

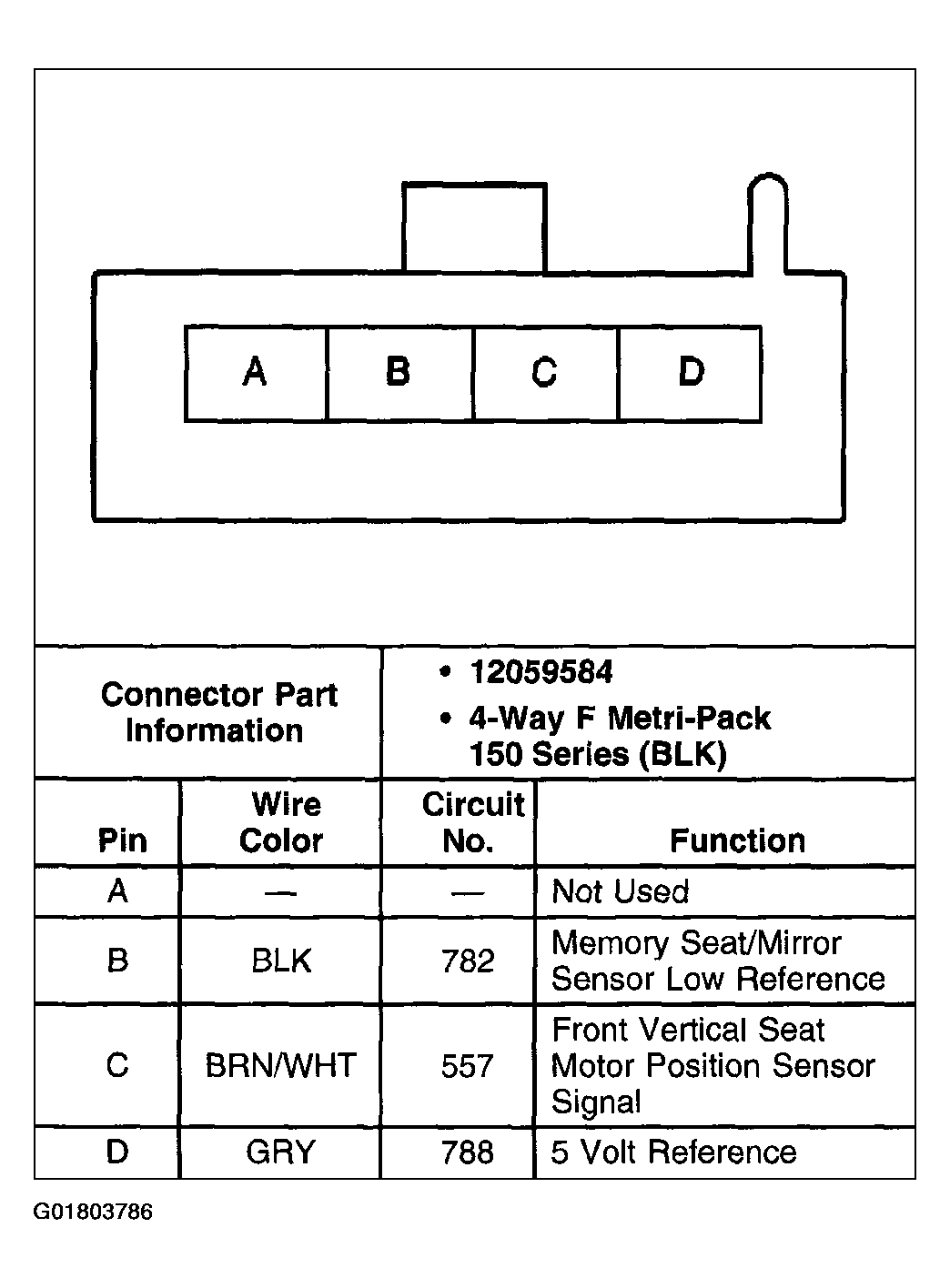

Fig 24: Seat Front Vertical Position Sensor - Driver (w/A45, Memory Seats)
Courtesy of GENERAL MOTORS CORP.

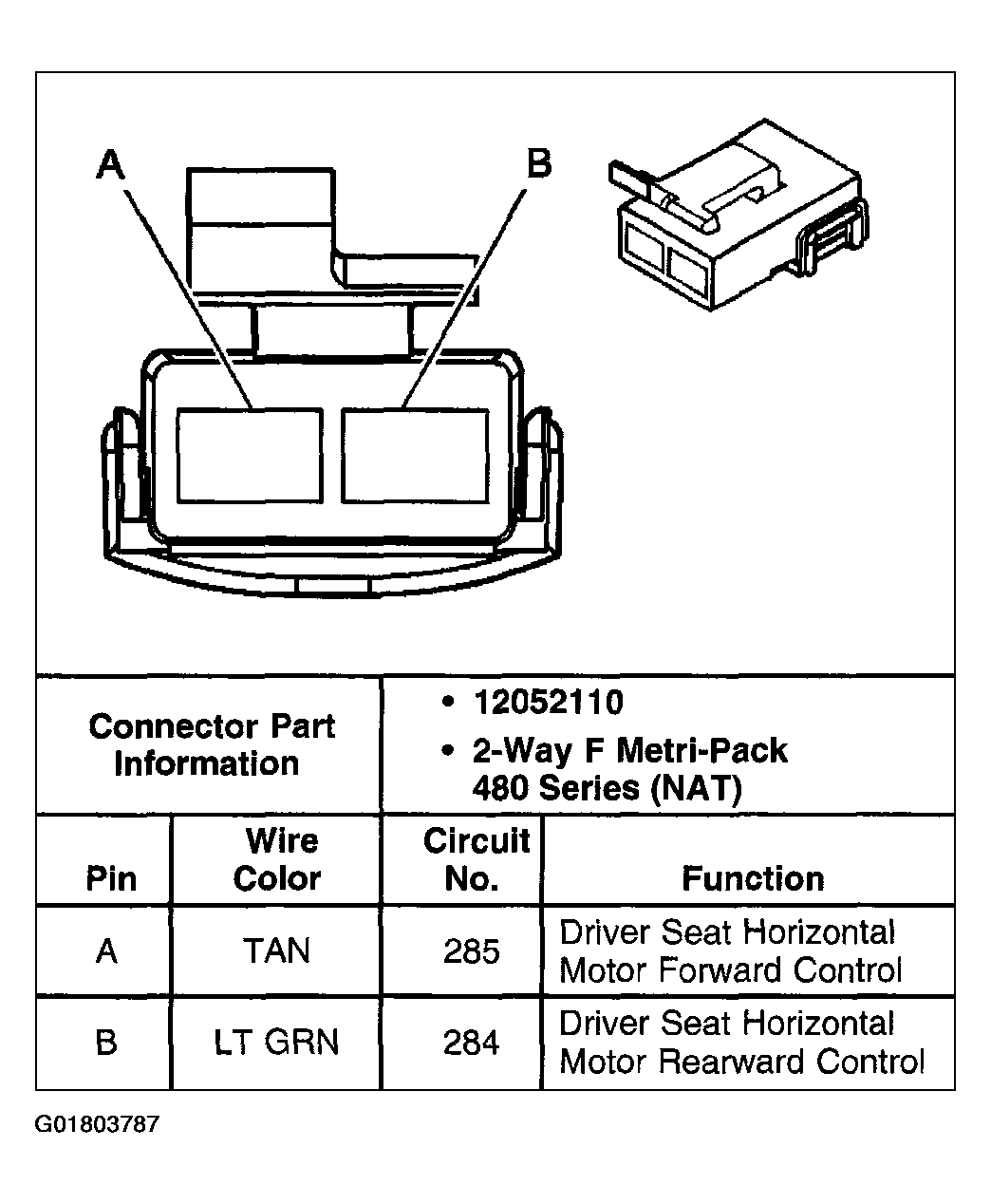

Fig 25: Seat Horizontal Motor - Driver
Courtesy of GENERAL MOTORS CORP.

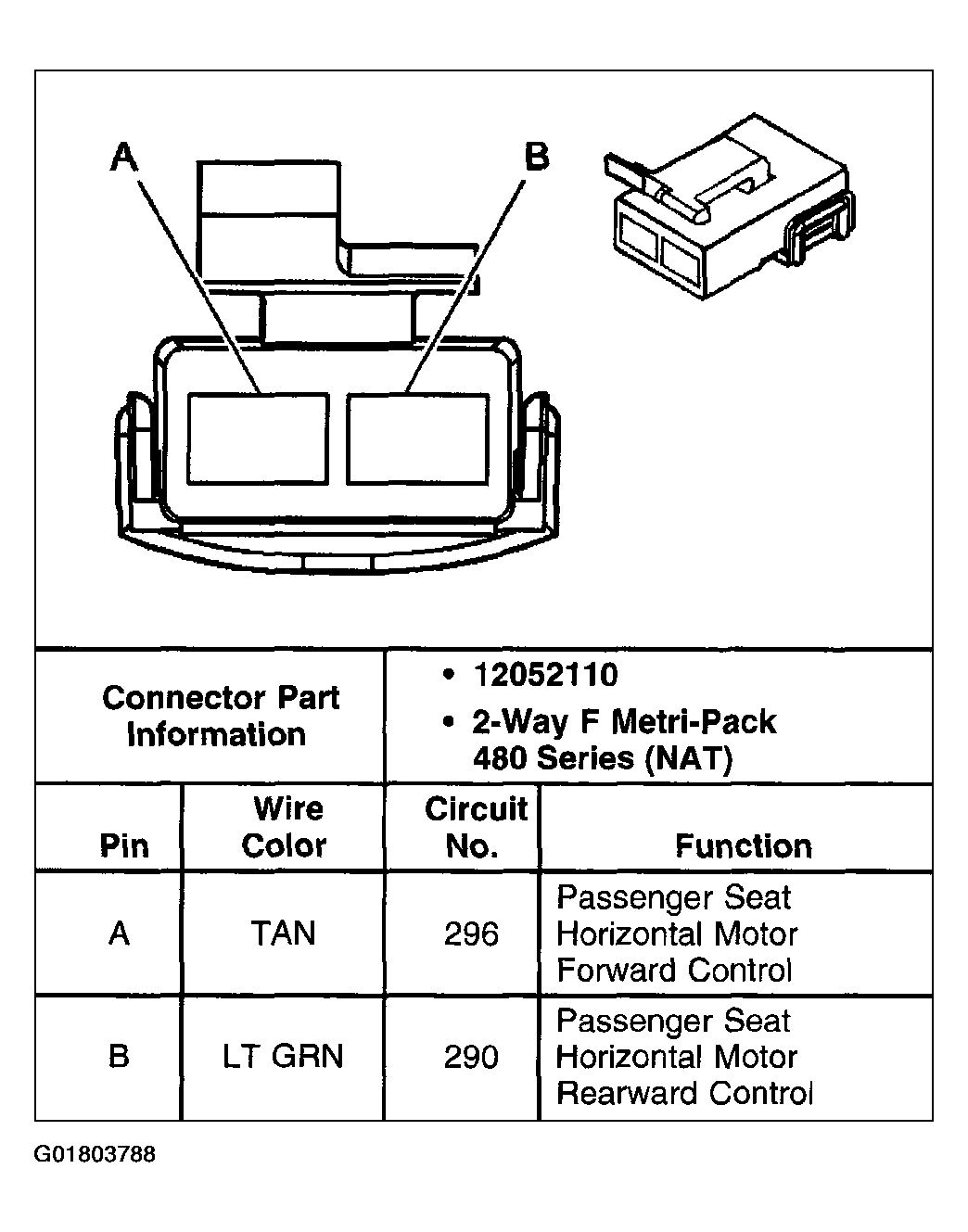

Fig 26: Seat Horizontal Motor - Front Passenger
Courtesy of GENERAL MOTORS CORP.

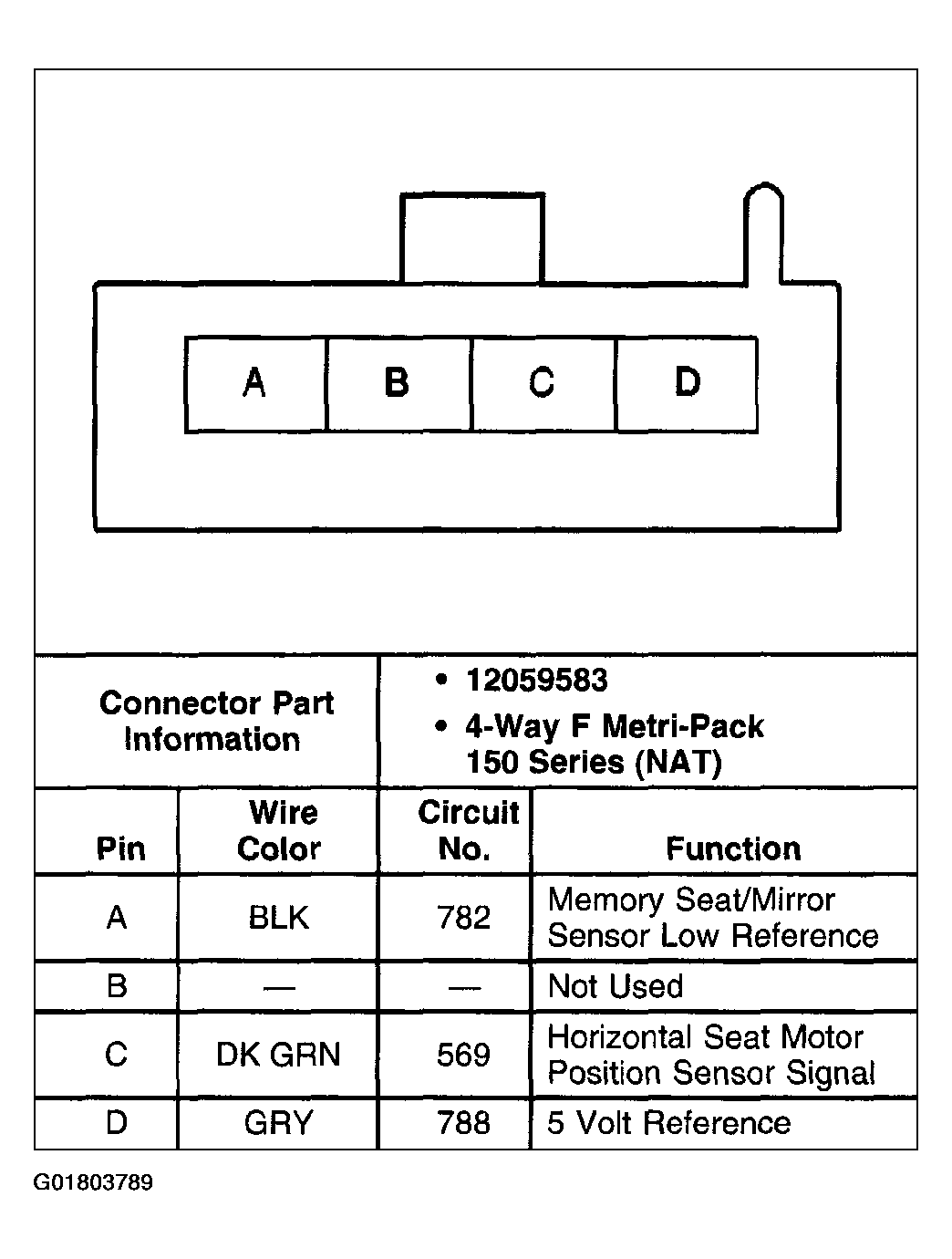

Fig 27: Seat Horizontal Position Sensor - Driver (w/A45, Memory Seats)
Courtesy of GENERAL MOTORS CORP.

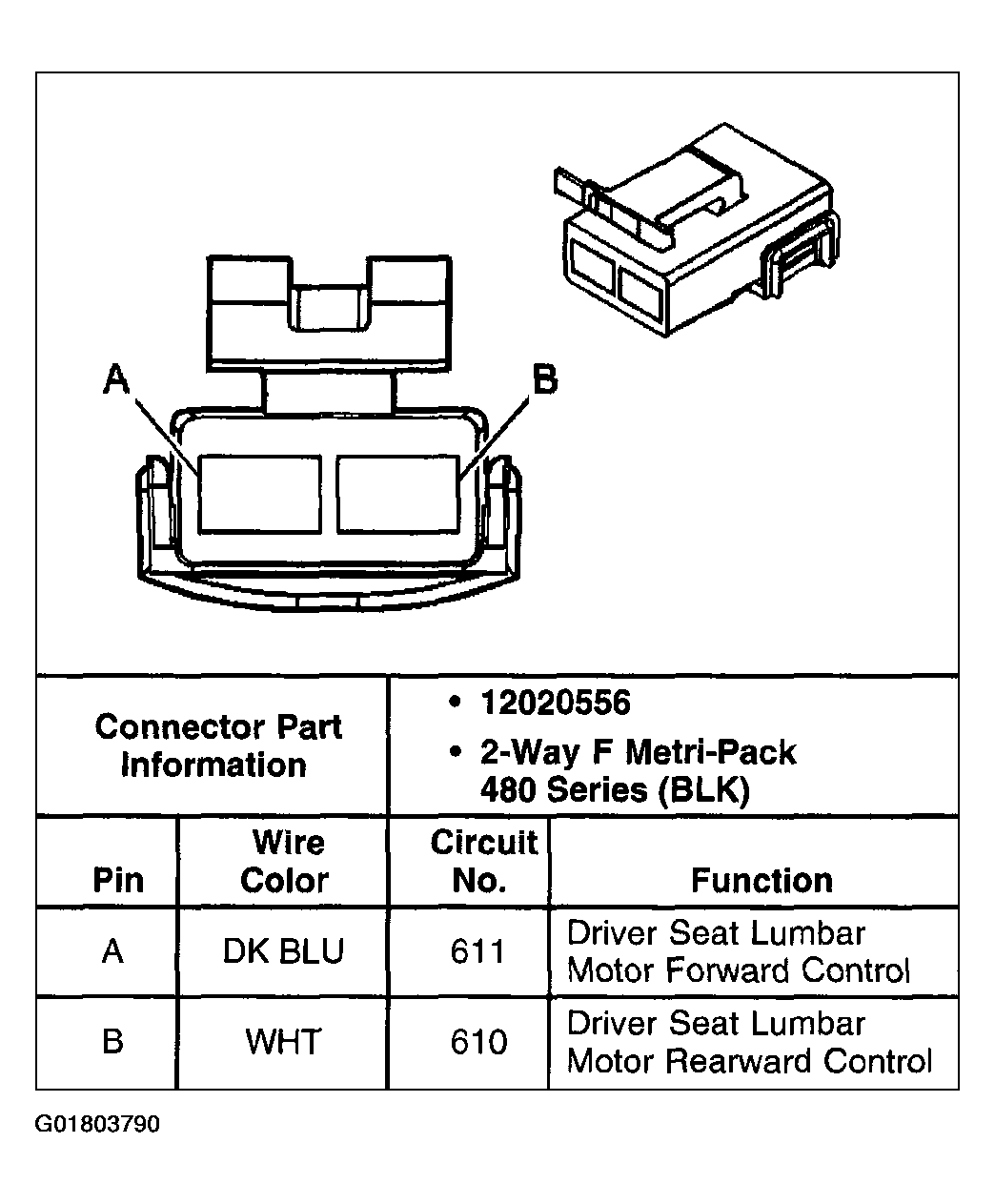

Fig 28: Seat Lumbar Horizontal Motor - Driver
Courtesy of GENERAL MOTORS CORP.
Fig 29: Seat Lumbar Horizontal Motor - Front Passenger
Courtesy of GENERAL MOTORS CORP.

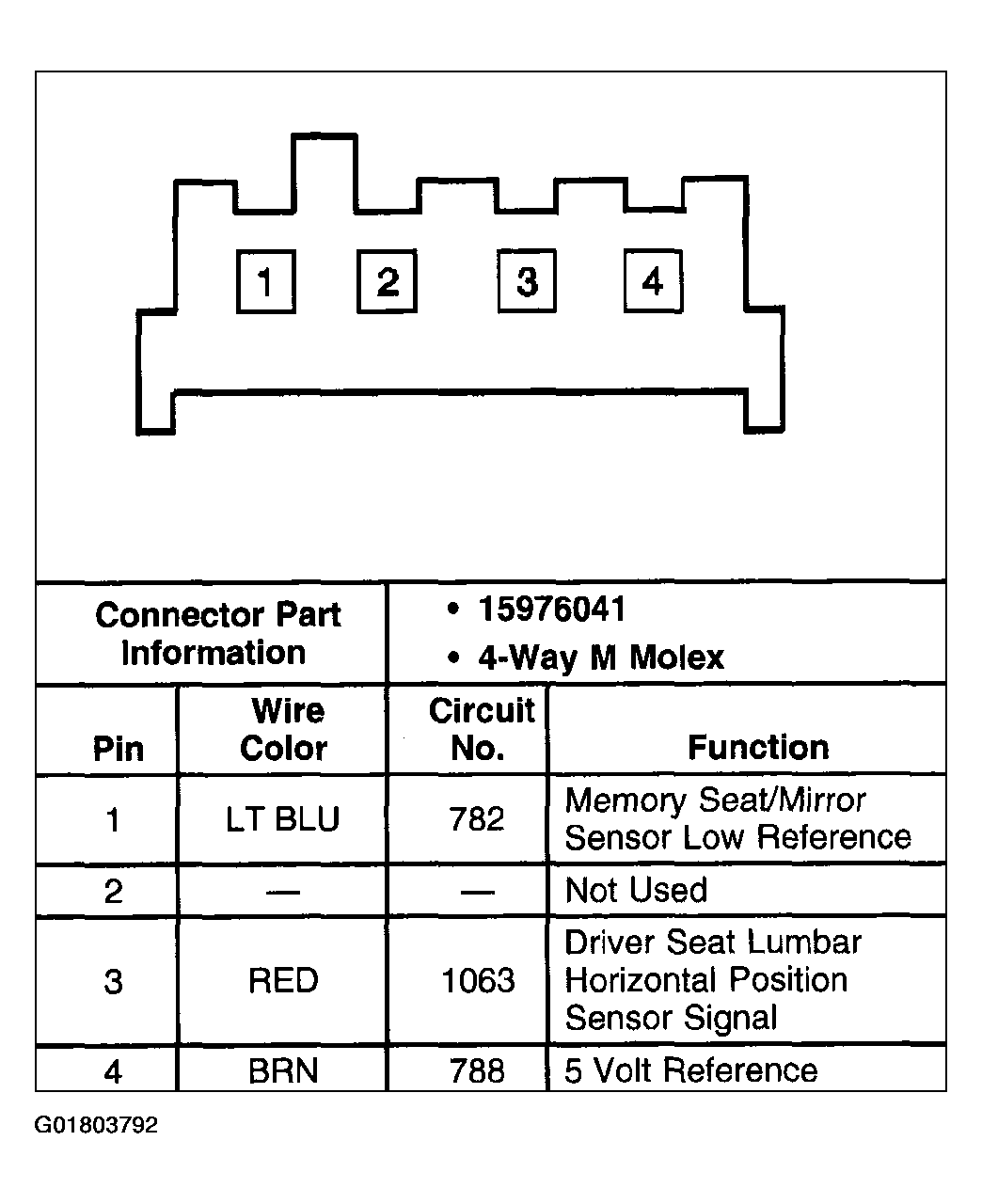

Fig 30: Seat Lumbar Horizontal Position Sensor - Driver
Courtesy of GENERAL MOTORS CORP.

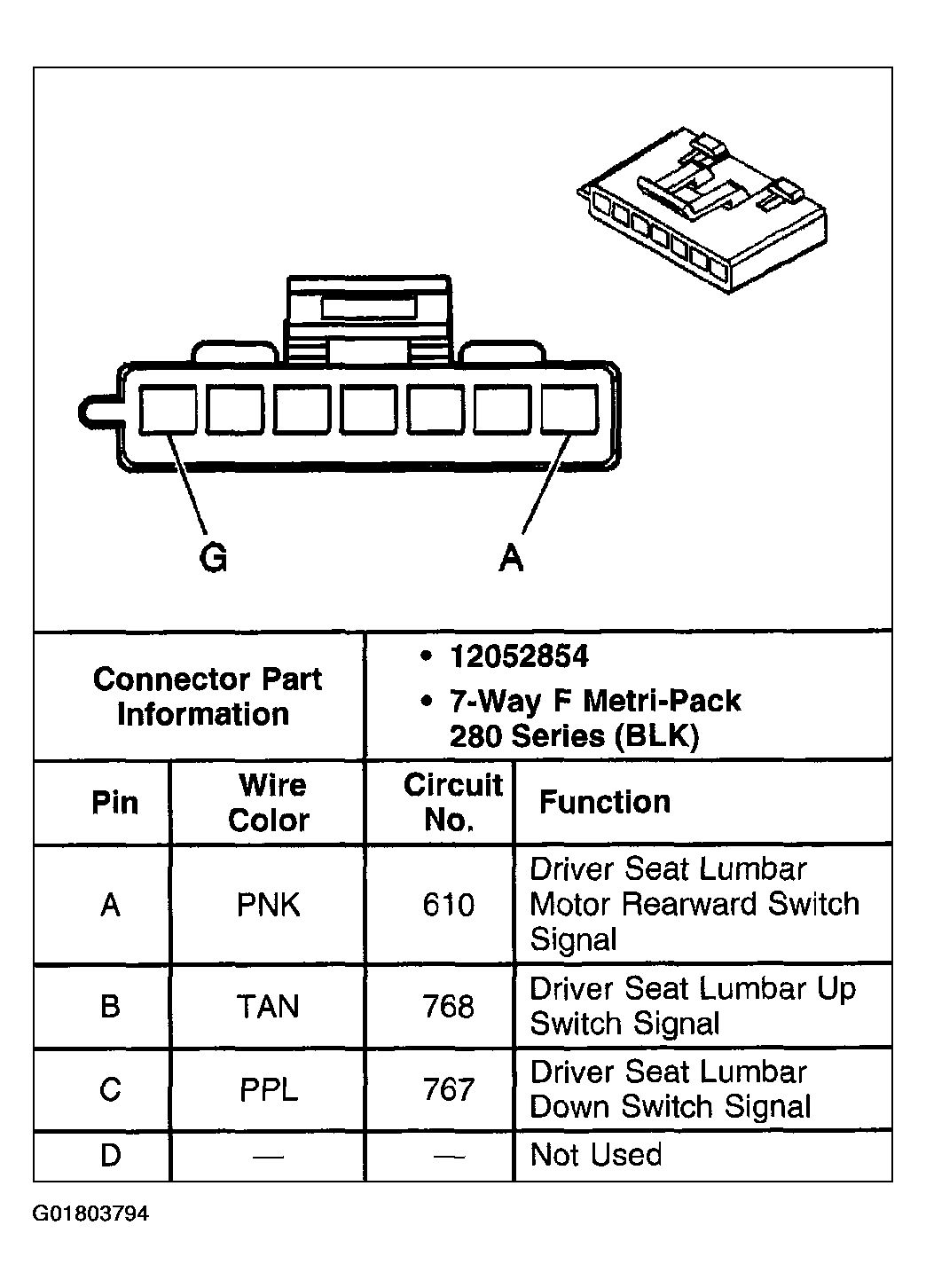

Fig 31: Seat Lumbar Switch - Driver (w/A45 and AL9, Memory Seat W/Power Lumbar)
Courtesy of GENERAL MOTORS CORP.

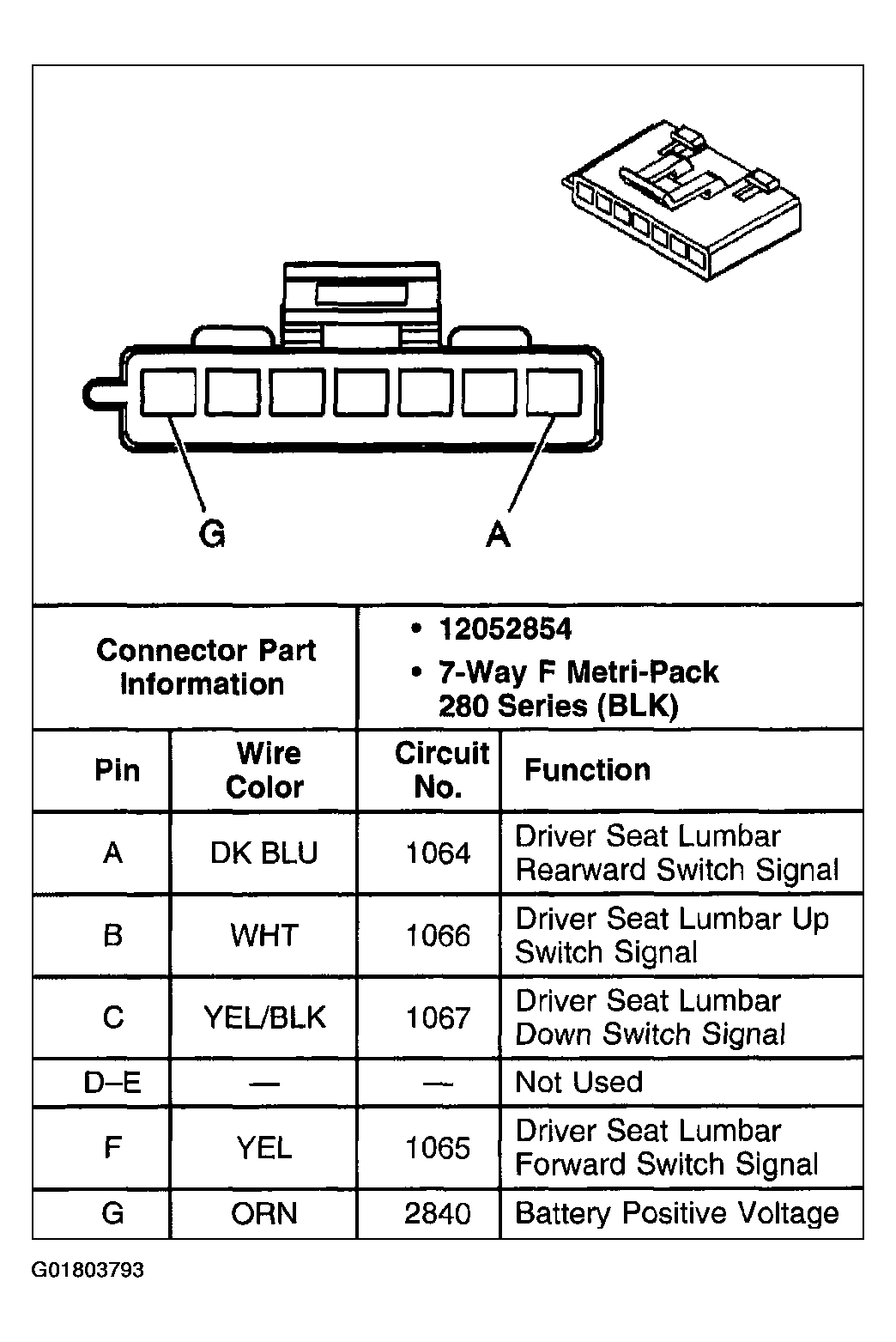

Fig 32: Seat Lumbar Switch - Driver (w/o A45, Memory Seat) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

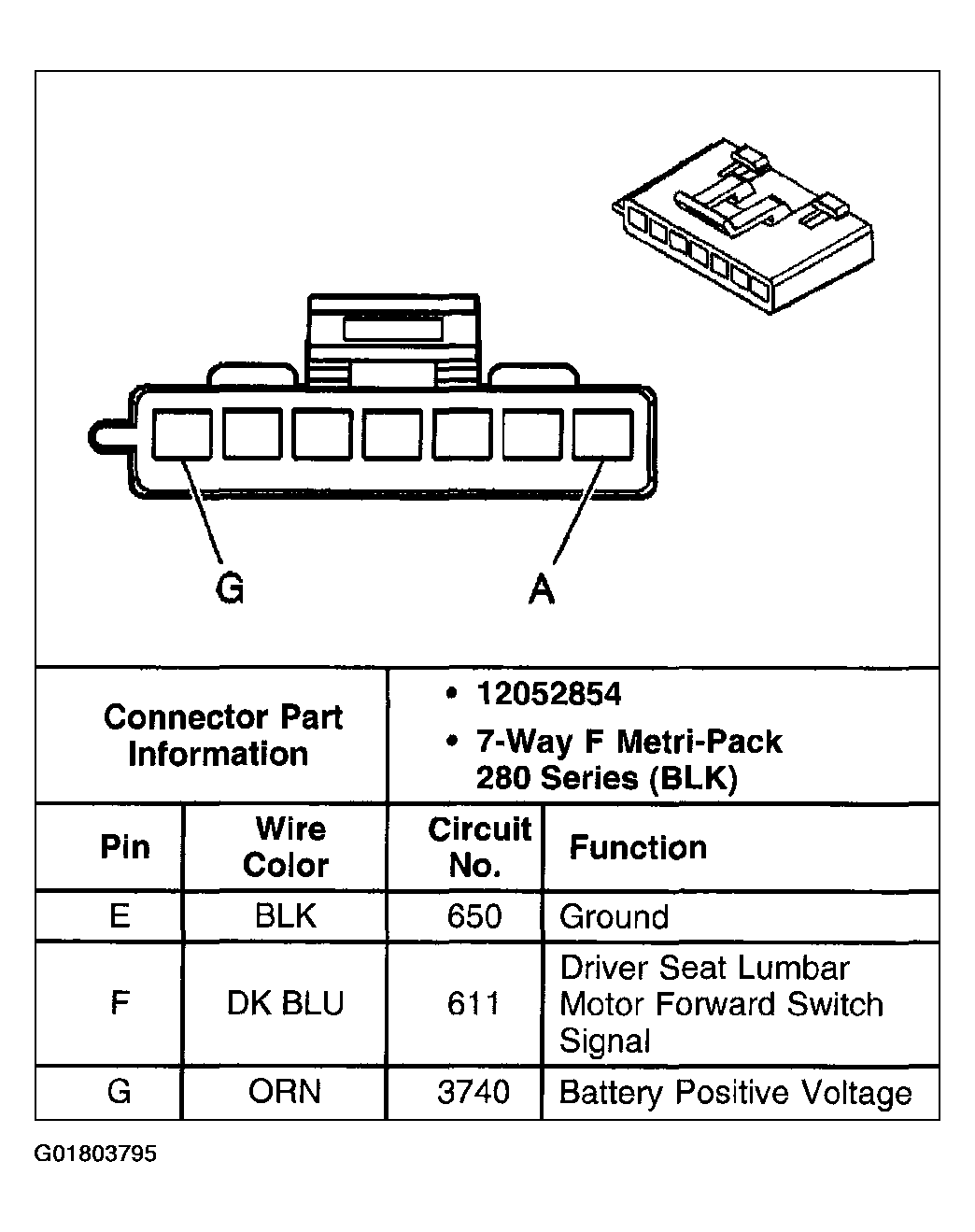

Fig 33: Seat Lumbar Switch - Driver (w/o A45, Memory Seat) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

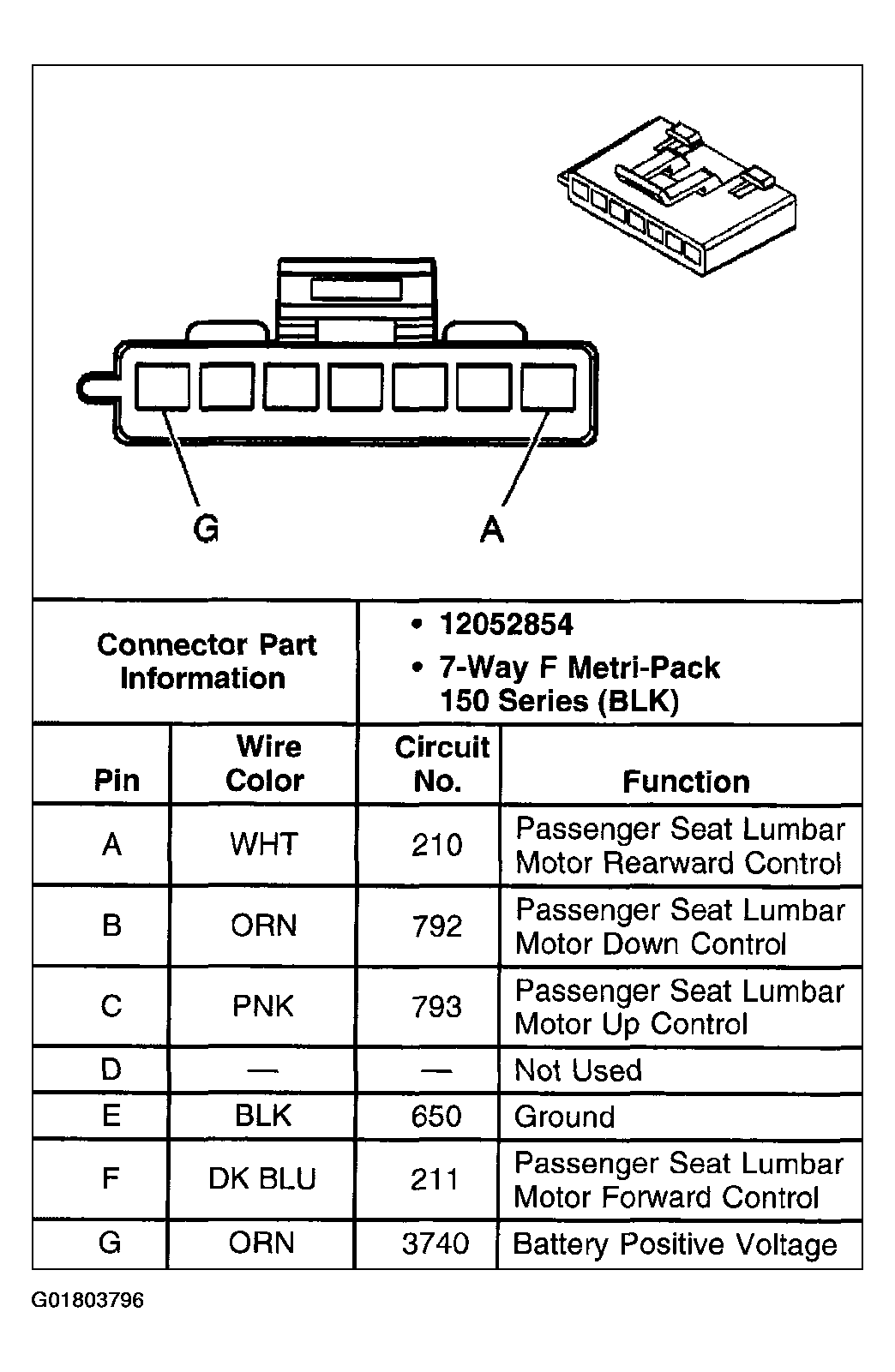

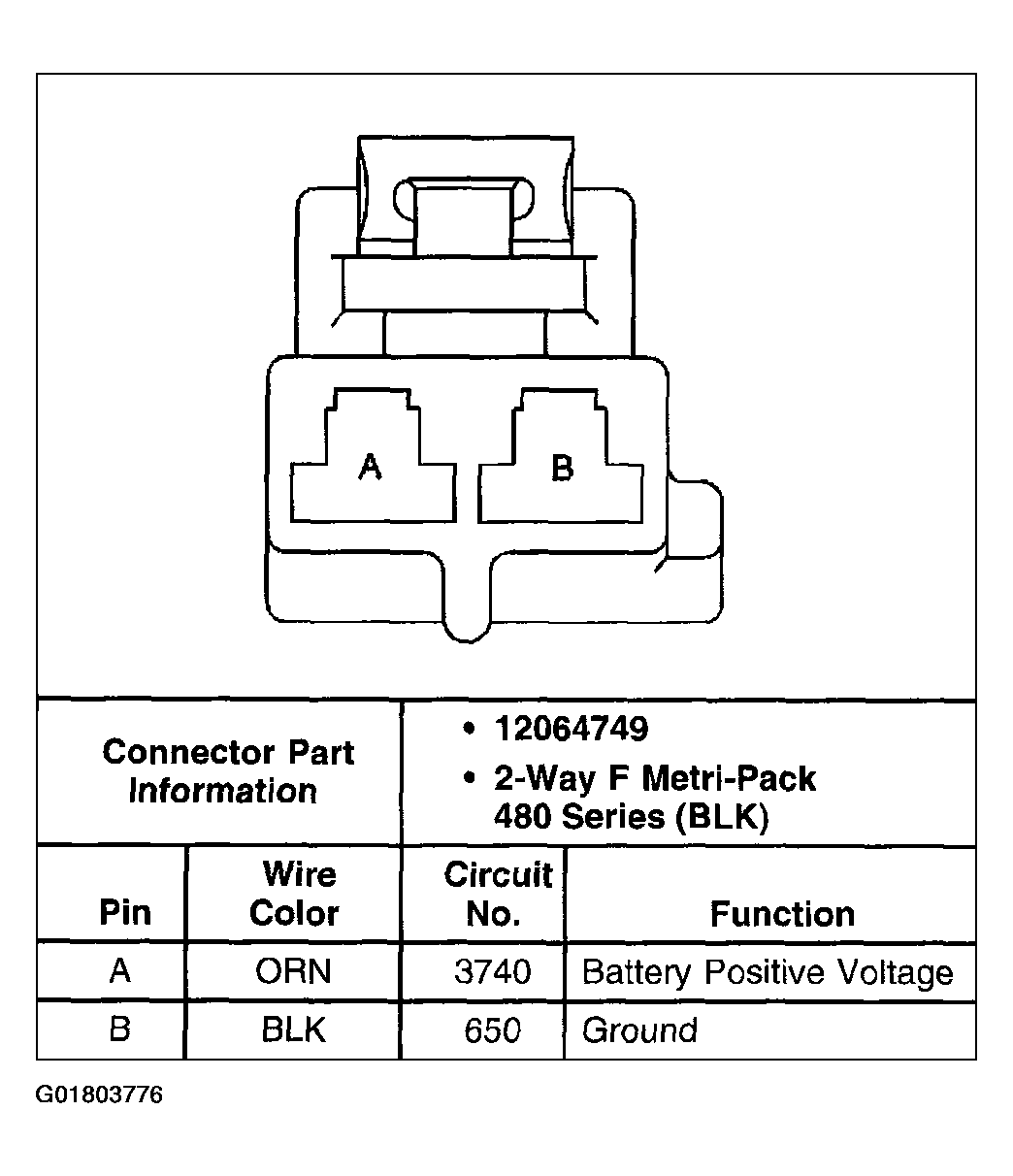

Fig 34: Seat Lumbar Switch - Front Passenger
Courtesy of GENERAL MOTORS CORP.

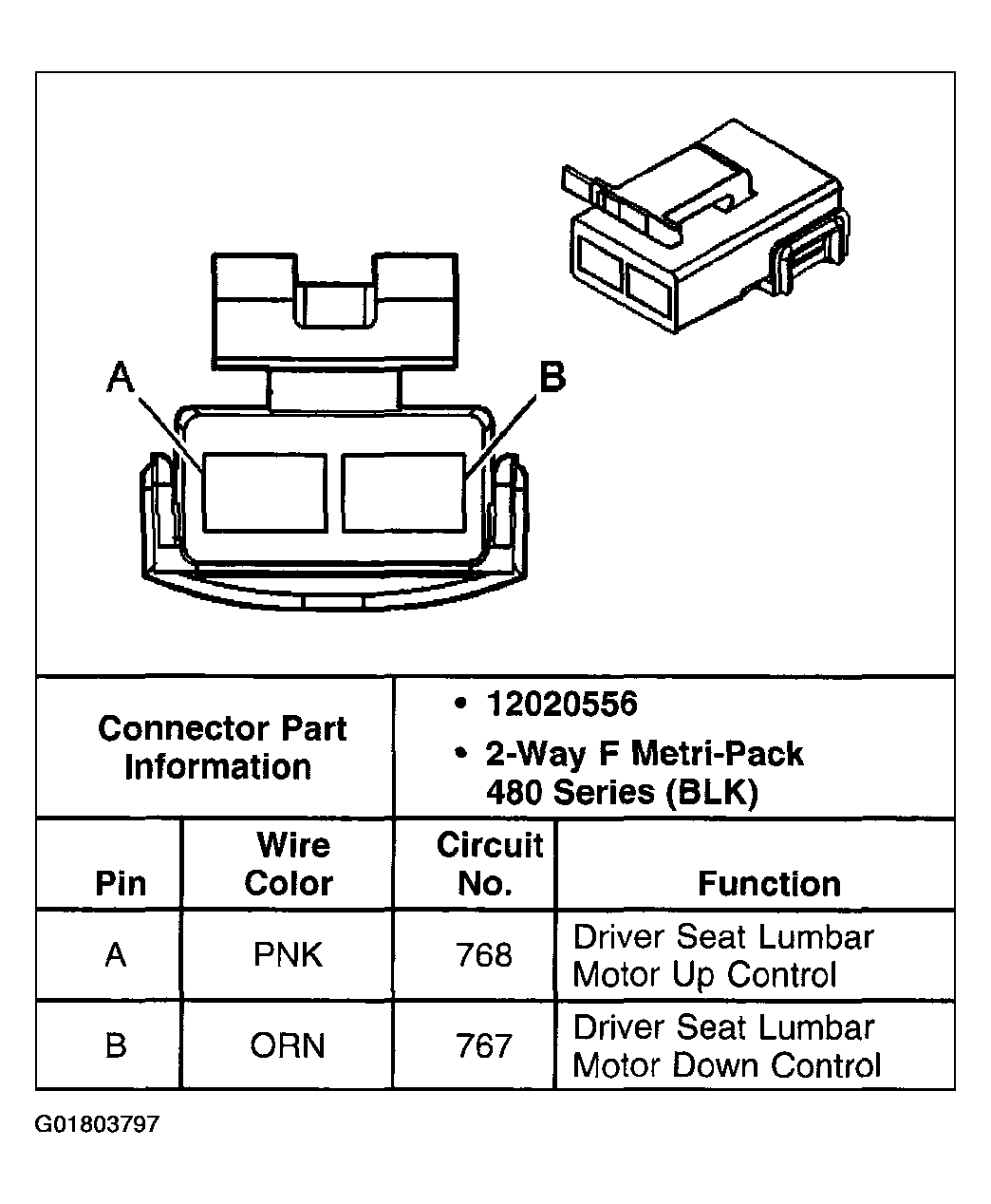

Fig 35: Seat Lumbar Vertical Motor - Driver
Courtesy of GENERAL MOTORS CORP.

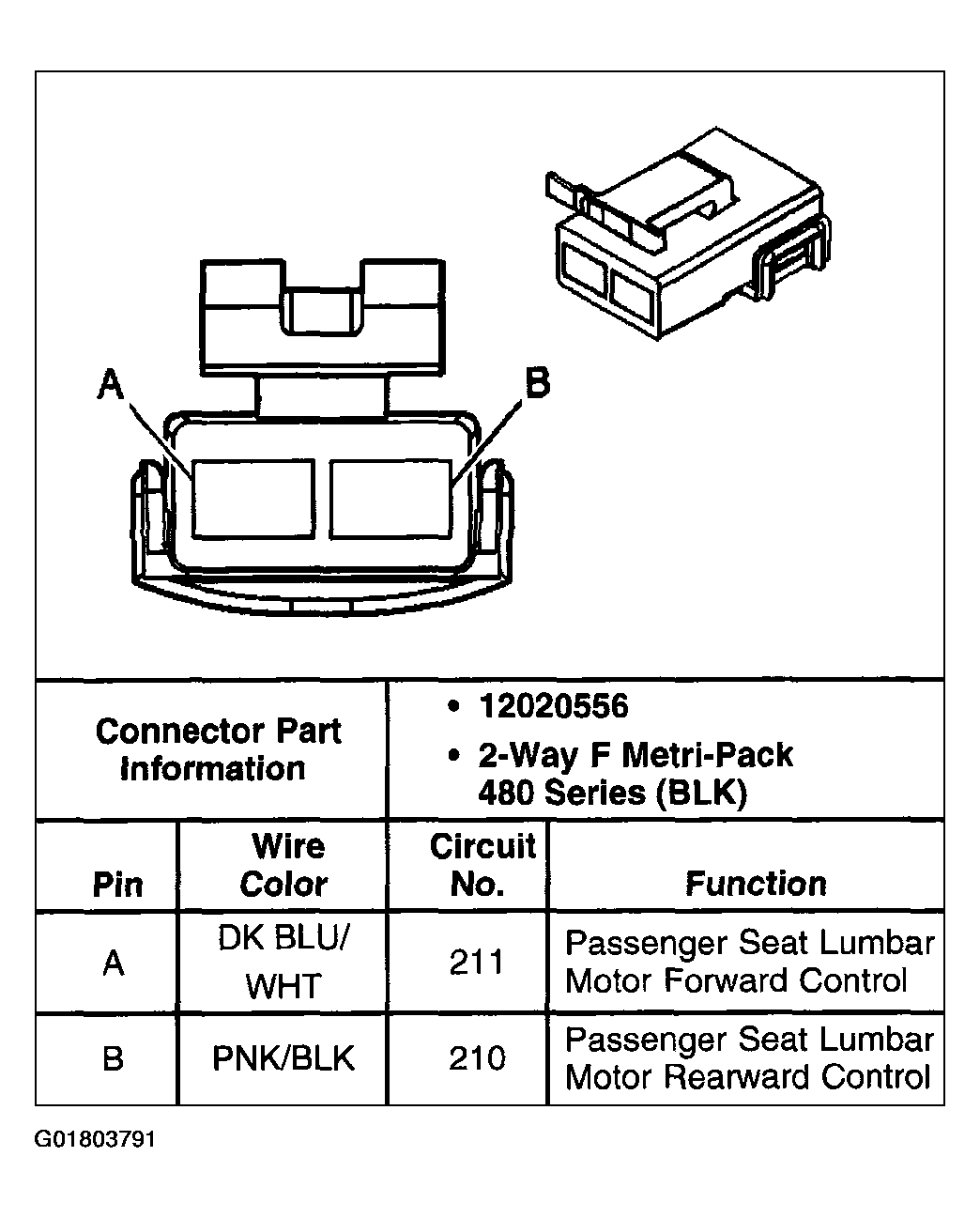

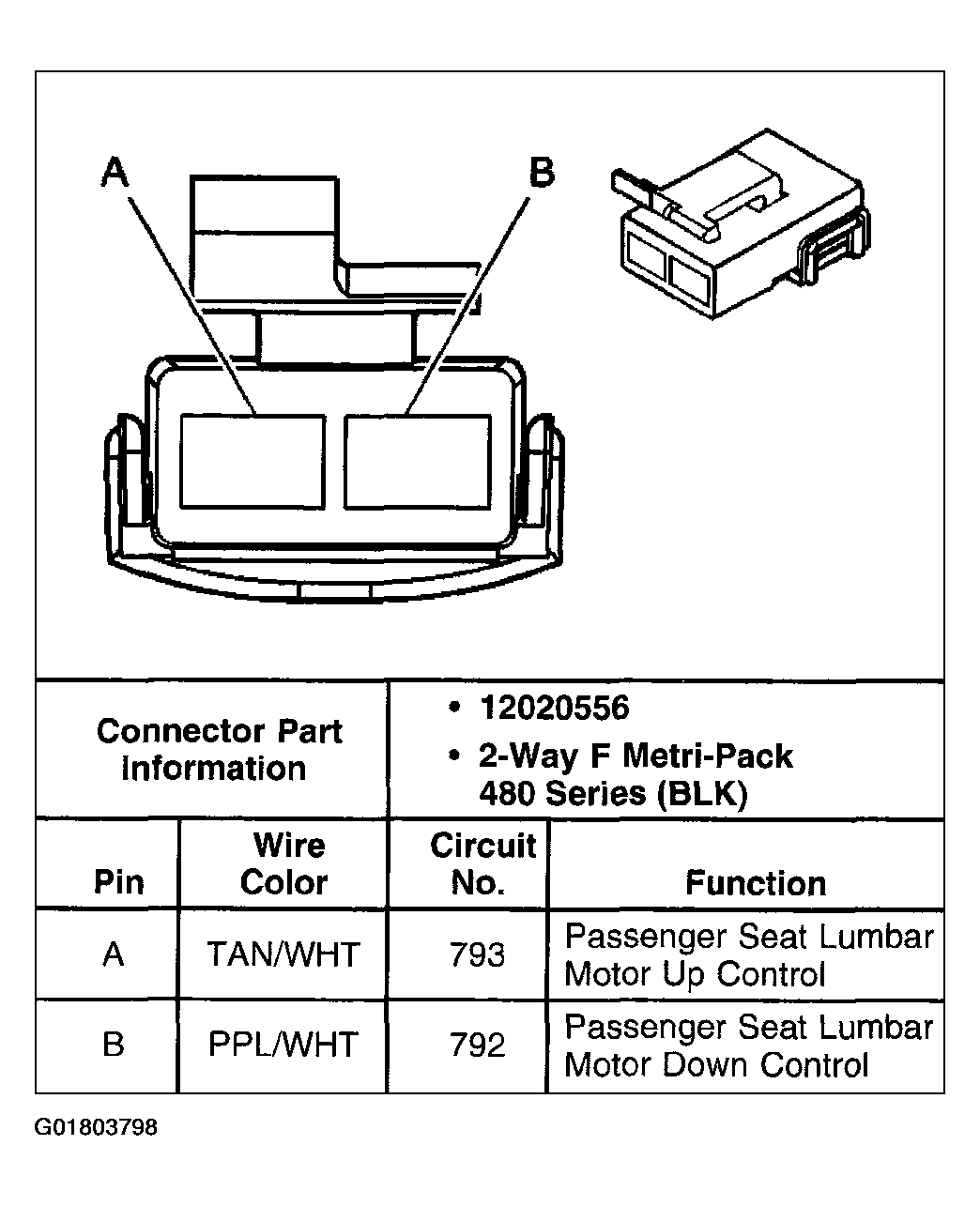

Fig 36: Seat Lumbar Vertical Motor - Front Passenger
Courtesy of GENERAL MOTORS CORP.

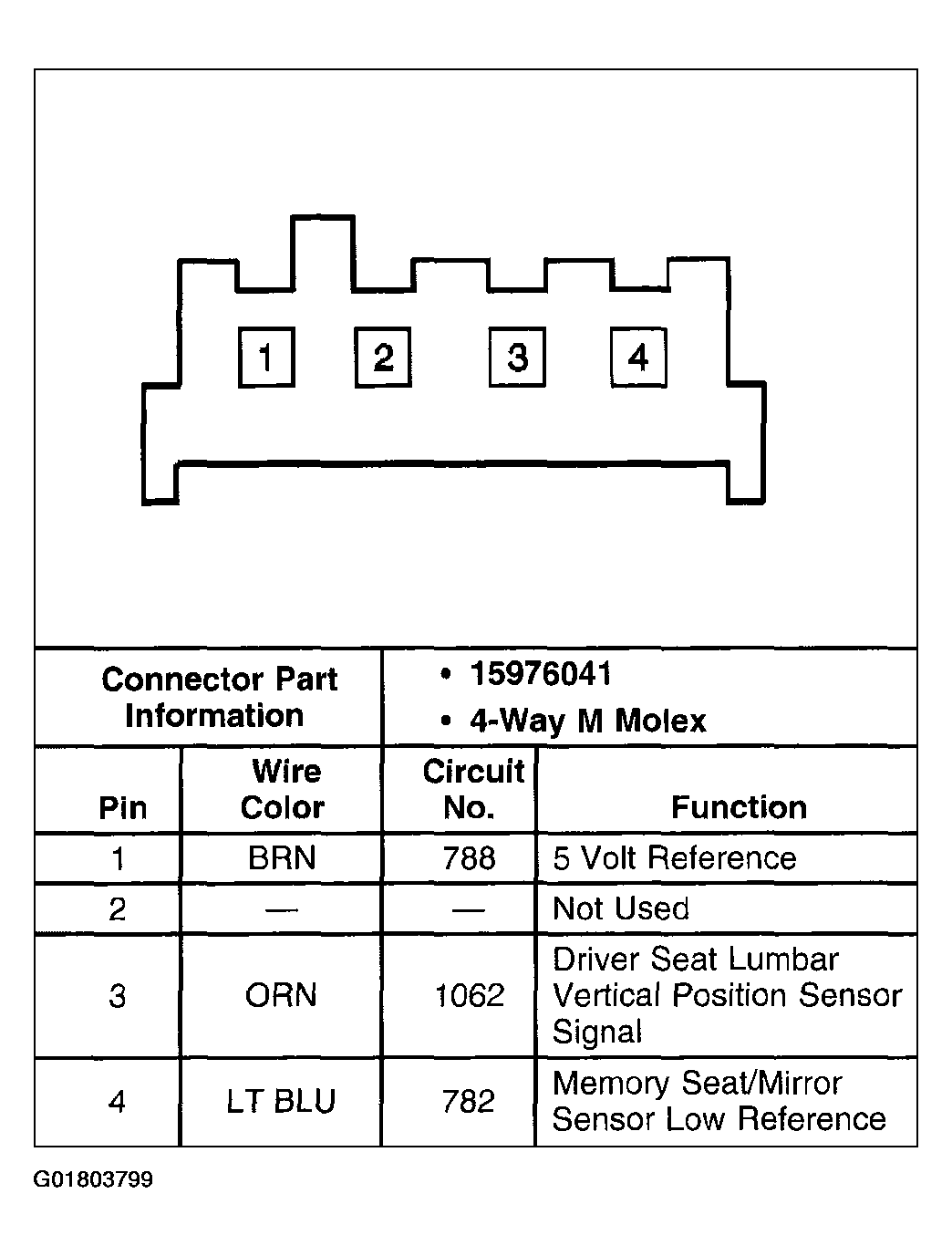

Fig 37: Seat Lumbar Vertical Position Sensor - Driver
Courtesy of GENERAL MOTORS CORP.

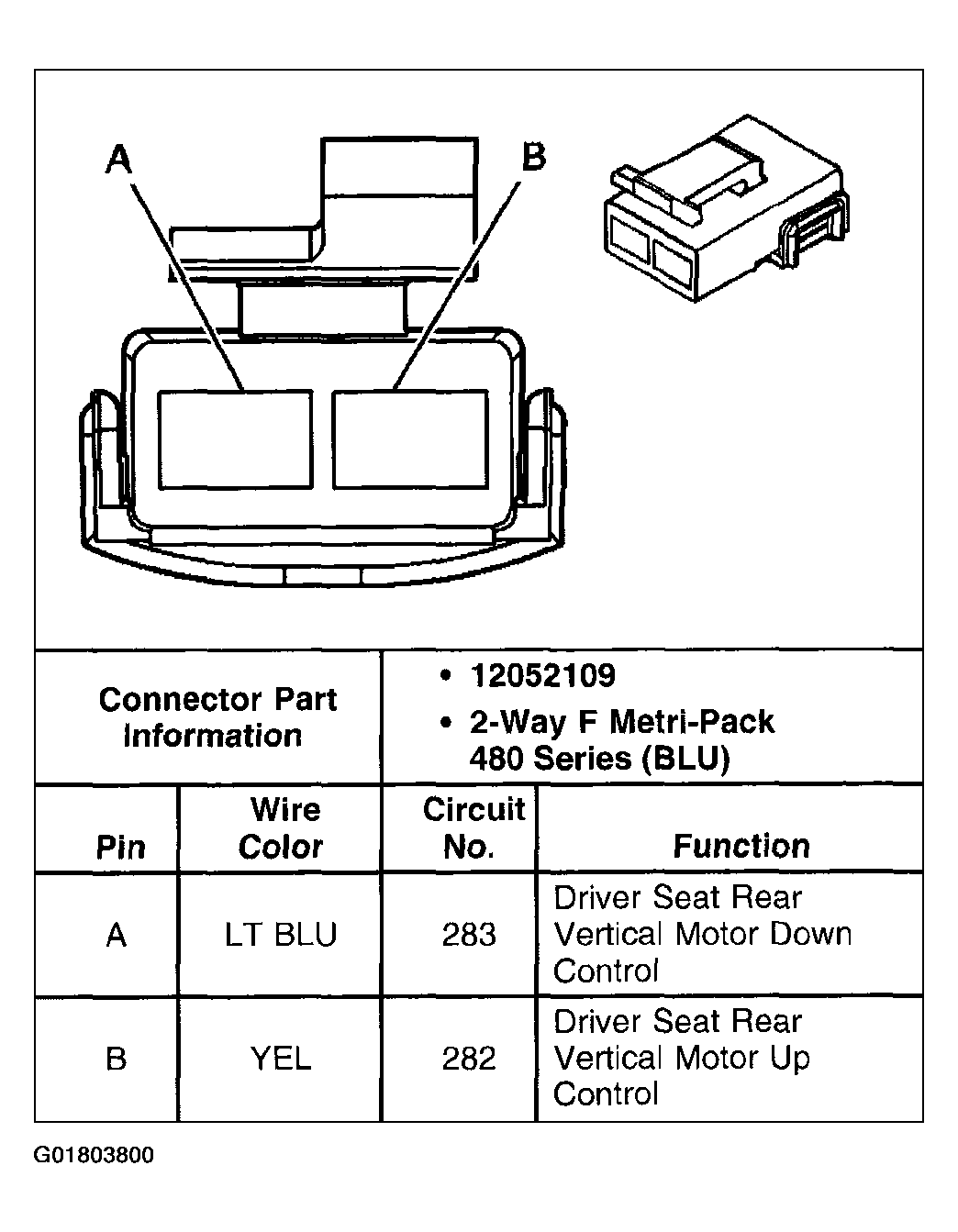

Fig 38: Seat Rear Vertical Motor - Driver
Courtesy of GENERAL MOTORS CORP.

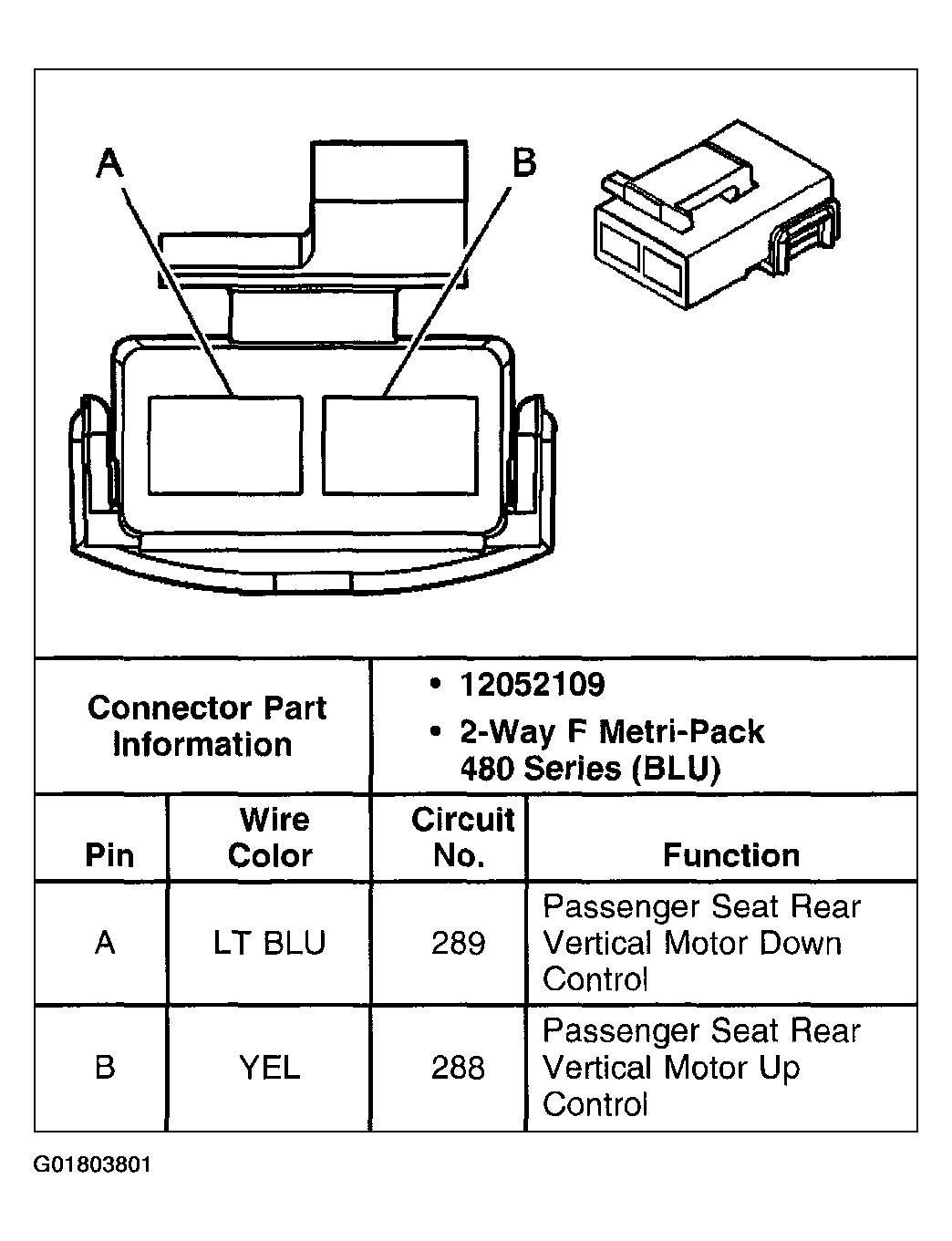

Fig 39: Seat Rear Vertical Motor - Front Passenger
Courtesy of GENERAL MOTORS CORP.

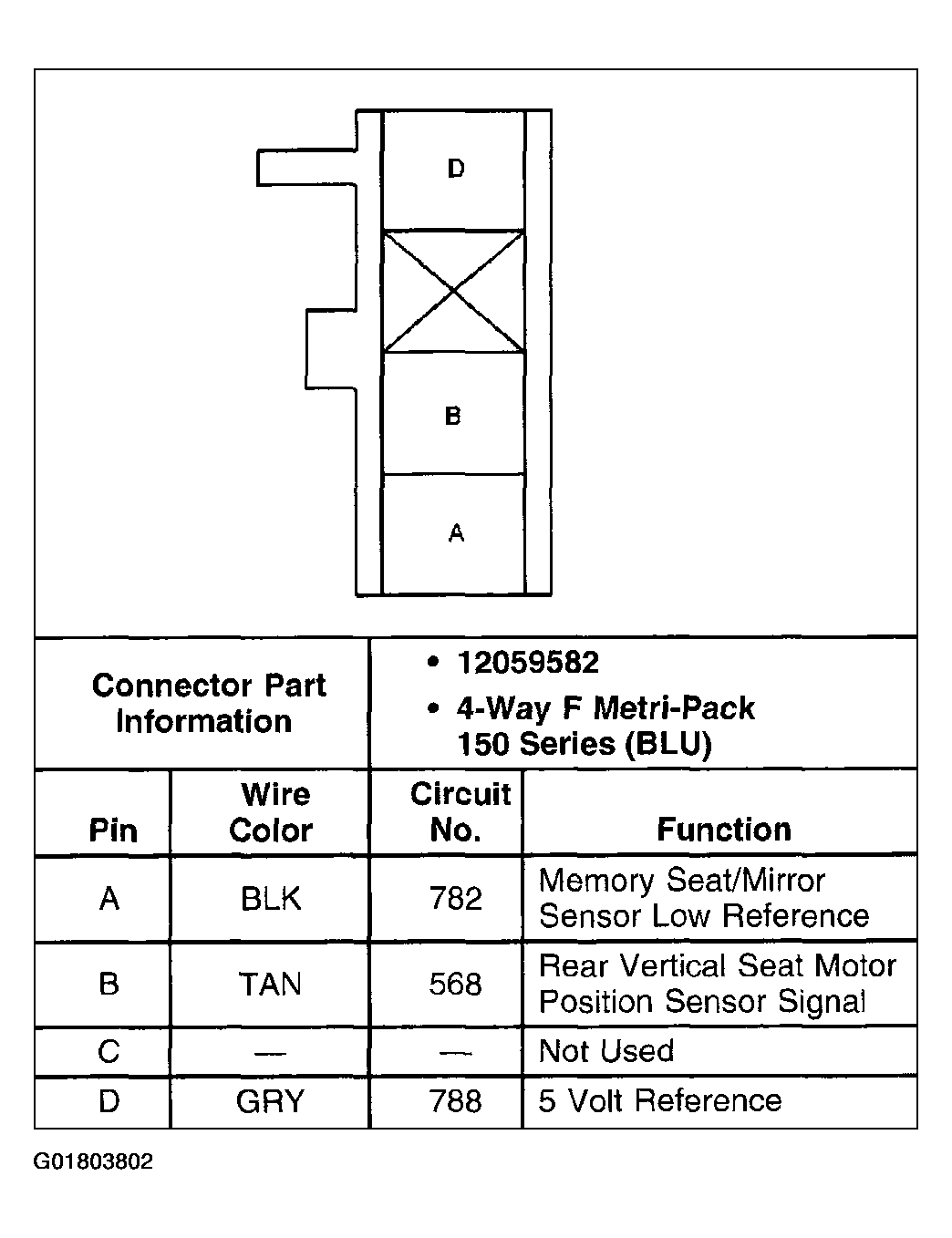

Fig 40: Seat Rear Vertical Position Sensor - Driver (w/A45, Memory Seat)
Courtesy of GENERAL MOTORS CORP.

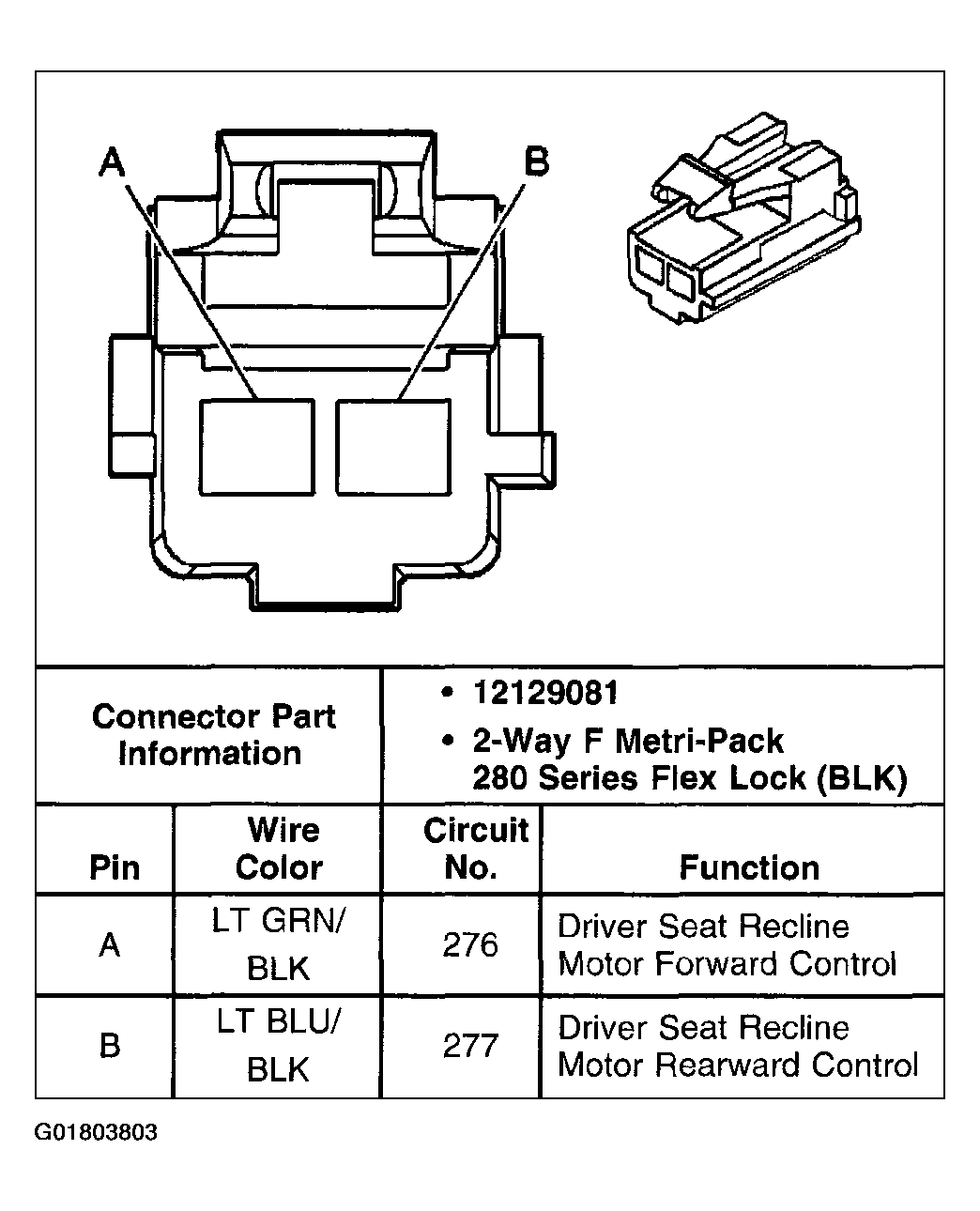

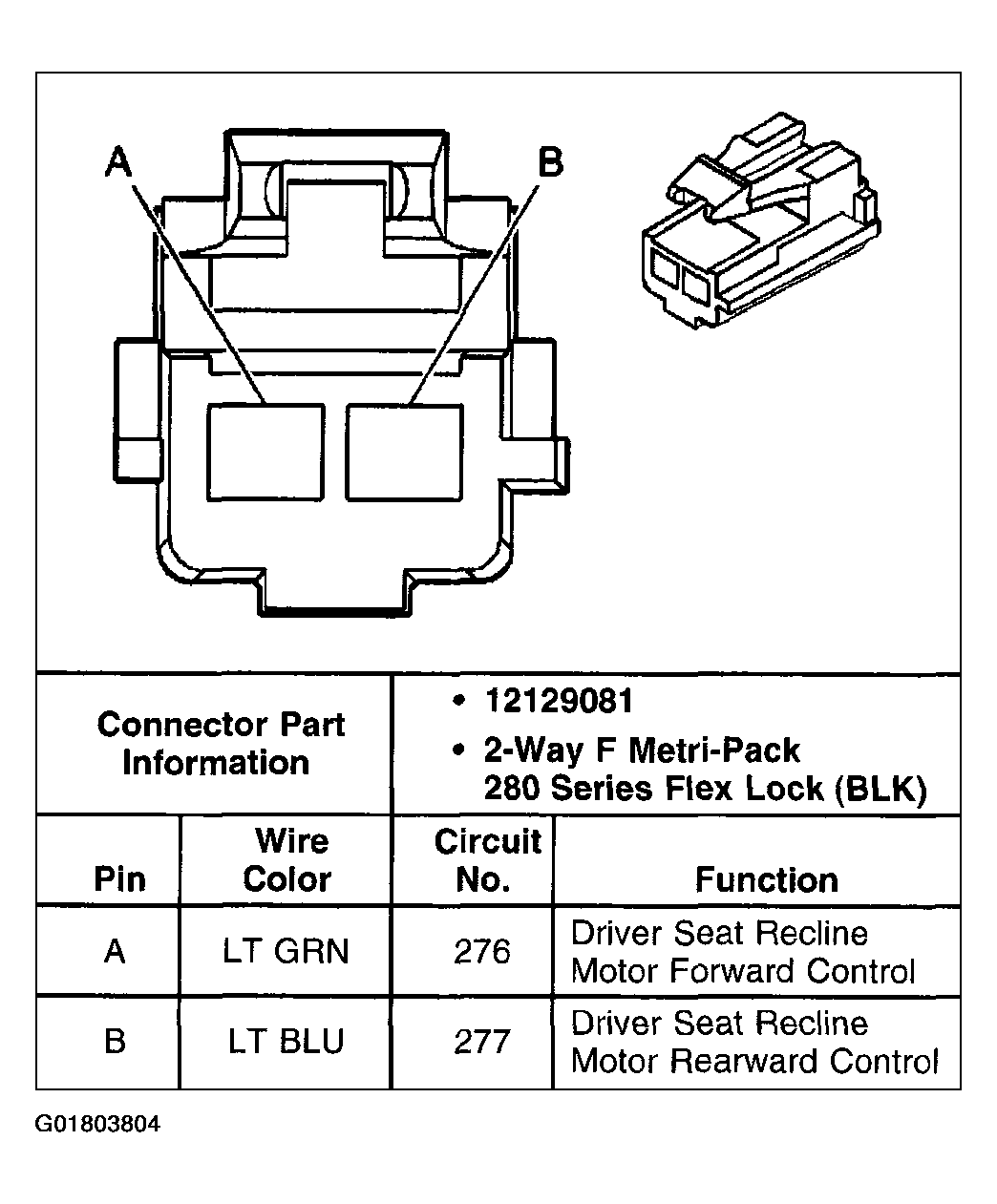

Fig 41: Seat Recline Motor - Driver (w/A45, Memory Seat)
Courtesy of GENERAL MOTORS CORP.
Fig 42: Seat Recline Motor - Driver (w/AG1, Power Seats)
Courtesy of GENERAL MOTORS CORP.

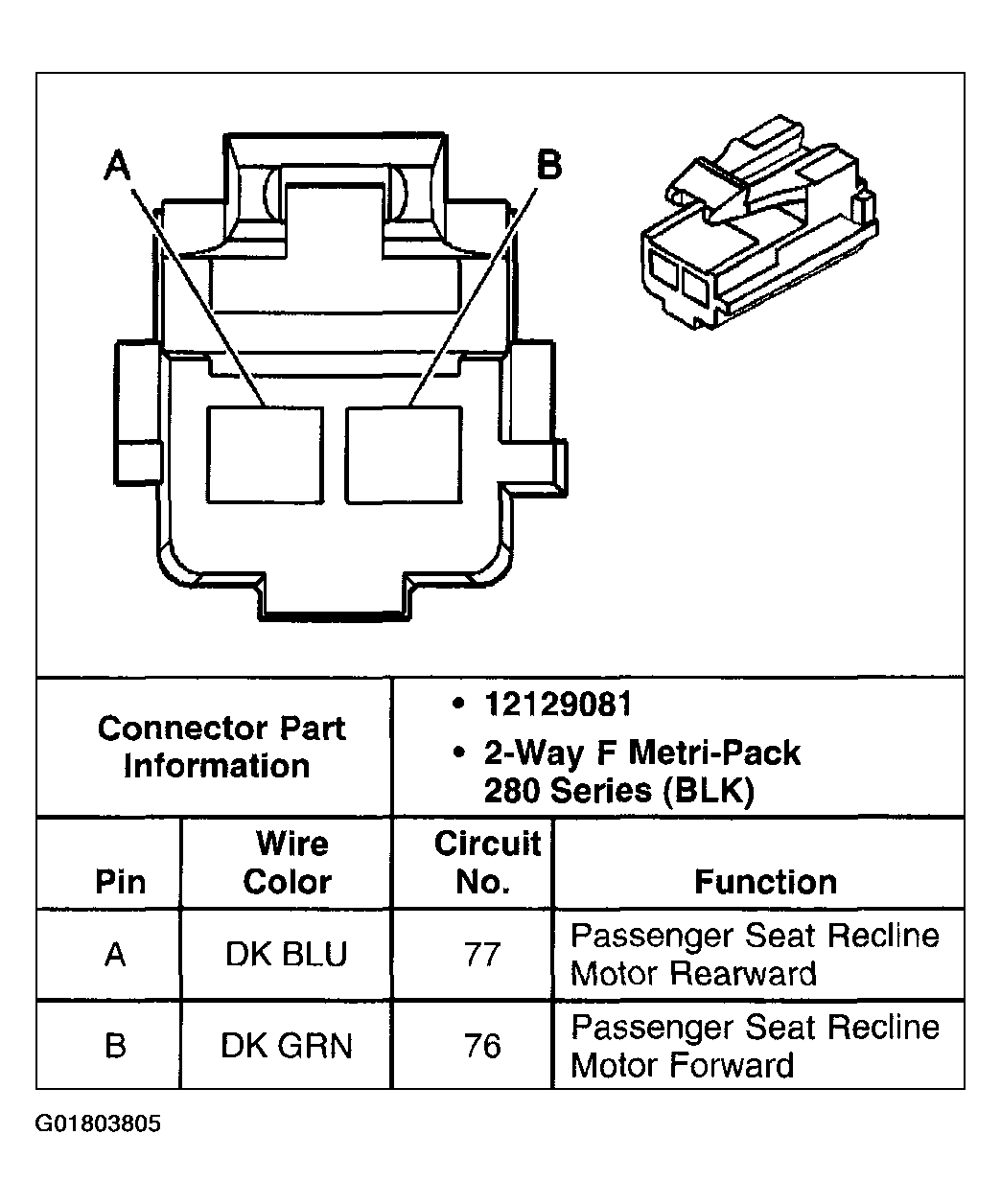

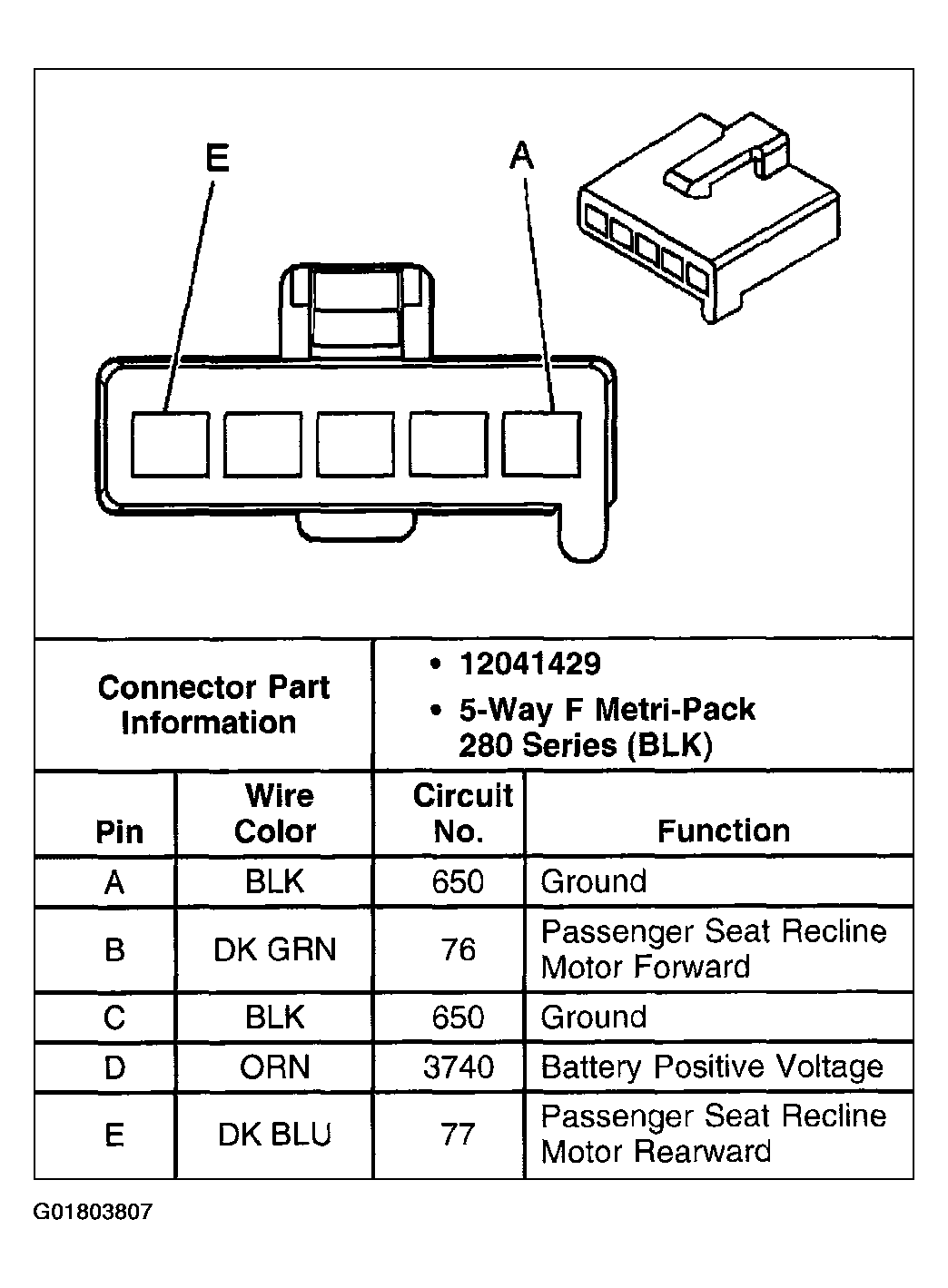

Fig 43: Seat Recline Motor - Front Passenger
Courtesy of GENERAL MOTORS CORP.

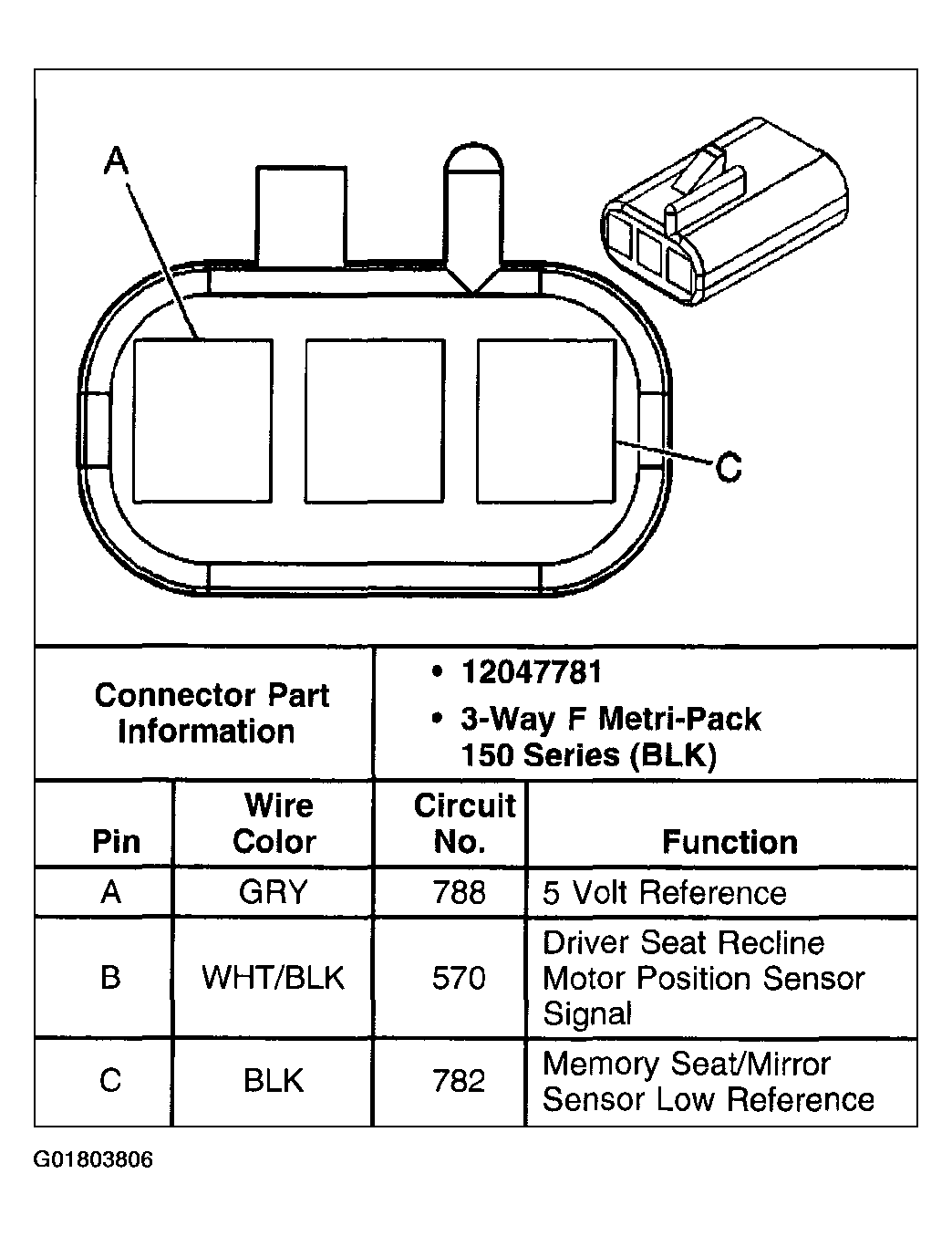

Fig 44: Seat Recline Position Sensor - Driver (w/A45, Power Seats)
Courtesy of GENERAL MOTORS CORP.
Fig 45: Seat Recline Switch - Front Passenger
Courtesy of GENERAL MOTORS CORP.

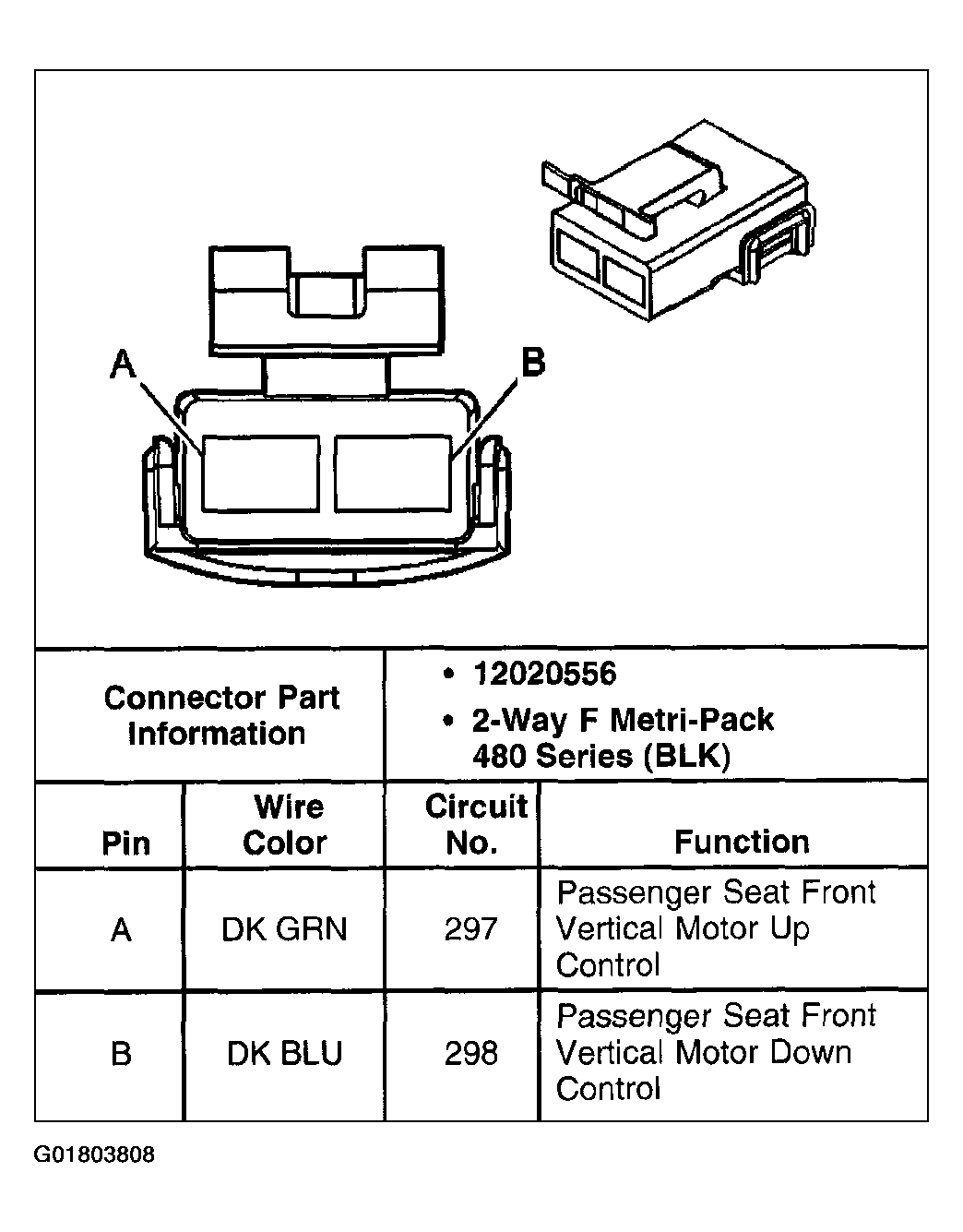

Fig 46: Seat Vertical Motor - Front Passenger
Courtesy of GENERAL MOTORS CORP.
