Test Description

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

The number(s) below refer to the step number(s) on the diagnostic table.

3.This step verifies that the personalization option is active.
4. Turning ON the headlamps switch in this step eliminates the possibility of the memory function switch finding an alternative path to ground through the illumination circuit.
7. If the fuse in the jumper wire opens when you perform this test, the signal circuit is shorted to battery voltage.
9. If the fuse in the jumper wire opens when you perform this test, the signal circuit is shorted to battery voltage.

Fig 1: Memory Seat Feature Inoperative (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

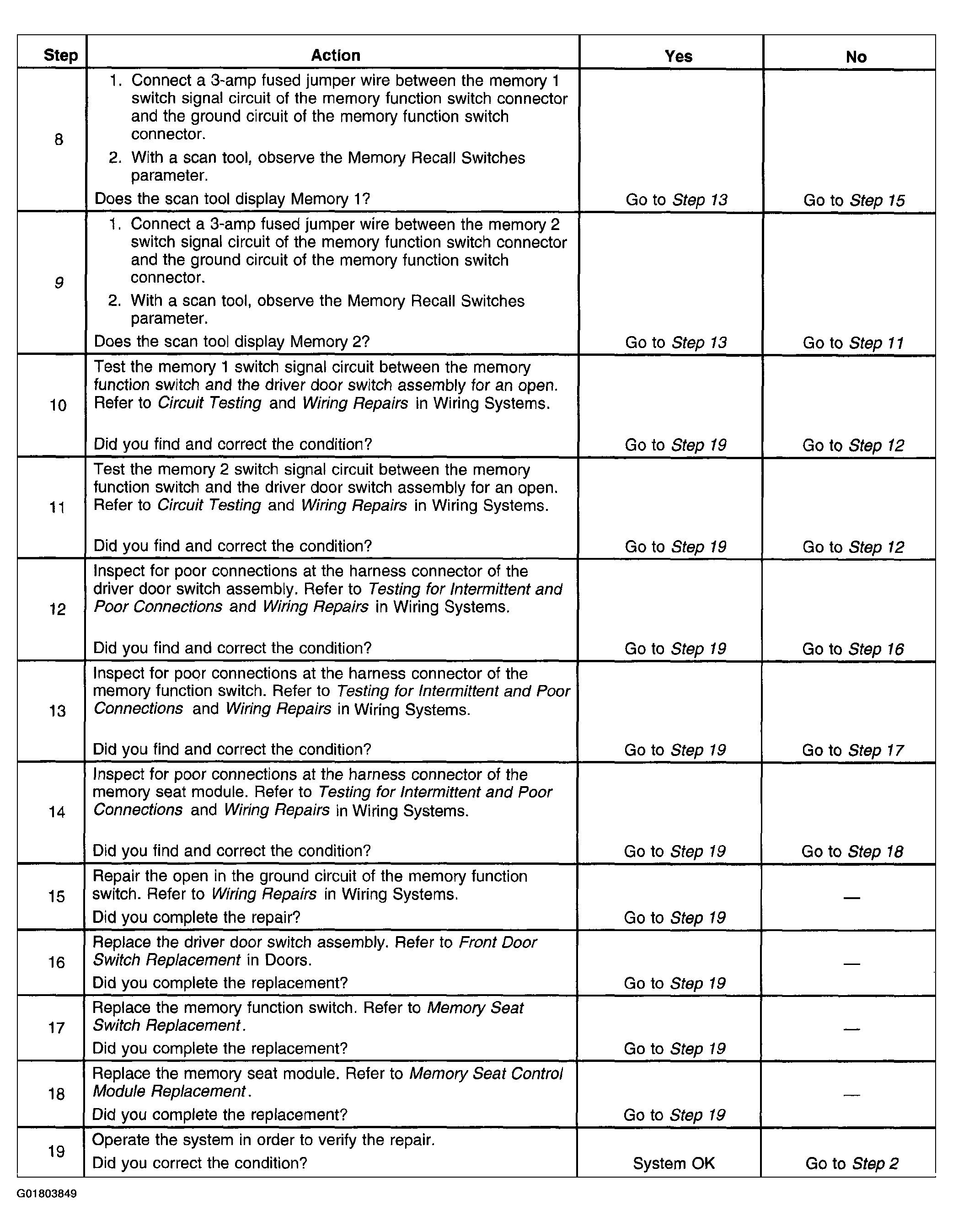

Fig 2: Memory Seat Feature Inoperative (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
