Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to SIR HANDLING CAUTION in Cautions and Notices.
  1. Disable the SIR system. Refer to DISABLING SYSTEM in SIR.
  2. Remove the fasteners securing the seat cushion to the adjuster track. Refer to Seat Cushion Replacement - Front  .
  3. Lift the front of the seat cushion up in order to gain access to the heated seat module (1).

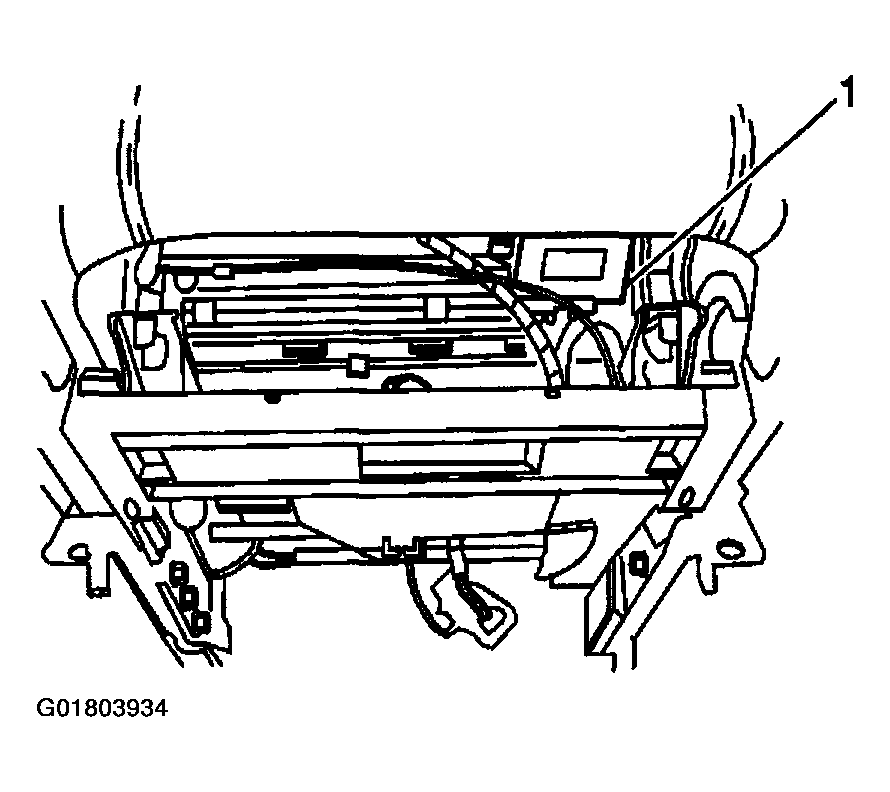

    Fig 1: Locating Heated Seat Module
    G01803934Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to ELECTRICAL WIRING ROUTING NOTICE in Cautions and Notices.
  4. Disconnect the electrical connectors (3) from the heated seat module.
  5. Remove the fasteners (1) securing the heated seat module to the bottom of the seat cushion.
  6. Remove the heated seat module (2) from the bottom of the seat cushion.

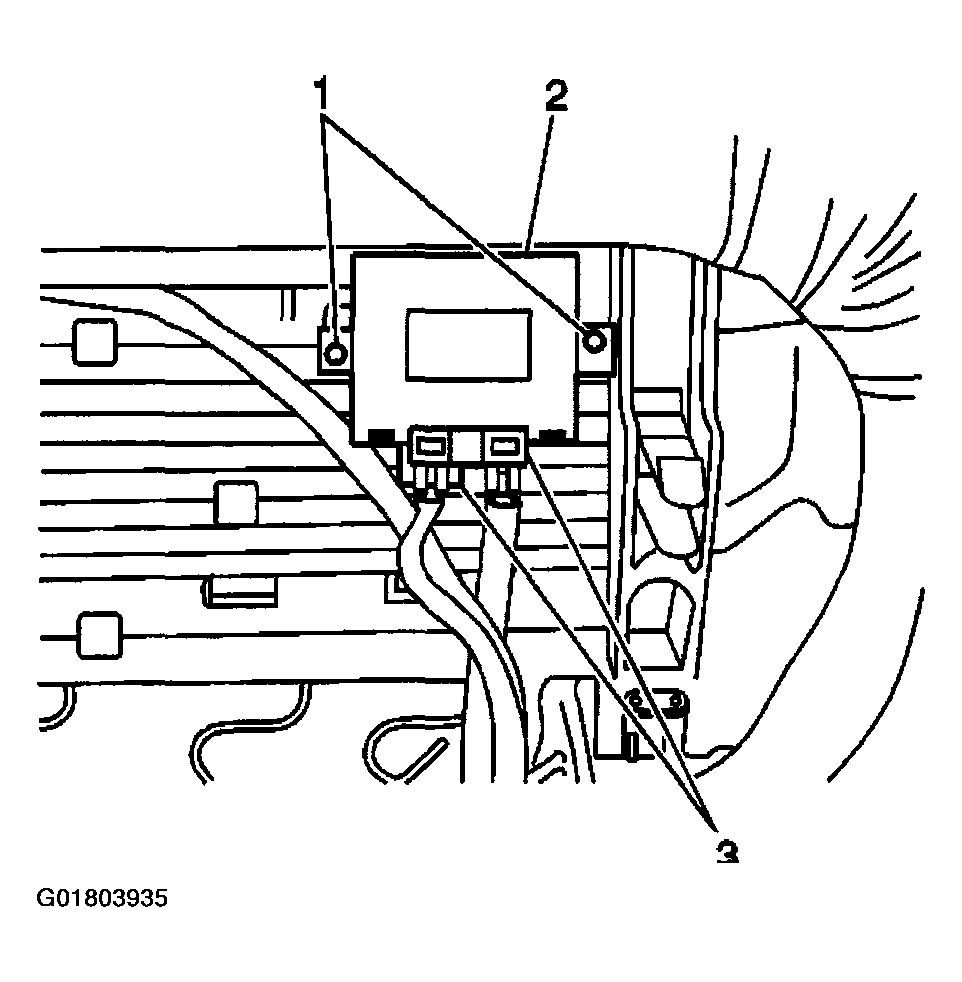

    Fig 2: Locating Heated Seat Module, Fasteners & Electrical Connectors
    G01803935Courtesy of GENERAL MOTORS CORP.
