Scan Tool Output Controls

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

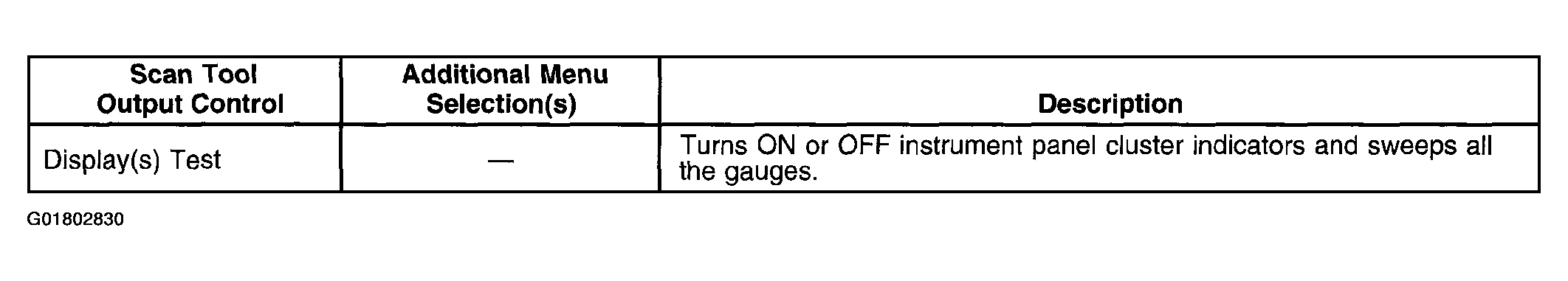

Fig 1: Dash Integration Module (DIM)

Courtesy of GENERAL MOTORS CORP.

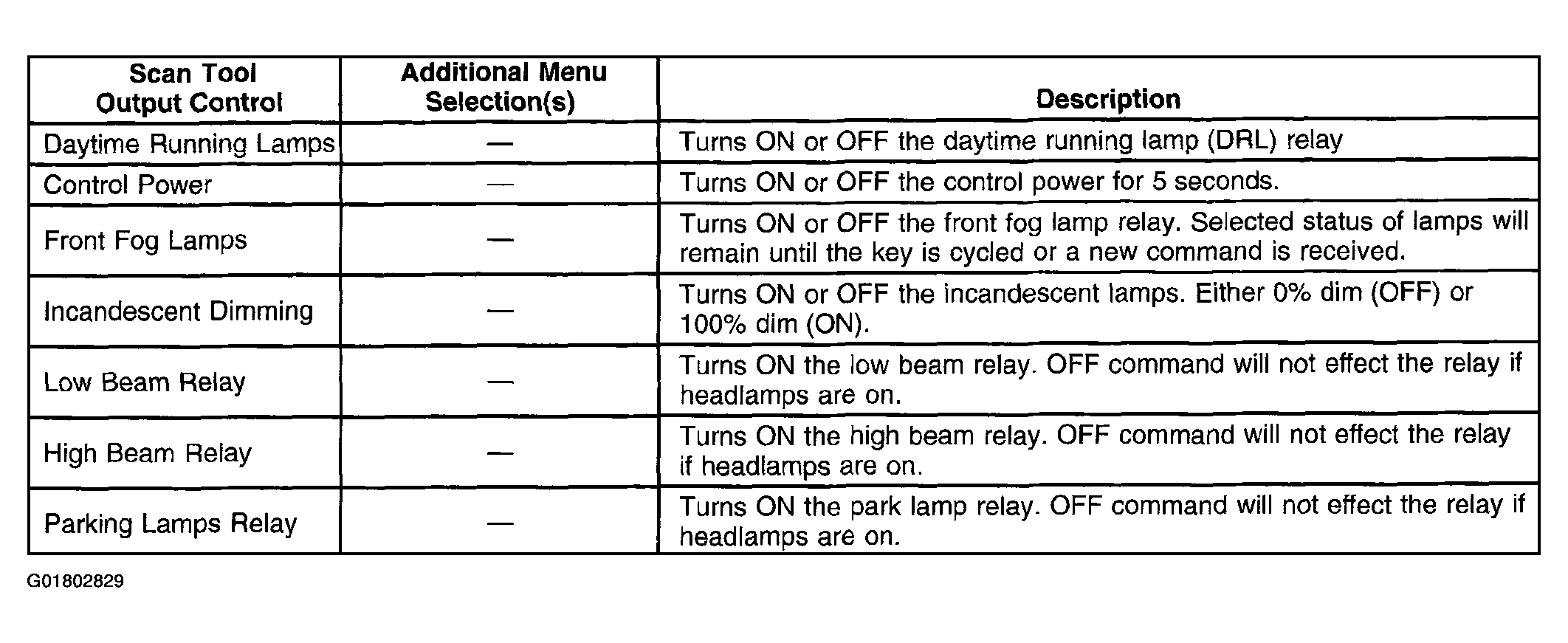

Fig 2: Instrument Panel Cluster (IPC)

Courtesy of GENERAL MOTORS CORP.

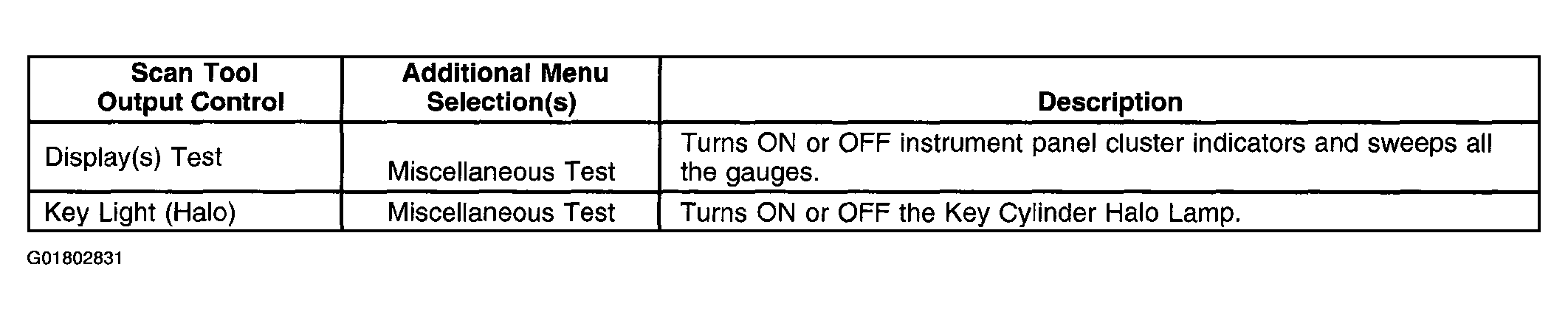

Fig 3: Instrument Panel Module (IPM)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Rear Integration Module (RIM)

Courtesy of GENERAL MOTORS CORP.
