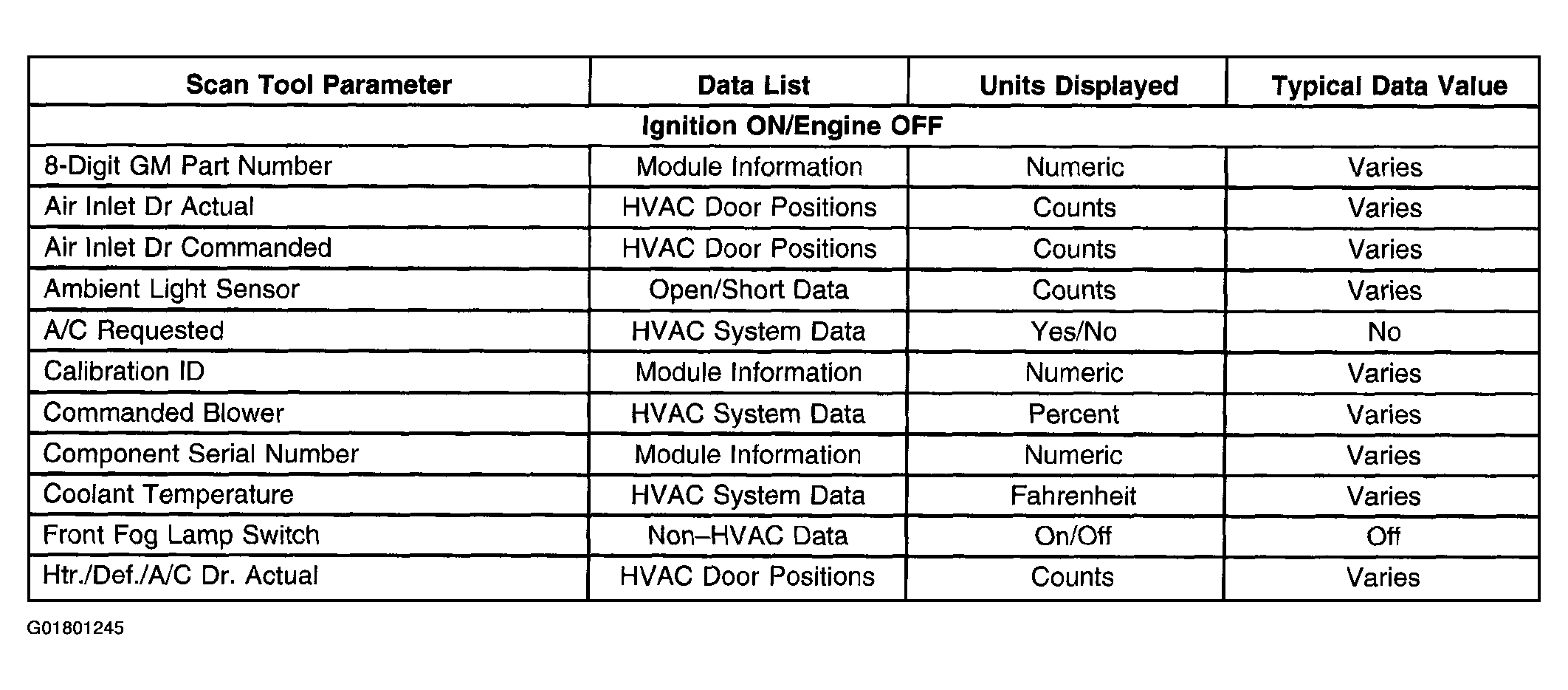

Fig 1: Scan Tool Data List - Dash Integration Module (DIM) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

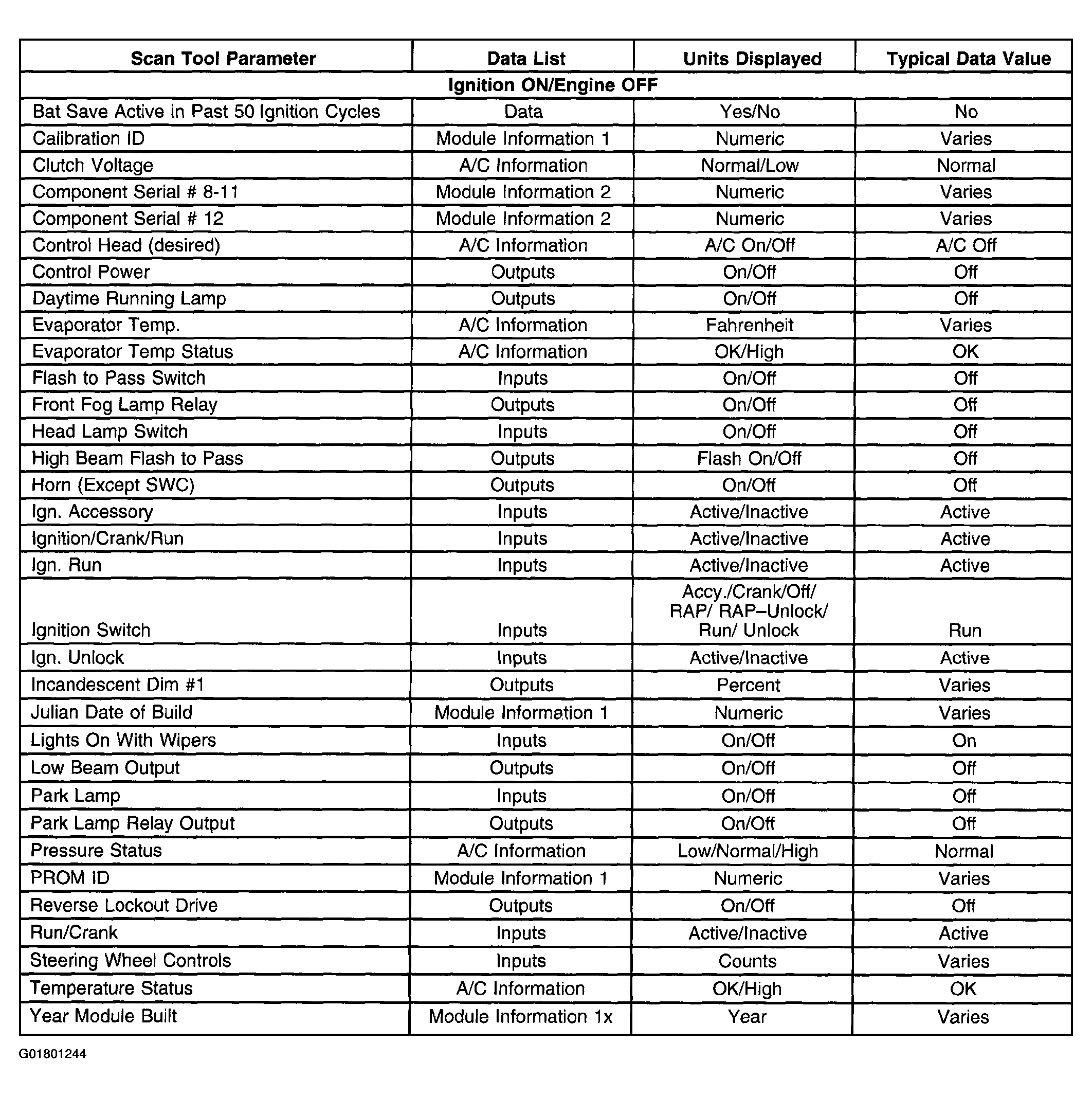

Fig 2: Scan Tool Data List - Dash Integration Module (DIM) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

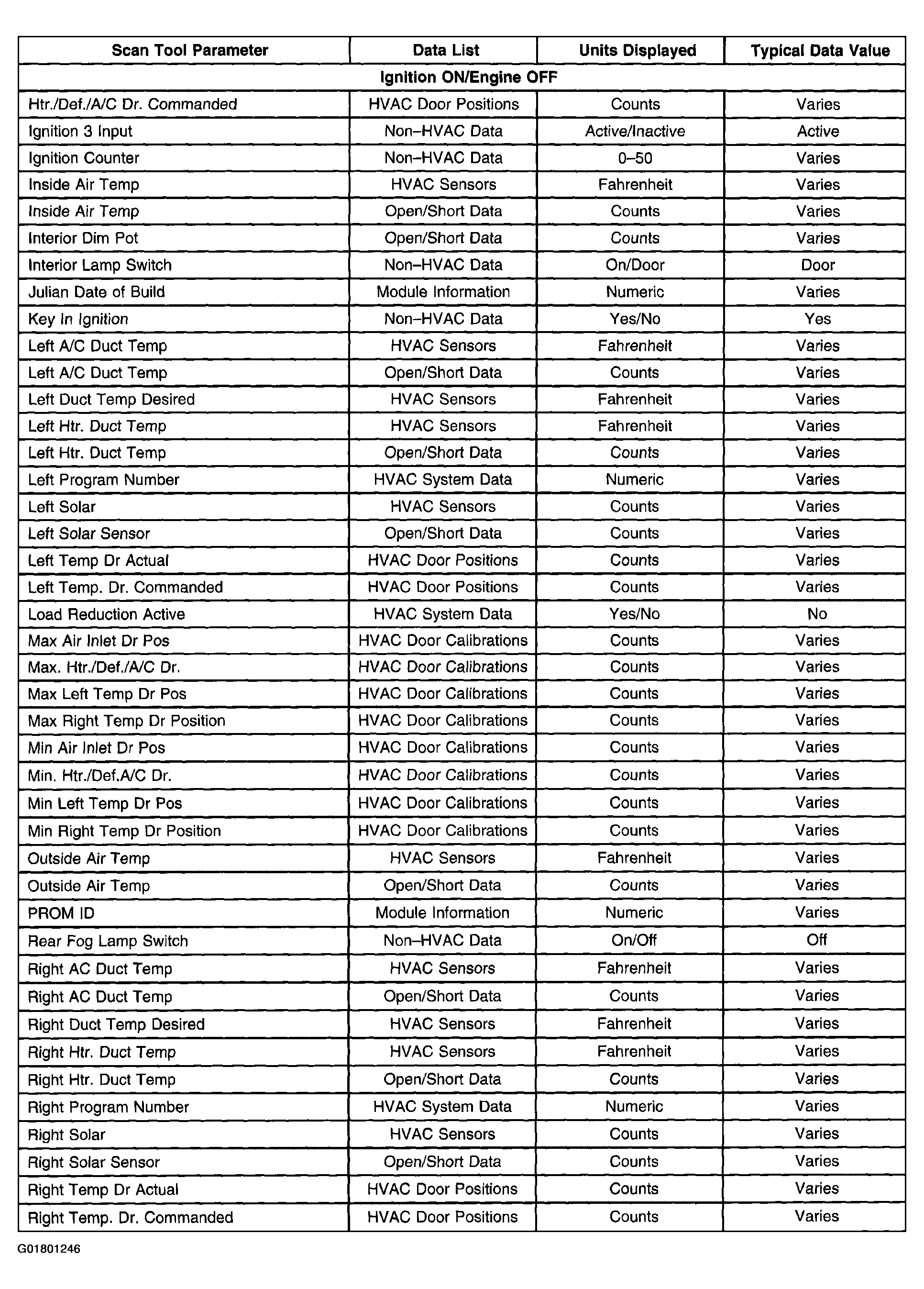

Fig 3: Scan Tool Data List - Instrument Panel Module (IPM) (1 Of 3)
Courtesy of GENERAL MOTORS CORP.

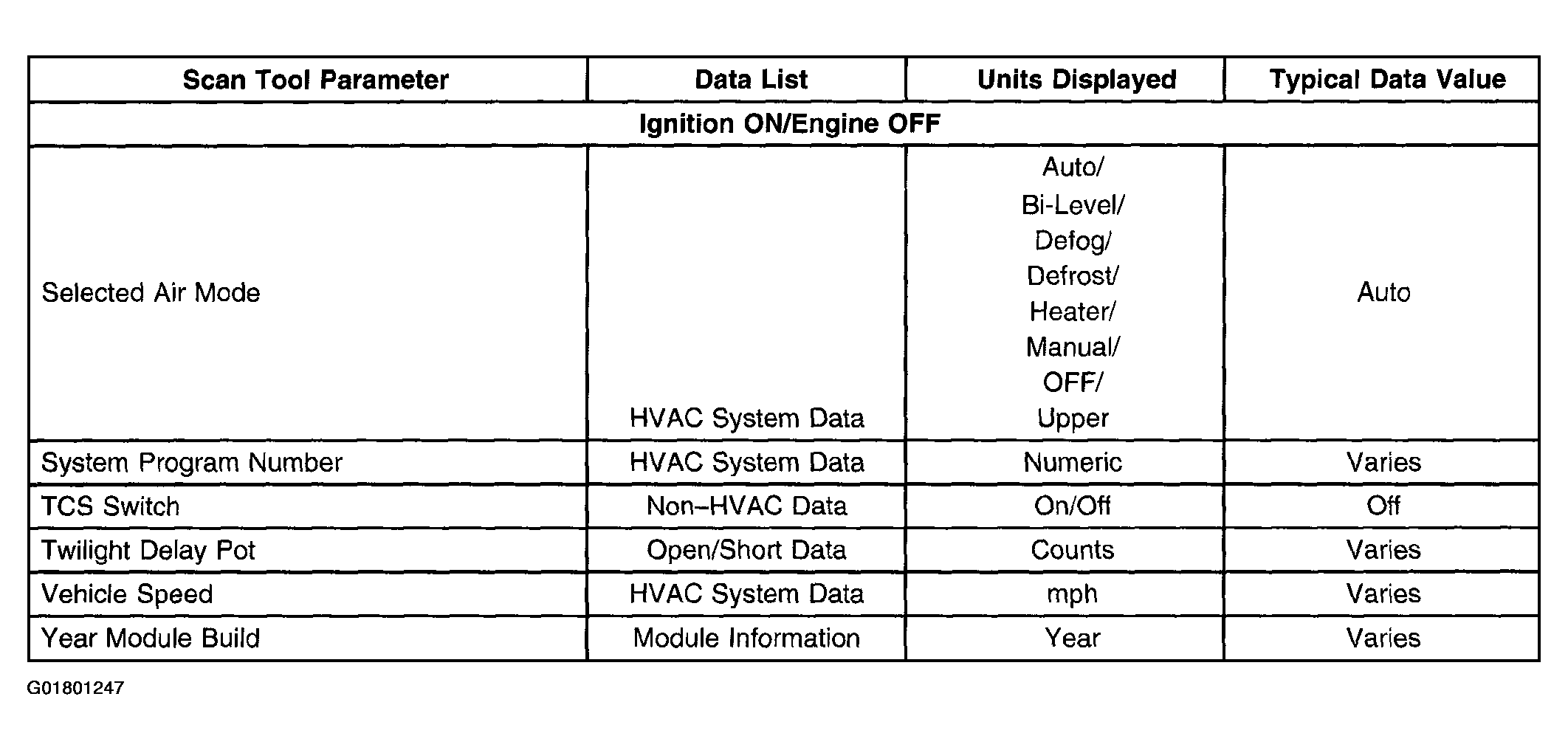

Fig 4: Scan Tool Data List - Instrument Panel Module (IPM) (2 Of 3)
Courtesy of GENERAL MOTORS CORP.

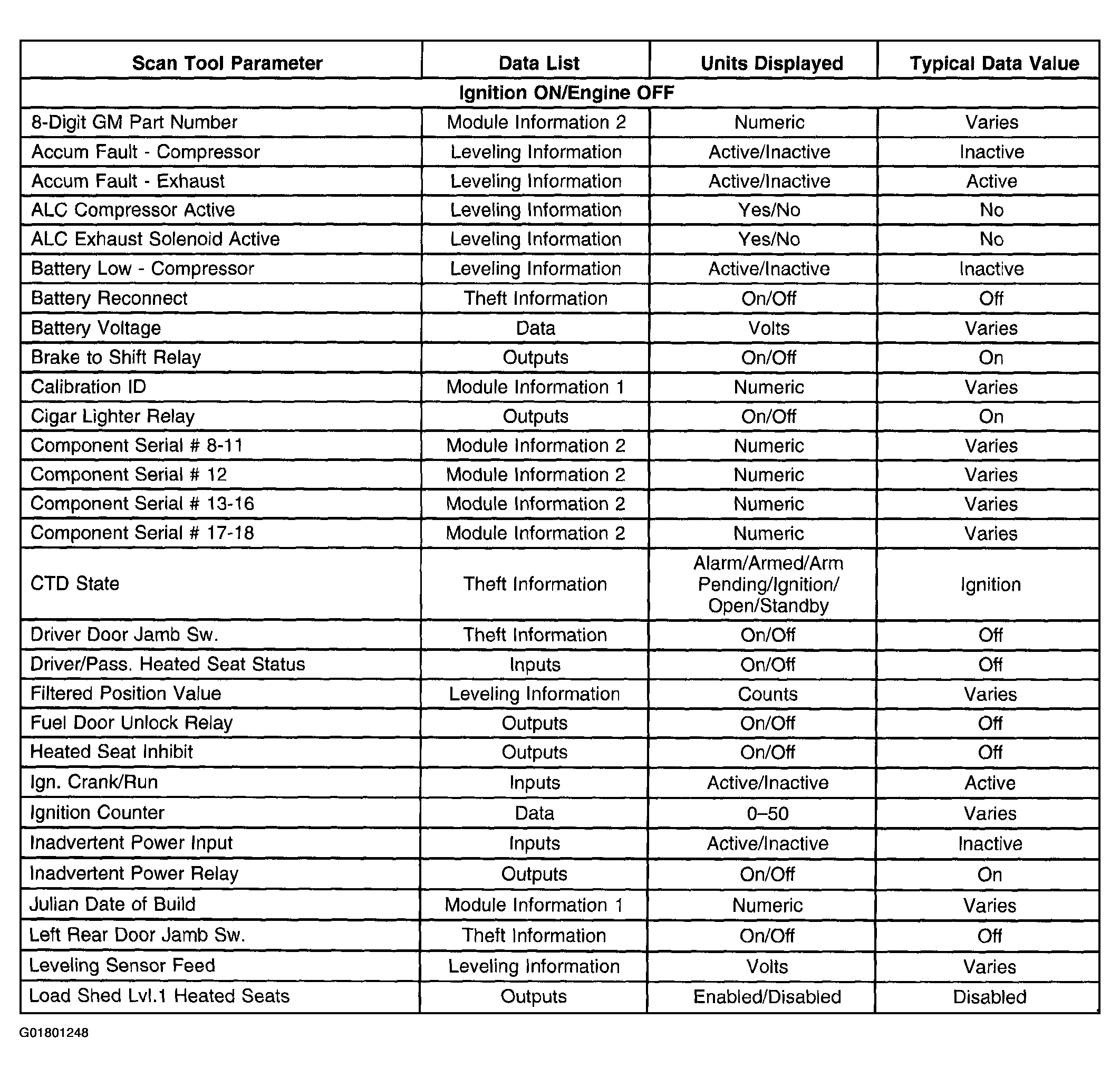

Fig 5: Scan Tool Data List - Instrument Panel Module (IPM) (3 Of 3)
Courtesy of GENERAL MOTORS CORP.

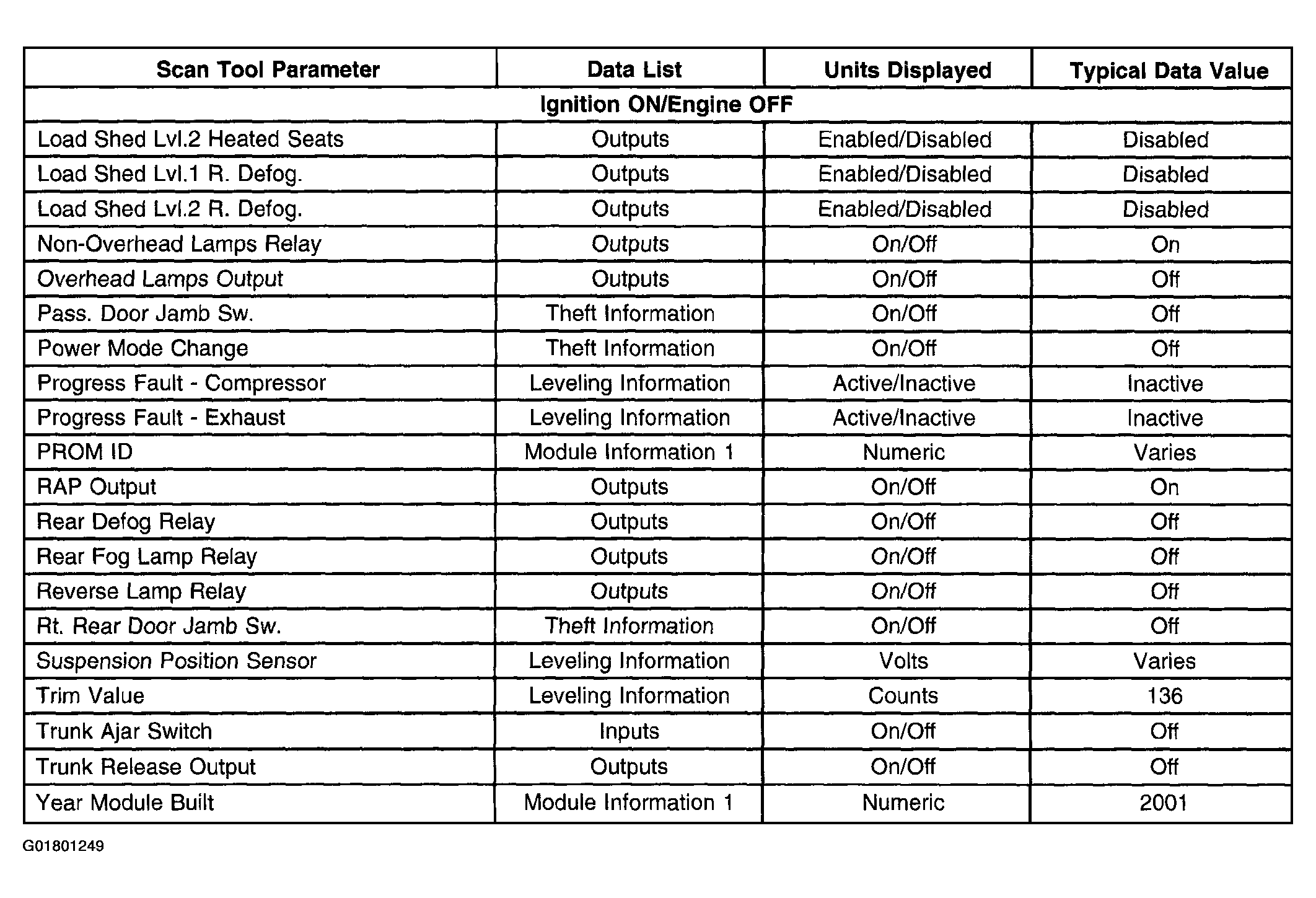

Fig 6: Scan Tool Data List - Rear Integration Module (RIM) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

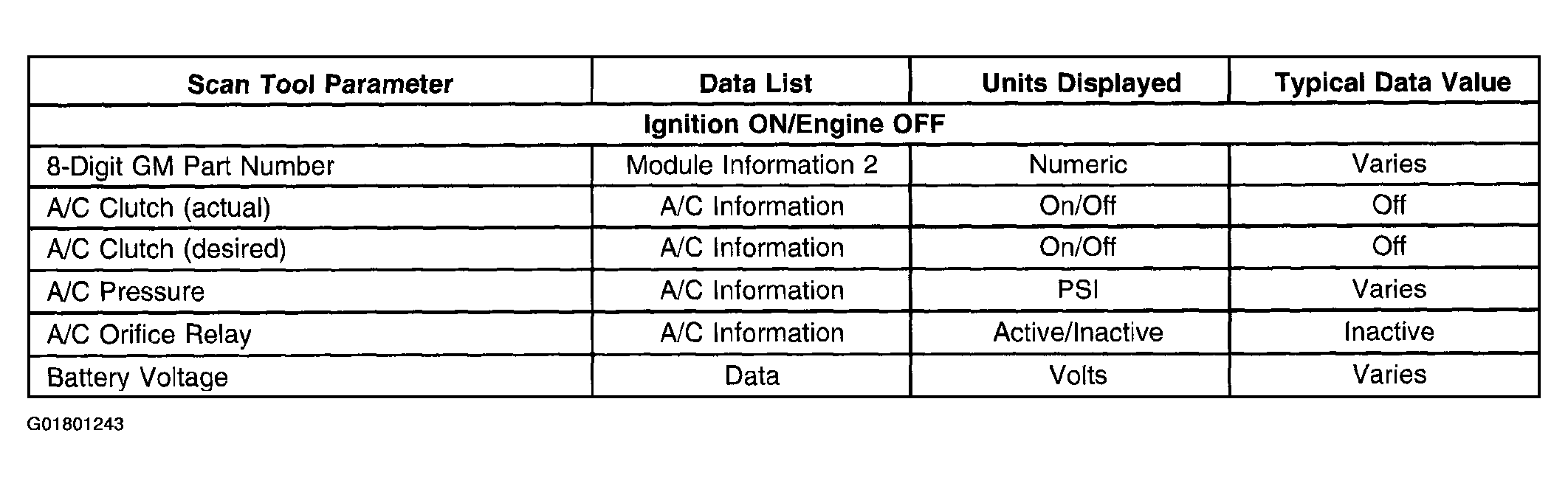

Fig 7: Scan Tool Data List - Rear Integration Module (RIM) (2 Of 2)
