Entertainment Component Views

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

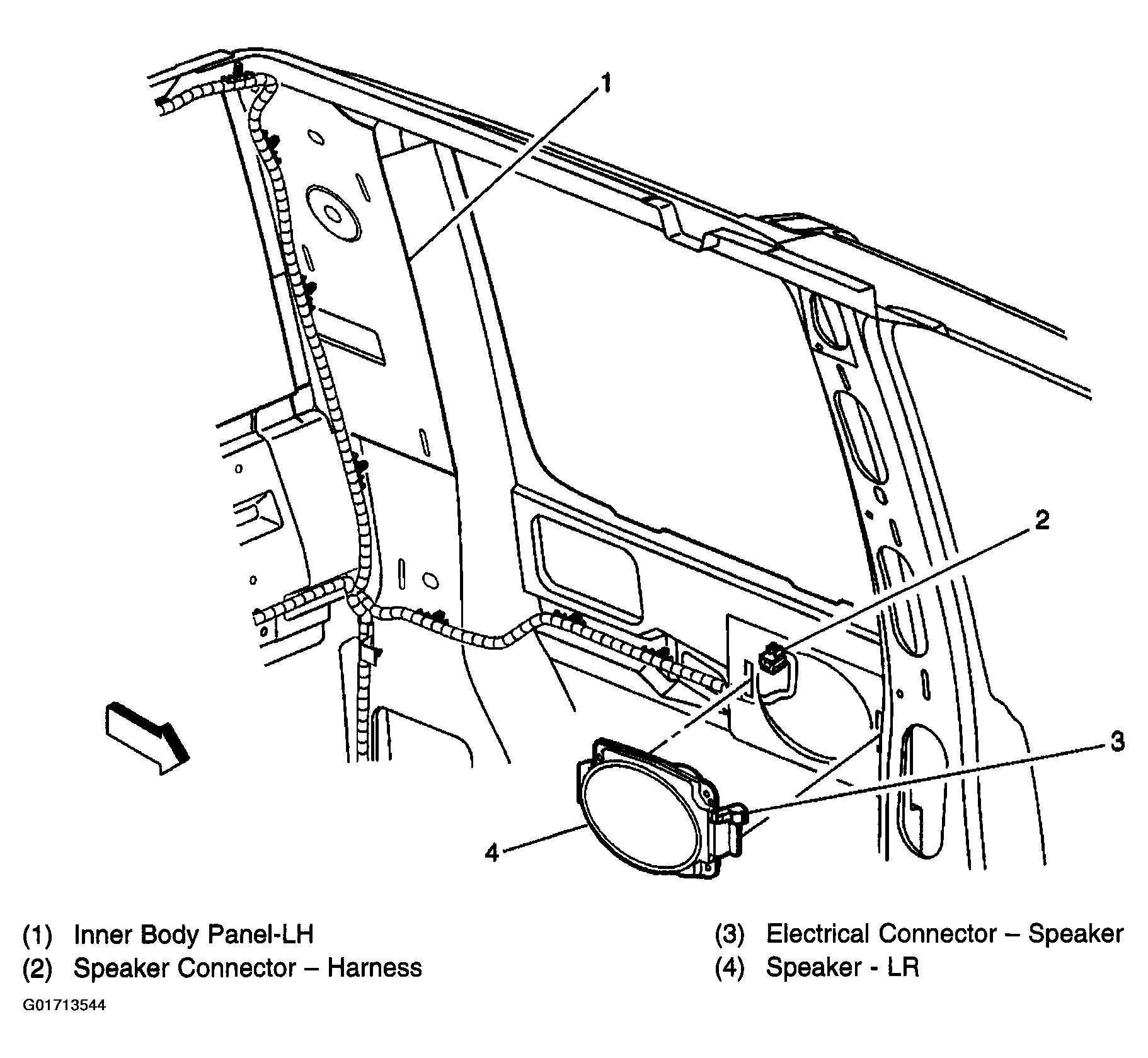

Fig 1: Locating LR Speaker (Extended Cab)

G01713544

Courtesy of GENERAL MOTORS CORP.

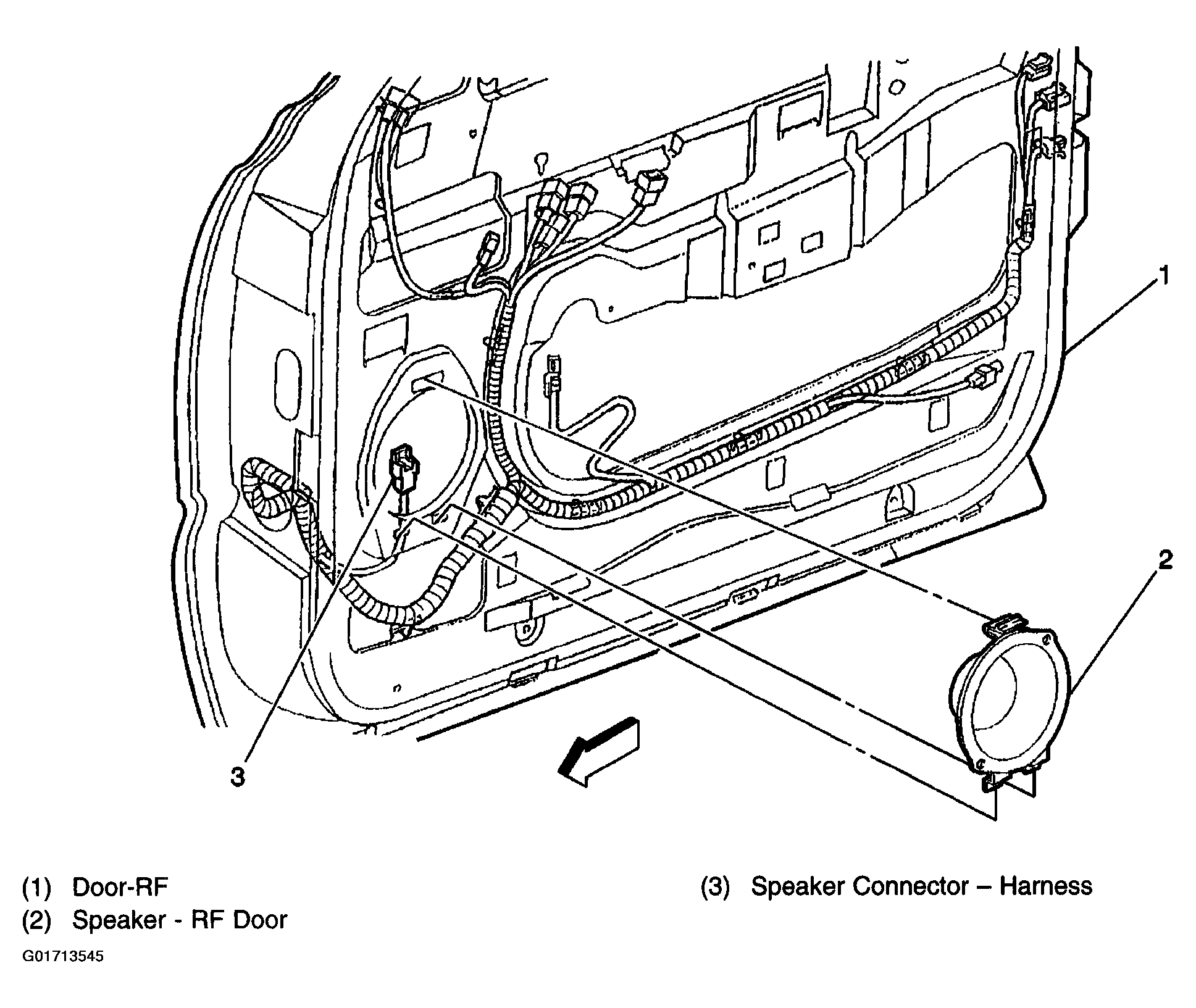

Fig 2: Locating RF Door Speaker (Base)

G01713545

Courtesy of GENERAL MOTORS CORP.

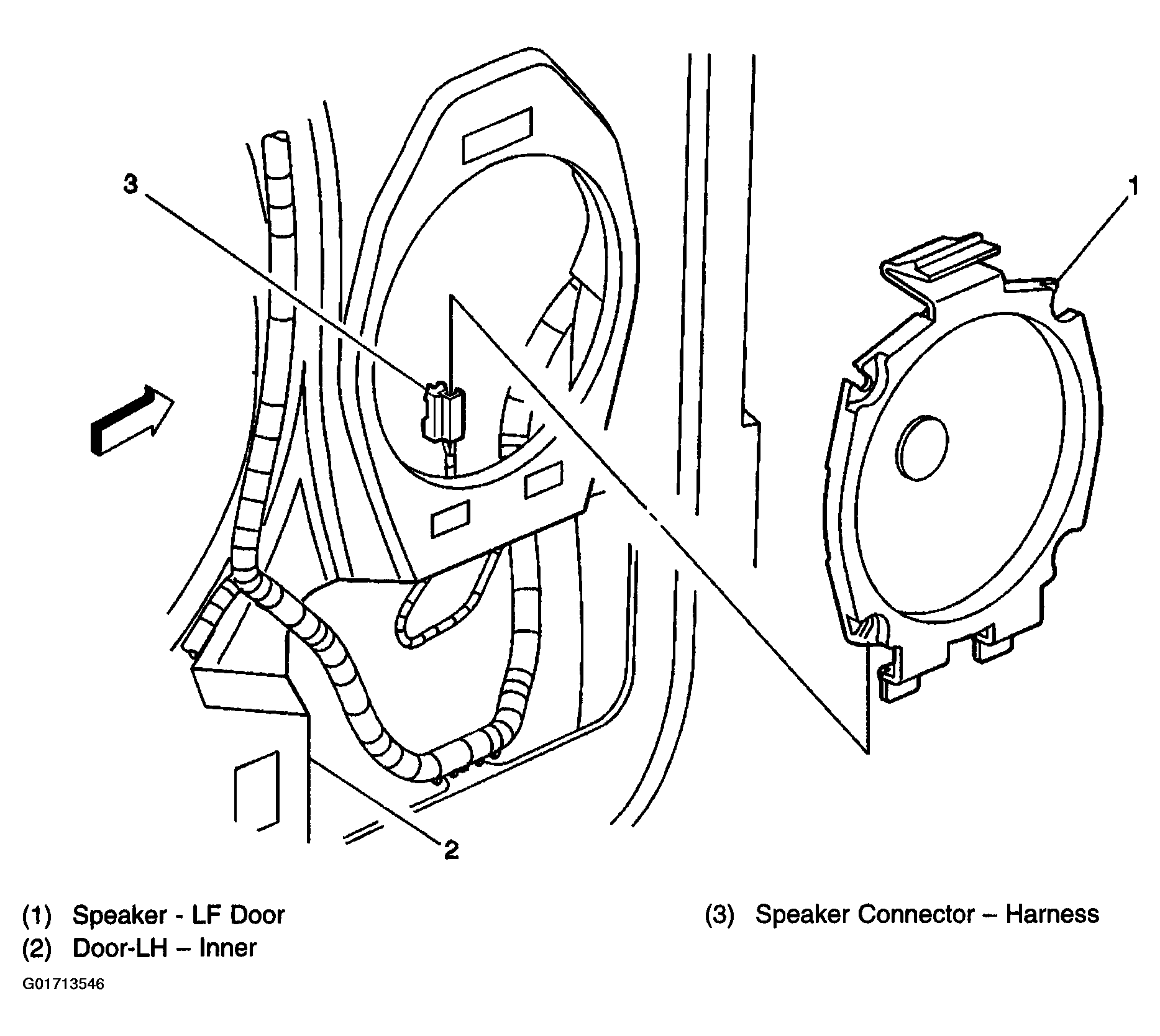

Fig 3: Locating LF Door Speaker (Base)

G01713546

Courtesy of GENERAL MOTORS CORP.

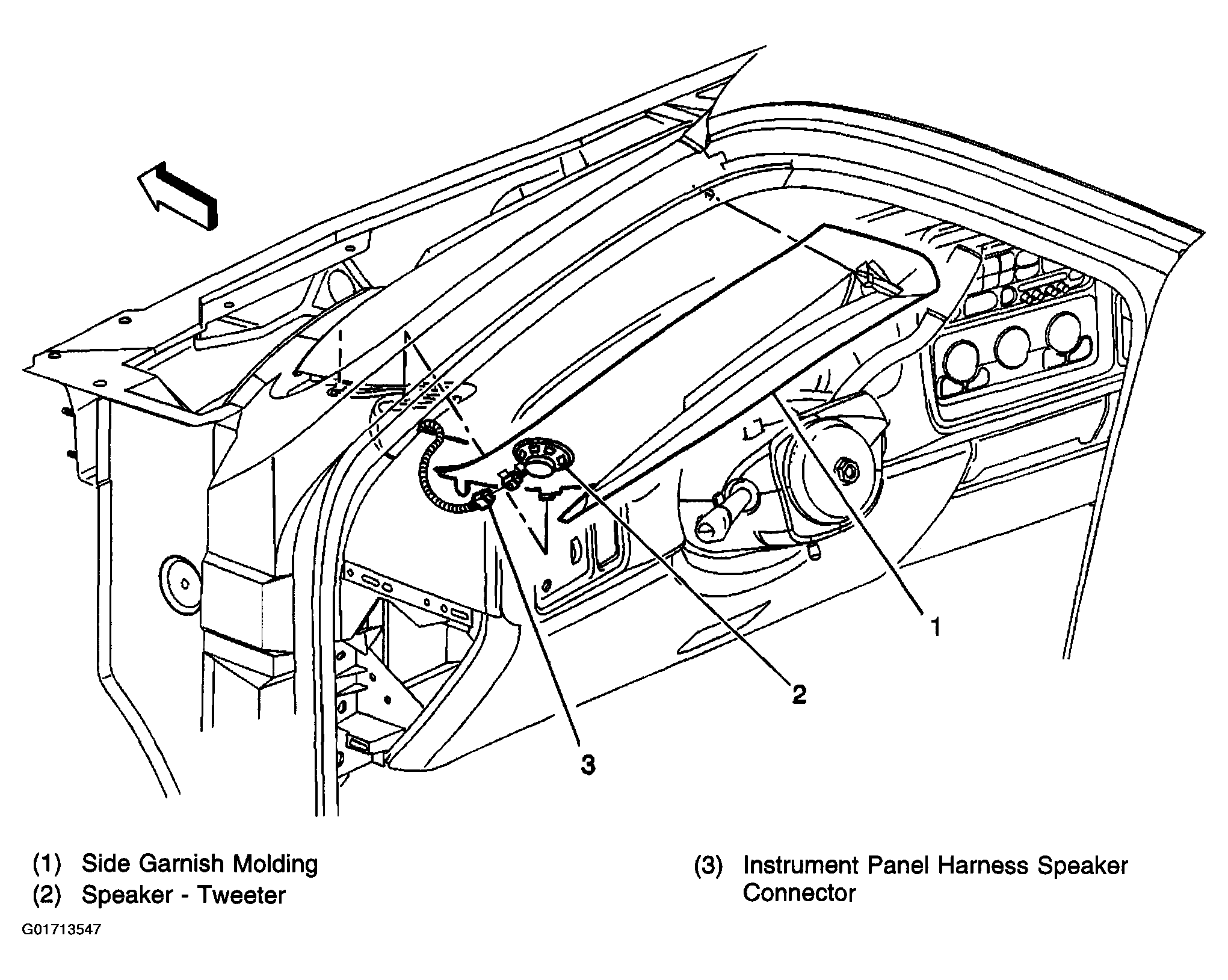

Fig 4: Locating LF Tweeter Speaker

G01713547

Courtesy of GENERAL MOTORS CORP.

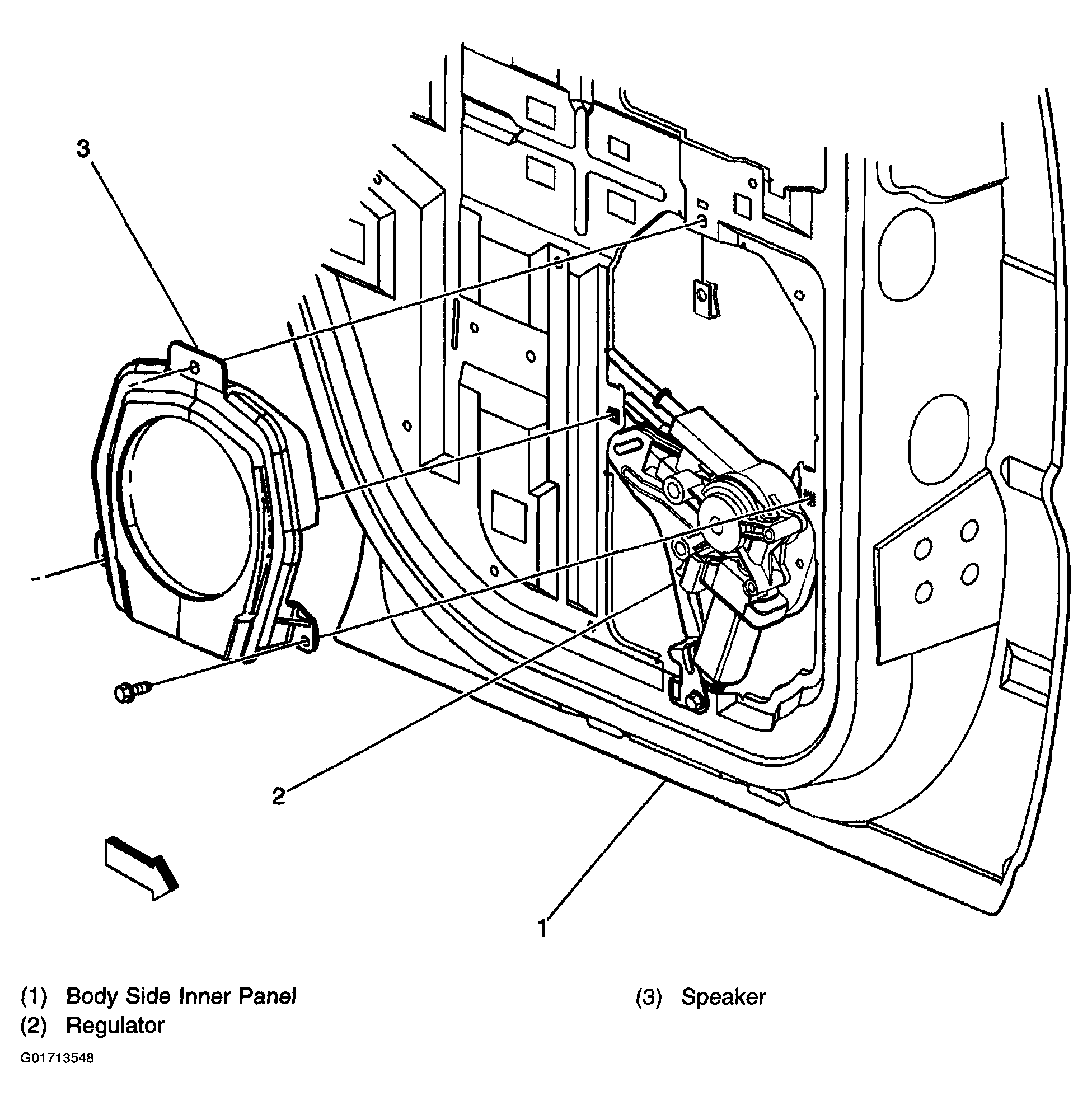

Fig 5: Locating LR Door Speaker (RR Similar)

G01713548

Courtesy of GENERAL MOTORS CORP.

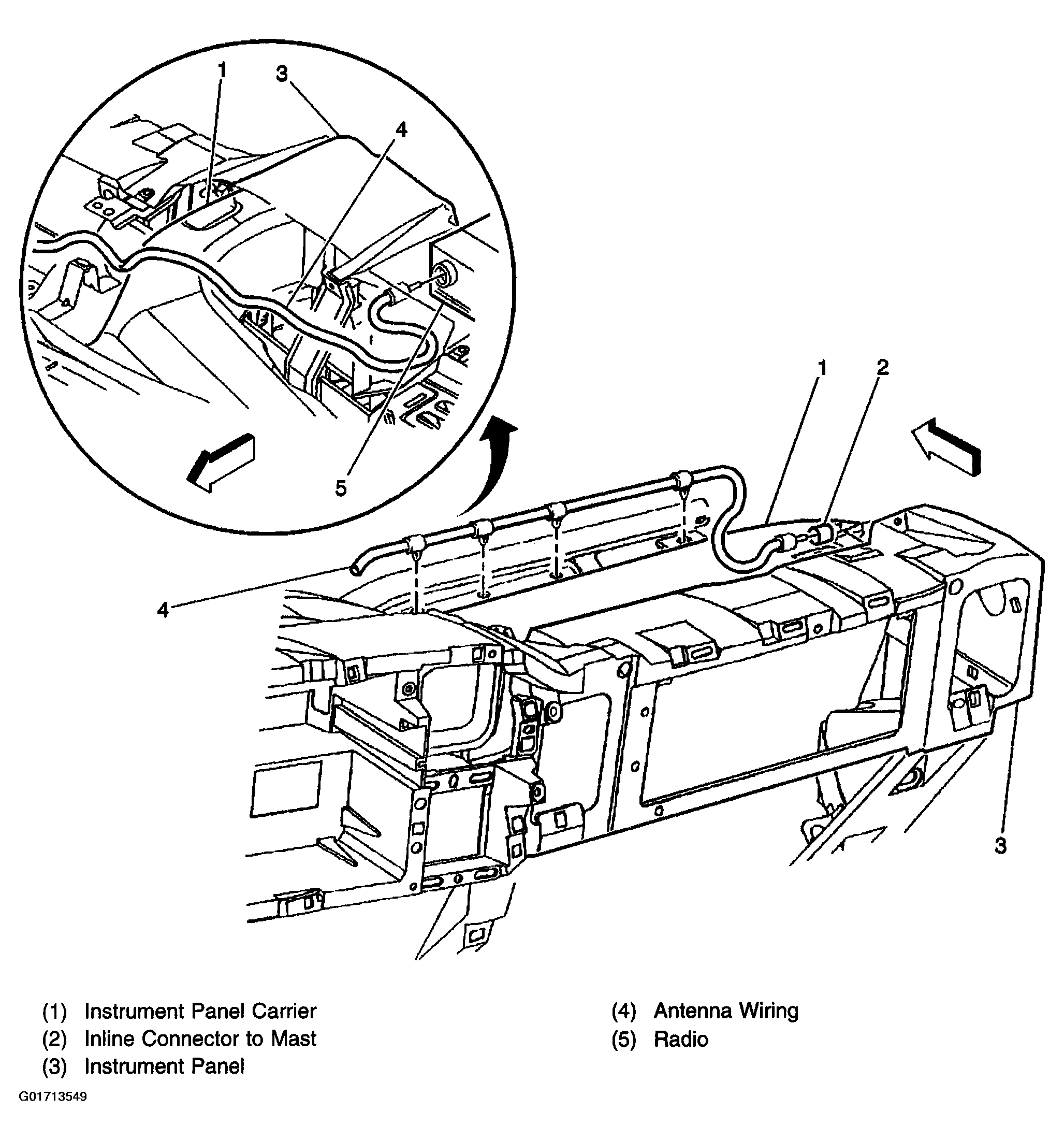

Fig 6: Locating Radio Antenna Connections

G01713549

Courtesy of GENERAL MOTORS CORP.

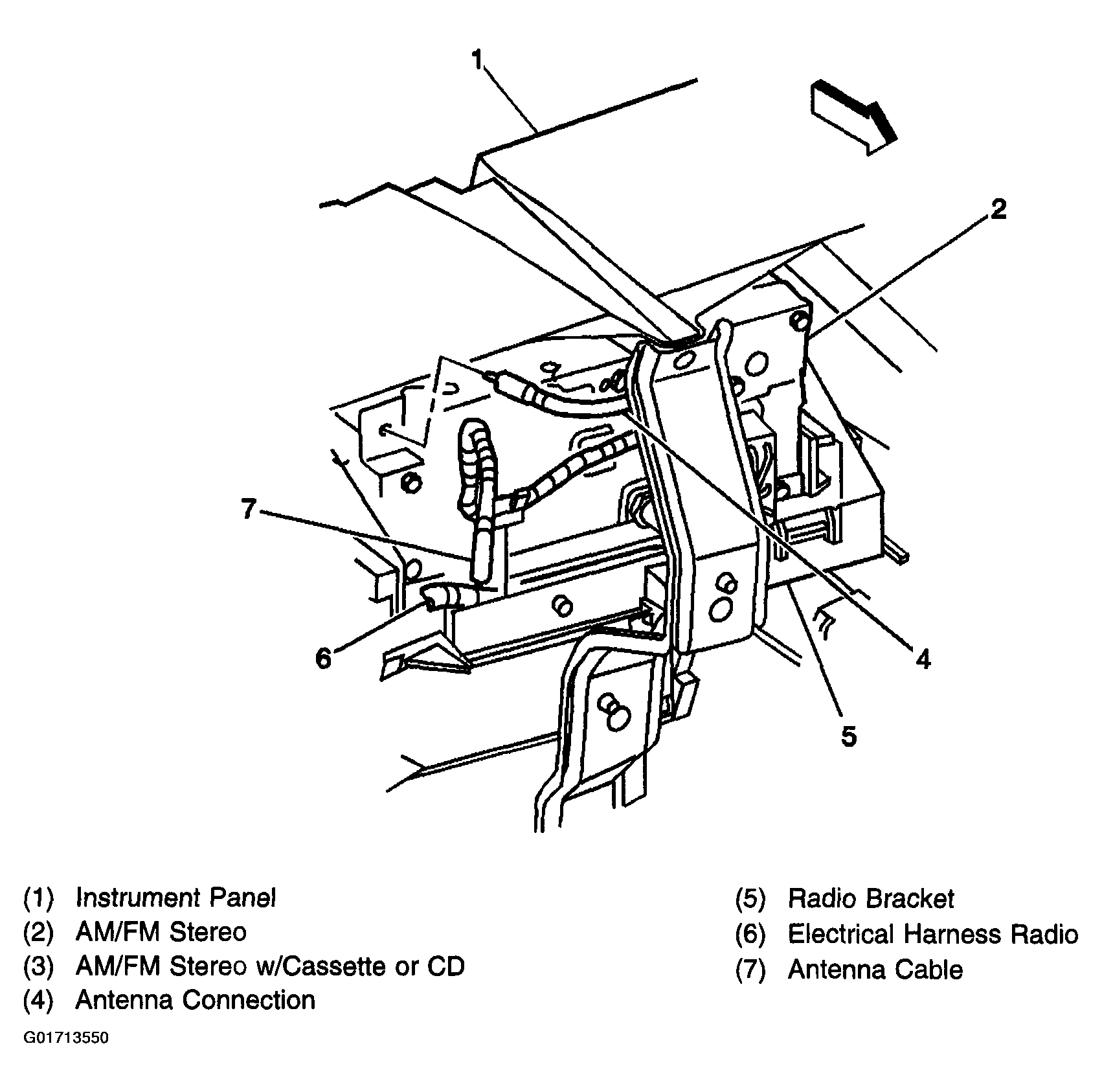

Fig 7: Locating Radio Antenna Connections

G01713550

Courtesy of GENERAL MOTORS CORP.

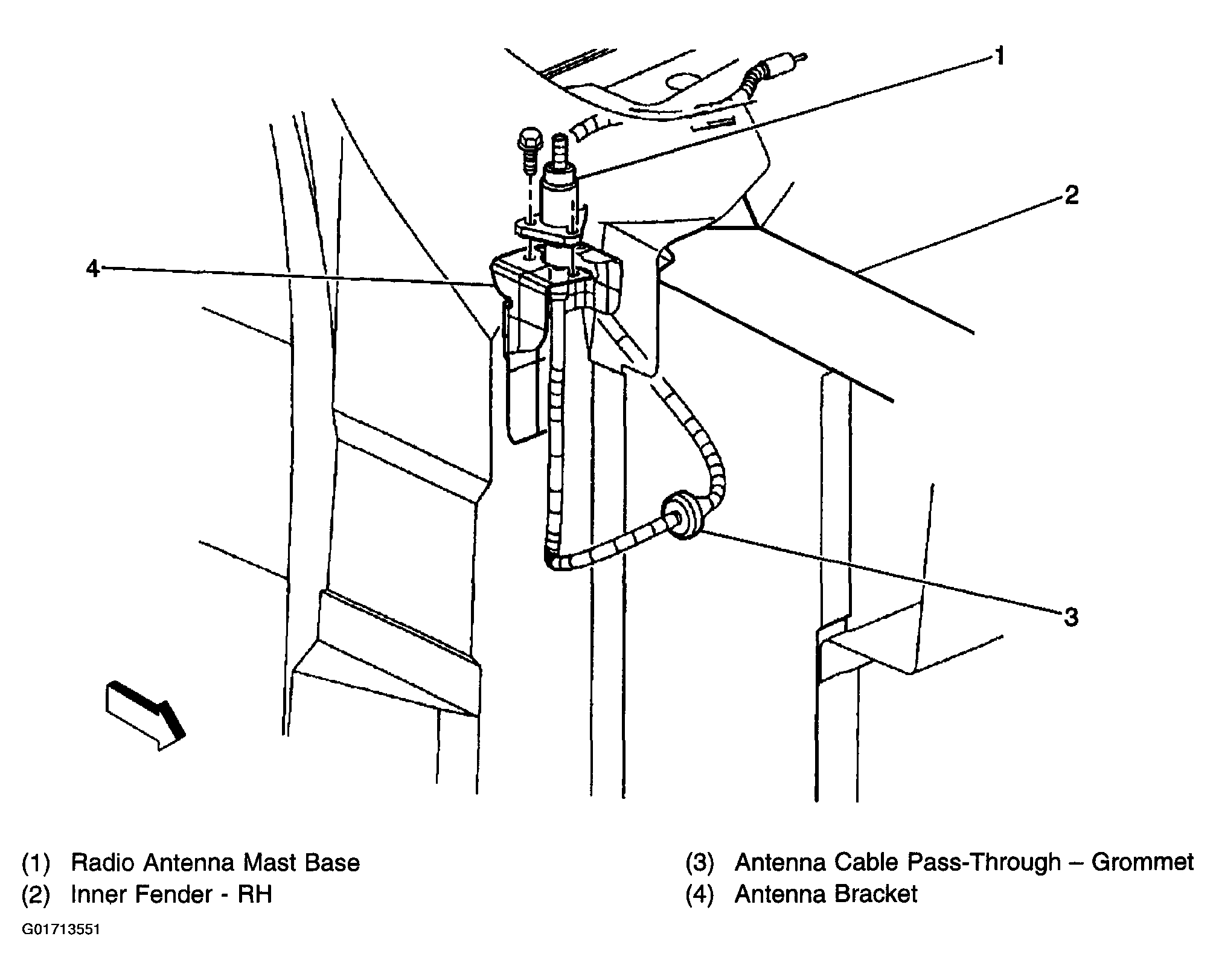

Fig 8: Locating Radio Antenna

G01713551

Courtesy of GENERAL MOTORS CORP.

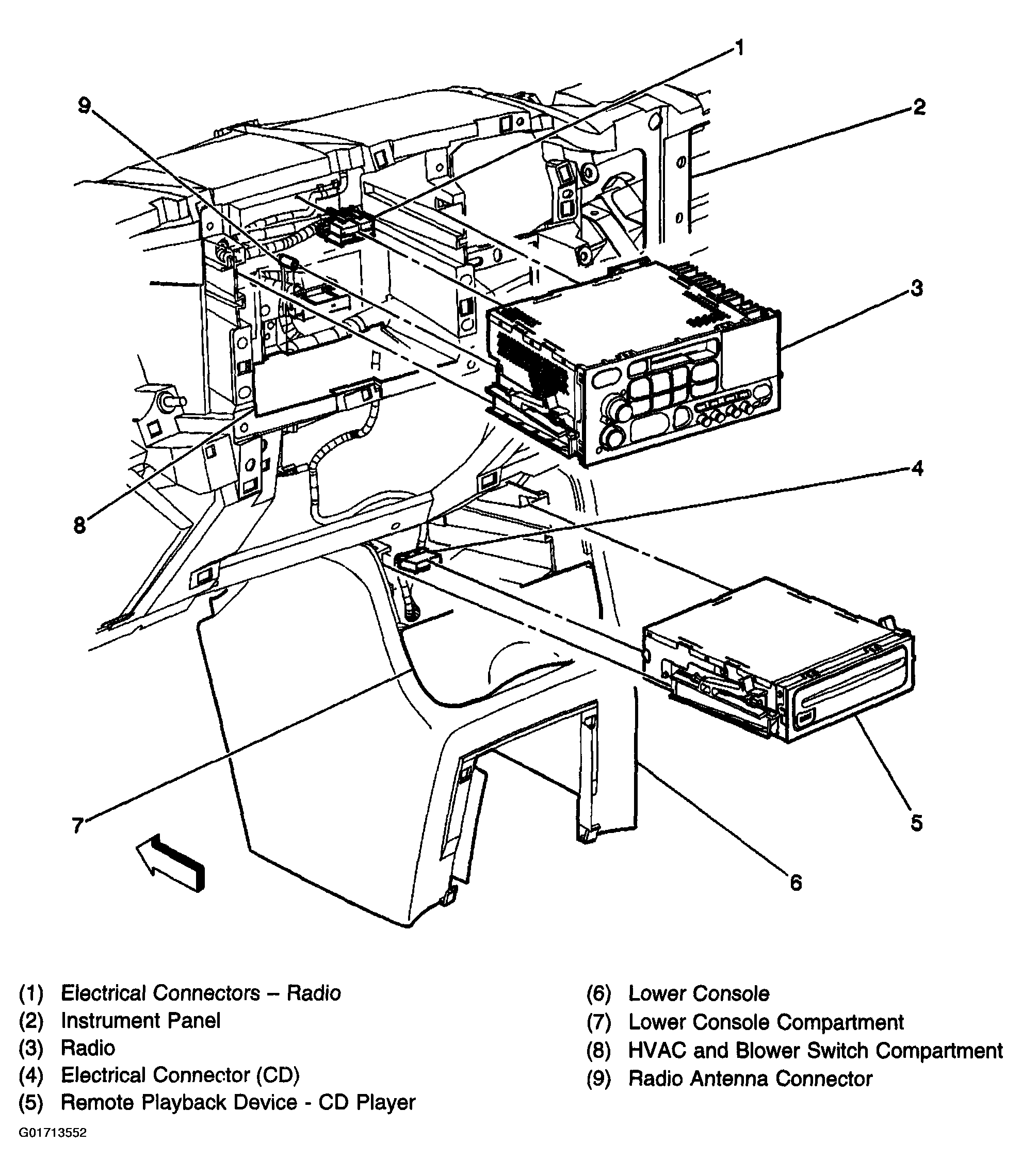

Fig 9: Locating Radio With Remote CD

G01713552

Courtesy of GENERAL MOTORS CORP.
