Entertainment Connector End Views

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

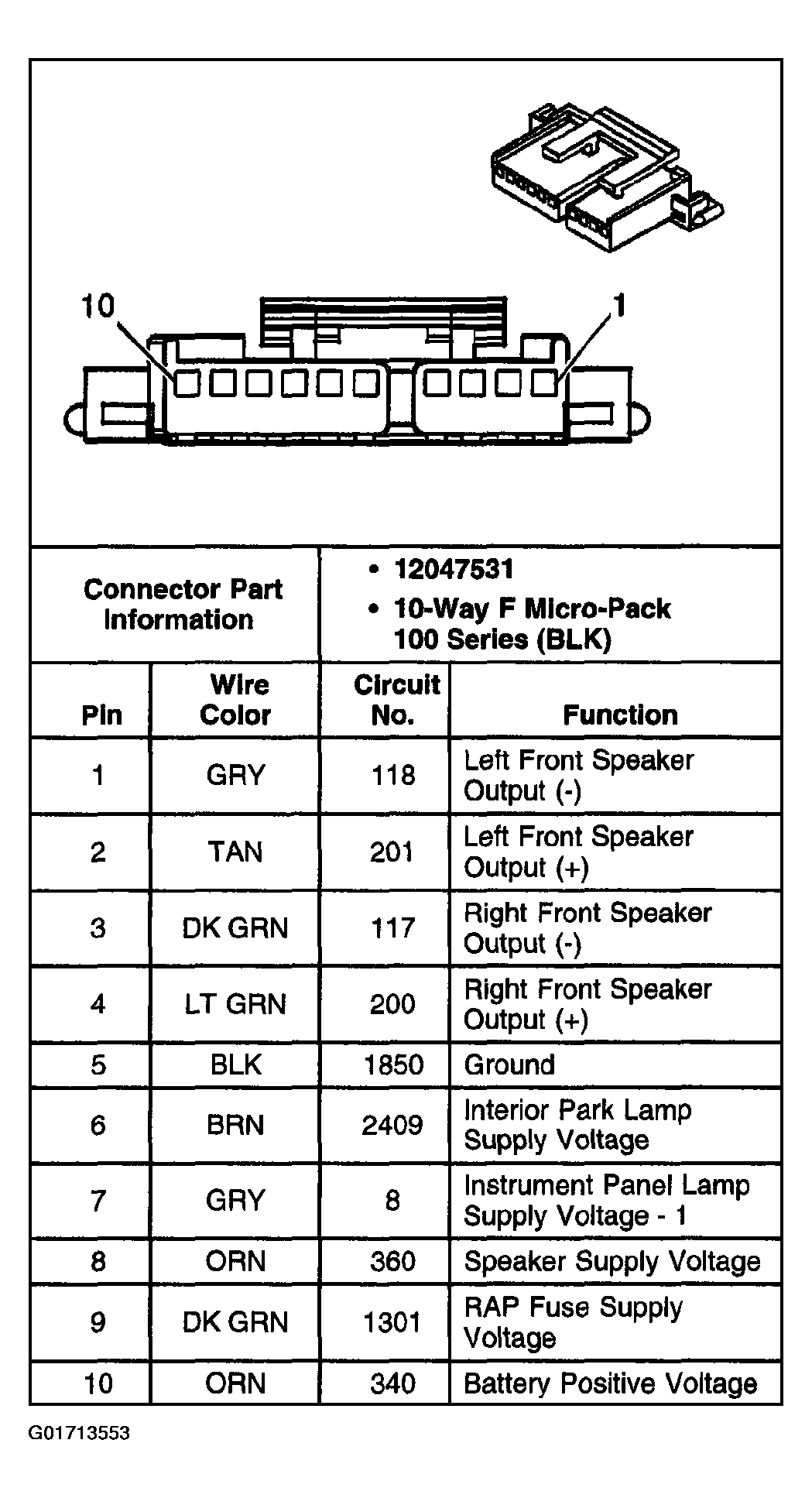

Fig 1: Identifying Radio C1 Connector Terminals

G01713553

Courtesy of GENERAL MOTORS CORP.

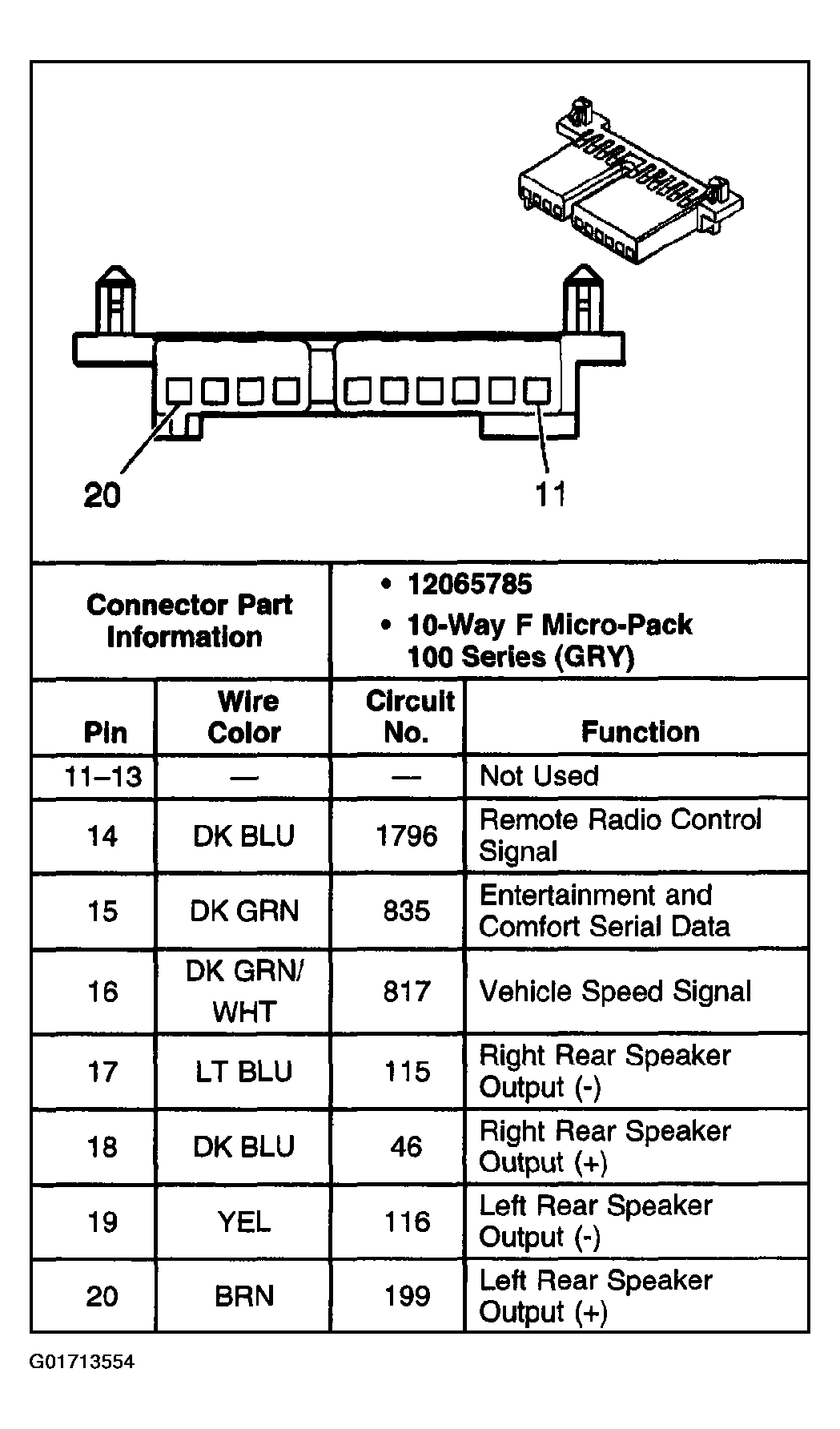

Fig 2: Identifying Radio C2 Connector Terminals

G01713554

Courtesy of GENERAL MOTORS CORP.

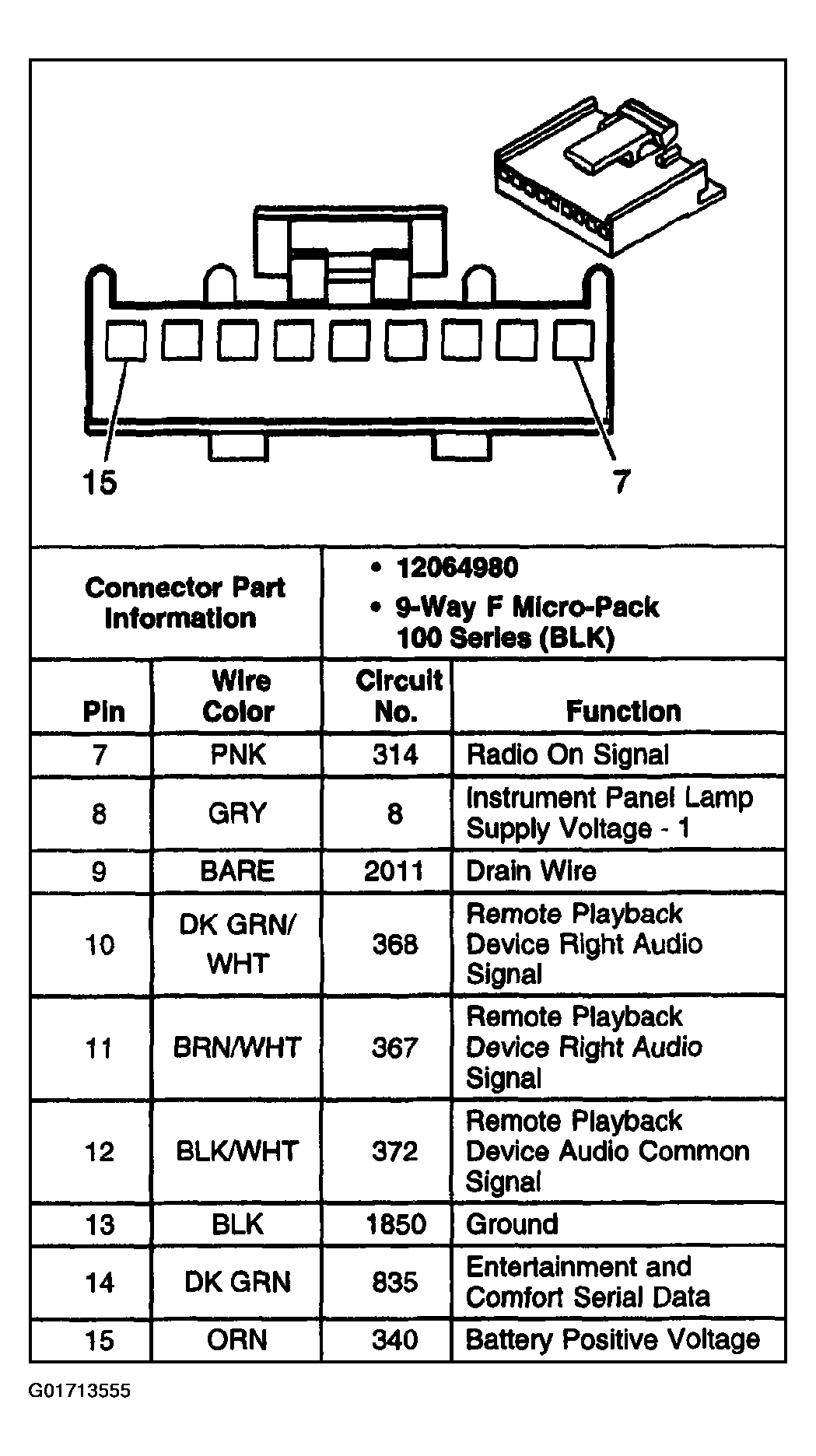

Fig 3: Identifying Radio C3 Connector Terminals

G01713555

Courtesy of GENERAL MOTORS CORP.

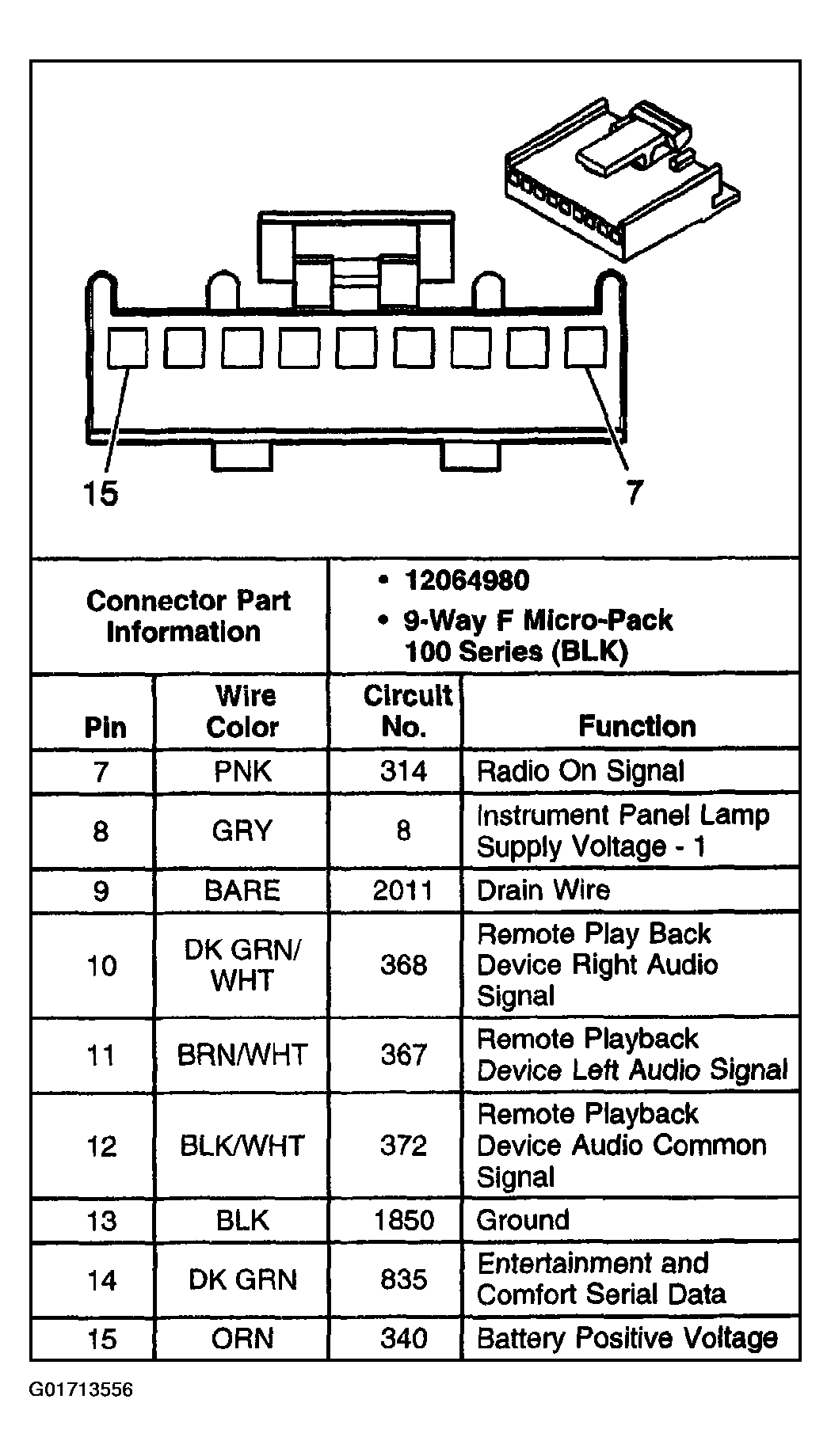

Fig 4: Identifying Remote Playback Device/CD Player Connector Terminals

G01713556

Courtesy of GENERAL MOTORS CORP.

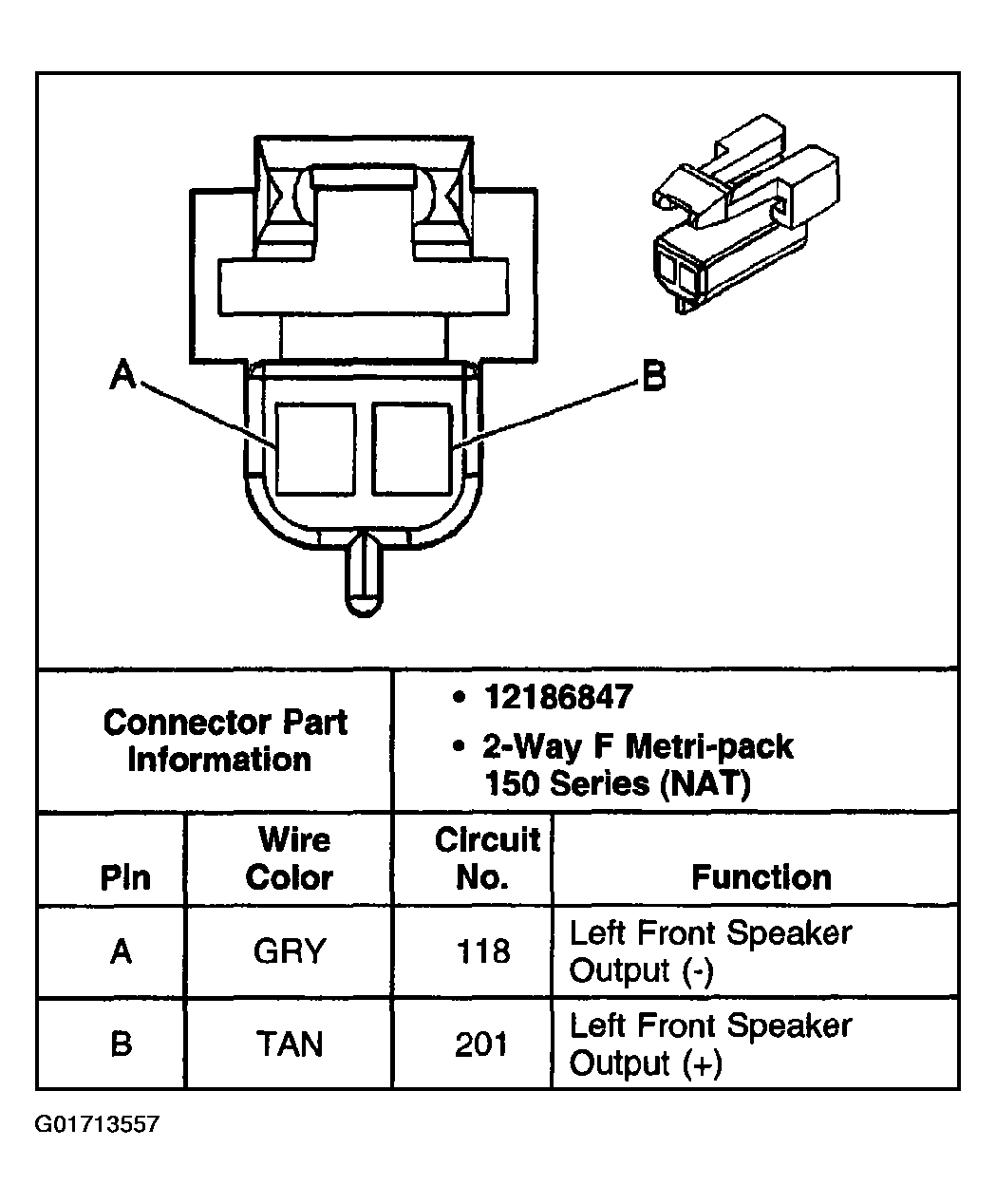

Fig 5: Identifying LF Door Speaker (Base) Connector Terminals

G01713557

Courtesy of GENERAL MOTORS CORP.

Fig 6: Identifying LF Door Tweeter (Uplevel) Connector Terminals

G01713558

Courtesy of GENERAL MOTORS CORP.

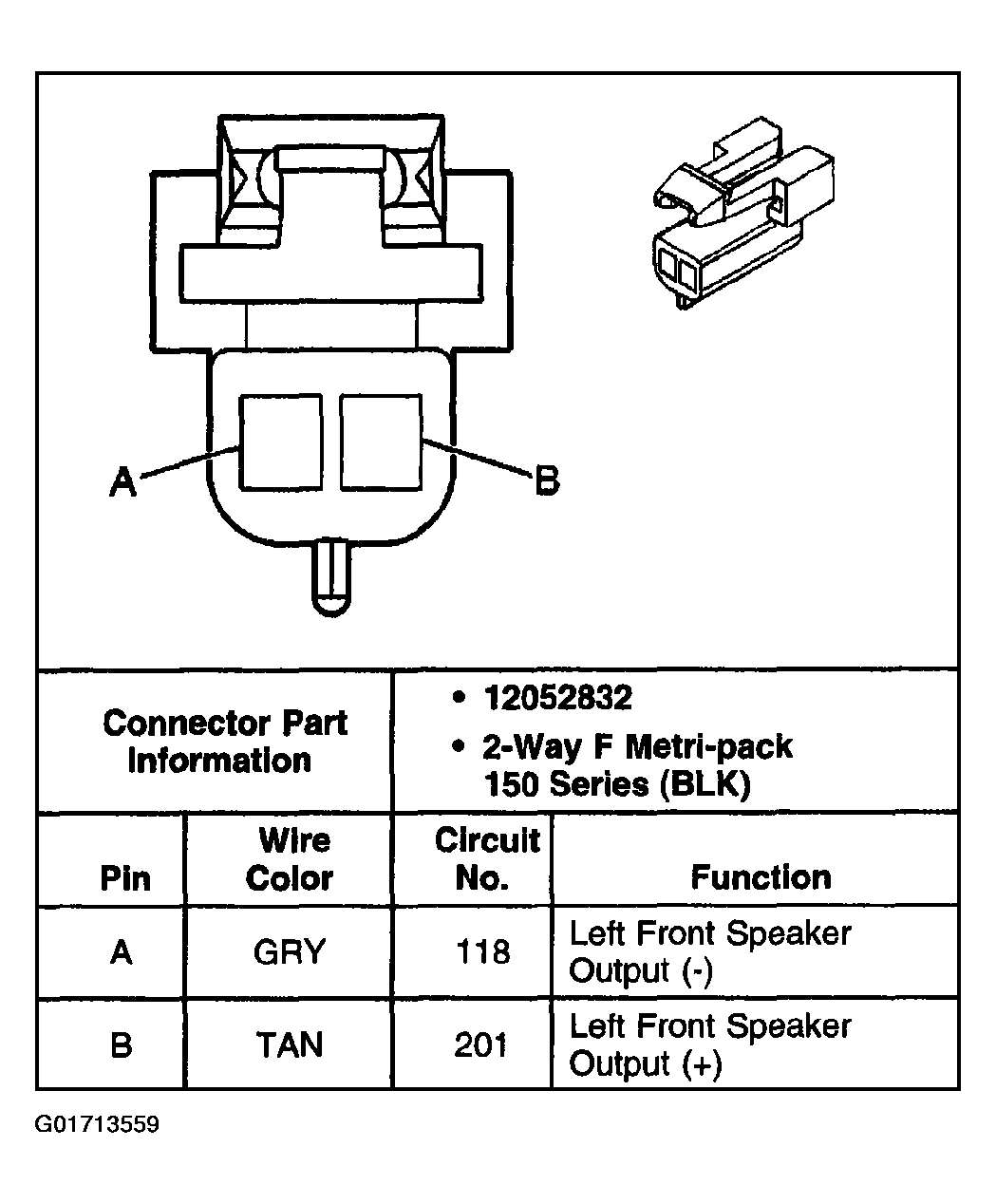

Fig 7: Identifying LF Door Speaker (Uplevel) Connector Terminals

G01713559

Courtesy of GENERAL MOTORS CORP.

Fig 8: Identifying RF Door Speaker (Base) Connector Terminals

G01713560

Courtesy of GENERAL MOTORS CORP.

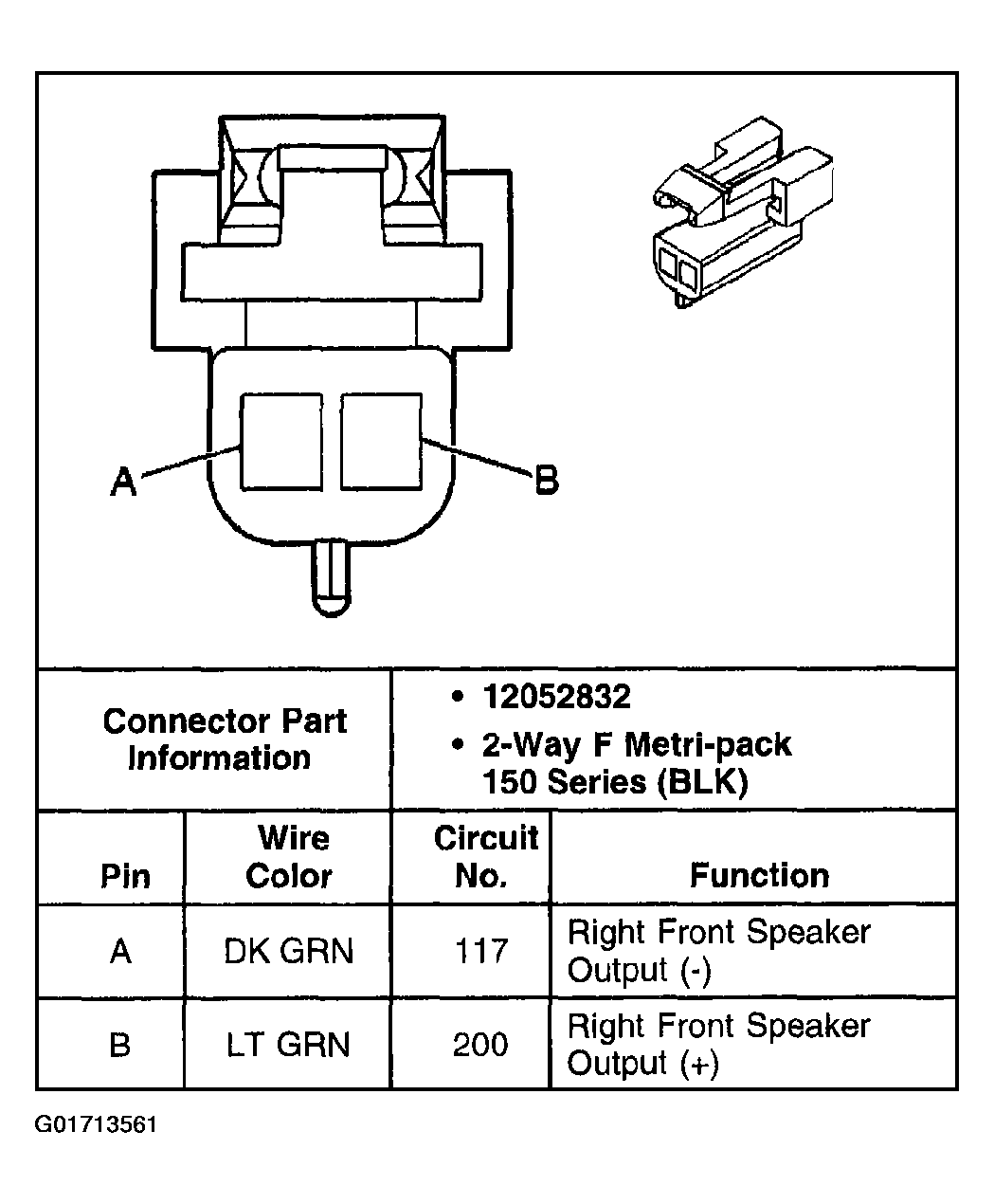

Fig 9: Identifying RF Door Tweeter (Uplevel) Connector Terminals

G01713561

Courtesy of GENERAL MOTORS CORP.

Fig 10: Identifying RF Door (Uplevel) Connector Terminals

G01713562

Courtesy of GENERAL MOTORS CORP.

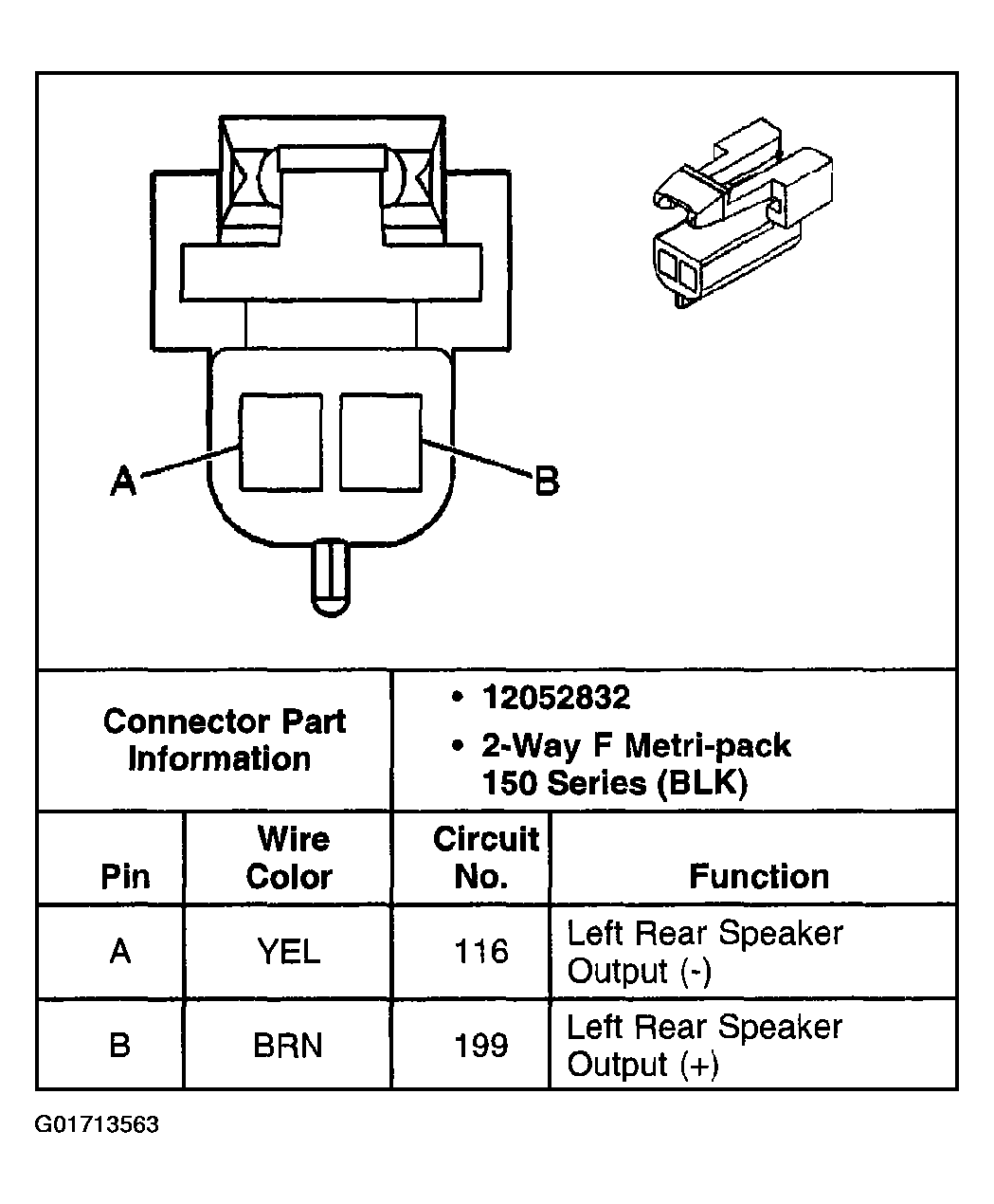

Fig 11: Identifying LR Door Speaker (Except Crew Cab) Connector Terminals

G01713563

Courtesy of GENERAL MOTORS CORP.

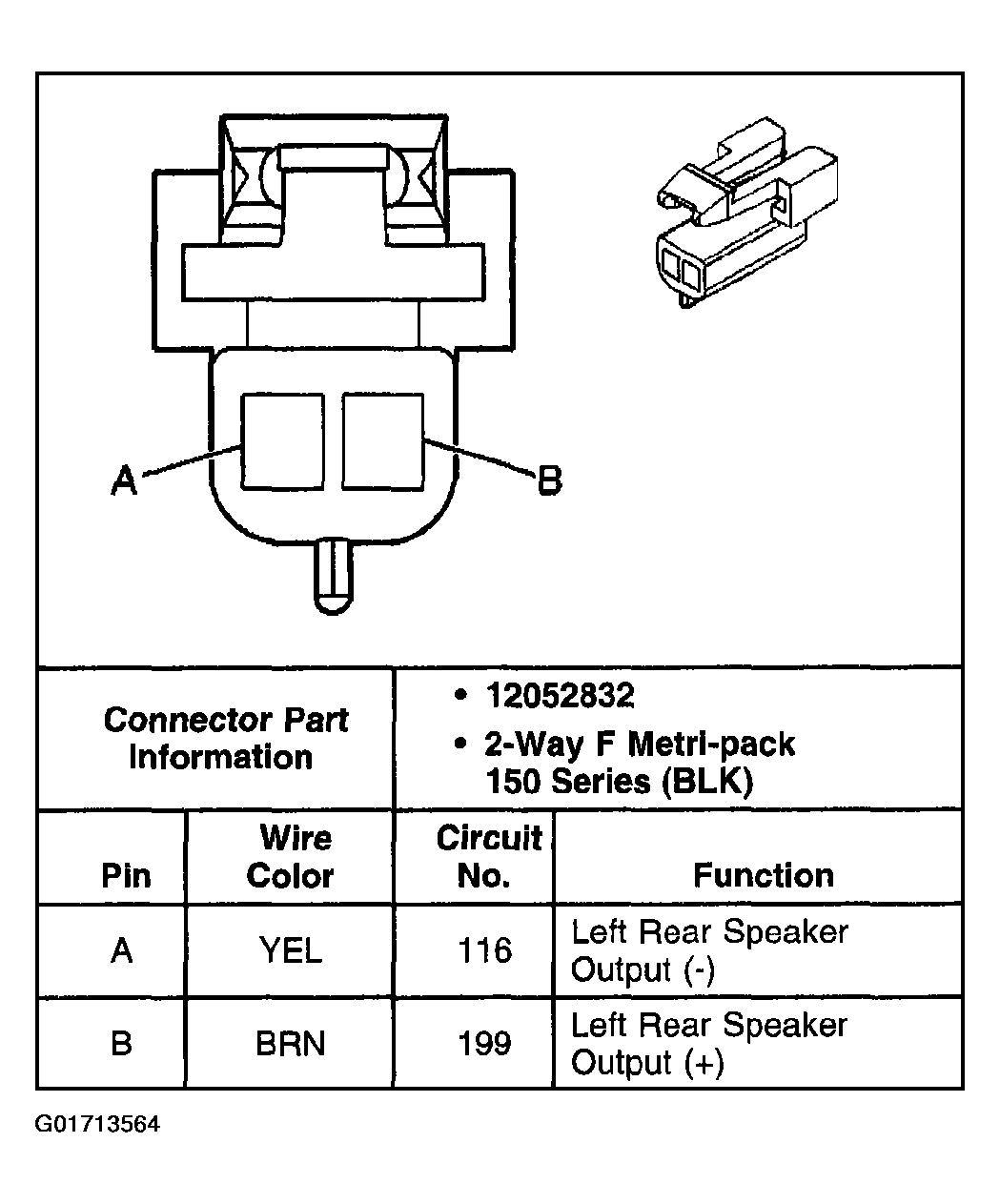

Fig 12: Identifying LR Door Speaker (Crew Cab) Connector Terminals

G01713564

Courtesy of GENERAL MOTORS CORP.

Fig 13: Identifying RR Speaker (Except Crew Cab) Connector Terminals

G01713565

Courtesy of GENERAL MOTORS CORP.

Fig 14: Identifying RR Door Speaker (Crew Cab) Connector Terminals

G01713566

Courtesy of GENERAL MOTORS CORP.

Fig 15: Identifying LR Door Speaker Connector Terminals

G01713567

Courtesy of GENERAL MOTORS CORP.
