Intermediate-4TH Servo Assembly: Installation
WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

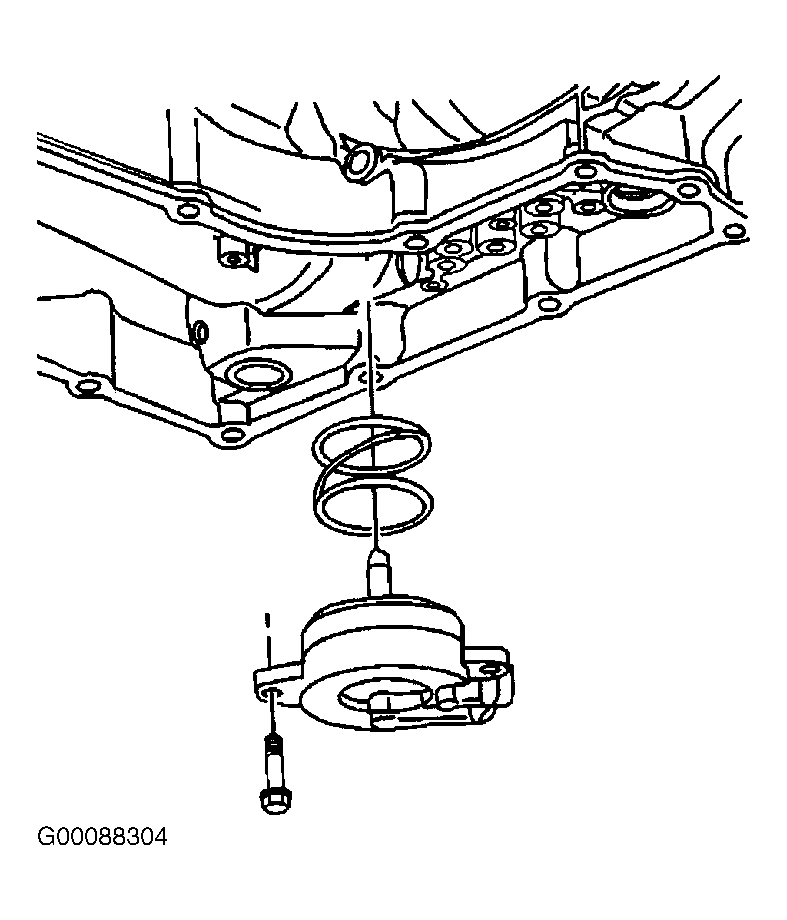

Install the intermediate-4th band servo piston spring, the servo and the servo cover bolts. Tighten the bolts to specification. See TORQUE SPECIFICATIONS . Install the oil feed pipes. See OIL FEED PIPES . Install the filter and the oil pan. See DRAINING & REFILLING under LUBRICATION. Lower the vehicle. Connect the negative battery cable. Inspect the transaxle oil level. Fill transaxle with appropriate fluid to proper level. See CHECKING FLUID LEVELS and FLUID CAPACITIES under LUBRICATION.
