Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Connect the electrical connector (1) to the I/P dimmer module (2).
Install the I/P dimmer module (2) to the HVAC bracket.
CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
Install the I/P dimmer module bolts (3).
Tighten

Tighten the bolts to 4 N.m (36 lb in).
Install the left closeout/insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- LEFT .

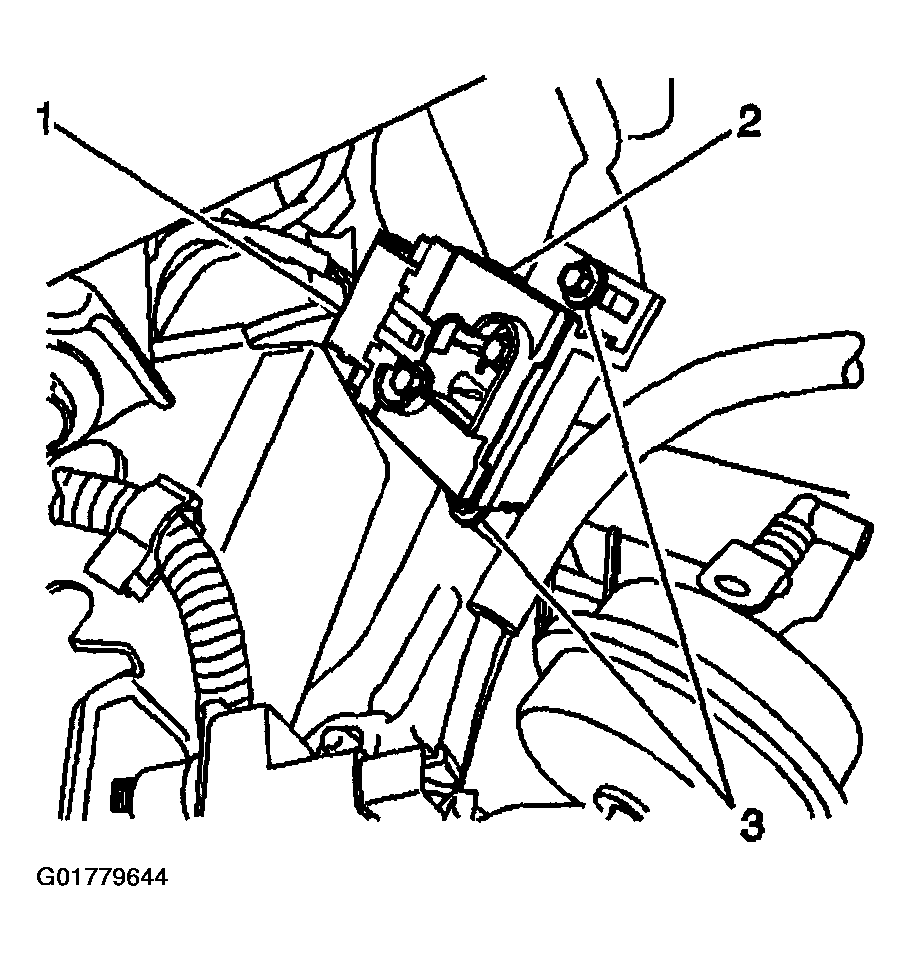

Fig 1: Installing IP Dimmer Module
Courtesy of GENERAL MOTORS CORP.
