Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left closeout/insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- LEFT .
  2. Remove the I/P dimmer module bolts (3).
  3. Remove the I/P dimmer module (2) from the HVAC bracket.
  4. Disconnect the electrical connector (1) from the I/P dimmer module (2).

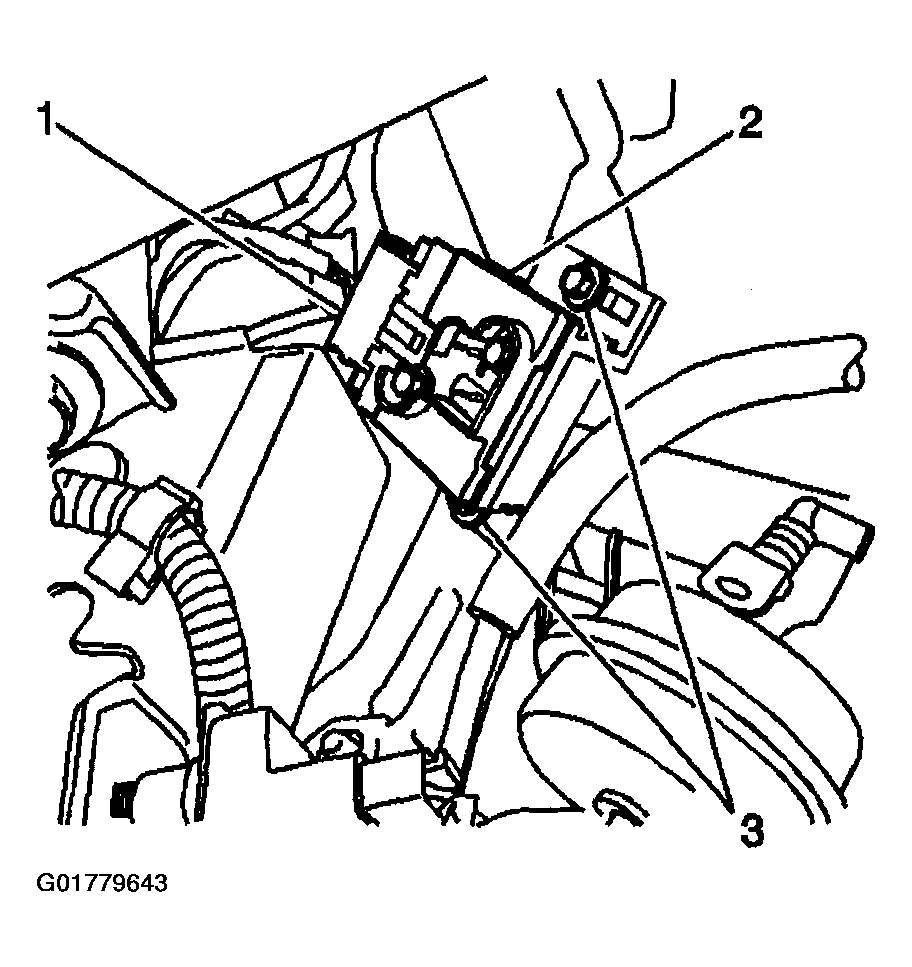

    Fig 1: Removing IP Dimmer Module
    G01779643Courtesy of GENERAL MOTORS CORP.
