Test Description

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

4. This step determines if the ignition 1 circuit is shorted to ground.

5. This step determines if the BCM is internally shorted.

6. This step determines if voltage is supplied from the battery to the fuse.

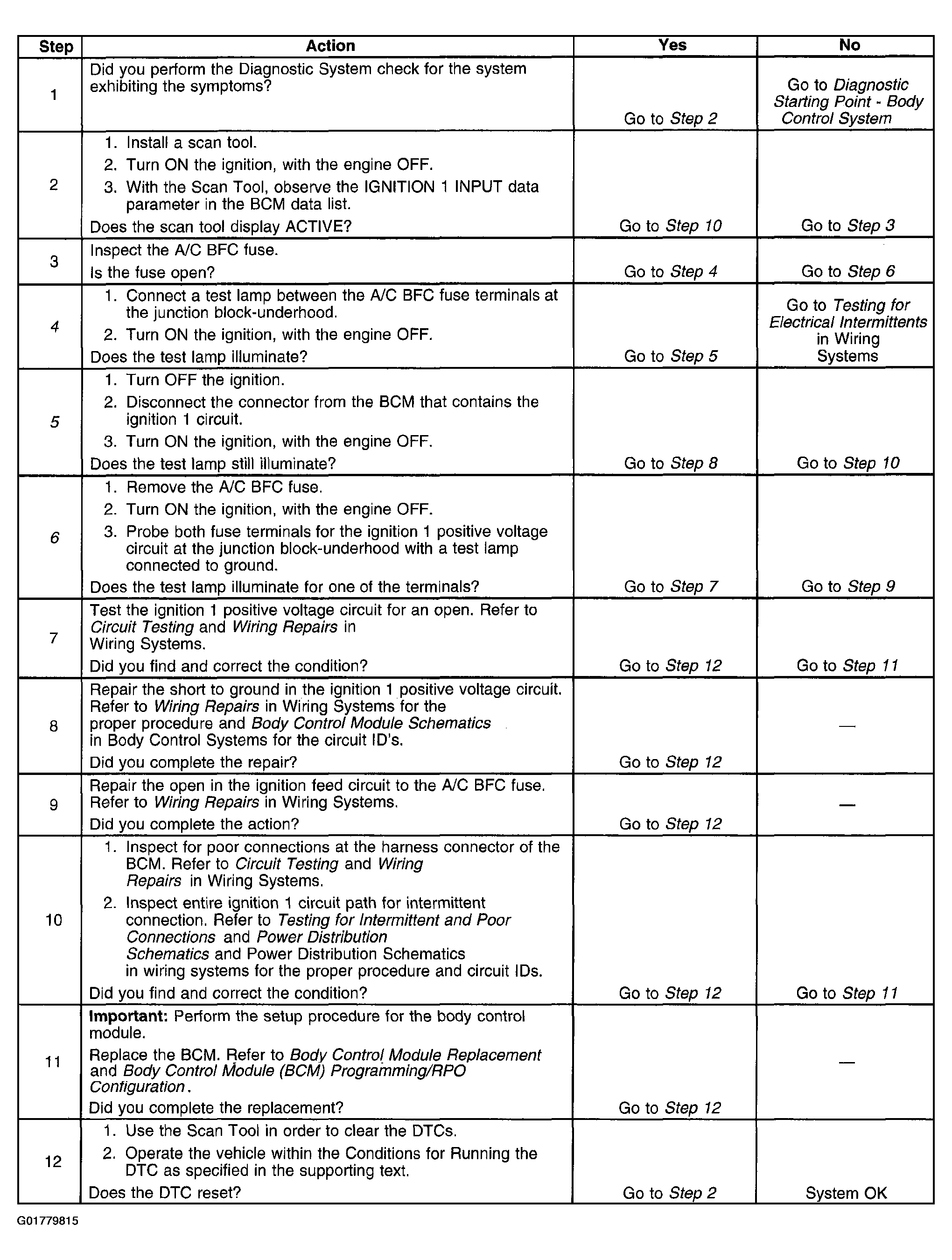

Fig 1: Identifying DTC B1374 Diagnostic Table

Courtesy of GENERAL MOTORS CORP.
