Cruise Control Connector End Views

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

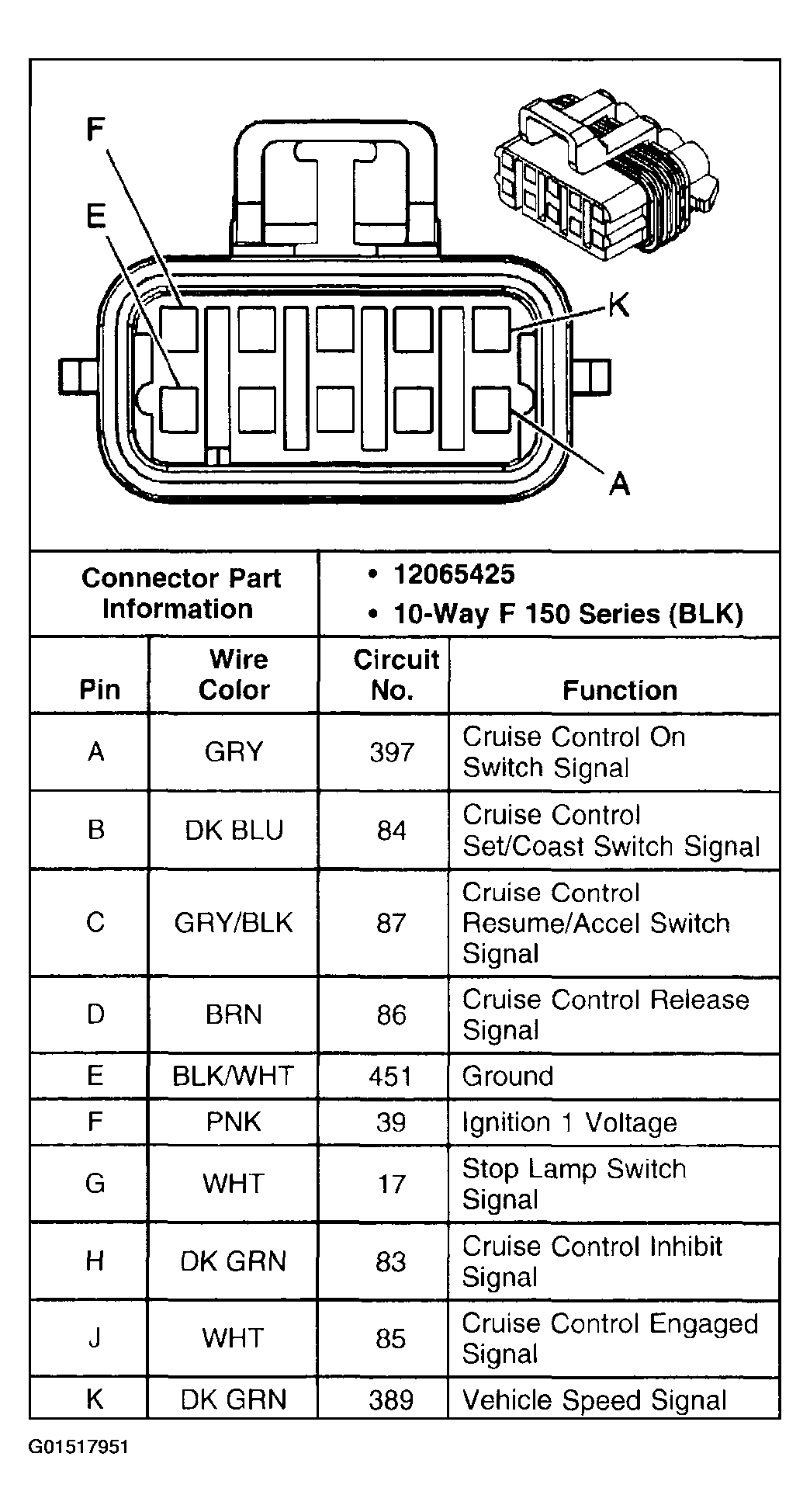

Fig 1: Identifying Cruise Control Module (CCM) Harness Connector

Courtesy of GENERAL MOTORS CORP.

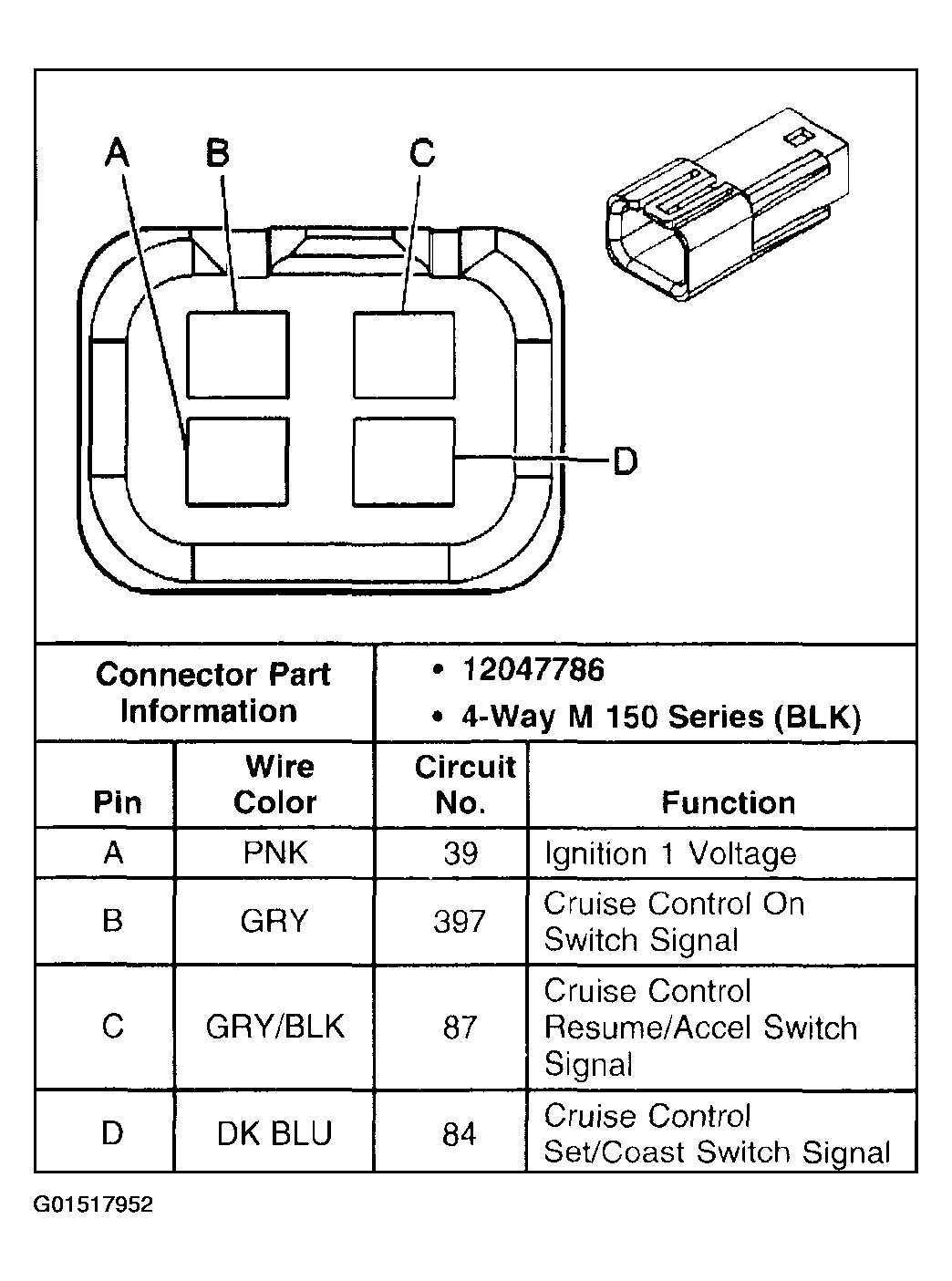

Fig 2: Identifying Turn Signal/Multifunction Switch C4 (K34) Harness Connector

Courtesy of GENERAL MOTORS CORP.

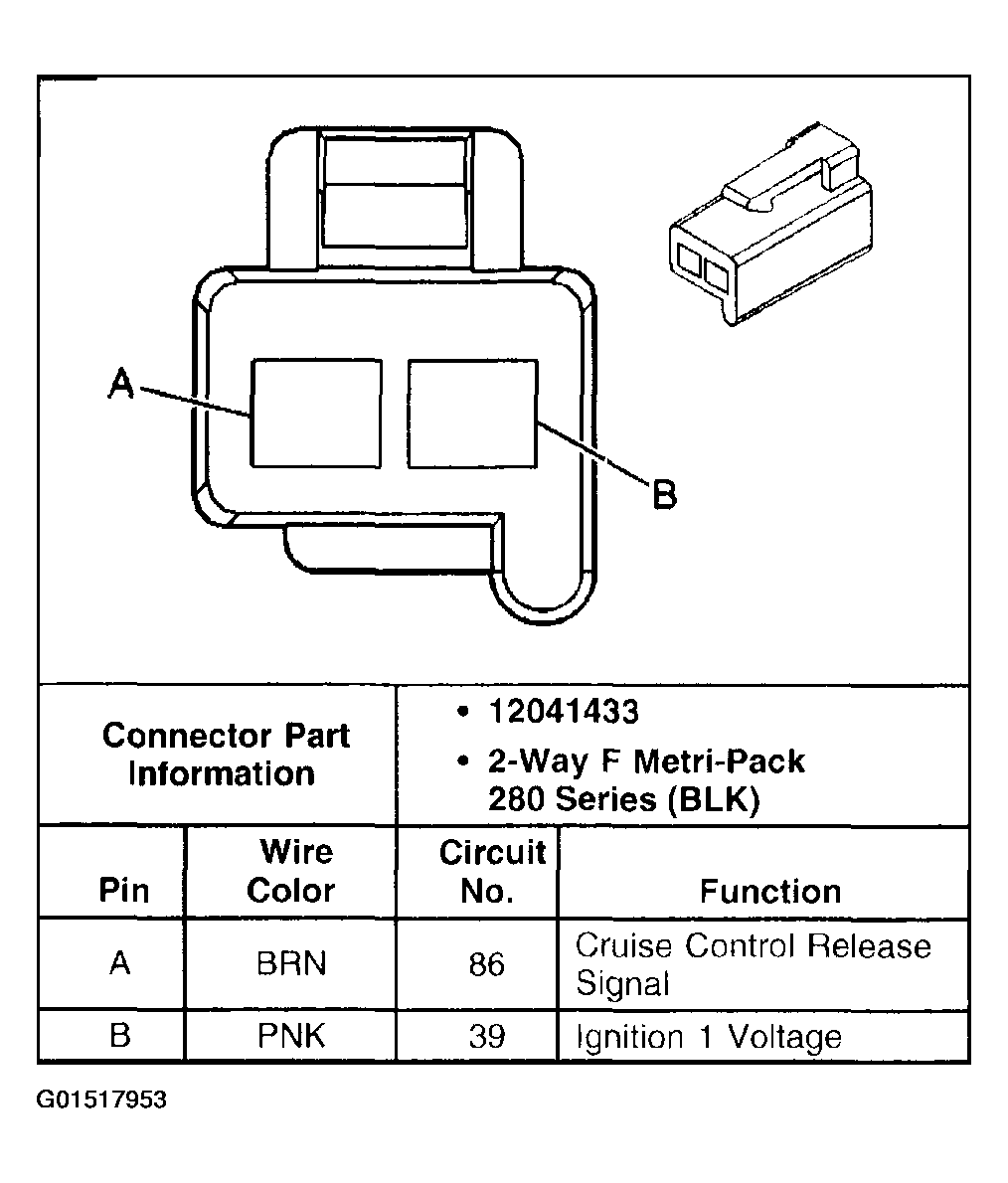

Fig 3: Identifying Cruise Control Release Switch Harness Connector

Courtesy of GENERAL MOTORS CORP.
