Scan Tool Output Controls
WARNING:
This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

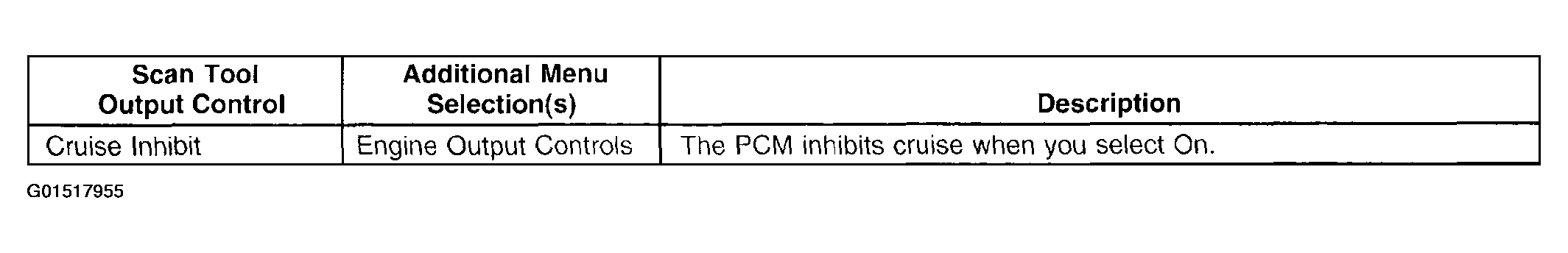

Fig 1: Scan Tool Output Controls - Power Control Module (PCM)
Courtesy of GENERAL MOTORS CORP.
