Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Remove the cruise control cable from the module.
Refer to CRUISE CONTROL CABLE REPLACEMENT .
Disconnect the electrical connector from the cruise control module.
Remove the cruise control module from the bracket.

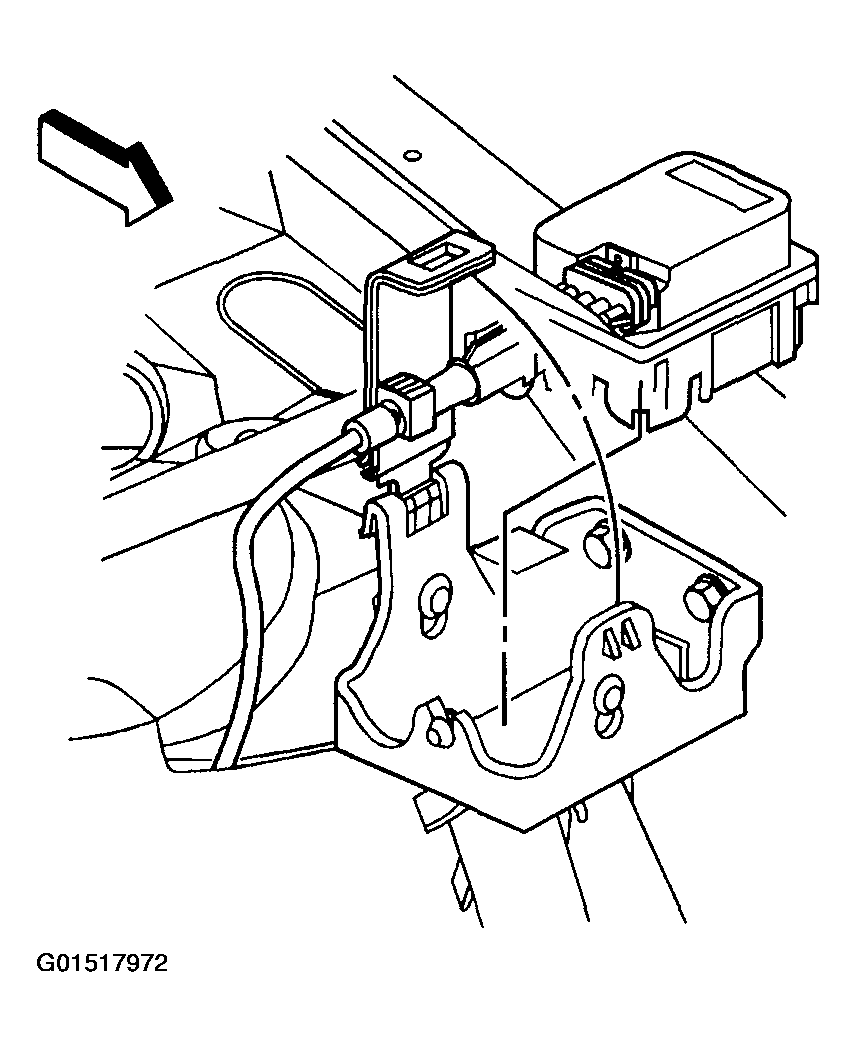

Fig 1: Removing Cruise Control Module From Bracket
Courtesy of GENERAL MOTORS CORP.
