Headlamp Aiming: Notes
WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

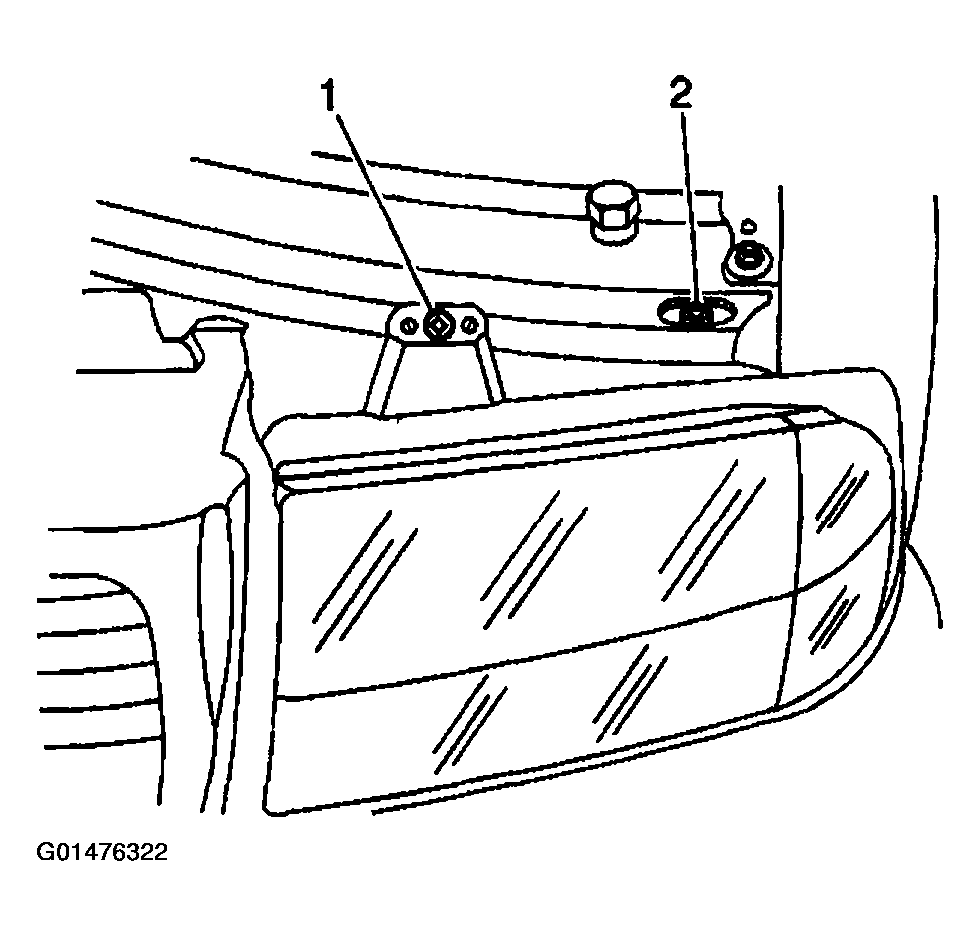

Two adjusting screws control the horizontal (2) and vertical (1) aiming of each headlamp assembly.
The hole in the radiator support for each headlamp assembly provides access to the recessed adjusting screw (2). Using a T15 TORX® head bit, turn the screws.
Adjust the headlamps to the specifications required by the state and/or the local authorities.
