Entertainment Component Views

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

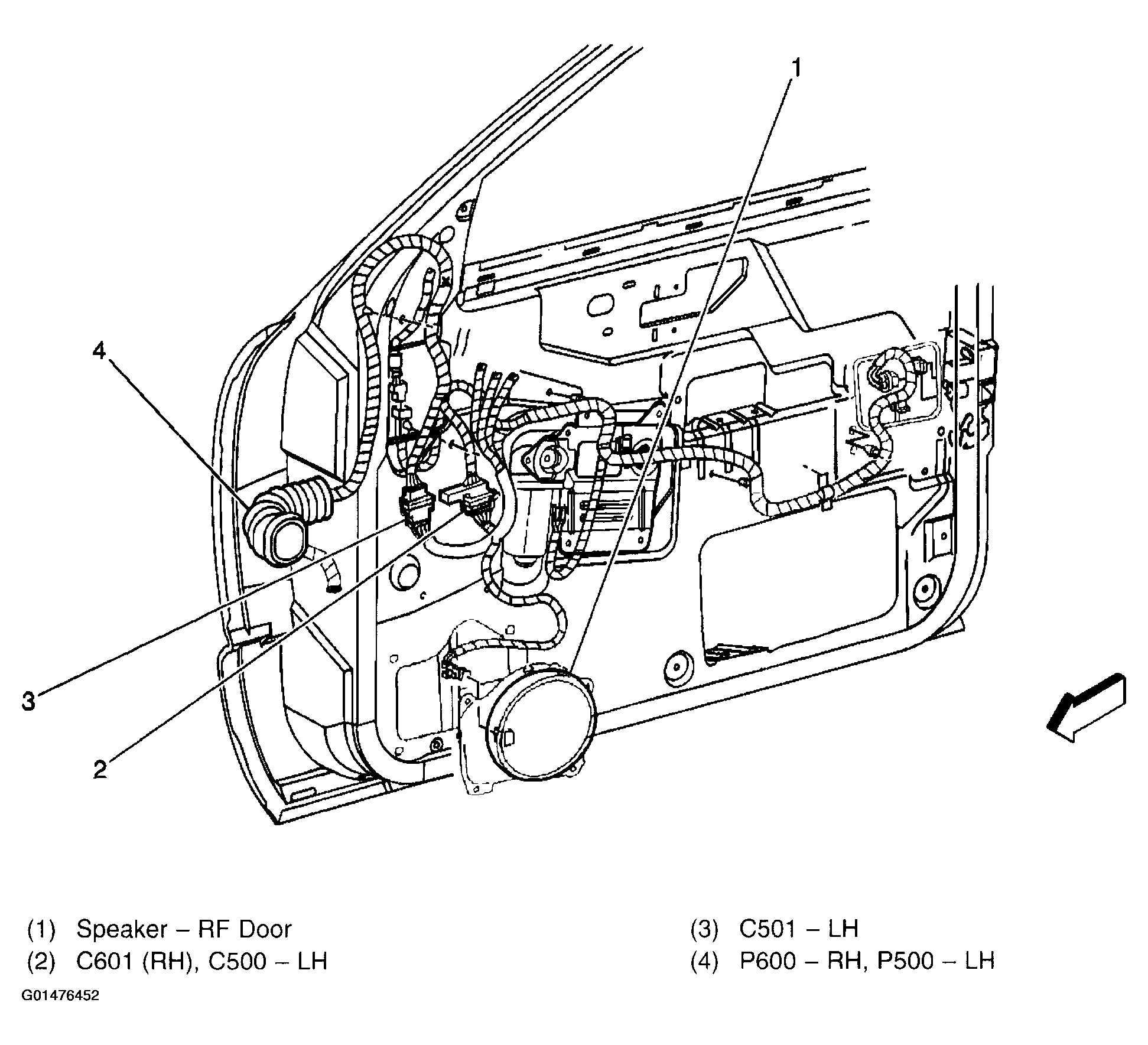

Fig 1: Doors, Front Passenger Shown, Driver Similar

Courtesy of GENERAL MOTORS CORP.

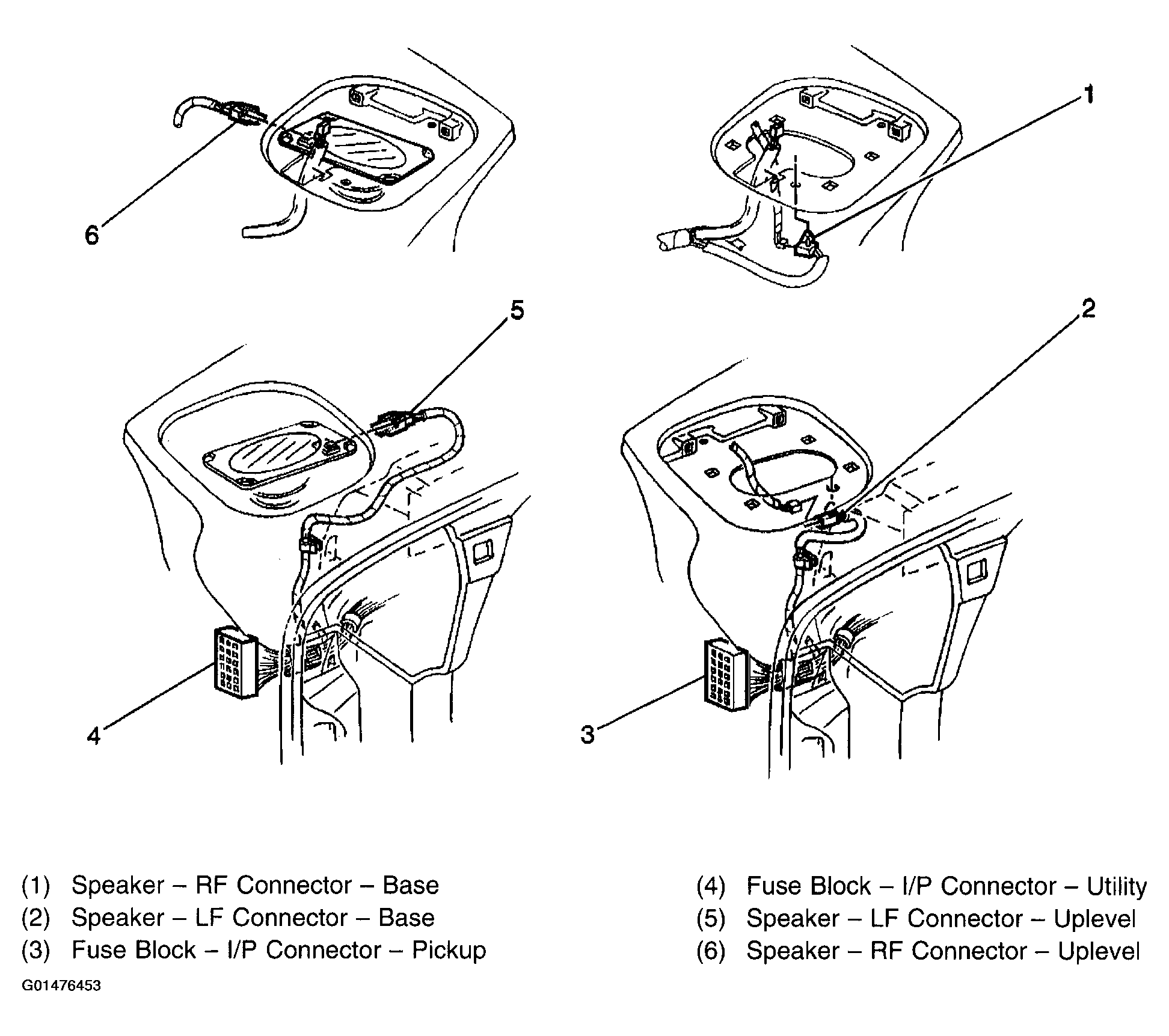

Fig 2: IP Wiring Harness, Speaker Connectors

Courtesy of GENERAL MOTORS CORP.

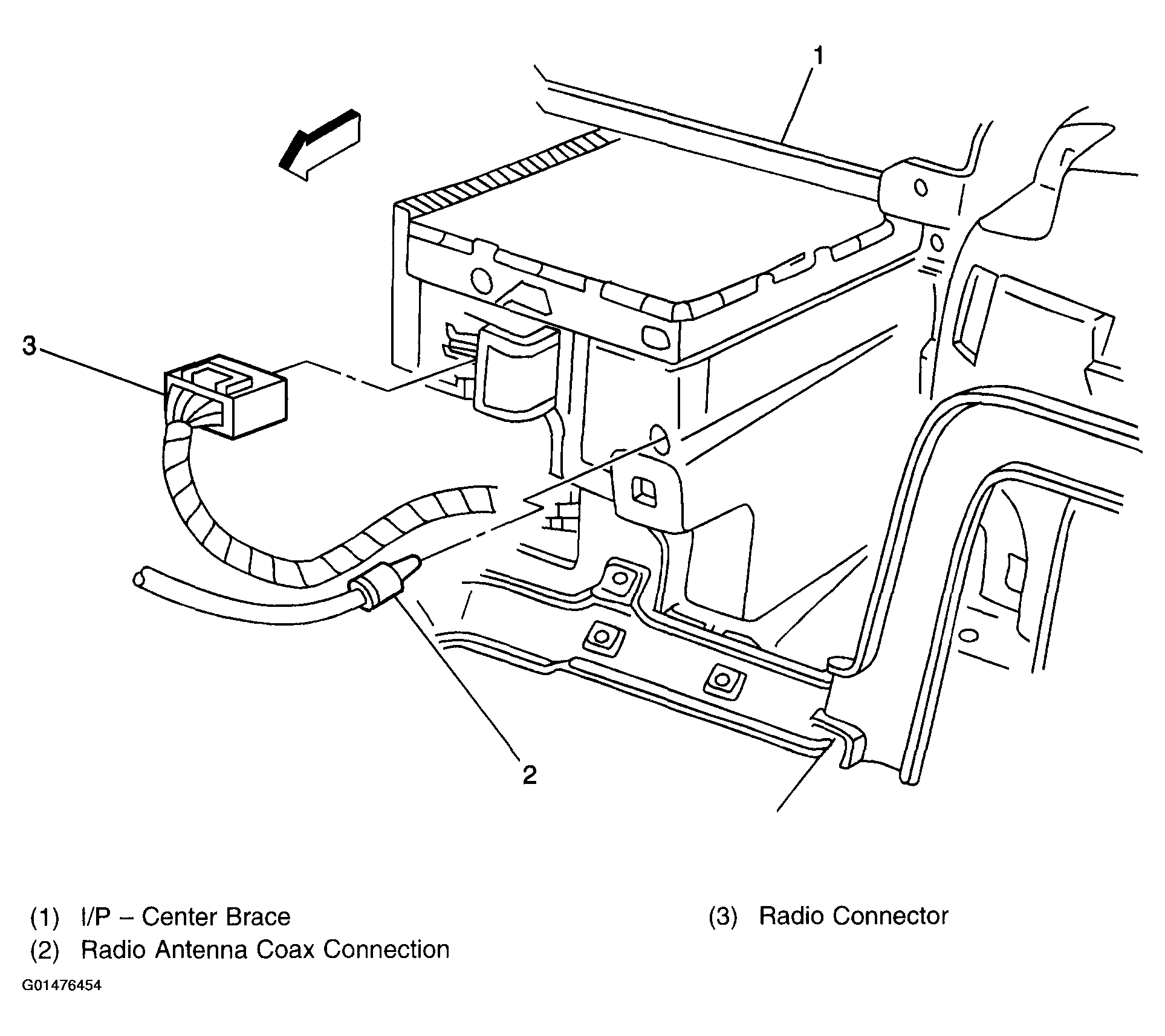

Fig 3: I/P Wiring To Radio

Courtesy of GENERAL MOTORS CORP.

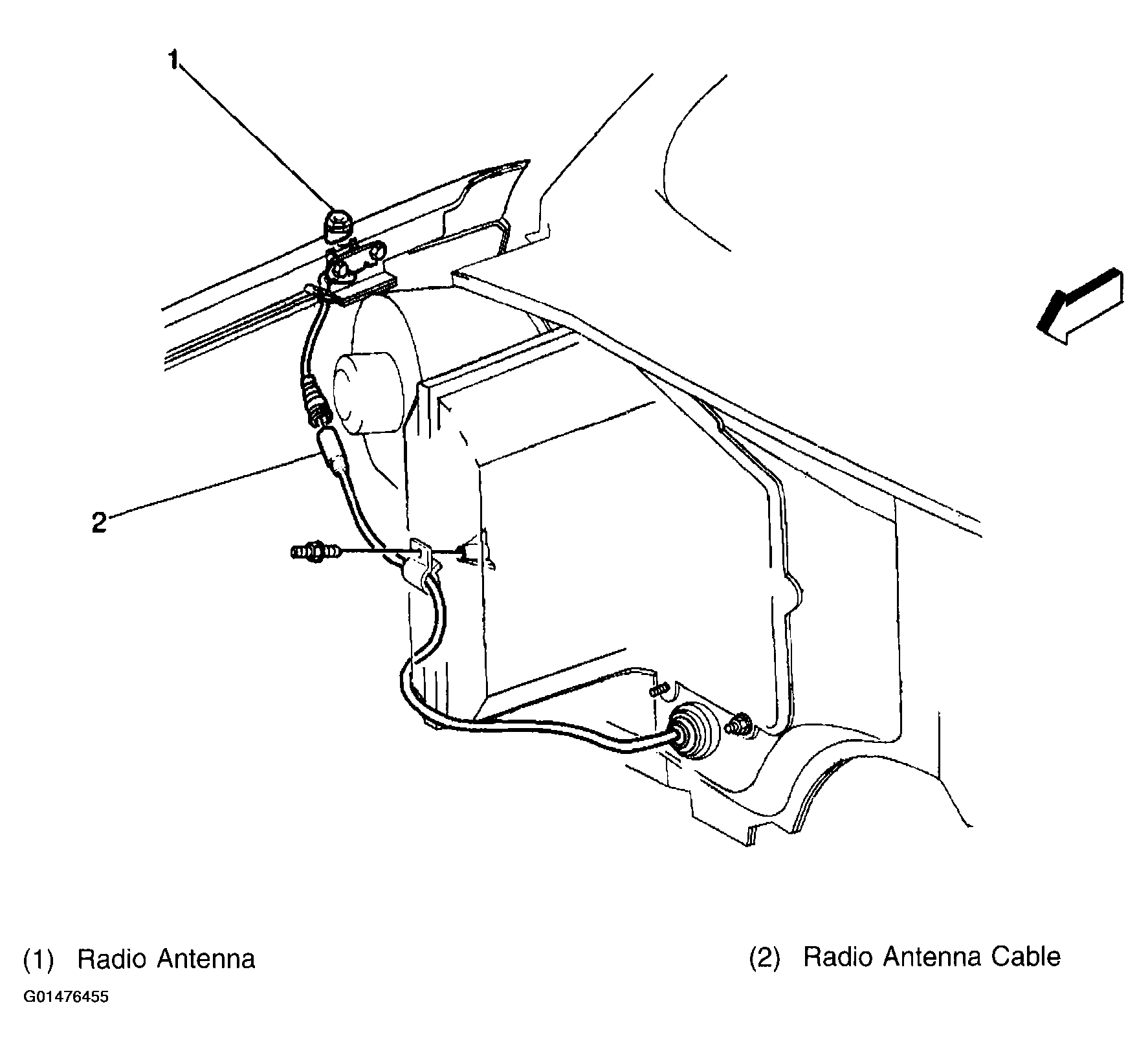

Fig 4: Radio Antenna Cable

Courtesy of GENERAL MOTORS CORP.

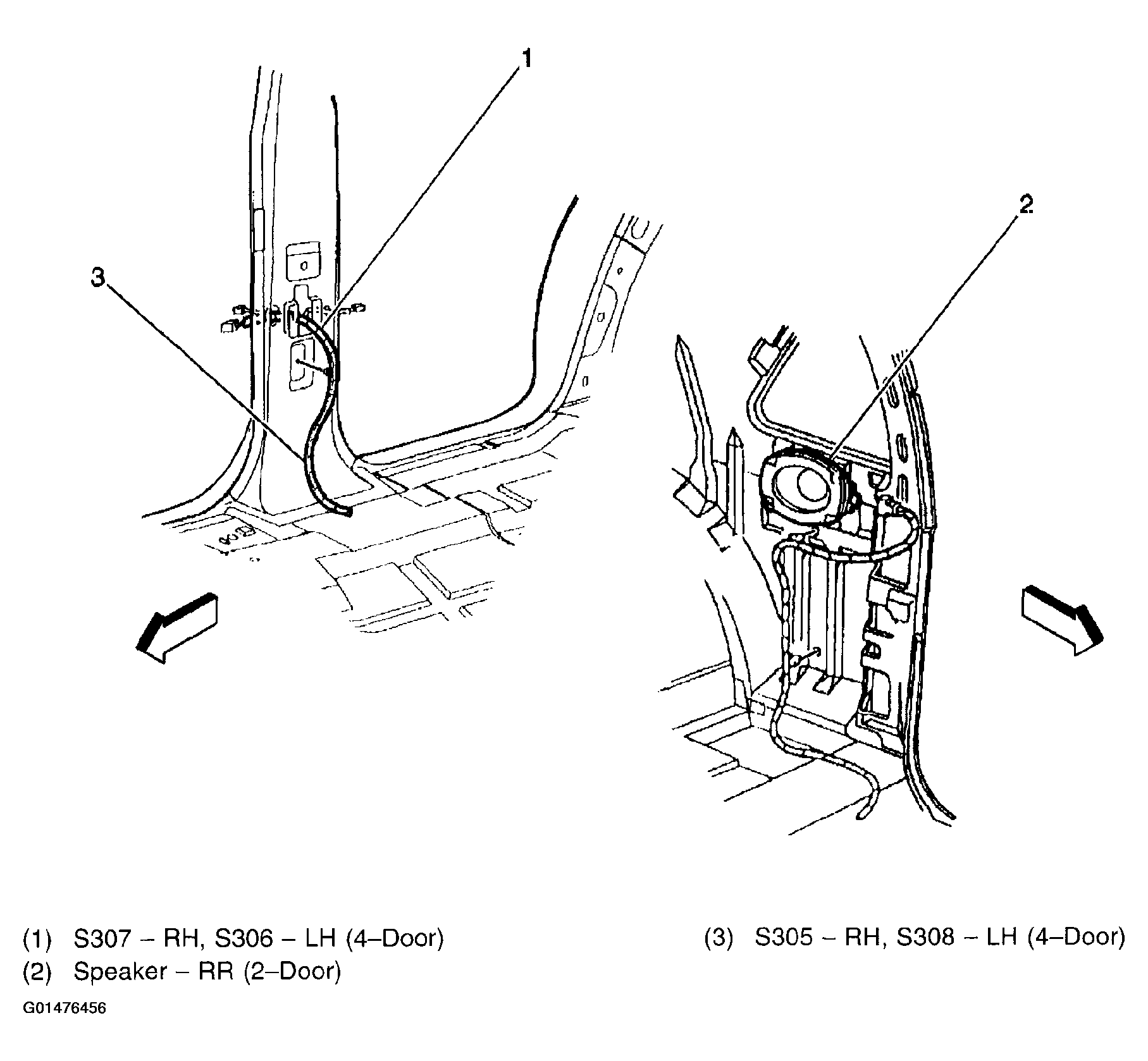

Fig 5: Rear Door Details, RH Shown, LH Similar - 2 & 4-Door Utility

Courtesy of GENERAL MOTORS CORP.

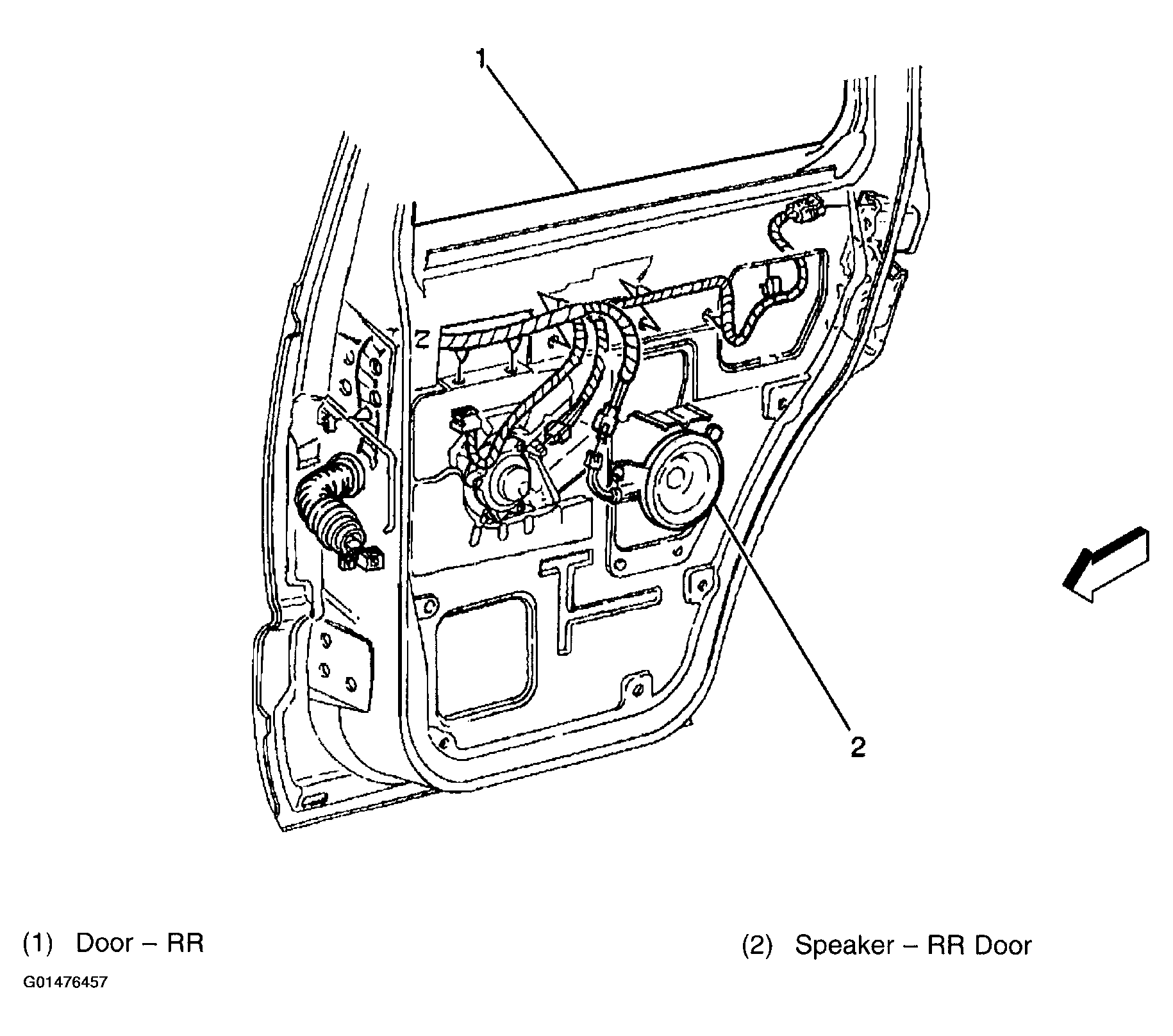

Fig 6: Door Wiring Harness, RR Shown, LR Similar

Courtesy of GENERAL MOTORS CORP.

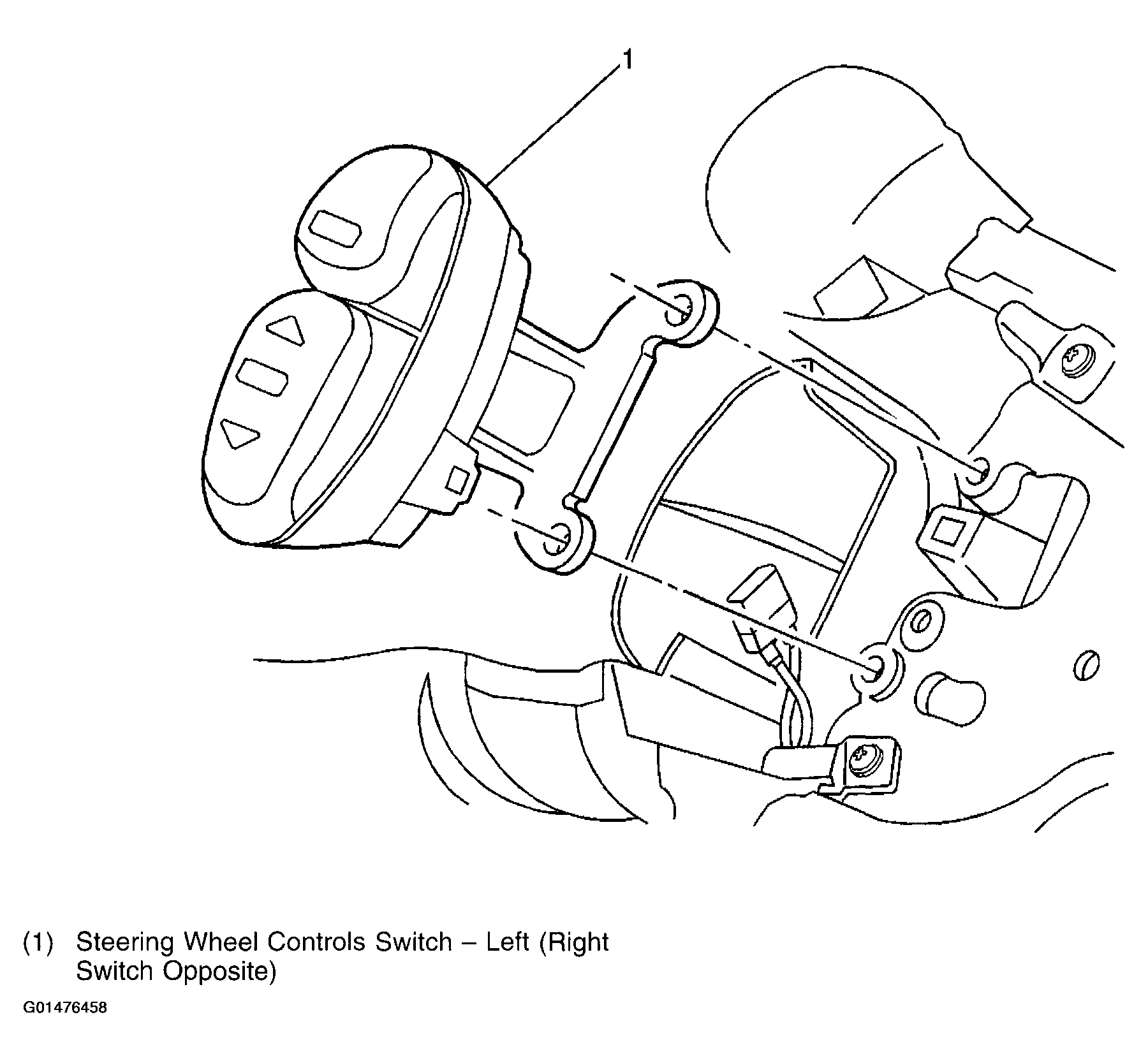

Fig 7: Steering Wheel Control Switches

Courtesy of GENERAL MOTORS CORP.
