Connector Identification

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 Pontiac Grand Prix, 2002 Pontiac Bonneville, 2002 Chevrolet Monte Carlo, 2002 Chevrolet Impala, and 2002 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

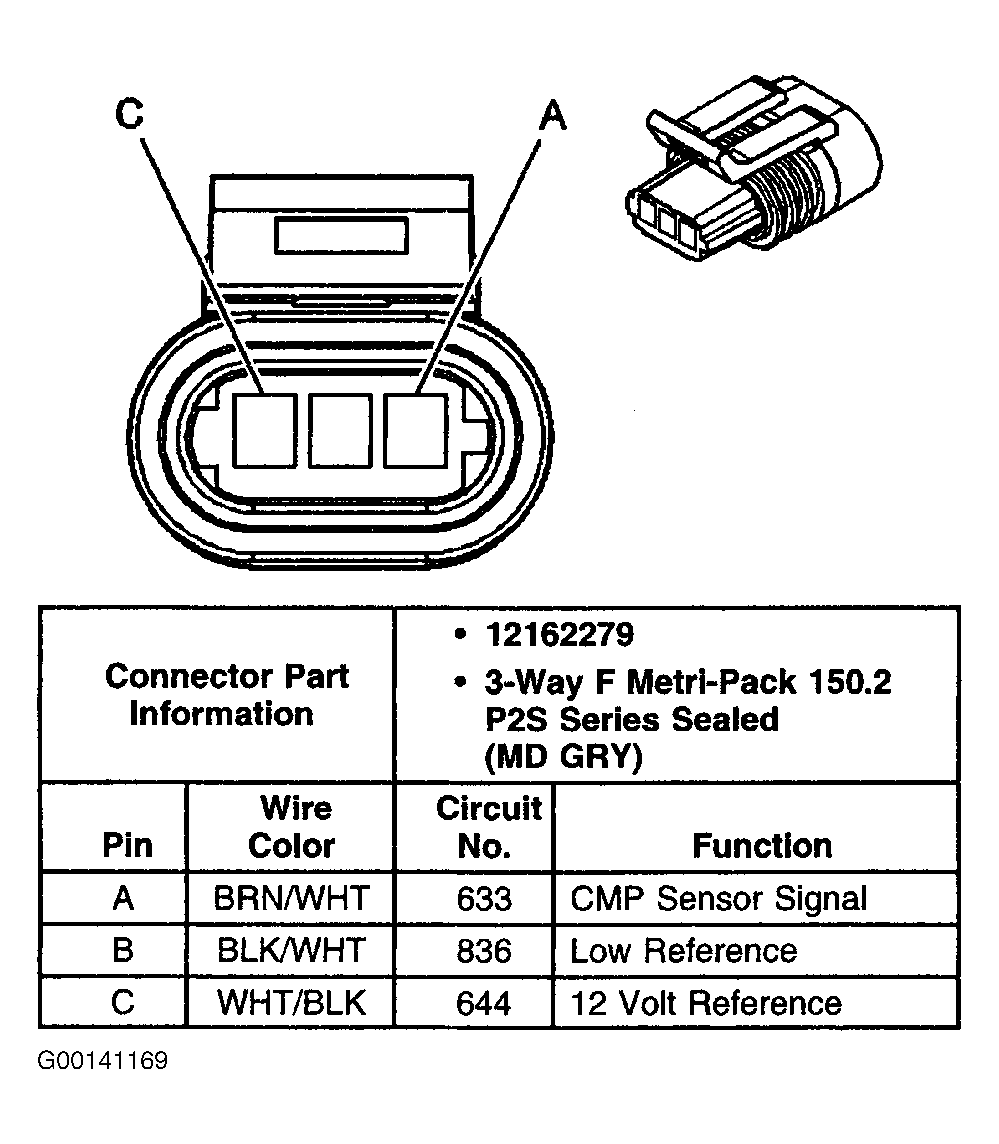

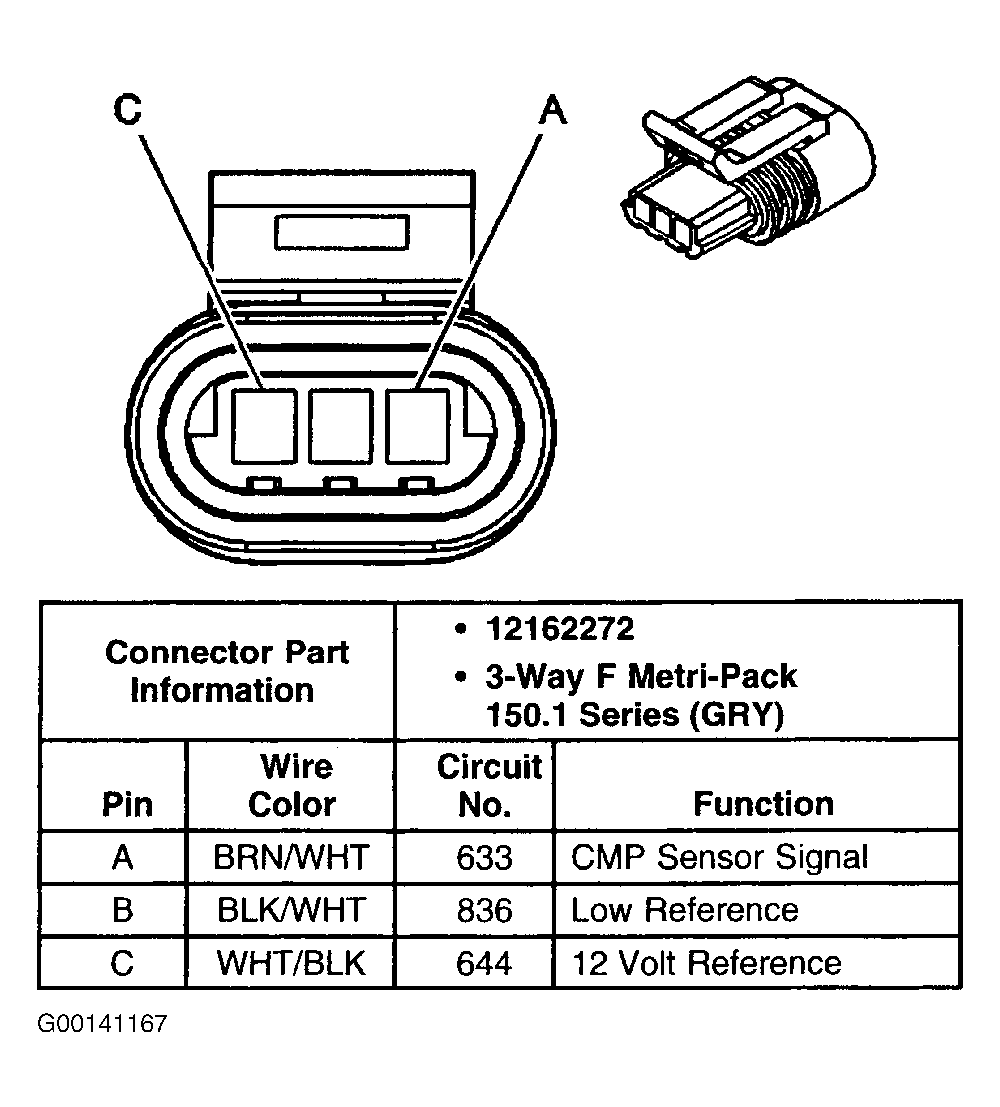

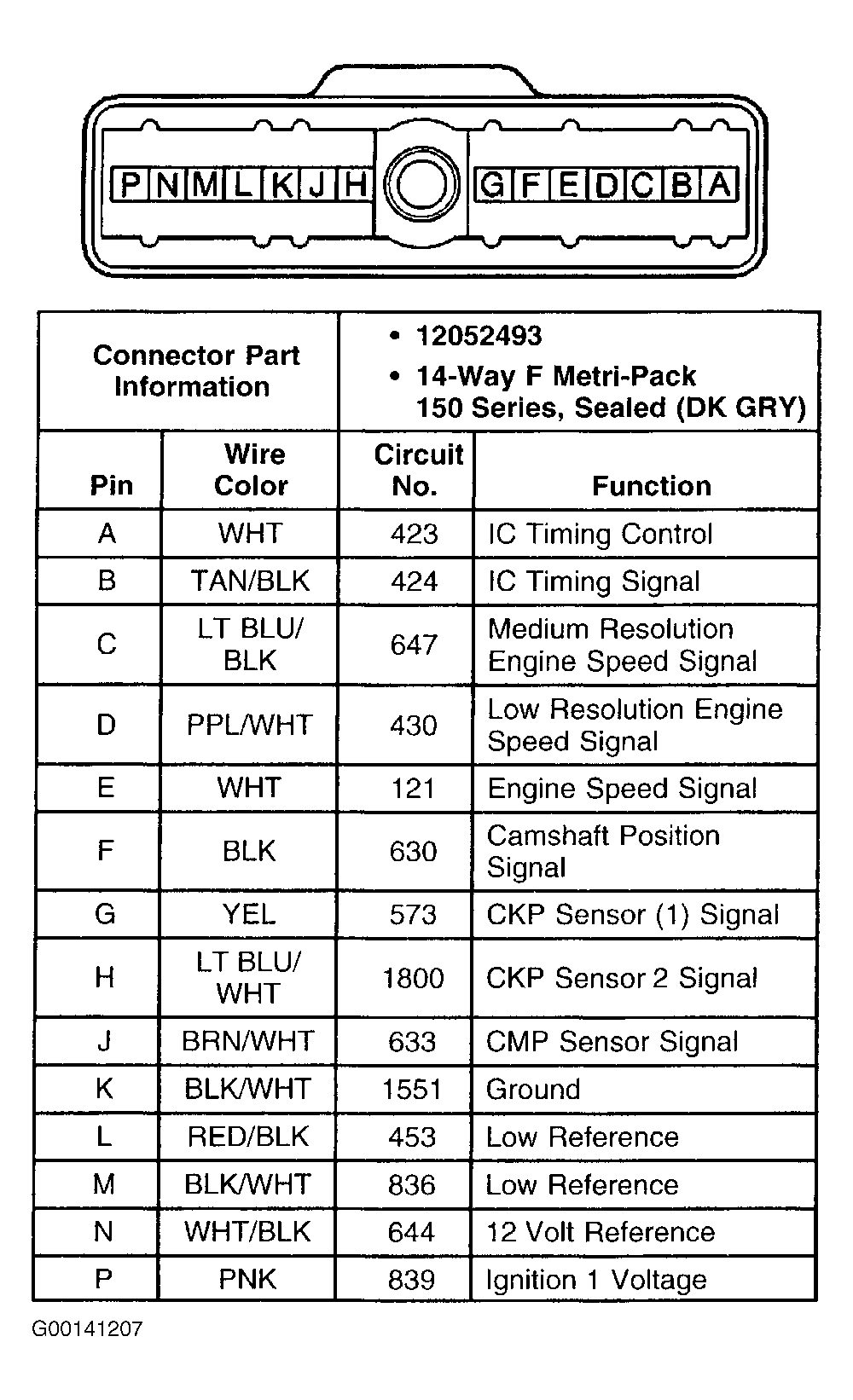

Fig 1: Identifying CMP Sensor Connector Terminals (Bonneville, LeSabre & Park Avenue)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying CMP Sensor Connector Terminals (Grand Prix)

Courtesy of GENERAL MOTORS CORP.

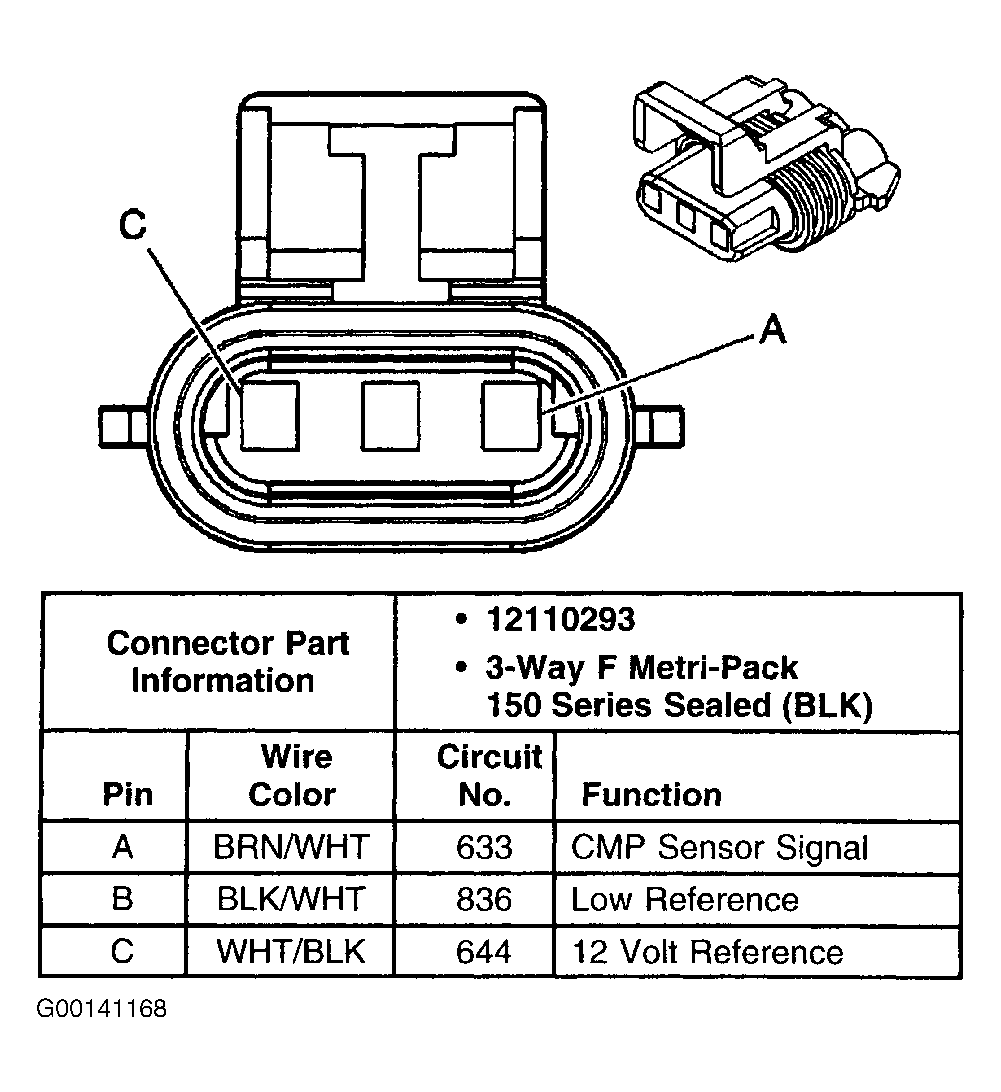

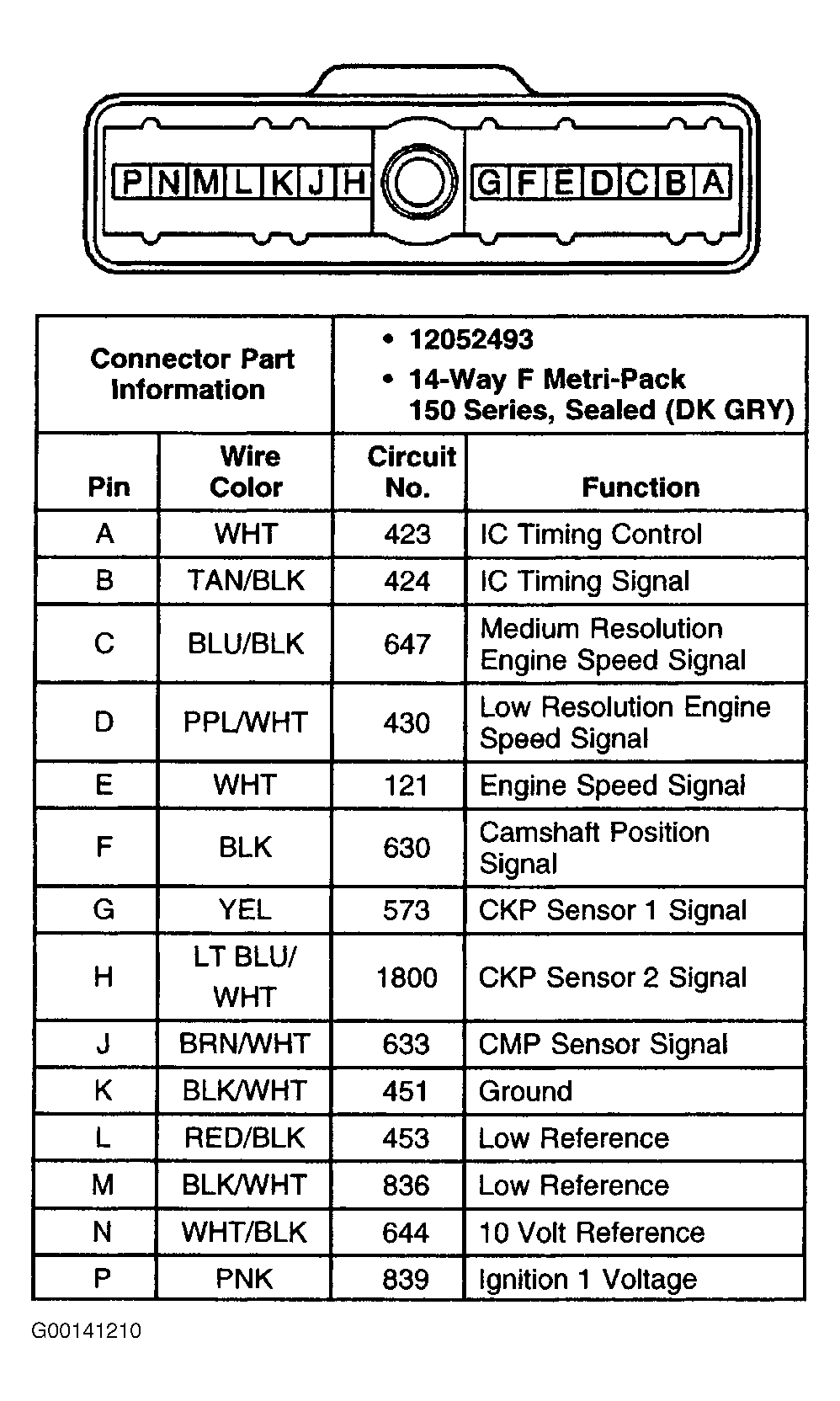

Fig 3: Identifying CMP Sensor Connector Terminals (Impala, Monte Carlo & Regal)

Courtesy of GENERAL MOTORS CORP.

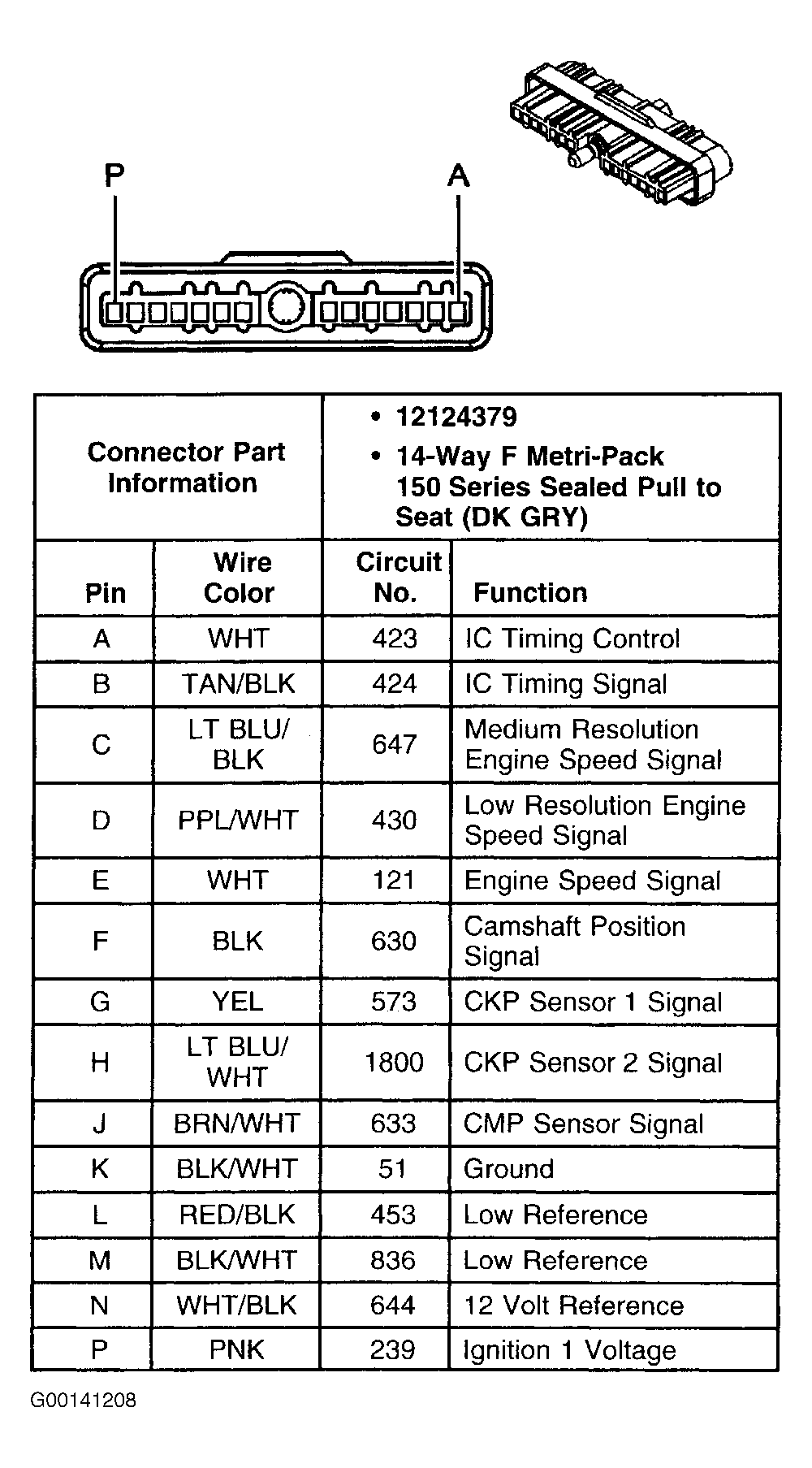

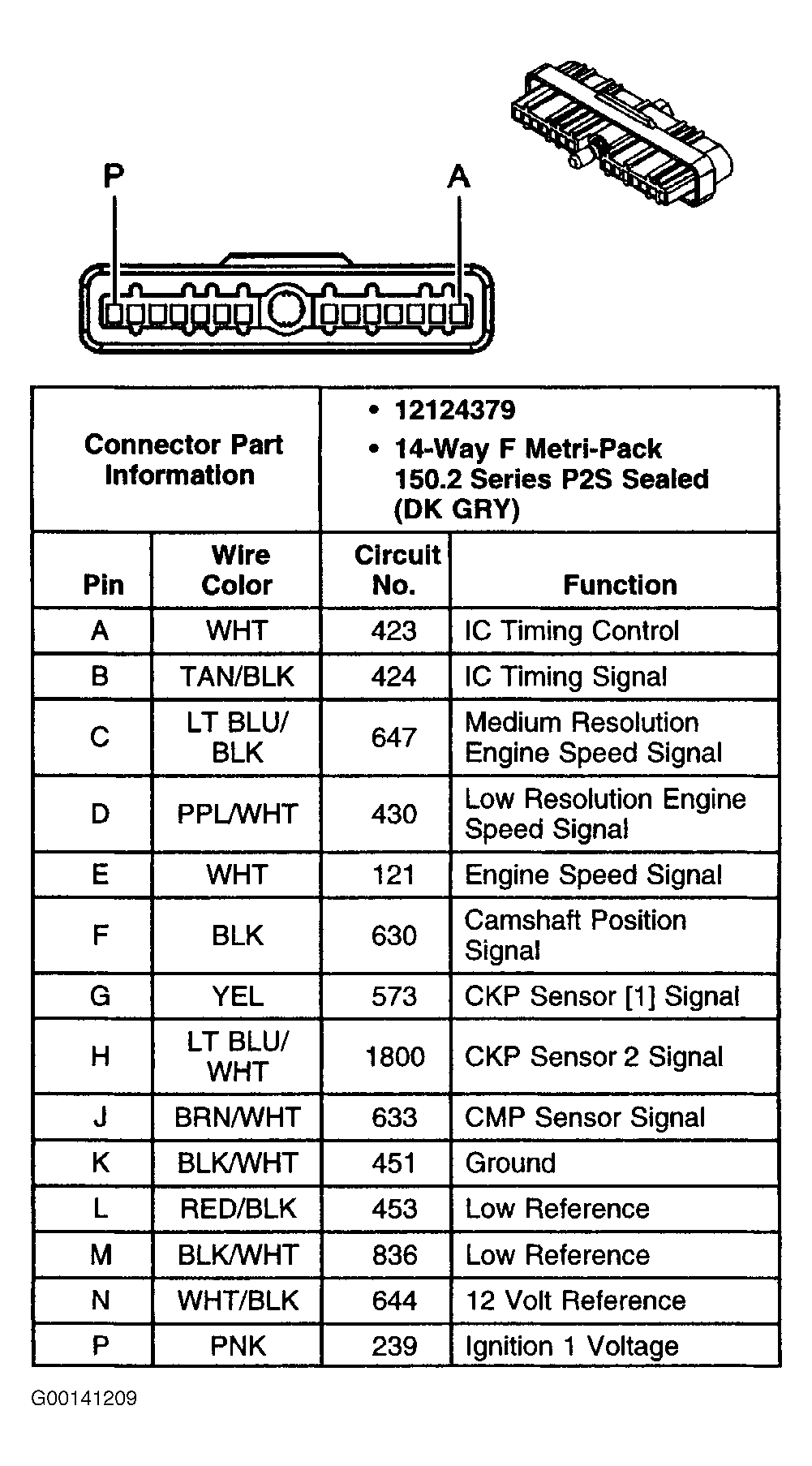

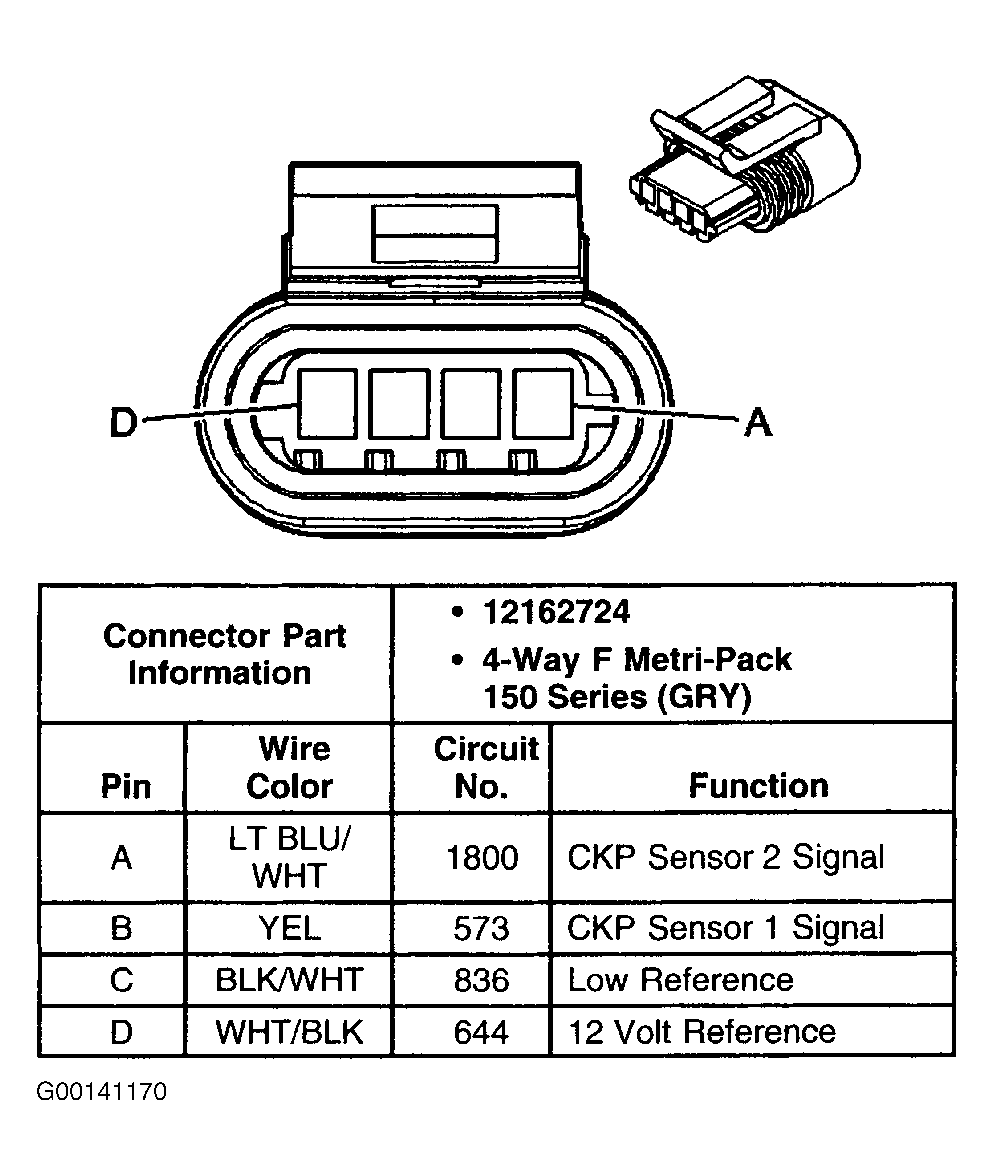

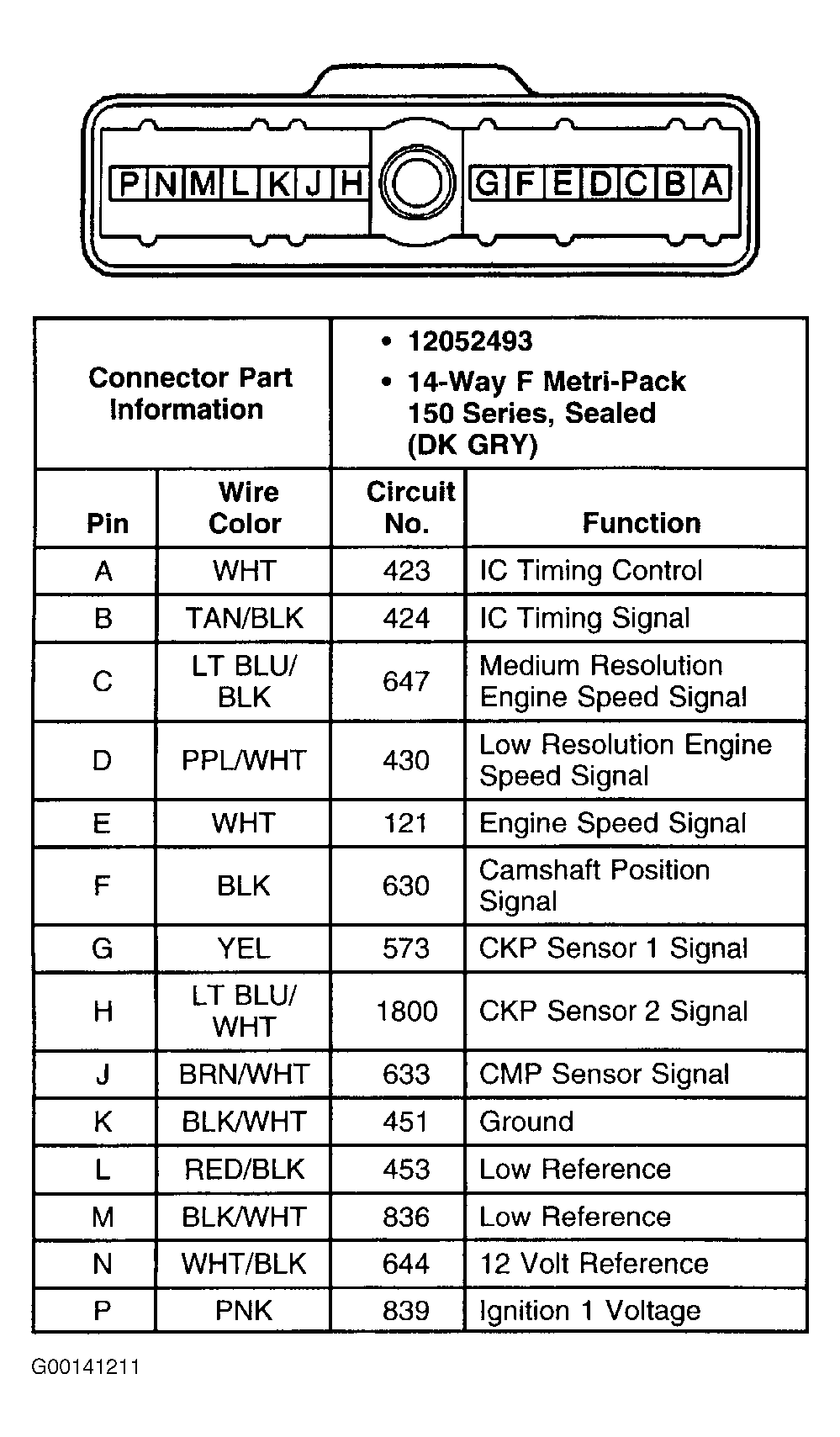

Fig 4: Identifying CKP Sensor Connector Terminals

Courtesy of GENERAL MOTORS CORP.

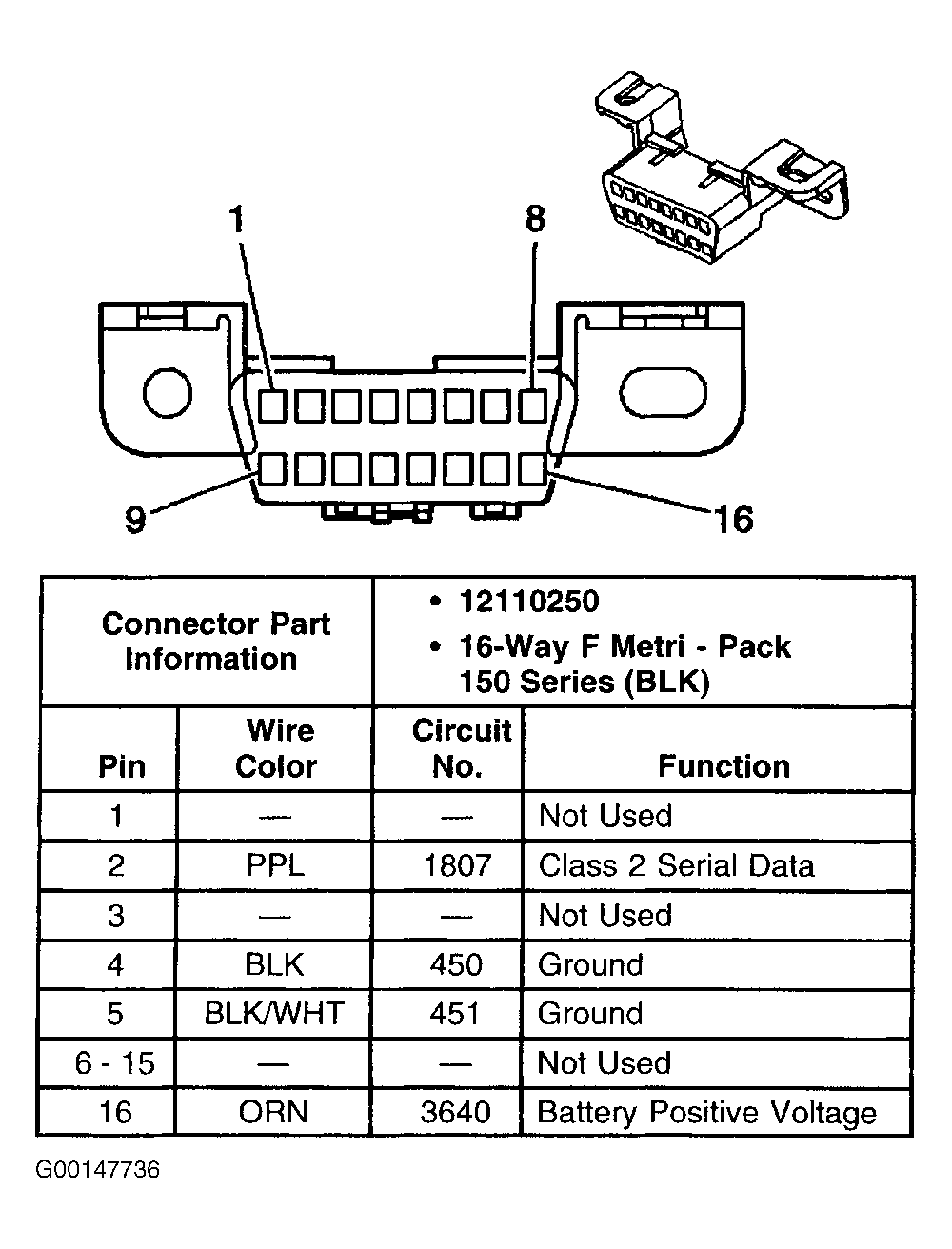

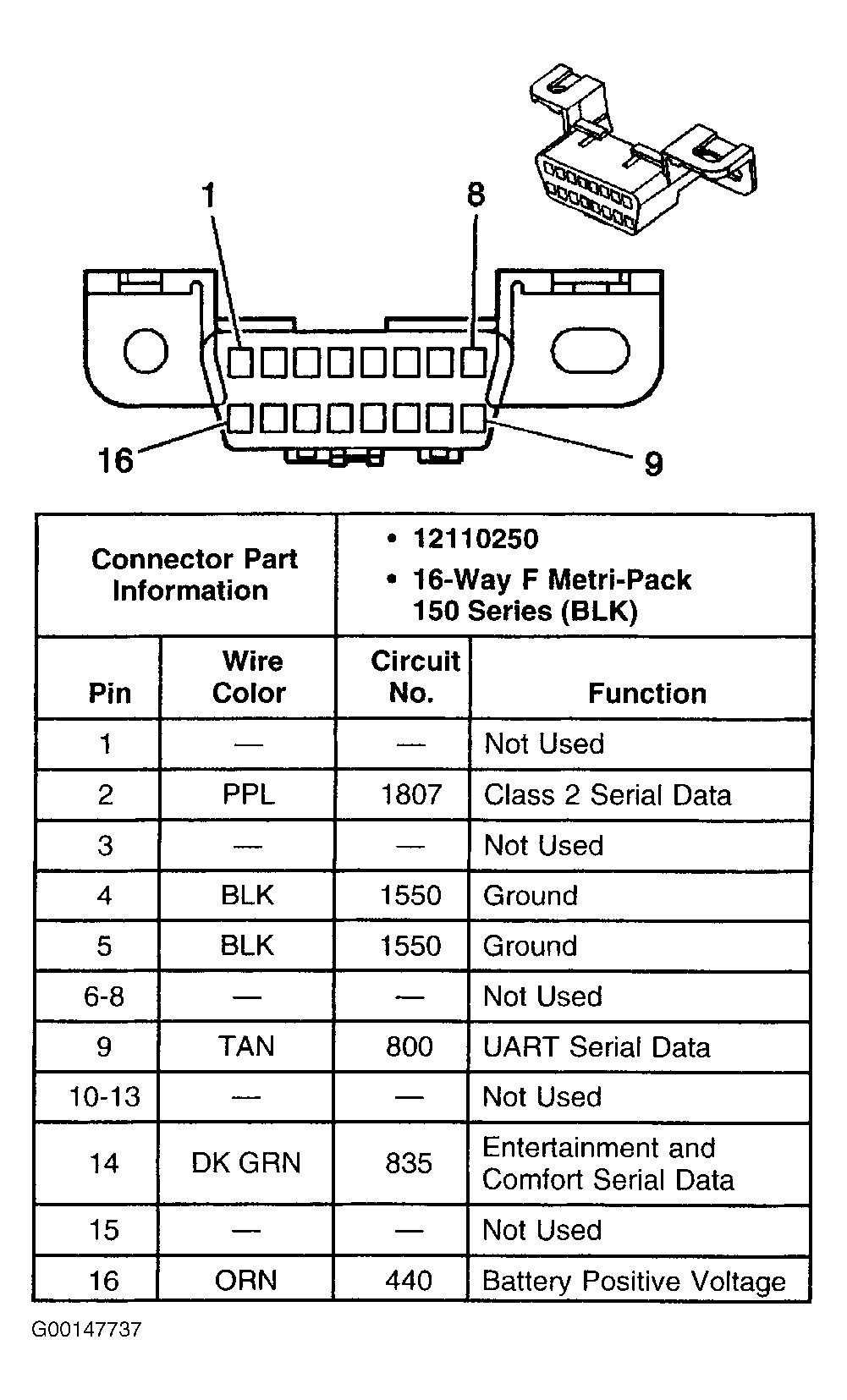

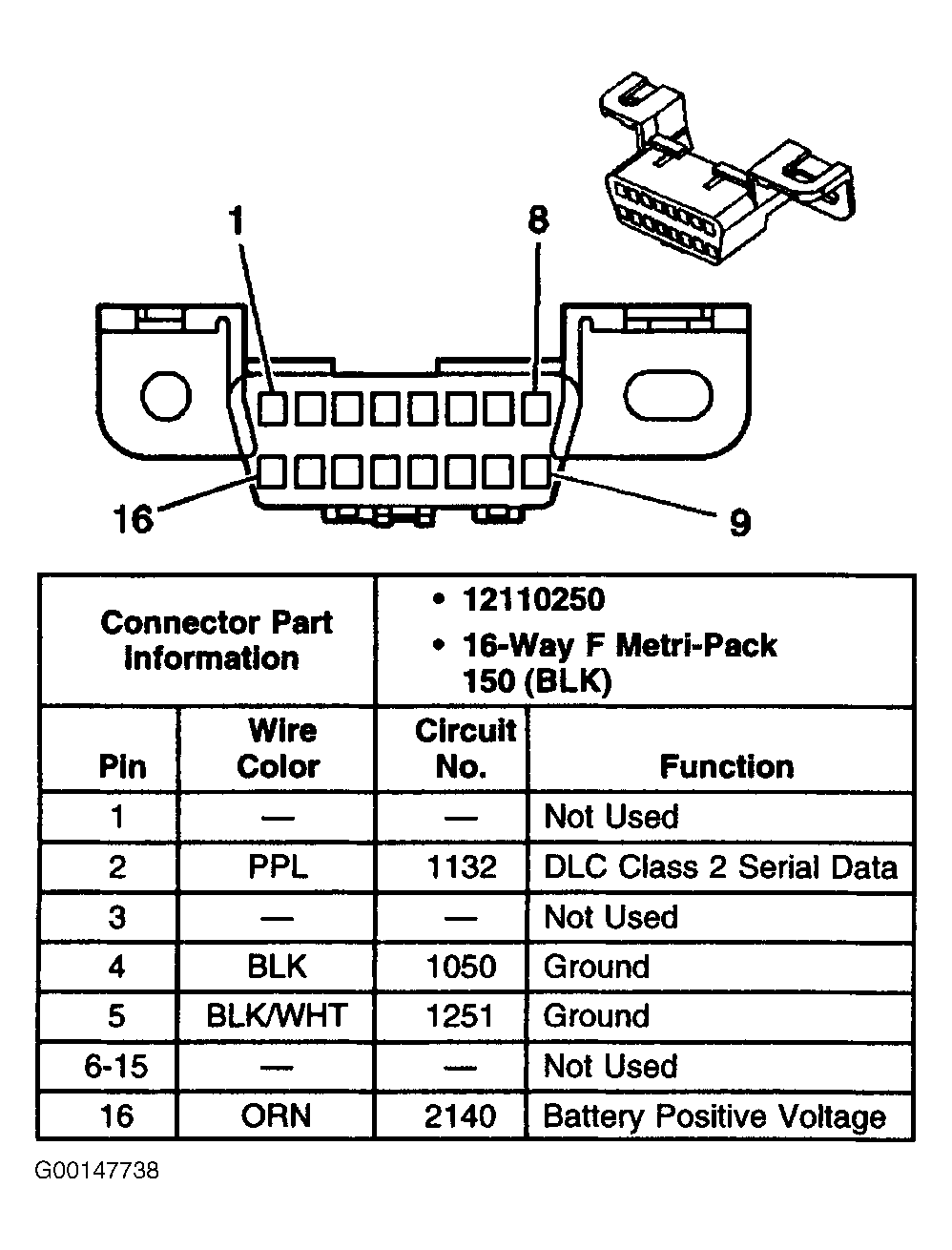

Fig 5: Identifying Data Link Connector Terminals (Bonneville & LeSabre)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Identifying Data Link Connector Terminals (Grand Prix)

Courtesy of GENERAL MOTORS CORP.

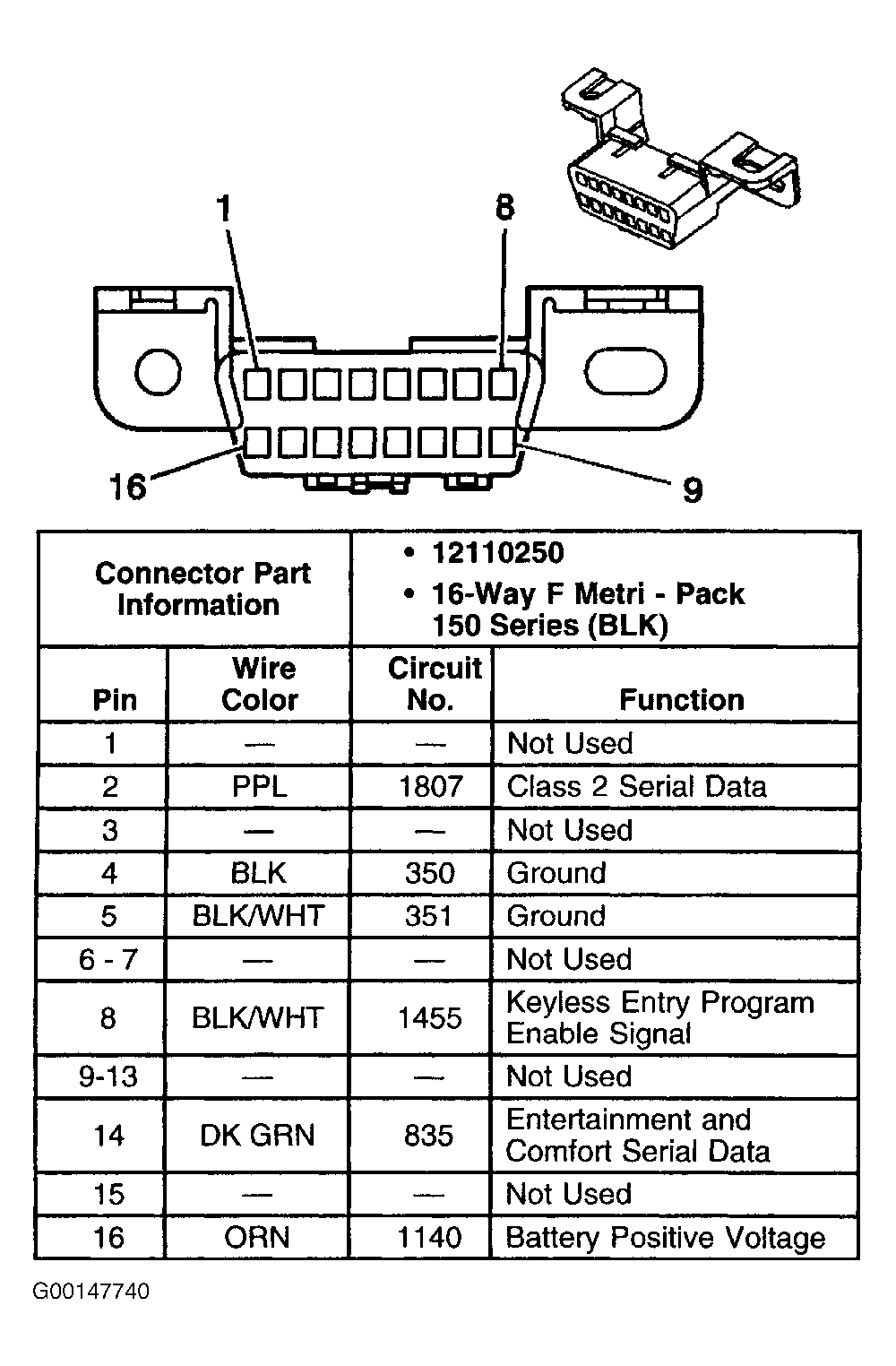

Fig 7: Identifying Data Link Connector Terminals (Impala & Monte Carlo)

Courtesy of GENERAL MOTORS CORP.

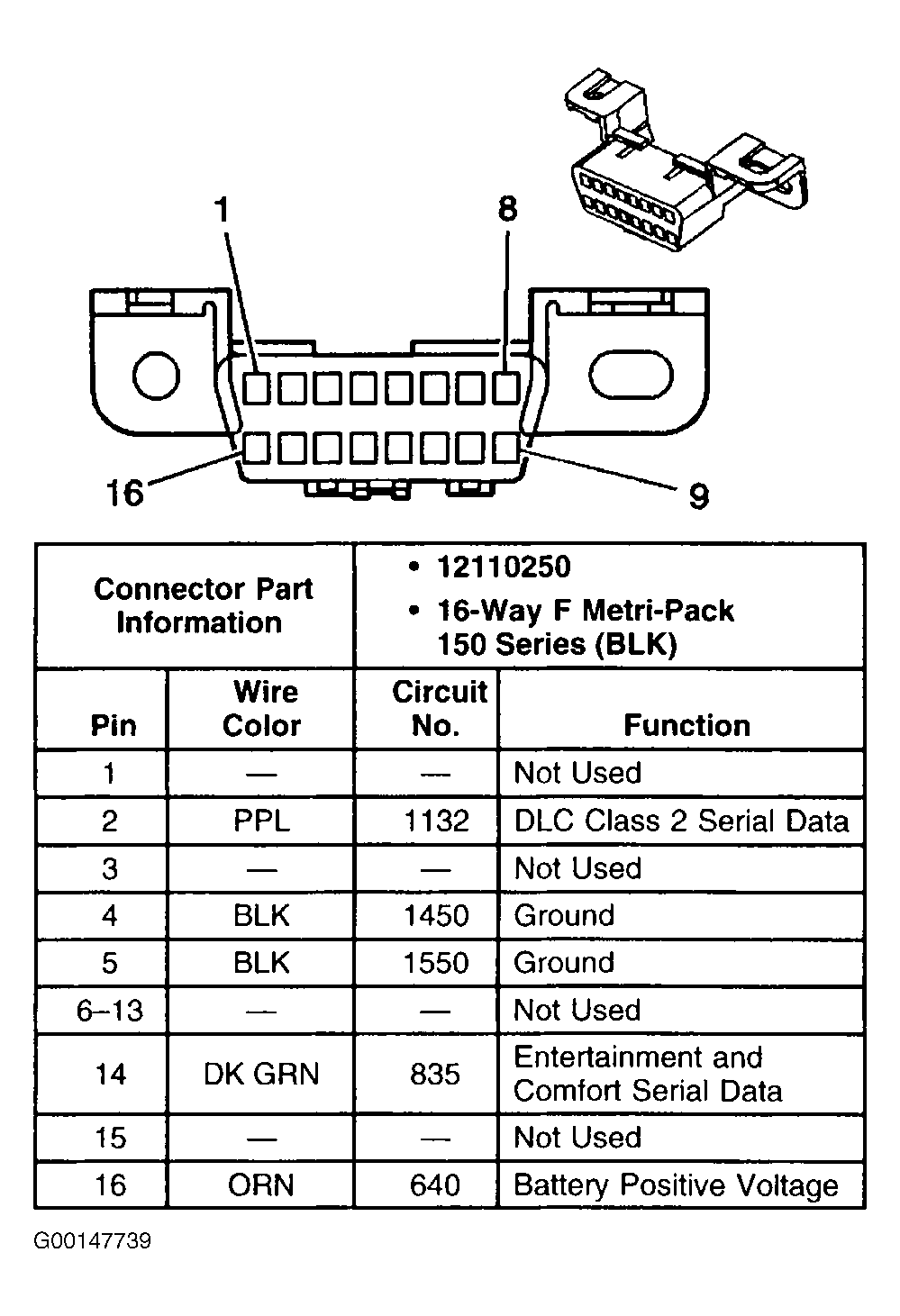

Fig 8: Identifying Data Link Connector Terminals (Park Avenue)

Courtesy of GENERAL MOTORS CORP.

Fig 9: Identifying Data Link Connector Terminals (Regal)

Courtesy of GENERAL MOTORS CORP.

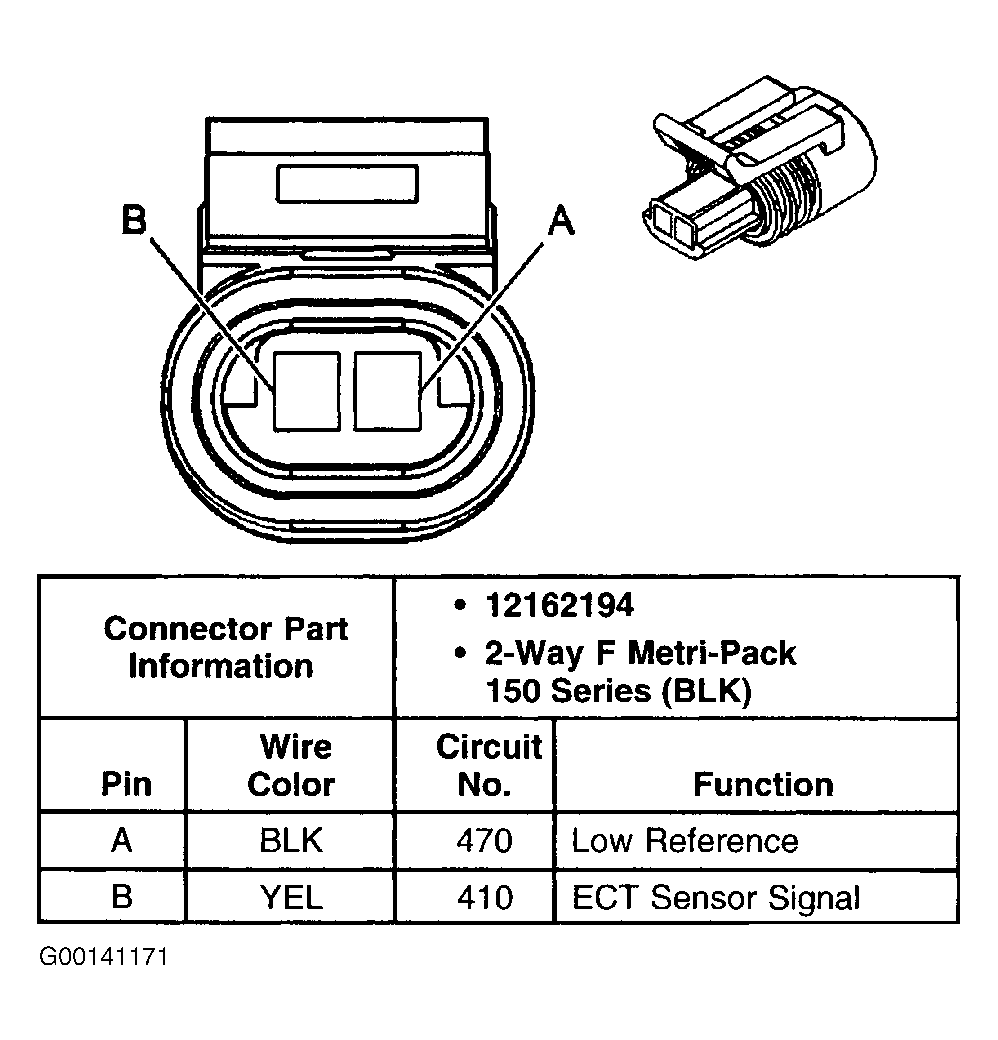

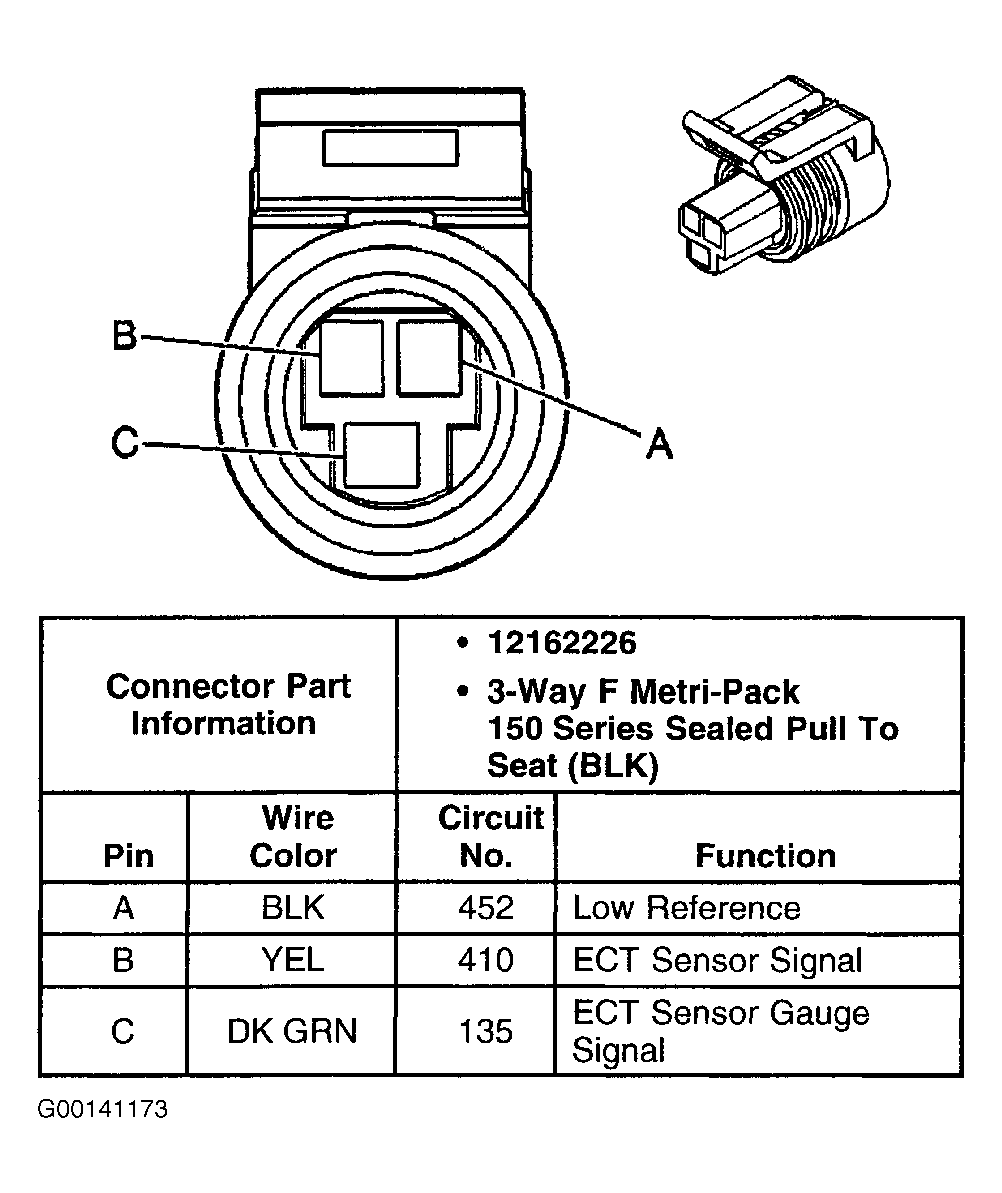

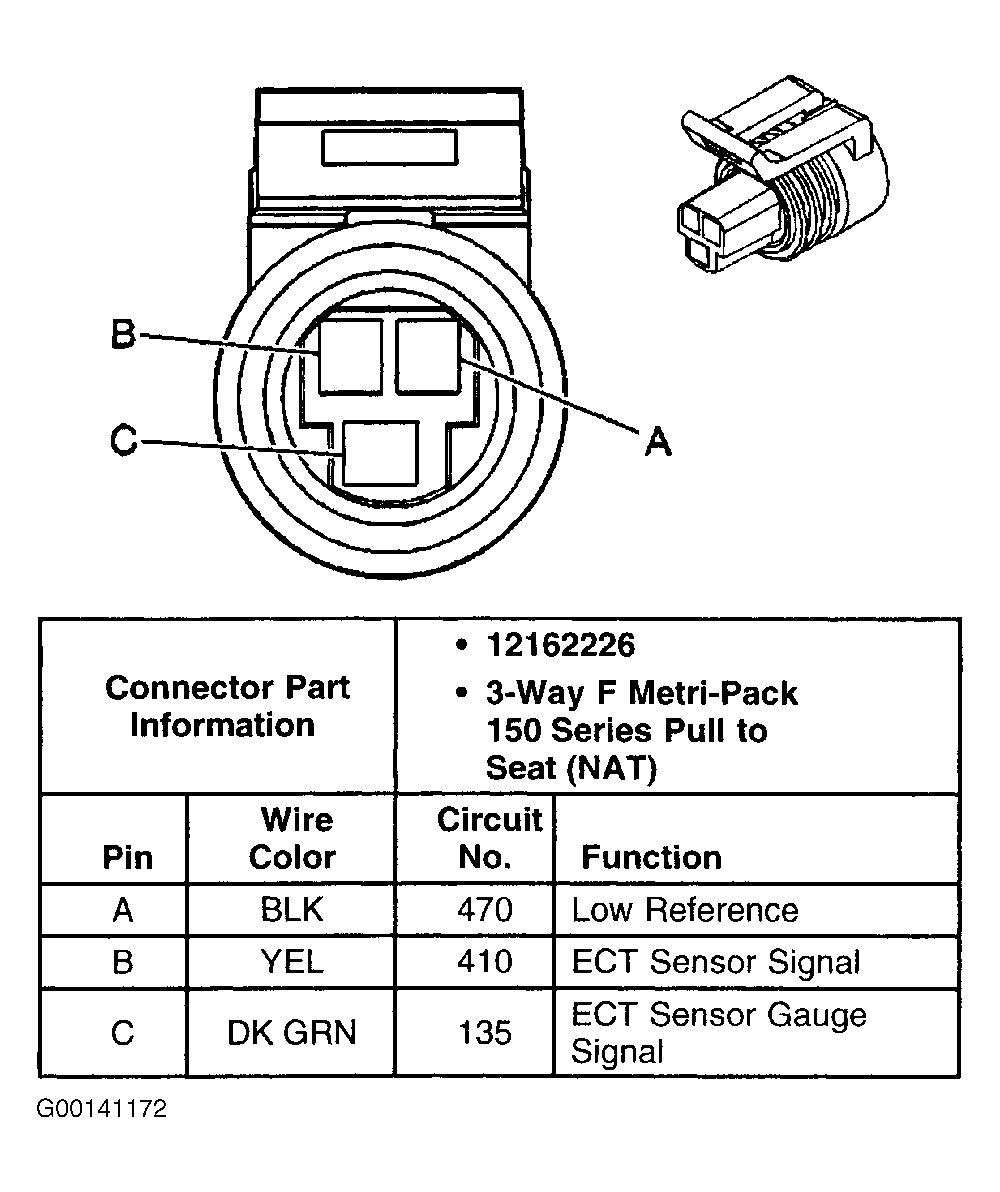

Fig 10: Identifying ECT Sensor Connector Terminals (Bonneville, Impala, Monte Carlo, LeSabre, Regal W/O Supercharger & Park Avenue)

Courtesy of GENERAL MOTORS CORP.

Fig 11: Identifying ECT Sensor Connector Terminals (Grand Prix)

Courtesy of GENERAL MOTORS CORP.

Fig 12: Identifying ECT Sensor Connector Terminals (Regal With Supercharger)

Courtesy of GENERAL MOTORS CORP.

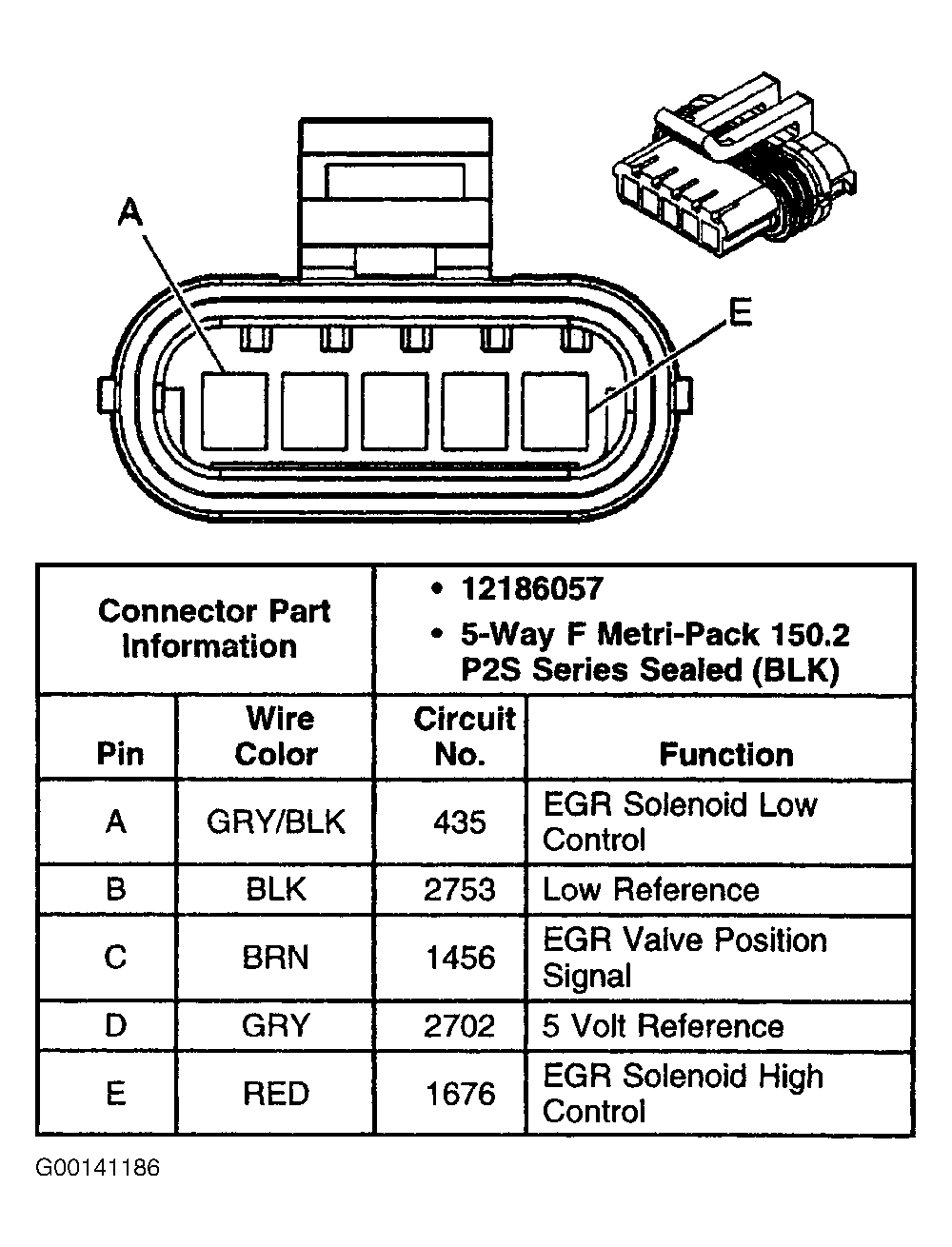

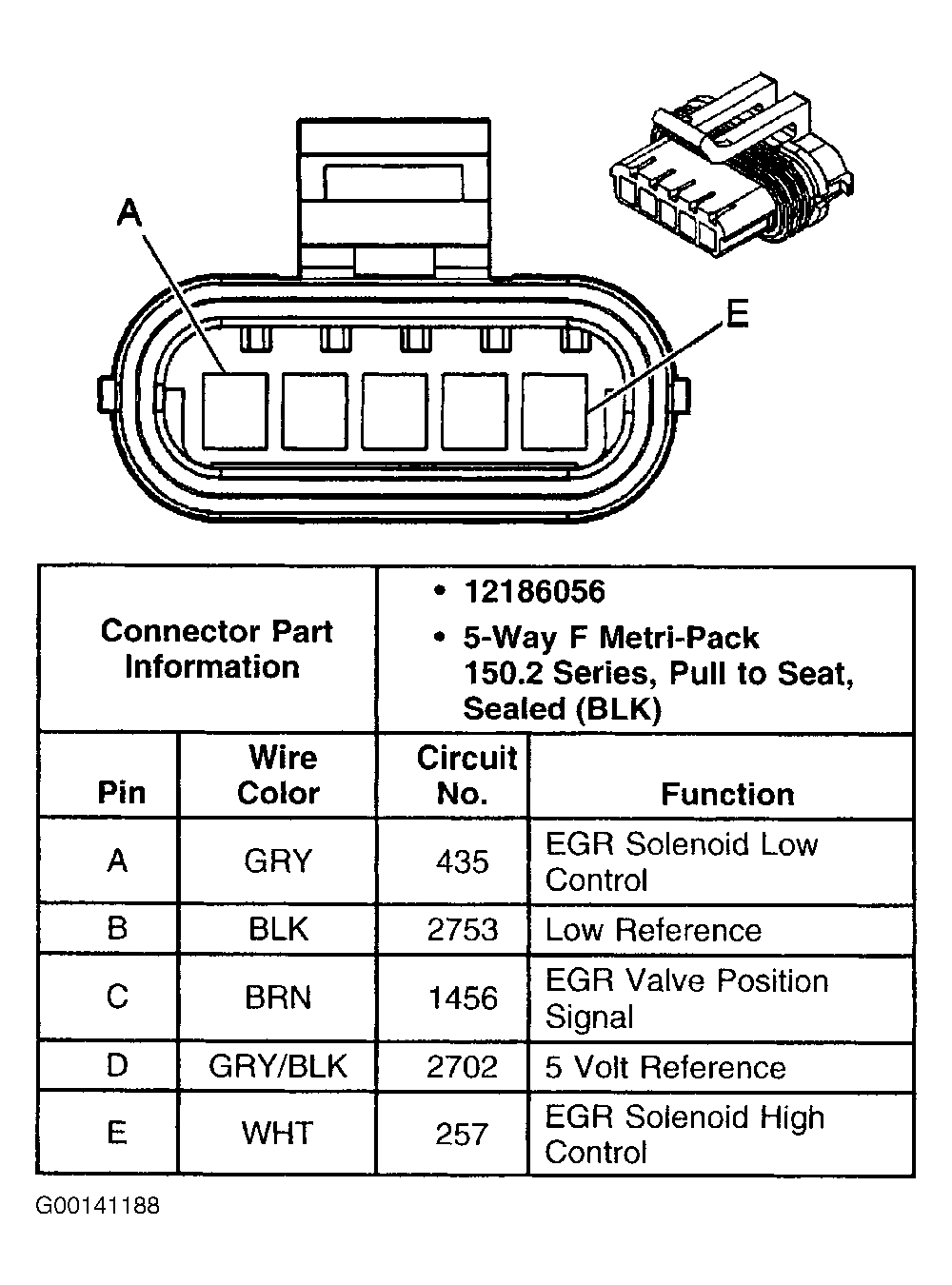

Fig 13: Identifying EGR Valve Connector Terminals (Bonneville)

Courtesy of GENERAL MOTORS CORP.

Fig 14: Identifying EGR Valve Connector Terminals (Grand Prix)

Courtesy of GENERAL MOTORS CORP.

Fig 15: Identifying EGR Valve Connector Terminals (Impala & Monte Carlo)

Courtesy of GENERAL MOTORS CORP.

Fig 16: Identifying EGR Valve Connector Terminals (LeSabre & Park Avenue)

Courtesy of GENERAL MOTORS CORP.

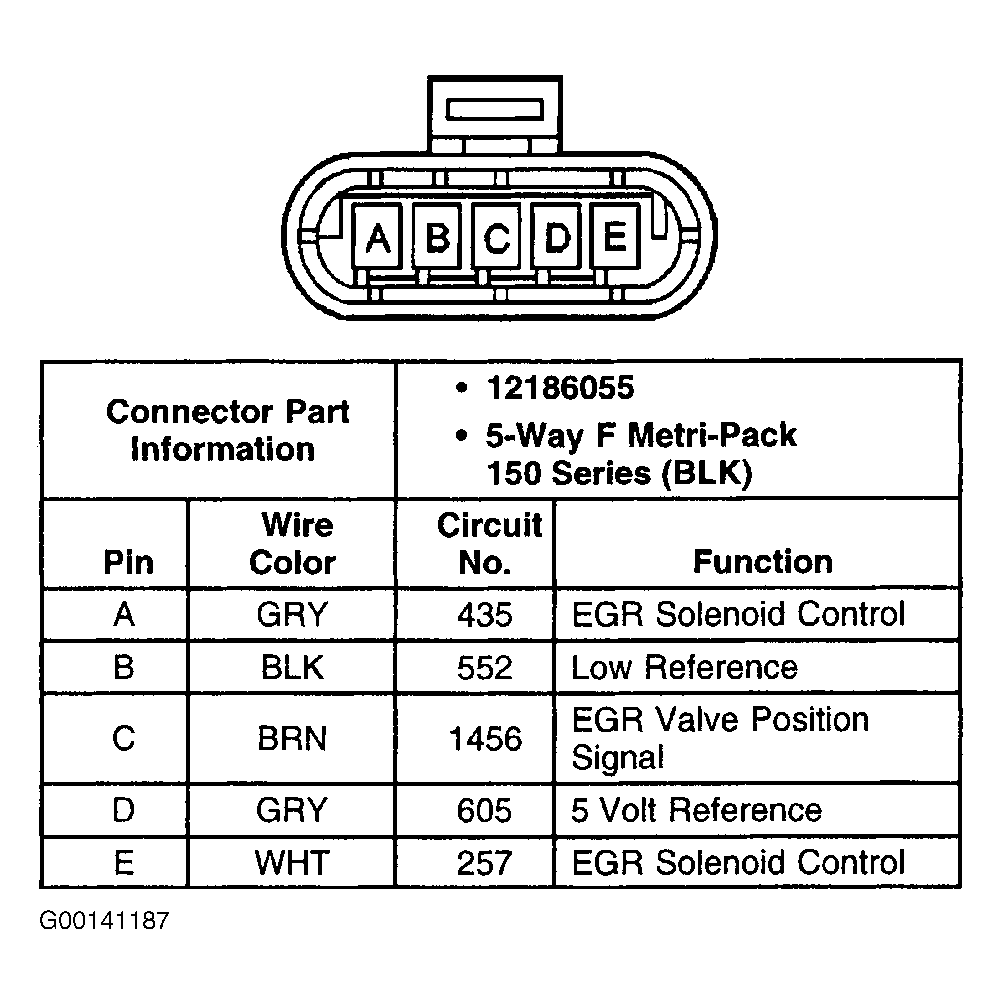

Fig 17: Identifying EGR Valve Connector Terminals (Regal)

Courtesy of GENERAL MOTORS CORP.

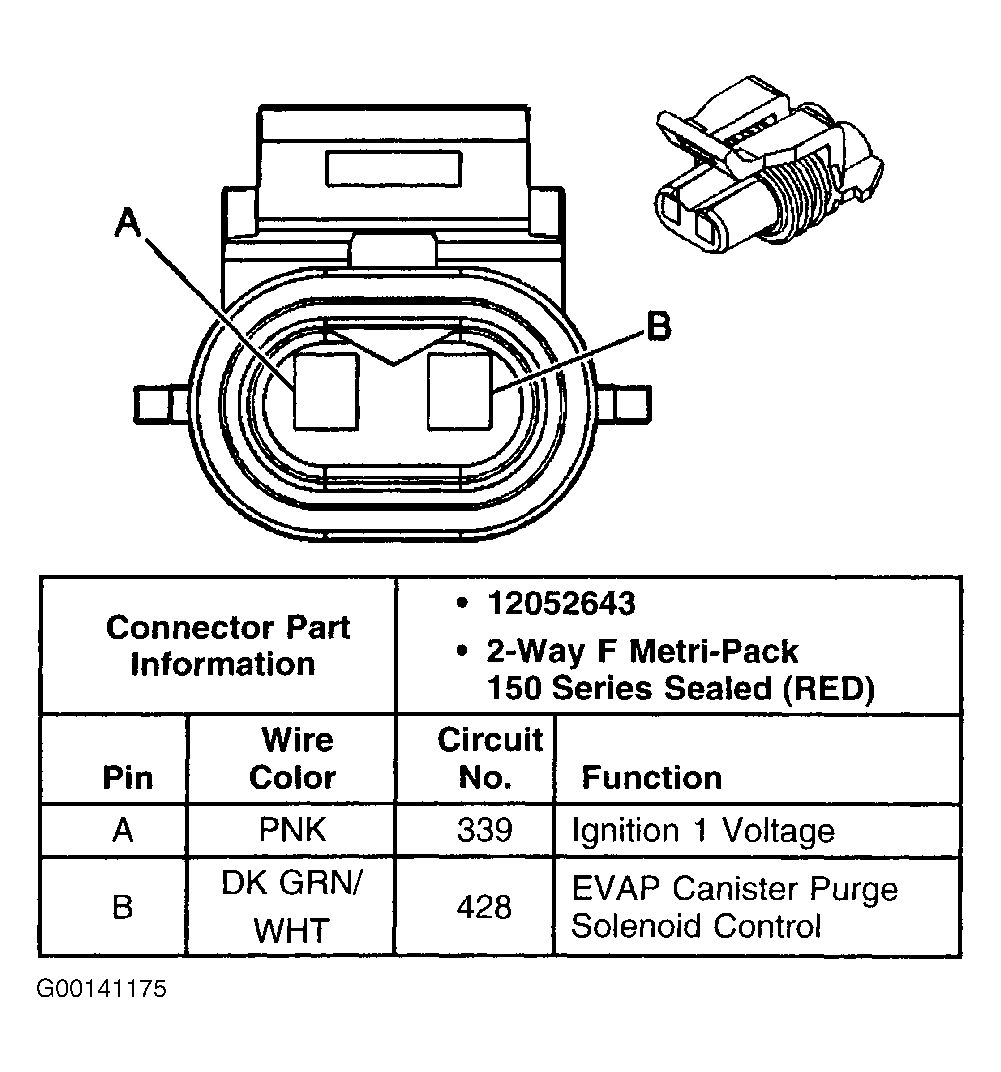

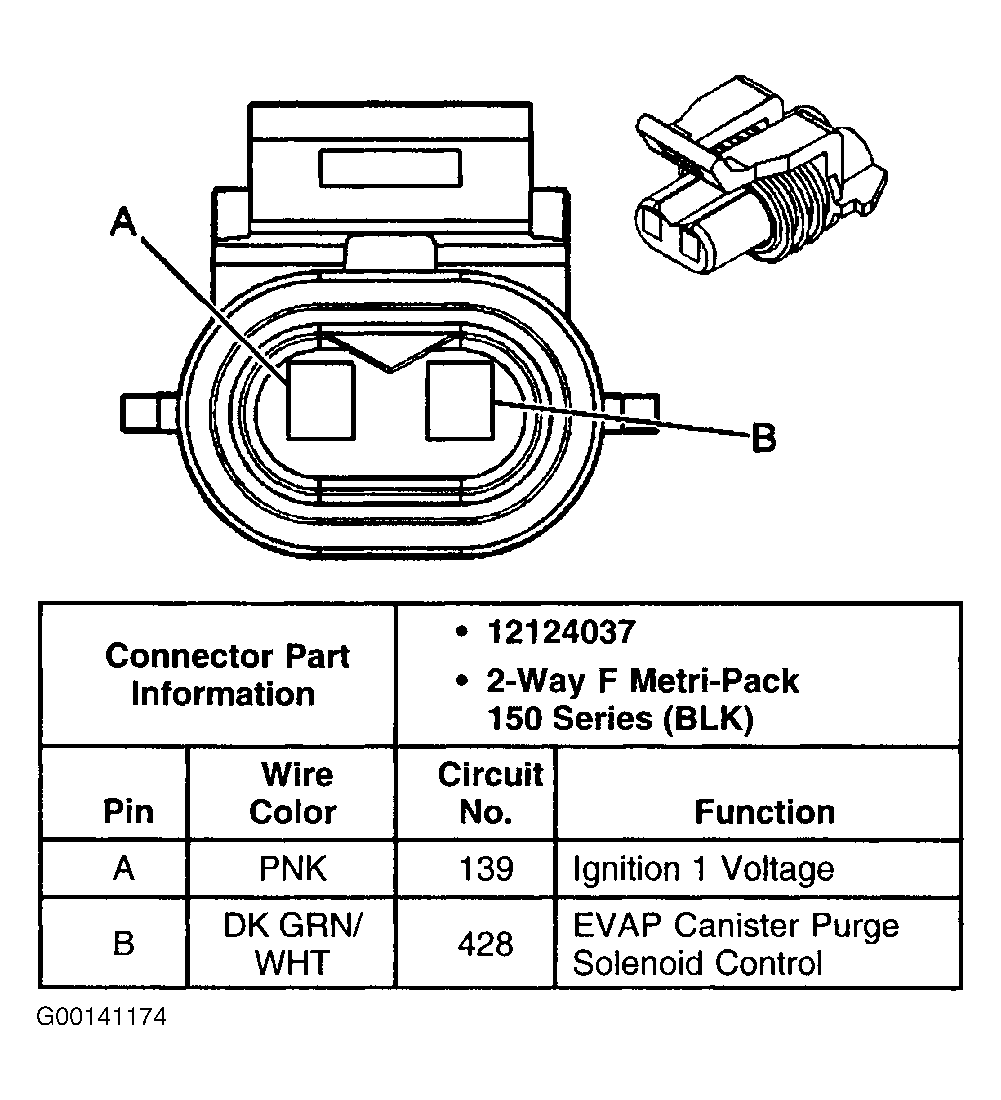

Fig 18: Identifying EVAP Purge Solenoid Connector Terminals (Bonneville)

Courtesy of GENERAL MOTORS CORP.

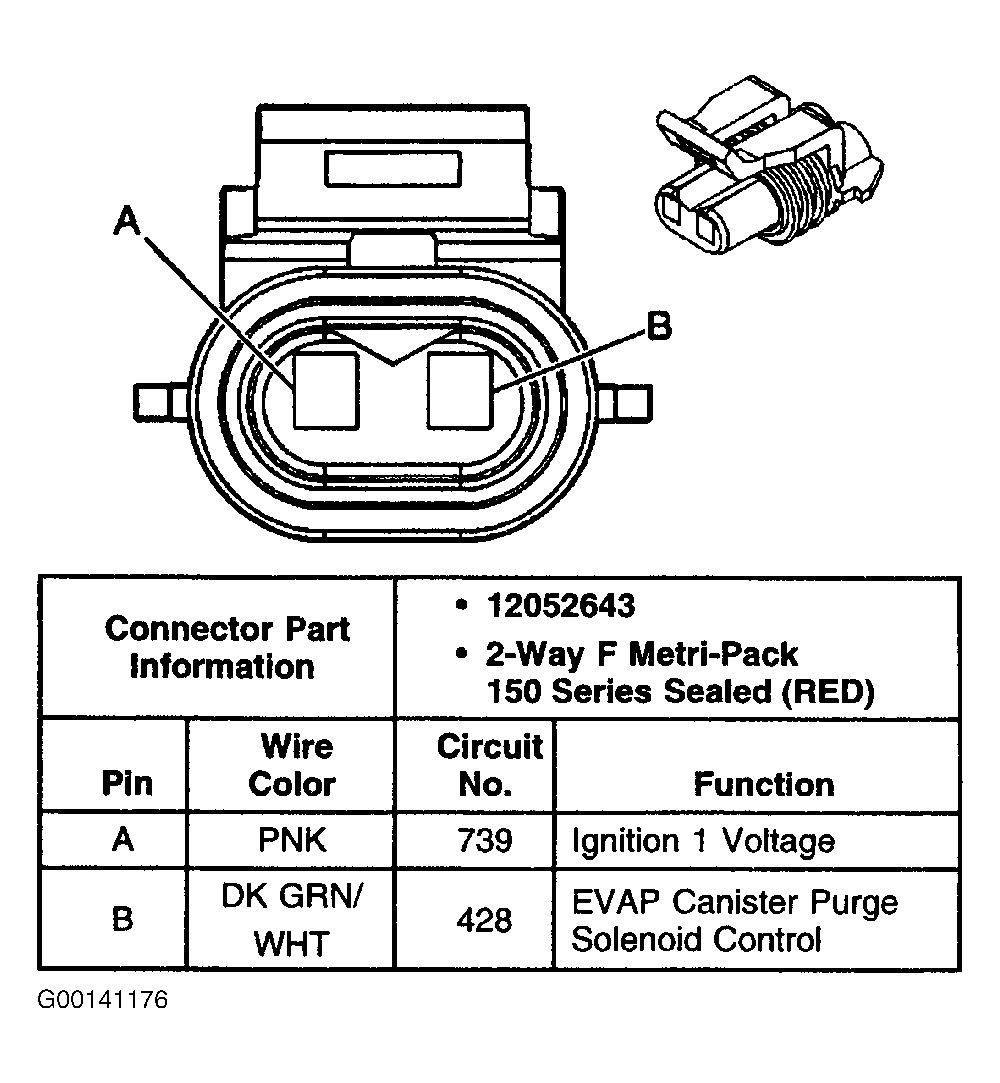

Fig 19: Identifying EVAP Purge Solenoid Connector Terminals (Grand Prix & Regal)

Courtesy of GENERAL MOTORS CORP.

Fig 20: Identifying EVAP Purge Solenoid Connector Terminals (Impala & Monte Carlo)

Courtesy of GENERAL MOTORS CORP.

Fig 21: Identifying EVAP Purge Solenoid Connector Terminals (LeSabre)

Courtesy of GENERAL MOTORS CORP.

Fig 22: Identifying EVAP Purge Solenoid Connector Terminals (Park Avenue)

Courtesy of GENERAL MOTORS CORP.

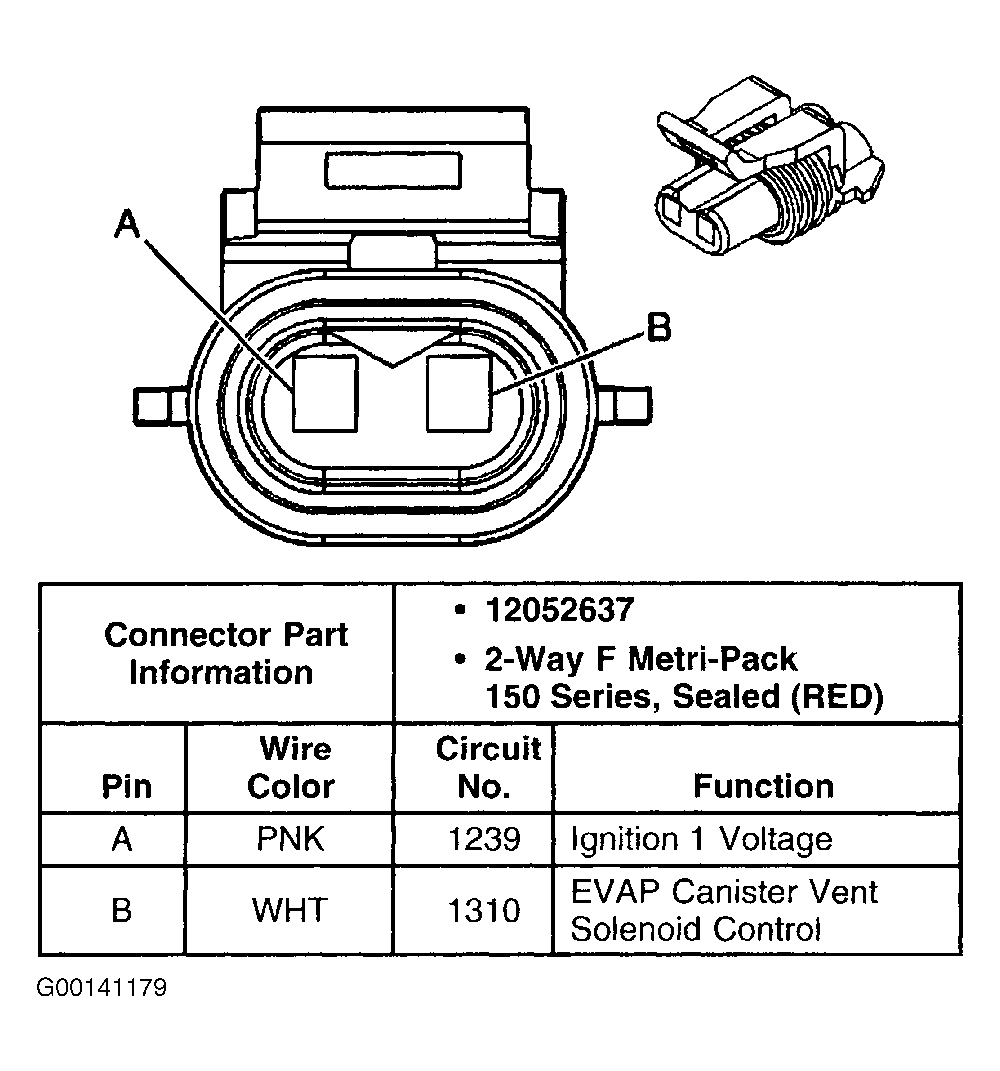

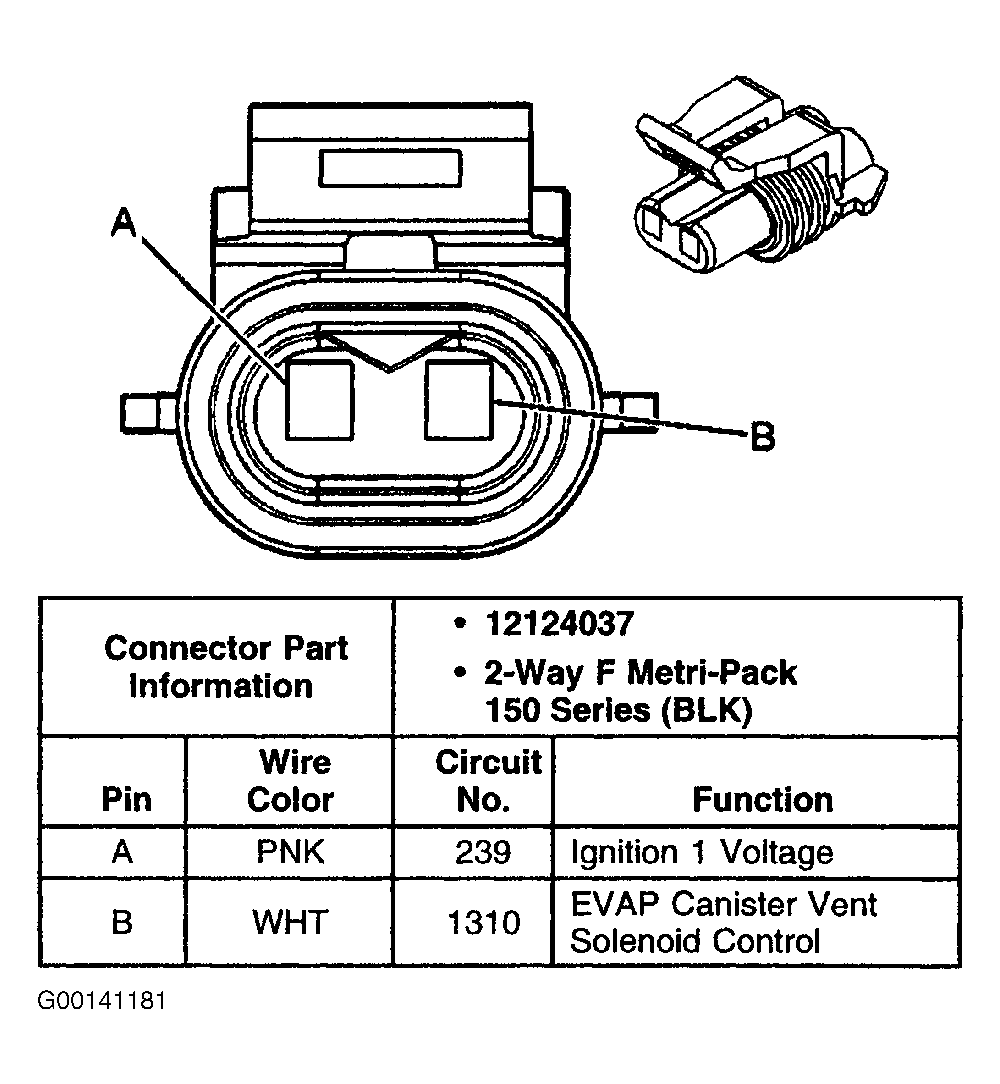

Fig 23: Identifying EVAP Vent Solenoid Connector Terminals (Bonneville)

Courtesy of GENERAL MOTORS CORP.

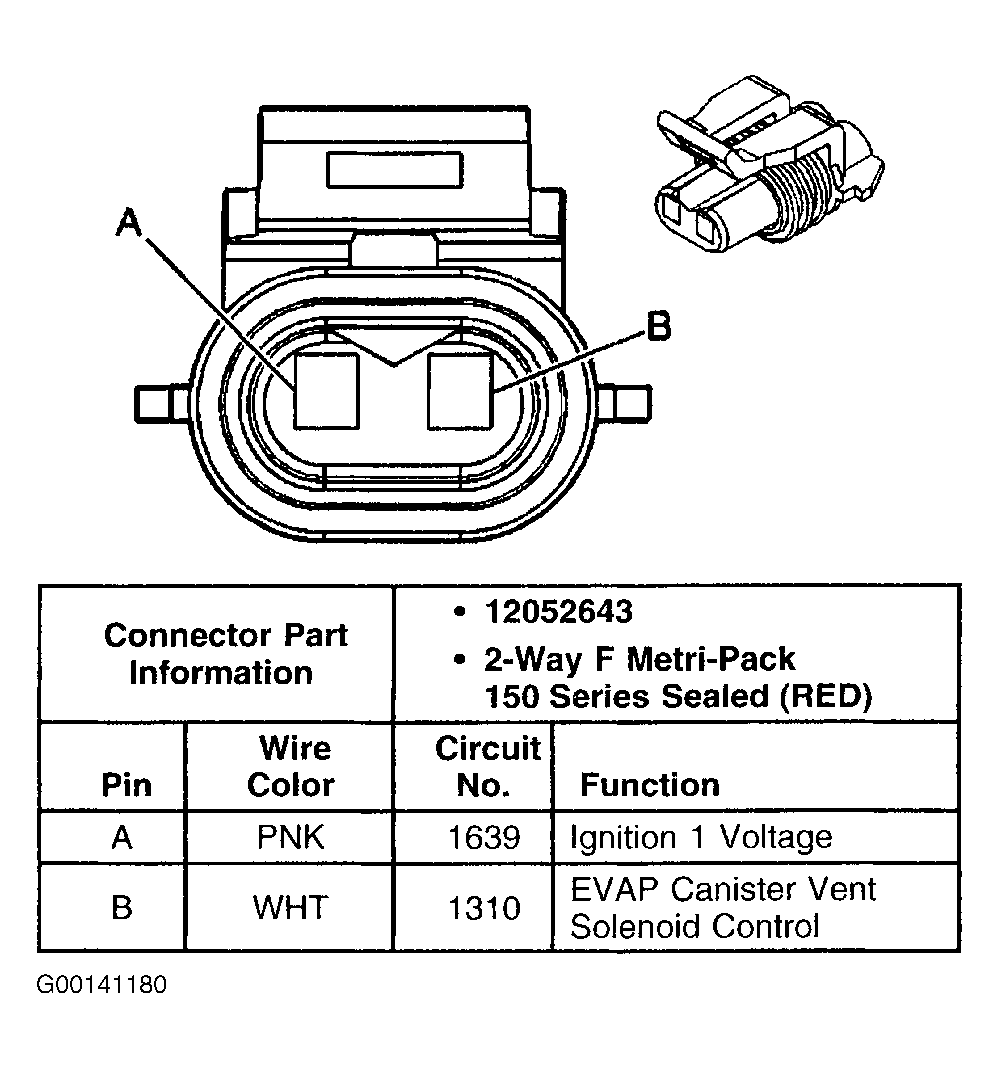

Fig 24: Identifying EVAP Vent Solenoid Connector Terminals (Grand Prix)

Courtesy of GENERAL MOTORS CORP.

Fig 25: Identifying EVAP Vent Solenoid Connector Terminals (Impala & Monte Carlo)

Courtesy of GENERAL MOTORS CORP.

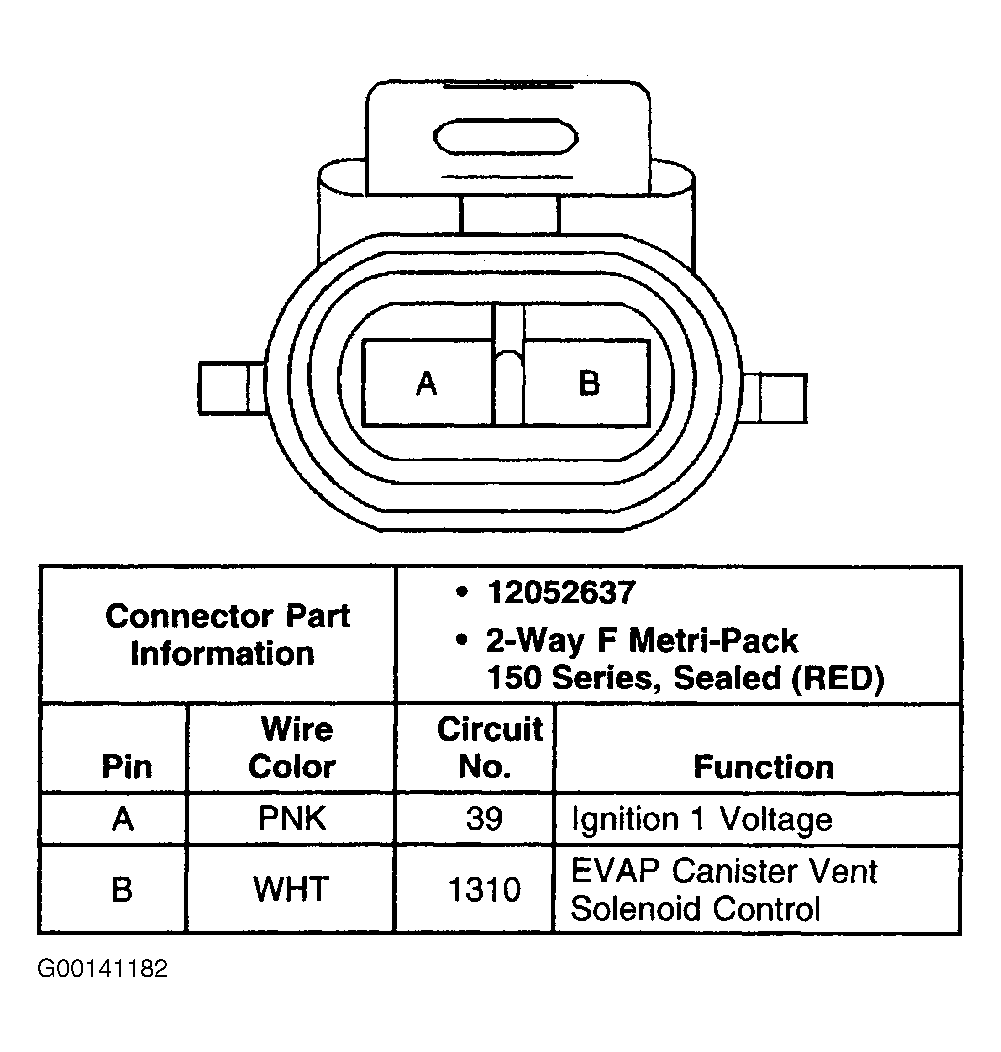

Fig 26: Identifying EVAP Vent Solenoid Connector Terminals (Le Sabre & Park Avenue)

Courtesy of GENERAL MOTORS CORP.

Fig 27: Identifying EVAP Vent Solenoid Connector Terminals (Regal)

Courtesy of GENERAL MOTORS CORP.

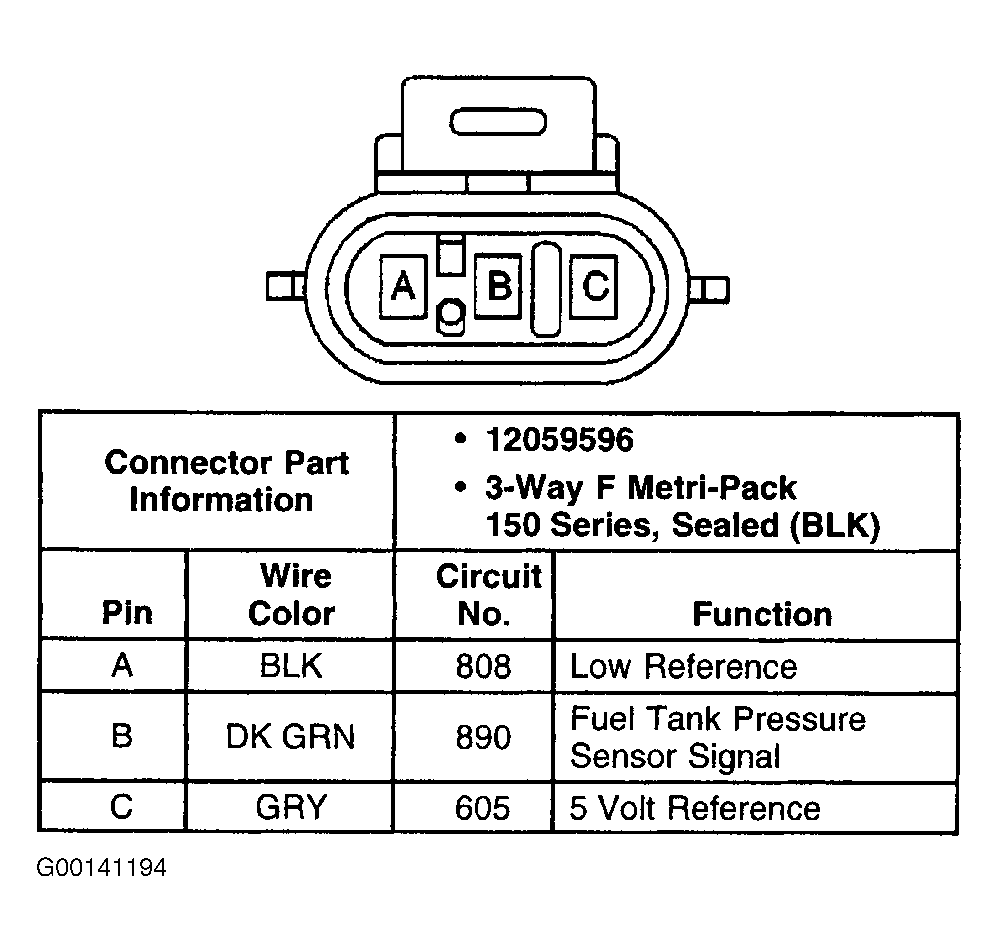

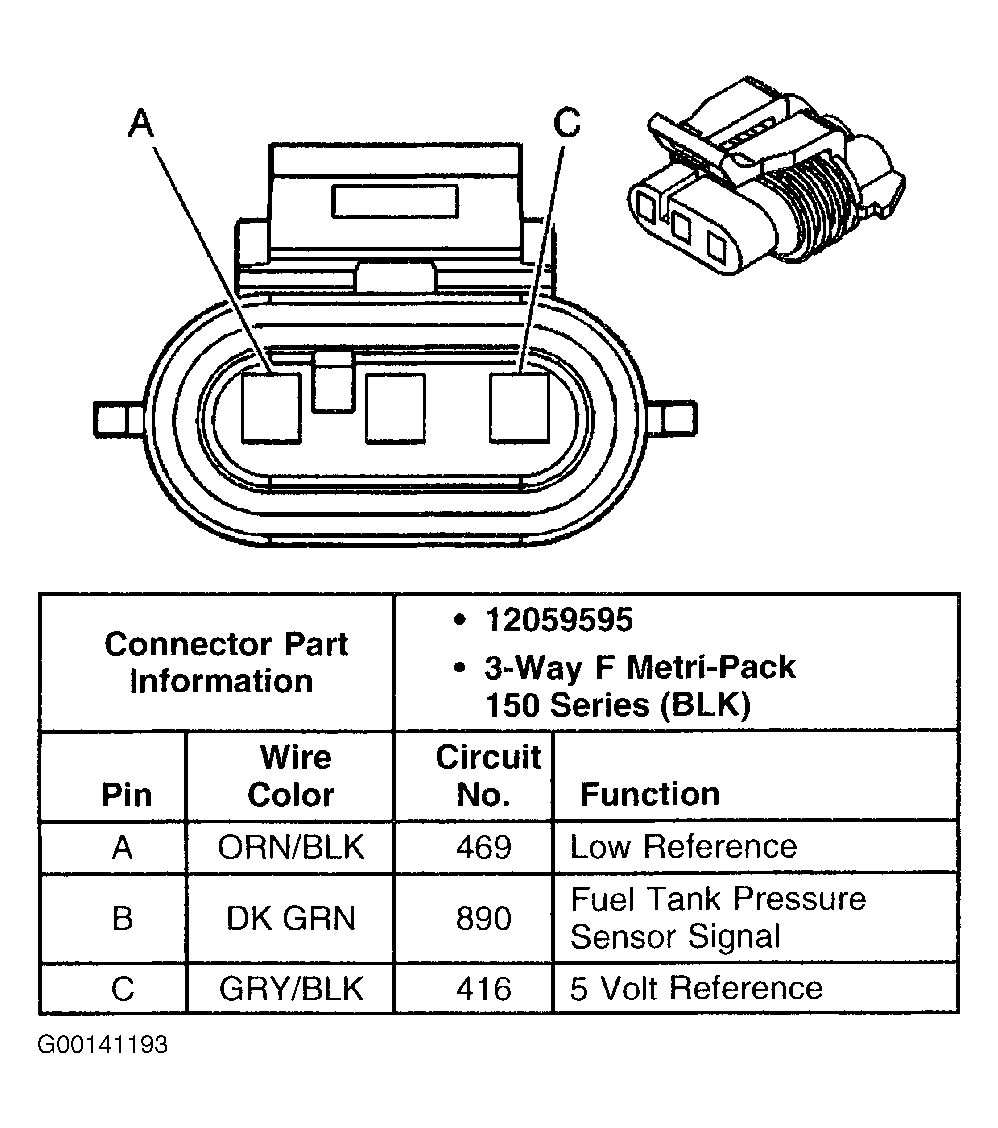

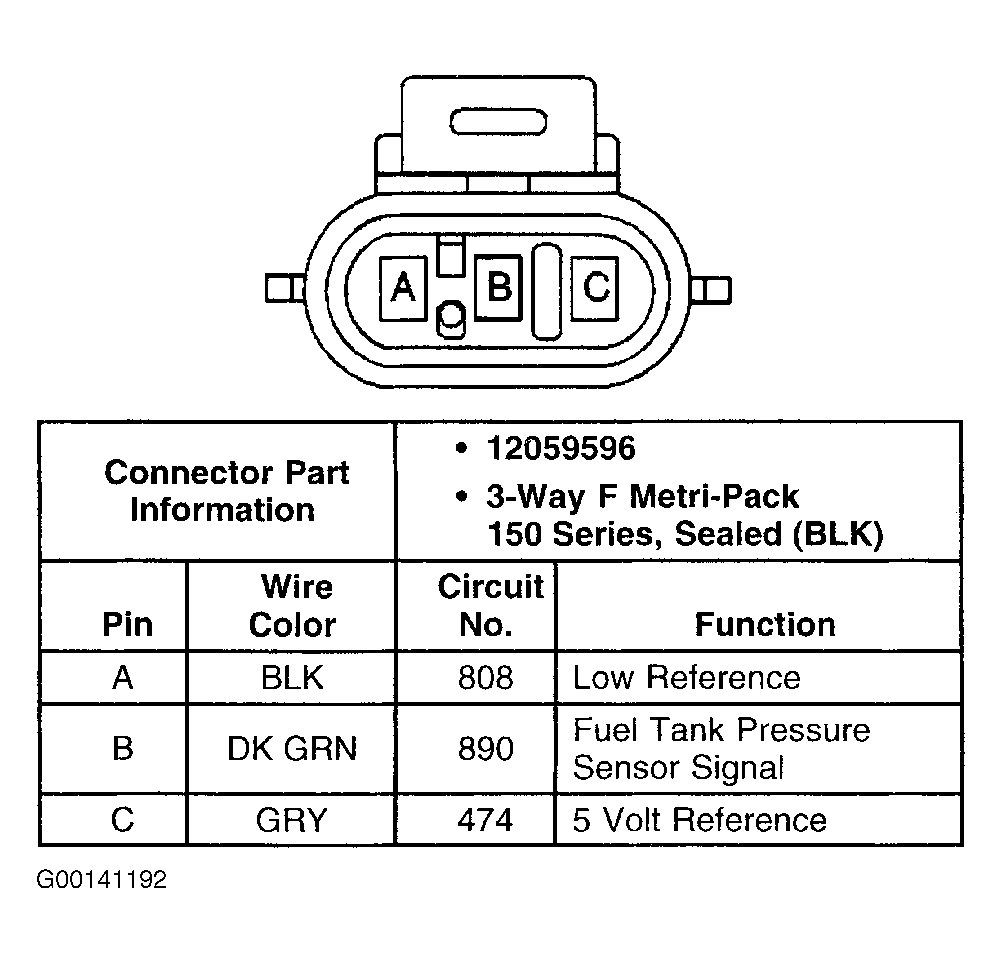

Fig 28: Identifying FTP Sensor Connector Terminals (Bonneville)

Courtesy of GENERAL MOTORS CORP.

Fig 29: Identifying FTP Sensor Connector Terminals (Grand Prix, Impala, Monte Carlo & Regal)

Courtesy of GENERAL MOTORS CORP.

Fig 30: Identifying FTP Sensor Connector Terminals (LeSabre & Park Avenue)

Courtesy of GENERAL MOTORS CORP.

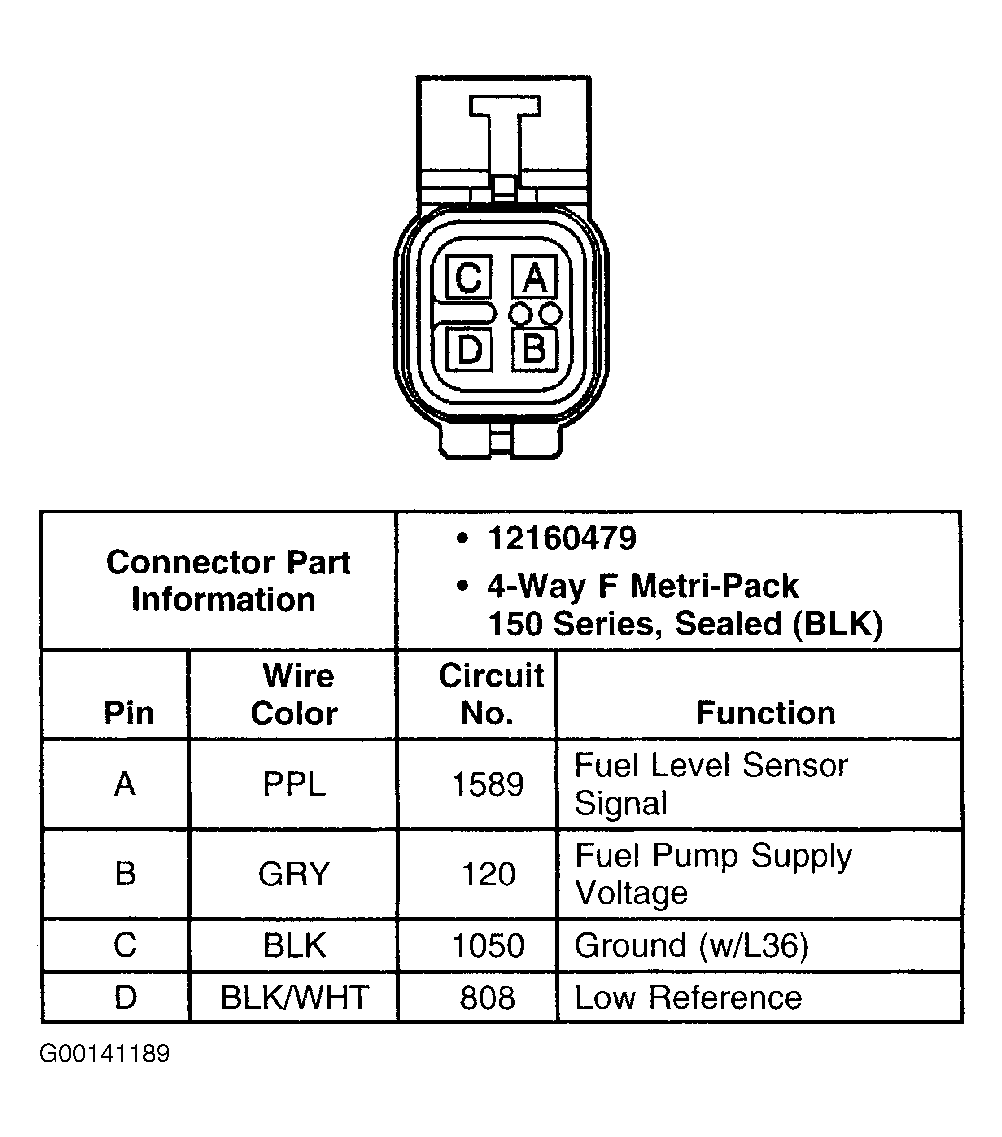

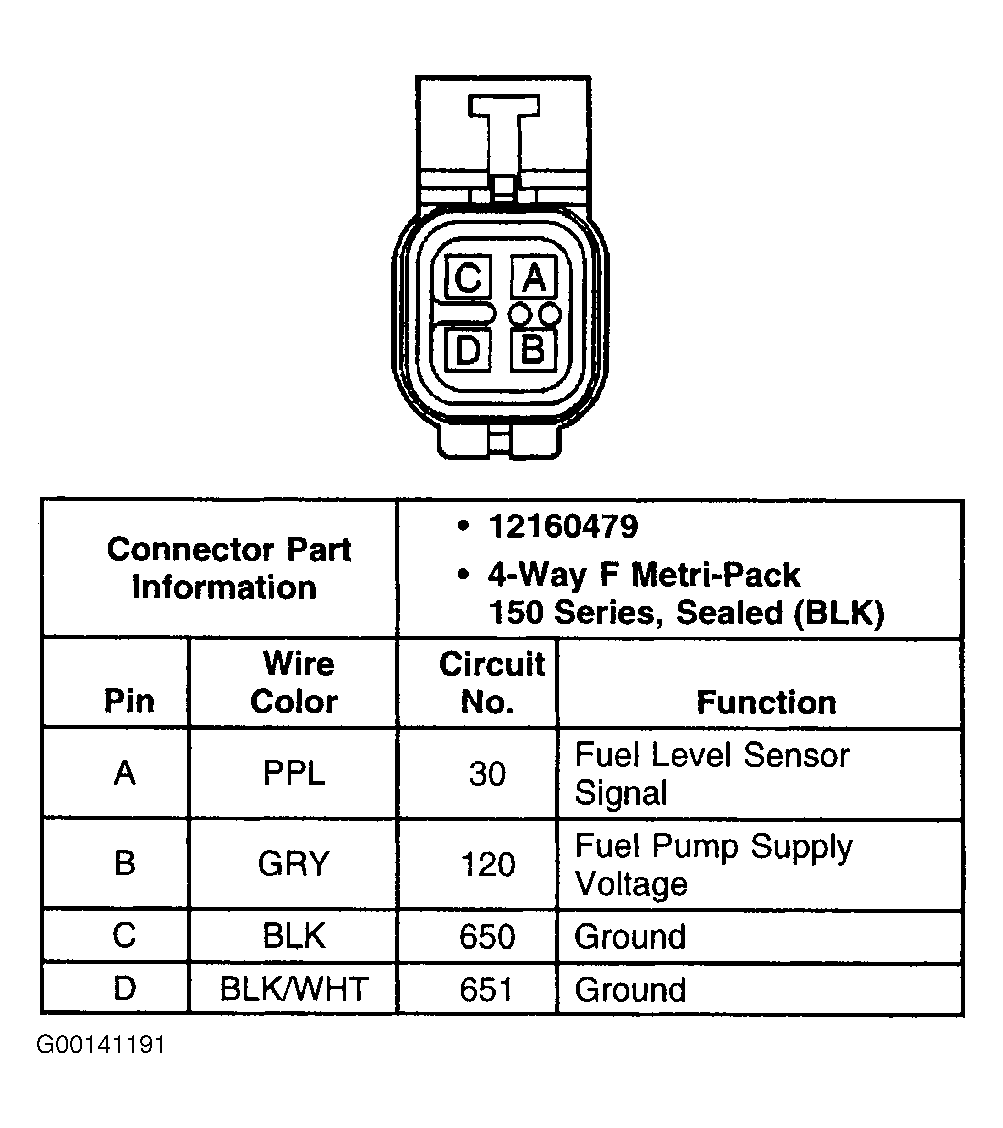

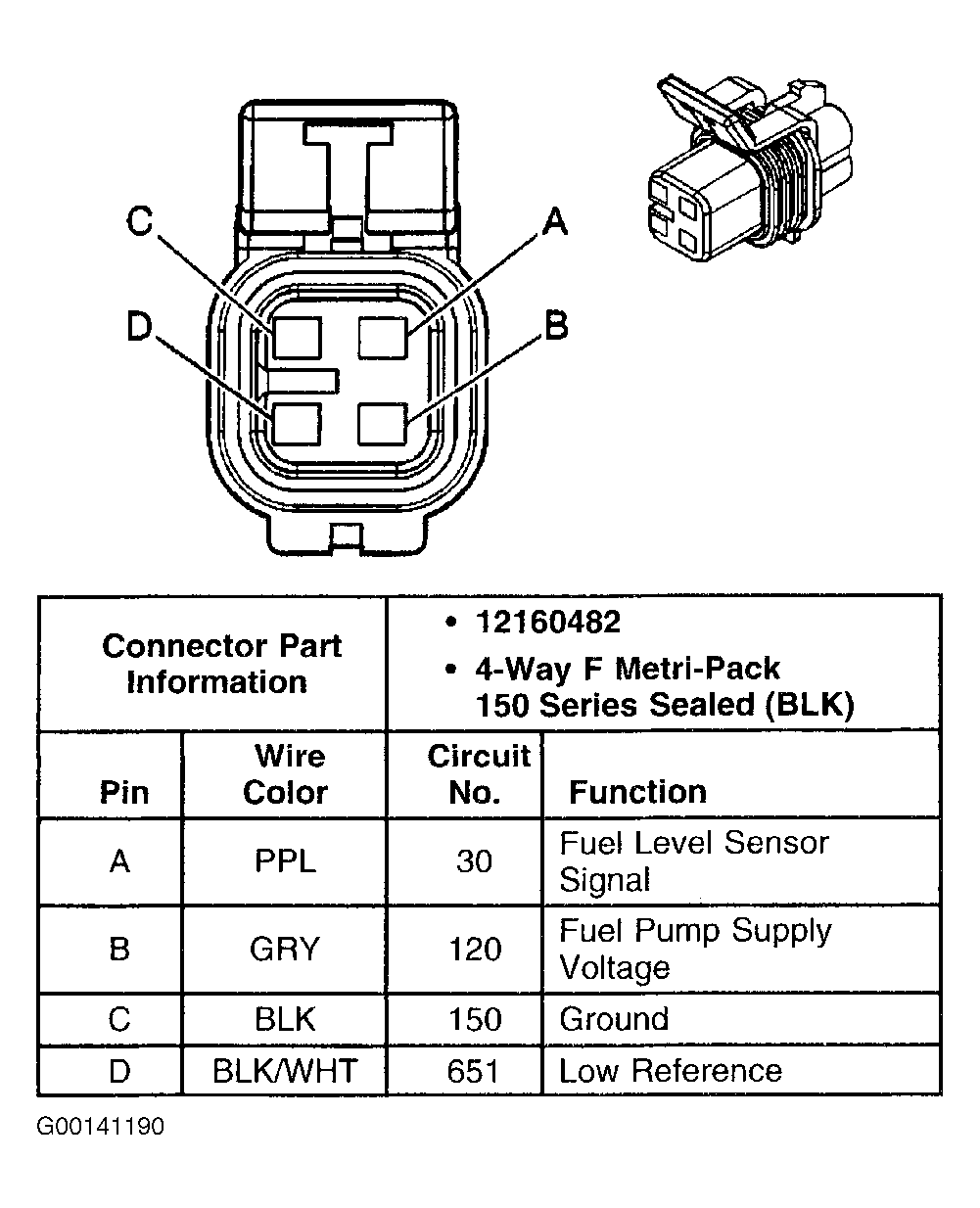

Fig 31: Identifying Fuel Pump & Sender Connector Terminals (Bonneville)

Courtesy of GENERAL MOTORS CORP.

Fig 32: Identifying Fuel Pump & Sender Connector Terminals (Grand Prix, Impala, Monte Carlo & Regal)

Courtesy of GENERAL MOTORS CORP.

Fig 33: Identifying Fuel Pump & Sender Connector Terminals (LeSabre & Park Avenue)

Courtesy of GENERAL MOTORS CORP.

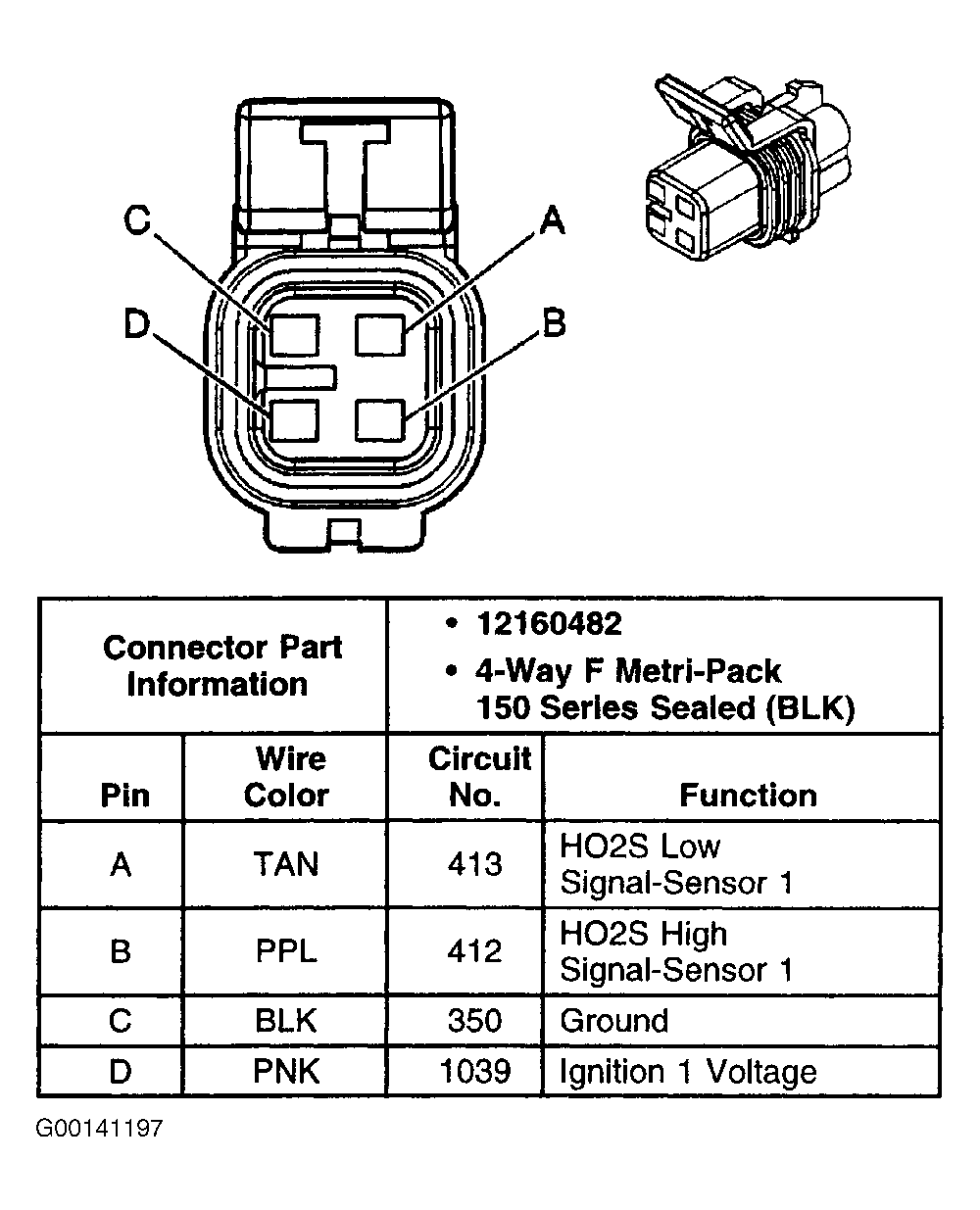

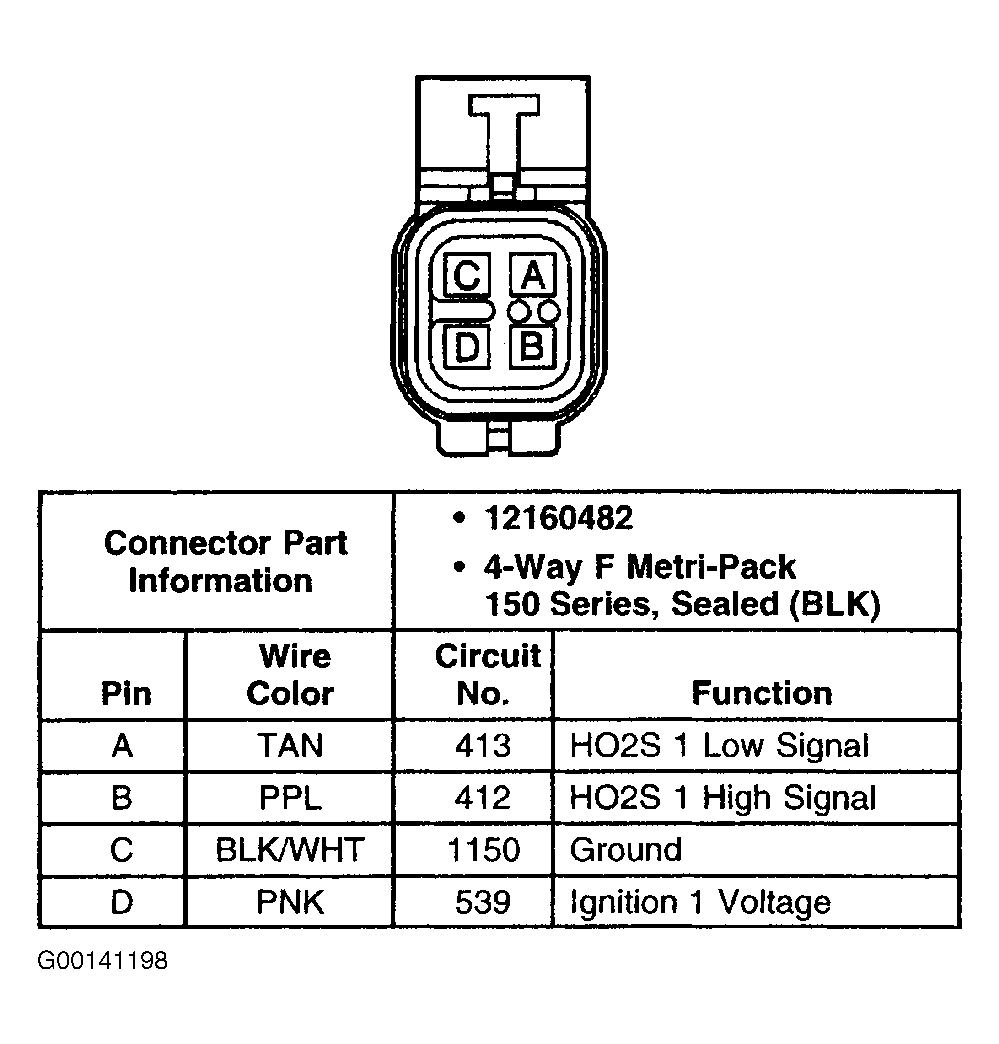

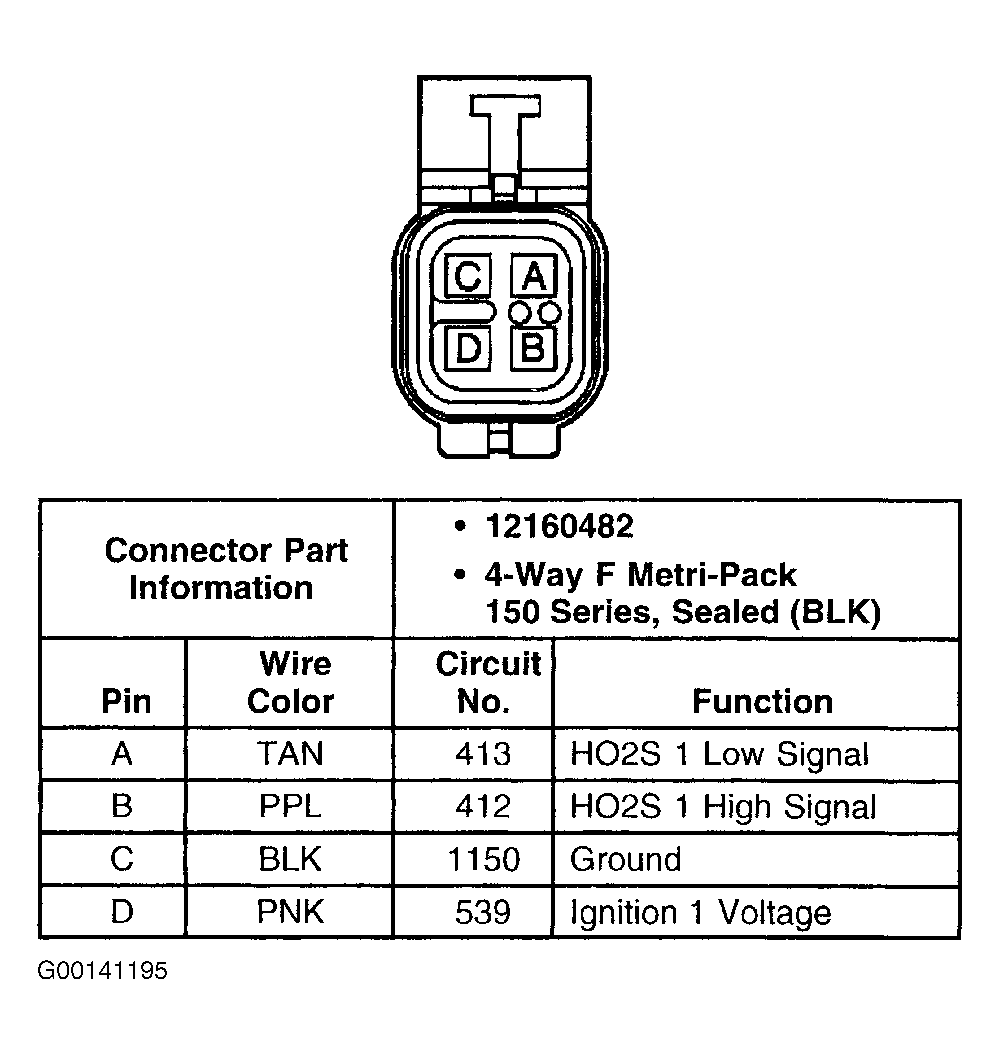

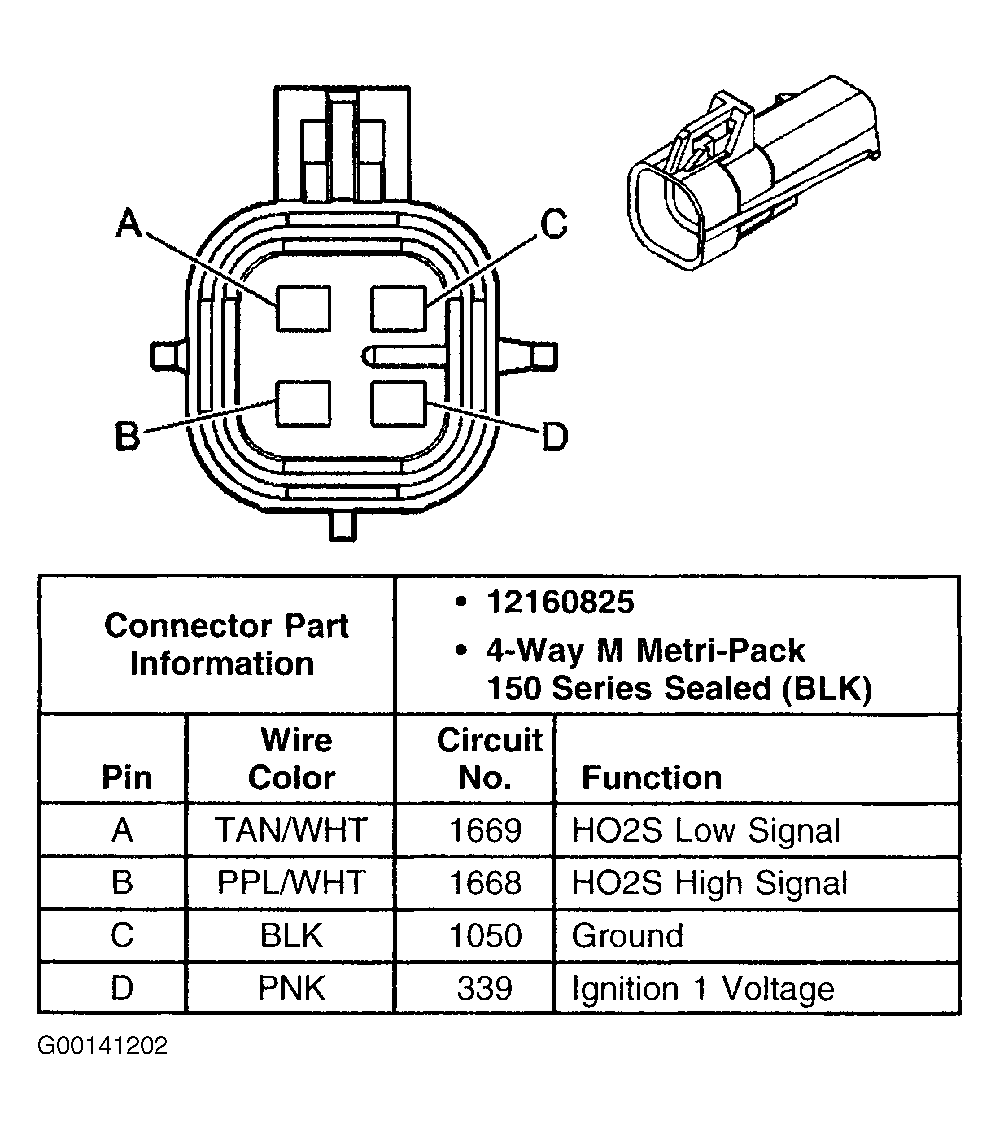

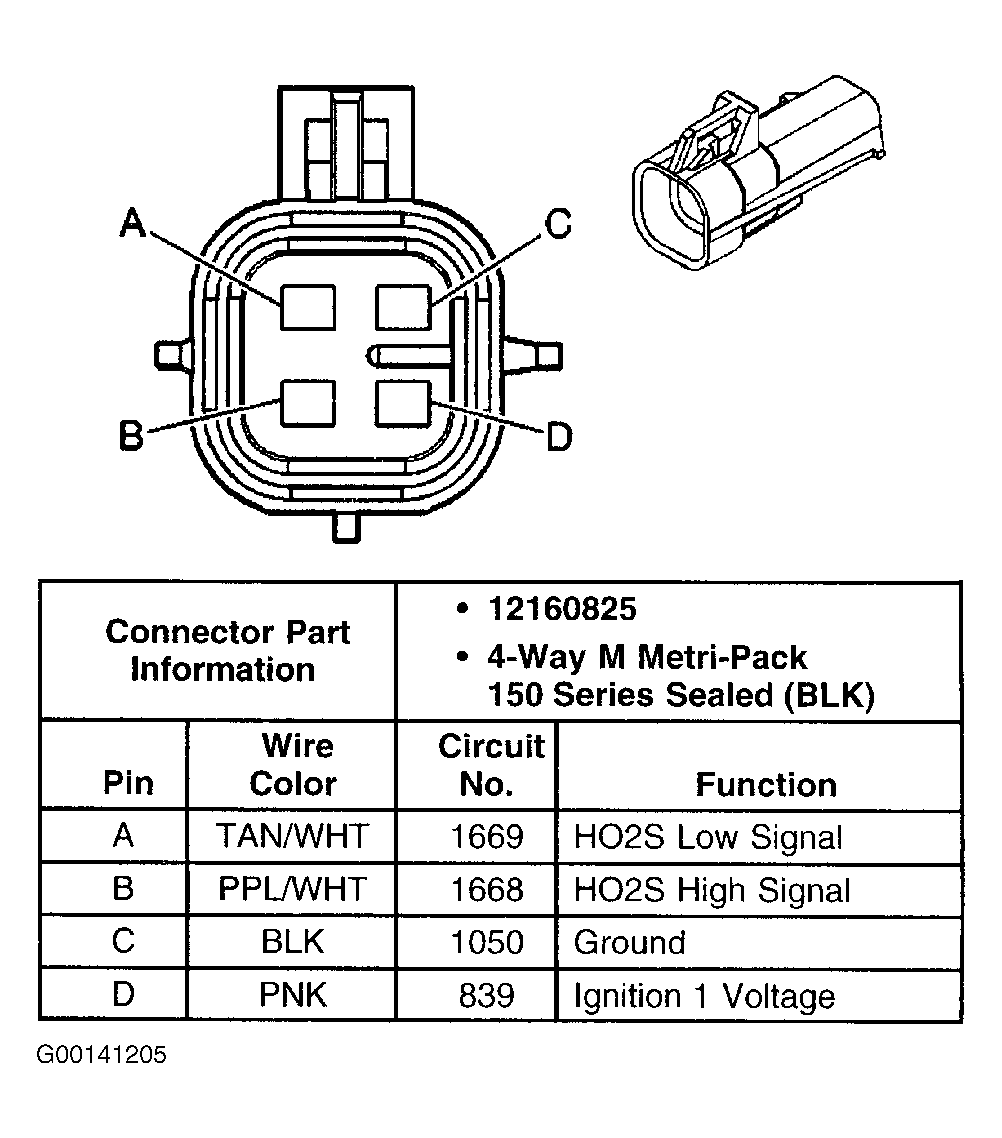

Fig 34: Identifying HO2S 1 Connector Terminals (Bonneville)

Courtesy of GENERAL MOTORS CORP.

Fig 35: Identifying HO2S 1 Connector Terminals (Grand Prix)

Courtesy of GENERAL MOTORS CORP.

Fig 36: Identifying HO2S 1 Connector Terminals (Impala & Monte Carlo)

Courtesy of GENERAL MOTORS CORP.

Fig 37: Identifying HO2S 1 Connector Terminals (LeSabre)

Courtesy of GENERAL MOTORS CORP.

Fig 38: Identifying HO2S 1 Connector Terminals (Park Avenue)

Courtesy of GENERAL MOTORS CORP.

Fig 39: Identifying HO2S 1 Connector Terminals (Regal)

Courtesy of GENERAL MOTORS CORP.

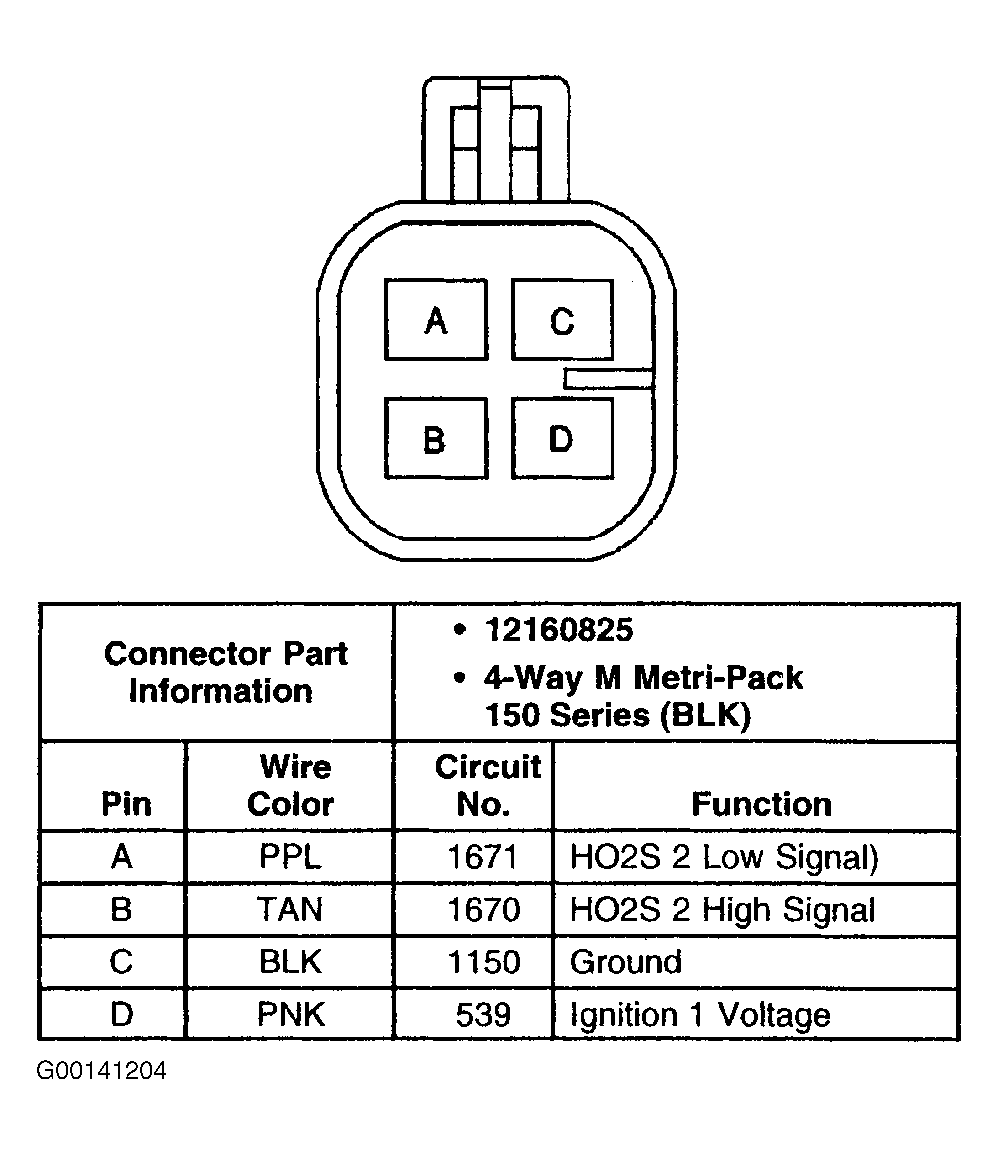

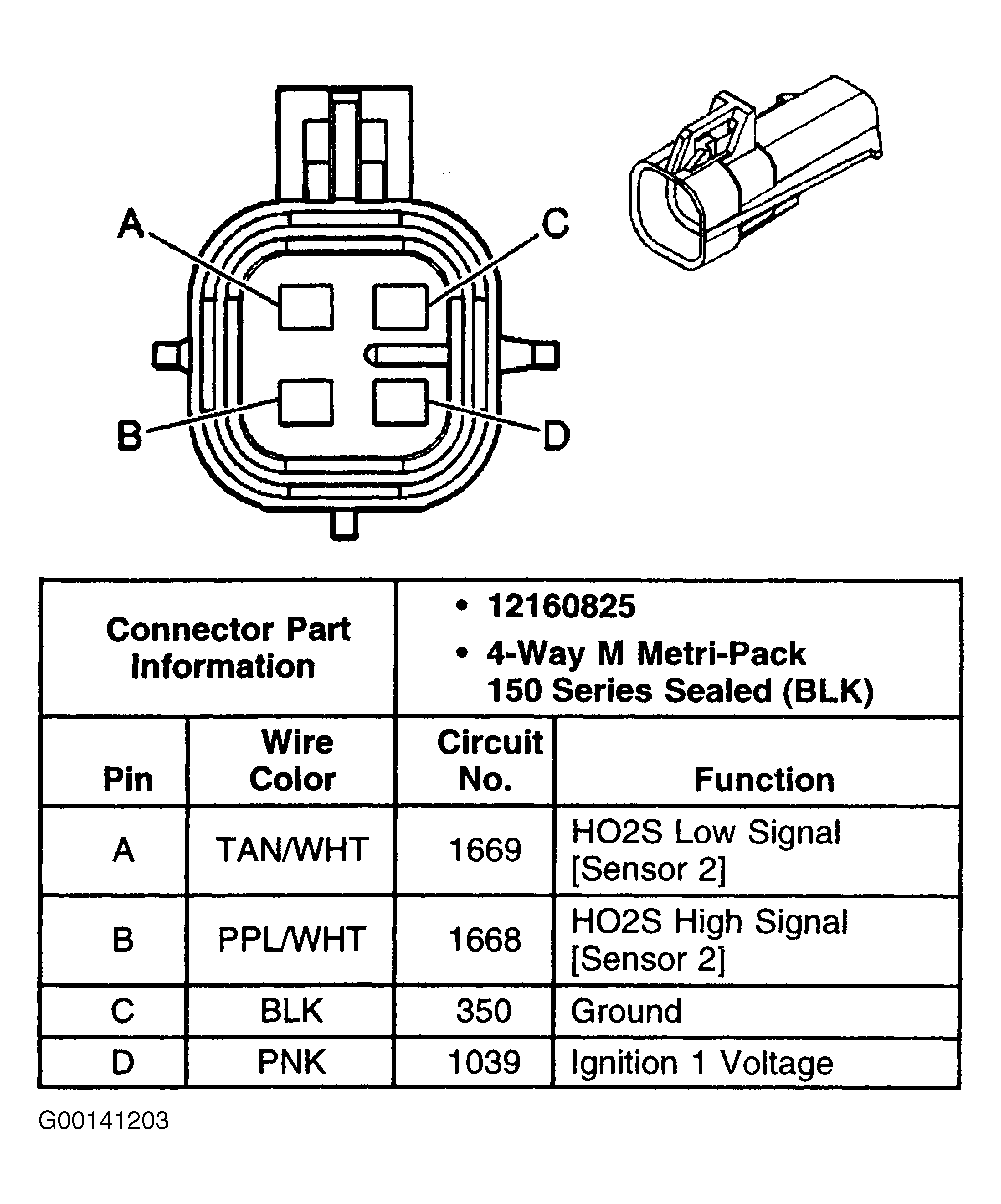

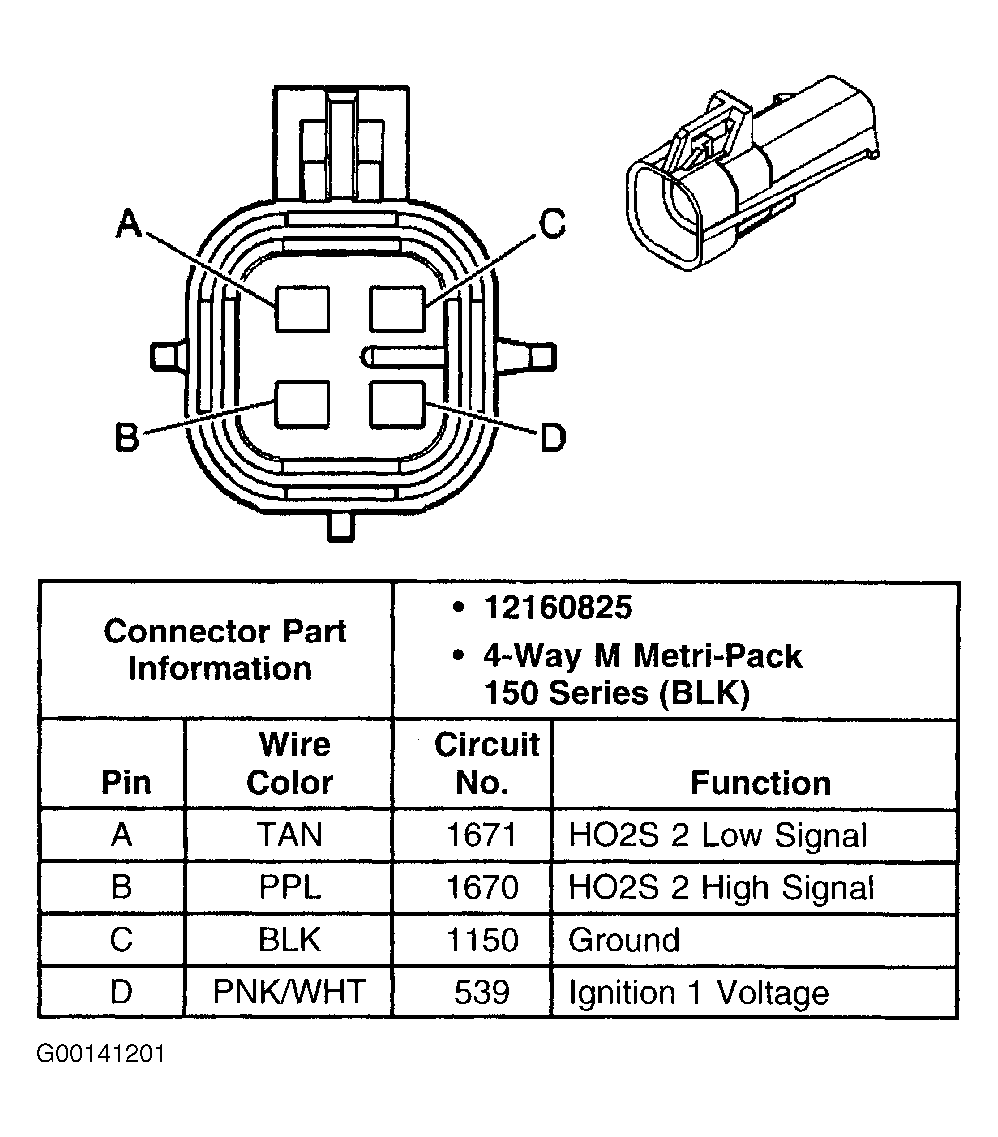

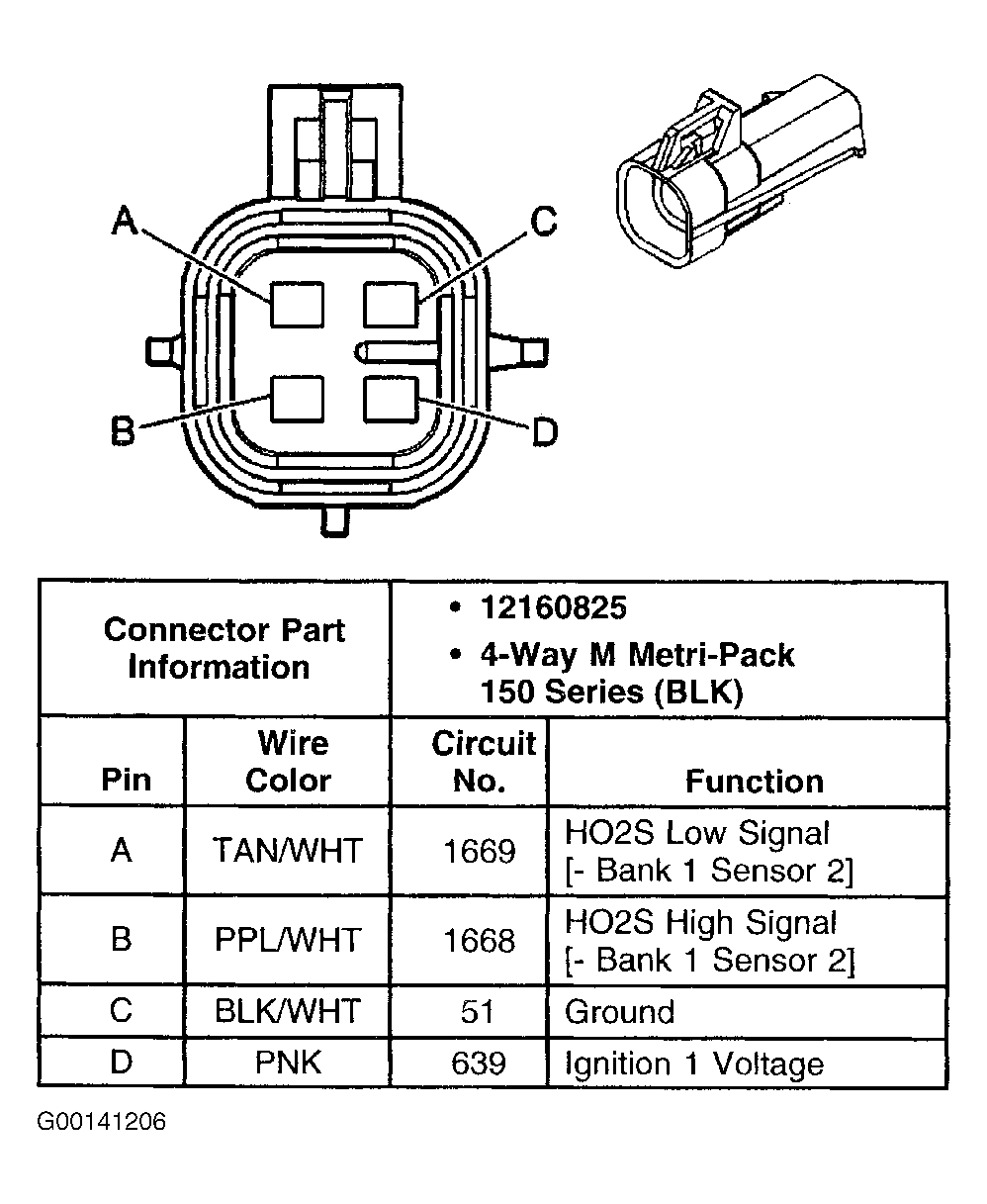

Fig 40: Identifying HO2S 2 Connector Terminals (Bonneville)

Courtesy of GENERAL MOTORS CORP.

Fig 41: Identifying HO2S 2 Connector Terminals (Grand Prix)

Courtesy of GENERAL MOTORS CORP.

Fig 42: Identifying HO2S 2 Connector Terminals (Impala & Monte Carlo)

Courtesy of GENERAL MOTORS CORP.

Fig 43: Identifying HO2S 2 Connector Terminals (LeSabre)

Courtesy of GENERAL MOTORS CORP.

Fig 44: Identifying HO2S 2 Connector Terminals (Park Avenue)

Courtesy of GENERAL MOTORS CORP.

Fig 45: Identifying HO2S 2 Connector Terminals (Regal)

Courtesy of GENERAL MOTORS CORP.

Fig 46: Identifying IAC Valve Connector Terminals

Courtesy of GENERAL MOTORS CORP.

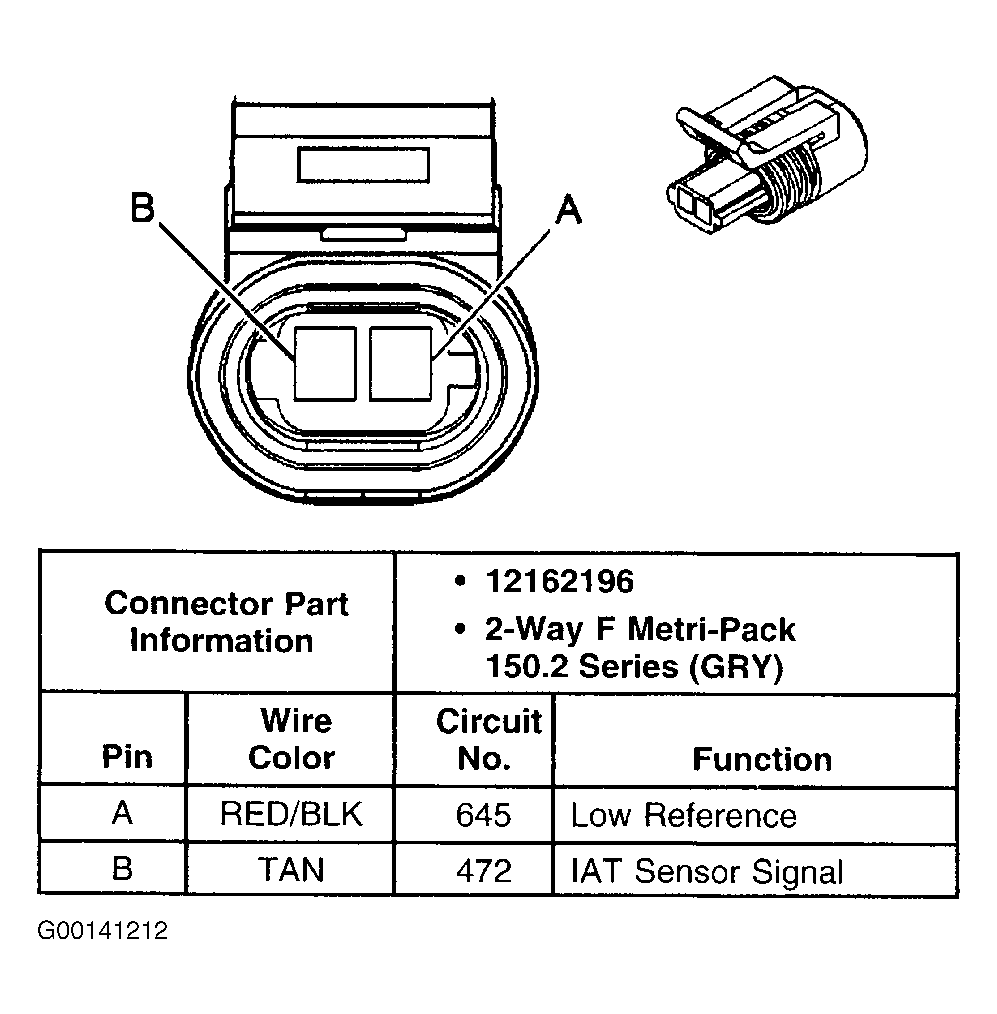

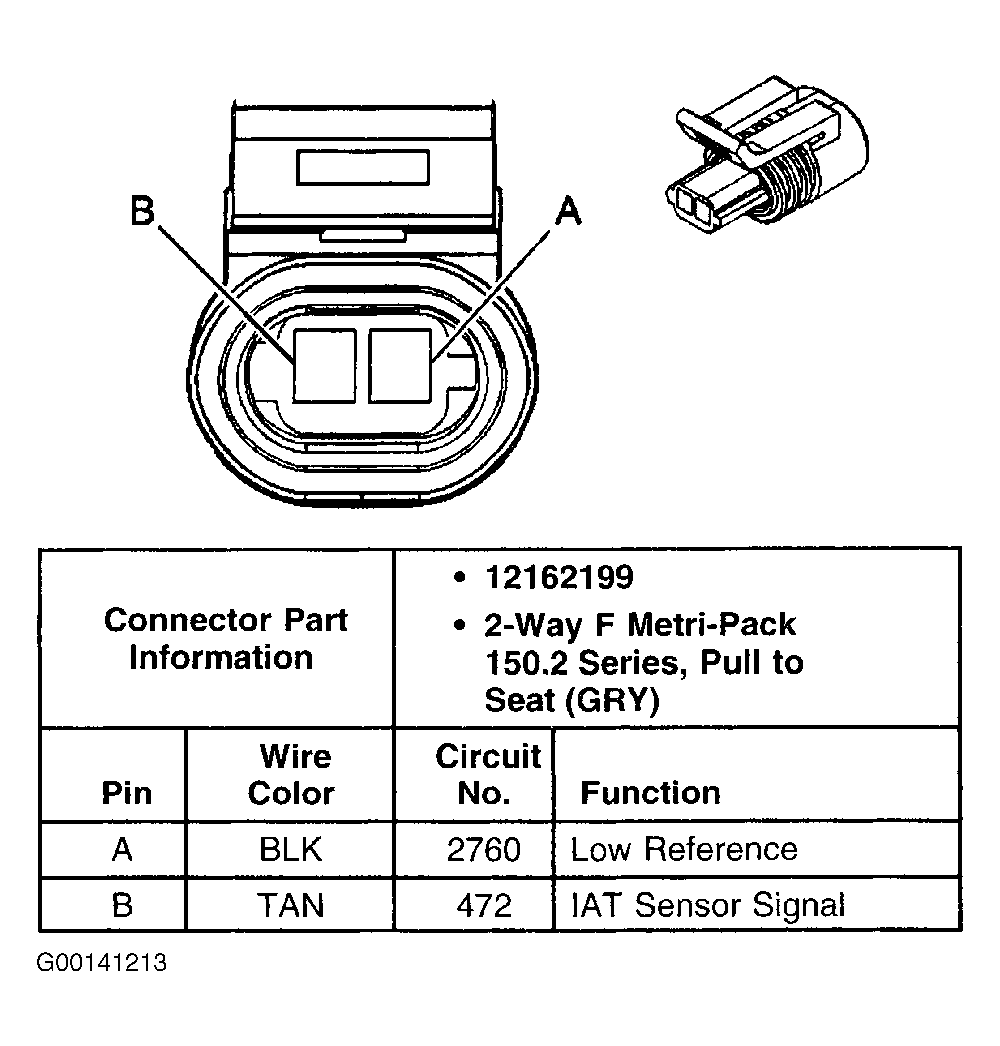

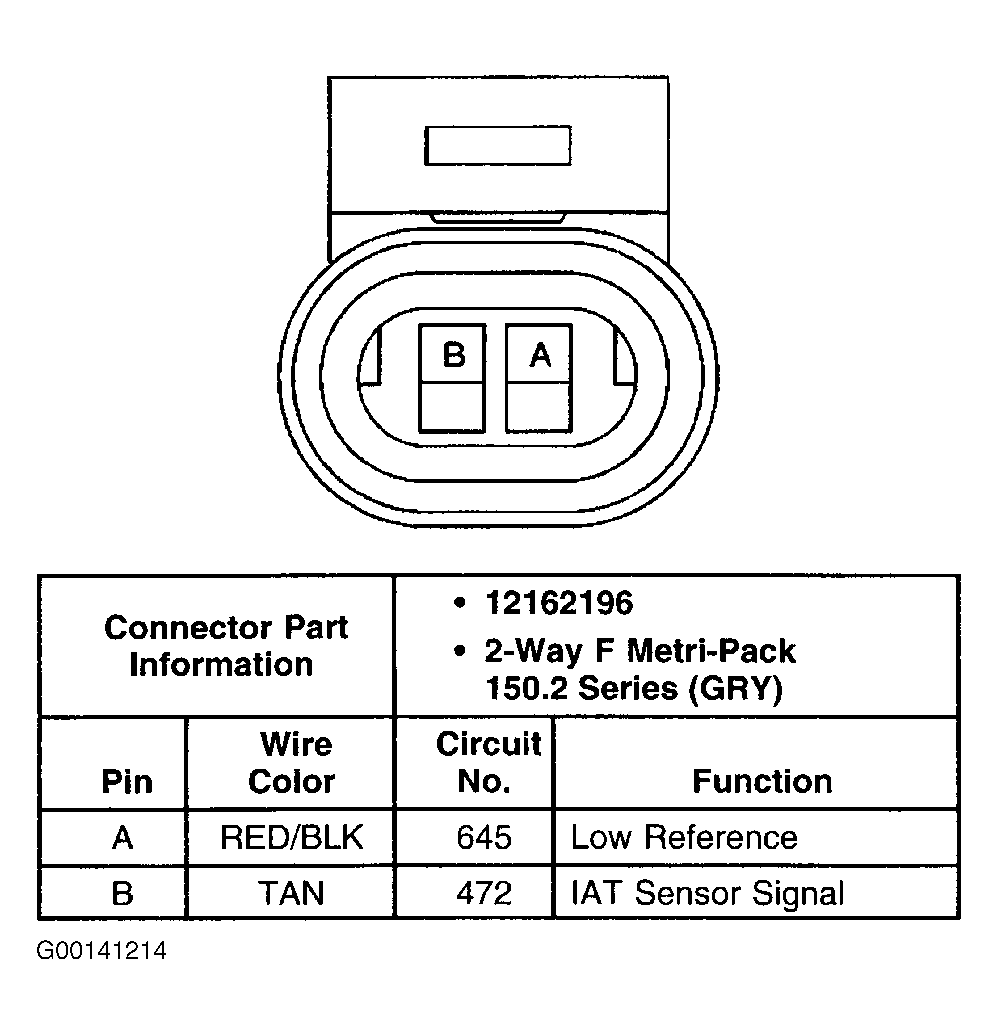

Fig 47: Identifying IAT Sensor Connector Terminals (Bonneville)

Courtesy of GENERAL MOTORS CORP.

Fig 48: Identifying IAT Sensor Connector Terminals (Gran Prix, Impala, Monte Carlo & Regal)

Courtesy of GENERAL MOTORS CORP.

Fig 49: Identifying IAT Sensor Connector Terminals (LeSabre & Park Avenue)

Courtesy of GENERAL MOTORS CORP.

Fig 50: Identifying ICM Connector Terminals (Bonneville)

Courtesy of GENERAL MOTORS CORP.

Fig 51: Identifying ICM Connector Terminals (Grand Prix)

Courtesy of GENERAL MOTORS CORP.

Fig 52: Identifying ICM Connector Terminals (Impala, Monte Carlo & Regal)

Courtesy of GENERAL MOTORS CORP.

Fig 53: Identifying ICM Connector Terminals (LeSabre)

Courtesy of GENERAL MOTORS CORP.

Fig 54: Identifying ICM Connector Terminals (Park Avenue)

Courtesy of GENERAL MOTORS CORP.

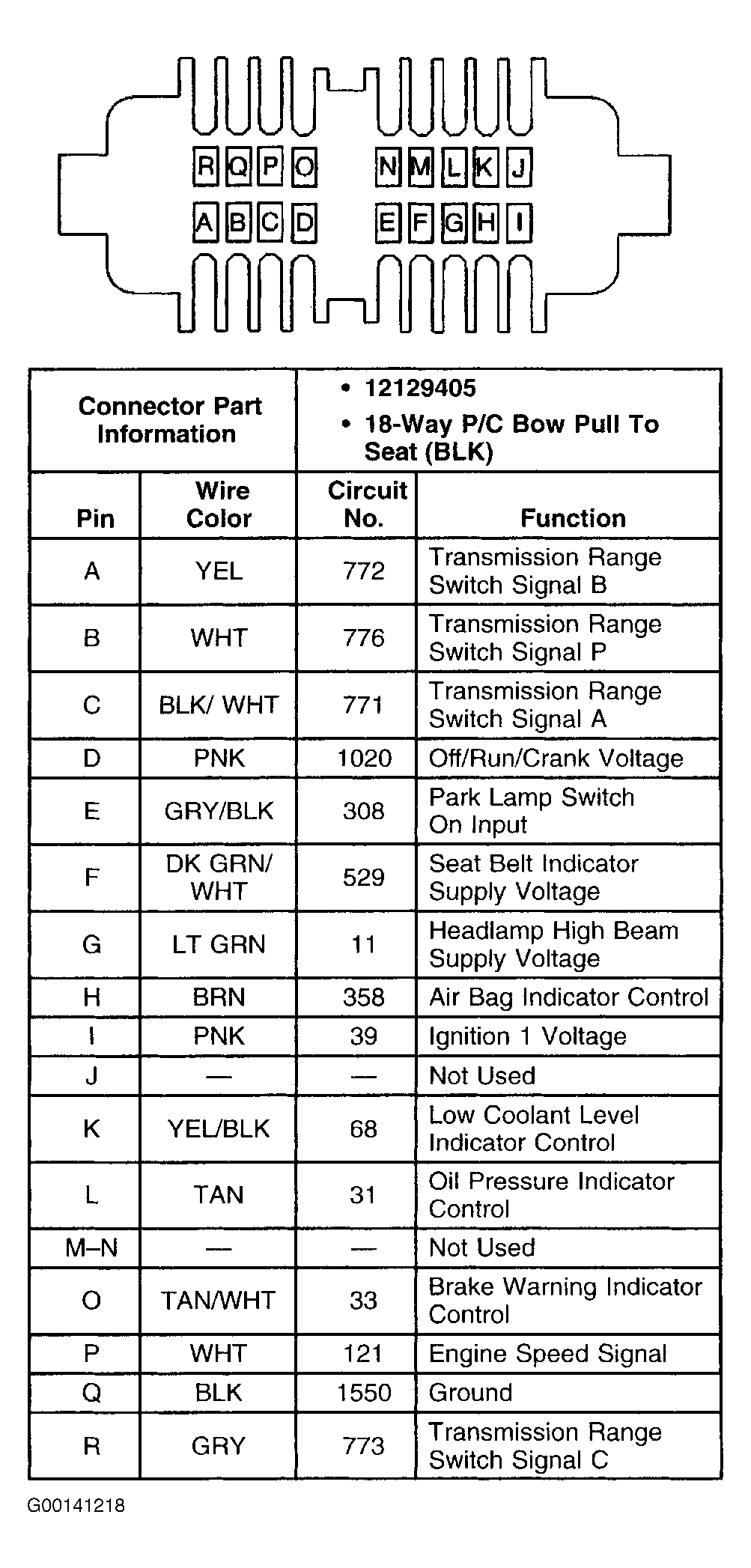

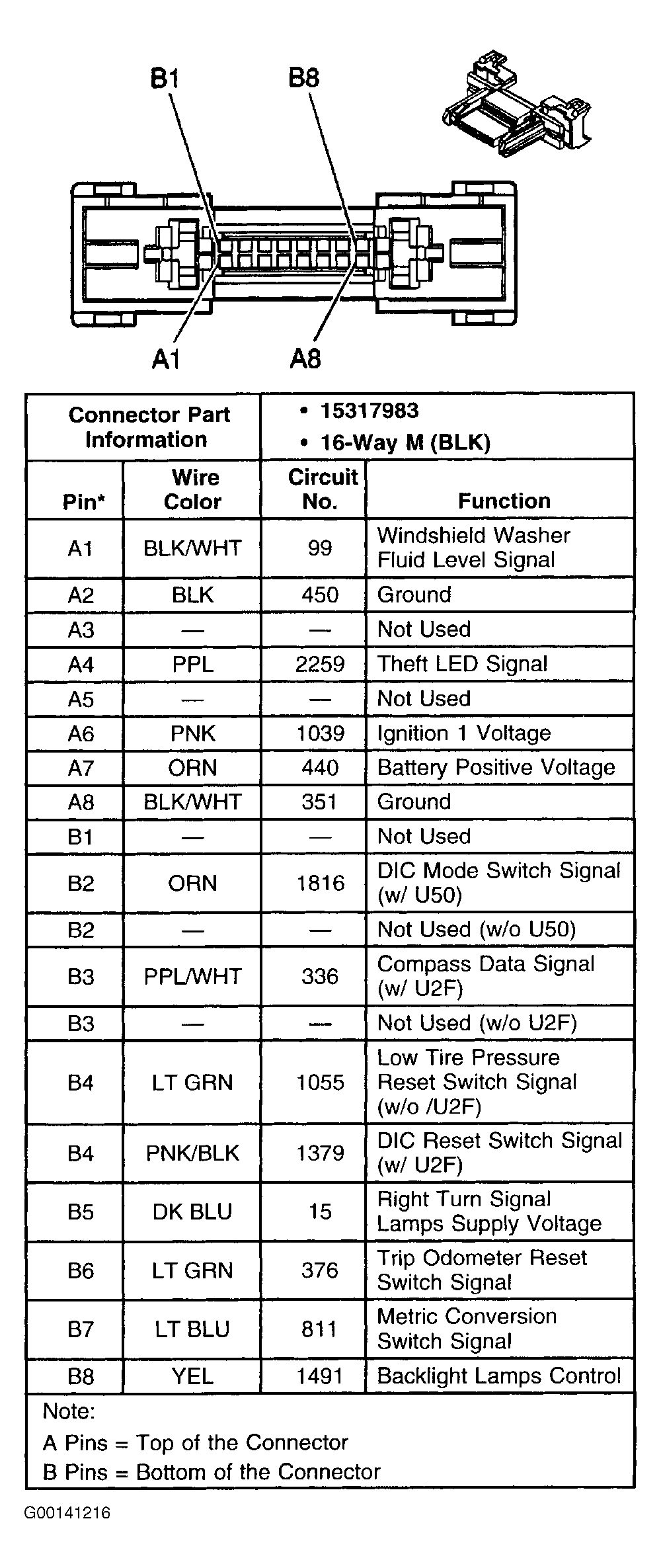

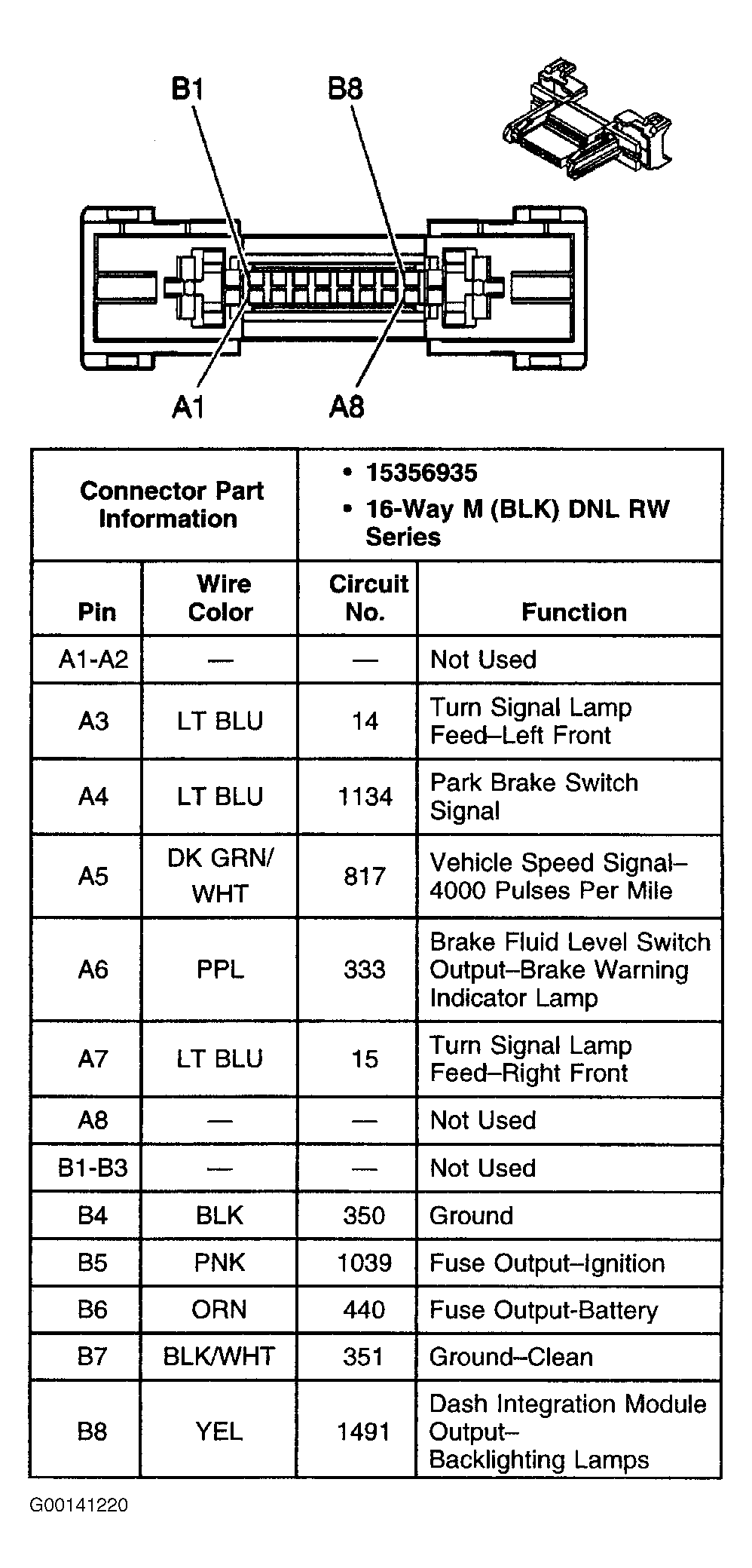

Fig 55: Identifying Instrument Panel Cluster Connector C1 Terminals (Bonneville)

Courtesy of GENERAL MOTORS CORP.

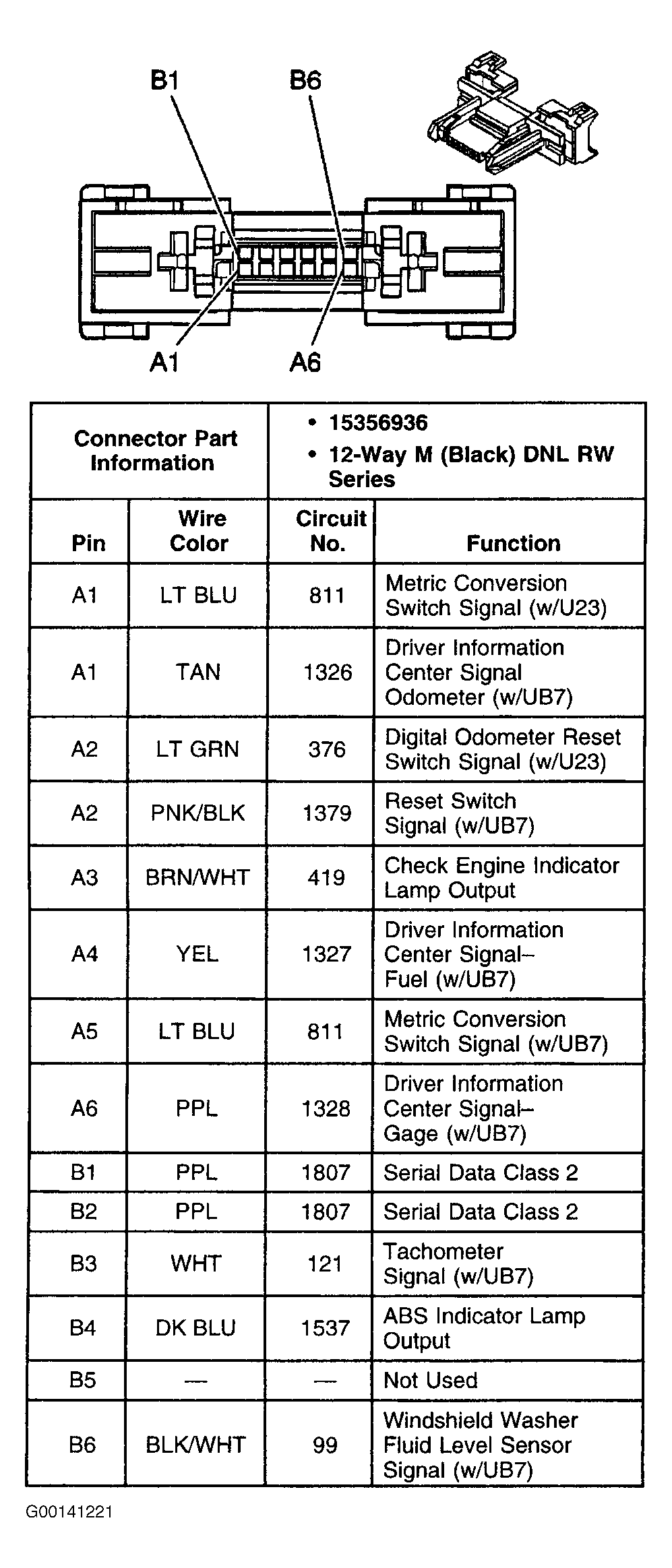

Fig 56: Identifying Instrument Panel Cluster Connector C2 Terminals (Bonneville)

Courtesy of GENERAL MOTORS CORP.

Fig 57: Identifying Instrument Panel Cluster Connector C1 Terminals (Grand Prix)

Courtesy of GENERAL MOTORS CORP.

Fig 58: Identifying Instrument Panel Cluster Connector C2 Terminals (Grand Prix)

Courtesy of GENERAL MOTORS CORP.

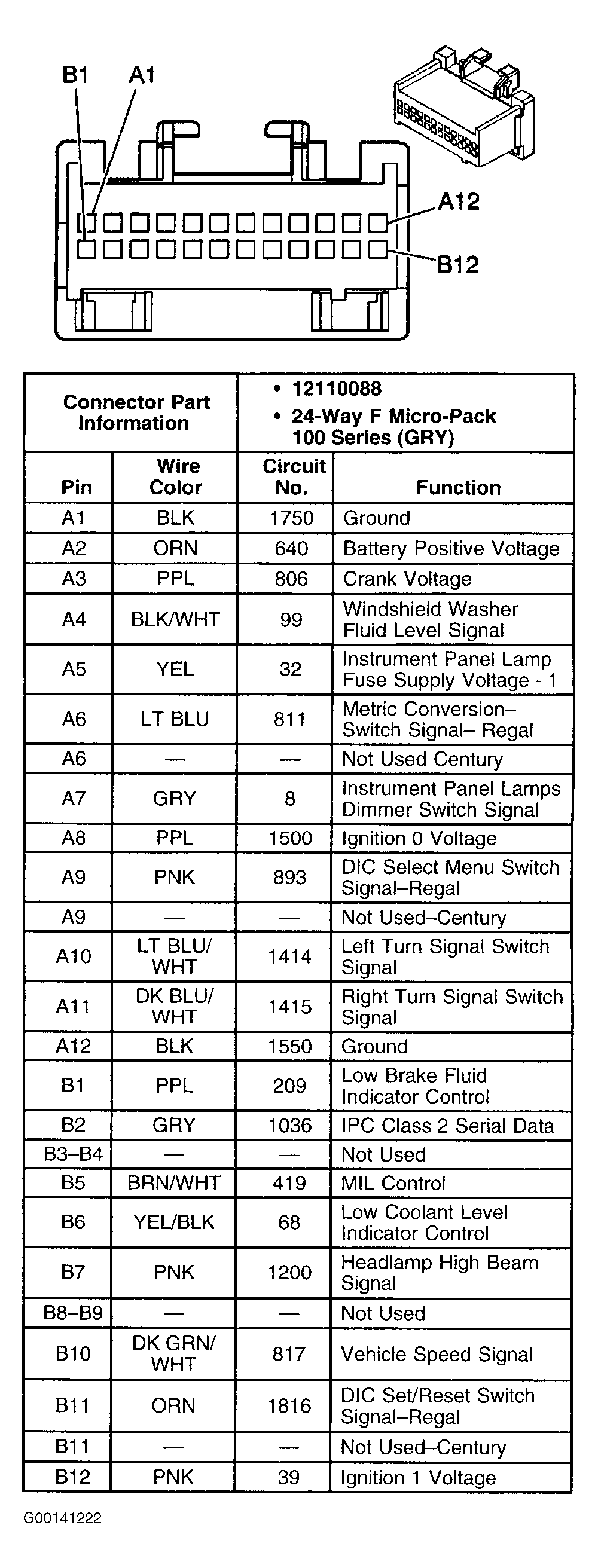

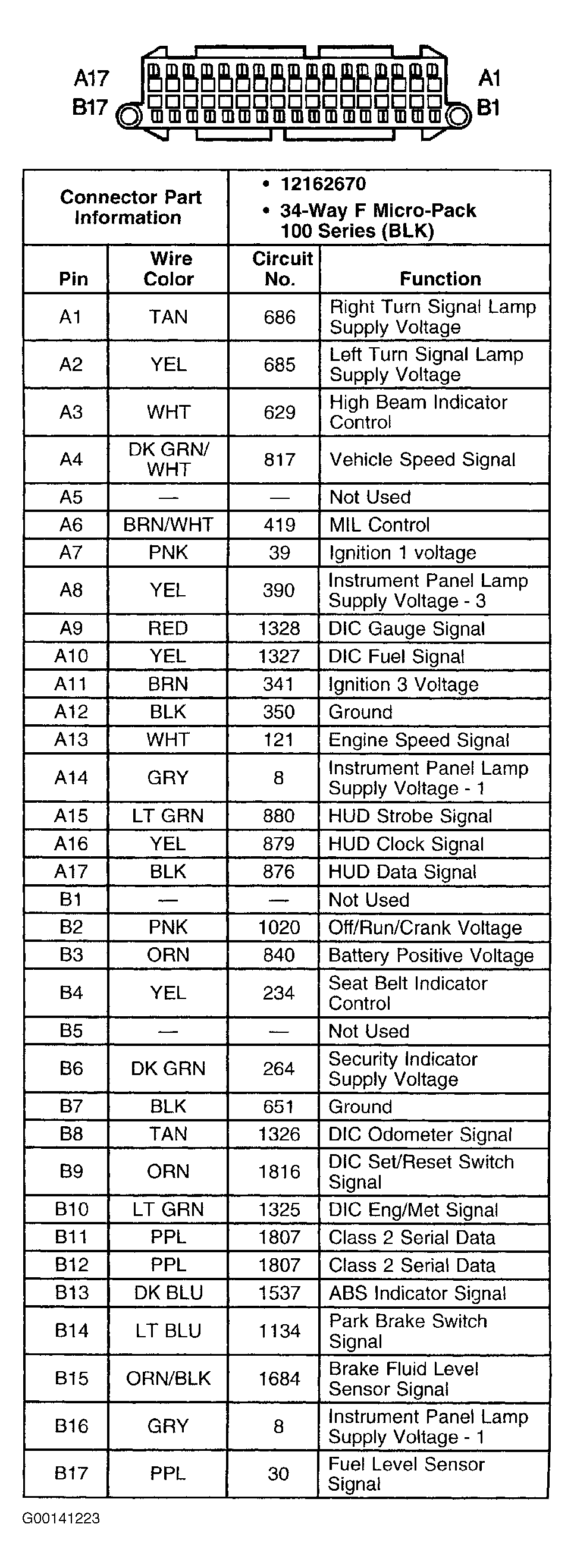

Fig 59: Identifying Instrument Panel Cluster Connector Terminals (Impala & Monte Carlo)

Courtesy of GENERAL MOTORS CORP.

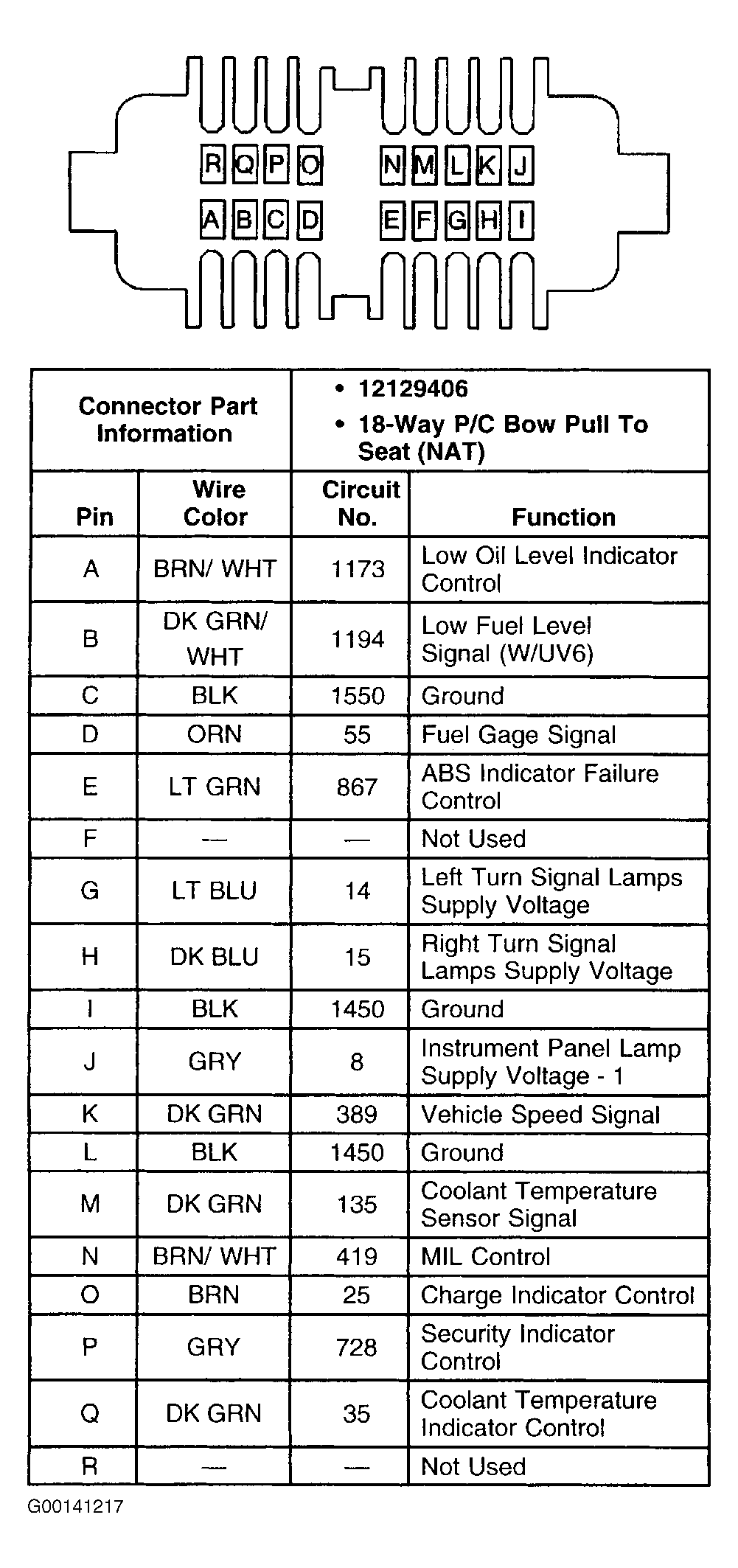

Fig 60: Identifying Instrument Panel Cluster Connector C1 Terminals (LeSabre)

Courtesy of GENERAL MOTORS CORP.

Fig 61: Identifying Instrument Panel Cluster Connector C2 Terminals (LeSabre)

Courtesy of GENERAL MOTORS CORP.

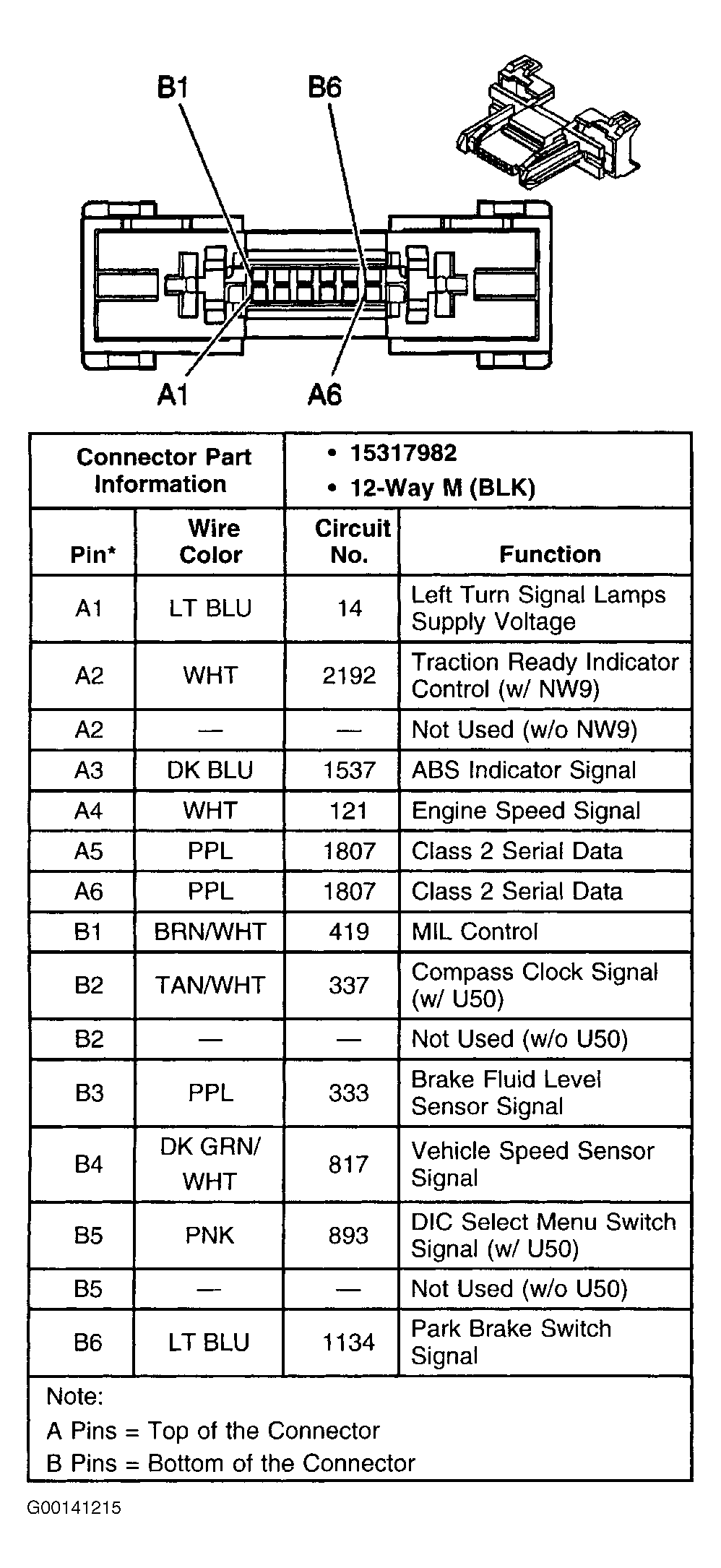

Fig 62: Identifying Instrument Panel Cluster Connector Terminals (Park Avenue)

Courtesy of GENERAL MOTORS CORP.

Fig 63: Identifying Instrument Panel Cluster Connector Terminals (Regal)

Courtesy of GENERAL MOTORS CORP.

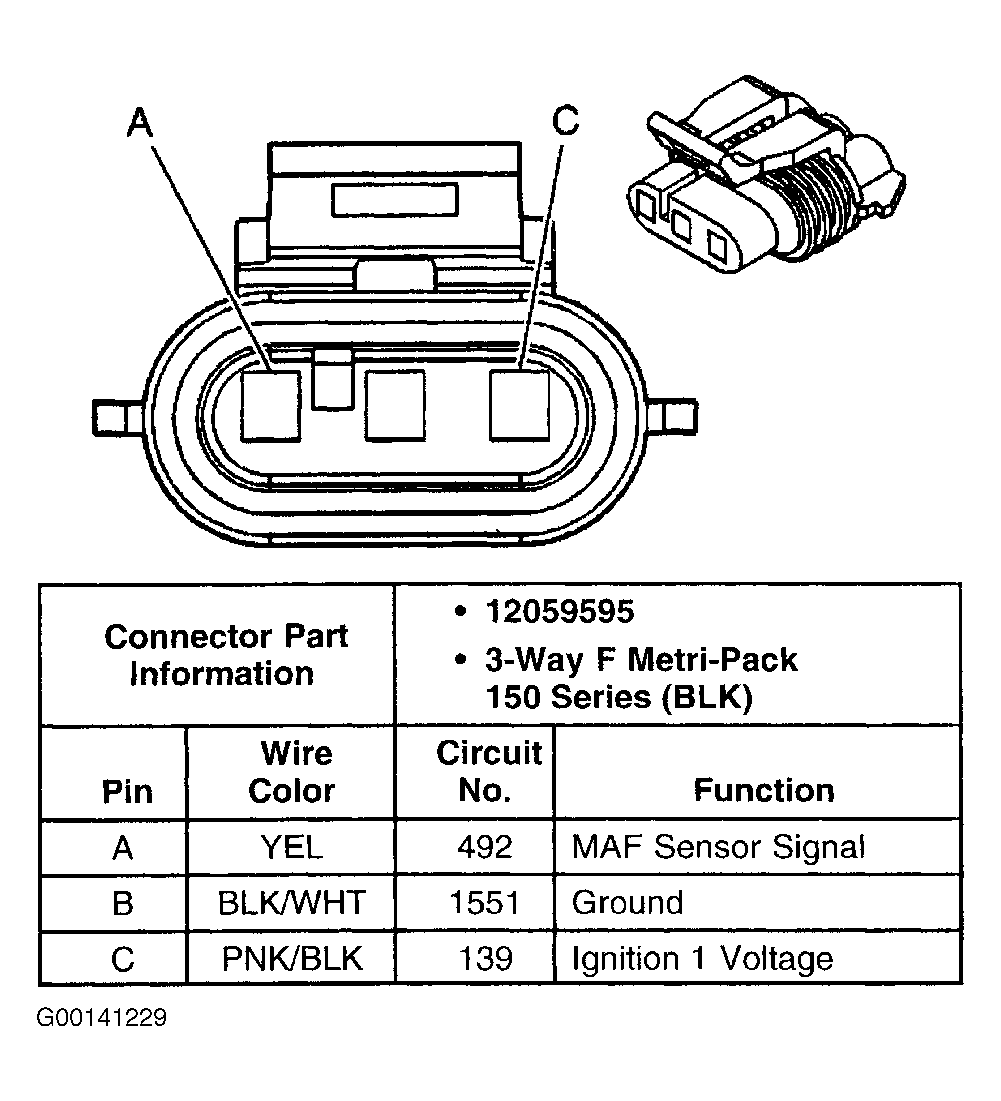

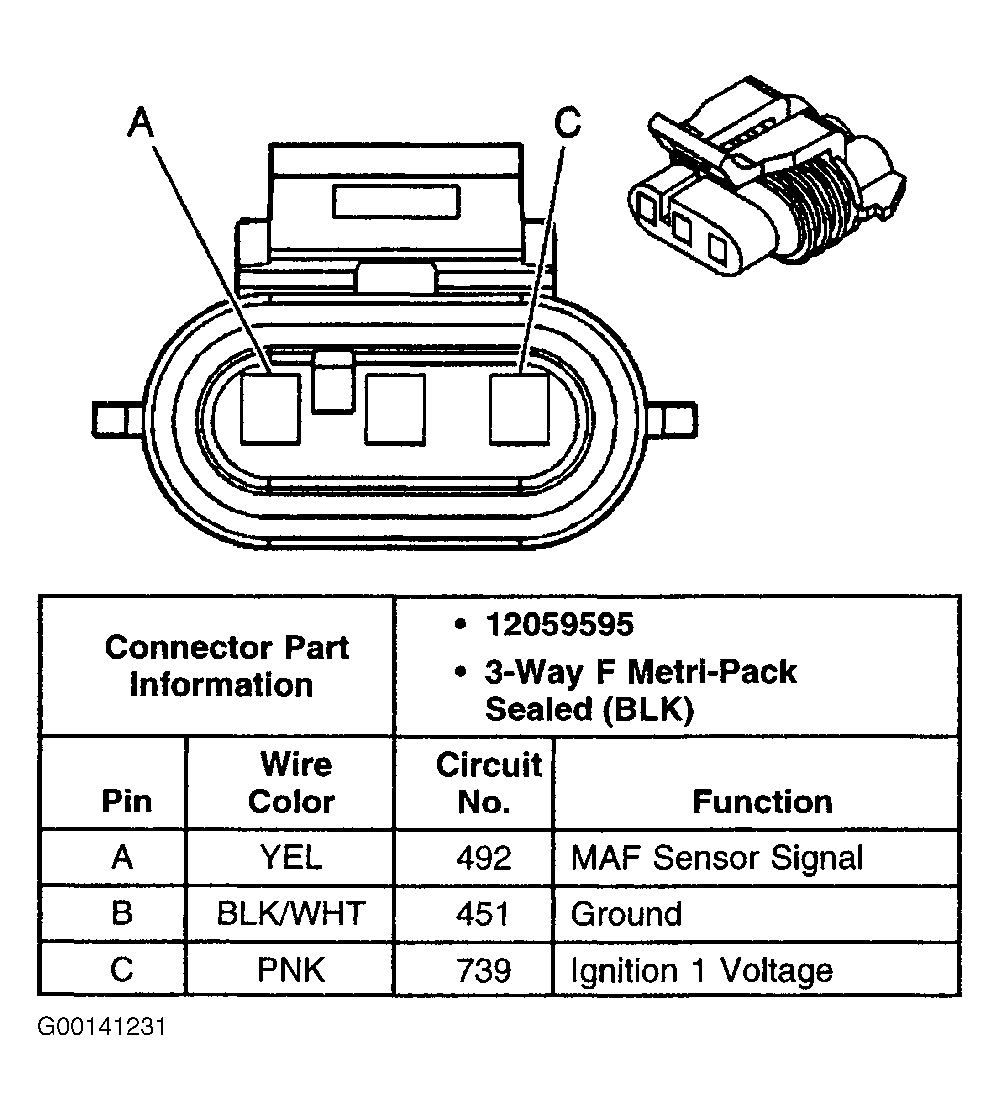

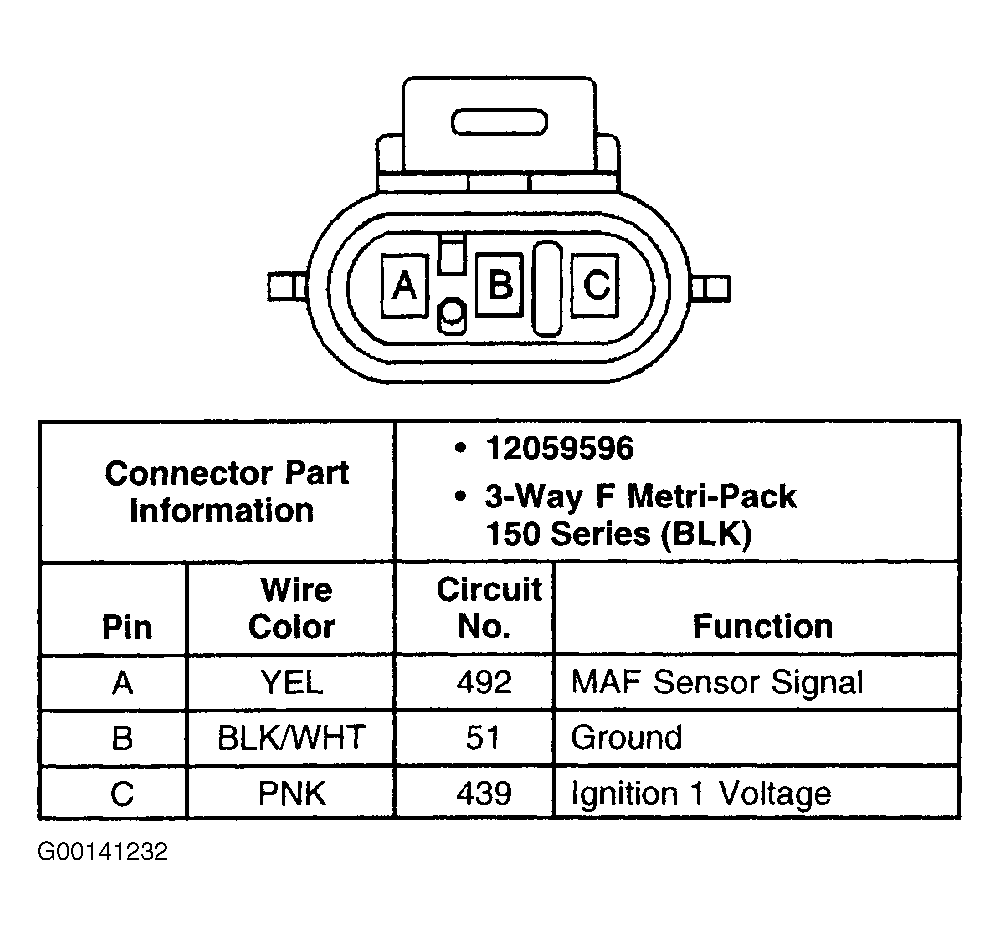

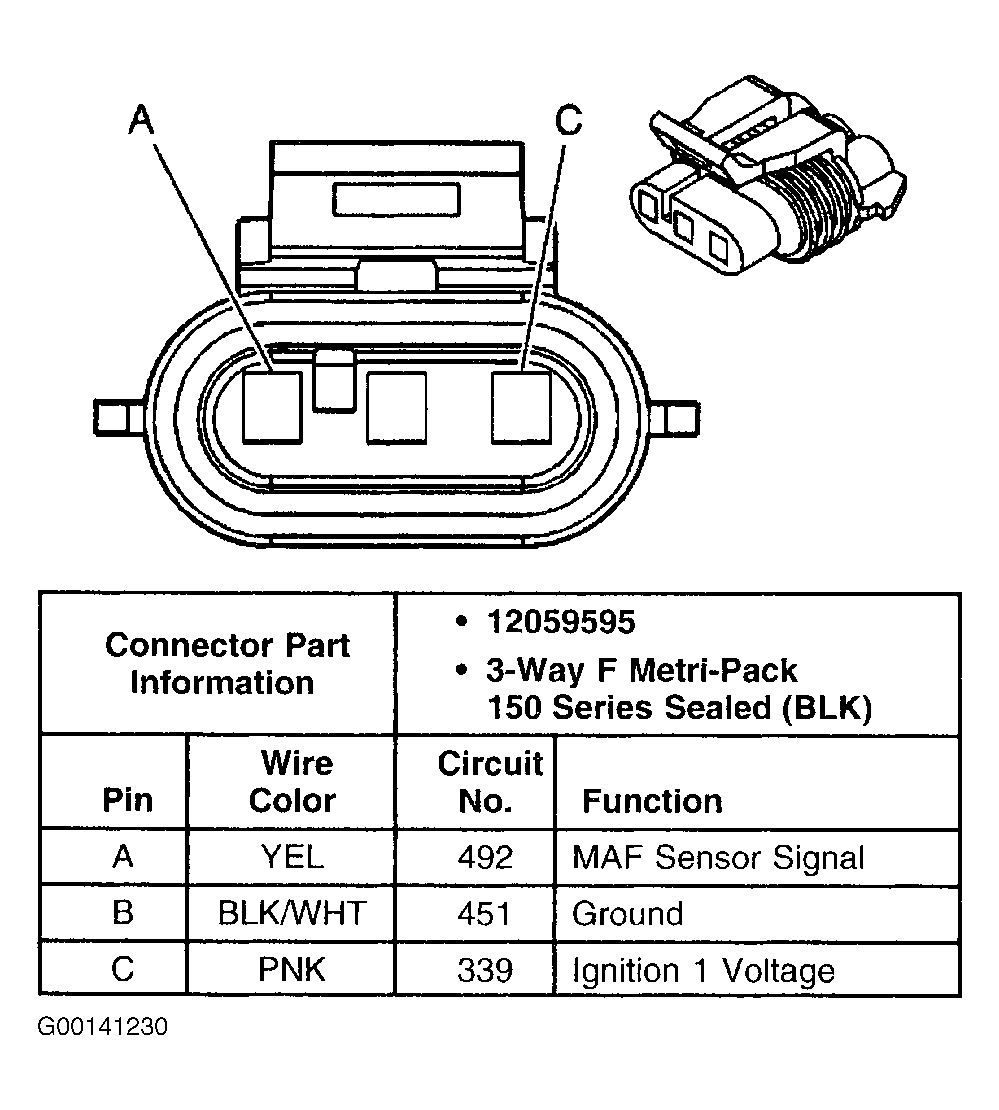

Fig 64: Identifying MAF Sensor Connector Terminals (Bonneville)

Courtesy of GENERAL MOTORS CORP.

Fig 65: Identifying MAF Sensor Connector Terminals (Grand Prix & Regal)

Courtesy of GENERAL MOTORS CORP.

Fig 66: Identifying MAF Sensor Connector Terminals (Impala & Monte Carlo)

Courtesy of GENERAL MOTORS CORP.

Fig 67: Identifying MAF Sensor Connector Terminals (LeSabre & Park Avenue)

Courtesy of GENERAL MOTORS CORP.

Fig 68: Identifying MAP Sensor Connector Terminals (Bonneville)

Courtesy of GENERAL MOTORS CORP.

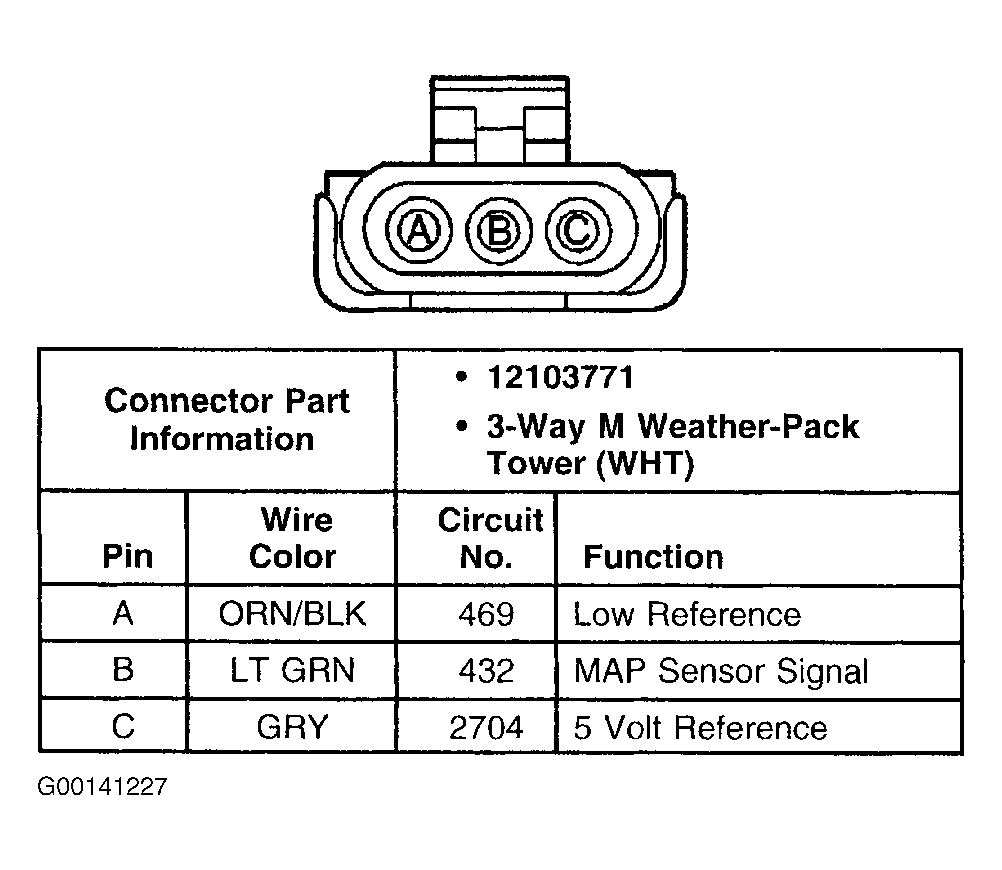

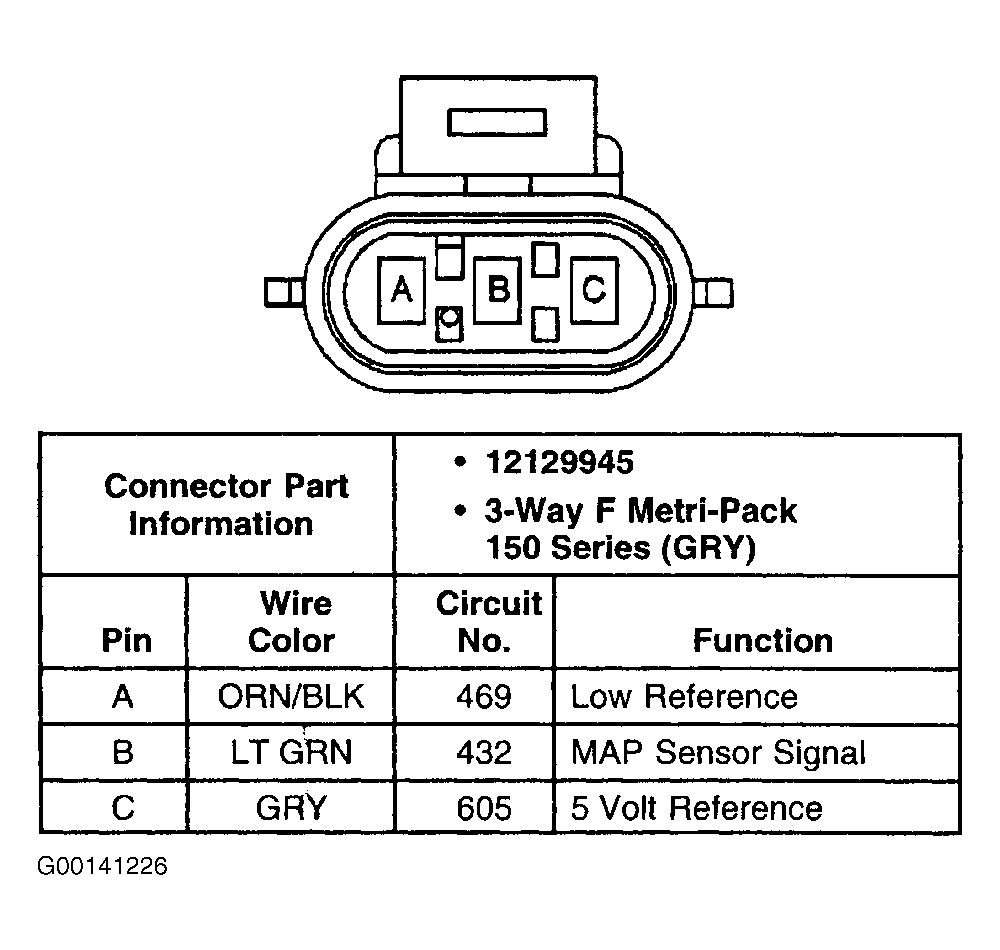

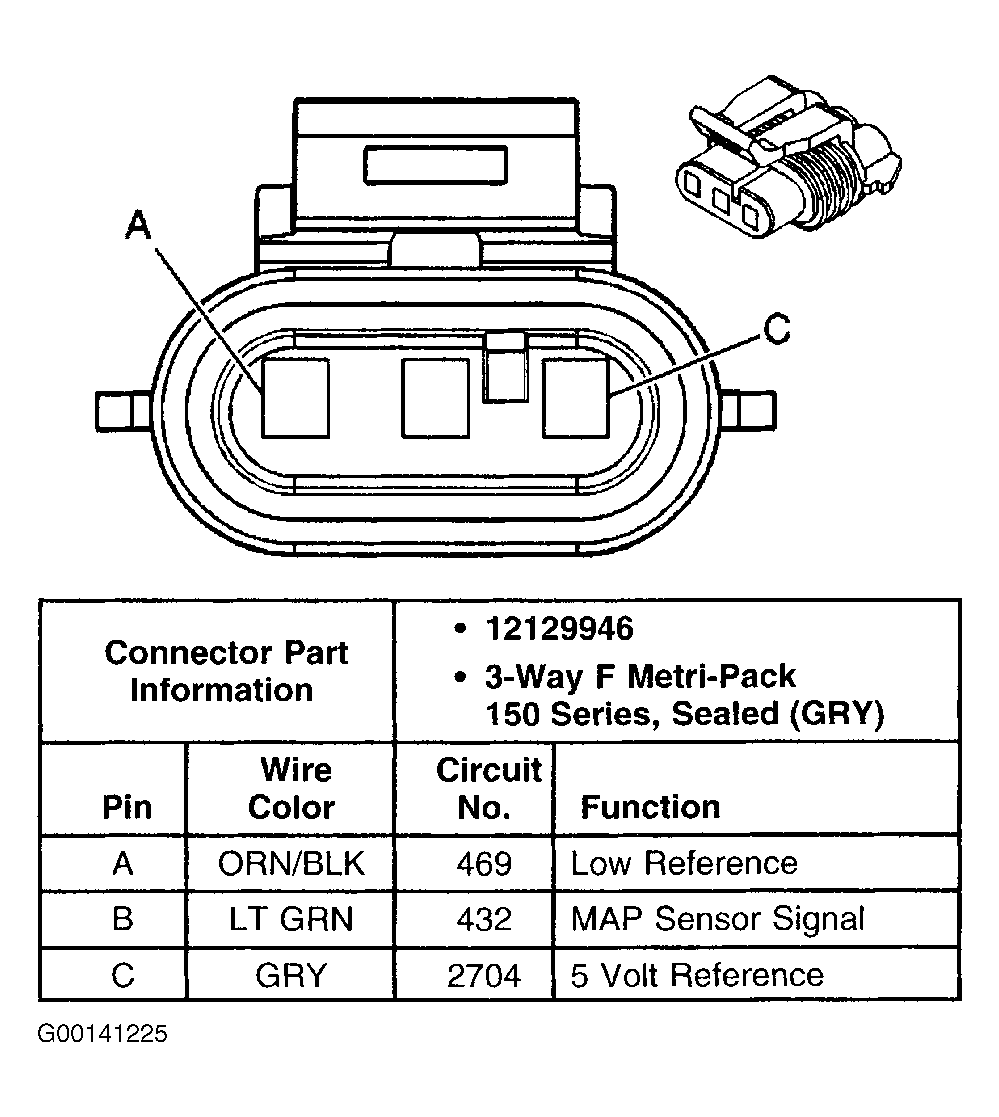

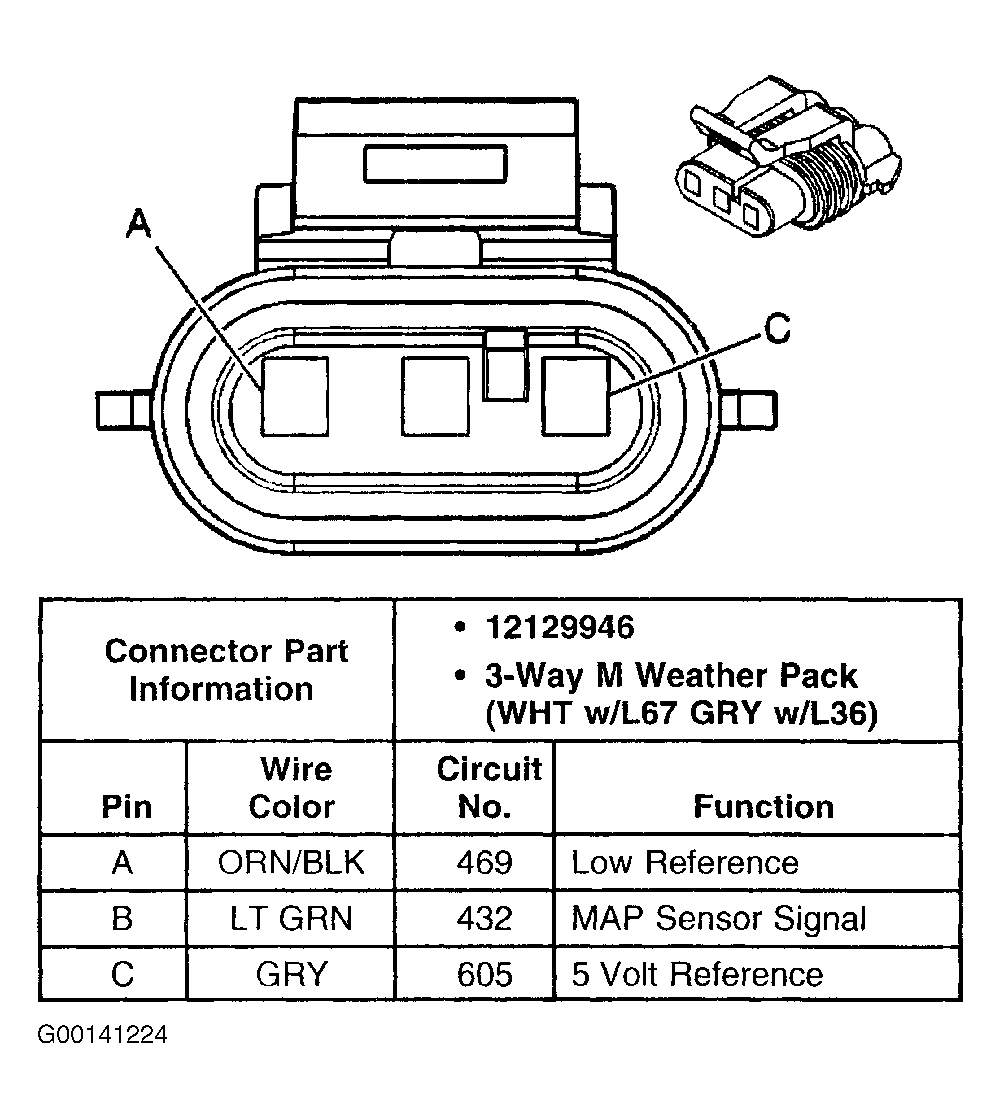

Fig 69: Identifying MAP Sensor Connector Terminals With Supercharger (Grand Prix, Regal)

Courtesy of GENERAL MOTORS CORP.

Fig 70: Identifying MAP Sensor Connector Terminals W/O Supercharger (Grand Prix, Impala, Monte Carlo, Regal & Park Avenue)

Courtesy of GENERAL MOTORS CORP.

Fig 71: Identifying MAP Sensor Connector Terminals (LeSabre)

Courtesy of GENERAL MOTORS CORP.

Fig 72: Identifying MAP Sensor Connector Terminals With Supercharger (Park Avenue)

Courtesy of GENERAL MOTORS CORP.

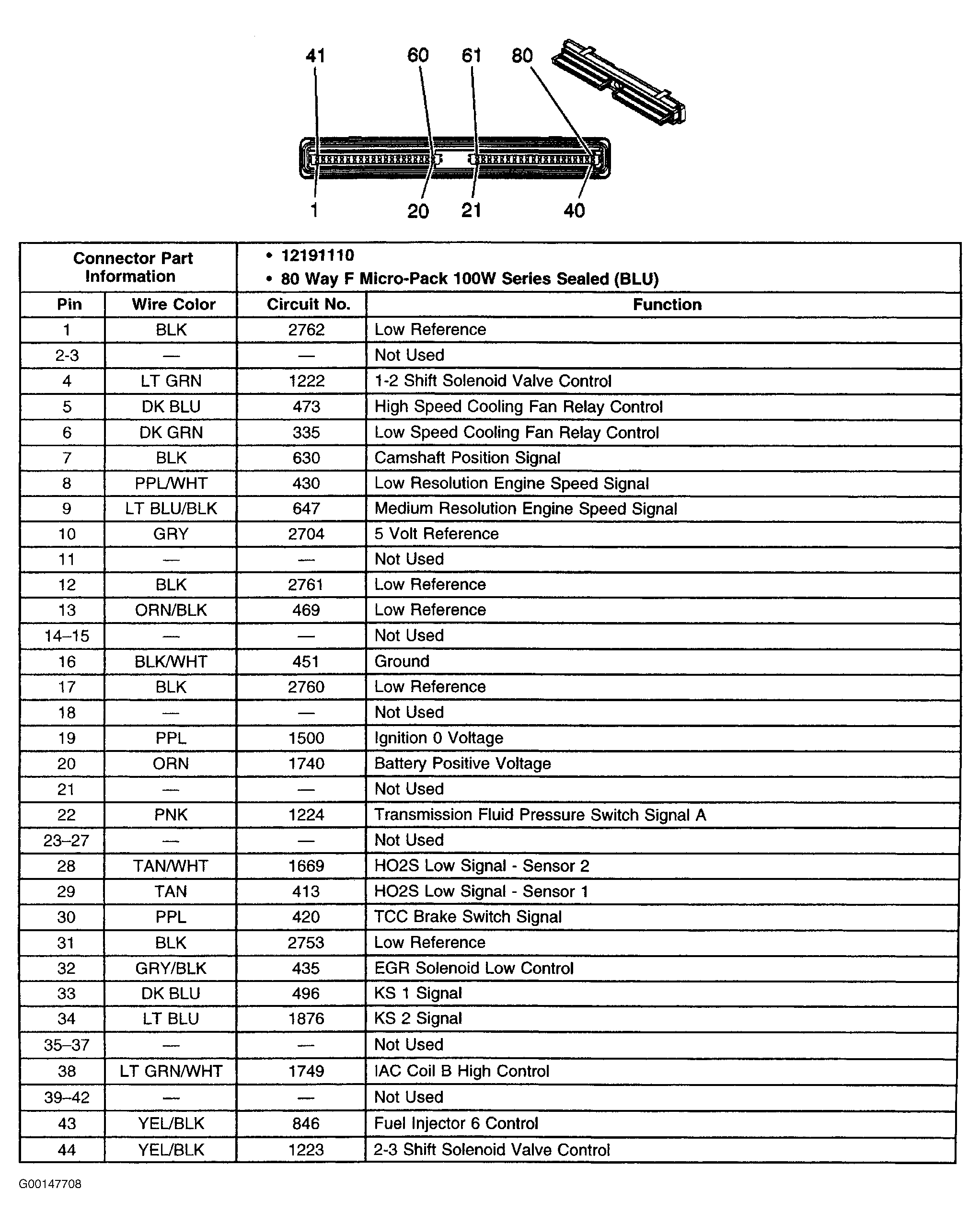

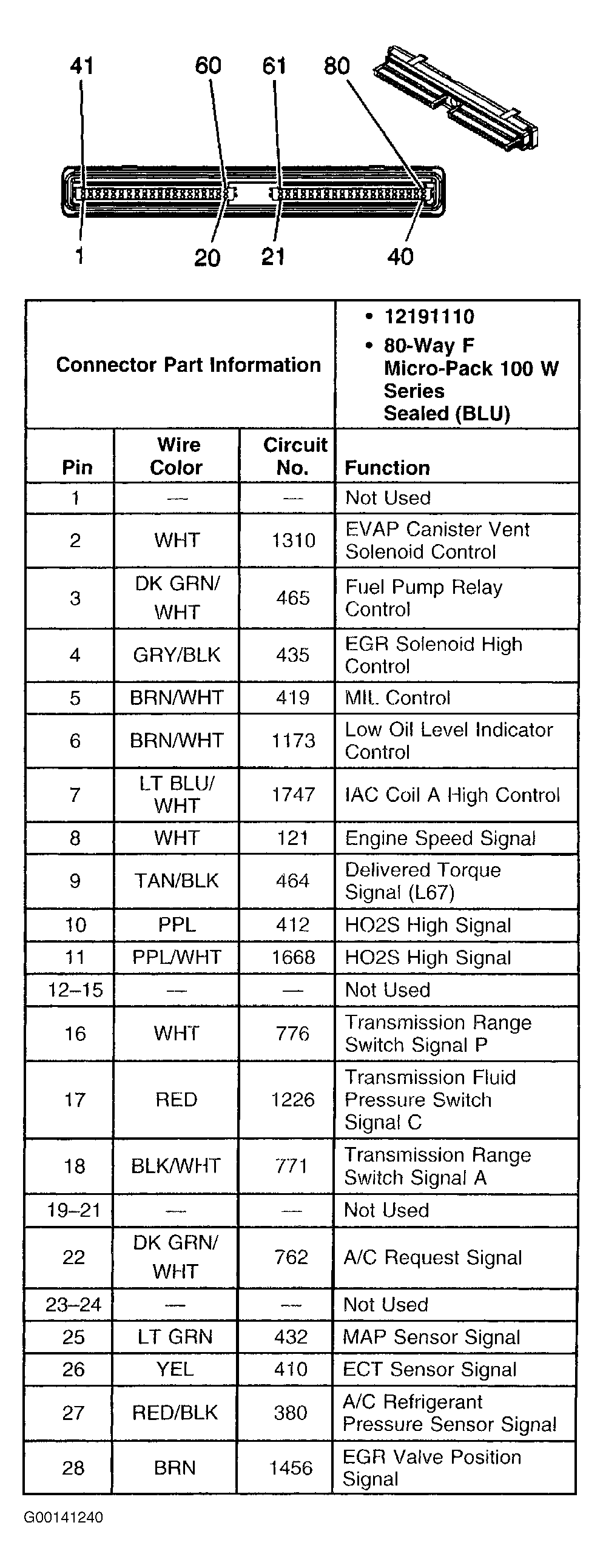

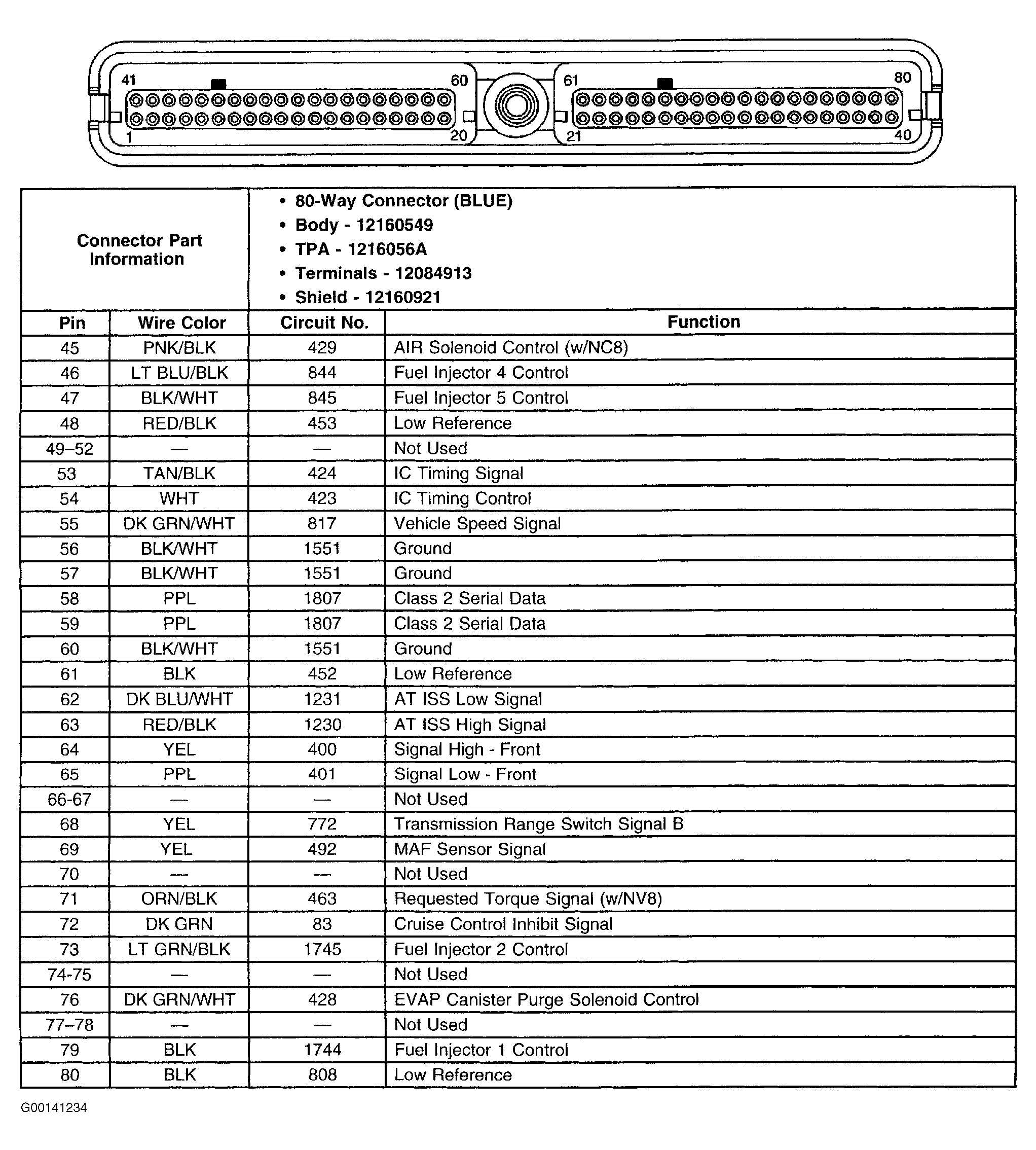

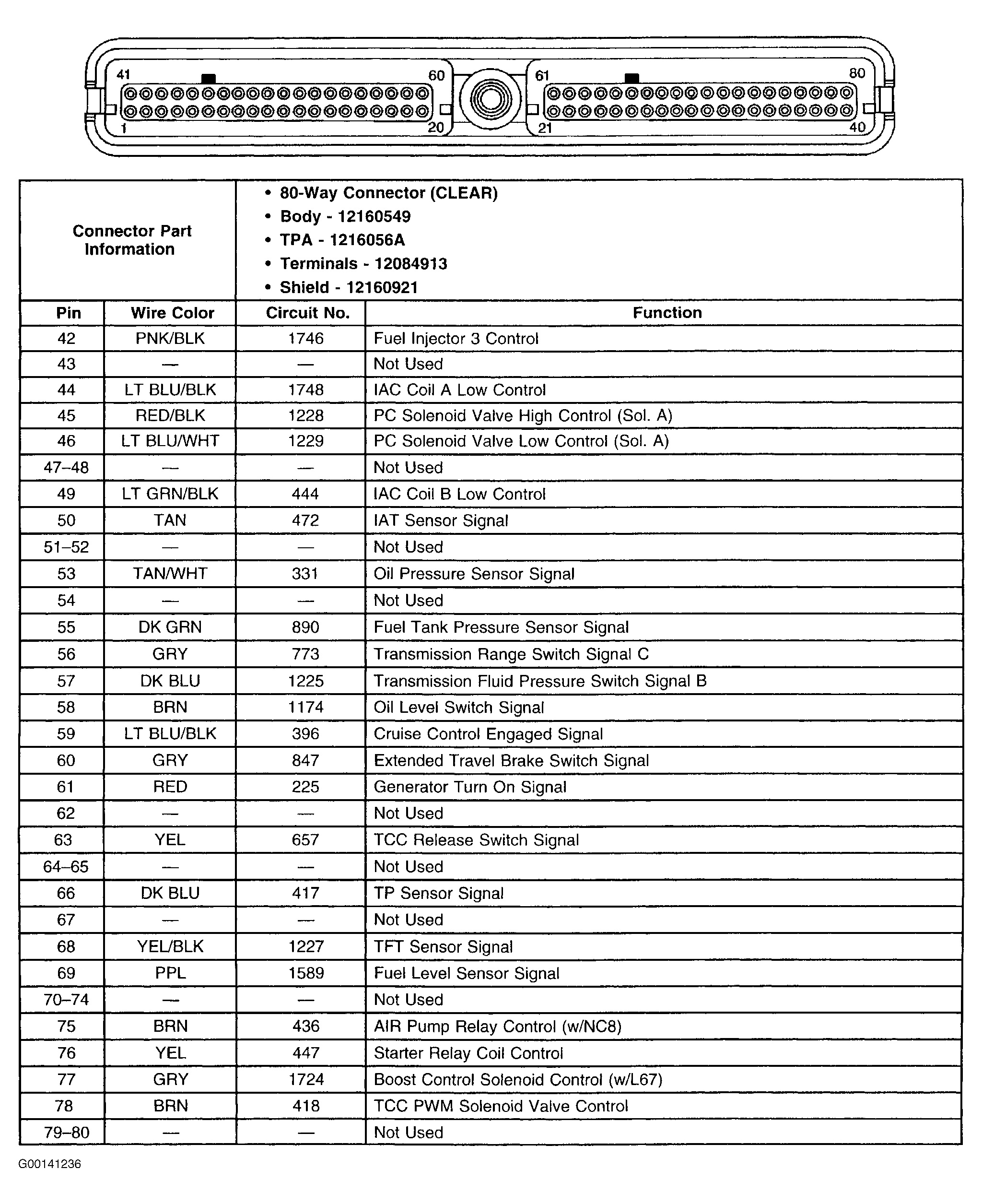

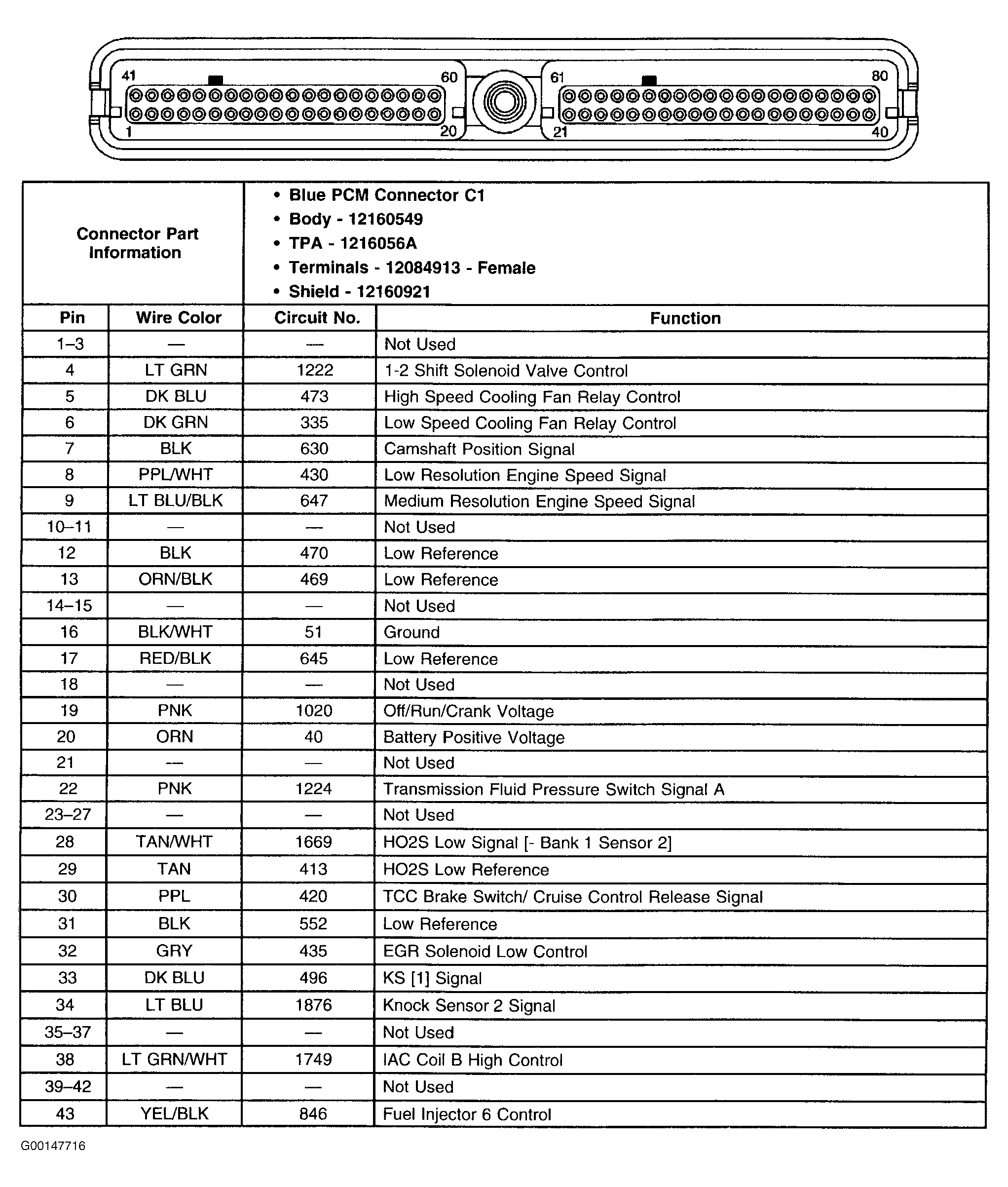

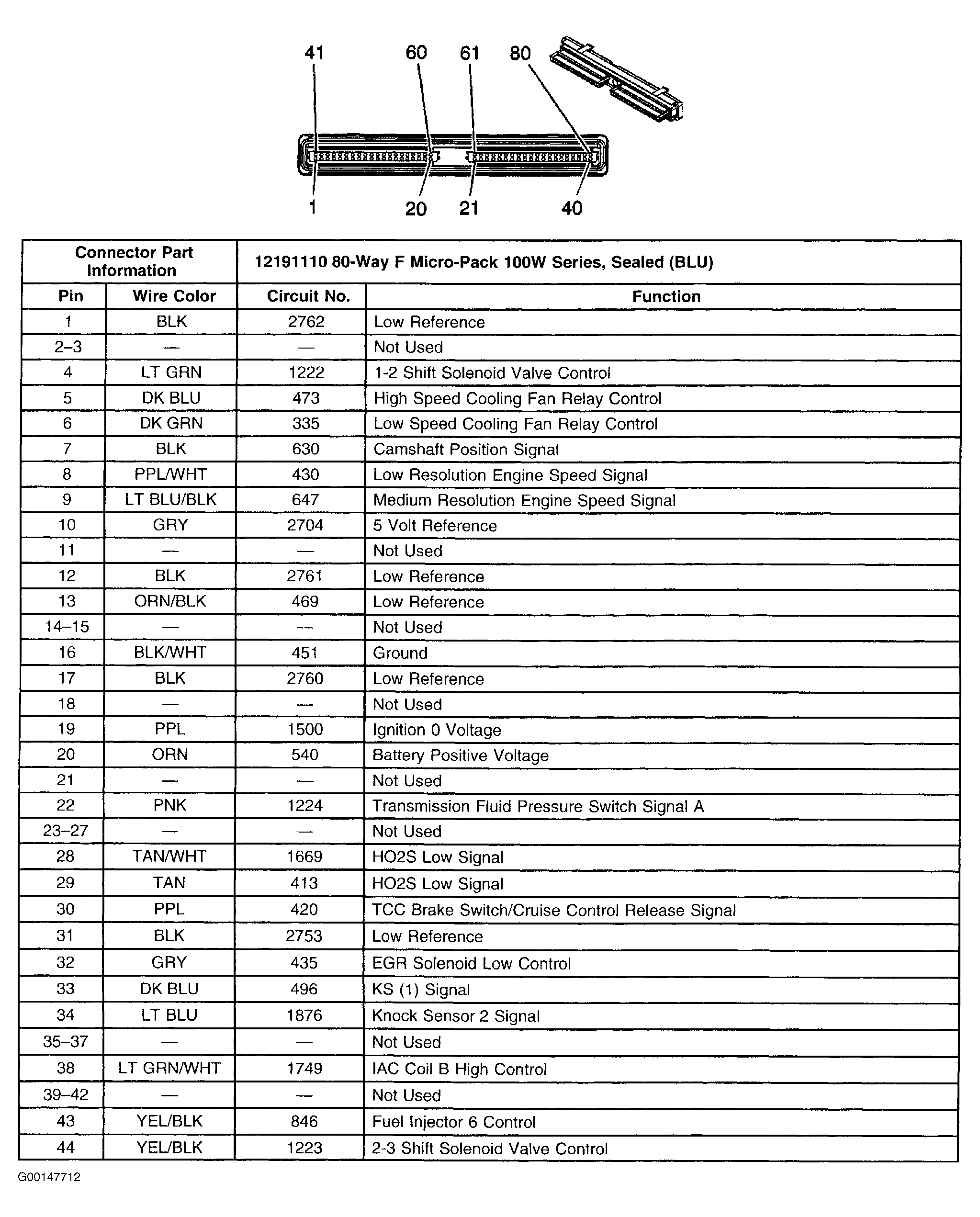

Fig 73: Identifying PCM Connector C1 Terminals (Bonneville & LeSabre - 1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 74: Identifying PCM Connector C1 Terminals (Bonneville & LeSabre - 2 Of 2)

Courtesy of GENERAL MOTORS CORP.

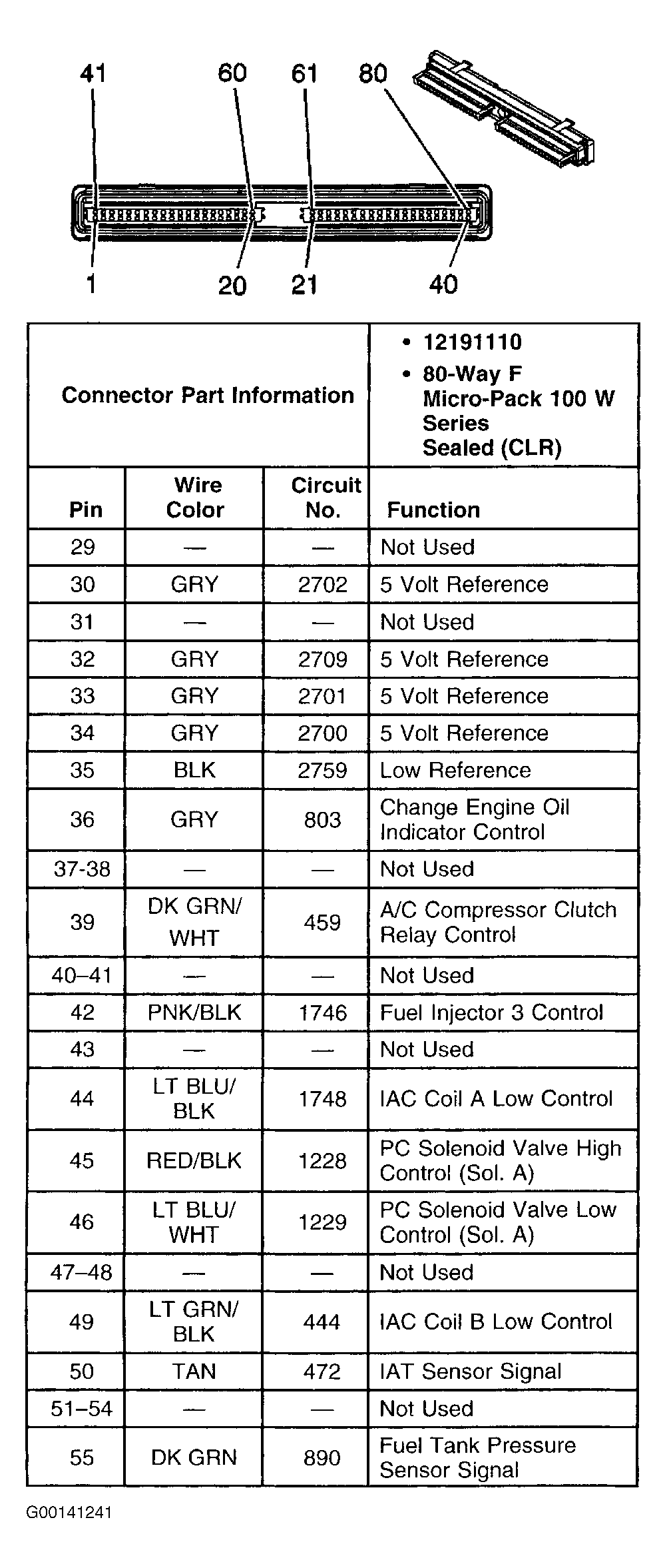

Fig 75: Identifying PCM Connector C2 Terminals (Bonneville & LeSabre - 1 Of 2)

Courtesy of GENERAL MOTORS CORP.

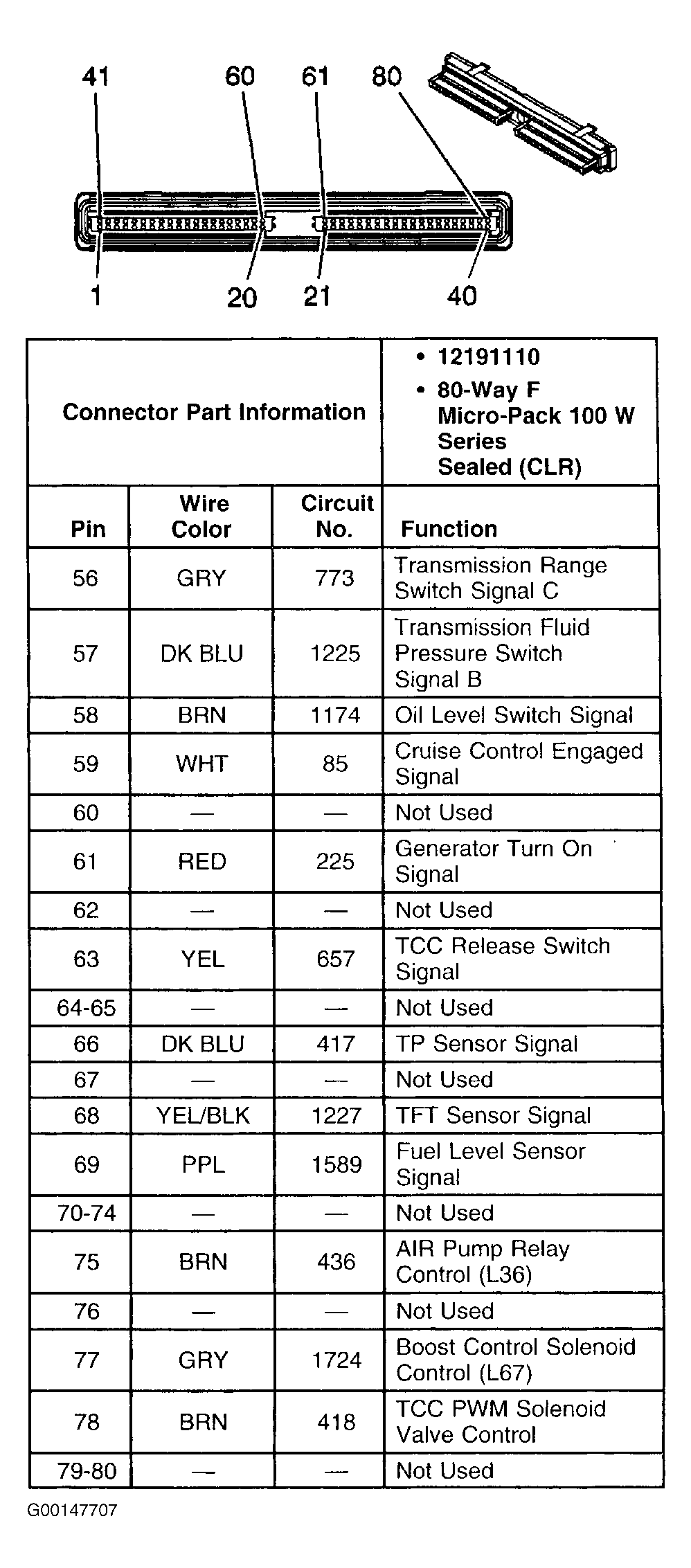

Fig 76: Identifying PCM Connector C2 Terminals (Bonneville & LeSabre - 2 Of 2)

Courtesy of GENERAL MOTORS CORP.

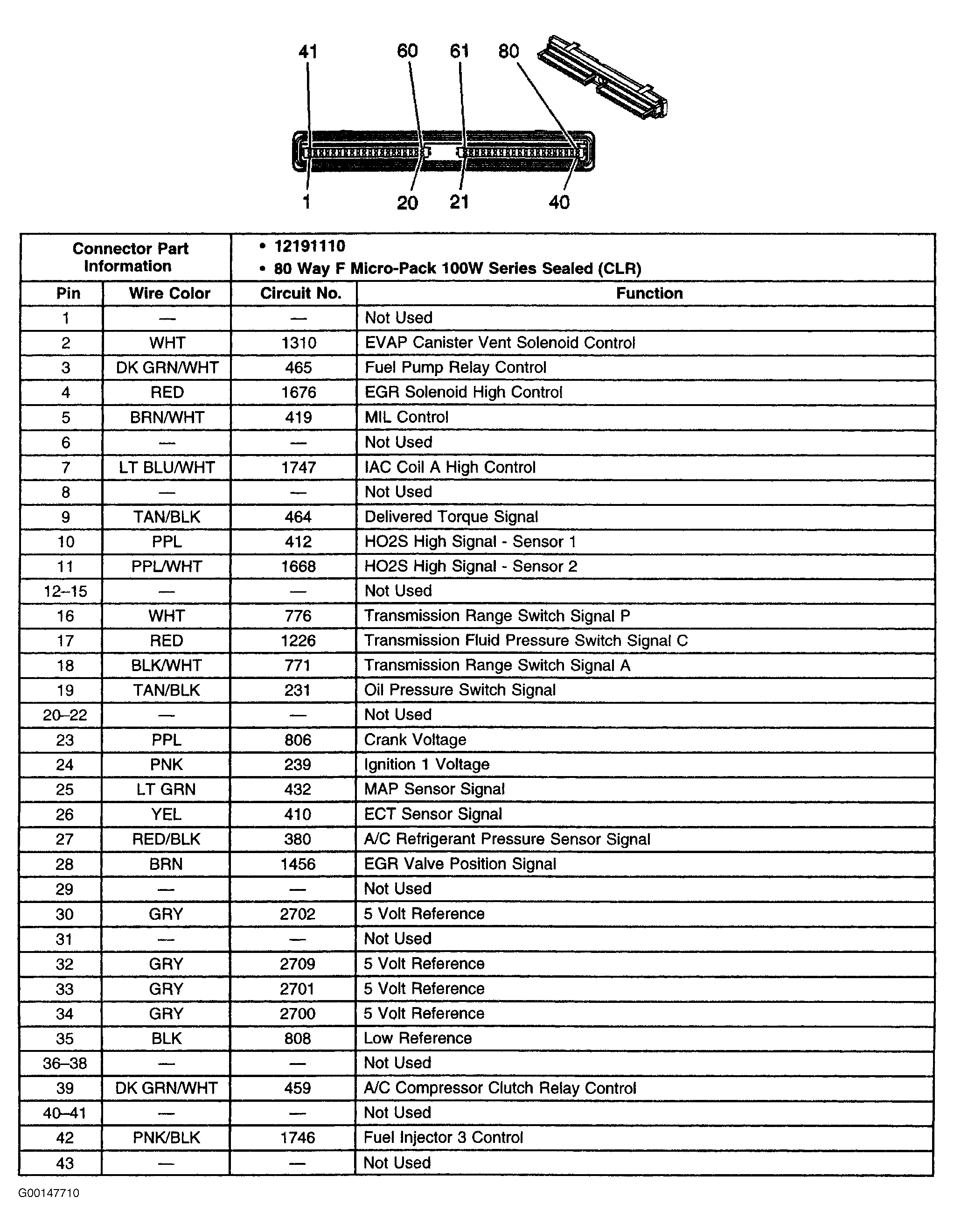

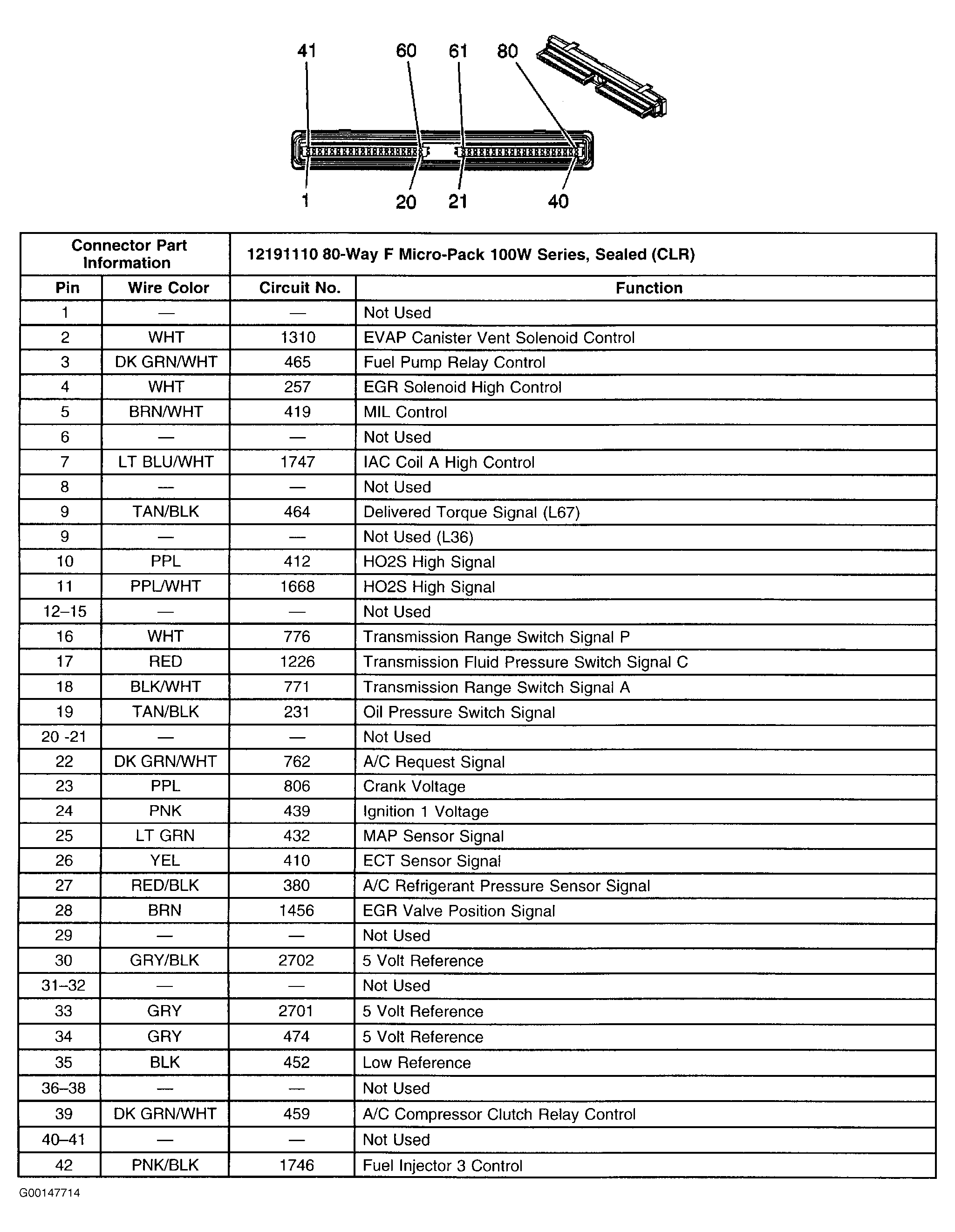

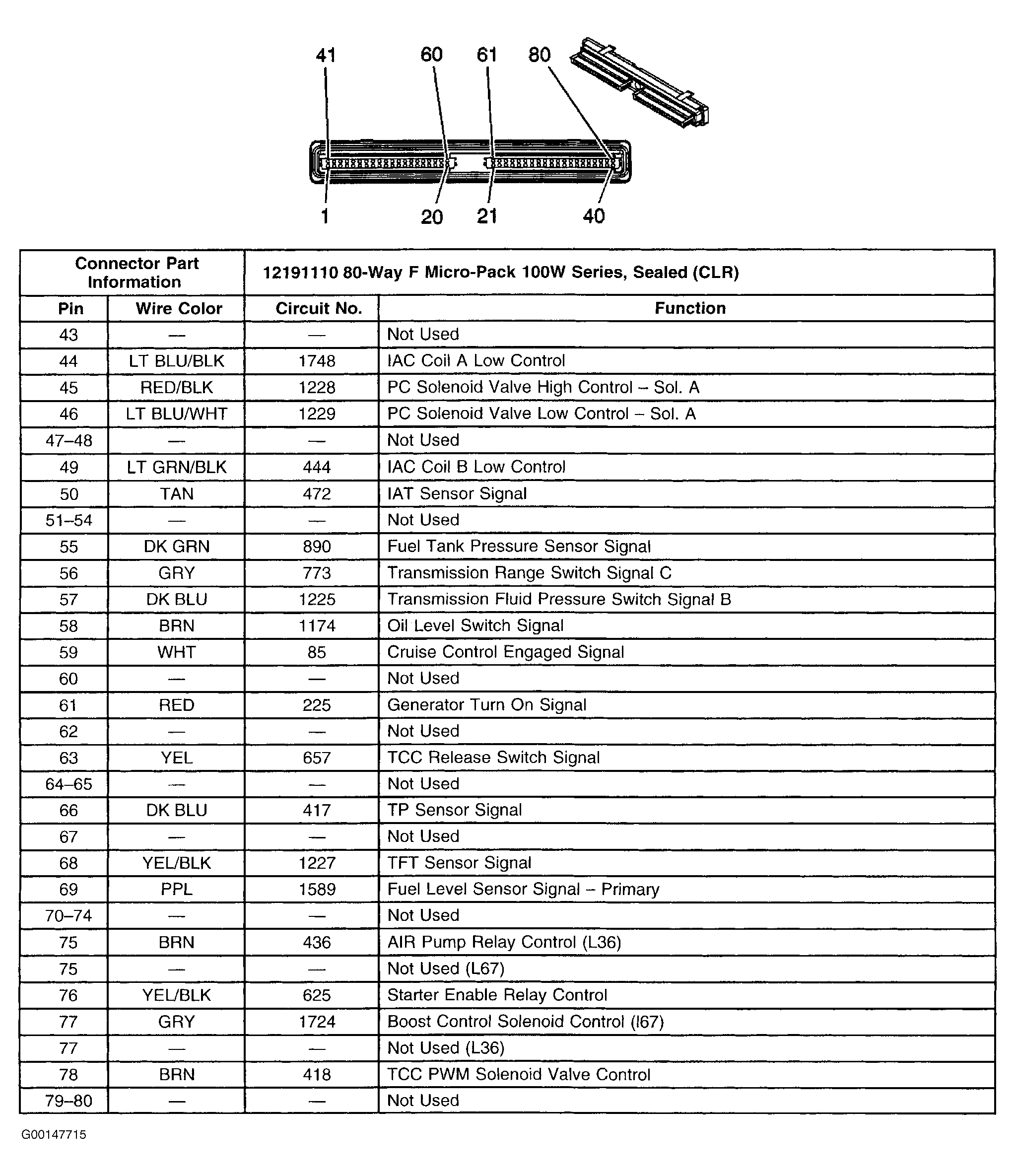

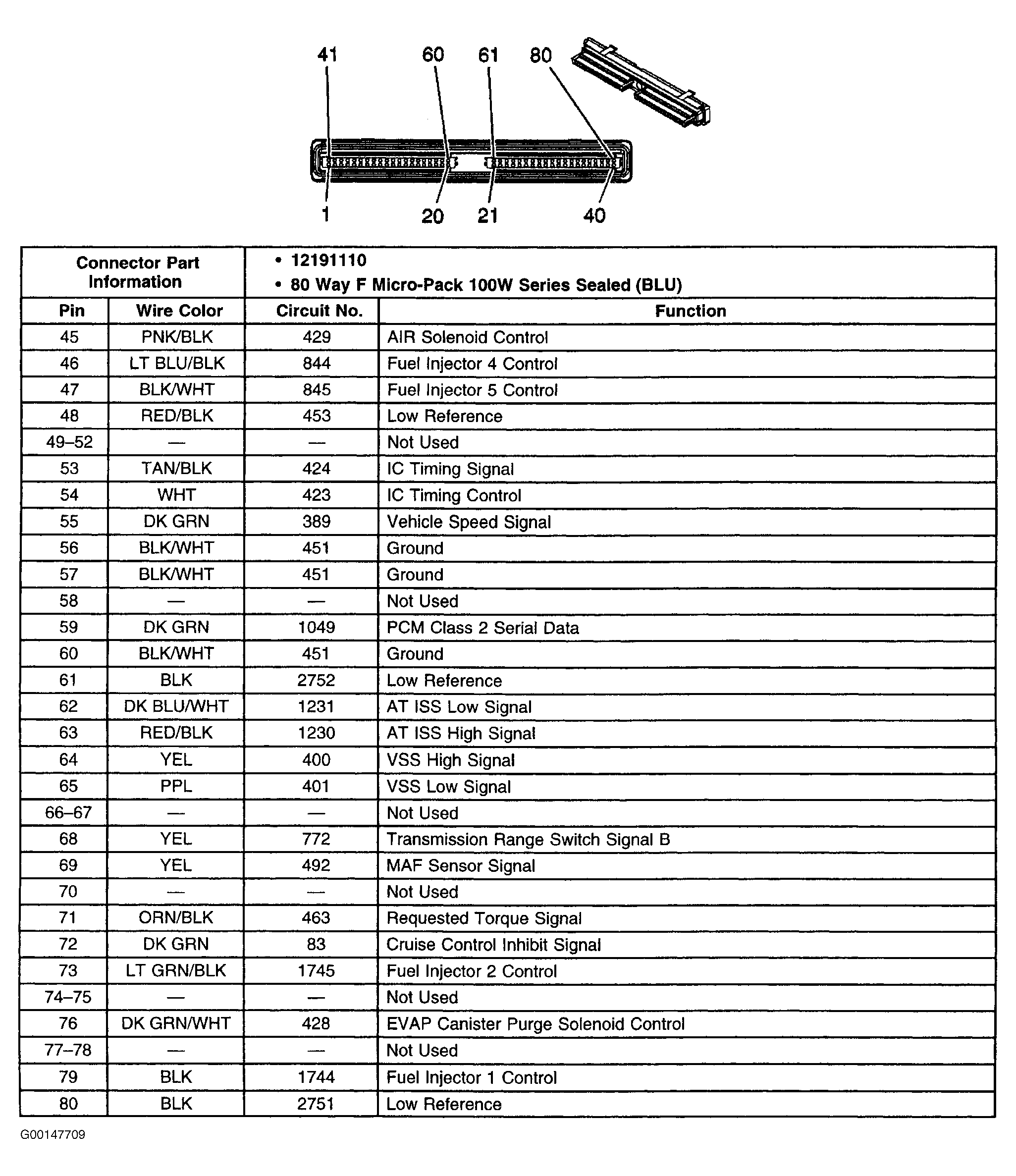

Fig 77: Identifying PCM Connector C1 Terminals (Grand Prix - 1 Of 3)

Courtesy of GENERAL MOTORS CORP.

Fig 78: Identifying PCM Connector C1 Terminals (Grand Prix - 2 Of 3)

Courtesy of GENERAL MOTORS CORP.

Fig 79: Identifying PCM Connector C1 Terminals (Grand Prix - 3 Of 3)

Courtesy of GENERAL MOTORS CORP.

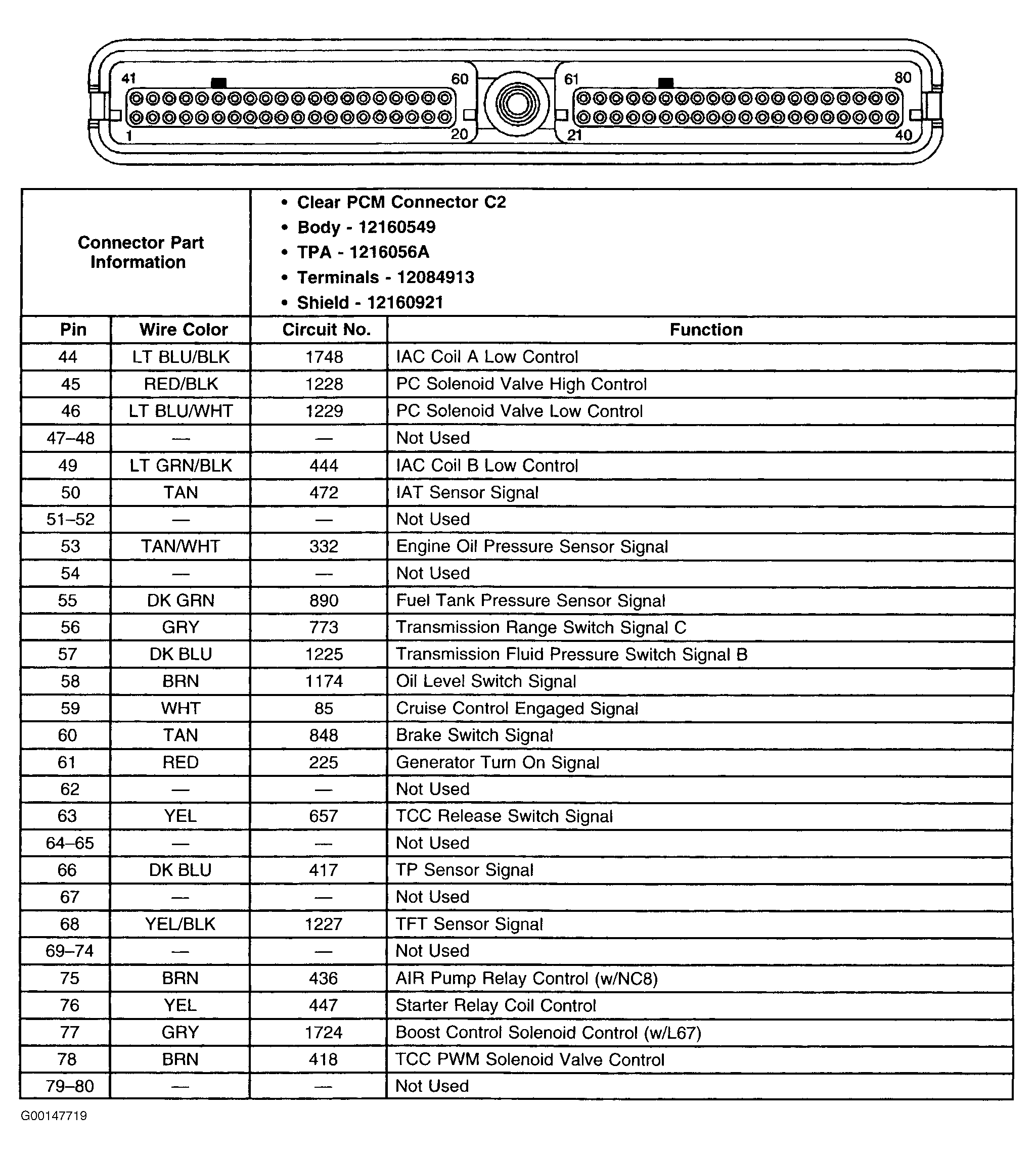

Fig 80: Identifying PCM Connector C2 Terminals (Grand Prix - 1 Of 3)

Courtesy of GENERAL MOTORS CORP.

Fig 81: Identifying PCM Connector C2 Terminals (Grand Prix - 2 Of 3)

Courtesy of GENERAL MOTORS CORP.

Fig 82: Identifying PCM Connector C2 Terminals (Grand Prix - 3 Of 3)

Courtesy of GENERAL MOTORS CORP.

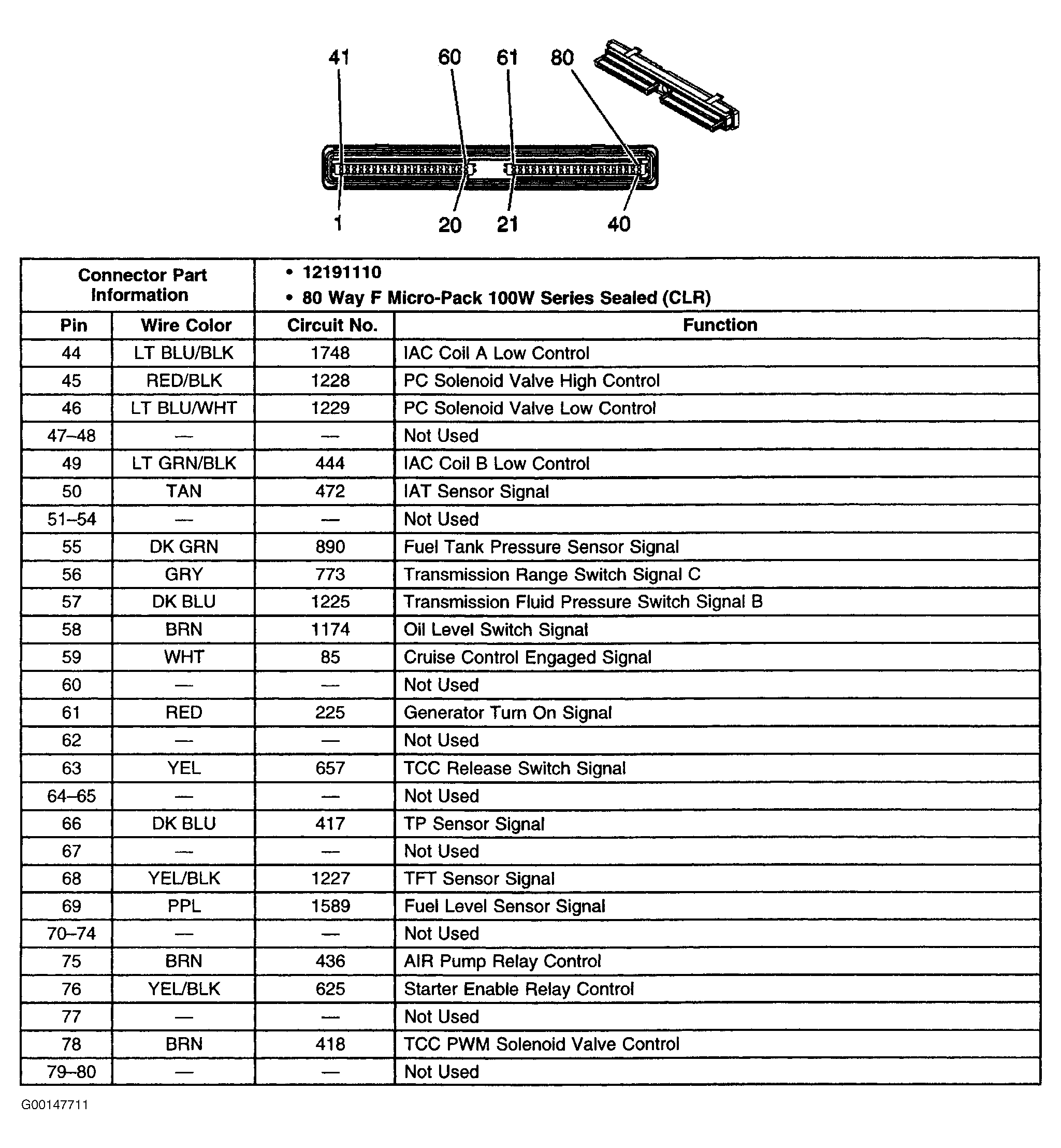

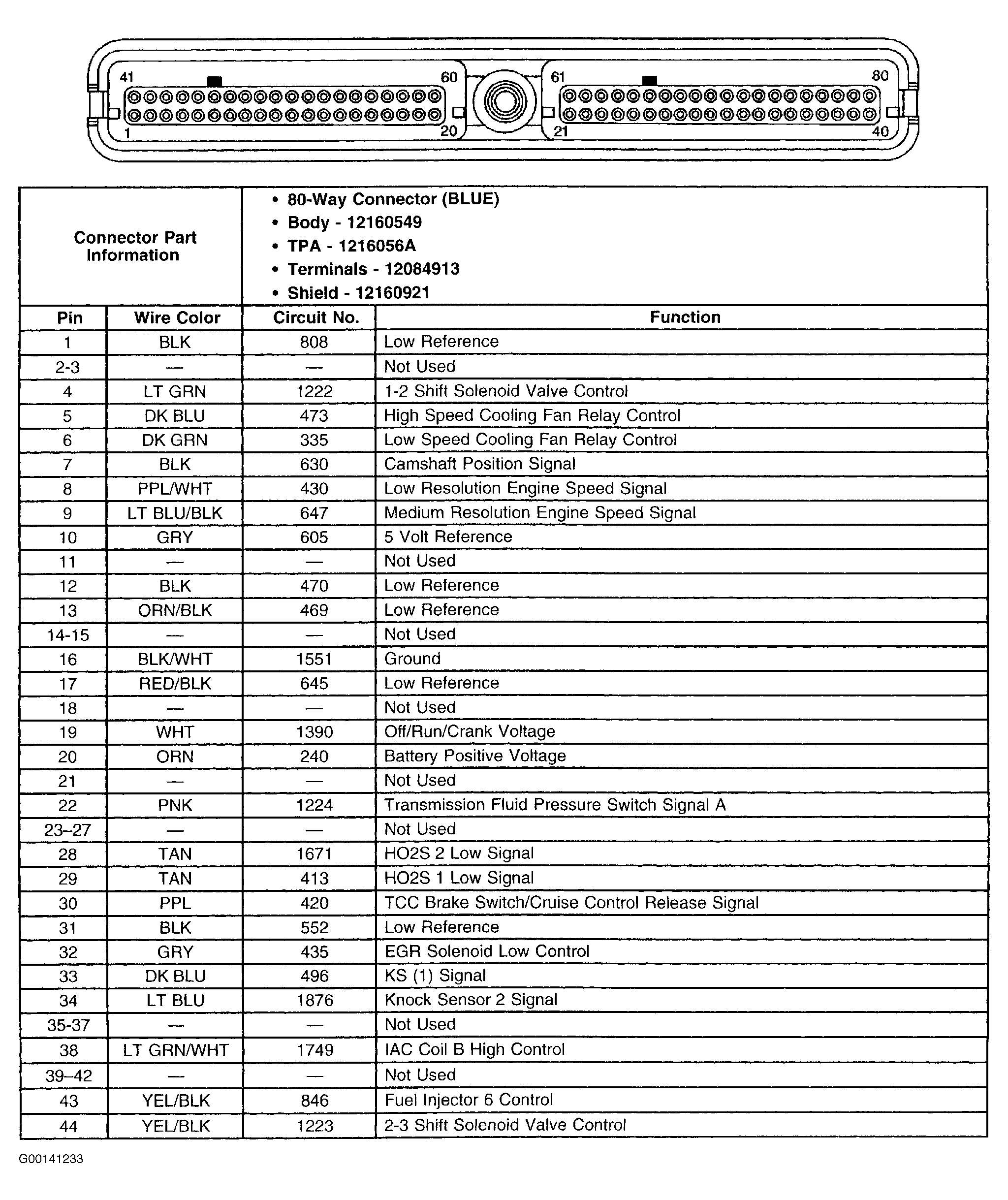

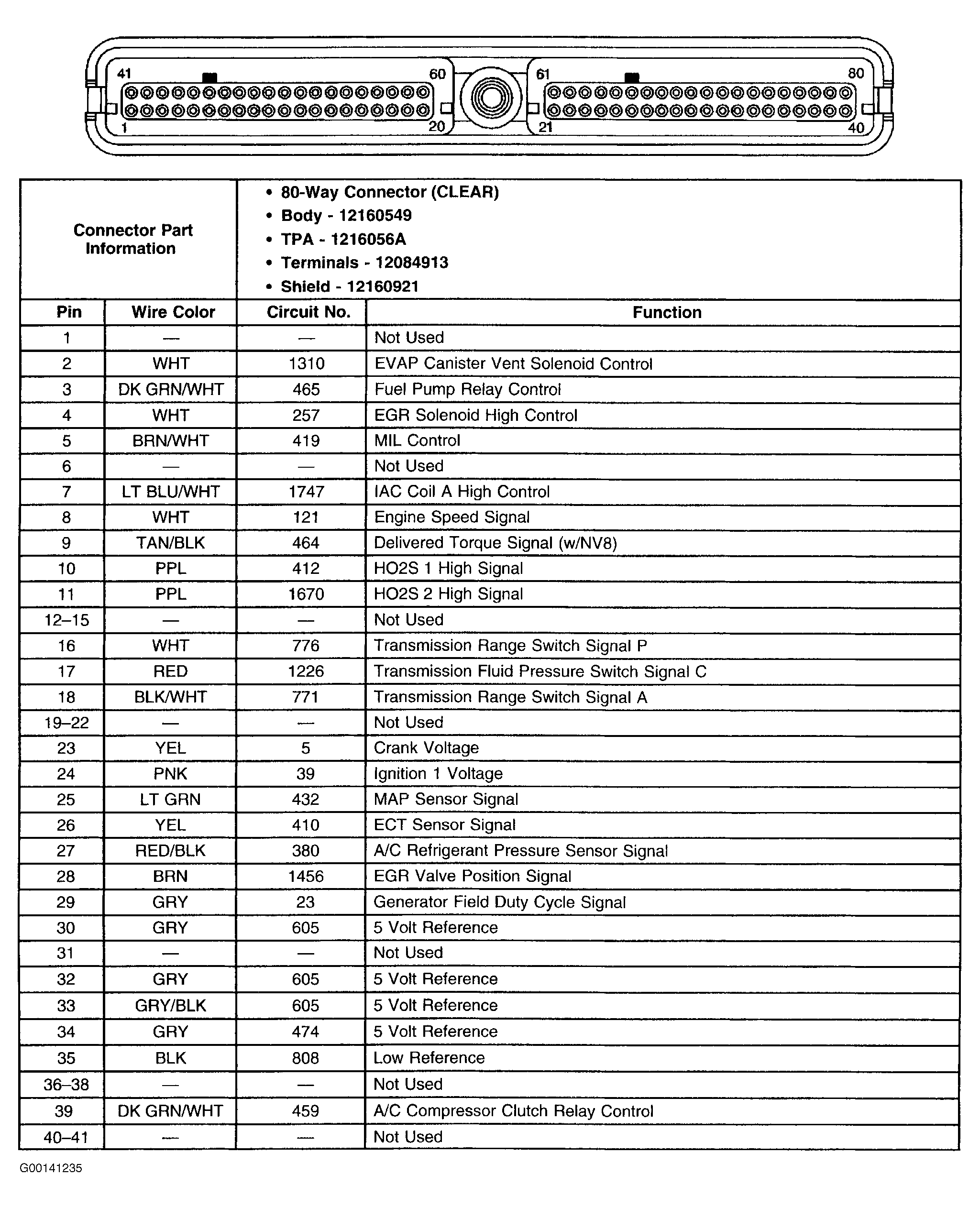

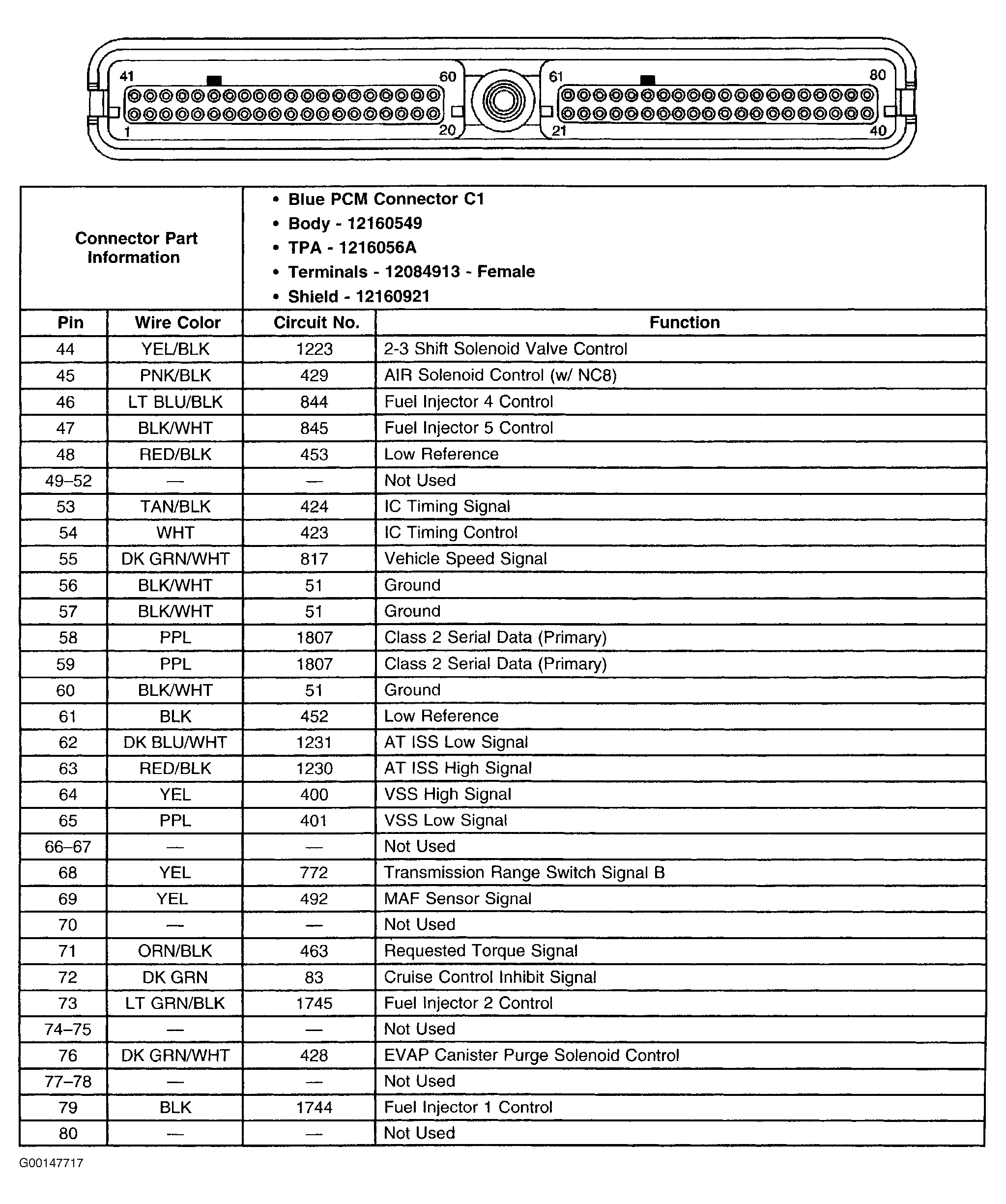

Fig 83: Identifying PCM Connector C1 Terminals (Impala & Monte Carlo - 1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 84: Identifying PCM Connector C1 Terminals (Impala & Monte Carlo - 2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 85: Identifying PCM Connector C2 Terminals (Impala & Monte Carlo - 1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 86: Identifying PCM Connector C2 Terminals (Impala & Monte Carlo - 2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 87: Identifying PCM Connector C1 Terminals (Park Avenue - 1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 88: Identifying PCM Connector C1 Terminals (Park Avenue - 2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 89: Identifying PCM Connector C2 Terminals (Park Avenue - 1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 90: Identifying PCM Connector C2 Terminals (Park Avenue - 2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 91: Identifying PCM Connector C1 Terminals (Regal - 1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 92: Identifying PCM Connector C1 Terminals (Regal - 2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 93: Identifying PCM Connector C2 Terminals (Regal - 1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 94: Identifying PCM Connector C2 Terminals (Regal - 2 Of 2)

Courtesy of GENERAL MOTORS CORP.

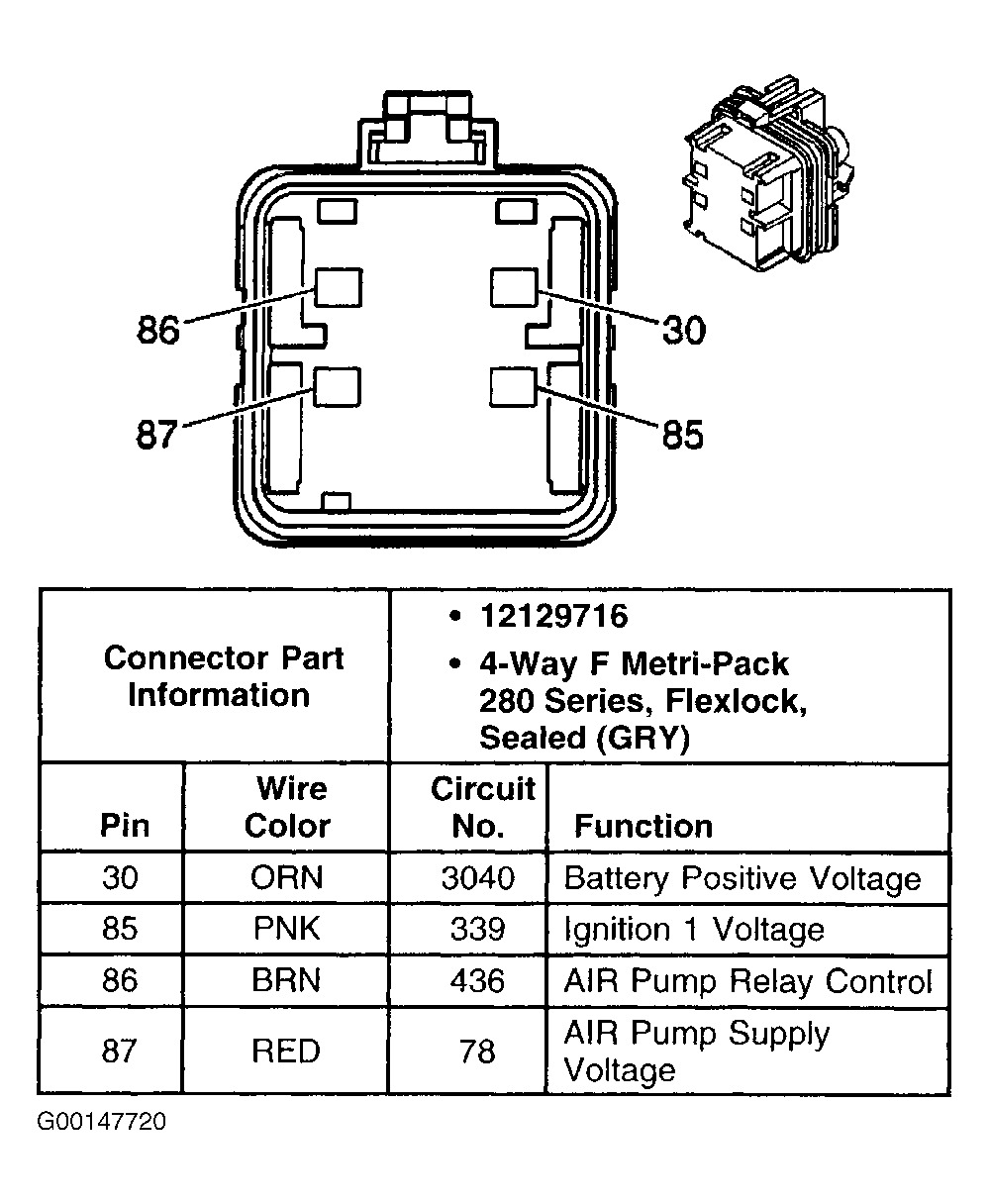

Fig 95: Identifying Secondary Air Injection Pump Relay Connector Terminals (Grand Prix)

Courtesy of GENERAL MOTORS CORP.

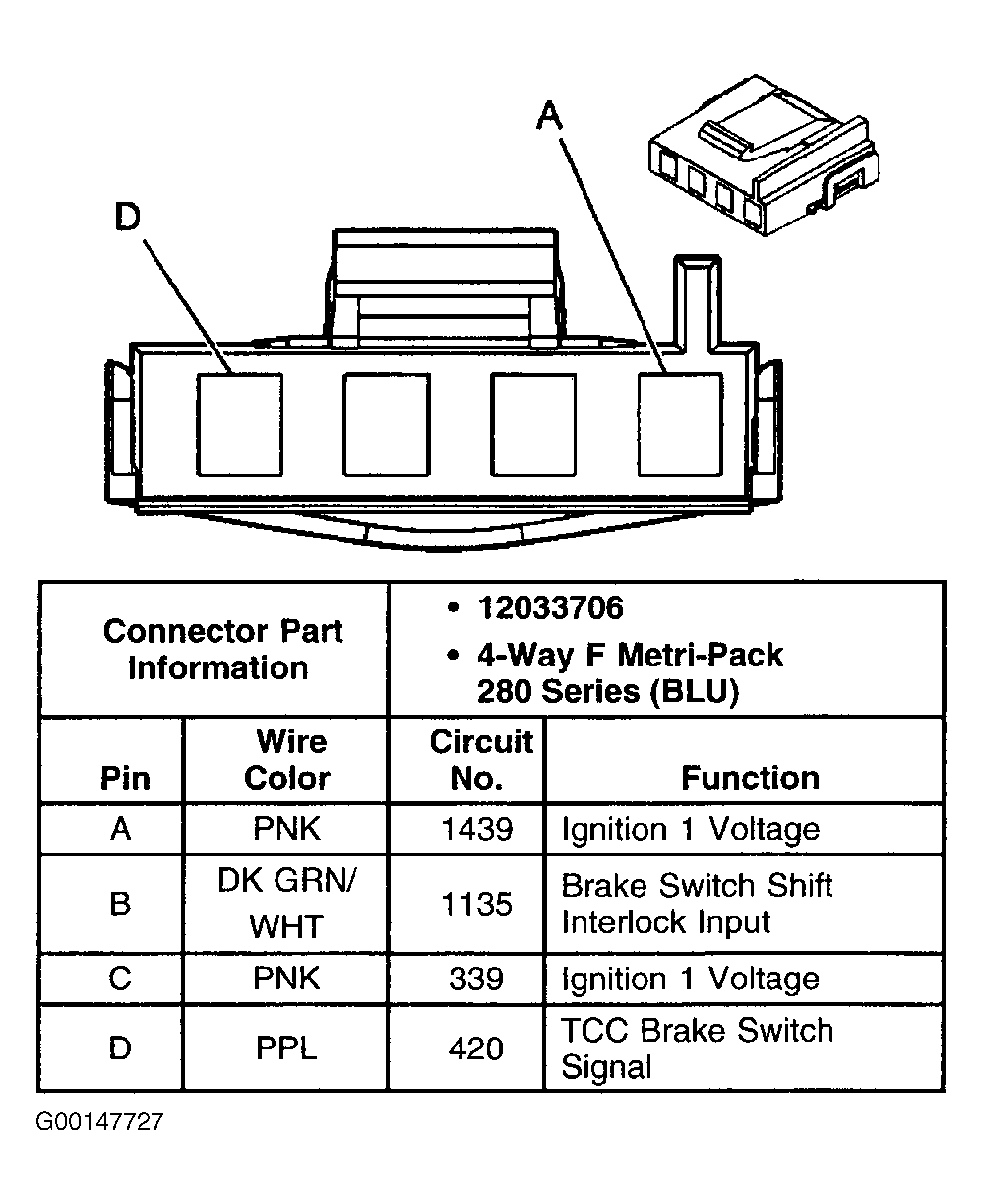

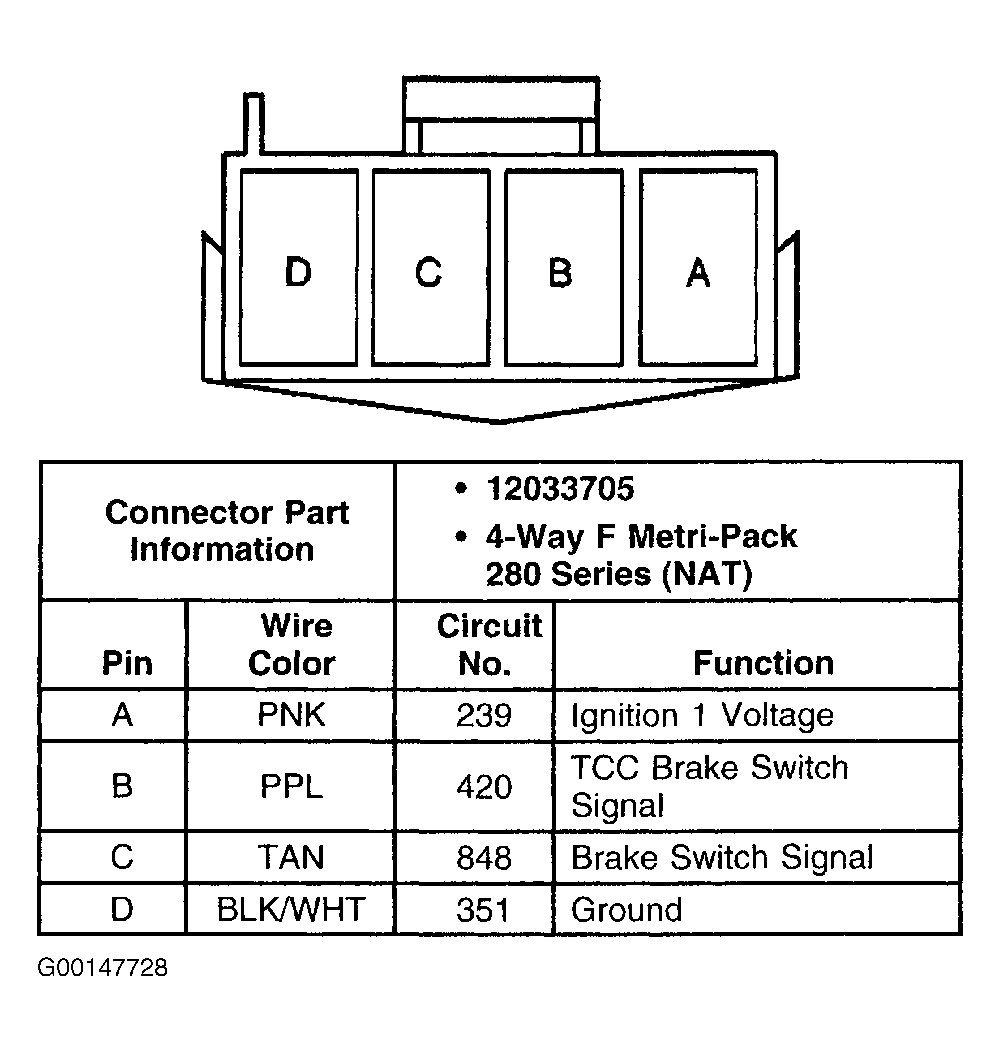

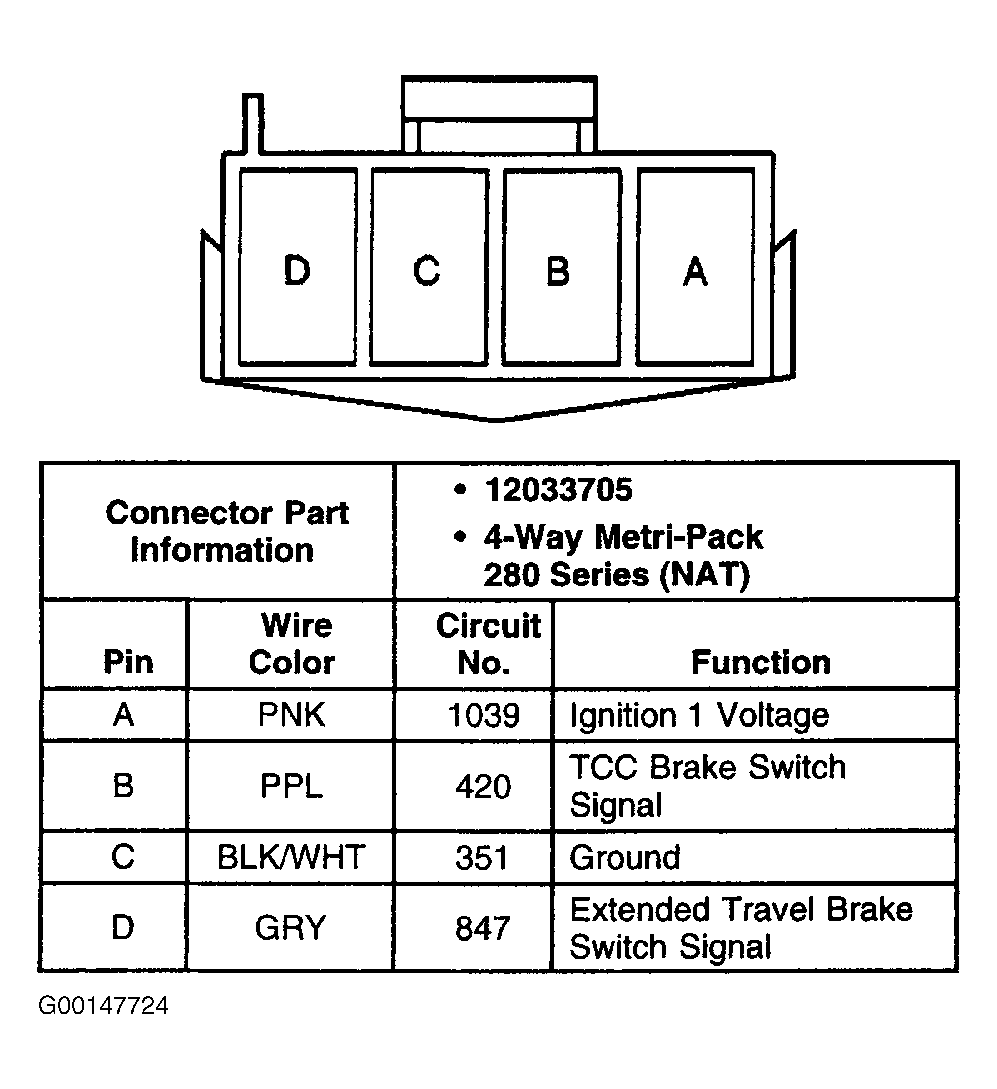

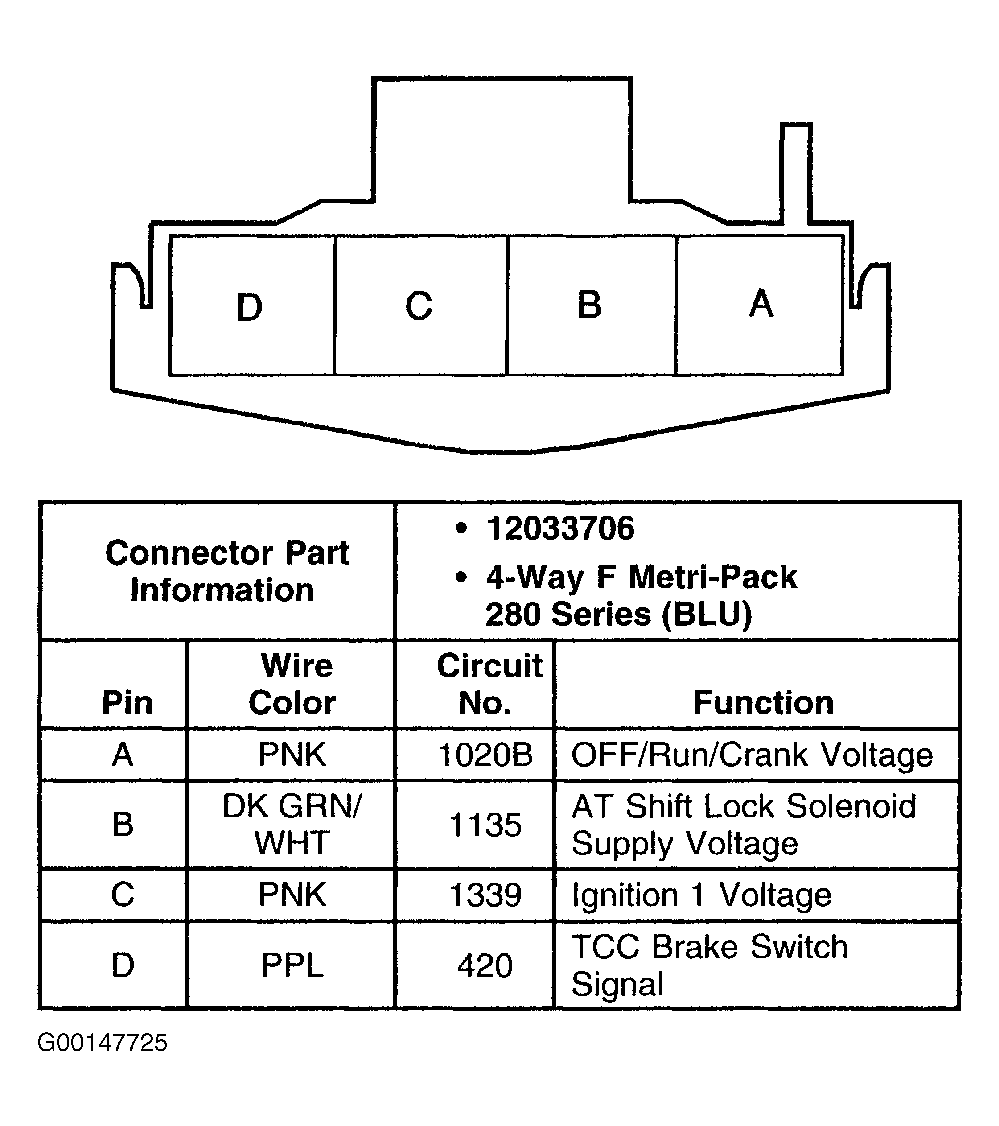

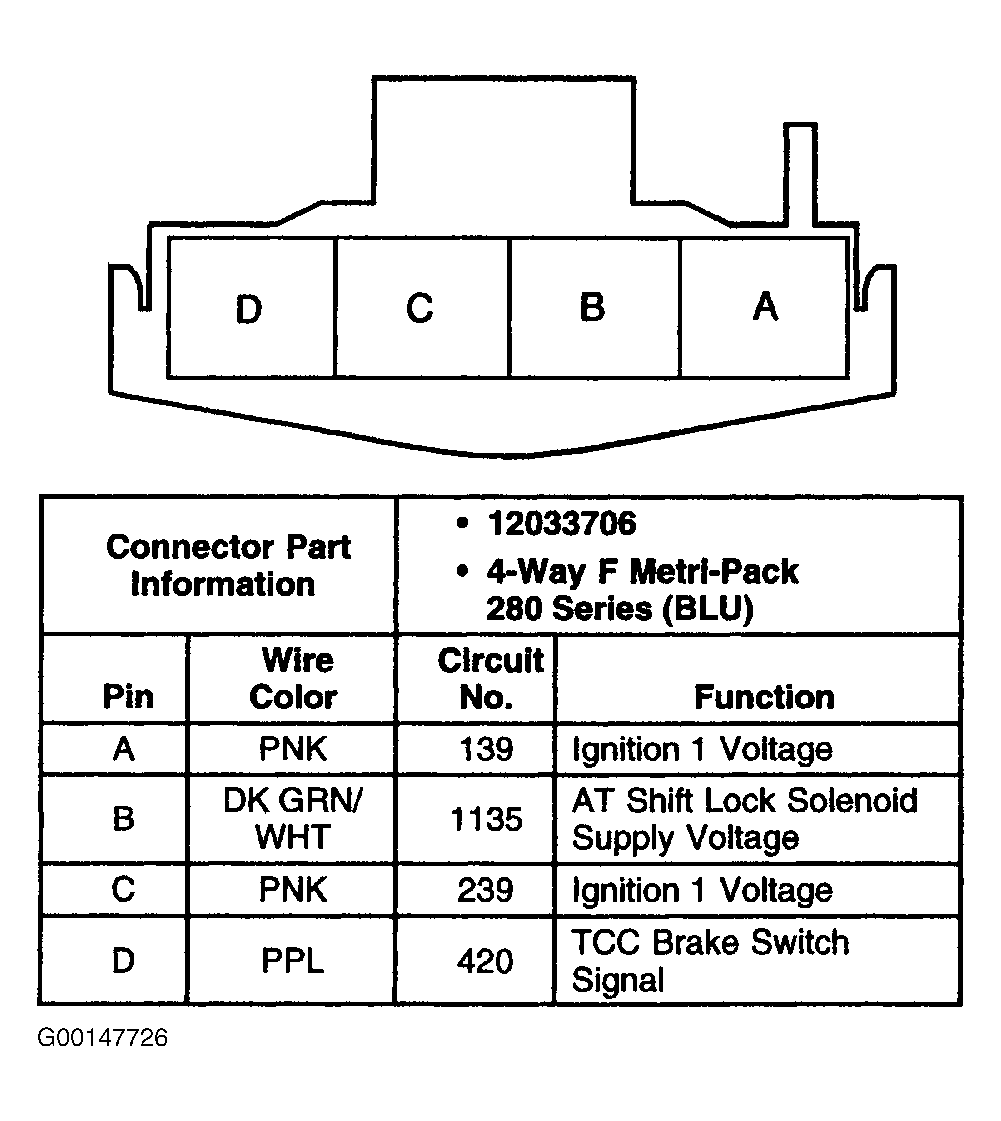

Fig 96: Identifying Stop Lamp Switch Connector Terminals (Bonneville & LeSabre)

Courtesy of GENERAL MOTORS CORP.

Fig 97: Identifying Stop Lamp Switch Connector Terminals (Grand Prix)

Courtesy of GENERAL MOTORS CORP.

Fig 98: Identifying Stop Lamp Switch Connector Terminals (Impala & Monte Carlo)

Courtesy of GENERAL MOTORS CORP.

Fig 99: Identifying Stop Lamp Switch Connector Terminals (Regal)

Courtesy of GENERAL MOTORS CORP.

Fig 100: Identifying Stop Lamp Switch Connector Terminals (Park Avenue)

Courtesy of GENERAL MOTORS CORP.

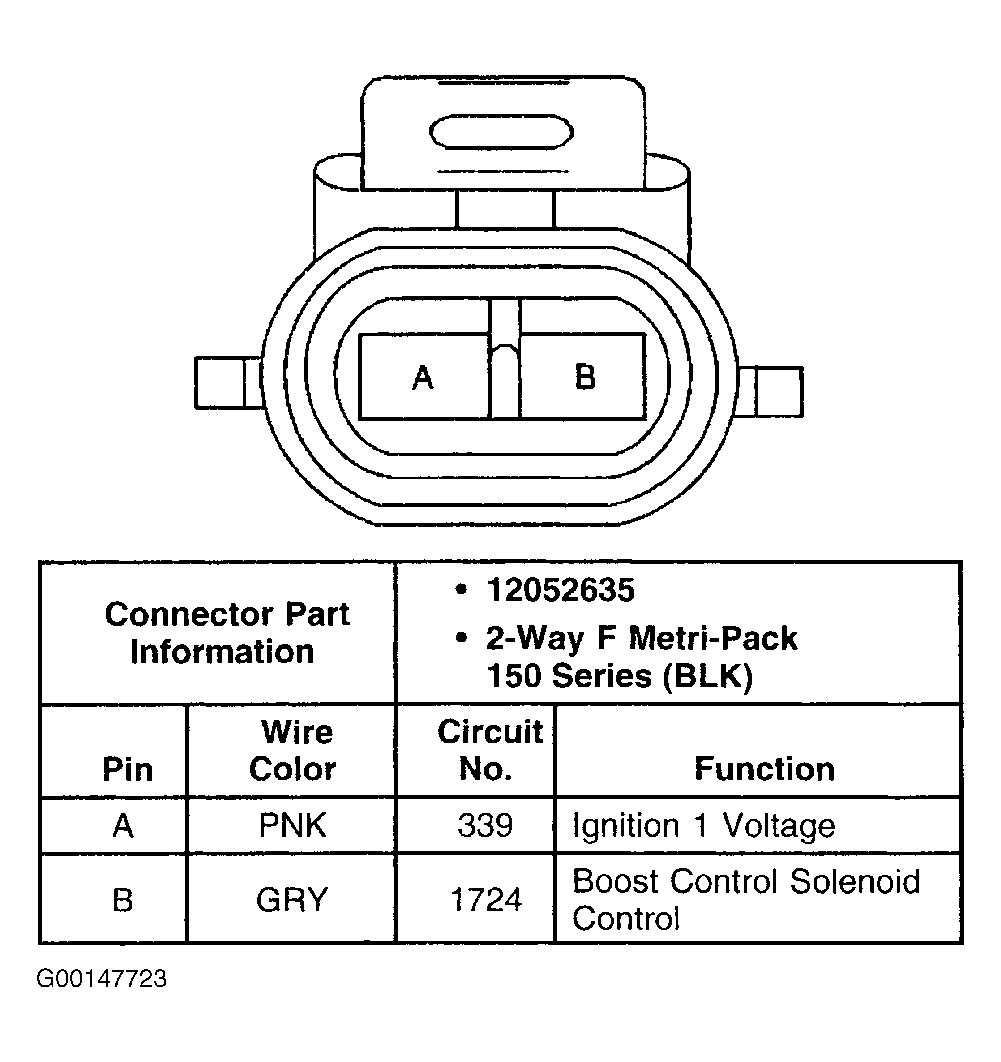

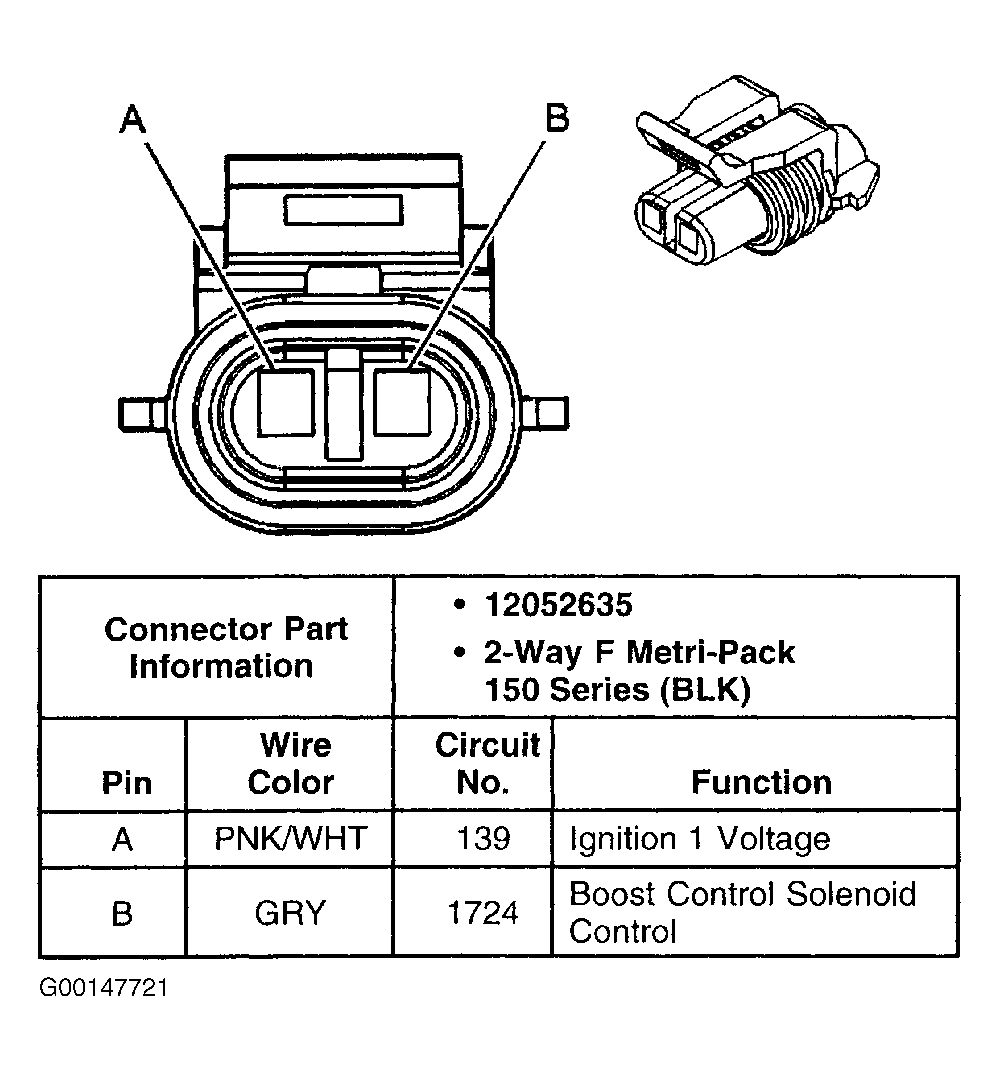

Fig 101: Identifying Supercharger Boost Control Solenoid Connector Terminals (Bonneville)

Courtesy of GENERAL MOTORS CORP.

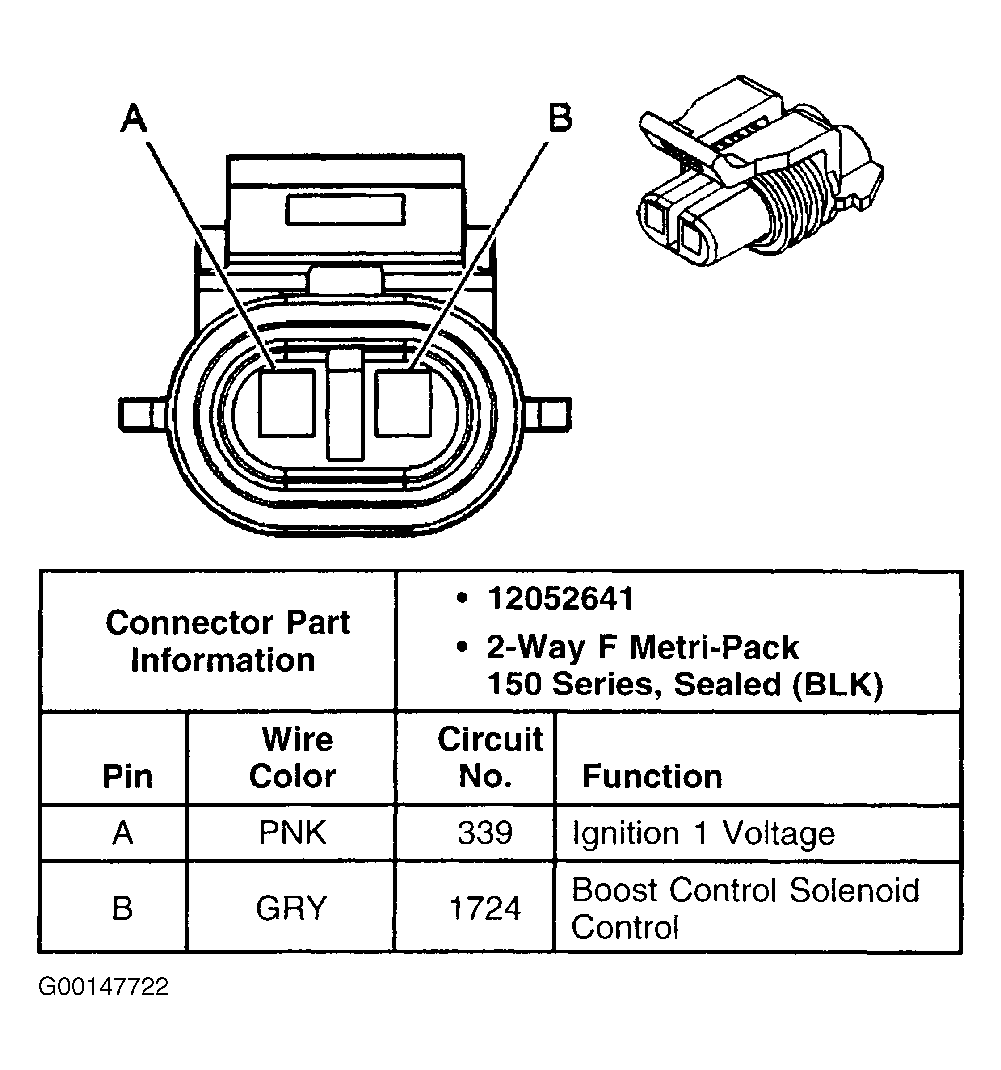

Fig 102: Identifying Supercharger Boost Control Solenoid Connector Terminals (Grand Prix & Regal)

Courtesy of GENERAL MOTORS CORP.

Fig 103: Identifying Supercharger Boost Control Solenoid Connector Terminals (Park Avenue)

Courtesy of GENERAL MOTORS CORP.

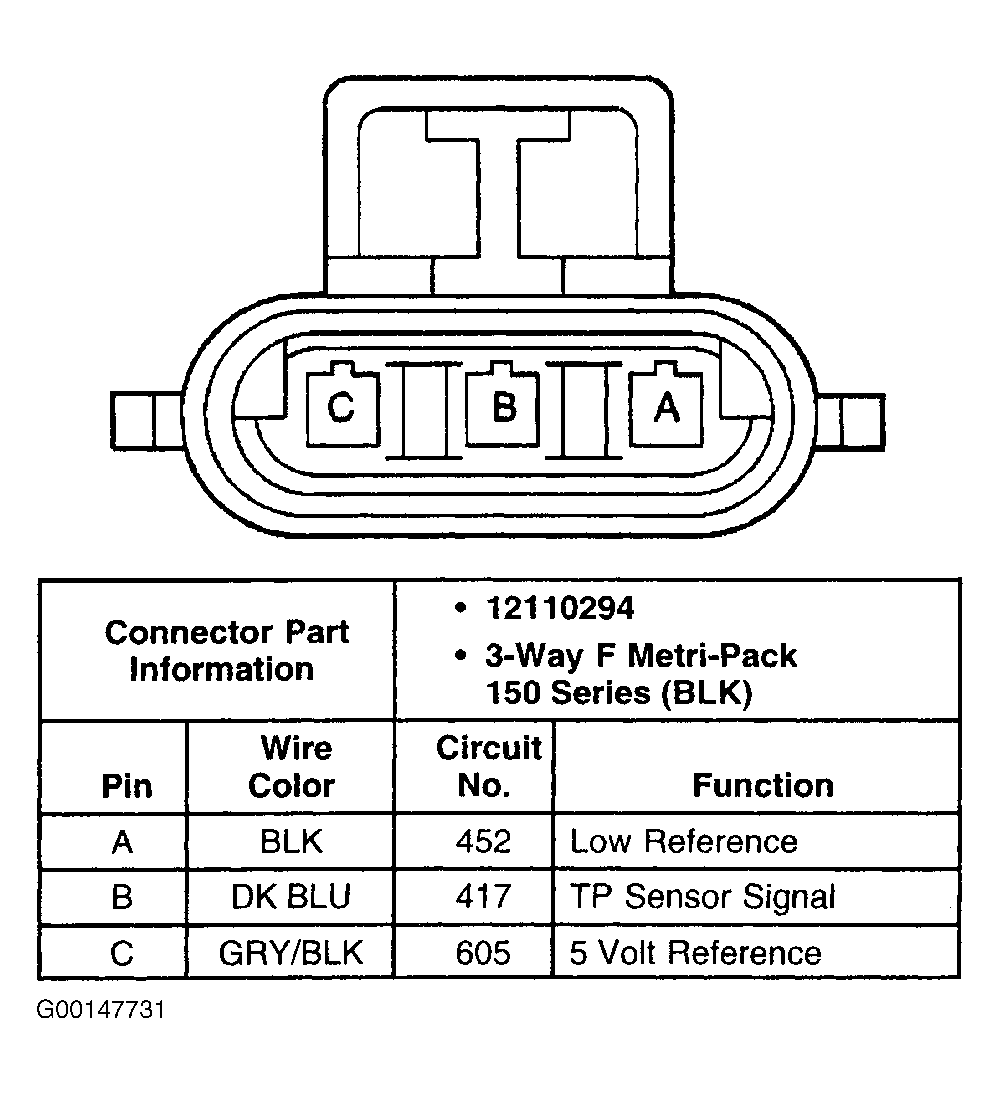

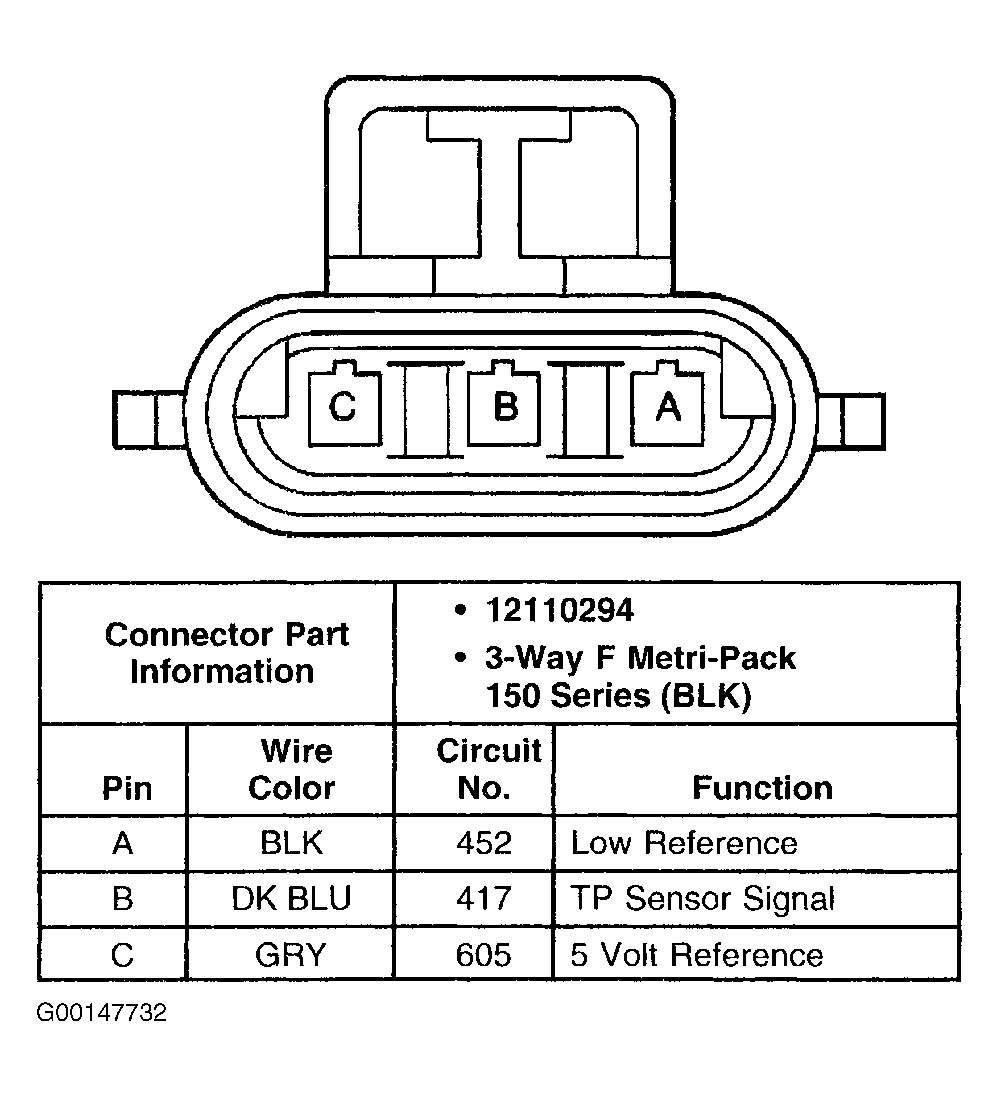

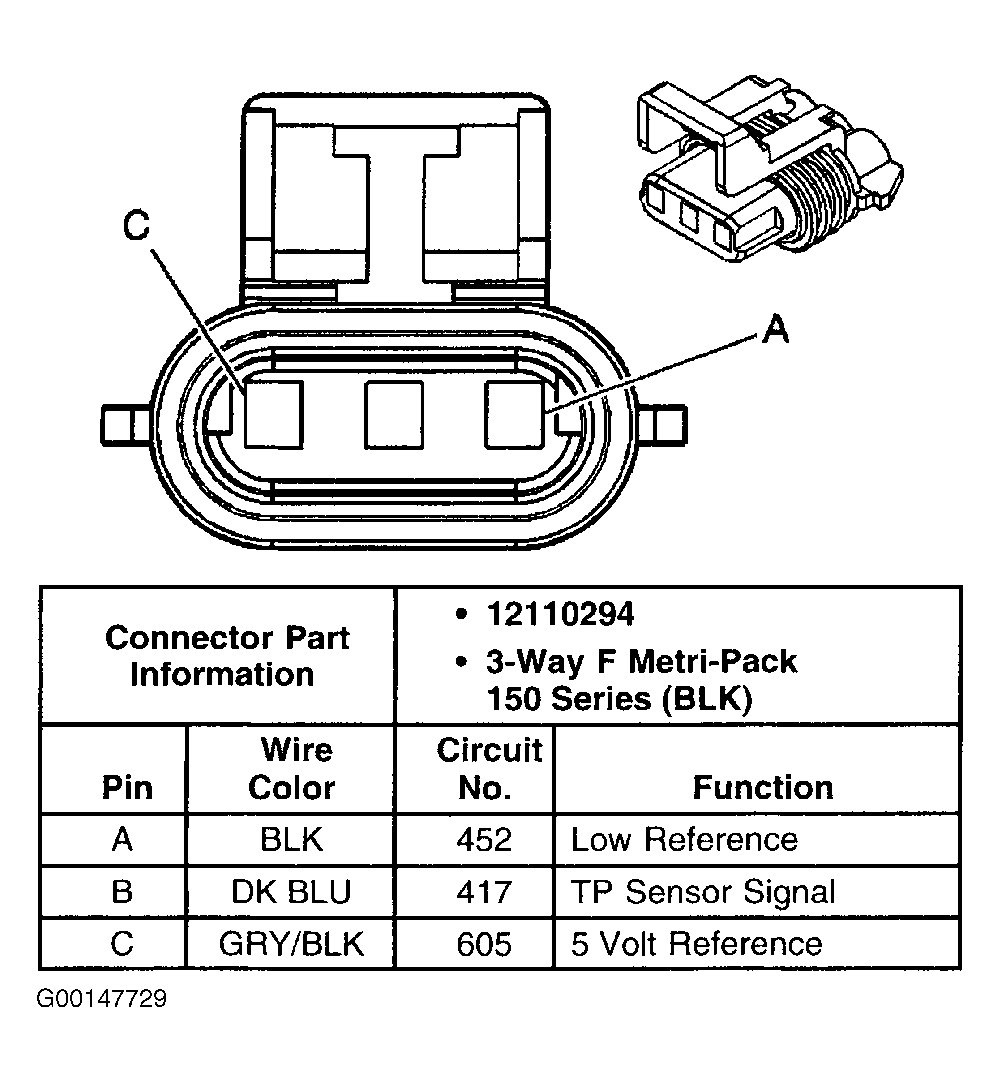

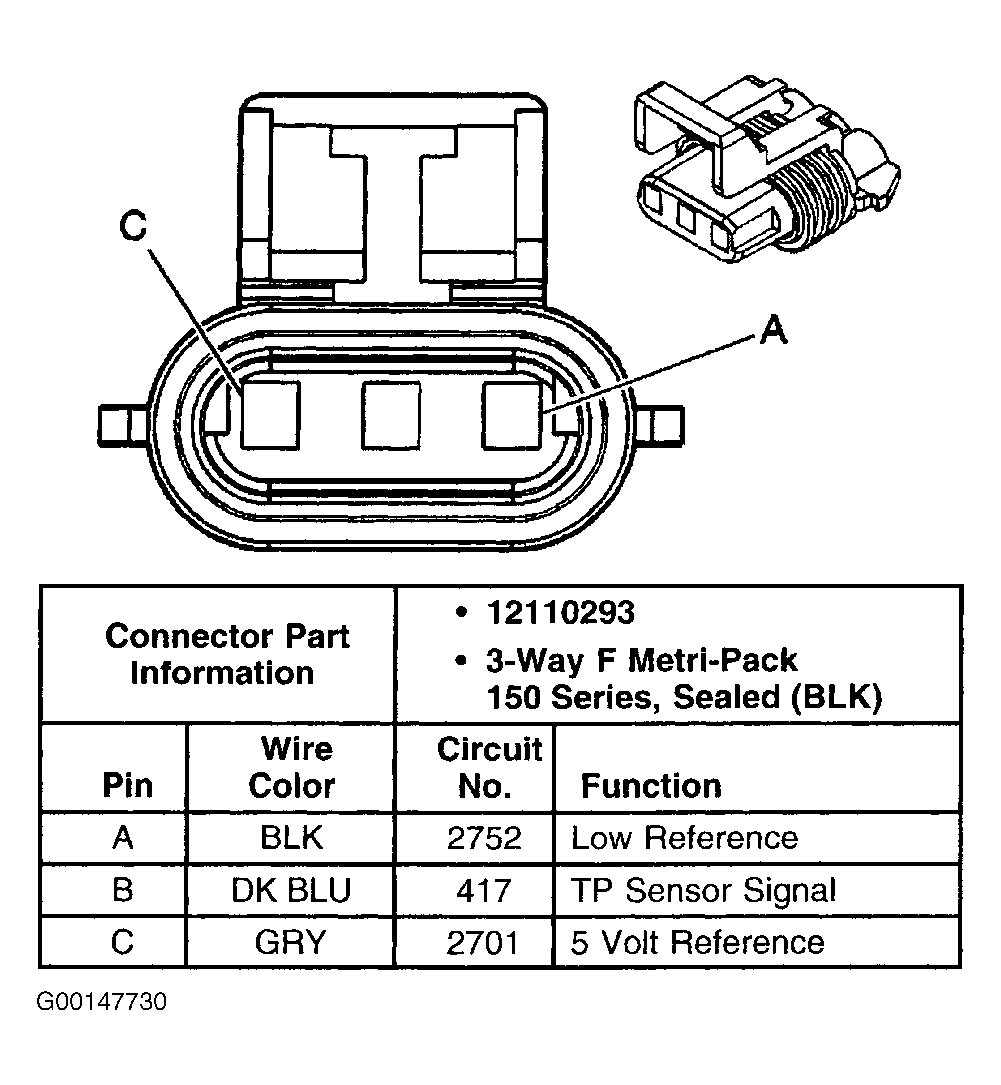

Fig 104: Identifying TPS Connector Terminals (Bonneville)

Courtesy of GENERAL MOTORS CORP.

Fig 105: Identifying TPS Connector Terminals (Grand Prix, Impala, Monte Carlo & Regal)

Courtesy of GENERAL MOTORS CORP.

Fig 106: Identifying TPS Connector Terminals (LeSabre)

Courtesy of GENERAL MOTORS CORP.

Fig 107: Identifying TPS Connector Terminals (Park Avenue)

Courtesy of GENERAL MOTORS CORP.

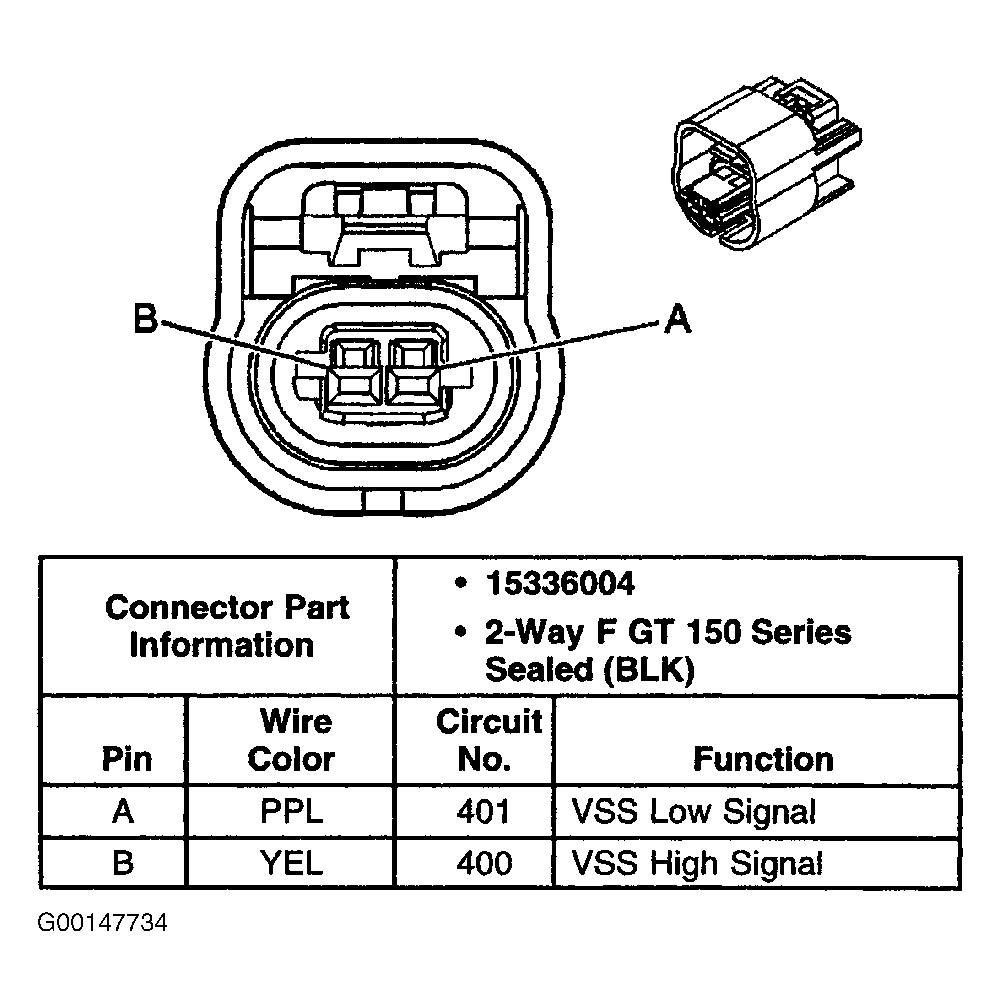

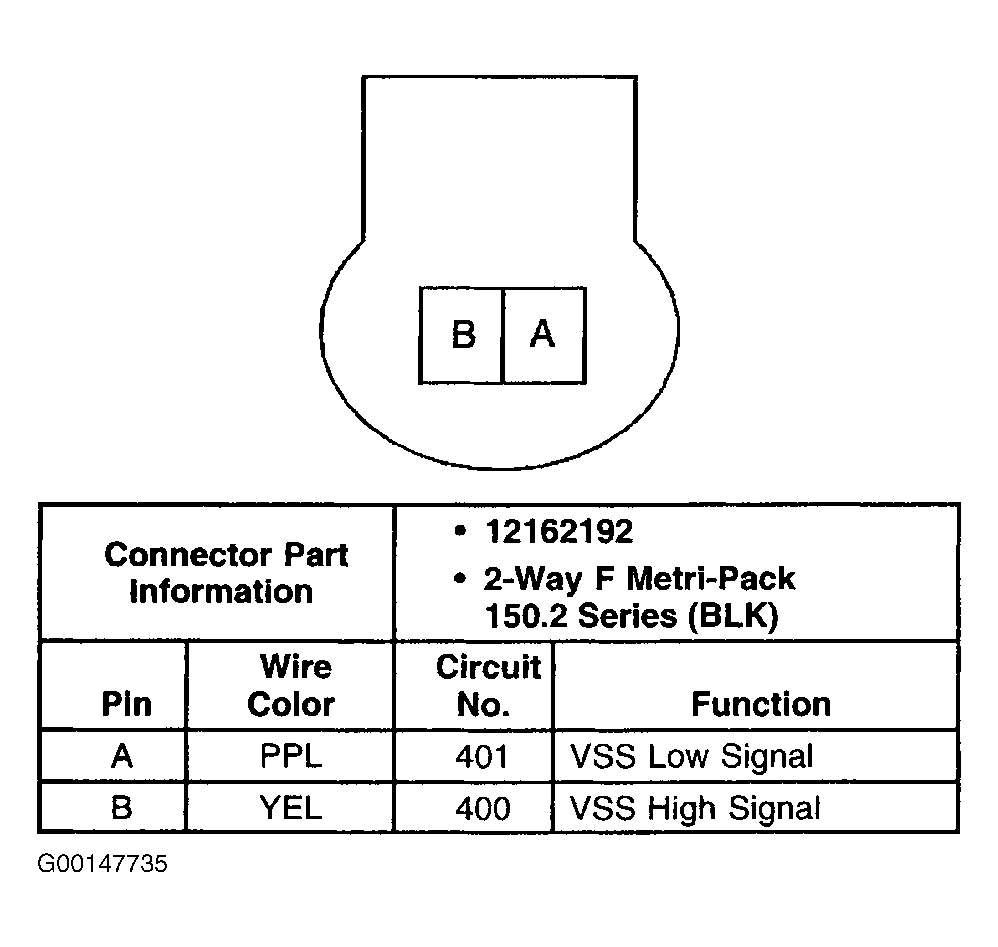

Fig 108: Identifying VSS Connector Terminals (Bonneville)

Courtesy of GENERAL MOTORS CORP.

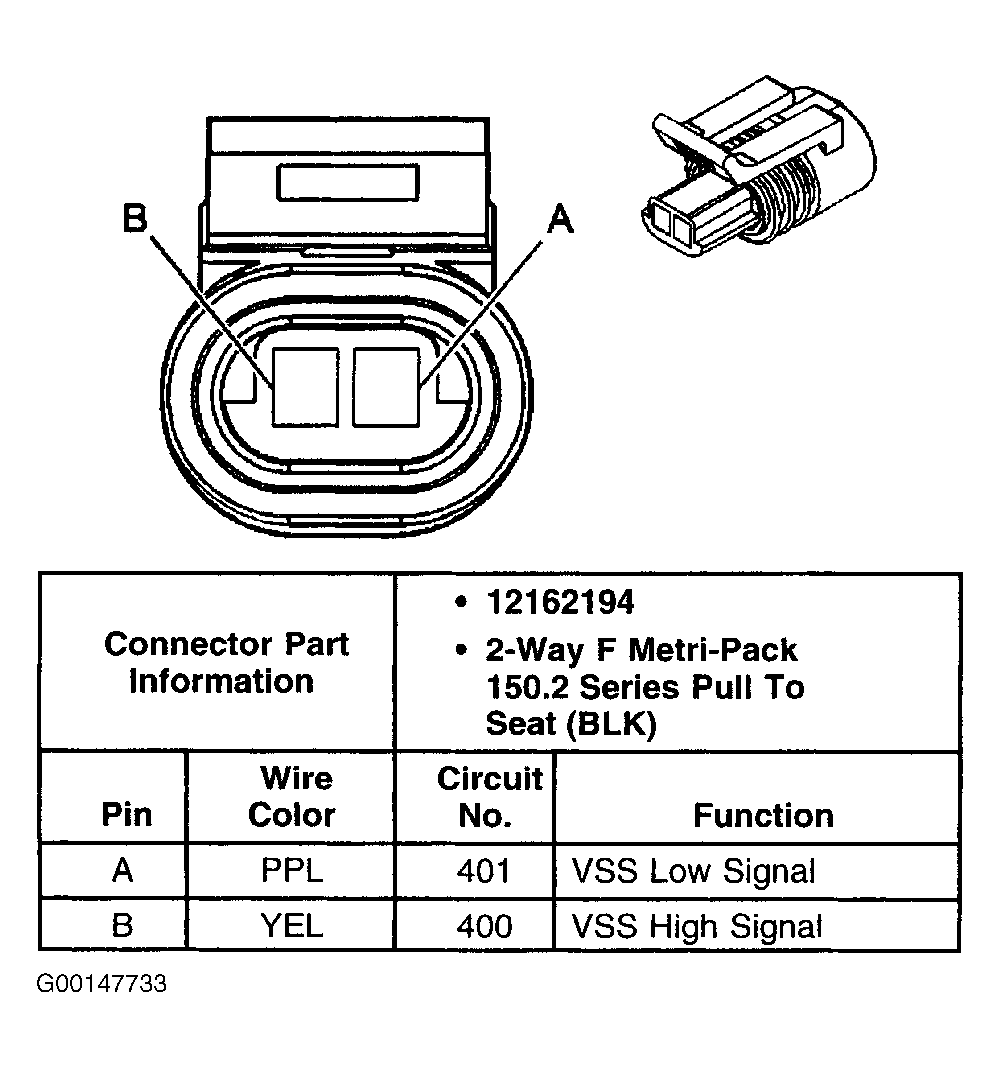

Fig 109: Identifying VSS Connector Terminals (Grand Prix, Impala, Monte Carlo & Regal)

Courtesy of GENERAL MOTORS CORP.

Fig 110: Identifying VSS Connector Terminals (LeSabre & Park Avenue)

Courtesy of GENERAL MOTORS CORP.
