Connector Identification

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

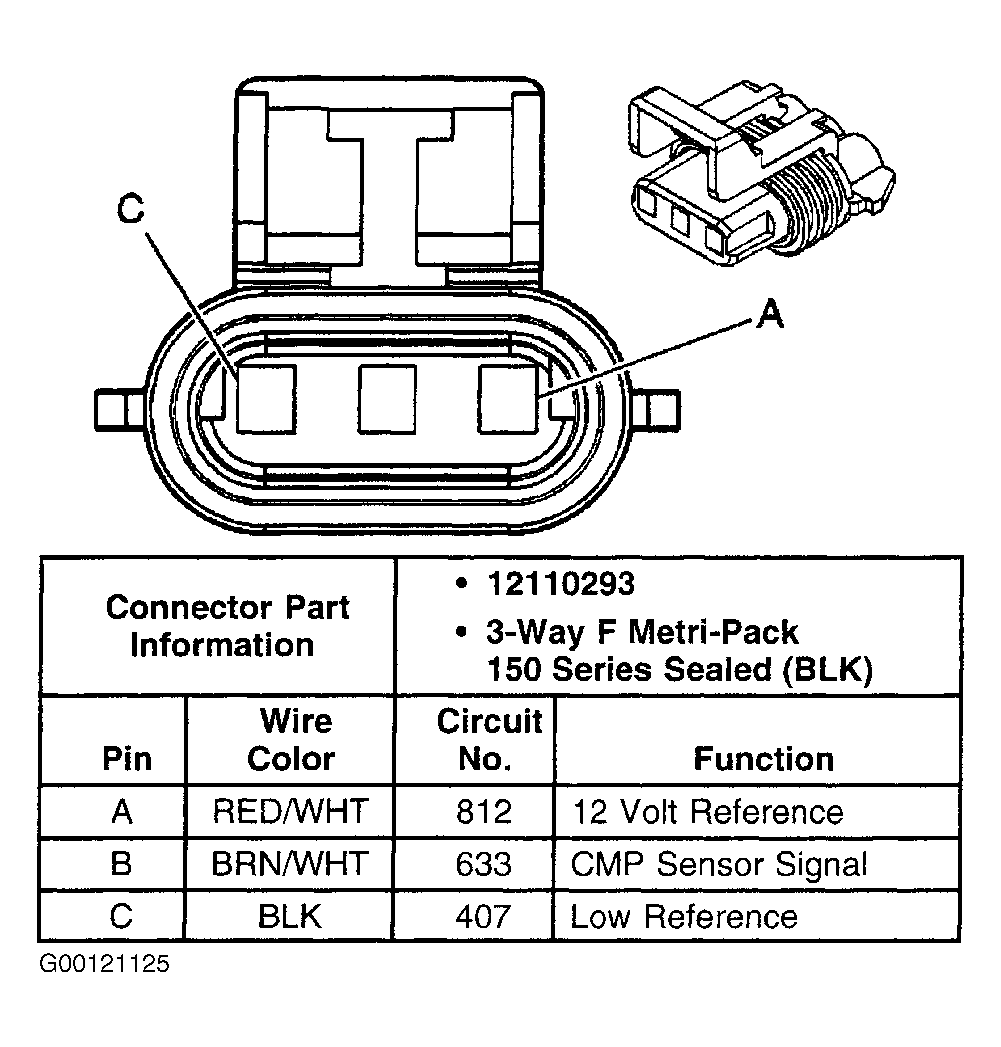

Fig 1: Identifying CMP Sensor Connector Terminals

G00121125

Courtesy of GENERAL MOTORS CORP.

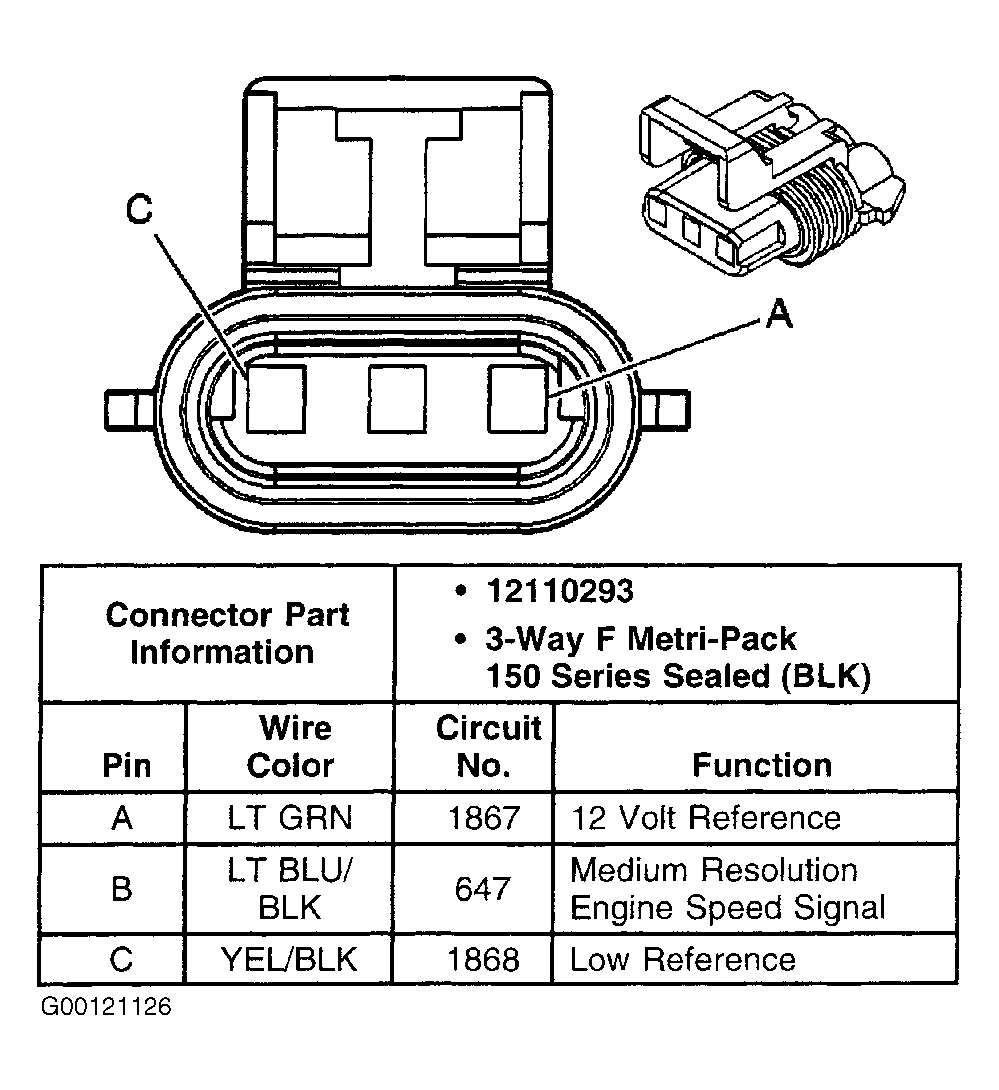

Fig 2: Identifying CKP Sensor "A" Connector Terminals

G00121126

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying CKP Sensor "B" Connector Terminals

G00113326

Courtesy of GENERAL MOTORS CORP.

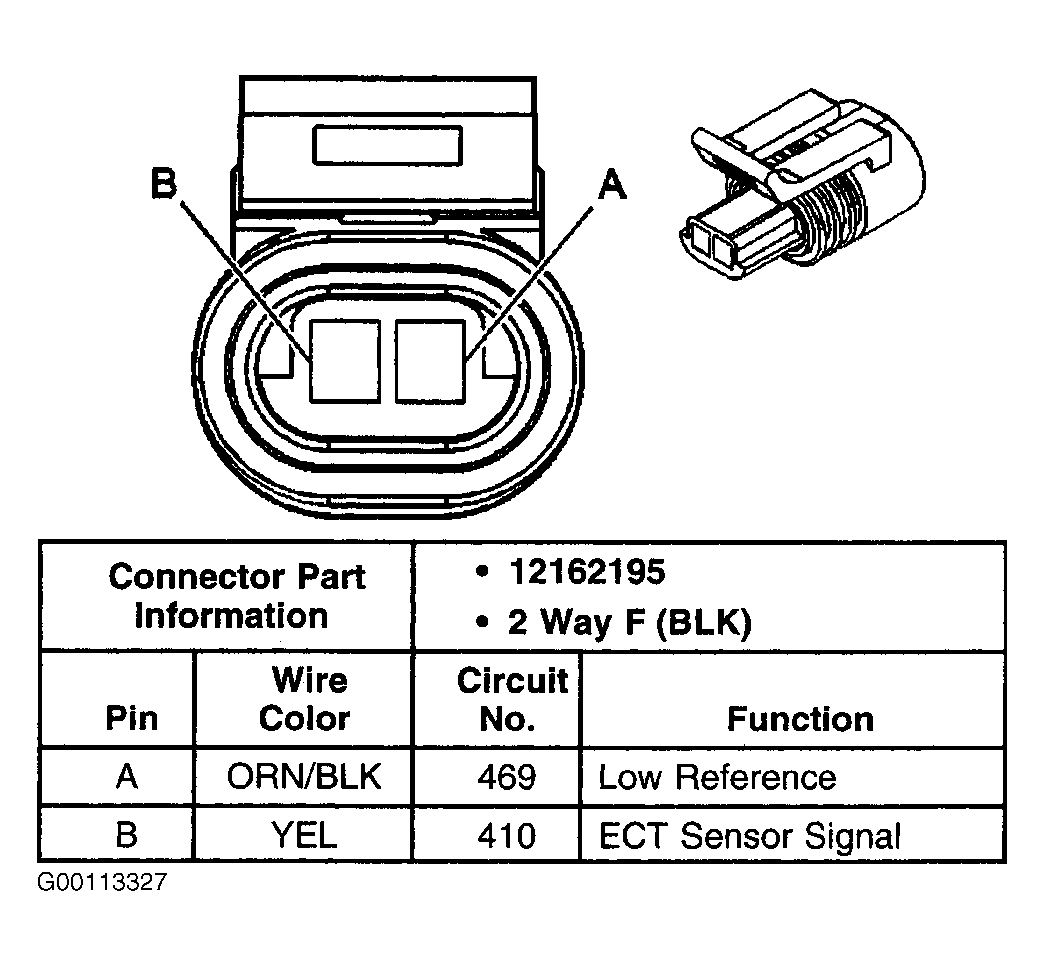

Fig 4: Identifying ECT Sensor Connector Terminals

G00113327

Courtesy of GENERAL MOTORS CORP.

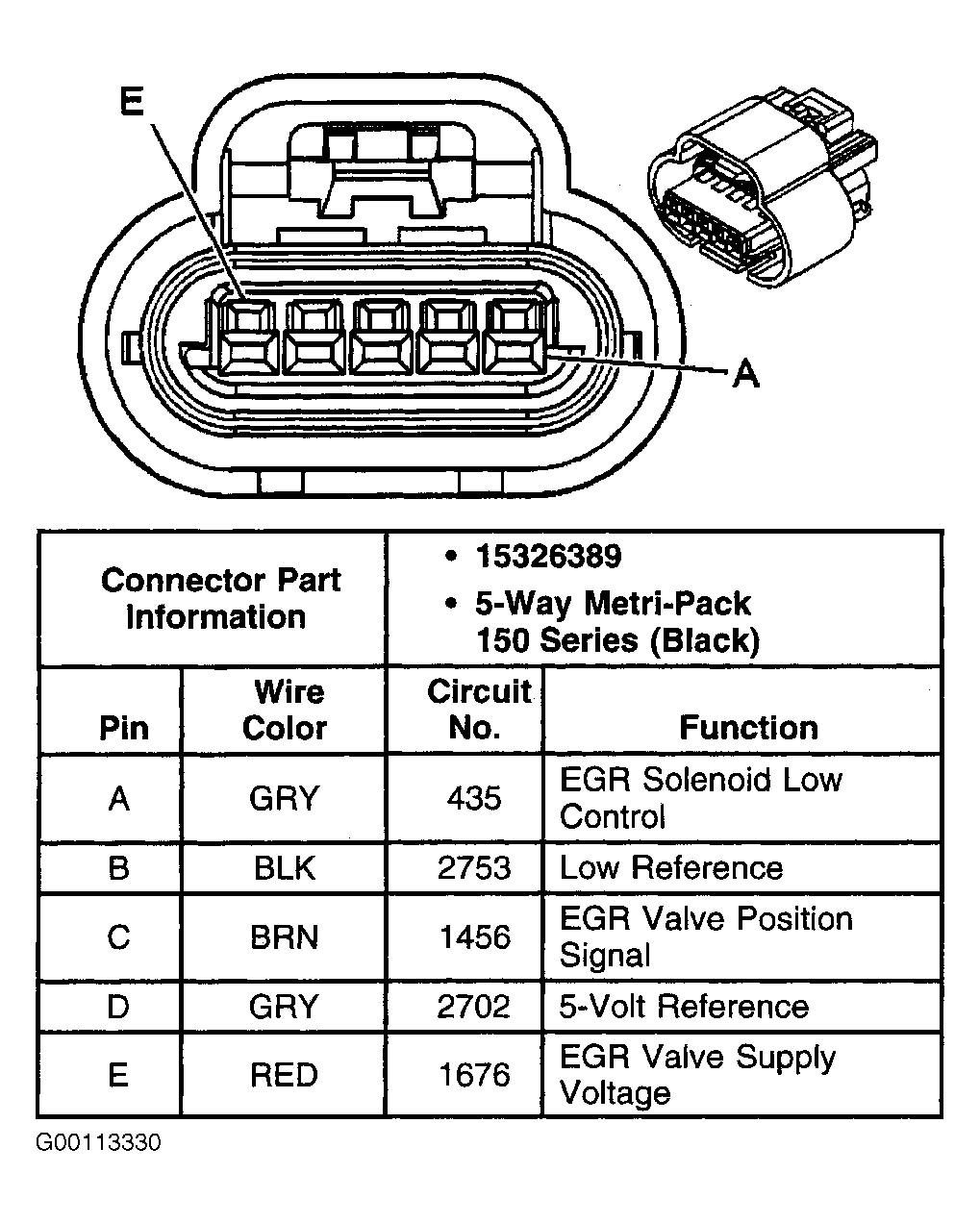

Fig 5: Identifying EGR Valve Connector Terminals

G00113330

Courtesy of GENERAL MOTORS CORP.

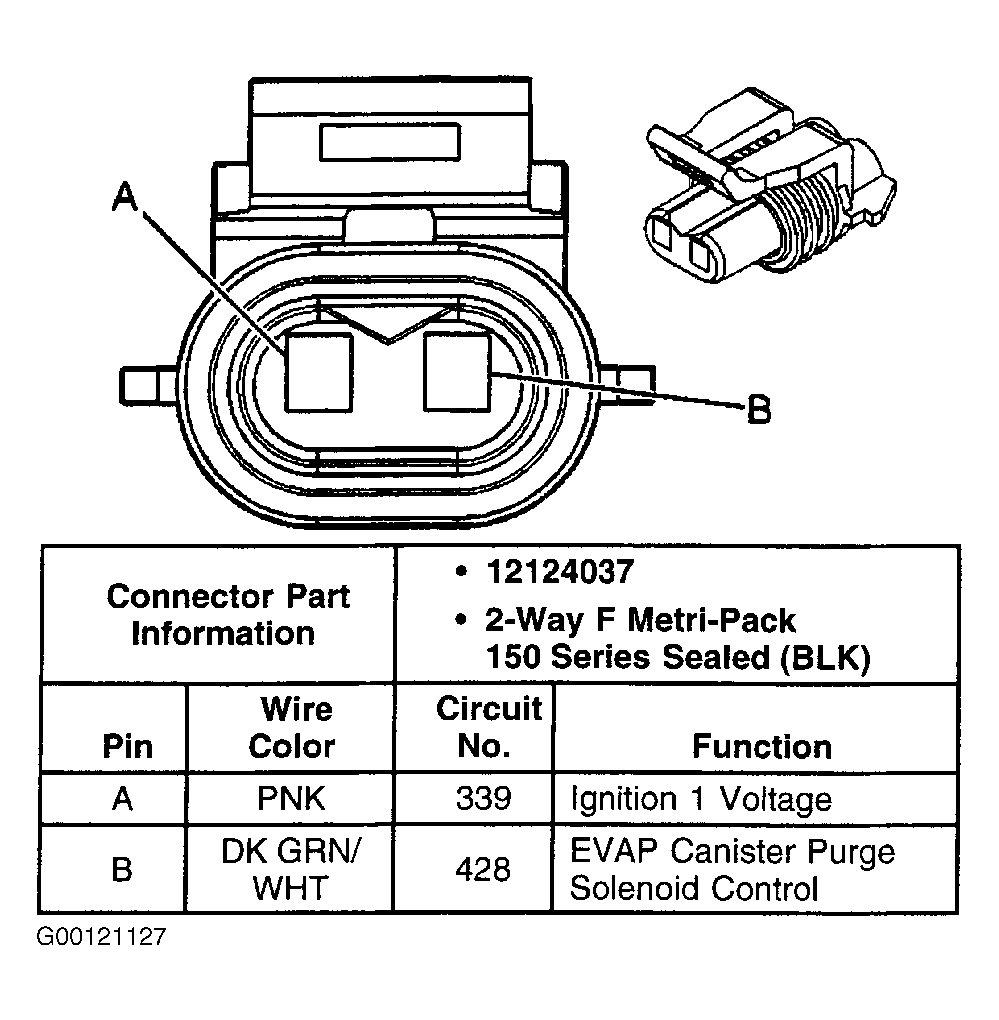

Fig 6: Identifying EVAP Purge Solenoid Connector Terminals

G00121127

Courtesy of GENERAL MOTORS CORP.

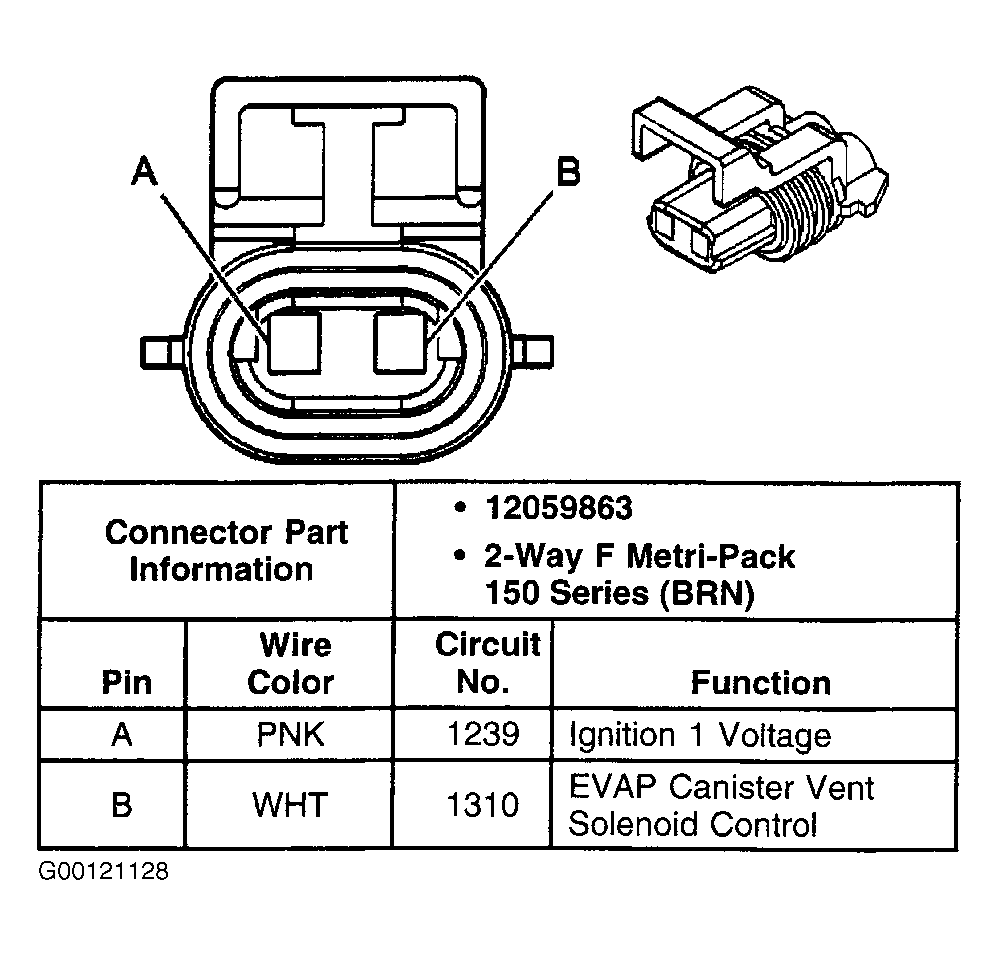

Fig 7: Identifying EVAP Vent Solenoid Connector Terminals

G00121128

Courtesy of GENERAL MOTORS CORP.

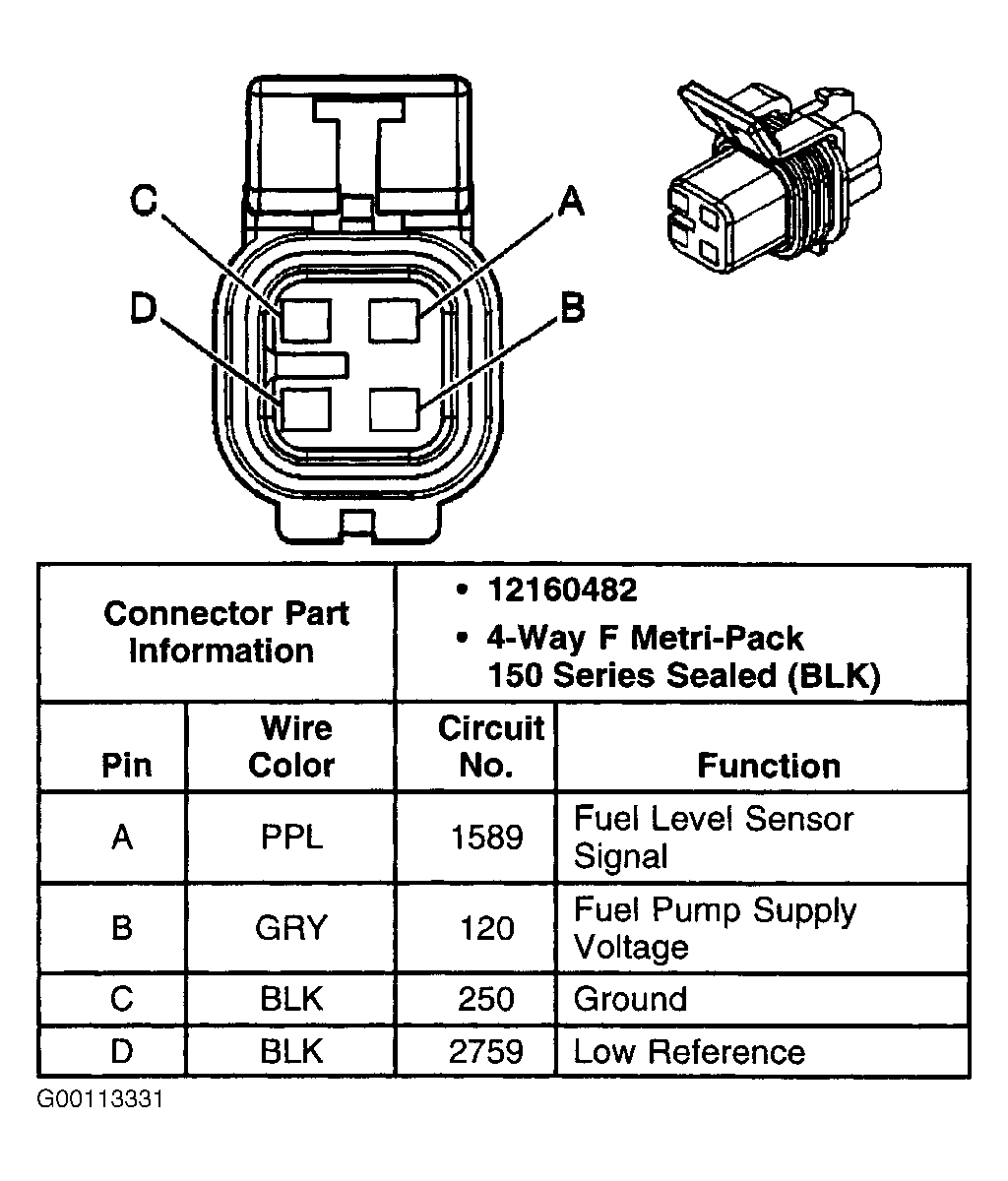

Fig 8: Identifying Fuel Pump & Fuel Level Sender Connector Terminals

G00113331

Courtesy of GENERAL MOTORS CORP.

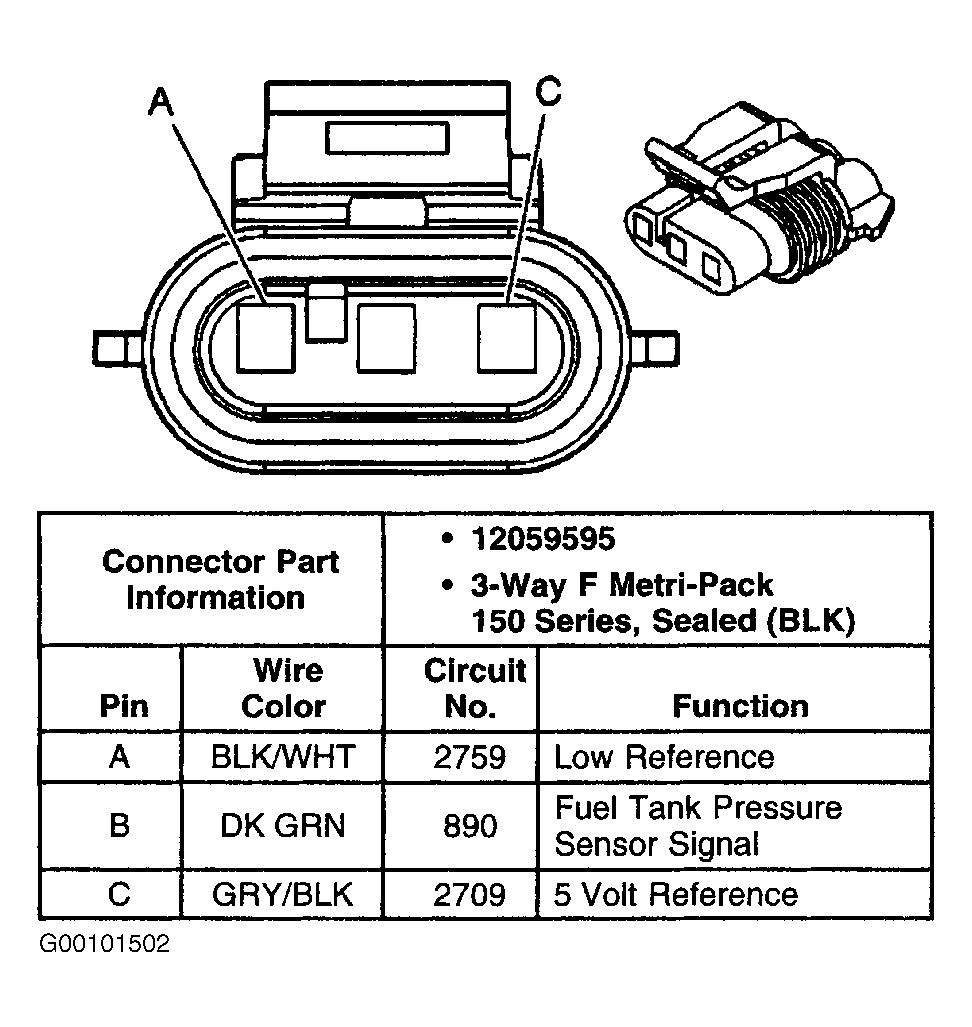

Fig 9: Identifying FTP Sensor Connector Terminals

G00101502

Courtesy of GENERAL MOTORS CORP.

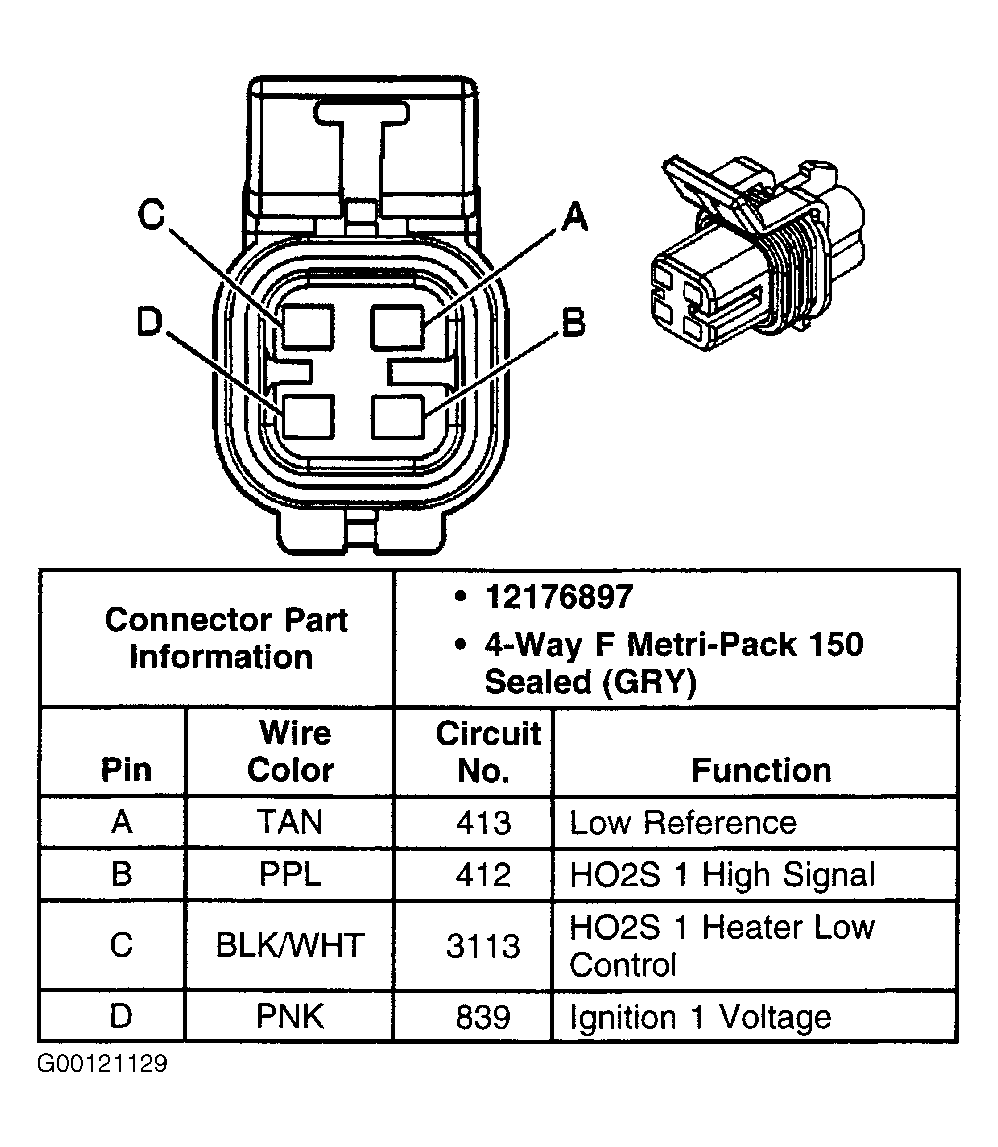

Fig 10: Identifying HO2S Sensor 1 Connector Terminals

G00121129

Courtesy of GENERAL MOTORS CORP.

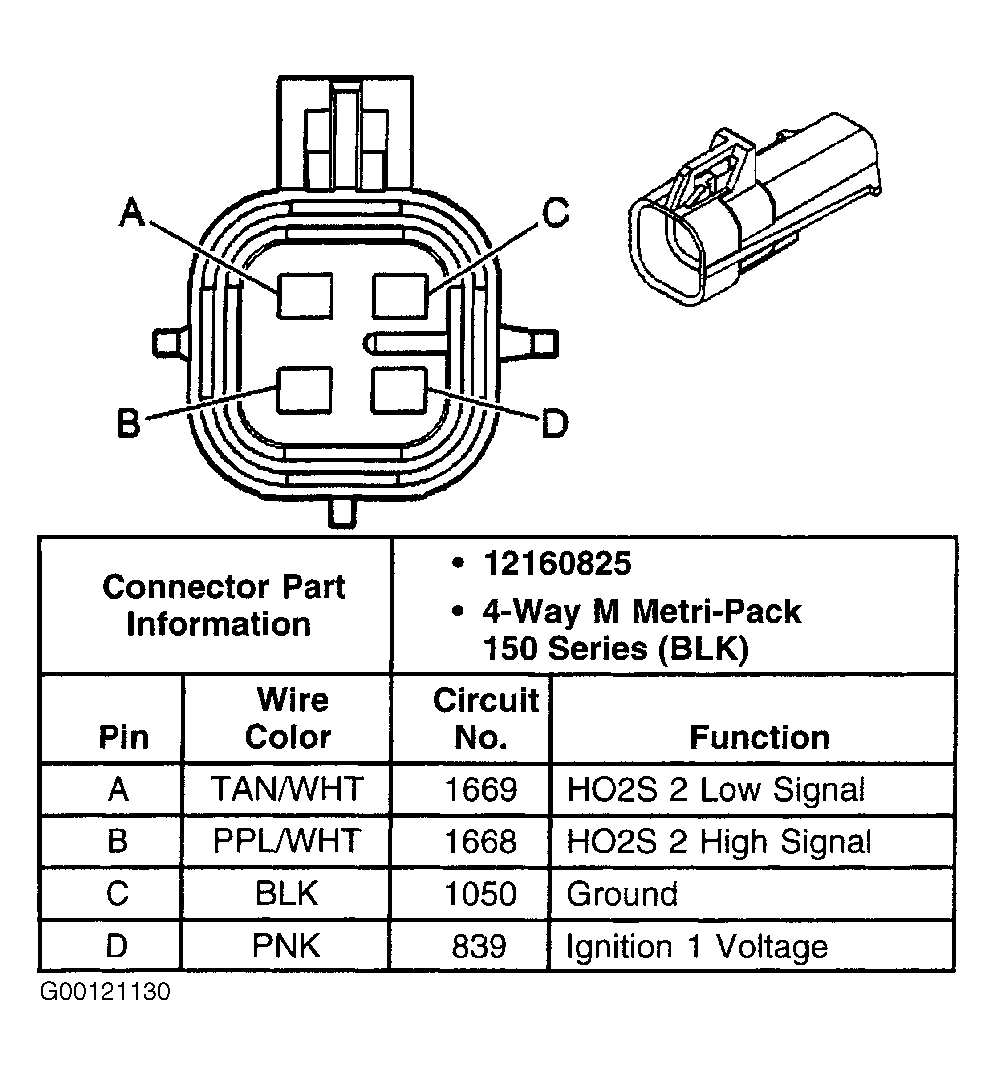

Fig 11: Identifying HO2S Sensor 2 Connector Terminals

G00121130

Courtesy of GENERAL MOTORS CORP.

Fig 12: Identifying IAC Valve Connector Terminals

G00101510

Courtesy of GENERAL MOTORS CORP.

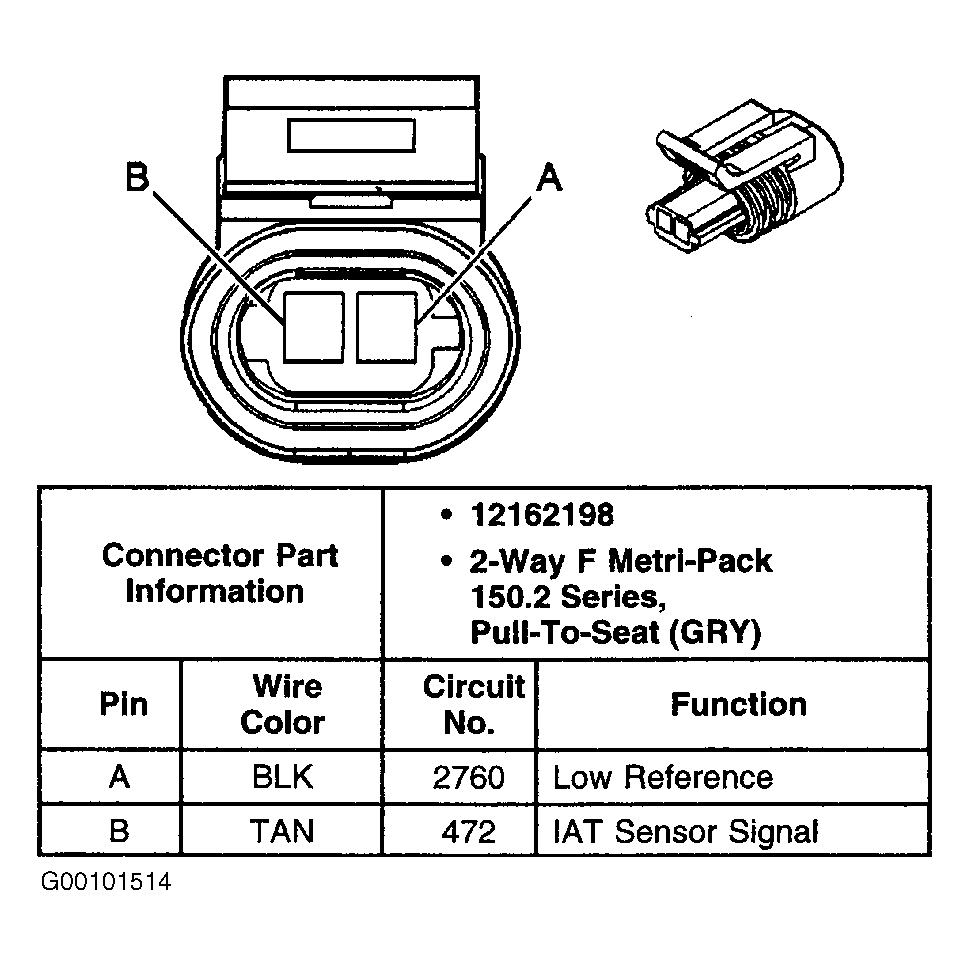

Fig 13: Identifying IAT Sensor Connector Terminals

G00101514

Courtesy of GENERAL MOTORS CORP.

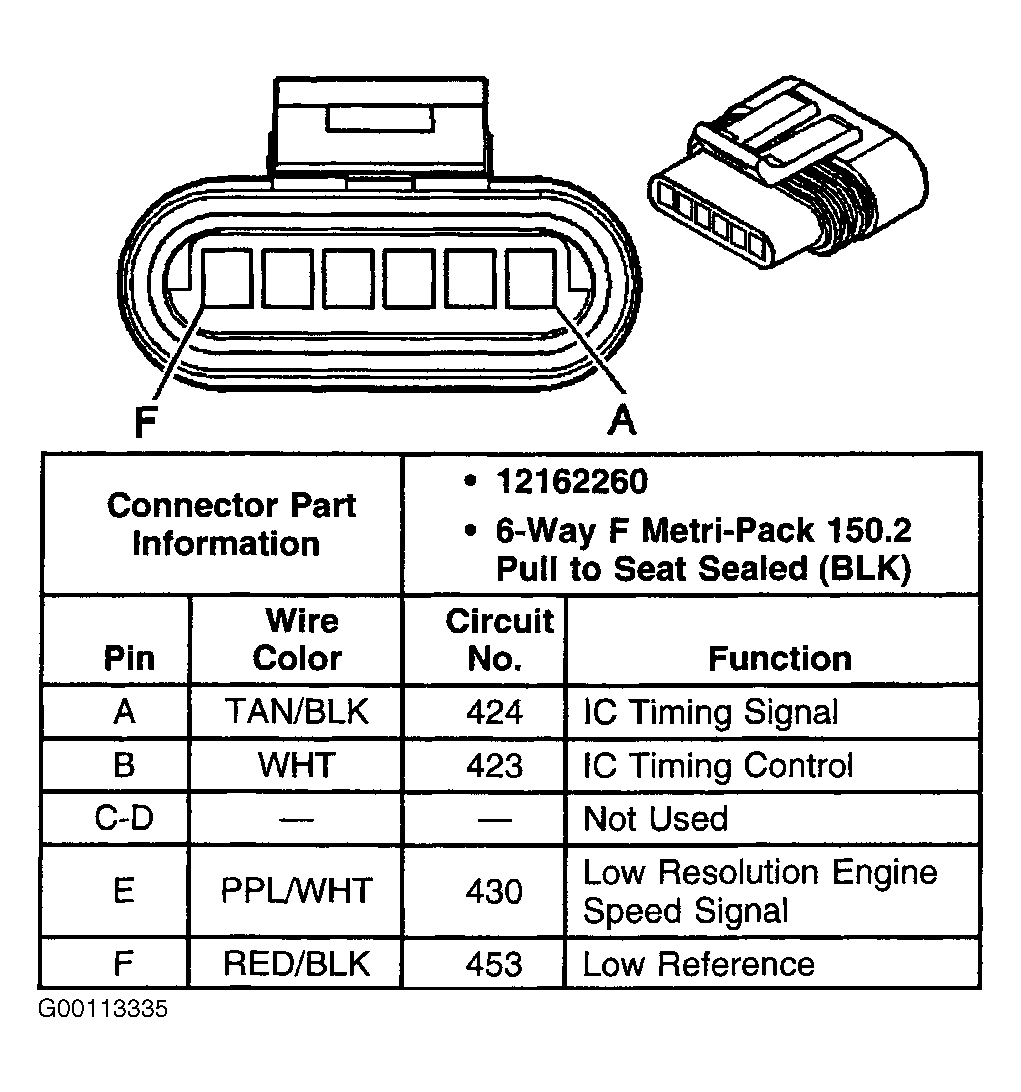

Fig 14: Identifying Ignition Control Module Connector C1 Terminals

G00113335

Courtesy of GENERAL MOTORS CORP.

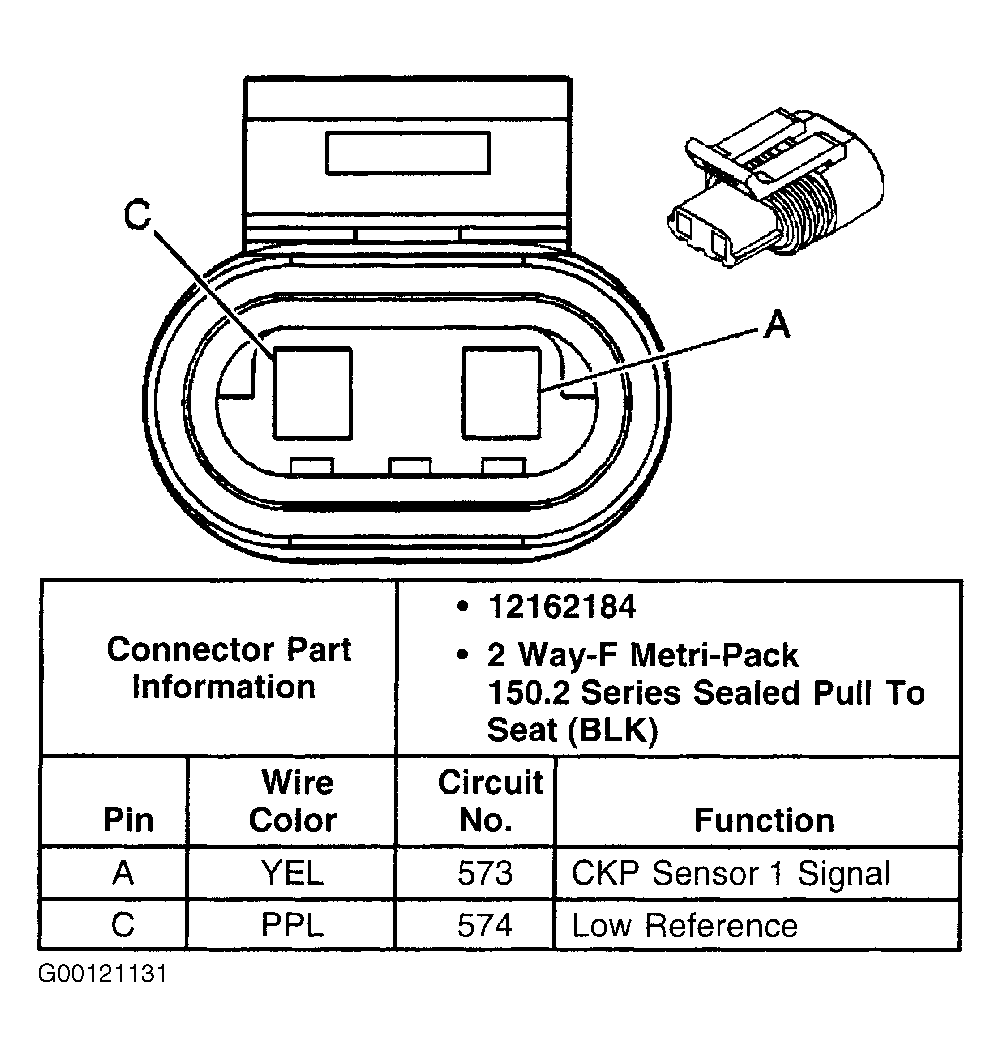

Fig 15: Identifying Ignition Control Module Connector C2 Terminals

G00121131

Courtesy of GENERAL MOTORS CORP.

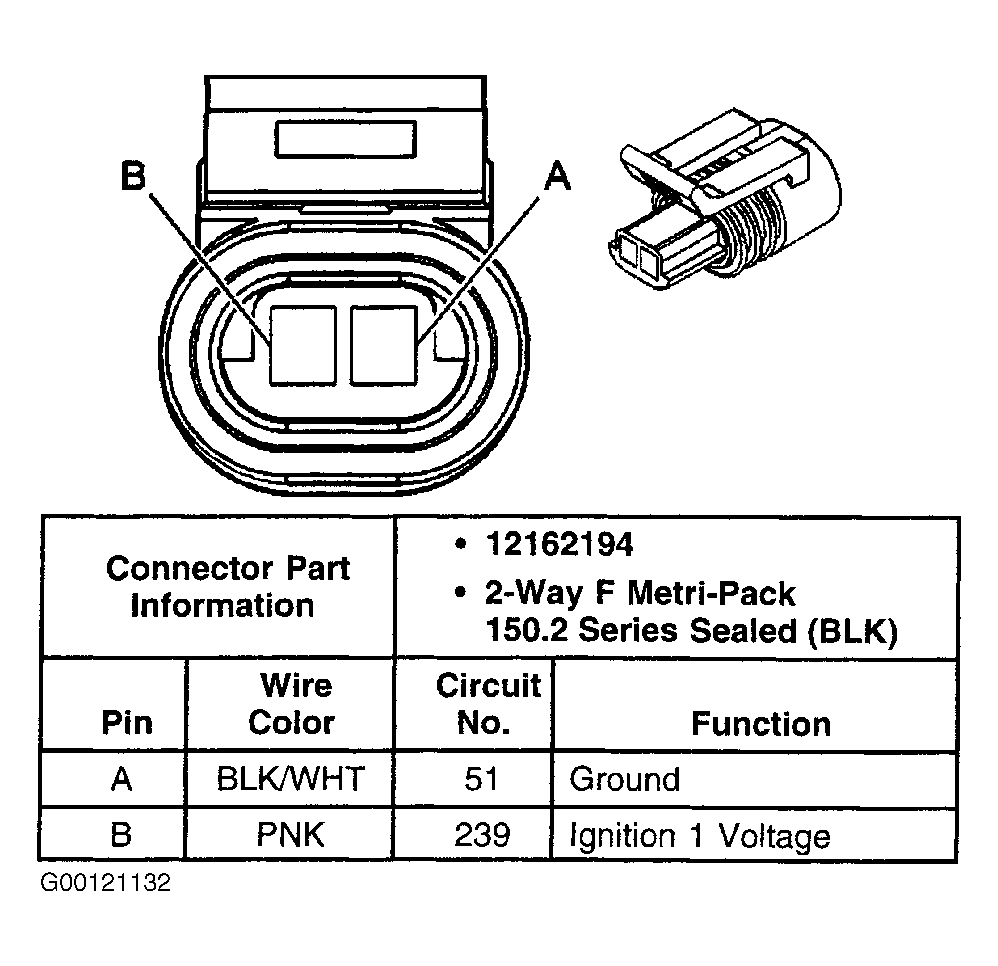

Fig 16: Identifying Ignition Control Module Connector C3 Terminals

G00121132

Courtesy of GENERAL MOTORS CORP.

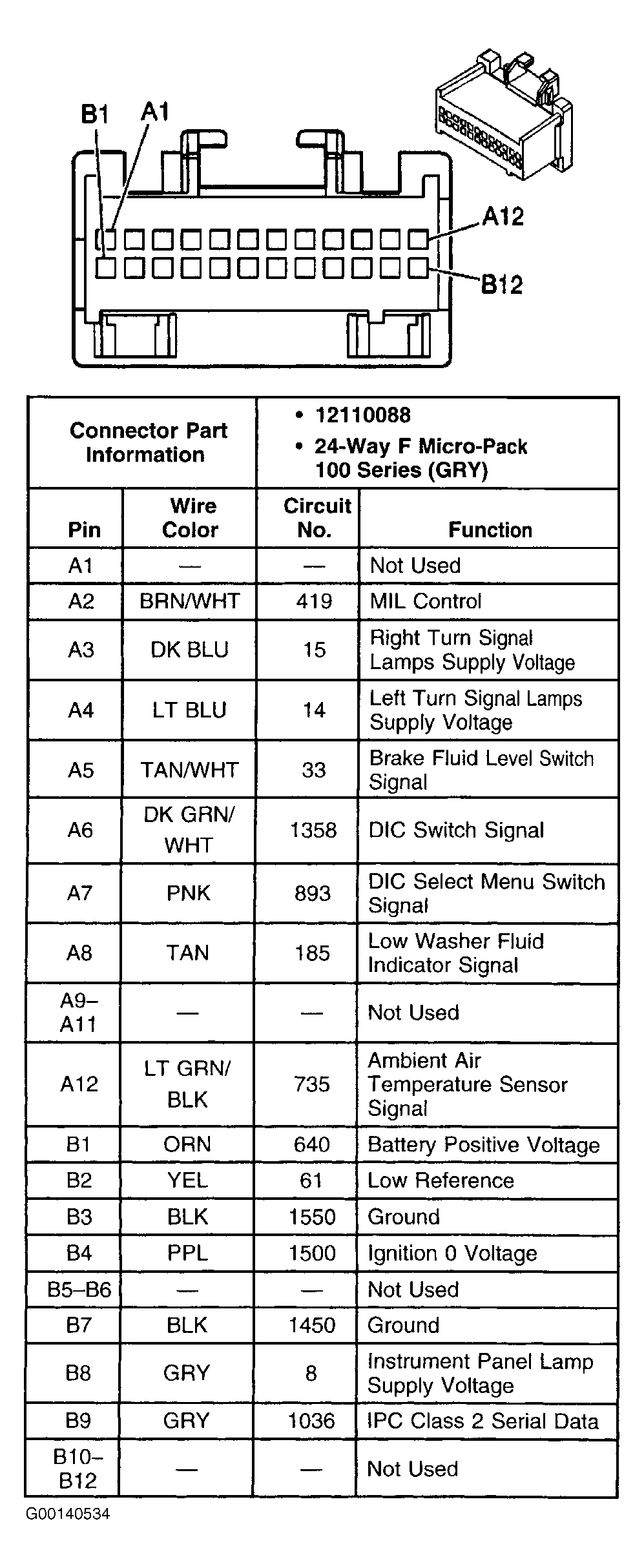

Fig 17: Identifying Instrument Panel Cluster Connector Terminals (Aztek)

G00140534

Courtesy of GENERAL MOTORS CORP.

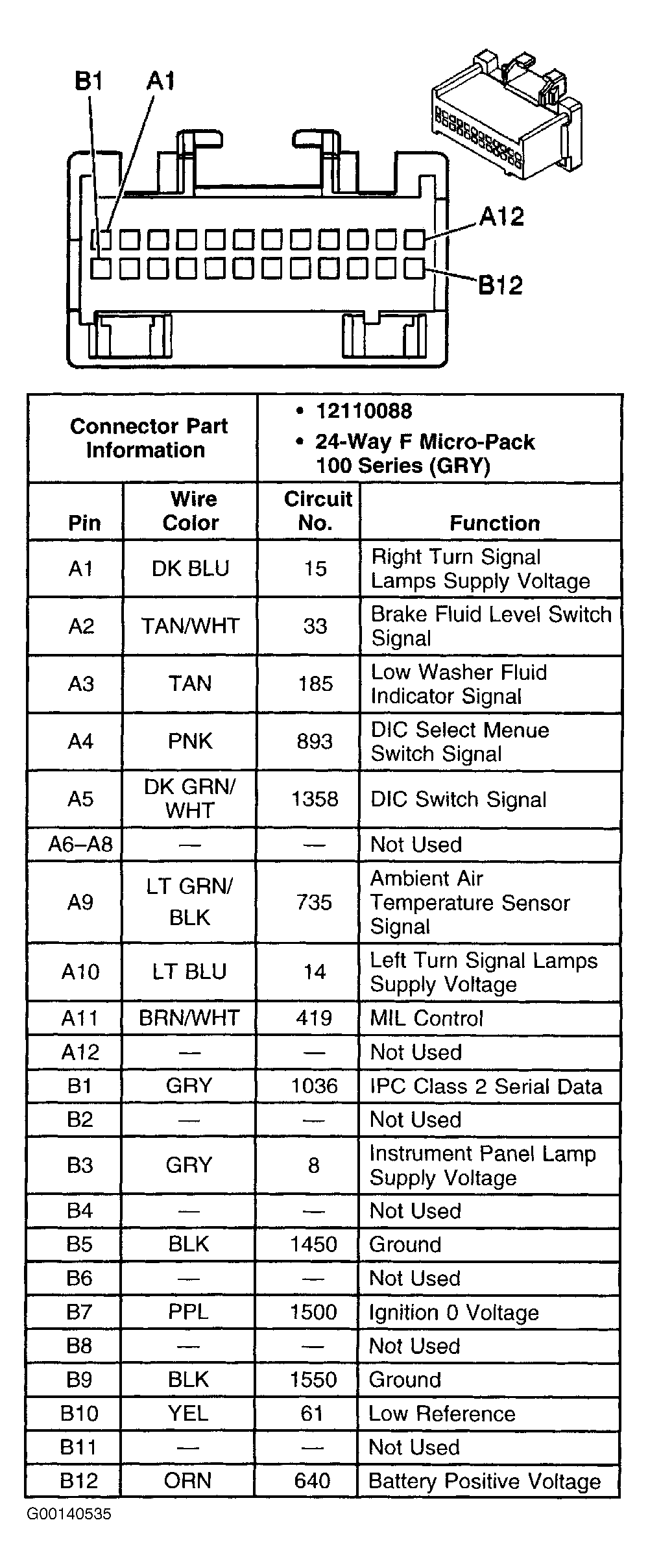

Fig 18: Identifying Instrument Panel Cluster Connector Terminals (Rendezvous)

G00140535

Courtesy of GENERAL MOTORS CORP.

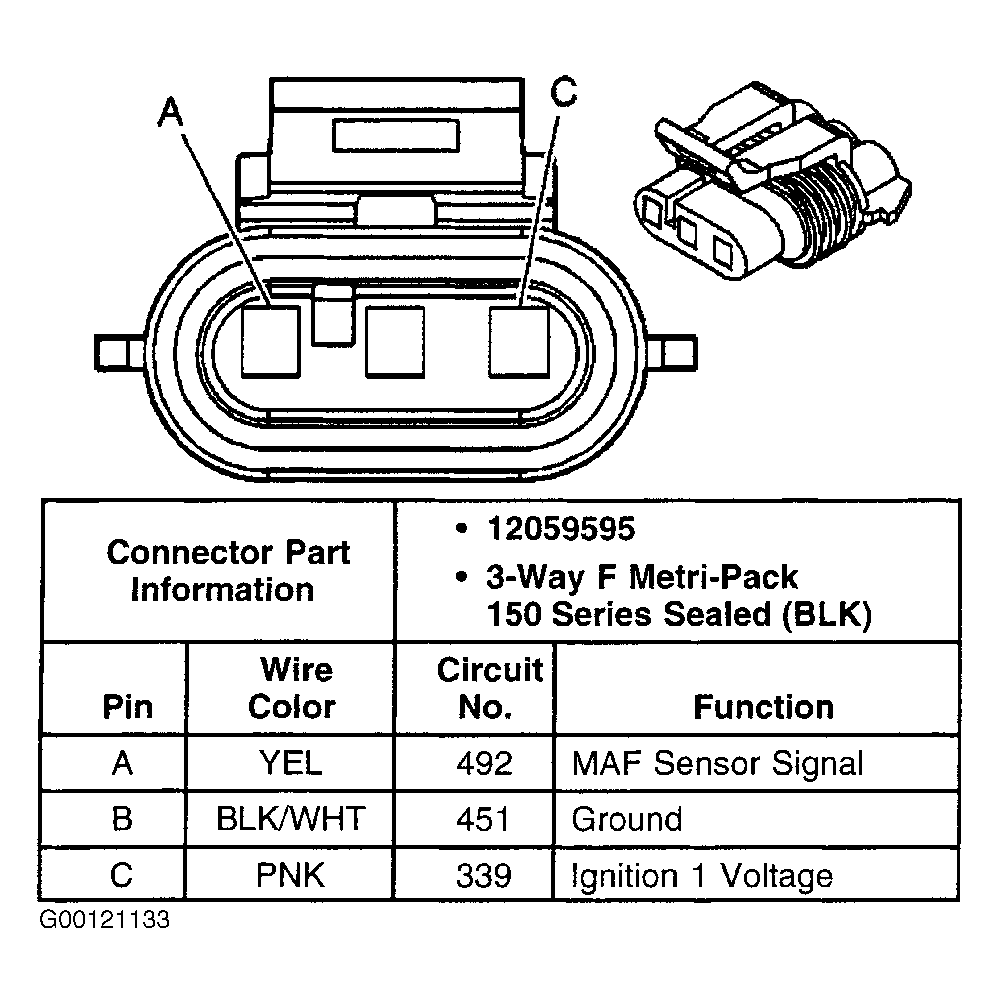

Fig 19: Identifying MAF Sensor Connector Terminals

G00121133

Courtesy of GENERAL MOTORS CORP.

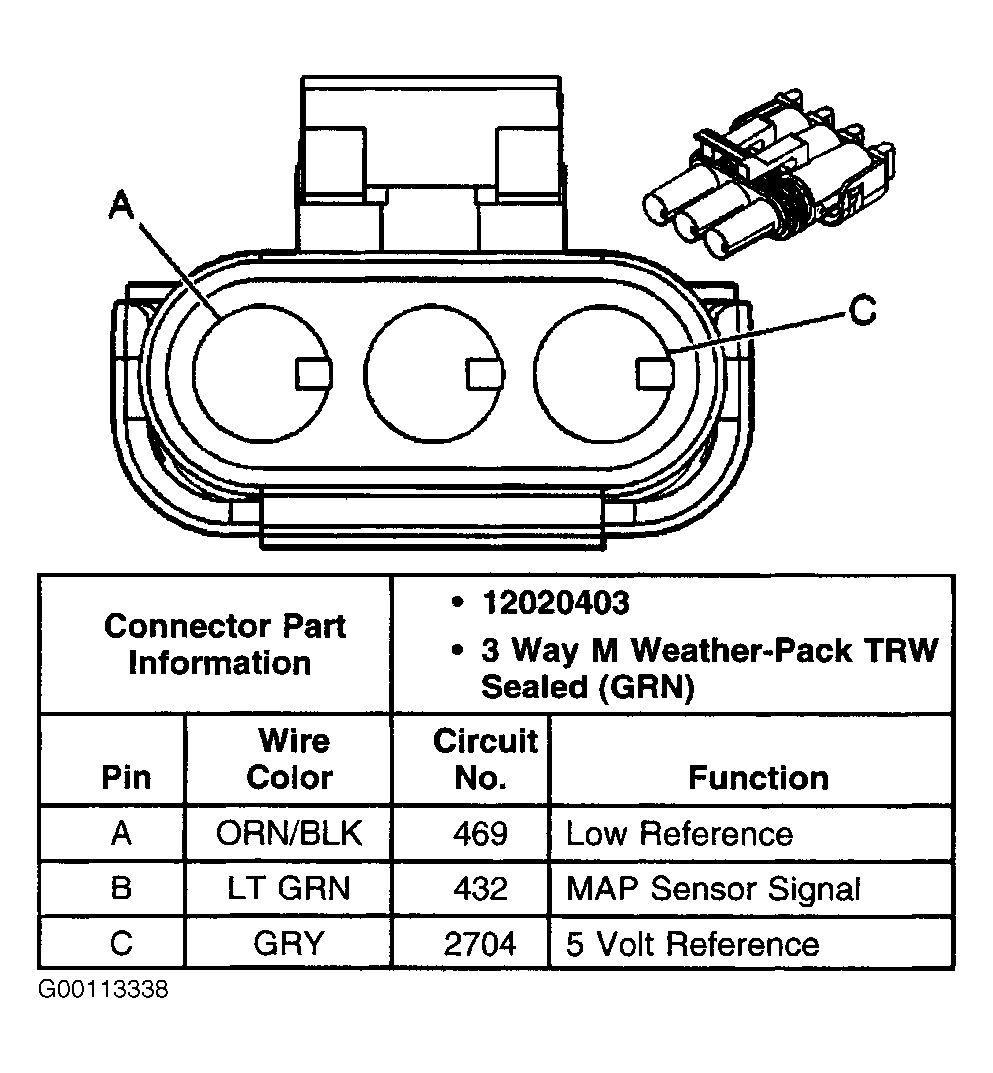

Fig 20: Identifying MAP Sensor Connector Terminals

G00113338

Courtesy of GENERAL MOTORS CORP.

Fig 21: Identifying PCM Connector C1 Terminals (1 Of 3)

G00121119

Courtesy of GENERAL MOTORS CORP.

Fig 22: Identifying PCM Connector C1 Terminals (2 Of 3)

G00121120

Courtesy of GENERAL MOTORS CORP.

Fig 23: Identifying PCM Connector C1 Terminals (3 Of 3)

G00121121

Courtesy of GENERAL MOTORS CORP.

Fig 24: Identifying PCM Connector C2 Terminals (1 Of 3)

G00121122

Courtesy of GENERAL MOTORS CORP.

Fig 25: Identifying PCM Connector C2 Terminals (2 Of 3)

G00121123

Courtesy of GENERAL MOTORS CORP.

Fig 26: Identifying PCM Connector C2 Terminals (3 Of 3)

G00121124

Courtesy of GENERAL MOTORS CORP.

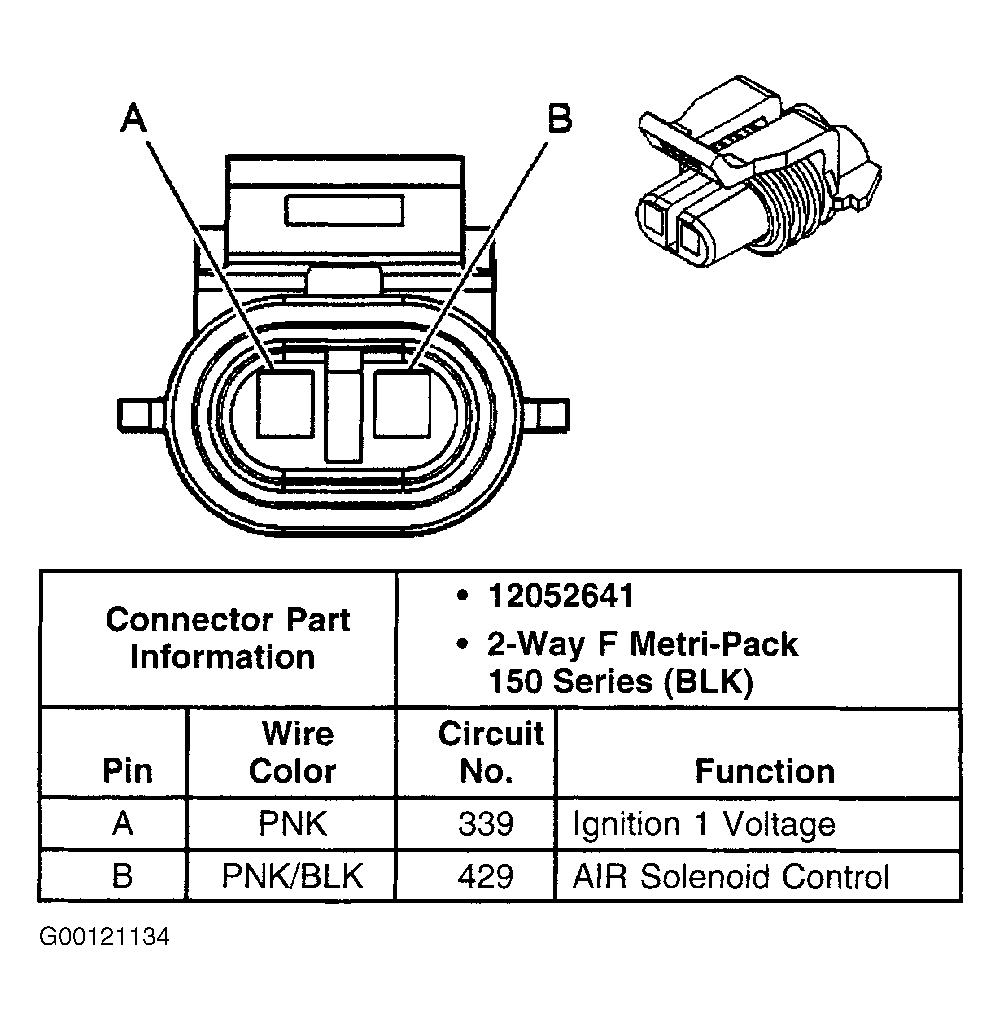

Fig 27: Identifying Secondary AIR Injection Solenoid Connector Terminals

G00121134

Courtesy of GENERAL MOTORS CORP.

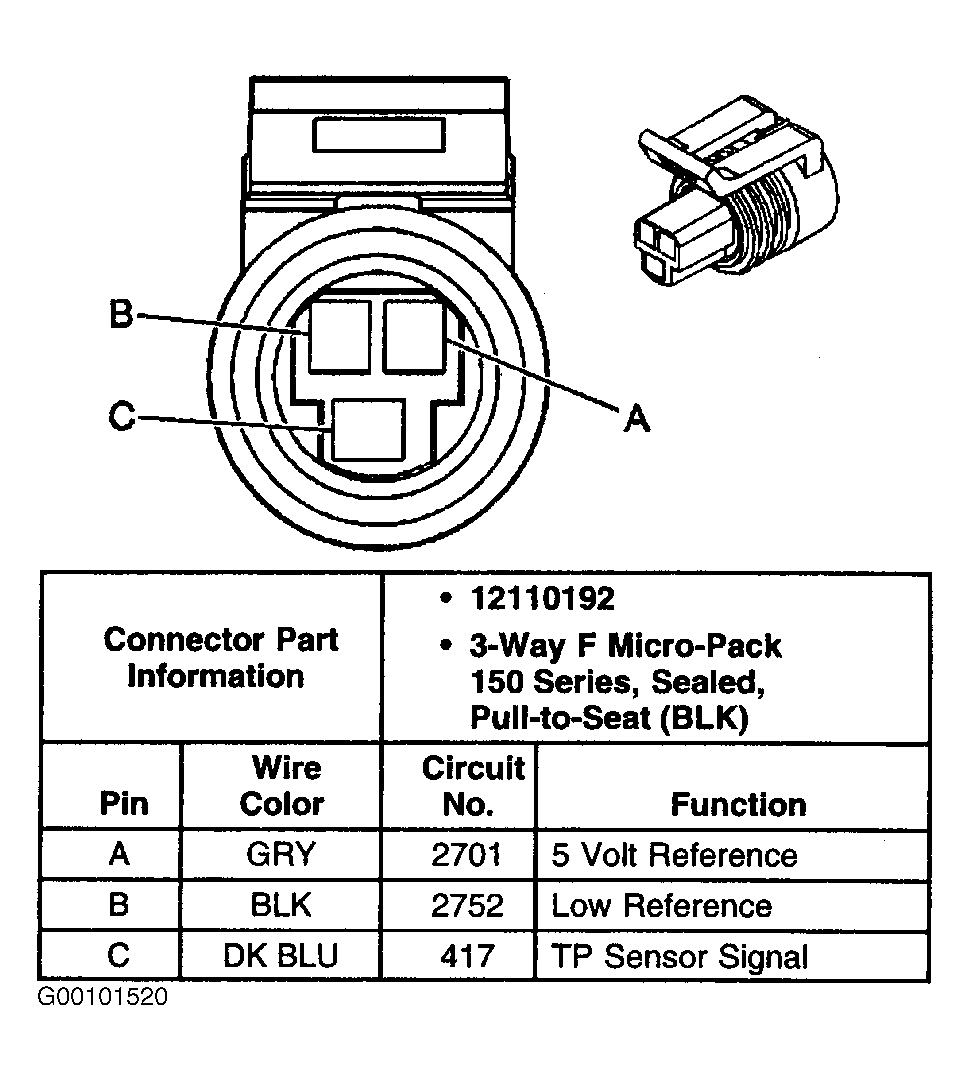

Fig 28: Identifying TP Sensor Connector Terminals

G00101520

Courtesy of GENERAL MOTORS CORP.
