Entertainment Component Views

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Instrument Panel and Center Console Location View - Pontiac

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Cluster
2	Driver's Information/HUD Switches
3	A/C Sunload Sensor (CJ2)/Ambient Light Sensor (CJ3/C60)
4	Security Indicator Lamp
5	Inflatable Restraint I/P Module
6	HVAC Control Module
7	Fuse Block-Center Console
8	Cigar Lighter
9	Auxiliary Power Outlet-Center Console Lower (2002 and earlier)
10	Auxiliary Power Outlet-Center Console Upper
11	Radio
12	Ignition Switch
13	Turn Signal, Wiper, Washer, Cruise and High Beam Switch

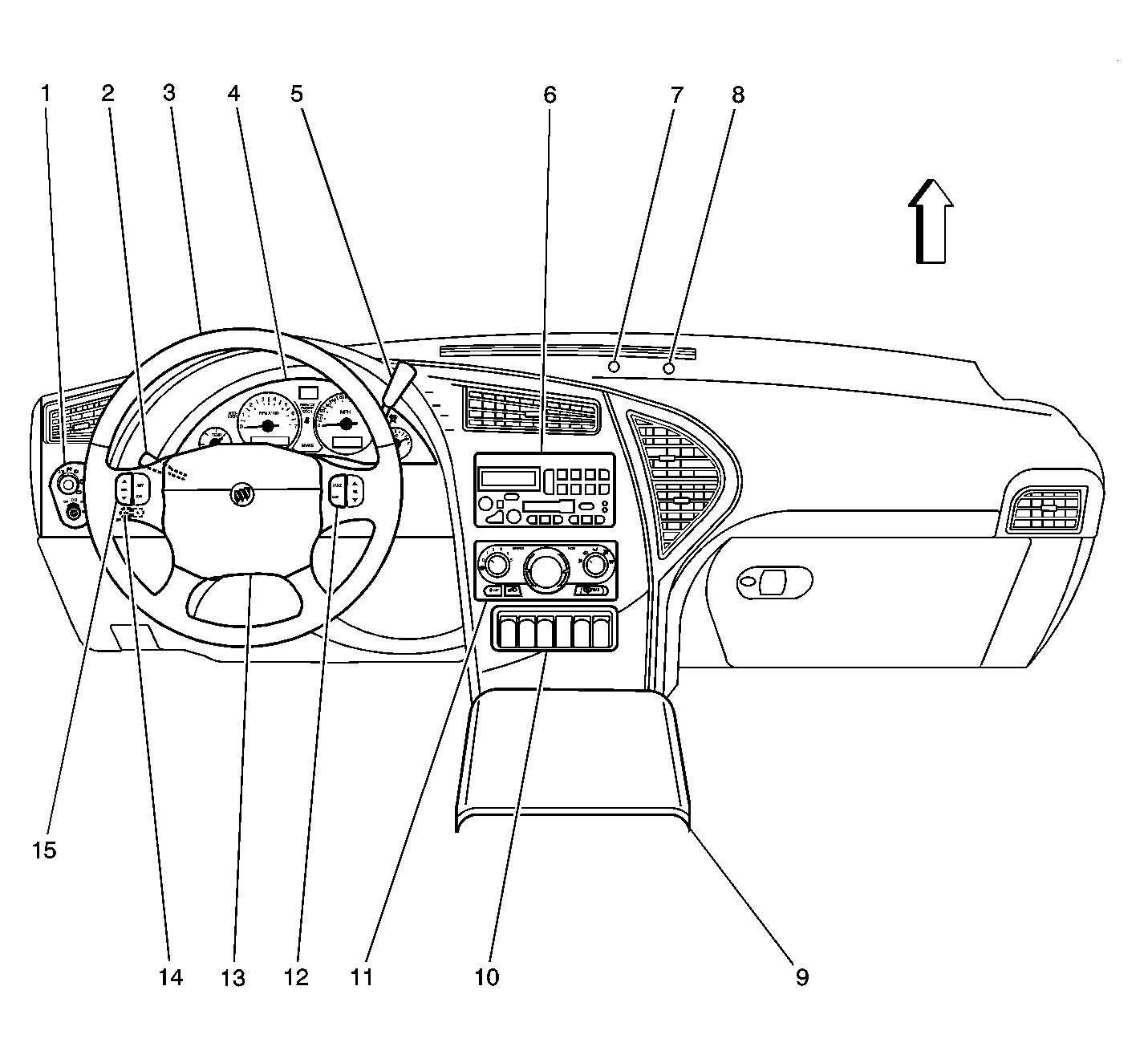

Fig 2: Instrument Panel Location View - Buick

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Switch
2	Turn Signal Switch/Multifunction Switch
3	Hazard Switch
4	Instrument Panel Cluster (IPC)
5	Automatic Transmission Shift Lever
6	Radio
7	A/C Sunload Sensor (CJ2)/Ambient Light Sensor (CJ3/C60)
8	Alarm LED
9	Fuse Block - Center Console
10	Center Console Switchbank
11	HVAC Control Module
12	Steering Wheel Controls - Right
13	Ignition Switch
14	Head Up Display (HUD) Switch and Driver Information Center (DIC) Switch
15	Steering Wheel Controls - Left

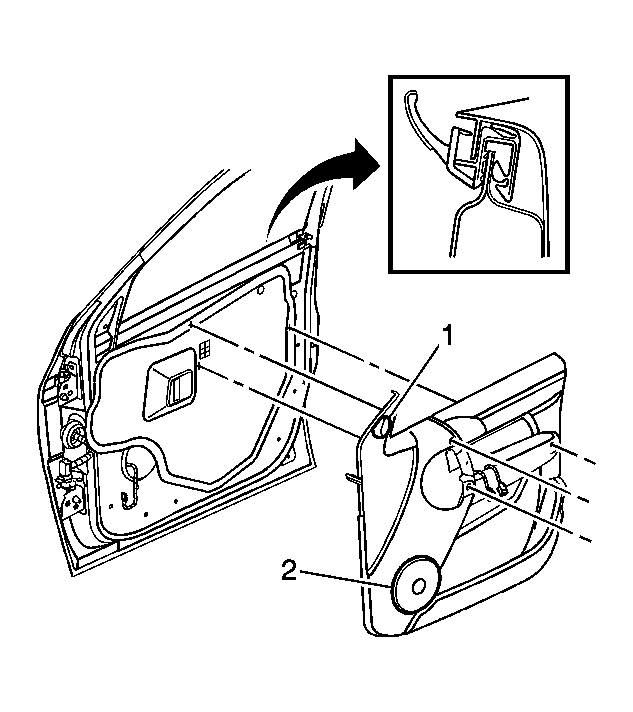

Fig 3: Door Trim Panel Location View - Rendezvous

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tweeter - RF (LF Similar)
2	Speaker - RF (LF, LR, RR Similar)

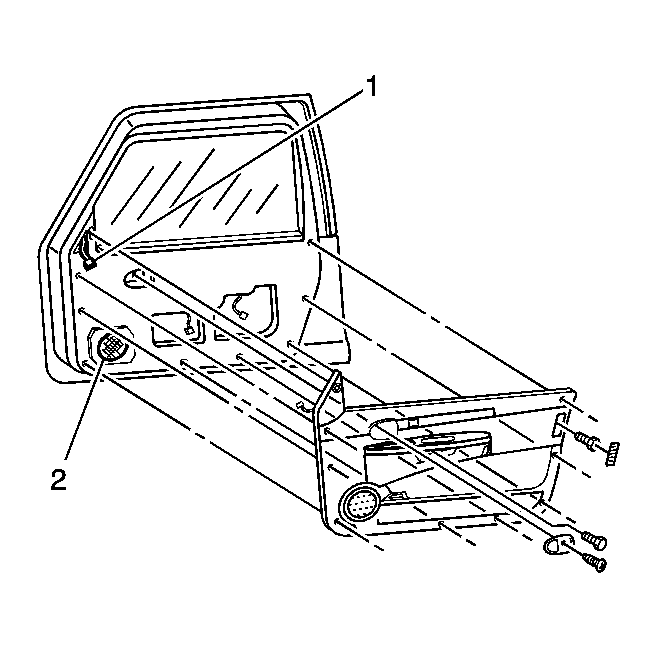

Fig 4: Door Trim Panel Location View - Aztek

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tweeter - RF (LF Similar)
2	Speaker - RF (LF, LR, RR Similar)

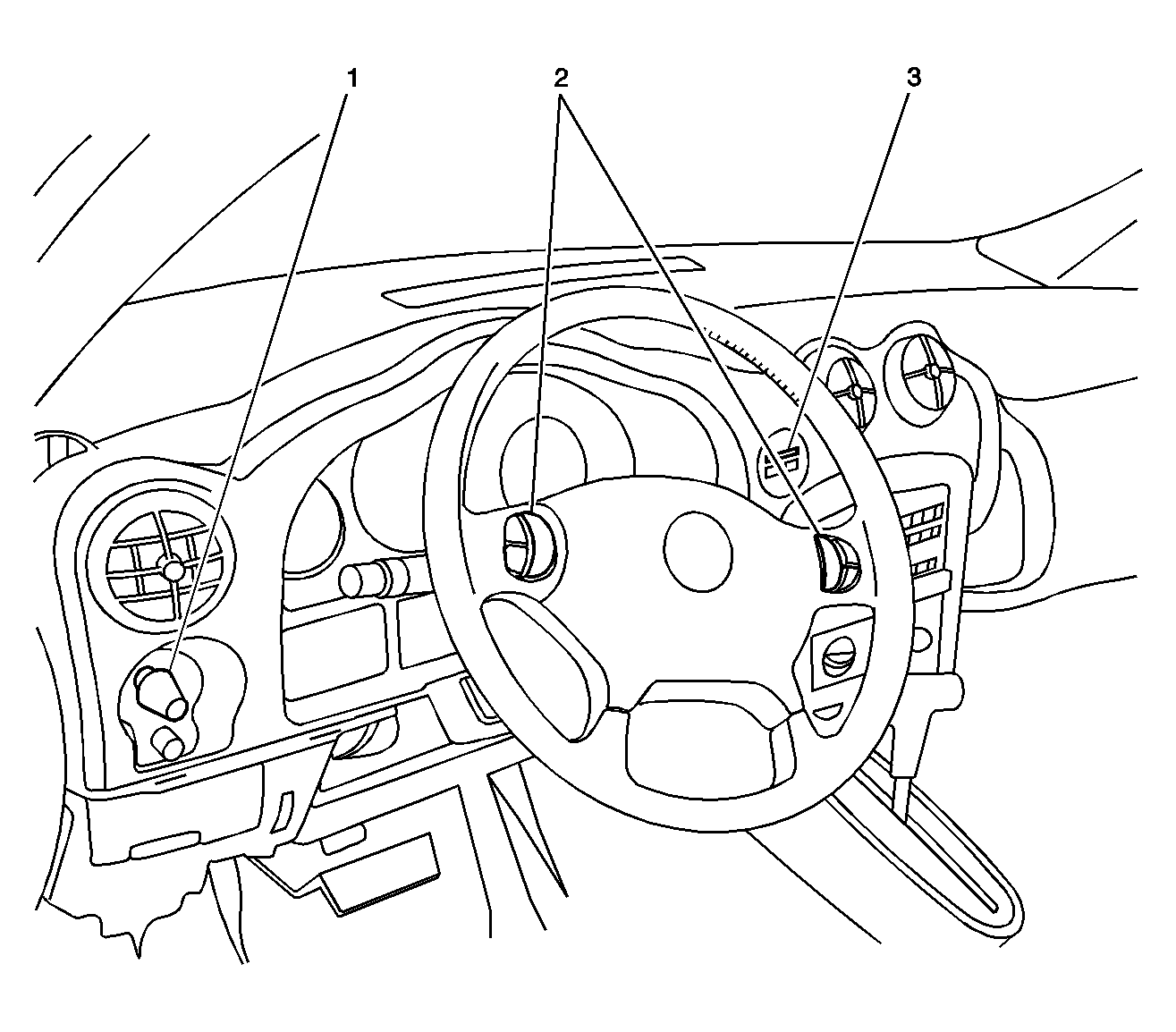

Fig 5: Driver Side Control Location View - Pontiac

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Switch
2	Steering Wheel Controls
3	Driver Information Center

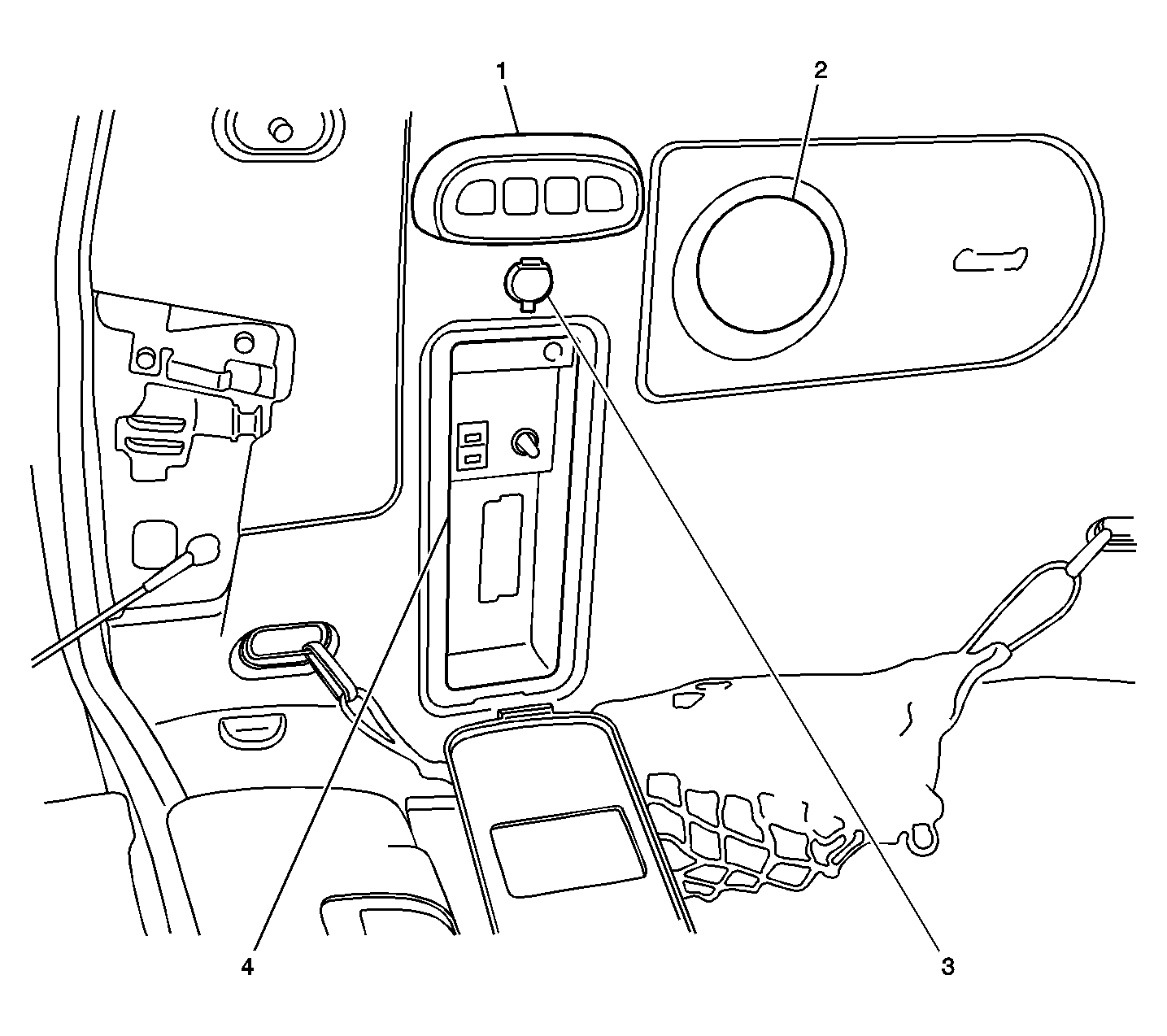

Fig 6: Cargo Area Location View - Left

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tailgate Audio Controls
2	Subwoofer
3	Aux Outlet-Rear
4	Auto Level Control (ALC) Inflator Air Switch

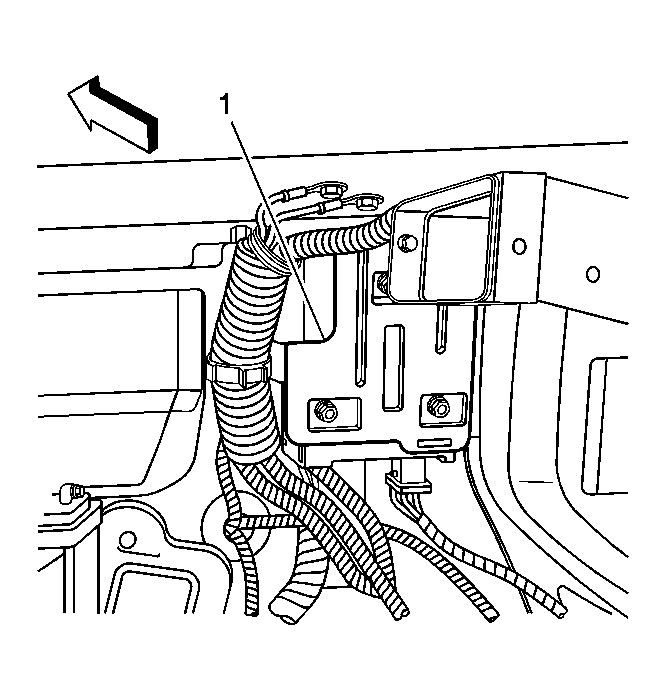

Fig 7: Behind I/P Compartment Location View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Receiver

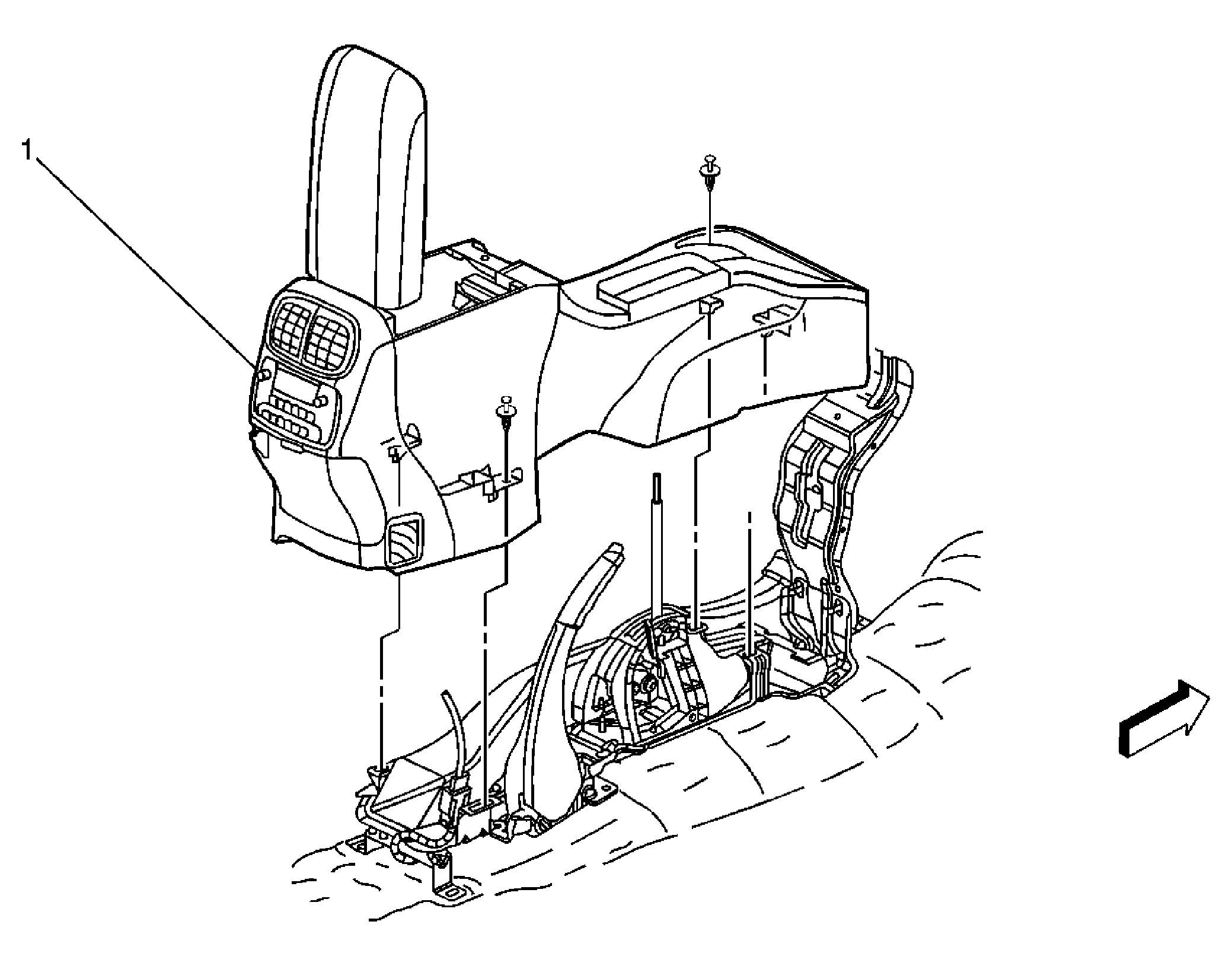

Fig 8: Rear Seat Audio (RSA) Location View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Seat Audio (RSA)

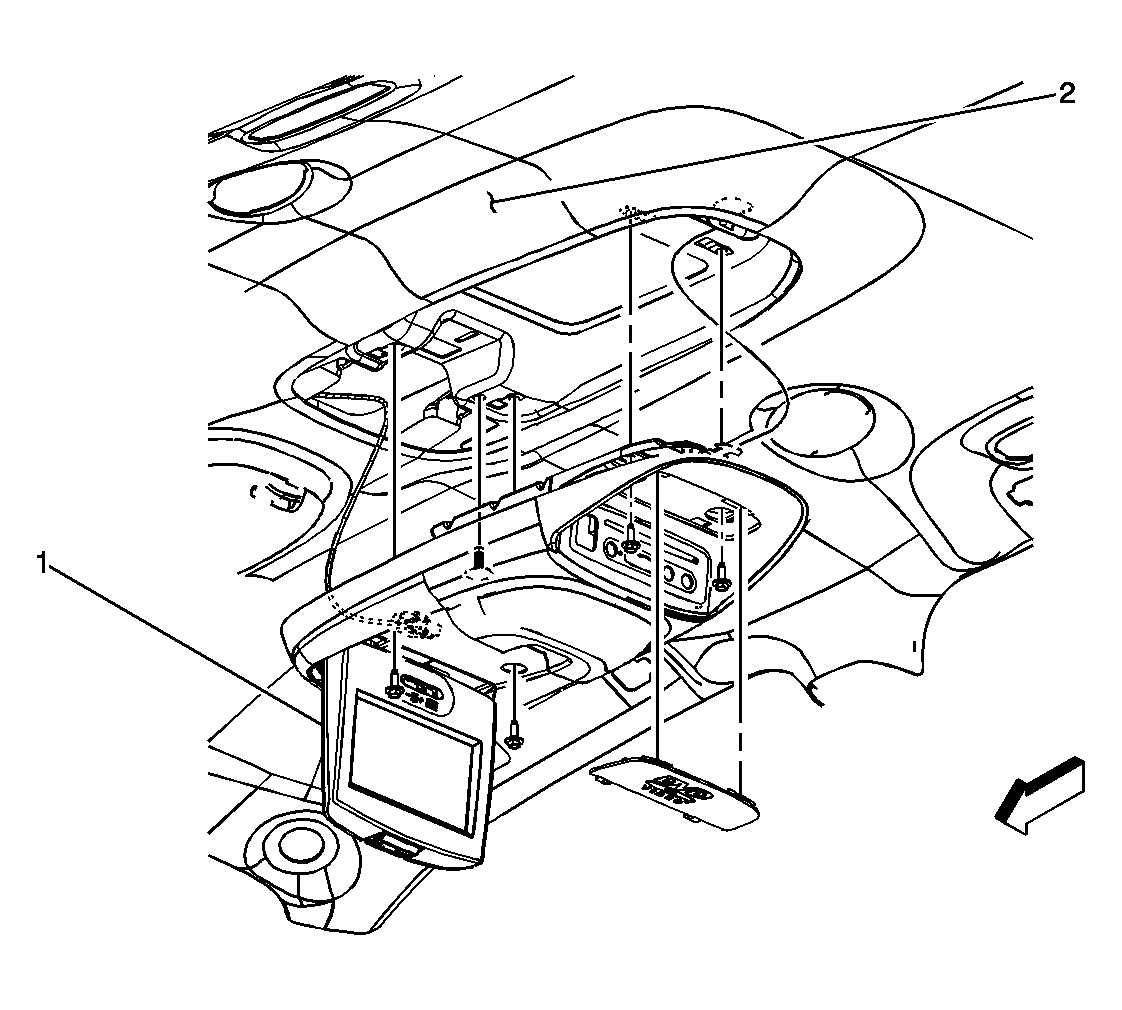

Fig 9: Digital Video Disc (DVD) Display Screen Location View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	DVD Display Screen
2	Overhead Console
