Entertainment Connector End Views

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
Audio Amplifier - C1 (UQ3) Connector End View

GM73158Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110626
  • 8-Way F Metri-Pack 280 Series Flexlock (WHT)
Pin Wire Color Circuit No. Function
A - - Not Used
B ORN 926 Amplifier Present Signal
C-D - - Not Used
E PPL 493 Rear Seat Audio Enable Signal
PPL 493 Rear Seat Audio Enable Signal (Buick)
F PPL 927 Amplifier Control
G ORN 2040 Battery Positive Voltage
H BLK/WHT 351 Ground
Audio Amplifier - C2 (UQ3) Connector End View

GM73156Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110088
  • 24-Way F Micro-Pack 100 Series (GRY)
Pin Wire Color Circuit No. Function
A1 LT GRN/BLK 1794 Left Rear Subwoofer Speaker Output (-)
A2 DK BLU/
WHT		 346 Left Rear Subwoofer Speaker Output (+)
A3 LT BLU/BLK 315 Right Rear Subwoofer Speaker Output (-)
A4 DK GRN 1795 Right Rear Subwoofer Speaker Output (+)
A5 WHT 1959 Left Rear Midrange Speaker Output (-) (Pontiac)
YEL 1956 Left Front Tweeter Speaker Output (-) (Buick)
A6 TAN 1859 Left Rear Midrange Speaker Output (+) (Pontiac)
BLK 1856 Left Front Tweeter Speaker Output (+) (Buick)
A7 RED 1955 Right Rear Midrange Speaker Output (-) (Pontiac)
PPL 1952 Right Front Tweeter Speaker Output (-) (Buick)
A8 TAN 1855 Right Rear Midrange Speaker Output (+) (Pontiac)
LT GRN 1852 Right Front Tweeter Speaker Output (+) (Buick)
A9 DK BLU 46 Right Rear Speaker Output (+) (Pontiac)
LT GRN 200 Right Front Speaker Output (+) (Buick)
A10 LT BLU 115 Right Rear Speaker Output (-) (Pontiac)
DK GRN 117 Right Front Speaker Output (-) (Buick)
A11 BRN 199 Left Rear Speaker Output (+) (Pontiac)
TAN 201 Left Front Speaker Output (+) (Buick)
A12 YEL 116 Left Rear Speaker Output (-) (Pontiac)
GRY 118 Left Front Speaker Output (-) (Buick)
B1 BLK/WHT 1946 Right Rear Low Level Audio Signal (-) (Pontiac)
LT GRN 1948 Right Front Low Level Audio Signal (-) (Buick)
B2 DK BLU 546 Right Rear Low Level Audio Signal (+) (Pontiac)
LT GRN 512 Right Front Low Level Audio Signal (+) (Buick)
B3 BRN 1999 Left Rear Low Level Audio Signal (-) (Pontiac)
DK GRN 1947 Left Front Low Level Audio Signal (-) (Buick)
B4 BRN 599 Left Rear Low Level Audio Signal (+) (Pontiac)
TAN 511 Left Front Low Level Audio Signal (+) (Buick)
B5 LT GRN 1948 Right Front Low Level Audio Signal (-) (Pontiac)
BLK/WHT 1946 Right Rear Low Level Audio Signal (-) (Buick)
B6 LT GRN/BLK 512 Right Front Low Level Audio Signal (+) (Pontiac)
DK BLU 546 Right Rear Low Level Audio Signal (+) (Buick)
B7 DK GRN 1947 Left Front Low Level Audio Signal (-) (Pontiac)
BRN 1999 Left Rear Low Level Audio Signal (-) (Buick)
B8 TAN 511 Left Front Low Level Audio Signal (+) (Pontiac)
BLK/WHT 599 Left Rear Low Level Audio Signal (+) (Buick)
B9 LT GRN 200 Right Front Speaker Output (+) (Pontiac)
DK BLU 46 Right Rear Speaker Output (+) (Buick)
B10 DK GRN 117 Right Front Speaker Output (-) (Pontiac)
LT BLU 115 Right Rear Speaker Output (-) (Buick)
B11 TAN 201 Left Front Speaker Output (+) (Pontiac)
BRN 199 Left Rear Speaker Output (+) (Buick)
B12 GRY 118 Left Front Speaker Output (-) (Pontiac)
YEL 116 Left Rear Speaker Output (-) (Buick)

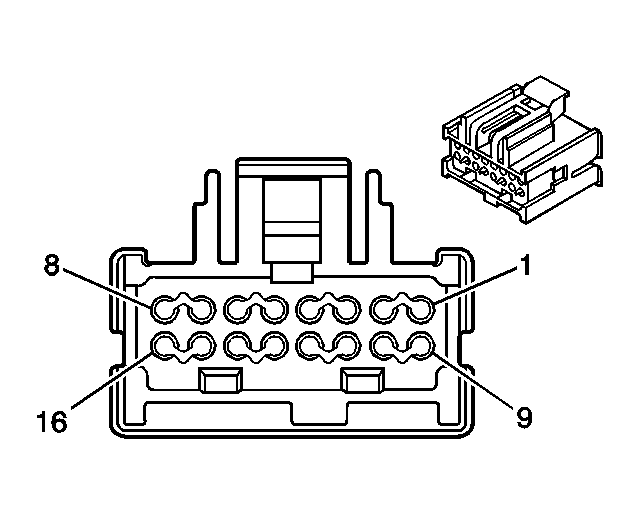

Digital Radio Receiver (U2K) Connector End View

GM823325Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15394150
  • 16-Way F Metri-Pack (GRY)
Pin Wire Color Circuit No. Function
1 - - Not Used
2 BRN/WHT 367 Remote Radio Left Audio Signal
3 DK GRN/WHT 368 Remote Radio Right Audio Signal
4-8 - - Not Used
9 BLK 351 Ground
10 BLK/WHT 372 Remote Radio Audio Output (-)
11 BARE 7814 Drain Wire
12-14 - - Not Used
15 TAN 9807 Class 2 Serial Data
16 ORN 3840 Battery Positive Voltage
Radio - C1

GM73156Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110088
  • 24-Way F Micro-Pack 100 Series (GRY)
Pin Wire Color Circuit No. Function
A1 ORN 1044 Radio Class 2 Serial Data
A2 - - Not Used
A3 PPL 493 Rear Seat Audio Enable Signal (UQ3)
A4-A5 - - Not Used
A6 PPL 1375 Remote Radio Control Supply Voltage
A7 DK BLU 1796 Steering Wheel Controls Signal
A8 TAN 201 Left Front Speaker Output (+) (w/o UQ3)
TAN 511 Left Front Low Level Audio Signal (+) (UQ3)
A9 GRY 118 Left Front Speaker Output (-) (w/o UQ3)
DK GRN 1947 Left Front Low Level Audio Signal (-) (UQ3)
A10 LT BLU 115 Right Rear Speaker Output (-) (w/o UQ3)
BLK 1946 Right Rear Low Level Audio Signal (-) (UQ3)
A11 DK BLU 46 Right Rear Speaker Output (+) (w/o UQ3)
DK BLU 546 Right Rear Low Level Audio Signal (+) (UQ3)
A12 BLK/WHT 351 Ground
B1 ORN 5640 Battery Positive Voltage
B2 - - Not Used
B3 PPL 927 Amplifier Control (UQ3)
B4 GRY 8 Instrument Panel Lamp Supply Voltage - 1
B5 BLK 1450 Ground
B6 ORN 926 Amplifier Present Signal (UQ3)
B7 LT GRN 1011 Remote Radio Control Signal (RSA)
B8 BRN 199 Left Rear Speaker Output (+) (w/o UQ3)
BRN/WHT 599 Left Rear Low Level Audio Signal (+) (UQ3)
B9 YEL 116 Left Rear Speaker Output (-) (w/o UQ3)
BRN 1999 Left Rear Low Level Audio Signal (-) (UQ3)
B10 DK GRN 117 Right Front Speaker Output (-) (w/o UQ3)
LT GRN 1948 Right Front Low Level Audio Signal (-) (UQ3)
B11 LT GRN 200 Right Front Speaker Output (+) (w/o UQ3)
LT GRN/BLK 512 Right Front Low Level Audio Signal (+) (UQ3)
B12 - - Not Used
Radio - C2 (UE1/UQ3) Connector End View

GM73151Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064799
  • 12-Way F Micro-Pack 100 Series (BLK)
Pin Wire Color Circuit No. Function
A-B - - Not Used
C BARE 814 Drain Wire (U32)
D - - Not Used
E DK GRN 389 Vehicle Speed Signal
F-G - - Not Used
H DK GRN/WHT 368 Remote Radio Right Audio Signal
J BRN/WHT 367 Remote Radio Left Audio Signal
K BLK/WHT 372 Remote Radio Audio Output (-)
L BLK/WHT 9372 Remote Radio Audio Output (-)
M BRN/WHT 9367 Remote Radio Left Audio Signal
Rear Seat Audio Control (UQ3) Connector End View

GM73152Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12110259
  • 16-Way F Micro-Pack 100 Series (GRN)
Pin Wire Color Circuit No. Function
A1 BLK 1946 Right Rear Low Level Audio Signal (-)
A2 DK BLU 546 Right Rear Low Level Audio Signal (+)
A3 BRN 1999 Left Rear Low Level Audio Signal (-)
A4 BRN 599 Left Rear Low Level Audio Signal (+)
A5 LT GRN 1011 Remote Radio Control Signal
A6 GRY 8 Instrument Panel Lamp Supply Voltage
A7 - - Not Used
A8 PPL 1375 Remote Radio Control Supply Voltage
B1 LT BLU 115 Right Rear Speaker Output (-) (Base Radio)
B2 DK BLU 46 Right Rear Speaker Output (+) (Base Radio)
B3 YEL 116 Left Rear Speaker Output (-) (Base Radio)
B4 BRN 199 Left Rear Speaker Output (+) (Base Radio)
B5 PPL 493 Rear Seat Audio Enable Signal
B6 BLK 650 Ground
B7 - - Not Used
B8 BRN 9 Park Lamp Supply Voltage
Rear Seat Entertainment (RSE) Assembly (U32) Connector End View

GM850857Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15341086
  • 12-Way F Multi-Lock Series (BLK)
Pin Wire Color Circuit No. Function
1 - - Not Used
2 PNK 1045 VCM Class 2 Serial Data
3-4 - - Not Used
5 DK GRN/WHT 368 Remote Radio Right Audio Signal
6 BRN/WHT 367 Remote Radio Left Audio Signal
7 BLK/WHT 351 Ground
8 - - Not Used
9 ORN 4240 Battery Positive Voltage
10-11 - - Not Used
12 BLK/WHT 372 Remote Audio Output (-)

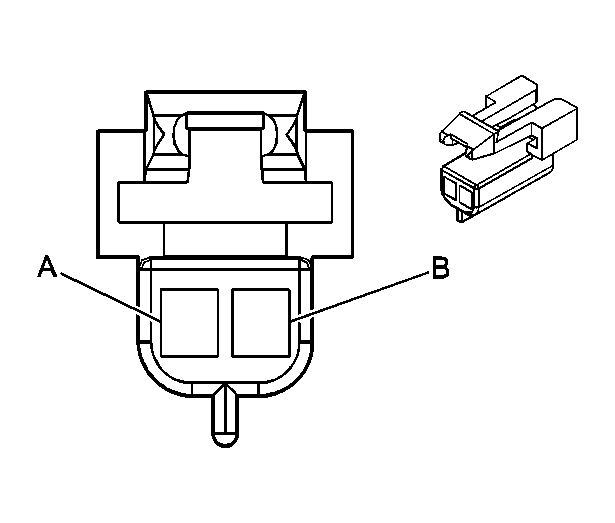

Speaker Connector End View - LF Door

GM365973Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186847
  • 2-Way F Metri-Pack 150 Series (WHT)
Pin Wire Color Circuit No. Function
A GRY 118 Left Front Speaker Output (-)
B TAN 201 Left Front Speaker Output (+)
Speaker Connector End View - LR Door

GM280768Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052832
  • 2-Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A YEL 116 Left Rear Speaker Output (-)
B BRN 199 Left Rear Speaker Output (+)
Speaker Connector End View - LR (Pontiac UQ3 Only)

GM130637Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064760
  • 4-Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A LT GRN/BLK 1794 Left or Rear Subwoofer Speaker Output (-)
B DK BLU/
WHT		 346 Left Subwoofer Speaker Output (+)
C WHT 1959 Left Rear Midrange Speaker Output (-)
D TAN 1859 Left Rear Midrange Speaker Output (+)
Speaker Connector End View - LR Subwoofer (Buick UQ3)

GM280768Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052832
  • 2-Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A LT GRN/BLK 1794 Left Subwoofer Speaker Output (-)
B DK BLU/WHT 346 Left Subwoofer Speaker Output (-)
Speaker Connector End View - RF Door

GM365973Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12186847
  • 2-Way F Metri-Pack 150 Series (WHT)
Pin Wire Color Circuit No. Function
A DK GRN 117 Right Front Speaker Output (-)
B LT GRN 200 Right Front Speaker Output (+)
Speaker Connector End View - RR Door

GM280768Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052832
  • 2-Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A LT BLU 115 Right Rear Speaker Output (-)
B DK BLU 46 Right Rear Speaker Output (+)
Speaker Connector End View - RR (Pontiac UQ3 Only)

GM130637Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064760
  • 4-Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A LT BLU/BLK 315 Right Subwoofer Speaker Output (-)
B DK GRN 1795 Right Subwoofer Speaker Output (+)
C RED 1955 Right Rear Midrange Speaker Output (-)
D TAN 1855 Right Rear Midrange Speaker Output (+)
Speaker Connector End View - RR Subwoofer (Buick UQ3)

GM280768Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052832
  • 2-Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A LT BLU/BLK 315 Right Subwoofer Speaker Output (-)
B DK GRN 1795 Right Subwoofer Speaker Output (+)
Steering Wheel Controls Connector End View - Left (U96 or UK3)

GM605511Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 50579405
  • 5-Way F (BLK)
Pin Wire Color Circuit No. Function
1 DK BLU 1796 Steering Wheel Controls Signal
2 - - Not Used
3 BLK 350 Ground
4 YEL/BLK 1458 Instrument Panel Lamp Supply Voltage - 4
5 DK BLU 1796 Steering Wheel Controls Signal
Steering Wheel Controls Connector End View - Right (U96 or UK3)

GM605507Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 50579406
  • 6-Way F (BLK)
Pin Wire Color Circuit No. Function
1 PPL 1375 Remote Radio Control Supply Voltage
2 DK BLU 1796 Steering Wheel Controls Signal
3 GRY/BLK 14 Instrument Panel Lamp Supply Voltage - 4
4 - - Not Used
5 BLK 350 Ground
6 DK BLU 1796 Steering Wheel Controls Signal
Tailgate Audio Controls Connector End View (Pontiac W/UQ3)

GM287981Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12092162
  • 4-Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A PPL 1375 Remote Radio Control Supply Voltage
B - - Not Used
C DK BLU 1796 Steering Wheel Controls Signal
D - - Not Used
Tweeter Connector End View - LF Door

GM280768Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052832
  • 2-Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A GRY 118 Left Front Speaker Output (-)
B TAN 201 Left Front Speaker Output (+)
Tweeter Connector End View - RF Door

GM280768Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052832
  • 2-Way F Metri-Pack 150 Series (BLK)
Pin Wire Color Circuit No. Function
A DK GRN 117 Right Front Speaker Output (-)
B LT GRN 200 Right Front Speaker Output (+)
scientia non olet · About LEMON Manuals
