Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

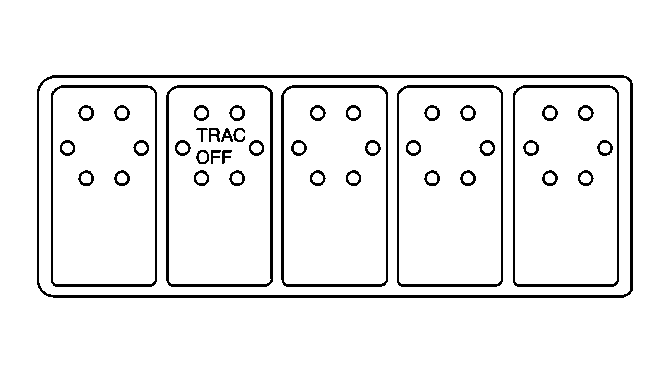

    Fig 1: View Of Instrument Panel Accessory Trim Plate
    GM738677Courtesy of GENERAL MOTORS CORP.
  1. Remove the instrument panel accessory trim plate. Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory (Aztek) in Instrument Panel, Gages and Console.

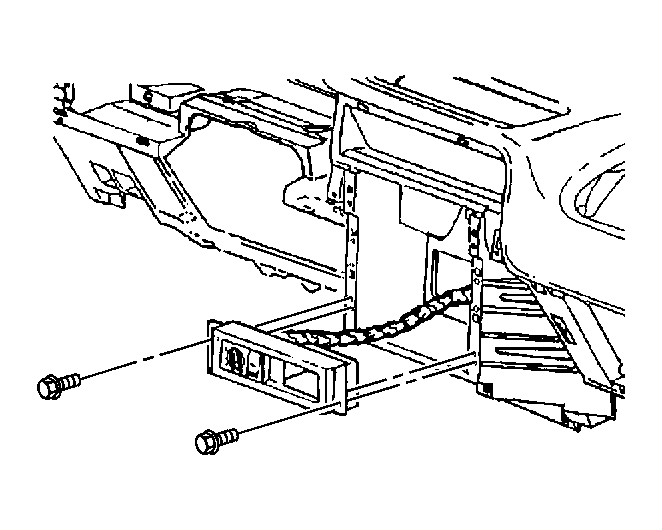

    2. Fig 2: Removing/Installing Traction Control Switch Bolts/Screws
    GM318109Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolts/screws from the switch bank to instrument panel.
  3. Pull straight out from the instrument panel in order to remove the switch bank from the instrument panel.

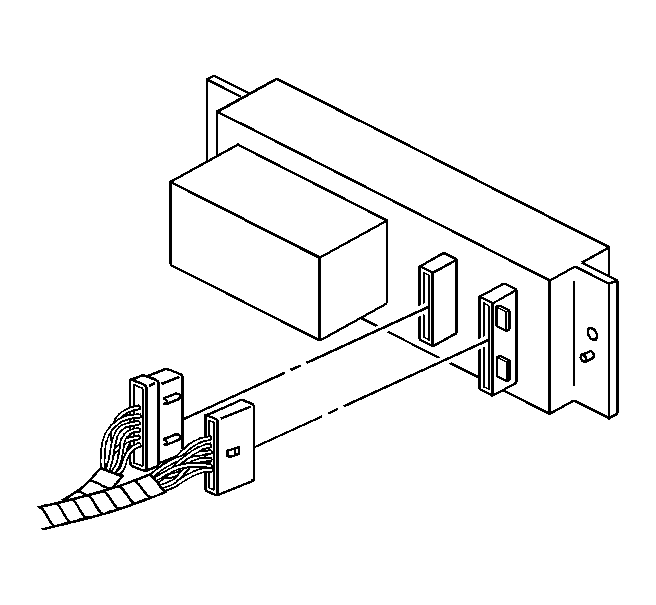

    4. Fig 3: Identifying Traction Control Switch Electrical Connectors
    GM318110Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connectors.
