Engine Controls Schematics

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

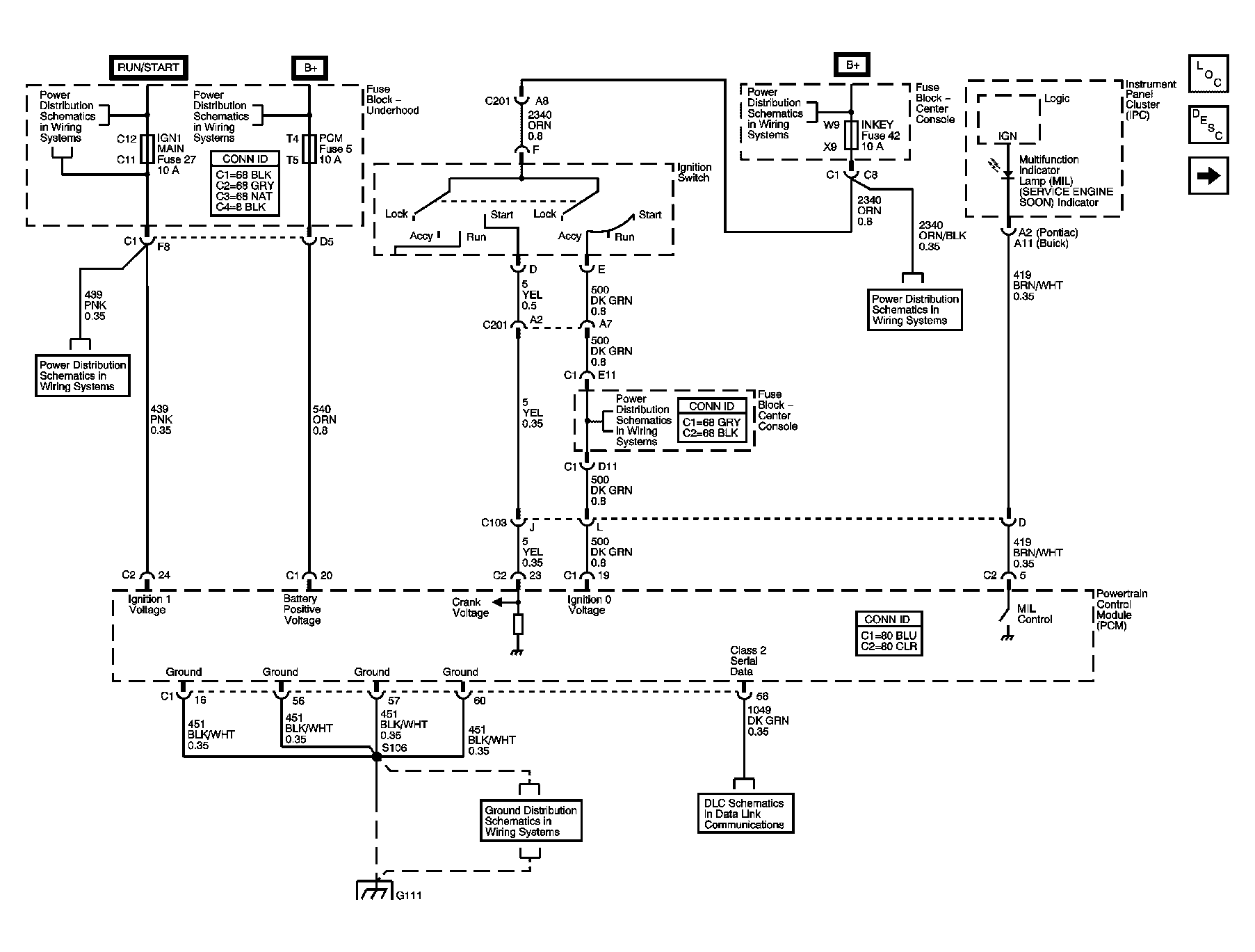

Fig 1: Power, DLC, Ground, and MIL Schematics

Courtesy of GENERAL MOTORS CORP.

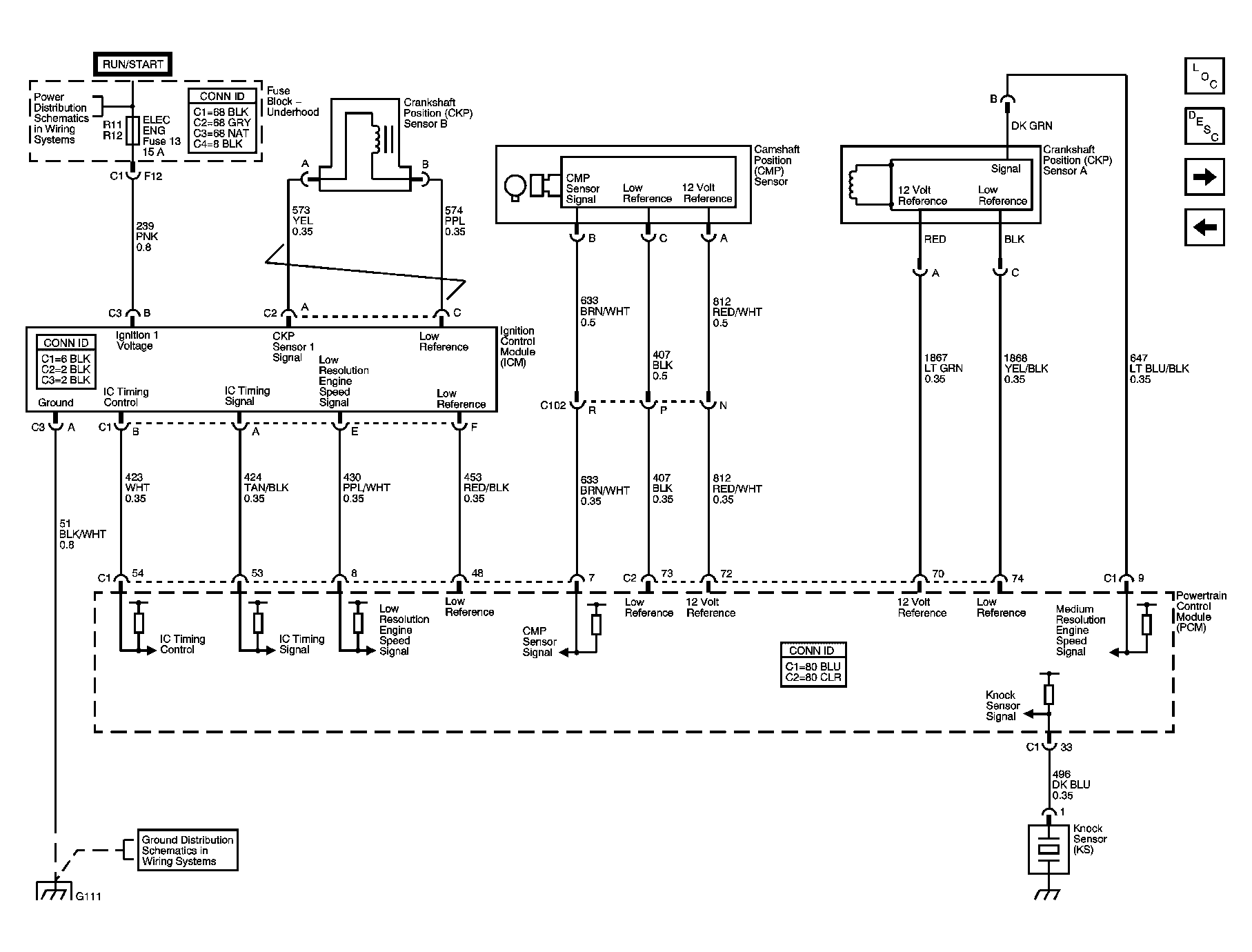

Fig 2: Ignition Control, KS Schematics

Courtesy of GENERAL MOTORS CORP.

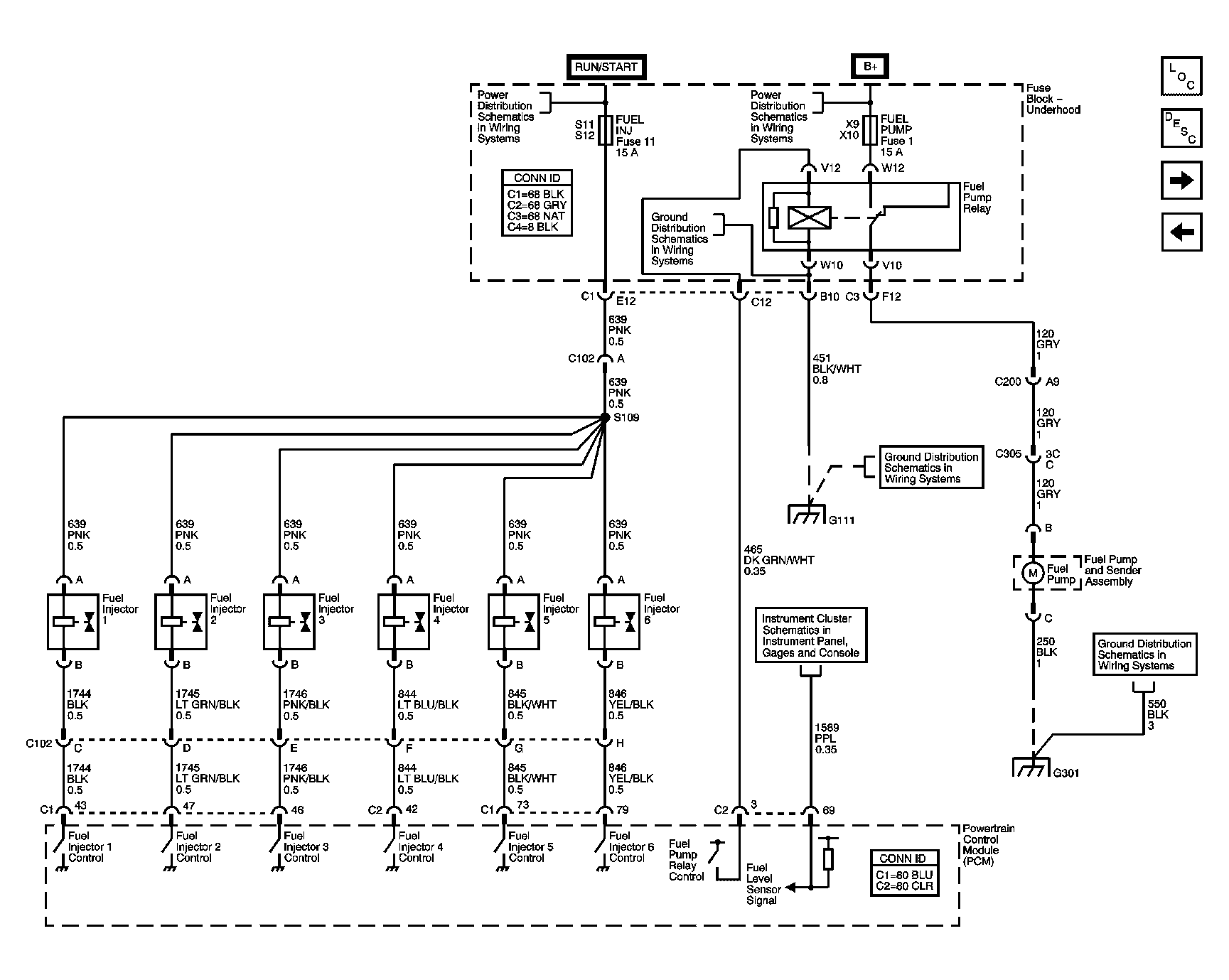

Fig 3: Fuel Injectors, Fuel Pump Schematics

Courtesy of GENERAL MOTORS CORP.

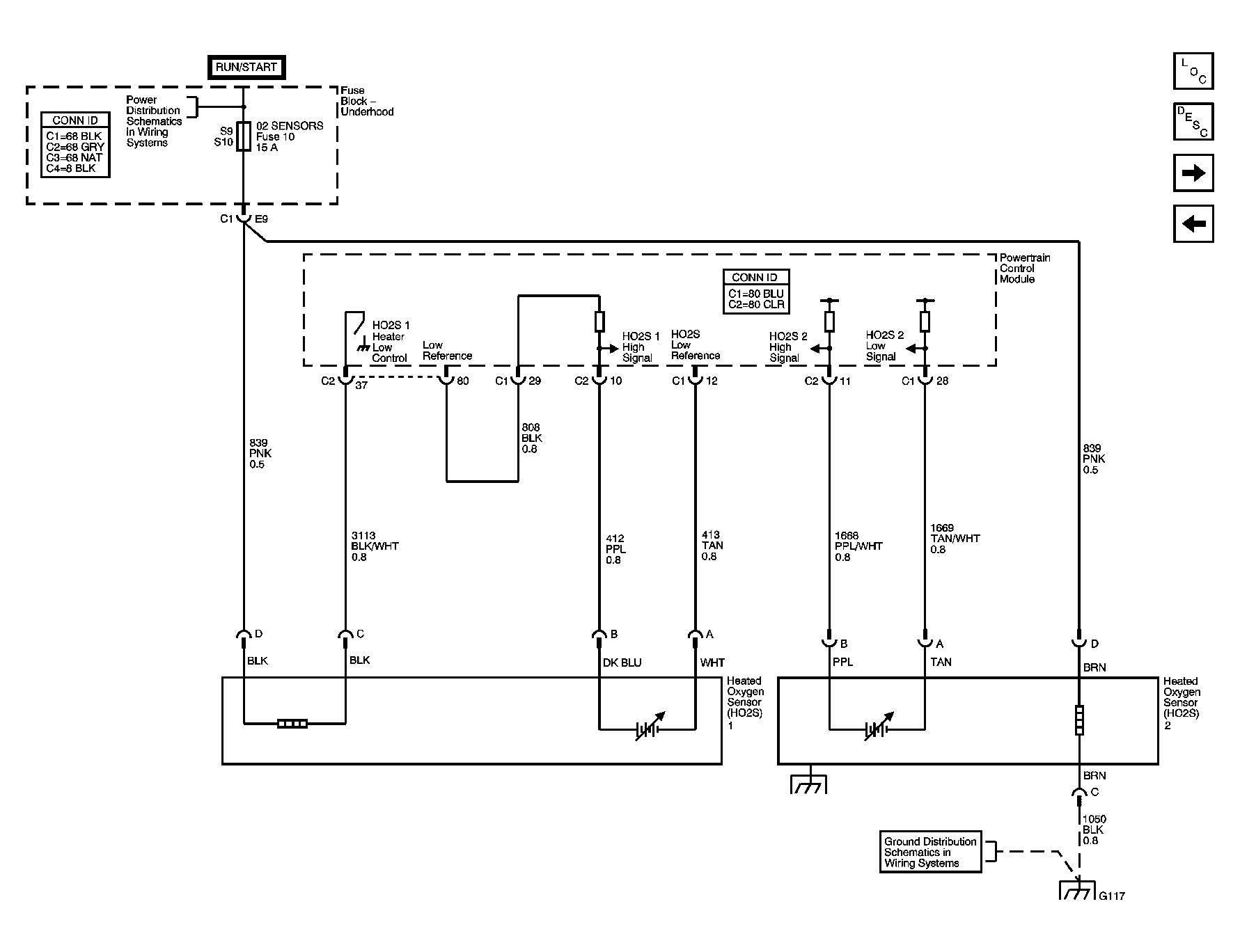

Fig 4: HO2S Schematics

Courtesy of GENERAL MOTORS CORP.

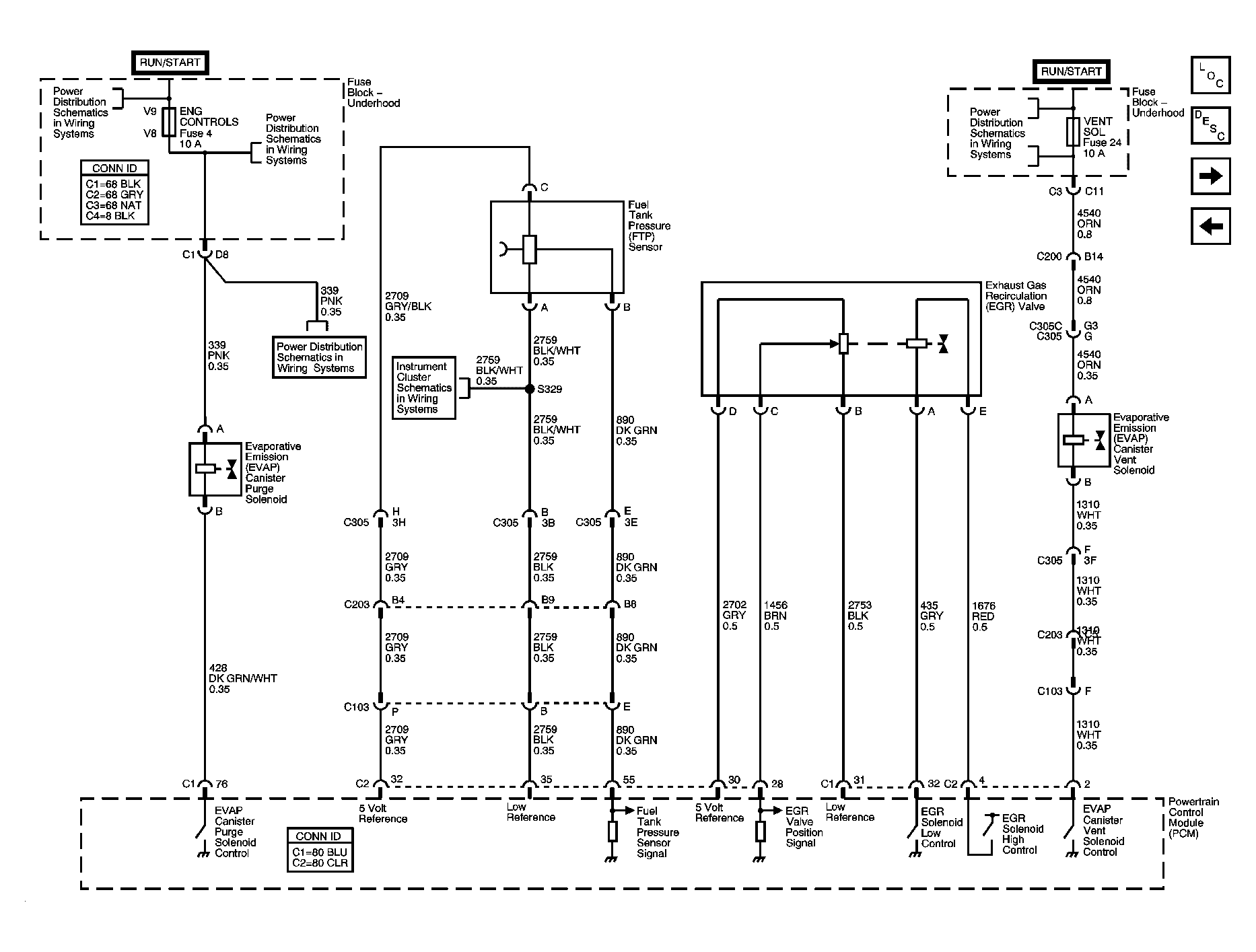

Fig 5: EGR, EVAP Schematics

Courtesy of GENERAL MOTORS CORP.

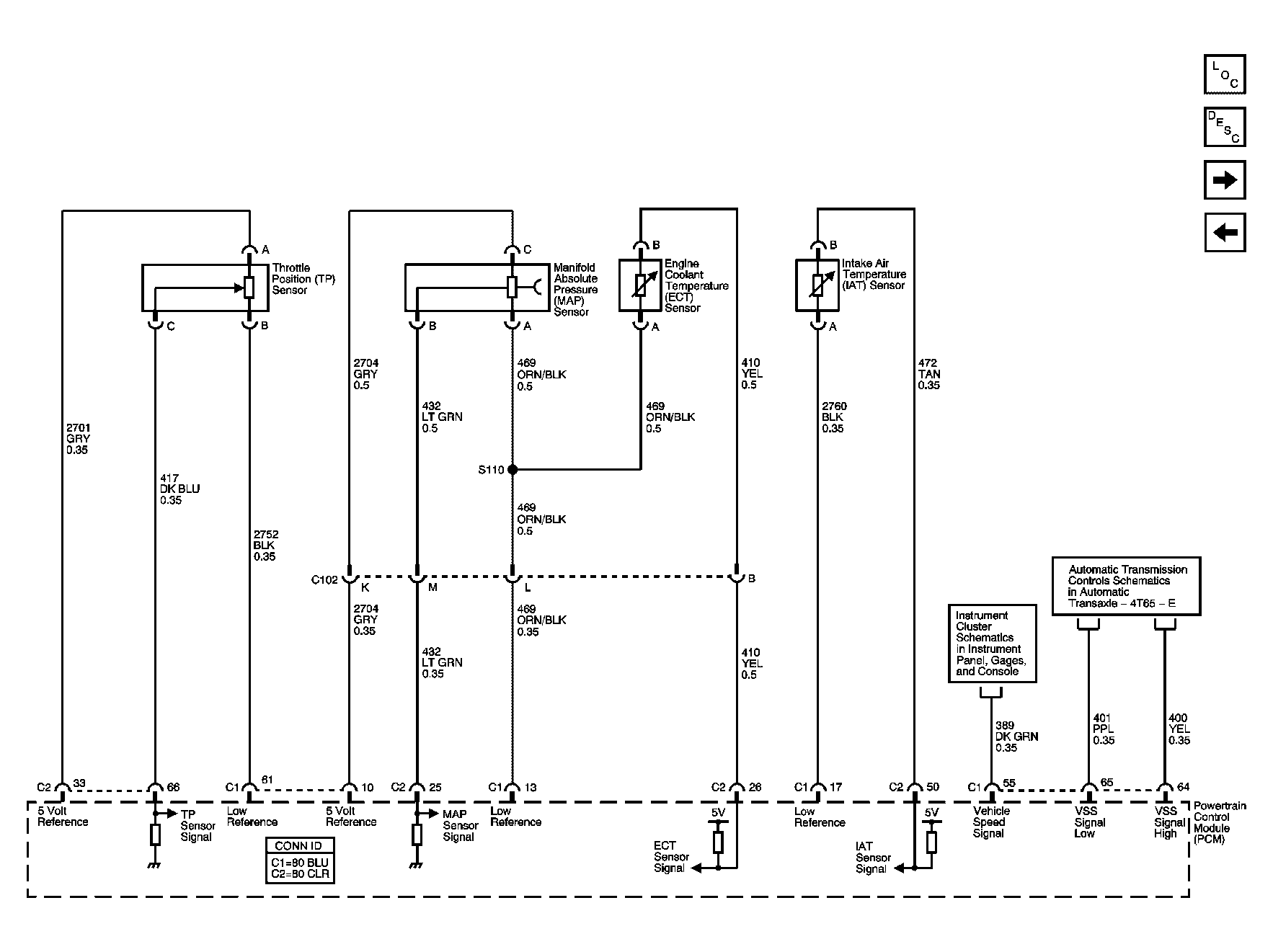

Fig 6: Sensors Schematics

Courtesy of GENERAL MOTORS CORP.

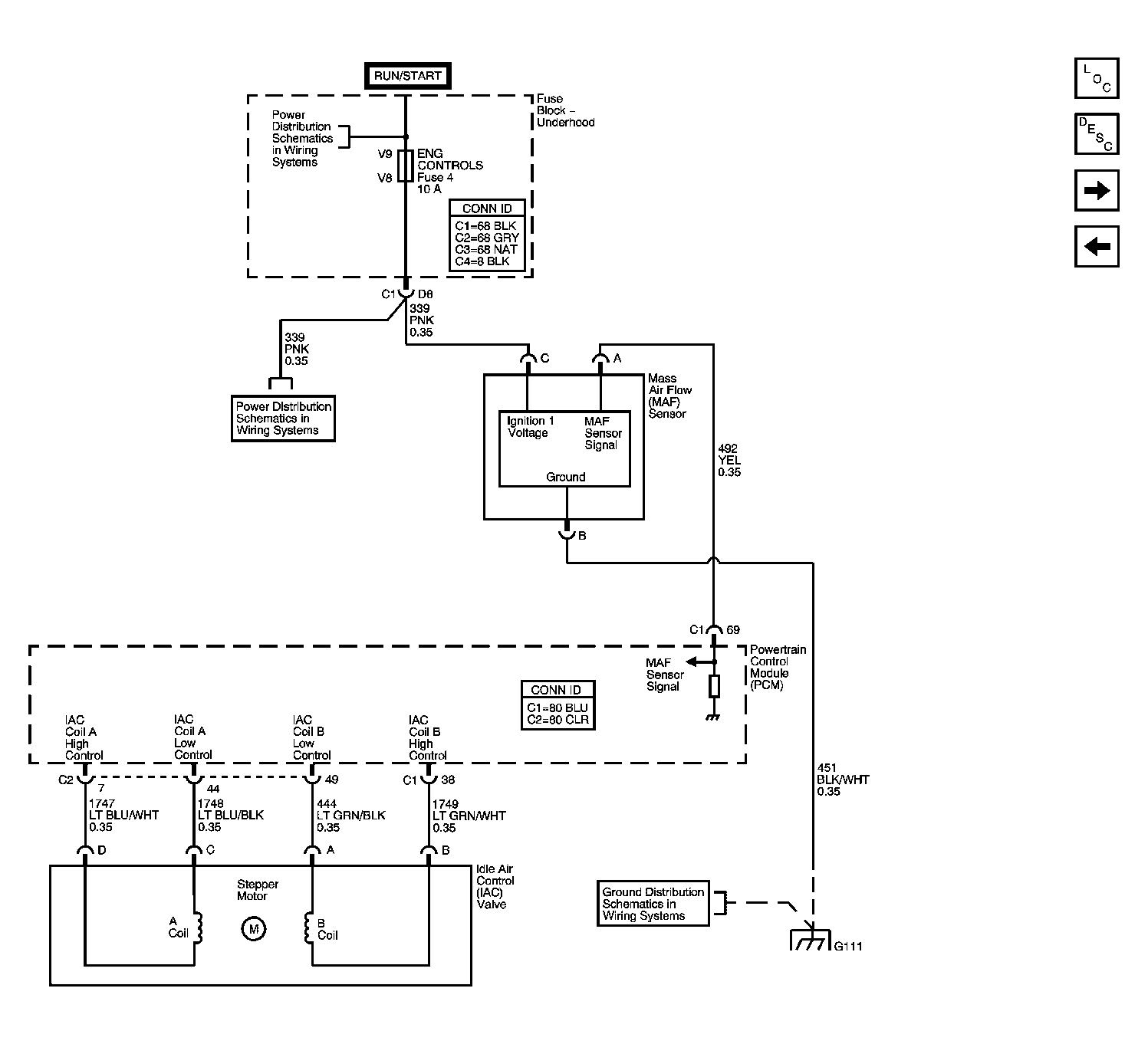

Fig 7: IAC and MAF Schematics

Courtesy of GENERAL MOTORS CORP.

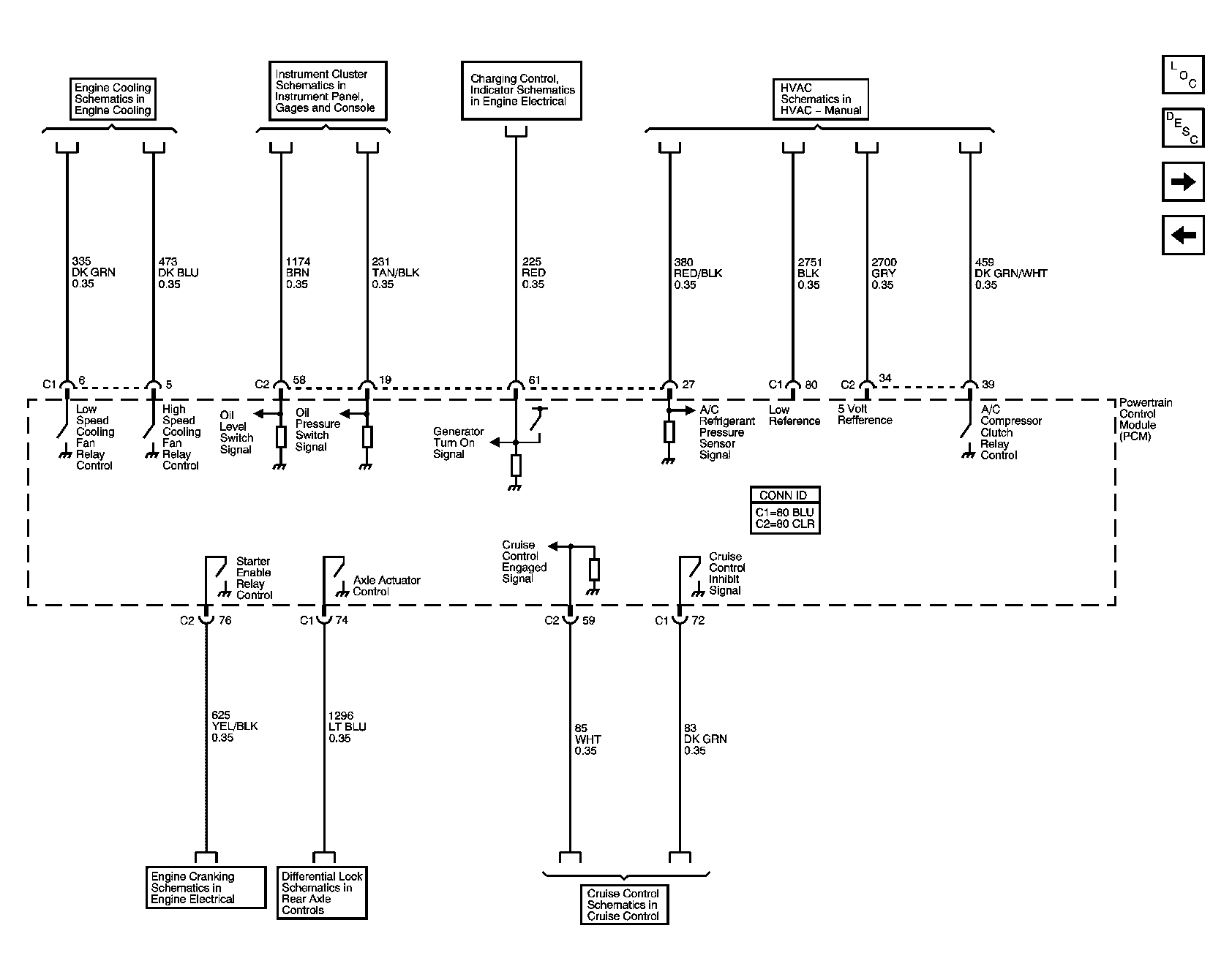

Fig 8: PCM References Schematics (1 of 2)

Courtesy of GENERAL MOTORS CORP.

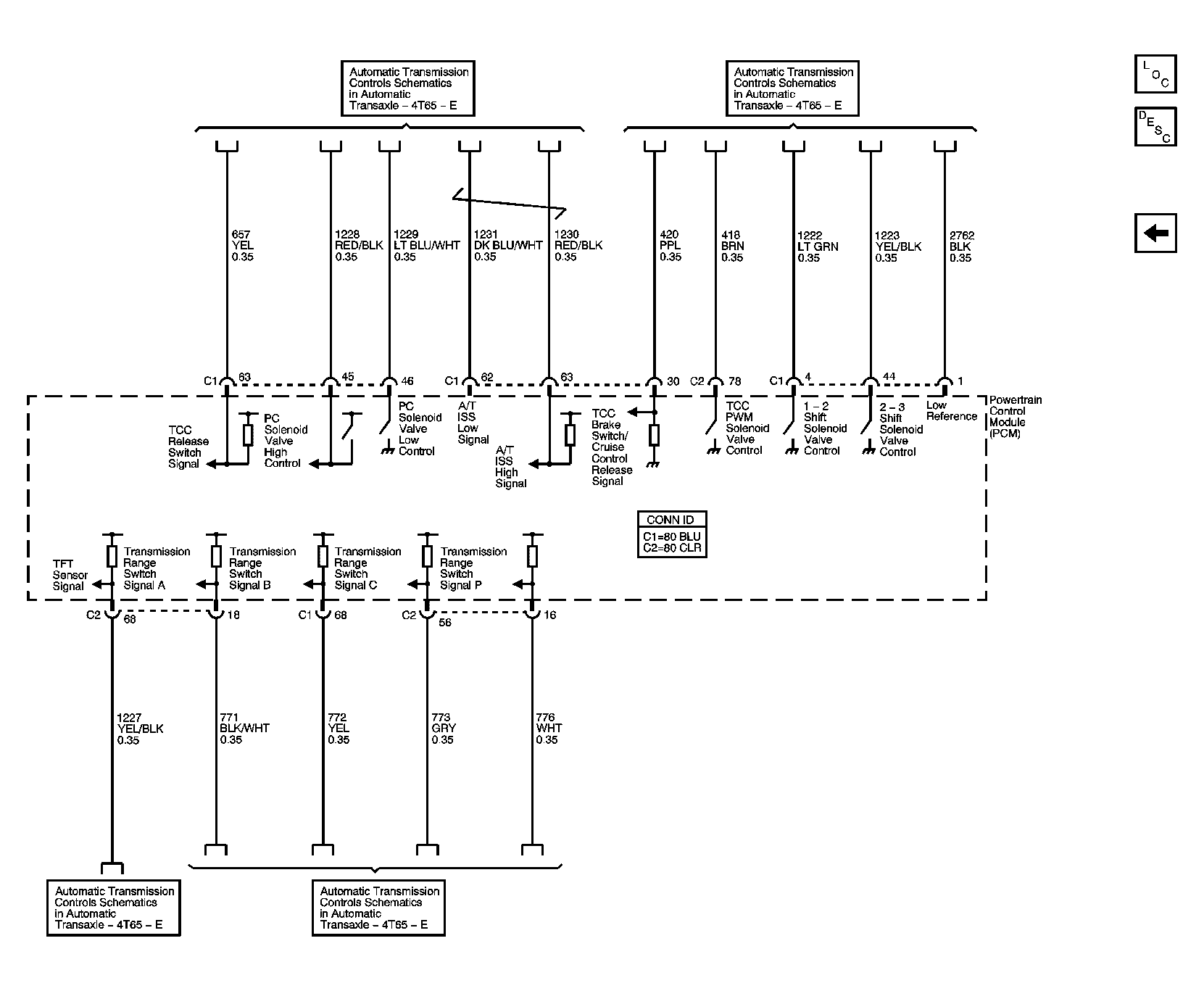

Fig 9: PCM References Schematics (2 of 2)

Courtesy of GENERAL MOTORS CORP.
