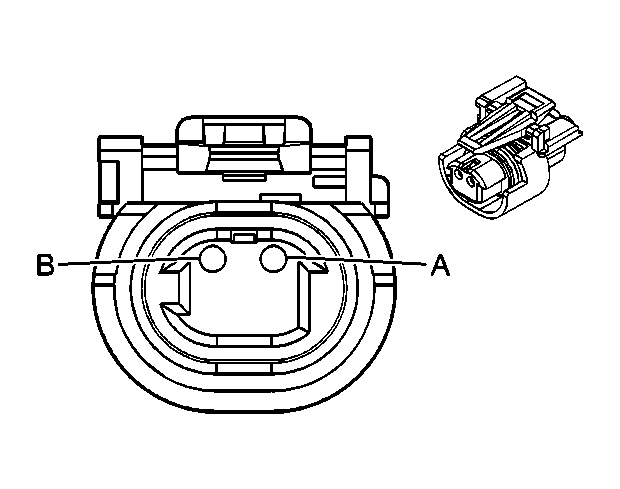

A/C High Pressure Switch Connector End View
A/C High Pressure Switch Connector End View
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- 15317968
- 2-Way F Micro-Pack 100 W Series (BLK)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| A |
LT BLU |
203 |
A/C Request Signal |
| B |
DK GRN/WHT |
2523 |
A/C Request Signal |
