Coolant Level Switch Connector End View

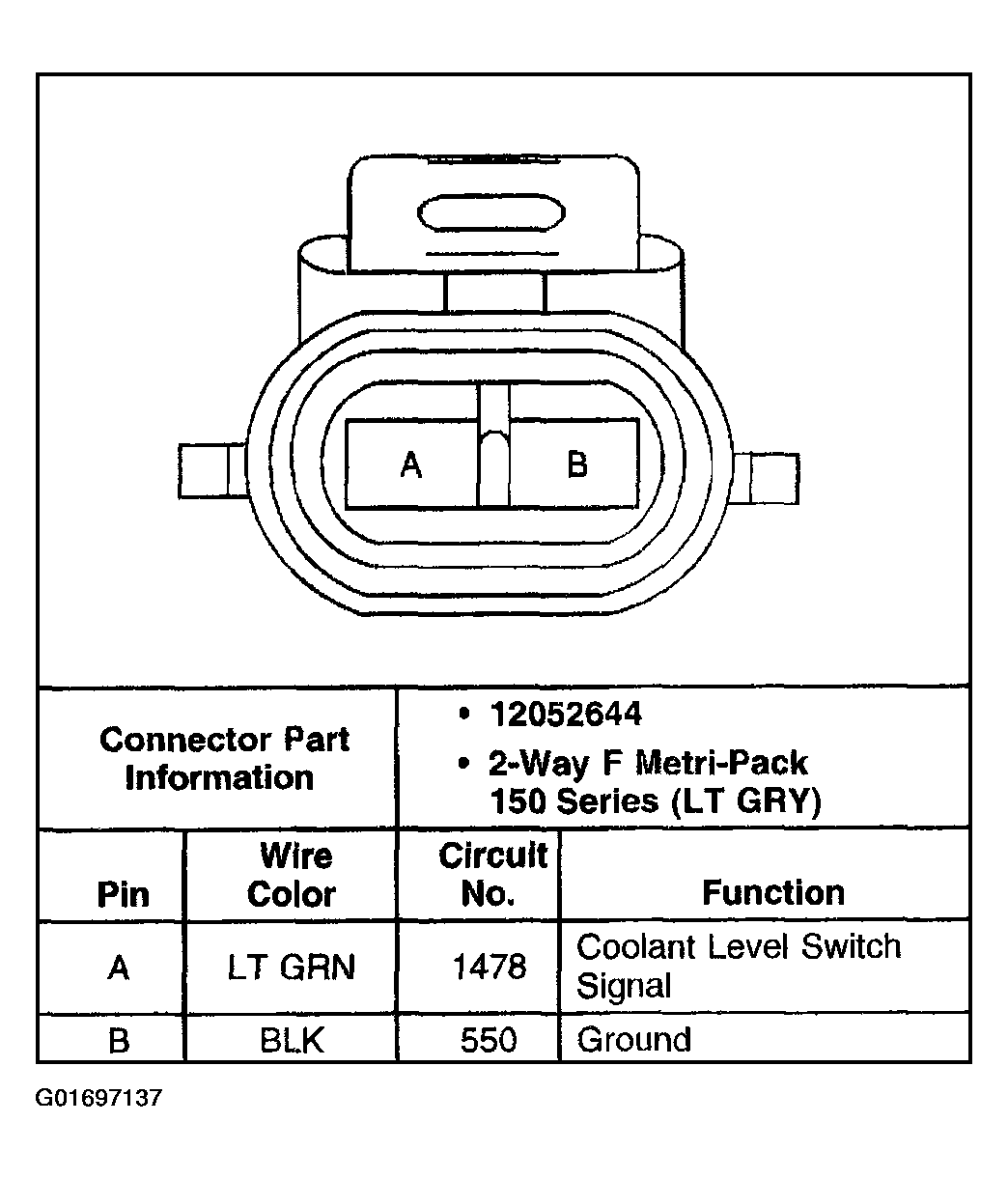

Fig 1: Coolant Level Switch Connector End View
G01697137Courtesy of GENERAL MOTORS CORP.


Coolant Level Switch Connector End View

GM537107Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052644
  • 2-Way F Metri-Pack 150 Series Sealed (GRY)
Pin Wire Color Circuit No. Function
A LT GRN 1478 Coolant Level Switch Signal
B BLK 550 Ground
