Dome Lamp Connector End View -Base

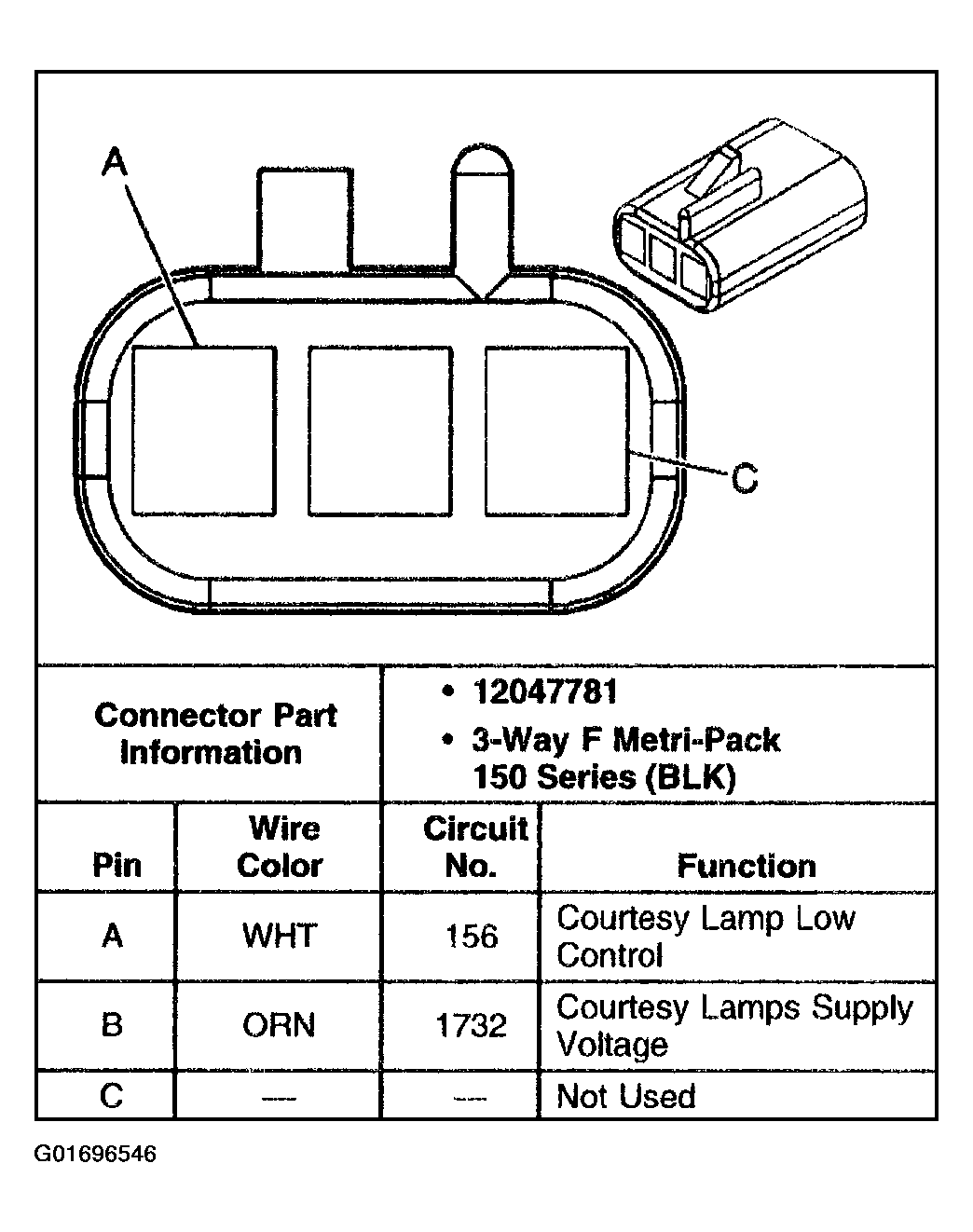

Fig 1: Dome Lamp Connector End View -Base
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
