Identifying Fuel Pump Relay Connector End View (Secondary)

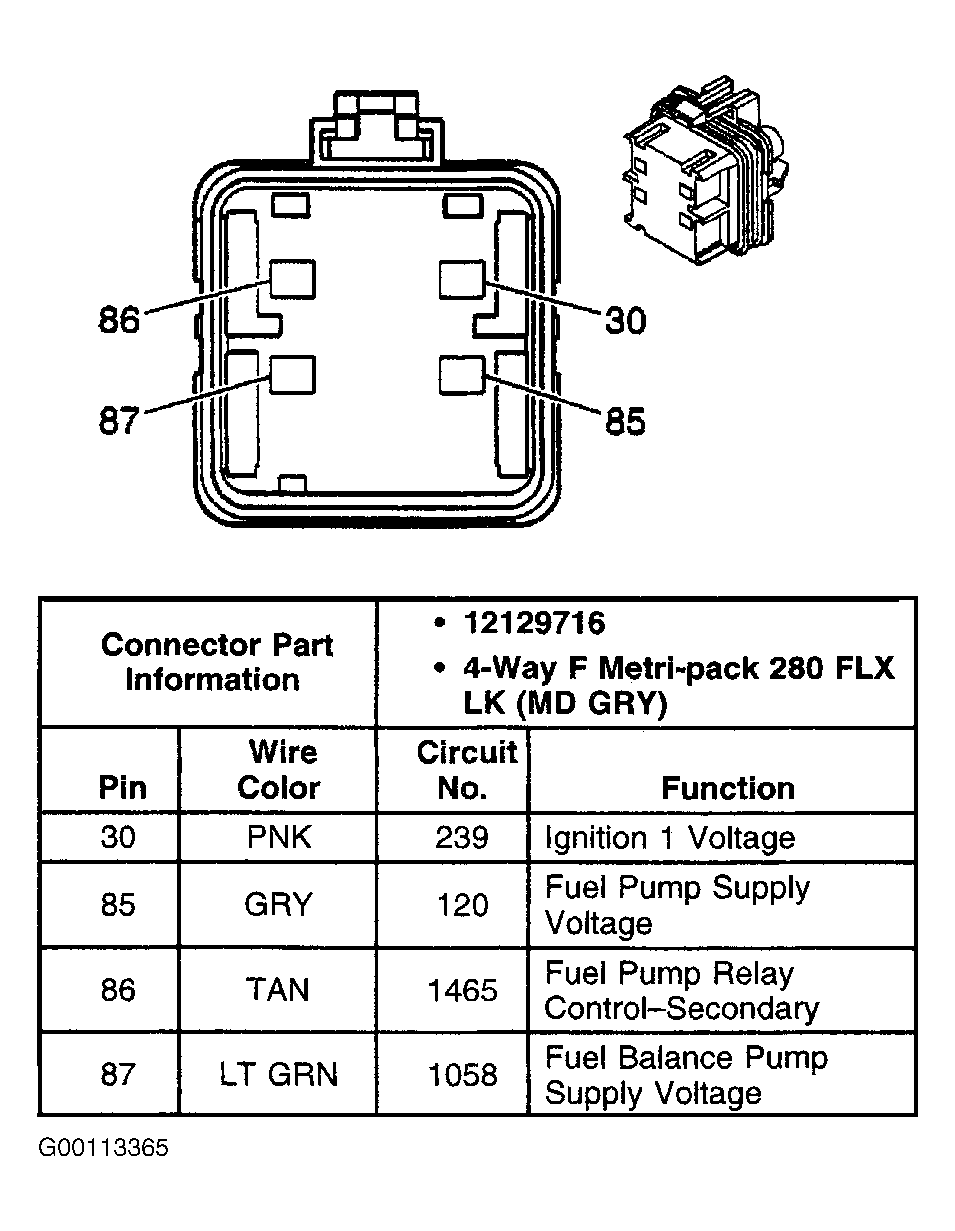

Fig 1: Identifying Fuel Pump Relay Connector End View (Secondary)
G00113365Courtesy of GENERAL MOTORS CORP.
